0-22 — ENGINE MOUNTING (#18957) — 101 parça

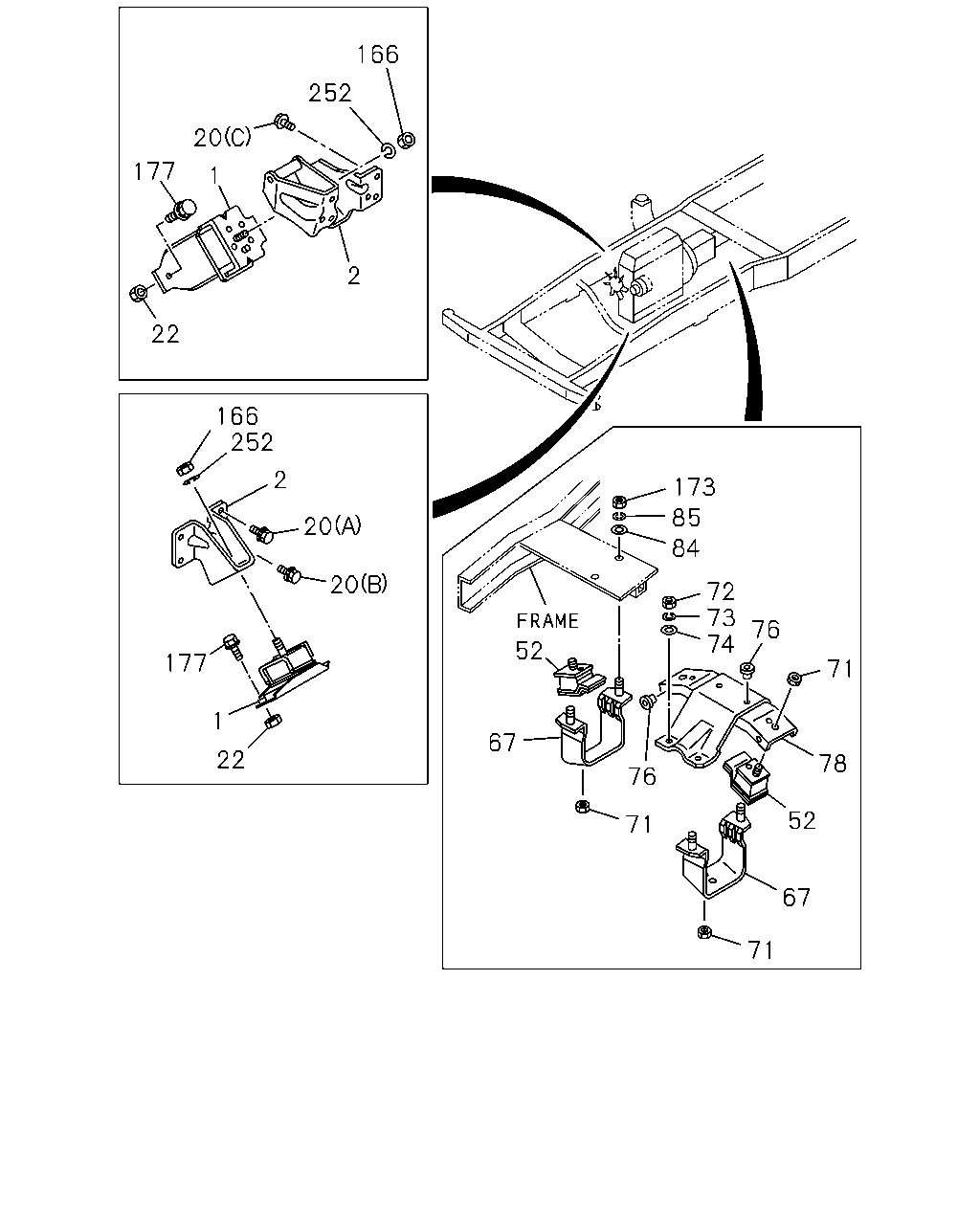

166 252 20 177 1 2 22 166 252 2 173 85 20 84 20 72 73 74 76 52 177 71 1 67 22 78 76 52 71 67 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RUBBER; ENG FOOT,FRT	8-97080-620-0	01	1	0303-0511	●
1	RUBBER; ENG FOOT,FRT	8-97122-893-1	01	1	0512-		●
1	RUBBER; ENG FOOT,FRT	8-97080-621-0	01	1	0303-0511	●
1	RUBBER; ENG FOOT,FRT	8-97122-895-1	01	1	0512-		●
2	FOOT; ENG	8-97287-639-2	01	1	0303-0511	●
2	FOOT; ENG	8-97228-669-2	02	1	0512-		●
2	FOOT; ENG	8-97300-156-0	01	1	0303-0511	●
20	BOLT; ENG FOOT (A) M10X22 W/LK WASHER	0-50041-022-0	05	1	0303-0511	●
20	BOLT; ENG FOOT (D) M10X20 FLANGE	0-28191-020-0	08	1	0512-0512		●
20	BOLT; ENG FOOT (D) M10X20 FLANGE	0-28161-020-0	08	1	0601-		●
20	BOLT; ENG FOOT (B) M14X25 W/LK WASHER	0-50041-425-0	01	1	0303-0511	●
20	BOLT; ENG FOOT (C) M10X28	8-94329-952-1	02	1	0303-0511	●
22	NUT; CUSHION RUBBER TO BRKT M12	9-99110-412-0	02	1	0512-0512		●
22	NUT; CUSHION RUBBER TO BRKT M12 SOU	0-91110-512-0	02	1	0601-0612		●
22	NUT; CUSHION RUBBER TO BRKT M12 FLANGE	0-91180-112-0	02	1	0701-		●
22	NUT; CUSHION RUBBER TO BRKT M10 FLANGE	0-91150-210-0	04	1	0303-0511	●
22	NUT; CUSHION RUBBER TO BRKT M10 FLANGE	0-91150-210-0	04	1	0512-0602		●
22	NUT; CUSHION RUBBER TO BRKT M10 FLANGE SOU	0-91180-210-0	04	1	0603-	●
52	RUBBER; CUSHION,ENG MTG,RR	8-94111-903-1	02	1	0303-0511	●
52	RUBBER; CUSHION,ENG MTG,RR	8-94111-903-1	02	1	0512-		●
67	BRACKET; SUPPORT,ENG MTG,RR	8-94111-908-2	01	1	0303-0511	●
67	BRACKET; SUPPORT,ENG MTG,RR	8-97325-567-0	01	1	0512-		●
67	BRACKET; SUPPORT,ENG MTG,RR	8-94111-909-2	01	1	0303-0511	●
67	BRACKET; SUPPORT,ENG MTG,RR	8-97371-918-0	01	1	0512-		●
71	NUT; SUPPORT RUBBER TO BRKT M10 FLANGE SOU	0-91150-110-0	04	1	0303-0511	●
71	NUT; SUPPORT RUBBER TO BRKT M10 FLANGE SOU	0-91150-110-0	04	1	0512-0602		●
71	NUT; SUPPORT RUBBER TO BRKT M10 FLANGE SOU	0-91180-110-0	04	1	0603-		●
72	NUT; SUPPORT RUBBER TO TRANS M10	9-09110-410-0	04	1	0303-0511	●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=10.2	9-09150-610-0	04	1	0303-0511	●
74	WASHER; PL,SUPPORT RUBBER TO TRANS ID=10.5 OD=22	9-09164-610-0	02	1	0303-0511	●
76	STOPPER; ENG MTG RUBBER	8-94111-904-0	02	1	0303-0511	●
76	STOPPER; ENG MTG RUBBER	8-94111-904-0	06	1	0512-		●
78	BRACKET; ENG MTG,RR	8-97325-561-0	01	1	0512-		●
78	BRACKET; ENG MTG,RR	8-94133-393-2	01	1	0303-0511	●
78	BRACKET; ENG MTG,RR	8-97325-560-0	01	1	0512-		●
84	WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	9-09164-810-0	04	1	0303-0511	●
84	WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	9-09164-810-0	04	1	0512-0605		●
84	WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	0606-		●
85	WASHER; LK,ENG MTG RR TO FRAME ID=10.2	9-09150-610-0	04	1	0303-0511	●
85	WASHER; LK,ENG MTG RR TO FRAME ID=10.2	9-09150-610-0	04	1	0512-0603		●
85	WASHER; LK,ENG MTG RR TO FRAME ID=10.2 SOU	0-91510-610-0	04	1	0604-0610		●
166	NUT; SUPPORT RUBBER M12	9-99110-512-0	02	1	0303-0511	●
173	NUT; ENG MTG RR TO FRAME M10	9-09110-410-0	04	1	0303-0511	●
173	NUT; ENG MTG RR TO FRAME M10	9-09110-410-0	04	1	0512-0512		●
173	NUT; ENG MTG RR TO FRAME M10 SOU	0-91110-510-0	04	1	0601-0610		●
173	NUT; ENG MTG RR TO FRAME M10 FLANGE SOU	0-91180-110-0	04	1	0611-		●
177	BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	0303-0511	●
177	BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	0512-		●
252	WASHER; LK,SUPPORT RUBBER ID=12.2	9-09150-612-0	02	1	0303-0511	●
252	WASHER; LK,SUPPORT RUBBER ID=12.2	9-09150-612-0	02	1	0512-0603		●
252	WASHER; LK,SUPPORT RUBBER ID=12.2	0-91510-612-0	02	1	0604-0612		●

252 20 22 16 177 2 22 1 2 22 252 20 177 1 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RUBBER; ENG FOOT,FRT	8-97080-620-0	01	1	0303-0511	●
1	RUBBER; ENG FOOT,FRT	8-97122-893-1	01	1	0512-		●
1	RUBBER; ENG FOOT,FRT	8-97080-621-0	01	1	0303-0511	●
1	RUBBER; ENG FOOT,FRT	8-97122-895-1	01	1	0512-		●
2	FOOT; ENG	8-97287-639-2	01	1	0303-0511	●
2	FOOT; ENG	8-97228-669-2	02	1	0512-		●
2	FOOT; ENG	8-97300-156-0	01	1	0303-0511	●
16	PROTECTOR; HEAT,ENG MTG,FRT	8-94365-486-0	01	1	0512-		●
20	BOLT; ENG FOOT (A) M10X22 W/LK WASHER	0-50041-022-0	05	1	0303-0511	●
20	BOLT; ENG FOOT (D) M10X20 FLANGE	0-28191-020-0	08	1	0512-0512		●
20	BOLT; ENG FOOT (D) M10X20 FLANGE	0-28161-020-0	08	1	0601-		●
20	BOLT; ENG FOOT (B) M14X25 W/LK WASHER	0-50041-425-0	01	1	0303-0511	●
20	BOLT; ENG FOOT (C) M10X28	8-94329-952-1	02	1	0303-0511	●
22	NUT; CUSHION RUBBER TO BRKT M12	9-99110-412-0	02	1	0512-0512		●
22	NUT; CUSHION RUBBER TO BRKT M12 SOU	0-91110-512-0	02	1	0601-0612		●
22	NUT; CUSHION RUBBER TO BRKT M12 FLANGE	0-91180-112-0	02	1	0701-		●
22	NUT; CUSHION RUBBER TO BRKT M10 FLANGE	0-91150-210-0	04	1	0303-0511	●
22	NUT; CUSHION RUBBER TO BRKT M10 FLANGE	0-91150-210-0	04	1	0512-0602		●
22	NUT; CUSHION RUBBER TO BRKT M10 FLANGE SOU	0-91180-210-0	04	1	0603-	●
177	BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	0303-0511	●
177	BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	0512-		●
252	WASHER; LK,SUPPORT RUBBER ID=12.2	9-09150-612-0	02	1	0303-0511	●
252	WASHER; LK,SUPPORT RUBBER ID=12.2	9-09150-612-0	02	1	0512-0603		●
252	WASHER; LK,SUPPORT RUBBER ID=12.2	0-91510-612-0	02	1	0604-0612		●

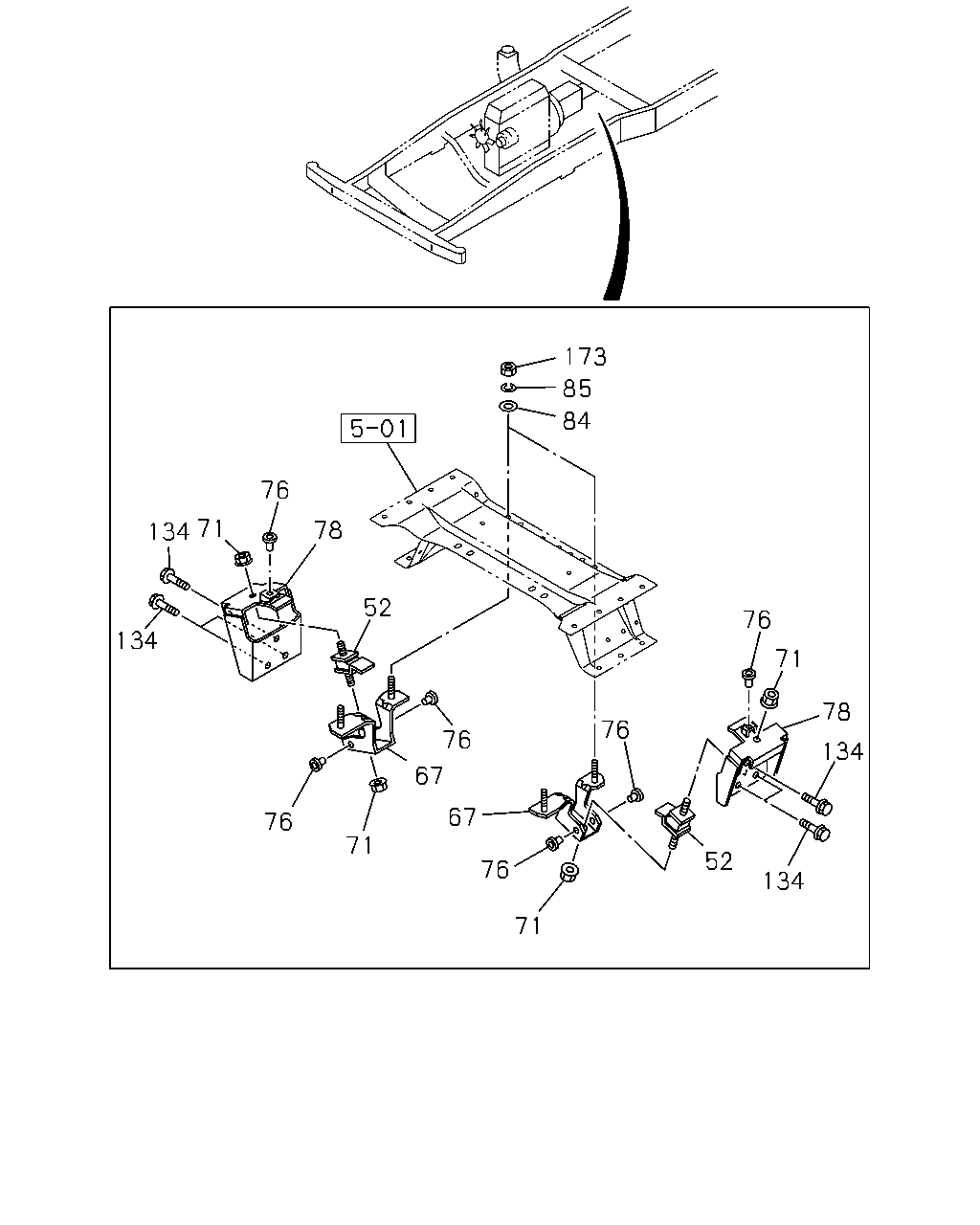

173 85 84 76 134 71 78 52 76 134 71 78 76 76 134 67 67 76 71 52 76 134 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	RUBBER; CUSHION,ENG MTG,RR	8-94111-903-1	02	1	0303-0511	●
52	RUBBER; CUSHION,ENG MTG,RR	8-94111-903-1	02	1	0512-		●
67	BRACKET; SUPPORT,ENG MTG,RR	8-94111-908-2	01	1	0303-0511	●
67	BRACKET; SUPPORT,ENG MTG,RR	8-97325-567-0	01	1	0512-		●
67	BRACKET; SUPPORT,ENG MTG,RR	8-94111-909-2	01	1	0303-0511	●
67	BRACKET; SUPPORT,ENG MTG,RR	8-97371-918-0	01	1	0512-		●
71	NUT; SUPPORT RUBBER TO BRKT M10 FLANGE SOU	0-91150-110-0	04	1	0303-0511	●
71	NUT; SUPPORT RUBBER TO BRKT M10 FLANGE SOU	0-91150-110-0	04	1	0512-0602		●
71	NUT; SUPPORT RUBBER TO BRKT M10 FLANGE SOU	0-91180-110-0	04	1	0603-		●
76	STOPPER; ENG MTG RUBBER	8-94111-904-0	02	1	0303-0511	●
76	STOPPER; ENG MTG RUBBER	8-94111-904-0	06	1	0512-		●
78	BRACKET; ENG MTG,RR	8-97325-561-0	01	1	0512-		●
78	BRACKET; ENG MTG,RR	8-94133-393-2	01	1	0303-0511	●
78	BRACKET; ENG MTG,RR	8-97325-560-0	01	1	0512-		●
84	WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	9-09164-810-0	04	1	0303-0511	●
84	WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	9-09164-810-0	04	1	0512-0605		●
84	WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	0606-		●
85	WASHER; LK,ENG MTG RR TO FRAME ID=10.2	9-09150-610-0	04	1	0303-0511	●
85	WASHER; LK,ENG MTG RR TO FRAME ID=10.2	9-09150-610-0	04	1	0512-0603		●
85	WASHER; LK,ENG MTG RR TO FRAME ID=10.2 SOU	0-91510-610-0	04	1	0604-0610		●
134	BOLT; SUPPORT BRKT M12X25	0-28781-225-0	06	1	0512-0512		●
134	BOLT; SUPPORT BRKT M12X25 FLANGE	0-28751-225-0	06	1	0601-		●
173	NUT; ENG MTG RR TO FRAME M10	9-09110-410-0	04	1	0303-0511	●
173	NUT; ENG MTG RR TO FRAME M10	9-09110-410-0	04	1	0512-0512		●
173	NUT; ENG MTG RR TO FRAME M10 SOU	0-91110-510-0	04	1	0601-0610		●
173	NUT; ENG MTG RR TO FRAME M10 FLANGE SOU	0-91180-110-0	04	1	0611-		●
