0-14 — CAMSHAFT AND VALVE (#18954) — 158 parça

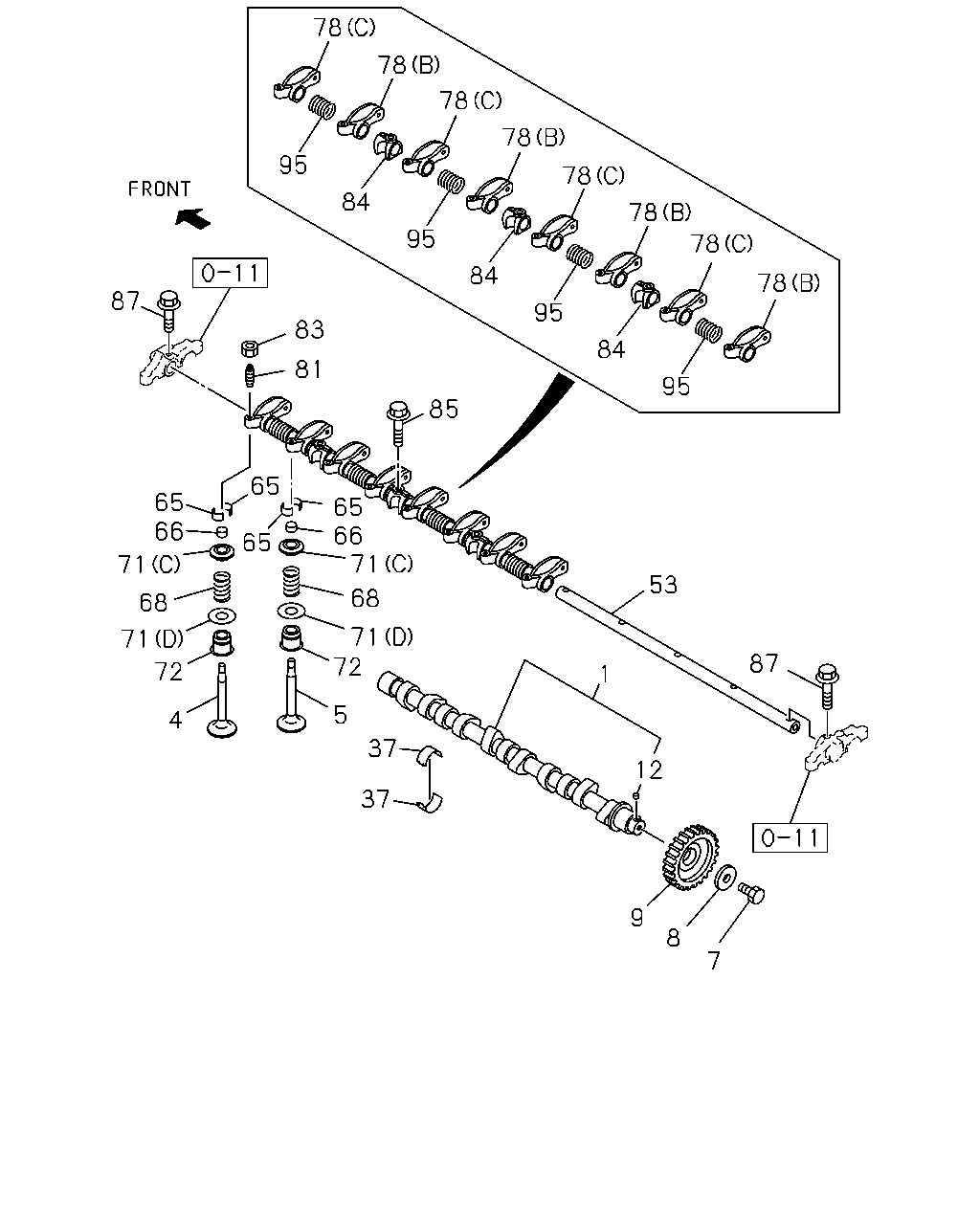

78 78 78 78 95 78 84 78 95 78 84 78 87 95 83 84 81 95 85 65 66 71 65 65 66 65 71 53 68 68 71 72 71 87 72 1 5 4 37 12 37 9 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	8-97287-657-1	01	1	0303-0511	●
1	CAMSHAFT	8-97077-829-0	01	1	0512-		●
4	VALVE; INL	8-94464-921-1	04	1	0303-0511	●
4	VALVE; INL	8-97171-398-0	04	1	0512-		●
5	VALVE; EXH	8-94433-245-0	04	1	0303-0511	●
5	VALVE; EXH	8-97171-399-0	04	1	0512-		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0512-		●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0512-		●
9	GEAR; CM/SHF Z=42	8-97079-212-1	01	1	0303-0511	●
9	GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	0512-		●
12	KEY; CAM GEAR SET	8-94399-487-0	01	1	0512-		●
37	METAL; CM/SHF B=16	8-97356-939-0	10	1	0512-0706		●
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	0707-		●
53	SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0512-		●
53	SHAFT; ROCKER ARM	8-97036-197-0	01	1	0303-0511	●
53	SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0512-		●
65	COLLAR; SPLIT	5-12565-004-0	16	1	0303-0511	●
65	COLLAR; SPLIT	5-12565-006-0	16	1	0512-		●
66	CAP; VLV STEM END	8-94396-015-2	08	1	0512-		●
68	SPRING; VLV ID=26.25	8-94433-247-0	08	1	0303-0511	●
68	SPRING; VLV ID=28.5	8-97023-559-0	08	1	0512-		●
71	SEAT; SPR (A) LOWER OD=34	5-12563-001-0	08	1	0303-0511	●
71	SEAT; SPR (D) LOWER ID=14.3 OD=40	8-94399-526-1	08	1	0512-		●
71	SEAT; SPR (B) UPPER OD=32.8	8-94133-731-2	08	1	0303-0511	●
71	SEAT; SPR (C) UPPER OD=38	8-94385-029-2	08	1	0512-		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0303-0511	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	0512-		●
78	ARM; ROCKER (C) JBK	8-97074-614-1	04	1	0512-		●
78	ARM; ROCKER (C) KEIHIN SEIMITSU	8-97174-562-0	04	1	0512-		●
78	ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0512-		●
78	ARM; ROCKER (A)	8-94152-344-0	08	1	0303-0511	●
78	ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0512-		●
81	SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	0303-0511	●
81	SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0512-		●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	0303-0511	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	08	1	0512-0512		●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0601-		●
84	BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0512-		●
84	BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0303-0511	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0512-		●
85	BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	0512-		●
85	BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0303-0511	●
85	BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	0512-		●
87	BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	0303-0511	●
87	BOLT; ROCKER SHAFT M8X35 FLANGE	0-28080-835-0	04	1	0512-0512		●
87	BOLT; ROCKER SHAFT M8X35 FLANGE	0-28050-835-0	04	1	0601-		●
95	SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0512-		●
95	SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0303-0511	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0512-		●

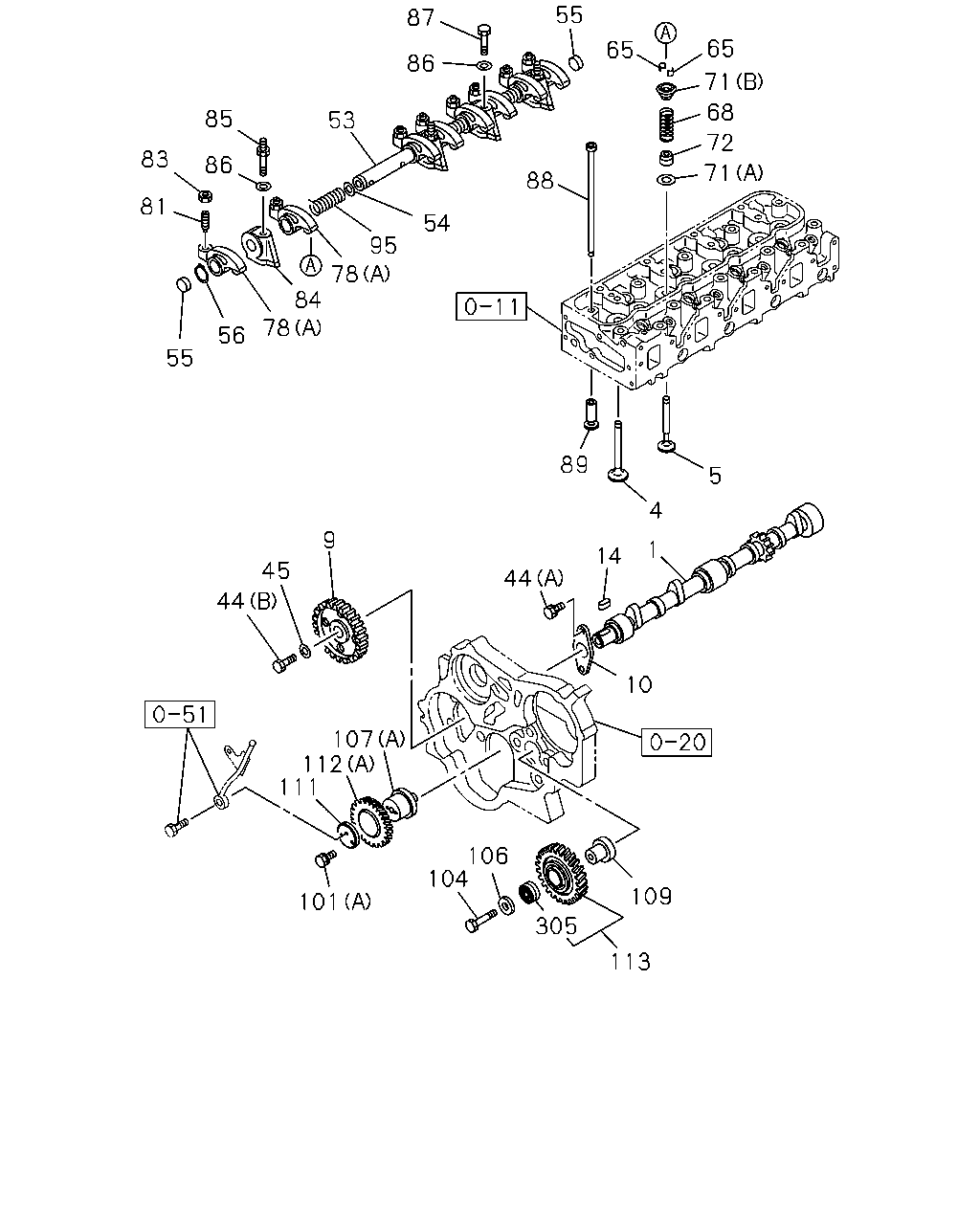

55 87 65 65 86 71 68 85 53 72 83 86 71 88 81 54 95 78 84 78 56 55 89 5 4 9 1 14 45 44 44 10 107 112 111 106 104 109 101 305 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	8-97287-657-1	01	1	0303-0511	●
1	CAMSHAFT	8-97077-829-0	01	1	0512-		●
4	VALVE; INL	8-94464-921-1	04	1	0303-0511	●
4	VALVE; INL	8-97171-398-0	04	1	0512-		●
5	VALVE; EXH	8-94433-245-0	04	1	0303-0511	●
5	VALVE; EXH	8-97171-399-0	04	1	0512-		●
9	GEAR; CM/SHF Z=42	8-97079-212-1	01	1	0303-0511	●
9	GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	0512-		●
10	PLATE; THRUST	8-94110-480-1	01	1	0303-0511	●
14	KEY; CM/SHF	9-08000-718-0	01	1	0303-0511	●
44	BOLT (A) M8X16 FLANGE	0-28080-816-0	02	1	0303-0511	●
44	BOLT (B) M12X47	8-94433-407-0	01	1	0303-0511	●
45	WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0303-0511	●
53	SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0512-		●
53	SHAFT; ROCKER ARM	8-97036-197-0	01	1	0303-0511	●
53	SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0512-		●
54	WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	0303-0511	●
55	PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	0303-0511	●
56	RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0303-0511	●
65	COLLAR; SPLIT	5-12565-004-0	16	1	0303-0511	●
65	COLLAR; SPLIT	5-12565-006-0	16	1	0512-		●
68	SPRING; VLV ID=26.25	8-94433-247-0	08	1	0303-0511	●
68	SPRING; VLV ID=28.5	8-97023-559-0	08	1	0512-		●
71	SEAT; SPR (A) LOWER OD=34	5-12563-001-0	08	1	0303-0511	●
71	SEAT; SPR (D) LOWER ID=14.3 OD=40	8-94399-526-1	08	1	0512-		●
71	SEAT; SPR (B) UPPER OD=32.8	8-94133-731-2	08	1	0303-0511	●
71	SEAT; SPR (C) UPPER OD=38	8-94385-029-2	08	1	0512-		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0303-0511	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	0512-		●
78	ARM; ROCKER (C) JBK	8-97074-614-1	04	1	0512-		●
78	ARM; ROCKER (C) KEIHIN SEIMITSU	8-97174-562-0	04	1	0512-		●
78	ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0512-		●
78	ARM; ROCKER (A)	8-94152-344-0	08	1	0303-0511	●
78	ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0512-		●
81	SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	0303-0511	●
81	SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0512-		●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	0303-0511	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	08	1	0512-0512		●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0601-		●
84	BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0512-		●
84	BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0303-0511	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0512-		●
85	BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	0512-		●
85	BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0303-0511	●
85	BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	0512-		●
86	WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0303-0511	●
87	BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	0303-0511	●
87	BOLT; ROCKER SHAFT M8X35 FLANGE	0-28080-835-0	04	1	0512-0512		●
87	BOLT; ROCKER SHAFT M8X35 FLANGE	0-28050-835-0	04	1	0601-		●
88	ROD; PUSH	8-97071-673-0	08	1	0303-0511	●
89	TAPPET; VLV	8-94438-305-1	08	1	0303-0511	●
95	SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0512-		●
95	SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0303-0511	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0512-		●
101	BOLT; THRUST COLLAR (D) M14X36.5	8-94372-221-1	01	1	0512-		●
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0512-		●
101	BOLT; THRUST COLLAR (A) M8X53 FLANGE	8-97223-999-0	02	1	0303-0511	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0512-0512		●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0601-		●
104	BOLT; SHAFT IDLE	8-94109-706-1	01	1	0303-0511	●
106	WASHER; IDLE GEAR SHAFT ID=13 OD=36	5-12519-002-1	01	1	0303-0511	●
107	SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0512-		●
107	SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0512-		●
107	SHAFT; IDLE GEAR POWER STEERING<N40> (E)	8-94334-682-0	01	1	0512-		●
107	SHAFT; IDLE GEAR (A)	8-94139-758-1	01	1	0303-0511	●
107	SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	0512-0609		●
107	SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	0610-		●
109	SHAFT; IDLE GEAR	8-94109-913-1	01	1	0303-0511	●
111	COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	0303-0511	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	0512-		●
111	COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-2	01	1	0512-		●
112	GEAR; IDLE (D) Z=82	8-97088-055-2	01	1	0512-		●
112	GEAR; IDLE (E) Z=72-60	8-97227-213-0	01	1	0512-		●
112	GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-1	01	1	0512-		●
112	GEAR; IDLE (A) Z=31	8-97164-773-0	01	1	0303-0511	●
112	GEAR; IDLE (C) Z=122	8-97088-053-2	01	1	0512-		●
113	GEAR; IDLE Z=37	8-94139-761-0	01	1	0303-0511	●
305	BEARING; IDLE GEAR	8-94110-271-0	01	1	0303-0511	●

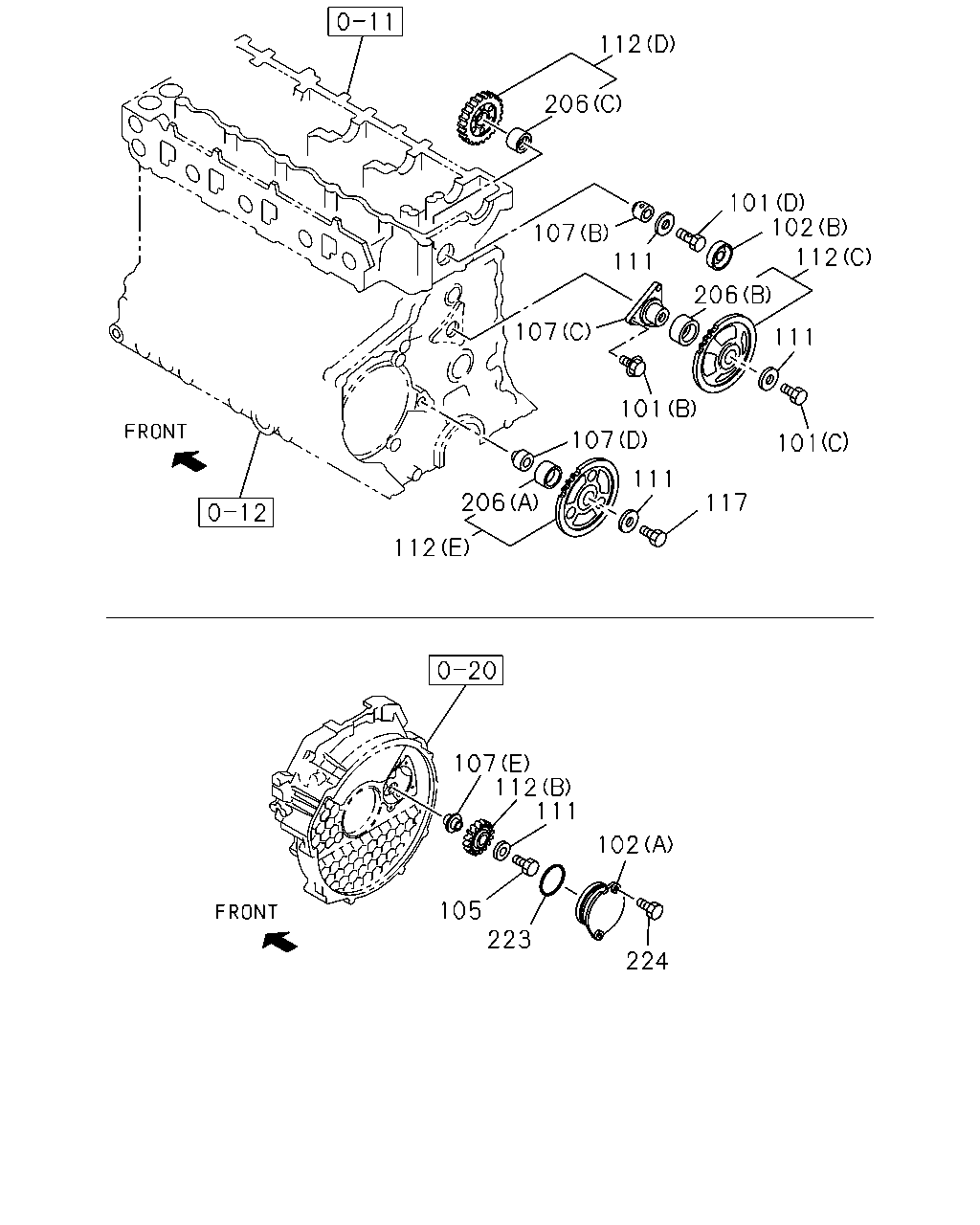

112 206 101 102 112 107 111 206 107 111 101 107 101 111 206 117 112 107 112 111 102 105 223 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BOLT; THRUST COLLAR (D) M14X36.5	8-94372-221-1	01	1	0512-		●
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0512-		●
101	BOLT; THRUST COLLAR (A) M8X53 FLANGE	8-97223-999-0	02	1	0303-0511	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0512-0512		●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0601-		●
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0512-		●
102	COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0512-		●
105	BOLT; IDLE GEAR SHAFT POWER STEERING<N40> M14X60	9-91666-460-0	01	1	0512-0512		●
105	BOLT; IDLE GEAR SHAFT POWER STEERING<N40> M14X60	0-16956-460-0	01	1	0601-		●
107	SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0512-		●
107	SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0512-		●
107	SHAFT; IDLE GEAR POWER STEERING<N40> (E)	8-94334-682-0	01	1	0512-		●
107	SHAFT; IDLE GEAR (A)	8-94139-758-1	01	1	0303-0511	●
107	SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	0512-0609		●
107	SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	0610-		●
111	COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	0303-0511	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	0512-		●
111	COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-2	01	1	0512-		●
112	GEAR; IDLE (D) Z=82	8-97088-055-2	01	1	0512-		●
112	GEAR; IDLE (E) Z=72-60	8-97227-213-0	01	1	0512-		●
112	GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-1	01	1	0512-		●
112	GEAR; IDLE (A) Z=31	8-97164-773-0	01	1	0303-0511	●
112	GEAR; IDLE (C) Z=122	8-97088-053-2	01	1	0512-		●
117	BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0512-		●
206	BUSHING; IDLE GEAR (A)	1-12528-006-0	01	1	0512-		●
206	BUSHING; IDLE GEAR (B)	8-94369-340-0	01	1	0512-0802		●
206	BUSHING; IDLE GEAR (B)	8-97606-768-0	01	1	0803-		●
206	BUSHING; IDLE GEAR (C)	8-97112-608-0	01	1	0512-		●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0512-		●
224	BOLT; COVER M8X16 FLANGE	0-28080-816-0	02	1	0512-0512		●
224	BOLT; COVER M8X16 FLANGE SOU	0-28050-816-0	02	1	0601-		●
