◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50953 - NKR(SOUTH AFRICA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#18953) — 45 parça

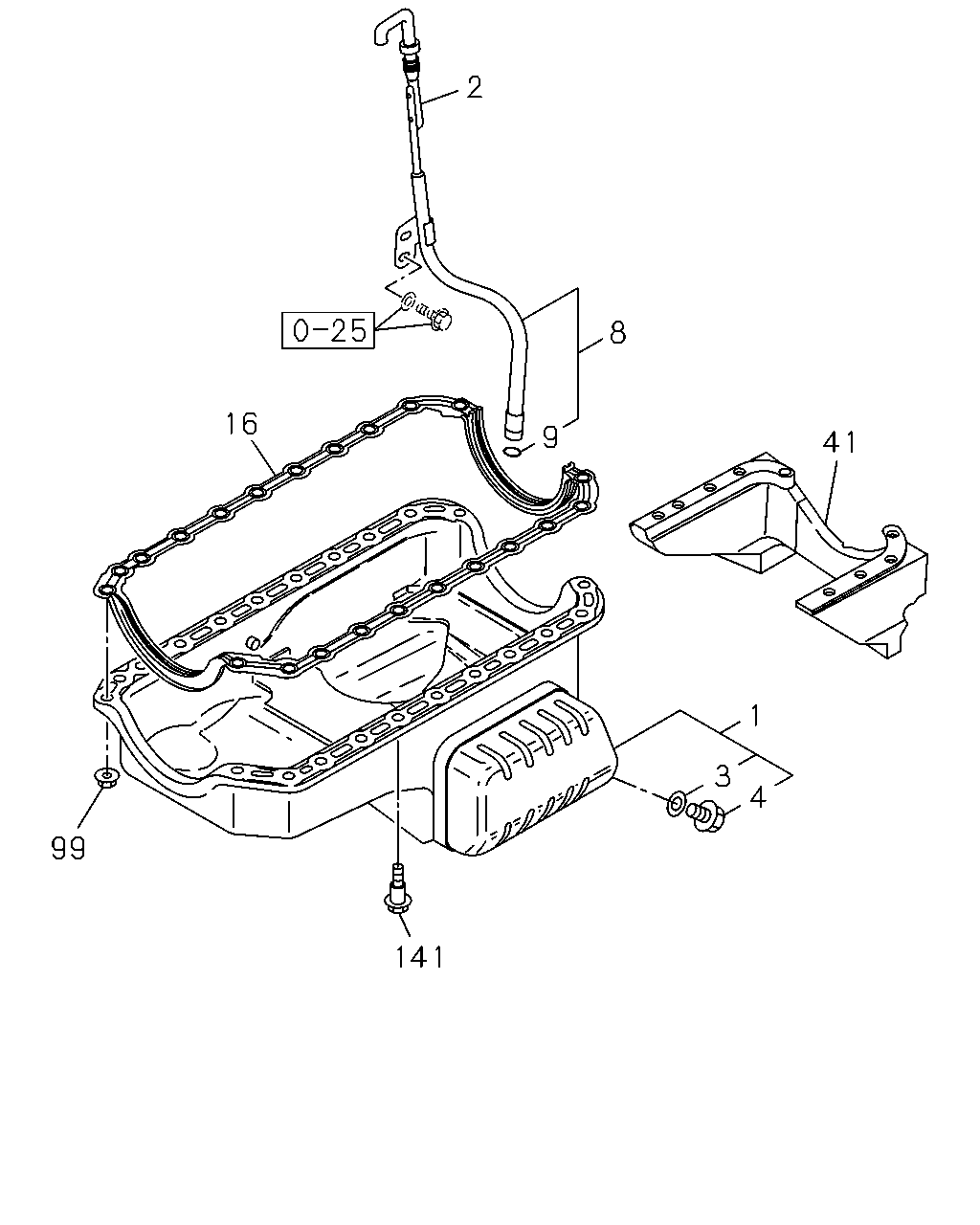

çizim 54187
2 8 16 9 41 1 3 4 99 141
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL 8-97083-322-3 01 1 0303-0411 ●
1 PAN ASM; OIL 8-98000-123-0 01 1 0412-0511 ●
1 PAN ASM; OIL 8-97385-249-0 01 1 0512- ●
2 GAUGE; OIL LEVEL 8-97231-295-0 01 1 0303-0511 ●
2 GAUGE; OIL LEVEL 8-97094-460-2 01 1 0512- ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0303-0511 ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0512- ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 0303-0511 ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 0512- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97044-886-0 01 1 0303-0511 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97101-907-1 01 1 0512- ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 01 1 0303-0511 ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 0512- ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97080-194-0 01 1 0303-0511 ●
41 RUBBER; SPACE 8-97286-992-0 01 1 0303-0511 ●
99 NUT; BRKT TO OIL PAN FIX
M8 FLANGE 		5-09440-010-0 10 1 0303-0511 ●
141 BOLT; BRKT TO OIL PAN FIX 8-94133-973-2 12 1 0303-0511 ●
çizim 54805
2 194 50 10 123 9 9 123 123 8 17 123 3 1 4 24 25 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL 8-97083-322-3 01 1 0303-0411 ●
1 PAN ASM; OIL 8-98000-123-0 01 1 0412-0511 ●
1 PAN ASM; OIL 8-97385-249-0 01 1 0512- ●
2 GAUGE; OIL LEVEL 8-97231-295-0 01 1 0303-0511 ●
2 GAUGE; OIL LEVEL 8-97094-460-2 01 1 0512- ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0303-0511 ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0512- ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 0303-0511 ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 0512- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97044-886-0 01 1 0303-0511 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97101-907-1 01 1 0512- ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 01 1 0303-0511 ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 0512- ●
10 BOLT; GUIDE TUBE
M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ●
10 BOLT; GUIDE TUBE
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
17 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97364-386-0 01 1 0512- ●
23 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 0512- ●
24 NUT; OIL PAN
M8 FLANGE SOU 		0-91150-108-0 13 1 0512-0602 ●
24 NUT; OIL PAN
M8 FLANGE SOU 		0-91180-108-0 13 1 0603- ●
25 STUD; OIL PAN
M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE 		8-97190-391-0 01 1 0512- ●
25 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 09 1 0512- ●
50 WASHER; PL,GUIDE TUBE
ID=10.5 OD=22 		9-09164-610-0 01 1 0512-0605 ●
50 WASHER; PL,GUIDE TUBE
ID=10.5 OD=22 		0-91614-610-0 01 1 0606- ●
123 RUBBER; SEAL OIL
(A) 		8-97186-988-0 01 1 0512- ●
123 RUBBER; SEAL OIL
(B) 		8-97186-994-0 01 1 0512- ●
123 RUBBER; SEAL OIL
(C) 		8-97186-998-0 01 1 0512- ●
123 RUBBER; SEAL OIL
(D) 		8-97187-000-0 01 1 0512- ●
194 SPACER; GUIDE TUBE 8-97101-215-0 01 1 0512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
