◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50950 - NPR/NQR(EUROPE)-RHD ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#18947) — 131 parça

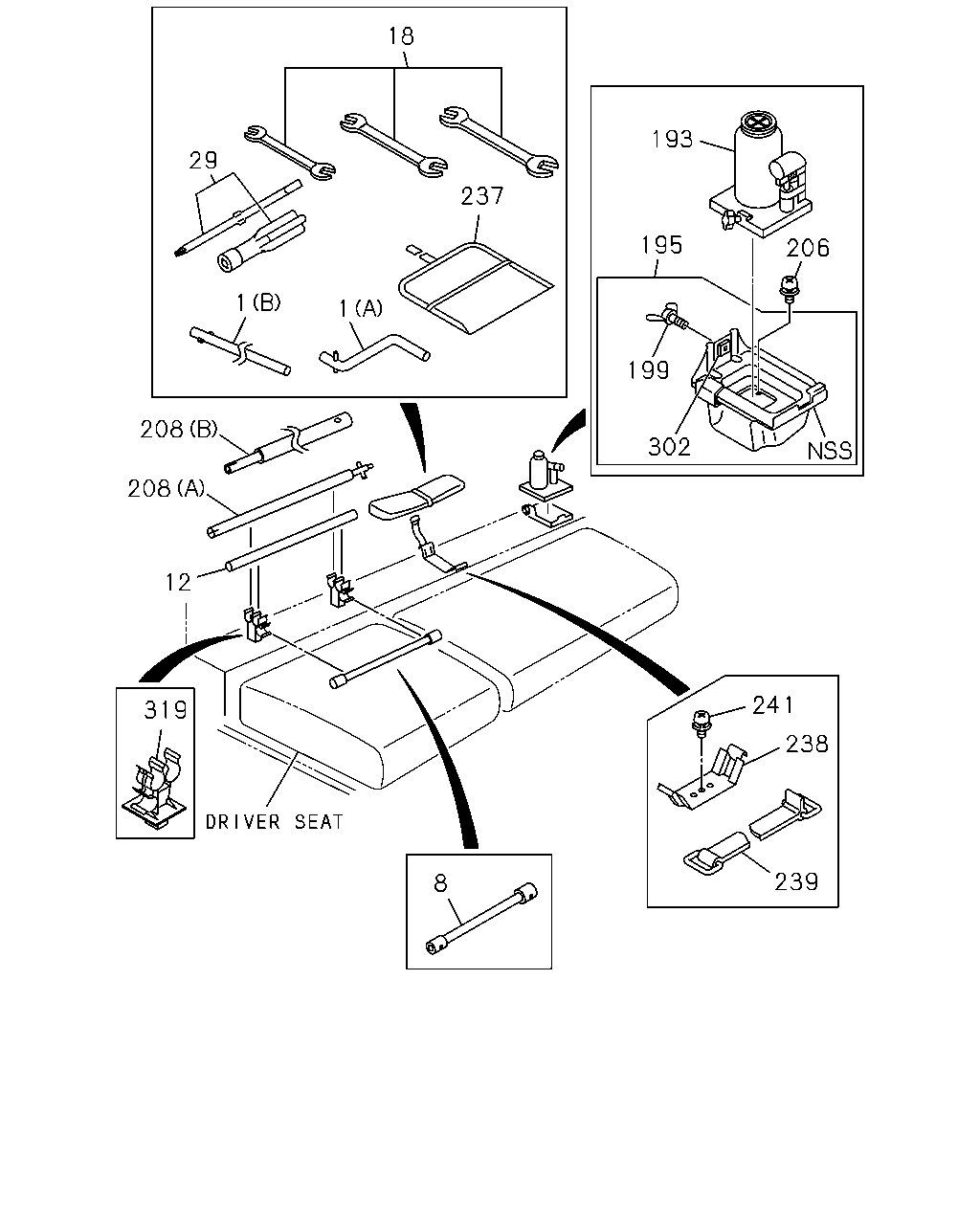

çizim 52766
18 29 1 1 237 193 206 195 199 302 208 208 12 319 8 239 238 241
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 07.629 HANDLE; SPARE TIRE CARRIER
08.821 (B) L=280 		1-85515-007-0 01 1 0302-0506 ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280 		1-85515-007-0 01 1 0302-0506 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280 		1-85515-007-0 01 1 0507-0606 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
08.821 (B) L=280 		1-85515-007-0 01 1 0507-0606 ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280 		1-85515-007-0 01 1 0607-1108 ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
FRAME STRAIGHT TYPE<7KJ> (B) L=280 		8-98181-251-0 01 1 1109- ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97218-985-0 01 1 0302-0506 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 0302-0506 ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 0507-0606 ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97218-985-0 01 1 0507-0606 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 0607- ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97218-985-0 01 1 0607- ● ●
8 08.821 WRENCH; WHEEL
B=41X21 L=440 		1-85113-015-1 01 1 0302-0506 ● ● ● ● ●
8 08.821 WRENCH; WHEEL
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) B=41X21 L=440 		1-85113-015-1 01 1 0302-0506 ● ●
8 08.821 WRENCH; WHEEL
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) B=41X21 L=440 		1-85113-015-1 01 1 0507- ● ●
8 08.821 WRENCH; WHEEL
B=41X21 L=440 		1-85113-015-1 01 1 0507- ● ● ●
8 08.821 WRENCH; WHEEL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) B=41X19 L=330 		8-94386-490-1 01 1 0302-0506 ●
8 08.821 WRENCH; WHEEL
B=41X19 L=330 		8-94386-490-1 01 1 0507- ●
8 08.821 WRENCH; WHEEL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) B=41X19 L=330 		8-94386-490-1 01 1 0507- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590 		8-97332-988-0 01 1 0302-0506 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-97332-988-0 01 1 0302-0506 ● ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-97332-988-0 01 1 0507-0606 ● ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590 		8-97332-988-0 01 1 0507-0606 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-97332-988-0 01 1 0607-1001 ● ● ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590 		8-97332-988-0 01 1 0607-1001 ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
08.820 OD=25 L=480 		1-85116-011-0 01 1 1002- ● ● ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1002- ● ●
18 08.821 WRENCH KIT 9-85161-902-0 01 1 0607- ● ● ● ● ●
18 08.821 WRENCH KIT
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 		9-85161-902-0 01 1 0607- ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 0302-0506 ● ● ● ● ● ●
29 08.821 DRIVER; SCREW
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) <+>,<-> L=160 		8-94242-798-1 01 1 0302-0506 ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 0507- ● ● ● ● ●
29 08.821 DRIVER; SCREW
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) <+>,<-> L=160 		8-94242-798-1 01 1 0507- ●
193 08.820 JACK ASM
(AUJ),(AUS),(AVK),(AYS),(BQU),(BQV), (BRT),(CQB),(CQC),(9HY) 4TON 		8-97131-075-2 01 1 0302-0302 ● ● ● ● ● ● ●
193 08.820 JACK ASM
(AUJ),(AUS),(AVK),(AYS),(BQU),(BQV), (BRT),(CQB),(CQC),(CQT),(CQU),(9HY) 4TON 		8-97131-075-2 01 1 0303-0305 ● ● ● ● ● ● ●
193 08.820 JACK ASM
(AUJ),(AUS),(AVK),(AYS),(BQU),(BQV), (BRT),(CQB),(CQC),(CQT),(CQU),(9HY) 4TON 		8-97371-123-0 01 1 0306-0501 ● ● ● ● ● ● ●
193 08.820 JACK ASM
(AUJ),(BRT),(CQB),(CQC),(CQT),(CRV), (CRW) 4TON 		8-97371-123-0 01 1 0502-0504 ● ● ●
193 08.820 JACK ASM
(AUJ),(BQU),(BQV),(BRT),(CQB),(CQC), (CQT),(CRV),(CRW),(9HY) 4TON 		8-97371-123-0 01 1 0502-0504 ●
193 08.820 JACK ASM
(AUJ),(CQB),(CQC),(CRV),(CRW) 4TON 		8-97371-123-0 01 1 0502-0504 ● ● ●
193 08.820 JACK ASM
(AUJ),(BRT),(CQB),(CQC),(CQT),(CRV), (CRW) 4TON 		8-98012-285-0 01 1 0505-0506 ● ● ●
193 08.820 JACK ASM
(AUJ),(BQU),(BQV),(BRT),(CQB),(CQC), (CQT),(CRV),(CRW),(9HY) 4TON 		8-98012-285-0 01 1 0505-0506 ●
193 08.820 JACK ASM
(AUJ),(CQB),(CQC),(CRV),(CRW) 4TON 		8-98012-285-0 01 1 0505-0506 ● ● ●
193 08.820 JACK ASM
(BQU),(BQV),(9HY) 4TON 		8-98012-285-0 01 1 0507-0606 ●
193 08.820 JACK ASM
(AUJ),(BQU),(BQV),(CQB),(CQC),(CRV), (CRW),(9HY) 4TON 		8-98012-285-0 01 1 0507-0606 ●
193 08.820 JACK ASM
(AUJ),(CQB),(CQC),(CRV),(CRW) 4TON 		8-98012-285-0 01 1 0507-0606 ● ● ● ●
193 08.820 JACK ASM
(BQU),(BQV),(9HY) 4TON 		8-98012-285-0 01 1 0607- ●
193 08.820 JACK ASM
(AUJ),(BQU),(BQV),(CQB),(CQC),(CRV), (CRW),(9HY) 4TON 		8-98012-285-0 01 1 0607- ●
193 08.820 JACK ASM
(AUJ),(CQB),(CQC),(CRV),(CRW) 4TON 		8-98012-285-0 01 1 0607- ● ● ●
193 08.820 JACK ASM
(AUJ),(CQB),(CQC),(CRV) 4TON 		8-98012-285-0 01 1 0607- ●
195 08.820 BRACKET; JACK 8-94262-068-3 01 1 0302-0506 ● ● ● ● ● ● ●
195 08.820 BRACKET; JACK 8-94262-068-3 01 1 0507-0805 ● ● ● ● ● ●
195 08.820 BRACKET; JACK 8-94262-068-3 01 1 0806- ● ● ● ● ● ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 0302-0506 ● ● ● ● ● ● ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 0507-0805 ● ● ● ● ● ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 0806- ● ● ● ● ● ●
206 08.820 SCREW; OIL JACK BRKT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0302-0506 ● ● ● ● ● ● ●
206 08.820 SCREW; OIL JACK BRKT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0507-0612 ● ● ● ● ● ●
206 08.820 SCREW; OIL JACK BRKT
16.570 M6X16 		0-38050-616-0 01 1 0701- ● ● ● ● ● ●
208 08.820 HANDLE; JACK
(B) L=580 		1-85515-005-1 01 1 0302-0506 ● ● ●
208 08.820 HANDLE; JACK
FRAME STRAIGHT TYPE<7KJ> (B) L=580 		1-85515-005-1 01 1 0302-0506 ●
208 08.820 HANDLE; JACK
FRAME STRAIGHT TYPE<7KJ> (B) L=580 		1-85515-005-1 01 1 0507-0606 ●
208 08.820 HANDLE; JACK
(B) L=580 		1-85515-005-1 01 1 0507-0606 ● ●
208 08.820 HANDLE; JACK
FRAME STRAIGHT TYPE<7KJ> (B) L=580 		1-85515-005-1 01 1 0607-1108 ● ●
208 08.820 HANDLE; JACK
FRAME STRAIGHT TYPE<7KJ> (B) L=580 		8-98181-249-0 01 1 1109- ● ●
208 08.820 HANDLE; JACK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642 		8-97217-800-0 01 1 0302-0506 ●
208 08.820 HANDLE; JACK
(A) L=642 		8-97217-800-0 01 1 0302-0506 ● ● ●
208 08.820 HANDLE; JACK
(A) L=642 		8-97217-800-0 01 1 0507-0606 ● ● ●
208 08.820 HANDLE; JACK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642 		8-97217-800-0 01 1 0507-0606 ●
208 08.820 HANDLE; JACK
(A) L=642 		8-97217-800-0 01 1 0607-1108 ● ● ● ●
208 08.820 HANDLE; JACK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642 		8-97217-800-0 01 1 0607-1108 ● ●
208 08.820 HANDLE; JACK
(A) L=642 		8-98181-477-0 01 1 1109- ● ● ● ●
208 08.820 HANDLE; JACK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642 		8-98181-477-0 01 1 1109- ● ●
237 08.821 BAG; TOOL 8-97130-903-0 01 1 0302-0506 ● ● ● ● ● ●
237 08.821 BAG; TOOL
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 		8-97130-903-0 01 1 0302-0506 ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 0507- ● ● ● ● ●
237 08.821 BAG; TOOL
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 		8-97130-903-1 01 1 0507- ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0302-0506 ● ● ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0507- ● ● ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0302-0506 ● ● ● ● ● ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0507- ● ● ● ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0302-0506 ● ● ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0507-0612 ● ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 0701- ● ● ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 0302-0506 ● ● ● ● ● ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 0507-0805 ● ● ● ● ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 0806- ● ● ● ● ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 0302-0506 ● ● ● ● ● ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 0507- ● ● ● ● ● ●

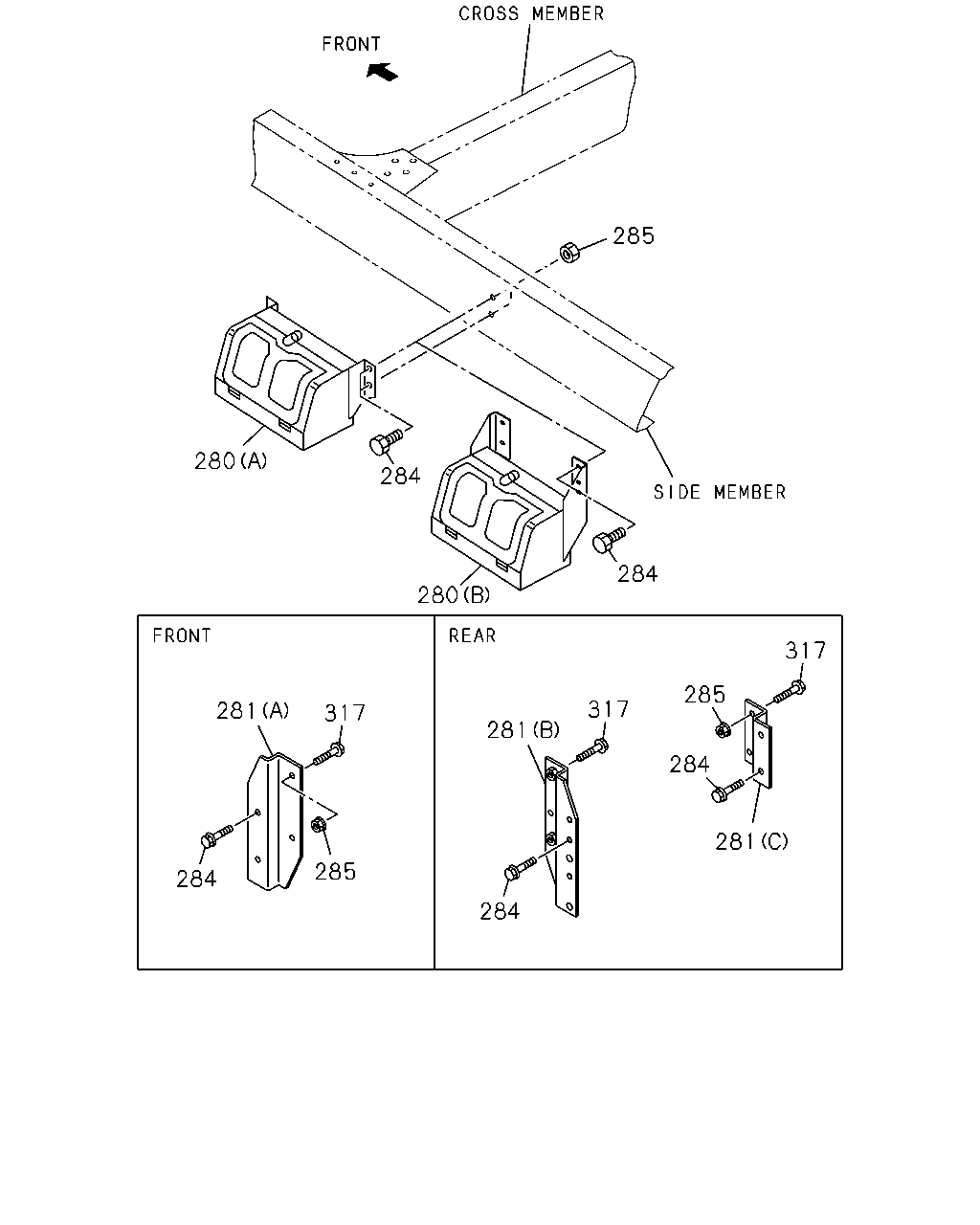

çizim 53341
285 280 284 284 280 317 285 317 281 317 281 284 281 285 284 284
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> (B) 		8-94123-034-1 01 1 0507- ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> (A) 		8-97222-496-0 01 1 0302-0506 ● ● ● ● ● ● ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> (A) 		8-97222-496-0 01 1 0507- ● ● ● ● ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> (C) 		8-97248-971-0 01 1 0302-0506 ●
281 08.821 BRACKET; TOOL BOX
4HK1-TCN ENG(RDQ) TOOL & STORAGE BOX<VK2> (C) 		8-97248-971-0 01 1 0507-0606 ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> (A) 		8-97209-719-0 01 1 0302-0506 ● ●
281 08.821 BRACKET; TOOL BOX
4HK1-TCN ENG(RDQ) TOOL & STORAGE BOX<VK2> (A) 		8-97209-719-0 01 1 0507-0606 ●
281 08.821 BRACKET; TOOL BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TOOL & STORAGE BOX<VK2> (A) 		8-97209-719-0 01 1 0507-0606 ●
281 08.821 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (A) 		8-97209-719-0 01 1 0607- ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> (B) 		8-97095-539-0 01 1 0302-0506 ●
281 08.821 BRACKET; TOOL BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TOOL & STORAGE BOX<VK2> (B) 		8-97095-539-0 01 1 0507-0606 ●
281 08.821 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (B) 		8-97095-539-0 01 1 0607- ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 03 1 0302-0506 ●
284 08.821 BOLT; TOOL BOX
4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 03 1 0507-0512 ●
284 08.821 BOLT; TOOL BOX
4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0601-0606 ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0607- ● ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0302-0506 ● ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0507-0512 ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0507-0512 ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0601-0606 ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0601-0606 ● ● ● ● ●
285 08.821 NUT; TOOL BOX
EXC. TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ●
285 08.821 NUT; TOOL BOX
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ●
285 08.821 NUT; TOOL BOX
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TOOL & STORAGE BOX<VK2> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 03 1 0607- ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 01.062 M8 FLANGE 		0-91180-108-0 03 1 0607- ●
285 08.821 NUT; TOOL BOX
01.062 M8 FLANGE 		0-91180-108-0 03 1 0607- ●
285 08.821 NUT; TOOL BOX
4JH1 ENG(RJX) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0302-0506 ●
285 08.821 NUT; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0302-0506 ●
285 08.821 NUT; TOOL BOX
07.633 M8 FLANGE 		0-91150-108-0 03 1 0302-0506 ●
285 08.821 NUT; TOOL BOX
4JH1-TC ENG(RDM) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0507-0602 ●
285 08.821 NUT; TOOL BOX
4HK1-TCN ENG(RDQ) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0507-0602 ●
285 08.821 NUT; TOOL BOX
07.633 M8 FLANGE 		0-91150-108-0 03 1 0507-0602 ●
285 08.821 NUT; TOOL BOX
4JH1-TC ENG(RDM) TOOL & STORAGE BOX<VK2> 01.062 M8 FLANGE 		0-91180-108-0 03 1 0603-0606 ●
285 08.821 NUT; TOOL BOX
4HK1-TCN ENG(RDQ) TOOL & STORAGE BOX<VK2> 01.062 M8 FLANGE 		0-91180-108-0 03 1 0603-0606 ●
285 08.821 NUT; TOOL BOX
01.062 M8 FLANGE 		0-91180-108-0 03 1 0603-0606 ●
317 08.821 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> 02.183 M8X35 FLANGE 		0-28680-835-0 03 1 0302-0506 ●
317 08.821 BOLT; BRKT TO FRAME
4HK1-TCN ENG(RDQ) TOOL & STORAGE BOX<VK2> 02.183 M8X35 FLANGE 		0-28680-835-0 03 1 0507-0512 ●
317 08.821 BOLT; BRKT TO FRAME
4HK1-TCN ENG(RDQ) TOOL & STORAGE BOX<VK2> 01.060 M8X35 FLANGE 		0-28650-835-0 03 1 0601-0606 ●
317 08.821 BOLT; BRKT TO FRAME
TOOL & STORAGE BOX<VK2> 01.060 M8X35 FLANGE 		0-28650-835-0 04 1 0607- ●
317 08.821 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> 02.183 M8X35 FLANGE 		0-28680-835-0 04 1 0302-0506 ●
317 08.821 BOLT; BRKT TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TOOL & STORAGE BOX<VK2> 02.183 M8X35 FLANGE 		0-28680-835-0 04 1 0507-0512 ●
317 08.821 BOLT; BRKT TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TOOL & STORAGE BOX<VK2> 01.060 M8X35 FLANGE 		0-28650-835-0 04 1 0601-0606 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
