8-60 — HEATER UNIT; FRONT (#18942) — 190 parça

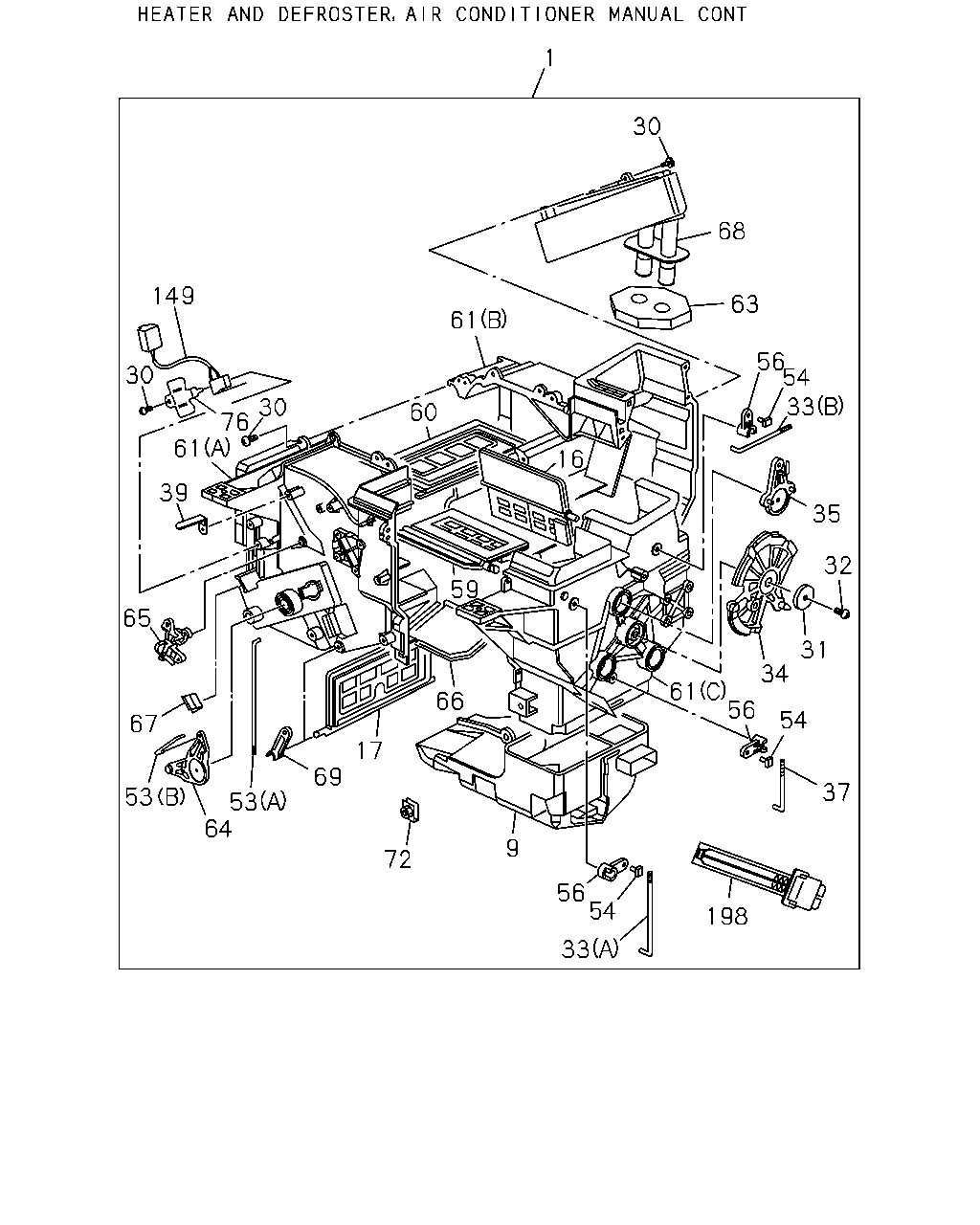

çizim 13758
1 30 68 149 63 61 56 54 33 30 60 30 76 61 16 39 35 32 59 65 31 34 61 56 66 54 67 17 69 37 53 53 64 9 72 56 54 198 33
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97224-287-2 01 1 0302-0506 ● ● ● ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97224-287-2 01 1 0507-0606 ● ● ● ● ●
1 08.845 HEATER UNIT
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97224-287-2 01 1 0607- ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 		8-97224-286-2 01 1 0302-0506 ● ● ● ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97224-286-2 01 1 0507-0606 ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 		8-97224-286-2 01 1 0507-0606 ● ● ● ● ●
1 08.845 HEATER UNIT
4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 		8-97224-286-2 01 1 0607- ● ● ● ●
1 08.845 HEATER UNIT
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 		8-97224-286-2 01 1 0607- ● ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-608-3 01 1 0302-0506 ● ● ● ● ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-608-3 01 1 0507- ● ● ● ● ● ●
9 08.854 DUCT; HTR UNIT 8-97087-555-0 01 1 0302-0506 ● ● ● ● ● ● ●
9 08.854 DUCT; HTR UNIT 8-97087-555-0 01 1 0507- ● ● ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97087-559-2 01 1 0302-0506 ● ● ● ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97087-559-2 01 1 0507- ● ● ● ● ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-557-1 01 1 0302-0506 ● ● ● ● ● ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-557-1 01 1 0507-0606 ● ● ● ● ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 		8-97087-557-1 01 1 0607- ● ● ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-557-1 01 1 0607- ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 14 1 0302-0506 ● ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 14 1 0507-0606 ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 14 1 0607- ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 11 1 0302-0506 ● ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 11 1 0507-0606 ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 11 1 0507-0606 ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 08.852 M4X16 		8-94324-850-0 11 1 0607- ● ● ● ●
30 08.845 SCREW; HTR UNIT
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 11 1 0607- ● ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0302-0506 ● ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0507- ● ● ● ● ● ●
31 08.852 WASHER; HTR UNIT 8-94129-950-0 01 1 0302-0506 ● ● ● ● ● ● ●
31 08.852 WASHER; HTR UNIT 8-94129-950-0 01 1 0507- ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
10.240 M5X20 		9-09829-324-1 01 1 0302-0506 ● ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
10.240 M5X20 		9-09829-324-1 01 1 0507- ● ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(A) 		8-97087-568-1 01 1 0302-0506 ● ● ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(A) 		8-97087-568-1 01 1 0507- ● ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(B) 		8-97087-569-1 01 1 0302-0506 ● ● ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(B) 		8-97087-569-1 01 1 0507- ● ● ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97166-657-0 01 1 0302-0506 ● ● ● ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97166-657-0 01 1 0507- ● ● ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97087-565-0 03 1 0302-0506 ● ● ● ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97087-565-0 03 1 0507- ● ● ● ● ● ●
37 08.852 ROD; LEVER 8-97087-570-1 01 1 0302-0506 ● ● ● ● ● ● ●
37 08.852 ROD; LEVER 8-97087-570-1 01 1 0507- ● ● ● ● ● ●
39 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.857 		8-97096-145-0 03 1 0302-0506 ● ● ● ● ● ● ●
39 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.857 		8-97096-145-0 03 1 0507-0606 ● ● ● ● ●
39 08.854 CLIP; HTR UNIT
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.857 		8-97096-145-0 03 1 0607- ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97087-566-0 01 1 0302-0506 ● ● ● ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97087-566-0 01 1 0507-0606 ● ● ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (B) 		8-97087-566-0 01 1 0607- ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97087-566-0 01 1 0607- ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-567-1 01 1 0302-0506 ● ● ● ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-567-1 01 1 0507-0606 ● ● ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (A) 		8-97087-567-1 01 1 0607- ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-567-1 01 1 0607- ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 0302-0506 ● ● ● ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 0507- ● ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 0302-0506 ● ● ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 0507- ● ● ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97087-558-2 01 1 0302-0506 ● ● ● ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97087-558-2 01 1 0507- ● ● ● ● ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-556-1 01 1 0302-0506 ● ● ● ● ● ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-556-1 01 1 0507-0606 ● ● ● ● ● ●
60 08.854 DOOR; MIX,HTR UNIT
4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 		8-97087-556-1 01 1 0607- ● ● ● ●
60 08.854 DOOR; MIX,HTR UNIT
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-556-1 01 1 0607- ● ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97087-552-0 01 1 0302-0506 ● ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97087-552-0 01 1 0507- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(C) 		8-97087-553-0 01 1 0302-0506 ● ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(C) 		8-97087-553-0 01 1 0507- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (A) 		8-97087-580-3 01 1 0302-0506 ● ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (A) 		8-97087-580-3 01 1 0507-0606 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (A) 		8-97087-580-3 01 1 0607- ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A) 		8-97087-551-3 01 1 0302-0506 ● ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-551-3 01 1 0507-0606 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A) 		8-97087-551-3 01 1 0507-0606 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (A) 		8-97087-551-3 01 1 0607- ● ● ● ●
61 08.854 CASE; HTR UNIT
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A) 		8-97087-551-3 01 1 0607- ● ● ● ●
61 08.854 CASE; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97115-147-3 01 1 0302-0506 ● ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97115-147-3 01 1 0507- ● ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97131-580-0 01 1 0302-0506 ● ● ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97131-580-0 01 1 0507-0606 ● ● ● ● ● ●
63 08.856 LINING; HTR UNIT
4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 		8-97131-580-0 01 1 0607- ● ● ● ●
63 08.856 LINING; HTR UNIT
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97131-580-0 01 1 0607- ● ● ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-562-1 01 1 0302-0506 ● ● ● ● ● ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-562-1 01 1 0507-0606 ● ● ● ● ● ●
64 09.786 LEVER; MIX,DOOR
4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 		8-97087-562-1 01 1 0607- ● ● ● ●
64 09.786 LEVER; MIX,DOOR
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-562-1 01 1 0607- ● ● ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-564-1 01 1 0302-0506 ● ● ● ● ● ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-564-1 01 1 0507-0606 ● ● ● ● ● ●
65 09.786 LEVER; MIX,DOOR
4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 		8-97087-564-1 01 1 0607- ● ● ● ●
65 09.786 LEVER; MIX,DOOR
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-564-1 01 1 0607- ● ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97087-560-2 01 1 0302-0506 ● ● ● ● ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97087-560-2 01 1 0507- ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 02 1 0302-0506 ● ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 02 1 0507-0606 ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 09.787 		8-94337-654-0 02 1 0607- ● ● ● ●
67 08.854 CLIP; HTR UNIT
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 02 1 0607- ● ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 0302-0506 ● ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 0507- ● ● ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97251-290-0 01 1 0302-0506 ● ● ● ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97251-290-0 01 1 0507-0606 ● ● ● ● ● ●
68 08.854 CORE; HTR UNIT
4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 		8-97251-290-0 01 1 0607- ● ● ● ●
68 08.854 CORE; HTR UNIT
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97251-290-0 01 1 0607- ● ● ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-563-1 01 1 0302-0506 ● ● ● ● ● ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-563-1 01 1 0507-0606 ● ● ● ● ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 		8-97087-563-1 01 1 0607- ● ● ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-563-1 01 1 0607- ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 02 1 0302-0506 ● ● ● ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 02 1 0507- ● ● ● ● ● ●
76 08.854 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97045-869-0 01 1 0302-0506 ● ● ● ● ● ● ●
76 08.854 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97045-869-0 01 1 0507-0606 ● ● ● ● ●
76 08.854 BRACKET; HTR UNIT
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97045-869-0 01 1 0607- ● ● ● ●
149 08.852 SWITCH ASM; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97087-582-0 01 1 0302-0506 ● ● ● ● ● ● ●
149 08.852 SWITCH ASM; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97087-582-0 01 1 0507-0606 ● ● ● ● ●
149 08.852 SWITCH ASM; HTR UNIT
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97087-582-0 01 1 0607- ● ● ● ●
198 08.845 HEATER; ELEC
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97087-581-0 01 1 0302-0506 ● ● ● ● ● ● ●
198 08.845 HEATER; ELEC
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97087-581-0 01 1 0507-0606 ● ● ● ● ●
198 08.845 HEATER; ELEC
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97087-581-0 01 1 0607- ● ● ● ●

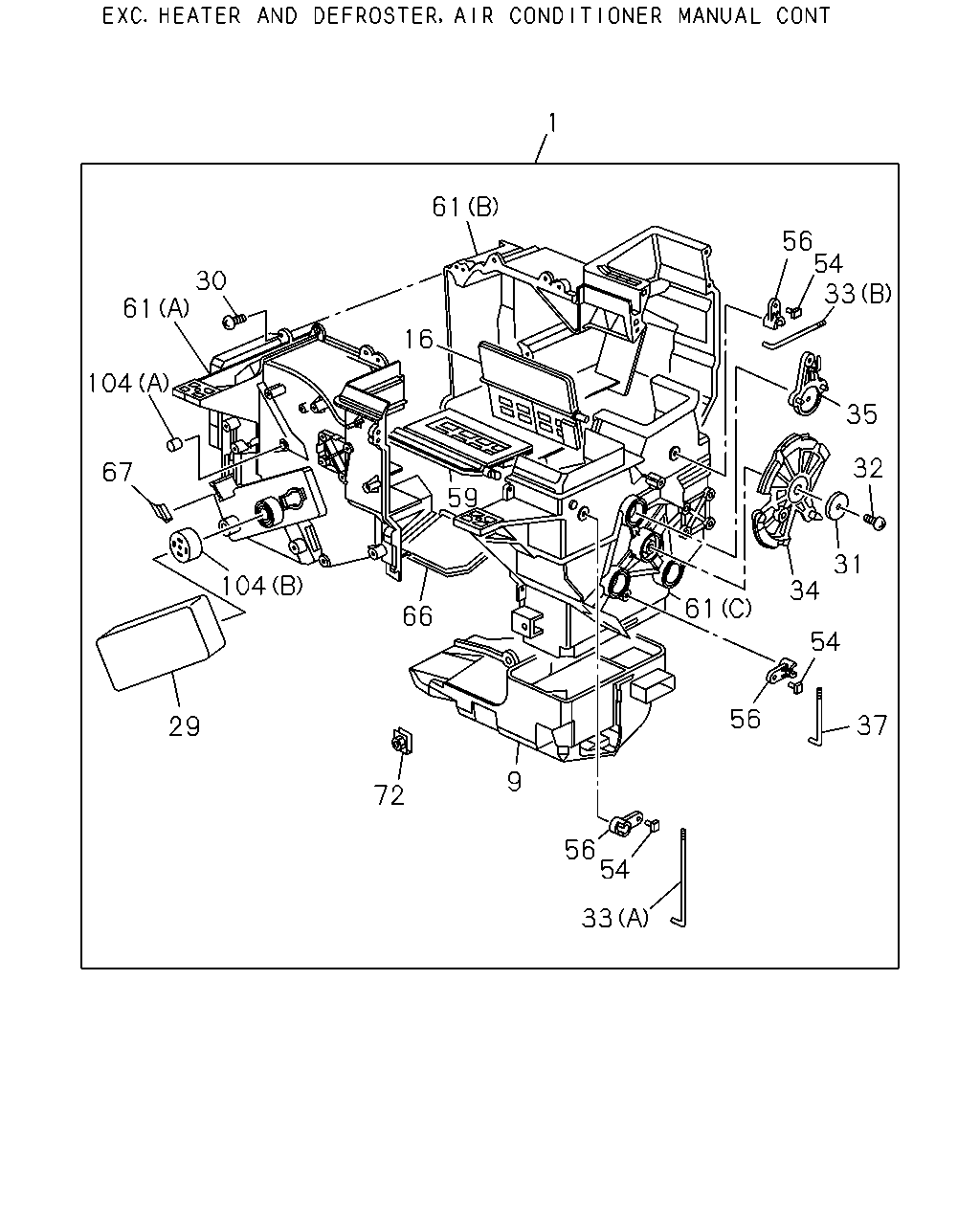

çizim 54088
61 56 54 33 30 61 16 104 35 32 67 59 31 104 34 61 66 54 56 37 29 9 72 56 54 33 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97224-287-2 01 1 0302-0506 ● ● ● ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97224-287-2 01 1 0507-0606 ● ● ● ● ●
1 08.845 HEATER UNIT
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97224-287-2 01 1 0607- ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 		8-97224-286-2 01 1 0302-0506 ● ● ● ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97224-286-2 01 1 0507-0606 ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 		8-97224-286-2 01 1 0507-0606 ● ● ● ● ●
1 08.845 HEATER UNIT
4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 		8-97224-286-2 01 1 0607- ● ● ● ●
1 08.845 HEATER UNIT
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 		8-97224-286-2 01 1 0607- ● ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-608-3 01 1 0302-0506 ● ● ● ● ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-608-3 01 1 0507- ● ● ● ● ● ●
9 08.854 DUCT; HTR UNIT 8-97087-555-0 01 1 0302-0506 ● ● ● ● ● ● ●
9 08.854 DUCT; HTR UNIT 8-97087-555-0 01 1 0507- ● ● ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97087-559-2 01 1 0302-0506 ● ● ● ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97087-559-2 01 1 0507- ● ● ● ● ● ●
29 08.857 COVER; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97102-661-0 01 1 0302-0506 ● ● ● ● ● ● ●
29 08.857 COVER; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97102-661-0 01 1 0507- ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 14 1 0302-0506 ● ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 14 1 0507-0606 ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 14 1 0607- ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 11 1 0302-0506 ● ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 11 1 0507-0606 ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 11 1 0507-0606 ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 08.852 M4X16 		8-94324-850-0 11 1 0607- ● ● ● ●
30 08.845 SCREW; HTR UNIT
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 11 1 0607- ● ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0302-0506 ● ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0507- ● ● ● ● ● ●
31 08.852 WASHER; HTR UNIT 8-94129-950-0 01 1 0302-0506 ● ● ● ● ● ● ●
31 08.852 WASHER; HTR UNIT 8-94129-950-0 01 1 0507- ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
10.240 M5X20 		9-09829-324-1 01 1 0302-0506 ● ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
10.240 M5X20 		9-09829-324-1 01 1 0507- ● ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(A) 		8-97087-568-1 01 1 0302-0506 ● ● ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(A) 		8-97087-568-1 01 1 0507- ● ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(B) 		8-97087-569-1 01 1 0302-0506 ● ● ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(B) 		8-97087-569-1 01 1 0507- ● ● ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97166-657-0 01 1 0302-0506 ● ● ● ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97166-657-0 01 1 0507- ● ● ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97087-565-0 03 1 0302-0506 ● ● ● ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97087-565-0 03 1 0507- ● ● ● ● ● ●
37 08.852 ROD; LEVER 8-97087-570-1 01 1 0302-0506 ● ● ● ● ● ● ●
37 08.852 ROD; LEVER 8-97087-570-1 01 1 0507- ● ● ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 0302-0506 ● ● ● ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 0507- ● ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 0302-0506 ● ● ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 0507- ● ● ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97087-558-2 01 1 0302-0506 ● ● ● ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97087-558-2 01 1 0507- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97087-552-0 01 1 0302-0506 ● ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97087-552-0 01 1 0507- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(C) 		8-97087-553-0 01 1 0302-0506 ● ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(C) 		8-97087-553-0 01 1 0507- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (A) 		8-97087-580-3 01 1 0302-0506 ● ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (A) 		8-97087-580-3 01 1 0507-0606 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (A) 		8-97087-580-3 01 1 0607- ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A) 		8-97087-551-3 01 1 0302-0506 ● ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-551-3 01 1 0507-0606 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A) 		8-97087-551-3 01 1 0507-0606 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (A) 		8-97087-551-3 01 1 0607- ● ● ● ●
61 08.854 CASE; HTR UNIT
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A) 		8-97087-551-3 01 1 0607- ● ● ● ●
61 08.854 CASE; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97115-147-3 01 1 0302-0506 ● ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97115-147-3 01 1 0507- ● ● ● ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97087-560-2 01 1 0302-0506 ● ● ● ● ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97087-560-2 01 1 0507- ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 02 1 0302-0506 ● ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 02 1 0507-0606 ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 09.787 		8-94337-654-0 02 1 0607- ● ● ● ●
67 08.854 CLIP; HTR UNIT
4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 02 1 0607- ● ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 0302-0506 ● ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 0507- ● ● ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 02 1 0302-0506 ● ● ● ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 02 1 0507- ● ● ● ● ● ●
104 08.854 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 (A) 		8-94328-657-0 04 1 0302-0506 ● ● ● ● ● ● ●
104 08.854 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 (A) 		8-94328-657-0 04 1 0507- ● ● ● ● ● ●
104 08.854 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-94387-703-0 01 1 0302-0506 ● ● ● ● ● ● ●
104 08.854 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-94387-703-0 01 1 0507- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
