8-50 — AIR CONDITIONING SYSTEM; FRONT (#18941) — 198 parça

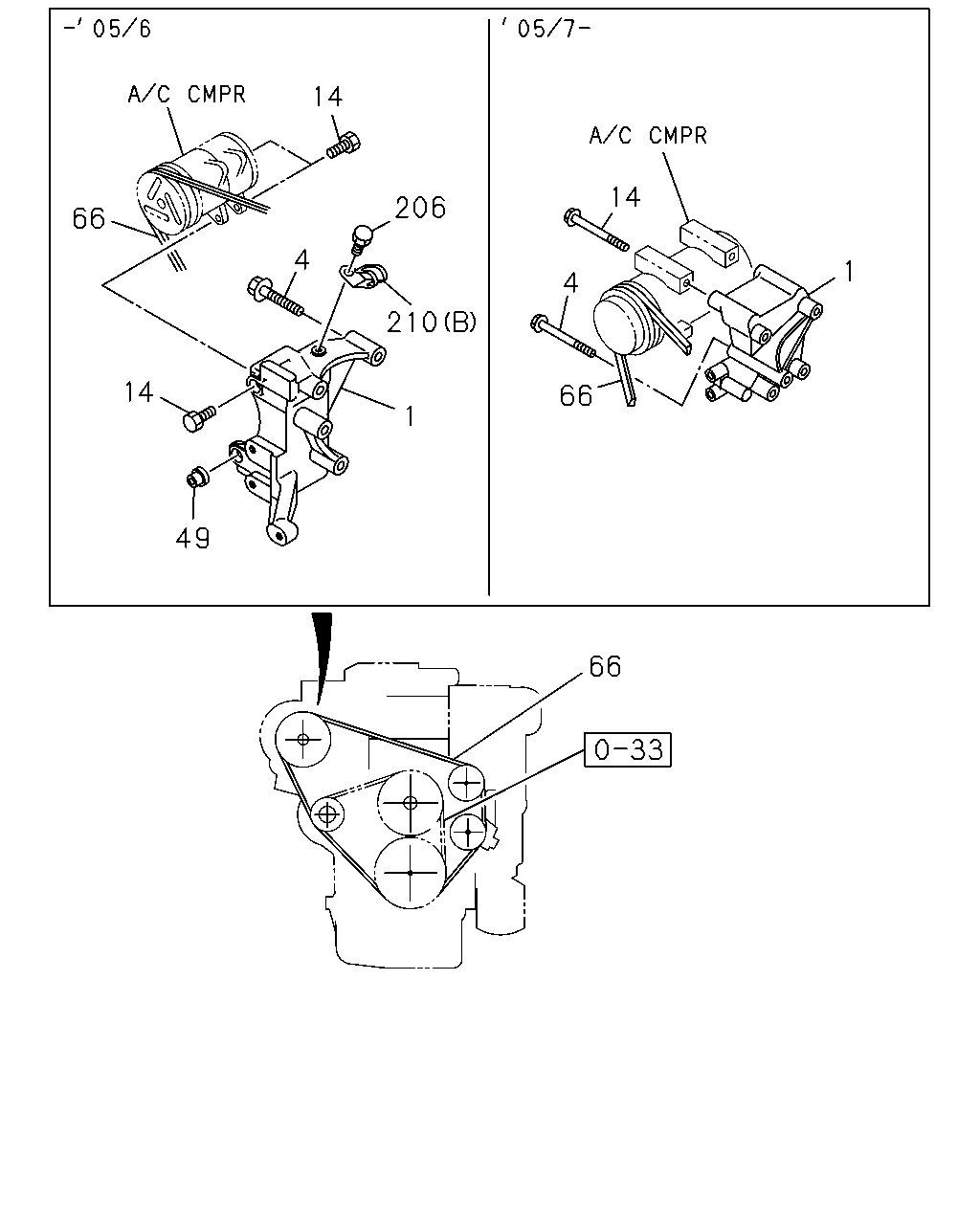

çizim 52732
14 14 206 66 4 1 4 210 14 66 1 49 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 09.242 BRACKET; A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97116-230-2 01 1 0302-0506 ● ● ● ● ● ● ●
1 09.242 BRACKET; A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-97379-507-2 01 1 0507-0606 ● ● ● ●
1 09.242 BRACKET; A/C
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97379-507-2 01 1 0507-0606 ●
1 09.242 BRACKET; A/C
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) 		8-98006-515-3 01 1 0607- ● ● ● ●
4 09.171 BOLT; A/C CMPR BRKT
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 01.062 M10X85 FLANGE 		8-94397-359-1 02 1 0302-0506 ● ● ● ● ● ● ●
4 09.171 BOLT; A/C CMPR BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE 		0-28181-000-0 02 1 0507-0512 ● ● ● ●
4 09.171 BOLT; A/C CMPR BRKT
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE 		0-28181-000-0 02 1 0507-0512 ●
4 09.171 BOLT; A/C CMPR BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE 		0-28151-000-0 02 1 0601-0606 ● ● ● ●
4 09.171 BOLT; A/C CMPR BRKT
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE 		0-28151-000-0 02 1 0601-0606 ●
4 09.171 BOLT; A/C CMPR BRKT
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) 01.062 M10X90 FLANGE 		0-28151-090-0 02 1 0607- ● ● ● ●
4 09.171 BOLT; A/C CMPR BRKT
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE 		8-94399-863-1 02 1 0302-0506 ● ● ● ● ● ● ●
4 09.171 BOLT; A/C CMPR BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 04.085 M10X80 FLANGE 		0-28181-080-0 02 1 0507-0512 ● ● ● ●
4 09.171 BOLT; A/C CMPR BRKT
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 04.085 M10X80 FLANGE 		0-28181-080-0 02 1 0507-0512 ●
4 09.171 BOLT; A/C CMPR BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.042 M10X80 FLANGE 		0-28151-080-0 02 1 0601-0606 ● ● ● ●
4 09.171 BOLT; A/C CMPR BRKT
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 02.042 M10X80 FLANGE 		0-28151-080-0 02 1 0601-0606 ●
4 09.171 BOLT; A/C CMPR BRKT
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) M10X120 FLANGE 		0-28156-012-0 01 1 0607- ● ● ● ●
14 09.171 BOLT; CMPR
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) 03.613 M10X40 FLANGE 		0-28681-040-0 04 1 0507-0512 ● ●
14 09.171 BOLT; CMPR
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) 03.613 M10X40 FLANGE 		0-28651-040-0 04 1 0601-0606 ● ●
14 09.171 BOLT; CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 03.708 M10X40 		0-28281-040-0 04 1 0302-0506 ● ● ● ● ● ● ●
14 09.171 BOLT; CMPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) M8X90 FLANGE 		0-28080-890-0 04 1 0507-0512 ● ● ● ●
14 09.171 BOLT; CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) M8X90 FLANGE 		0-28080-890-0 04 1 0507-0512 ●
14 09.171 BOLT; CMPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE 		0-28050-890-0 04 1 0601-0606 ● ● ● ●
14 09.171 BOLT; CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE 		0-28050-890-0 04 1 0601-0606 ●
14 09.171 BOLT; CMPR
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE 		0-28050-890-0 04 1 0607- ● ● ● ●
49 09.171 COLLAR; BRKT,CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-94201-057-1 02 1 0302-0506 ● ● ● ● ● ● ●
66 01.066 BELT; A/C CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-2 01 1 0302-0506 ● ● ● ● ● ● ●
66 01.066 BELT; A/C CMPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-2 01 1 0507-0606 ● ● ● ●
66 01.066 BELT; A/C CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-2 01 1 0507-0606 ●
66 01.066 BELT; A/C CMPR
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) L=1674 		8-98010-841-1 01 1 0607- ● ● ● ●
206 09.242 BOLT; CLIP BRKT
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE 		0-28280-612-0 01 1 0302-0506 ● ● ● ● ● ● ●
206 09.242 BOLT; CLIP BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE 		0-28280-612-0 01 1 0507-0512 ● ● ● ●
206 09.242 BOLT; CLIP BRKT
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE 		0-28280-612-0 01 1 0507-0512 ●
206 09.242 BOLT; CLIP BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.216 M6X12 FLANGE 		0-28250-612-0 01 1 0601-0606 ● ● ● ●
206 09.242 BOLT; CLIP BRKT
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 09.216 M6X12 FLANGE 		0-28250-612-0 01 1 0601-0606 ●
210 09.242 CLIP; HARNESS
4HE1 ENG(RLY) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0302-0506 ● ● ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0302-0506 ● ● ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0507-0606 ● ● ● ●
210 09.242 CLIP; HARNESS
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0507-0606 ●
210 09.242 CLIP; HARNESS
4HK1-TCC ENG(RDV) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0607-0801 ● ● ● ●
210 09.242 CLIP; HARNESS
4HK1-TCC ENG(RDV) 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0802- ● ● ● ●

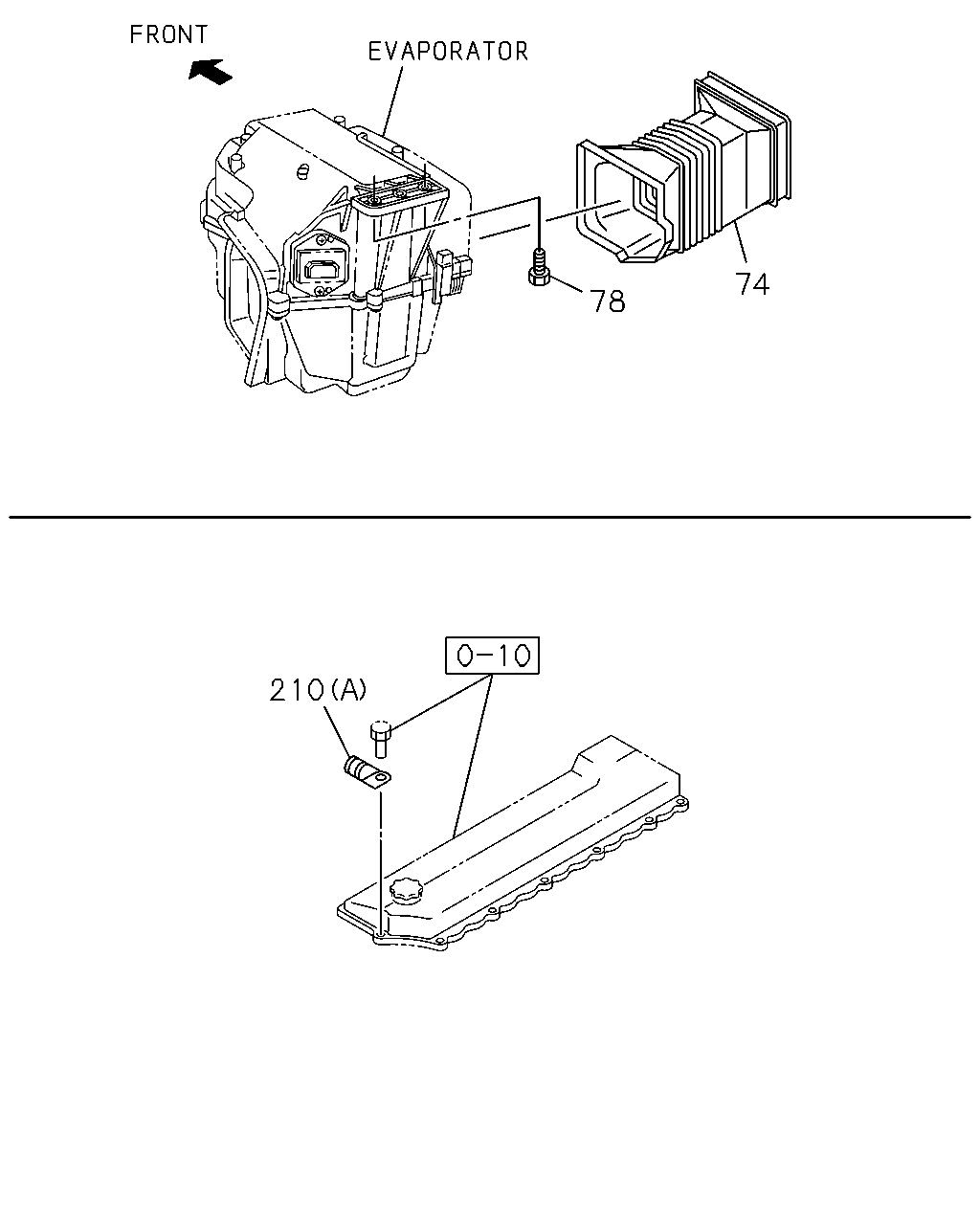

çizim 55182
74 78 210
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
74 09.215 DUCT; EVAP TO HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-97262-801-0 01 1 0302-0506 ● ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0302-0506 ● ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0302-0506 ● ● ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HE1 ENG(RLY) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0302-0506 ● ● ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0302-0506 ● ● ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0507-0606 ● ● ● ●
210 09.242 CLIP; HARNESS
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0507-0606 ●
210 09.242 CLIP; HARNESS
4HK1-TCC ENG(RDV) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0607-0801 ● ● ● ●
210 09.242 CLIP; HARNESS
4HK1-TCC ENG(RDV) 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0802- ● ● ● ●

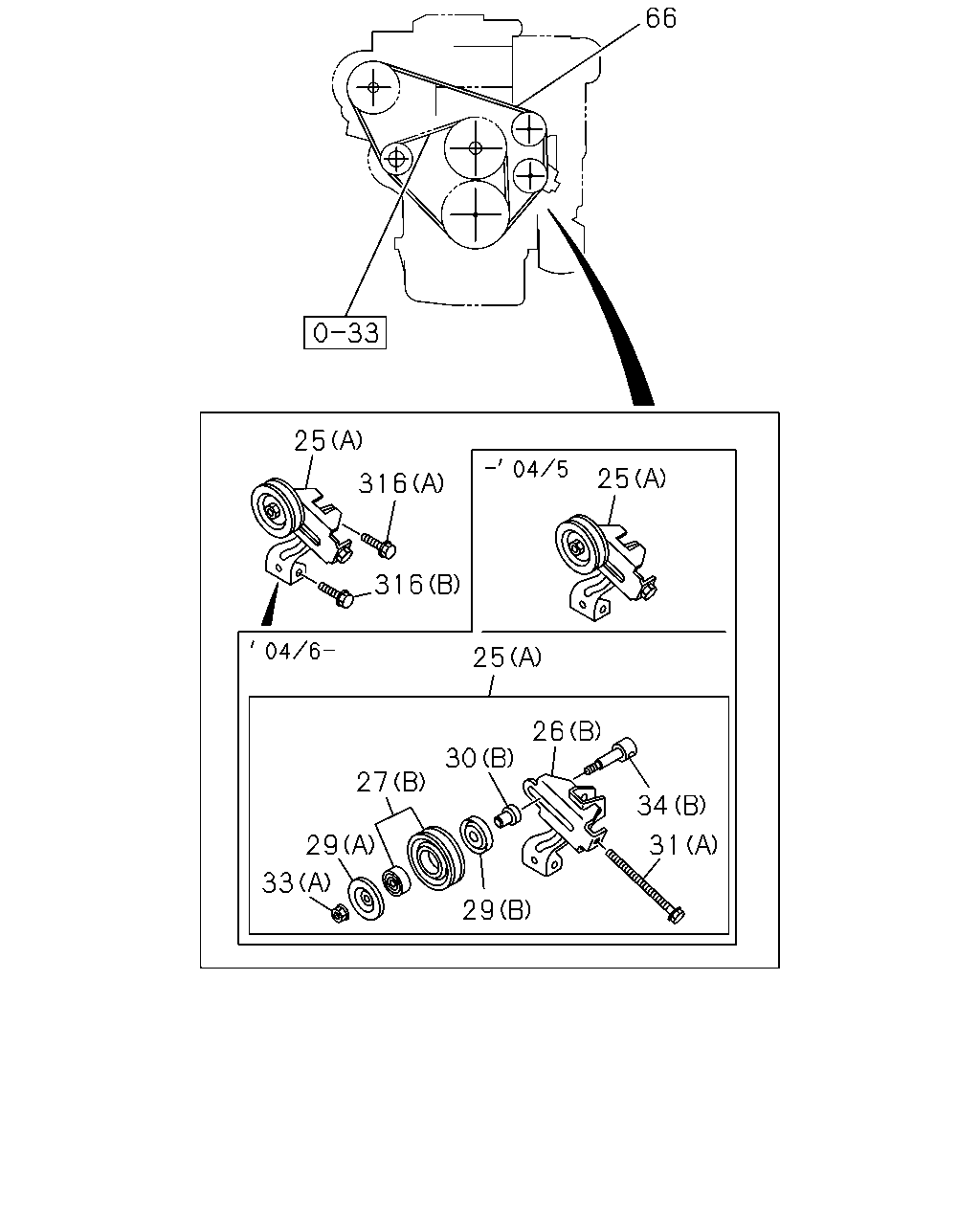

çizim 55780
66 25 25 316 316 25 26 30 27 34 31 29 33 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
25 09.180 PULLEY ASM; IDLER,CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE 		8-97161-198-1 01 1 0302-0506 ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE 		8-97161-198-1 01 1 0507-0606 ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE 		8-97161-198-1 01 1 0607- ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE 		8-94334-696-2 01 1 0507-0606 ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE 		8-94334-696-2 01 1 0507-0606 ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE 		8-94334-696-2 01 1 0607- ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE 		8-94334-873-0 01 1 0507-0606 ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE 		8-94334-873-0 01 1 0507-0606 ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE 		8-94334-873-0 01 1 0607- ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97161-031-1 01 1 0406-0506 ● ● ● ● ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97161-031-1 01 1 0507-0606 ● ● ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97161-031-1 01 1 0607- ● ● ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97060-362-0 01 1 0507-0606 ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97060-362-0 01 1 0507-0606 ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97060-362-0 01 1 0607- ●
27 09.180 PULLEY; IDLE,A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97386-869-0 01 1 0406-0506 ● ● ● ● ●
27 09.180 PULLEY; IDLE,A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97386-869-0 01 1 0507-0606 ● ● ●
27 09.180 PULLEY; IDLE,A/C
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97386-869-0 01 1 0607- ● ● ●
27 09.180 PULLEY; IDLE,A/C
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (A) 		9-13663-606-0 01 1 0507-0606 ●
27 09.180 PULLEY; IDLE,A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) 		9-13663-606-0 01 1 0507-0606 ●
27 09.180 PULLEY; IDLE,A/C
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (A) 		9-13663-606-0 01 1 0607- ●
29 09.181 COVER; DUST,IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-114-0 01 1 0406-0506 ● ● ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-114-0 01 1 0507-0606 ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-114-0 01 1 0607- ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-115-0 01 1 0406-0506 ● ● ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-115-0 01 1 0507-0606 ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-115-0 01 1 0607- ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (C) 		9-13669-603-0 02 1 0507-0606 ●
29 09.181 COVER; DUST,IDLE PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (C) 		9-13669-603-0 02 1 0507-0606 ●
29 09.181 COVER; DUST,IDLE PULLEY
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (C) 		9-13669-603-0 02 1 0607- ●
30 09.181 COLLAR; IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-117-0 01 1 0406-0506 ● ● ● ● ●
30 09.181 COLLAR; IDLE PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-117-0 01 1 0507-0606 ● ● ●
30 09.181 COLLAR; IDLE PULLEY
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-117-0 01 1 0607- ● ● ●
30 09.181 COLLAR; IDLE PULLEY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94207-192-0 01 1 0507-0606 ●
30 09.181 COLLAR; IDLE PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94207-192-0 01 1 0507-0606 ●
30 09.181 COLLAR; IDLE PULLEY
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94207-192-0 01 1 0607- ●
31 09.181 BOLT; ADJ,IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 0406-0506 ● ● ● ● ●
31 09.181 BOLT; ADJ,IDLE PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 0507-0606 ● ● ●
31 09.181 BOLT; ADJ,IDLE PULLEY
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 0607- ● ● ●
33 09.181 NUT; IDLER PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 0406-0506 ● ● ● ● ●
33 09.181 NUT; IDLER PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 0507-0606 ● ● ●
33 09.181 NUT; IDLER PULLEY
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 0607- ● ● ●
34 09.181 SHAFT; IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-116-0 01 1 0406-0506 ● ● ● ● ●
34 09.181 SHAFT; IDLE PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-116-0 01 1 0507-0606 ● ● ●
34 09.181 SHAFT; IDLE PULLEY
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-116-0 01 1 0607- ● ● ●
34 09.181 SHAFT; IDLE PULLEY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 02.277 (A) M10X30 		0-28121-030-0 01 1 0507-0606 ●
34 09.181 SHAFT; IDLE PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.277 (A) M10X30 		0-28121-030-0 01 1 0507-0606 ●
34 09.181 SHAFT; IDLE PULLEY
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) 02.277 (A) M10X30 		0-28121-030-0 01 1 0607- ●
66 01.066 BELT; A/C CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-2 01 1 0302-0506 ● ● ● ● ● ● ●
66 01.066 BELT; A/C CMPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-2 01 1 0507-0606 ● ● ● ●
66 01.066 BELT; A/C CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-2 01 1 0507-0606 ●
66 01.066 BELT; A/C CMPR
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) L=1674 		8-98010-841-1 01 1 0607- ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 01.780 (A) M8X50 FLANGE 		0-28080-850-0 01 1 0302-0506 ● ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 01.780 (A) M8X50 FLANGE 		0-28080-850-0 01 1 0507-0512 ● ● ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE 		0-28050-850-0 01 1 0601-0606 ● ● ●
316 09.242 BOLT; BRKT FIX
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE 		0-28050-850-0 01 1 0607- ● ● ●
316 09.242 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 0302-0506 ● ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 0507-0606 ● ● ●
316 09.242 BOLT; BRKT FIX
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 0607- ● ● ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 09.171 (C) M10X100 FLANGE 		0-28181-000-0 01 1 0507-0512 ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.171 (C) M10X100 FLANGE 		0-28181-000-0 01 1 0507-0512 ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 09.171 (C) M10X100 FLANGE 		0-28151-000-0 01 1 0601-0606 ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.171 (C) M10X100 FLANGE 		0-28151-000-0 01 1 0601-0606 ●
316 09.242 BOLT; BRKT FIX
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) 09.171 (C) M10X100 FLANGE 		0-28151-000-0 01 1 0607- ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 03.330 (D) M10X60 FLANGE 		0-28181-060-0 02 1 0507-0512 ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 03.330 (D) M10X60 FLANGE 		0-28181-060-0 02 1 0507-0512 ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 00.683 (D) M10X60 FLANGE 		0-28151-060-0 02 1 0601-0606 ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 00.683 (D) M10X60 FLANGE 		0-28151-060-0 02 1 0601-0606 ●
316 09.242 BOLT; BRKT FIX
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) 00.683 (D) M10X60 FLANGE 		0-28151-060-0 02 1 0607- ●
çizim 55814
74 78 210
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
74 09.215 DUCT; EVAP TO HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-97262-801-0 01 1 0302-0506 ● ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0302-0506 ● ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0302-0506 ● ● ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HE1 ENG(RLY) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0302-0506 ● ● ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0302-0506 ● ● ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0507-0606 ● ● ● ●
210 09.242 CLIP; HARNESS
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0507-0606 ●
210 09.242 CLIP; HARNESS
4HK1-TCC ENG(RDV) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0607-0801 ● ● ● ●
210 09.242 CLIP; HARNESS
4HK1-TCC ENG(RDV) 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0802- ● ● ● ●
çizim 55854
66 25 30 29 34 26 27 25 57 35 35 316 25 316 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
25 09.180 PULLEY ASM; IDLER,CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE 		8-97161-198-1 01 1 0302-0506 ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE 		8-97161-198-1 01 1 0507-0606 ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE 		8-97161-198-1 01 1 0607- ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE 		8-94334-696-2 01 1 0507-0606 ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE 		8-94334-696-2 01 1 0507-0606 ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE 		8-94334-696-2 01 1 0607- ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE 		8-94334-873-0 01 1 0507-0606 ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE 		8-94334-873-0 01 1 0507-0606 ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE 		8-94334-873-0 01 1 0607- ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97161-031-1 01 1 0406-0506 ● ● ● ● ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97161-031-1 01 1 0507-0606 ● ● ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97161-031-1 01 1 0607- ● ● ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97060-362-0 01 1 0507-0606 ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97060-362-0 01 1 0507-0606 ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97060-362-0 01 1 0607- ●
27 09.180 PULLEY; IDLE,A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97386-869-0 01 1 0406-0506 ● ● ● ● ●
27 09.180 PULLEY; IDLE,A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97386-869-0 01 1 0507-0606 ● ● ●
27 09.180 PULLEY; IDLE,A/C
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97386-869-0 01 1 0607- ● ● ●
27 09.180 PULLEY; IDLE,A/C
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (A) 		9-13663-606-0 01 1 0507-0606 ●
27 09.180 PULLEY; IDLE,A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) 		9-13663-606-0 01 1 0507-0606 ●
27 09.180 PULLEY; IDLE,A/C
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (A) 		9-13663-606-0 01 1 0607- ●
29 09.181 COVER; DUST,IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-114-0 01 1 0406-0506 ● ● ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-114-0 01 1 0507-0606 ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-114-0 01 1 0607- ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-115-0 01 1 0406-0506 ● ● ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-115-0 01 1 0507-0606 ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-115-0 01 1 0607- ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (C) 		9-13669-603-0 02 1 0507-0606 ●
29 09.181 COVER; DUST,IDLE PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (C) 		9-13669-603-0 02 1 0507-0606 ●
29 09.181 COVER; DUST,IDLE PULLEY
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (C) 		9-13669-603-0 02 1 0607- ●
30 09.181 COLLAR; IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-117-0 01 1 0406-0506 ● ● ● ● ●
30 09.181 COLLAR; IDLE PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-117-0 01 1 0507-0606 ● ● ●
30 09.181 COLLAR; IDLE PULLEY
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-117-0 01 1 0607- ● ● ●
30 09.181 COLLAR; IDLE PULLEY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94207-192-0 01 1 0507-0606 ●
30 09.181 COLLAR; IDLE PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94207-192-0 01 1 0507-0606 ●
30 09.181 COLLAR; IDLE PULLEY
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94207-192-0 01 1 0607- ●
34 09.181 SHAFT; IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-116-0 01 1 0406-0506 ● ● ● ● ●
34 09.181 SHAFT; IDLE PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-116-0 01 1 0507-0606 ● ● ●
34 09.181 SHAFT; IDLE PULLEY
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-116-0 01 1 0607- ● ● ●
34 09.181 SHAFT; IDLE PULLEY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 02.277 (A) M10X30 		0-28121-030-0 01 1 0507-0606 ●
34 09.181 SHAFT; IDLE PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.277 (A) M10X30 		0-28121-030-0 01 1 0507-0606 ●
34 09.181 SHAFT; IDLE PULLEY
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) 02.277 (A) M10X30 		0-28121-030-0 01 1 0607- ●
35 09.181 BOLT; IDLER PULLEY TO C/BL
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 01.062 M8X16 FLANGE 		0-28080-816-0 05 1 0507-0512 ●
35 09.181 BOLT; IDLER PULLEY TO C/BL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 01.062 M8X16 FLANGE 		0-28080-816-0 05 1 0507-0512 ●
35 09.181 BOLT; IDLER PULLEY TO C/BL
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 02.343 M8X16 FLANGE 		0-28050-816-0 05 1 0601-0606 ●
35 09.181 BOLT; IDLER PULLEY TO C/BL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.343 M8X16 FLANGE 		0-28050-816-0 05 1 0601-0606 ●
35 09.181 BOLT; IDLER PULLEY TO C/BL
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) 02.343 M8X16 FLANGE 		0-28050-816-0 05 1 0607- ●
57 09.171 BRACKET; IDLER PULLEY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97081-262-2 01 1 0507-0606 ●
57 09.171 BRACKET; IDLER PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-97081-262-2 01 1 0507-0606 ●
57 09.171 BRACKET; IDLER PULLEY
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) 		8-97081-262-2 01 1 0607- ●
66 01.066 BELT; A/C CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-2 01 1 0302-0506 ● ● ● ● ● ● ●
66 01.066 BELT; A/C CMPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-2 01 1 0507-0606 ● ● ● ●
66 01.066 BELT; A/C CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-2 01 1 0507-0606 ●
66 01.066 BELT; A/C CMPR
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) L=1674 		8-98010-841-1 01 1 0607- ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 01.780 (A) M8X50 FLANGE 		0-28080-850-0 01 1 0302-0506 ● ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 01.780 (A) M8X50 FLANGE 		0-28080-850-0 01 1 0507-0512 ● ● ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE 		0-28050-850-0 01 1 0601-0606 ● ● ●
316 09.242 BOLT; BRKT FIX
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE 		0-28050-850-0 01 1 0607- ● ● ●
316 09.242 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 0302-0506 ● ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 0507-0606 ● ● ●
316 09.242 BOLT; BRKT FIX
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 0607- ● ● ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 09.171 (C) M10X100 FLANGE 		0-28181-000-0 01 1 0507-0512 ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.171 (C) M10X100 FLANGE 		0-28181-000-0 01 1 0507-0512 ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 09.171 (C) M10X100 FLANGE 		0-28151-000-0 01 1 0601-0606 ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.171 (C) M10X100 FLANGE 		0-28151-000-0 01 1 0601-0606 ●
316 09.242 BOLT; BRKT FIX
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) 09.171 (C) M10X100 FLANGE 		0-28151-000-0 01 1 0607- ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 03.330 (D) M10X60 FLANGE 		0-28181-060-0 02 1 0507-0512 ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 03.330 (D) M10X60 FLANGE 		0-28181-060-0 02 1 0507-0512 ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 00.683 (D) M10X60 FLANGE 		0-28151-060-0 02 1 0601-0606 ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 00.683 (D) M10X60 FLANGE 		0-28151-060-0 02 1 0601-0606 ●
316 09.242 BOLT; BRKT FIX
4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) 00.683 (D) M10X60 FLANGE 		0-28151-060-0 02 1 0607- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
