◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10635 - FSS/FTS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26 - MANUAL TRANSMISSION GEAR ▶
2-26 — MANUAL TRANSMISSION GEAR (#1894) — 94 parça

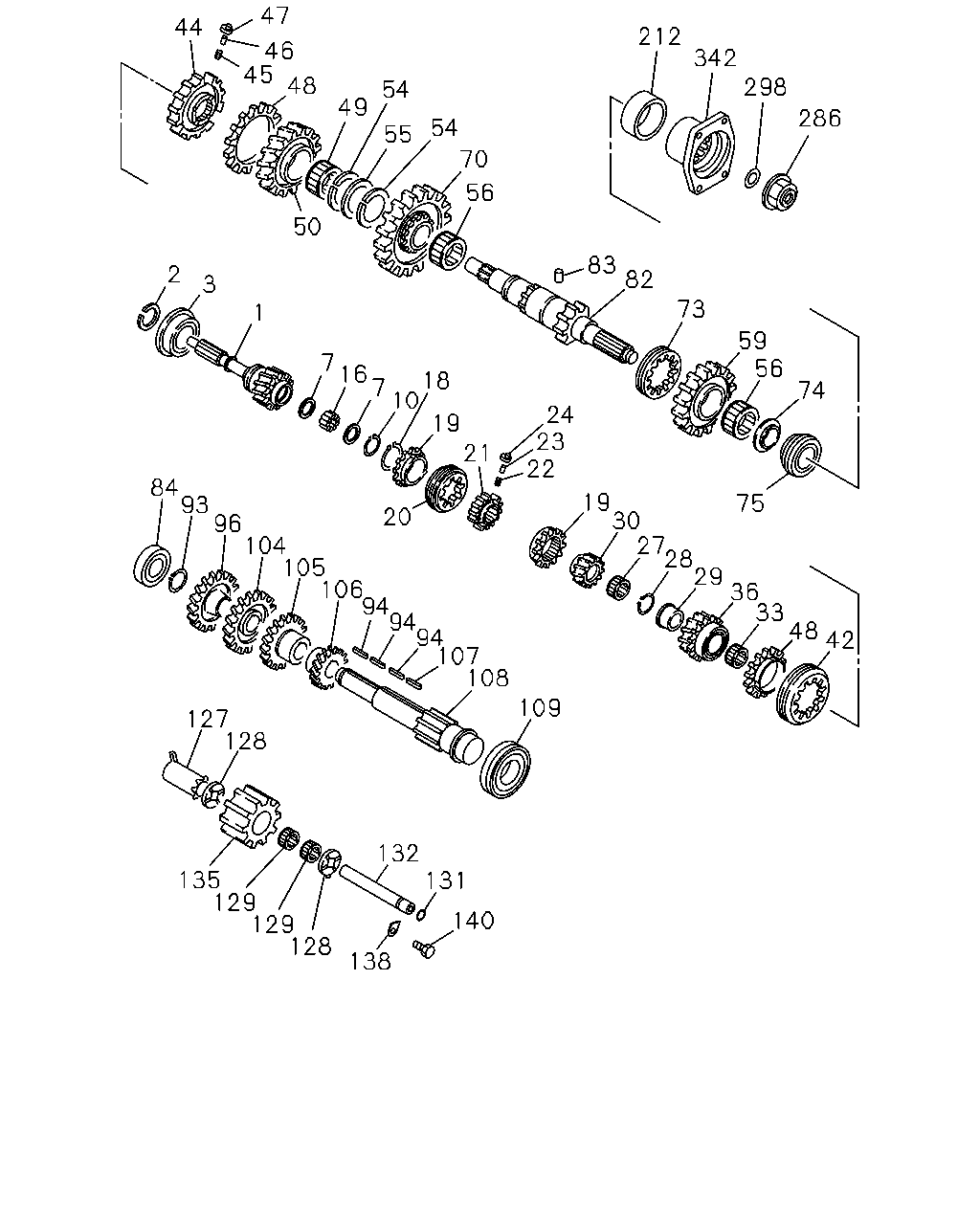

çizim 29226
47 44 212 46 45 342 298 48 54 49 286 54 55 70 56 50 83 82 2 3 73 1 59 56 7 16 18 7 10 74 24 23 22 19 21 84 93 96 104 105 106 94 94 94 107 108 19 30 27 28 29 36 33 48 42 75 20 109 127 128 132 131 135 129 129 128 140 138
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS
TRANSMISSION FRONT PTO<RC2> Z=19 		1-33211-733-0 01 1 9207-9309
1 SHAFT; TOP GEAR,TRANS
TRANSMISSION FRONT PTO<RC2> Z=19 		1-33211-844-0 01 1 9310-
1 SHAFT; TOP GEAR,TRANS
EXC. TRANSMISSION FRONT PTO<RC2> Z=19 		1-33211-723-0 01 1 9207-9309
1 SHAFT; TOP GEAR,TRANS
EXC. TRANSMISSION FRONT PTO<RC2> Z=19 		1-33211-777-0 01 1 9310-
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.53 WHITE 		1-09588-160-1 AR 1 9207-
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.56 YELLOW 		1-09588-161-1 AR 1 9207-
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.60 BLUE 		1-09588-162-1 AR 1 9207-
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.64 GREEN 		1-09588-163-1 AR 1 9207-
3 BEARING; TOP GEAR SHAFT
NSK 		1-09810-138-1 01 1 9207-9501
3 BEARING; TOP GEAR SHAFT
NSK 		1-09810-235-0 01 1 9502-
7 WASHER; THRUST,MAINSHAFT 1-33239-059-0 02 1 9207-
10 RING; SNAP,PILOT BRG
OD=50.5 		9-09180-147-0 01 1 9207-
16 BEARING; PILOT,MAINSHAFT
NTN 		1-09844-007-1 14 1 9207-
16 BEARING; PILOT,MAINSHAFT
KOYO 		1-09844-008-2 14 1 9207-
18 RING; SNAP,CLU HUB
ID=46.3 T=1.75 		1-09588-121-1 01 1 9207-
19 RING; BLOCK,4TH & 5TH 1-33265-283-0 02 1 9207-9212
19 RING; BLOCK,4TH & 5TH
Z=39 		1-33265-408-0 02 1 9301-
20 SLEEVE 1-33262-094-1 01 1 9207-
21 HUB; CLU,4TH & 5TH 1-33261-148-0 01 1 9207-
22 SPRING; BLOCK,INSERT 1-09580-395-0 03 1 9207-
23 PLUNGER; DETENT,SYN 1-33269-037-1 03 1 9207-
24 BLOCK; INDEX,SYN 1-33269-035-1 03 1 9207-
27 BEARING; 4TH GEAR
NSK 		1-09811-263-0 01 1 9207-
27 BEARING; 4TH GEAR
NTN 		1-09811-265-0 01 1 9207-
28 RING; SNAP,3RD GEAR 1-09588-120-0 01 1 9207-
29 COLLAR; 3RD GEAR 1-33234-042-2 01 1 9207-
30 GEAR; 4TH,MAINSHAFT
Z=25 		1-33253-452-0 01 1 9207-9309
30 GEAR; 4TH,MAINSHAFT
Z=25 		1-33253-496-0 01 1 9310-
33 BEARING; NEEDLE,3RD GEAR
NSK 		1-09811-198-0 01 1 9207-
33 BEARING; NEEDLE,3RD GEAR
KOYO 		1-09811-199-0 01 1 9207-
36 GEAR; 3RD,MAINSHAFT
Z=33 		1-33252-322-1 01 1 9207-9301
36 GEAR; 3RD,MAINSHAFT
Z=33 		1-33252-406-0 01 1 9302-9309
36 GEAR; 3RD,MAINSHAFT
Z=33 		1-33252-358-1 01 1 9310-
42 SLEEVE
Z=45 		1-33262-140-1 01 1 9207-9209
42 SLEEVE
Z=45 		1-33262-164-0 01 1 9210-9503
42 SLEEVE
Z=45 		1-33262-162-0 01 1 9504-
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-196-0 01 1 9207-9405
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-216-0 01 1 9406-
45 SPRING; BLOCK INSERT 1-09580-373-0 03 1 9207-9209
45 SPRING; BLOCK INSERT 1-09580-395-0 03 1 9210-
46 PLUNGER; DETENT,SYN 1-33269-037-1 03 1 9207-
47 BLOCK; INDEX,SYN 1-33269-035-1 03 1 9207-
48 SYNCHRONIZER ASM; 2ND & 3RD 1-33265-402-0 02 1 9207-9301
48 SYNCHRONIZER ASM; 2ND & 3RD 1-33265-409-0 02 1 9302-
49 BEARING; NEEDLE,2ND GEAR 1-09811-141-1 01 1 9207-
50 GEAR; 2ND,MAINSHAFT
Z=42 		1-33251-259-1 01 1 9207-9301
50 GEAR; 2ND,MAINSHAFT
Z=42 		1-33251-325-0 01 1 9302-9309
50 GEAR; 2ND,MAINSHAFT
Z=42 		1-33251-290-1 01 1 9310-
54 RING; SNAP,THRUST WASHER 1-09588-080-0 02 1 9207-
55 WASHER; THRUST,MAINSHAFT 1-33239-016-0 01 1 9207-
56 BEARING; NEEDLE,1ST,REV
NSK 		1-09811-019-0 02 1 9207-
56 BEARING; NEEDLE,1ST,REV
KOYO 		1-09811-020-0 02 1 9207-
59 GEAR; REV MAINSHAFT
Z=43 		1-33257-052-0 01 1 9207-9309
59 GEAR; REV MAINSHAFT
Z=43 		1-33257-059-0 01 1 9310-
70 GEAR; 1ST,MAINSHAFT
Z=47 		1-33255-021-1 01 1 9207-9309
70 GEAR; 1ST,MAINSHAFT
Z=47 		1-33255-054-1 01 1 9310-
73 CLUTCH; SYN 1ST 1-33261-133-0 01 1 9207-
74 WASHER; THRUST,REV GEAR 1-33239-018-1 01 1 9207-
75 BEARING; MAINSHAFT
NSK 		1-09810-082-0 01 1 9207-
75 BEARING; MAINSHAFT
KOYO 		1-09810-155-0 01 1 9207-
82 SHAFT; MAIN,TRANS
Z=26-24-21 		1-33231-201-1 01 1 9207-9309
82 SHAFT; MAIN,TRANS
Z=26-24-21 		1-33231-266-0 01 1 9310-
83 PIN; THRUST WASHER 1-09740-032-0 01 1 9207-
84 BEARING; COUNTER SHAFT,FRT
NSK 		1-09810-127-0 01 1 9207-
84 BEARING; COUNTER SHAFT,FRT
NTN 		1-09810-128-0 01 1 9207-
84 BEARING; COUNTER SHAFT,FRT
KOYO 		1-09810-129-0 01 1 9207-
93 RING; SNAP,COUNTER FRT BRG
ID=53.3 T=2.5 		1-09588-102-0 01 1 9207-
94 KEY; FEATHER,COUNTER SHAFT
L=47 		1-09735-022-1 03 1 9207-
96 GEAR; COUNTER DRIVE
Z=39-38 		1-33331-218-0 01 1 9207-9309
96 GEAR; COUNTER DRIVE
Z=39-38 		1-33331-210-0 01 1 9310-
104 GEAR; 4TH,COUNTER
Z=35 		1-33332-106-0 01 1 9207-9309
104 GEAR; 4TH,COUNTER
Z=35 		1-33332-094-0 01 1 9310-
105 GEAR; 3RD,COUNTER
Z=28 		1-33333-098-2 01 1 9207-9309
105 GEAR; 3RD,COUNTER
Z=28 		1-33333-151-0 01 1 9310-
106 GEAR; 2ND,COUNTER
Z=22 		1-33334-017-0 01 1 9207-9309
106 GEAR; 2ND,COUNTER
Z=22 		1-33334-019-0 01 1 9310-
107 KEY; FEATHER,2ND COUNTER
L=41 		1-09735-021-0 01 1 9207-
108 SHAFT; COUNTER
Z=14 		1-33311-170-2 01 1 9207-9309
108 SHAFT; COUNTER
Z=14 		1-33311-268-1 01 1 9310-
109 BEARING; COUNTER SHAFT,RR
NSK 		1-09810-080-0 01 1 9207-
127 COLLAR; THRUST,REV SHAFT 1-33363-005-0 01 1 9207-
128 WASHER; THRUST,REV SHAFT
T=2.9 		9-33271-033-0 02 1 9207-
129 BEARING; NEEDLE,IDLER
NSK 		1-09811-016-0 02 1 9207-
129 BEARING; NEEDLE,IDLER
KOYO 		1-09811-017-0 02 1 9207-
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 9207-
132 SHAFT; REV 1-33351-013-1 01 1 9207-
135 GEAR; REV IDLER
Z=27 		1-33361-017-0 01 1 9207-9309
135 GEAR; REV IDLER
Z=27 		1-33361-062-0 01 1 9310-
138 PIECE; LK,REV SHAFT 9-33354-007-0 01 1 9207-
140 BOLT; LK PIECE
M10X15 FLANGE 		1-09049-019-0 01 1 9207-
212 COLLAR; DIST,MAINSHAFT 1-33235-015-0 01 1 9207-
286 NUT; LK,MAINSHAFT
M30 FLANGE 		1-09449-066-1 01 1 9207-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5 		1-09623-379-0 01 1 9207-
342 FLANGE; OUTPUT 1-37243-240-1 01 1 9207-
