◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50950 - NPR/NQR(EUROPE)-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#18930) — 448 parça

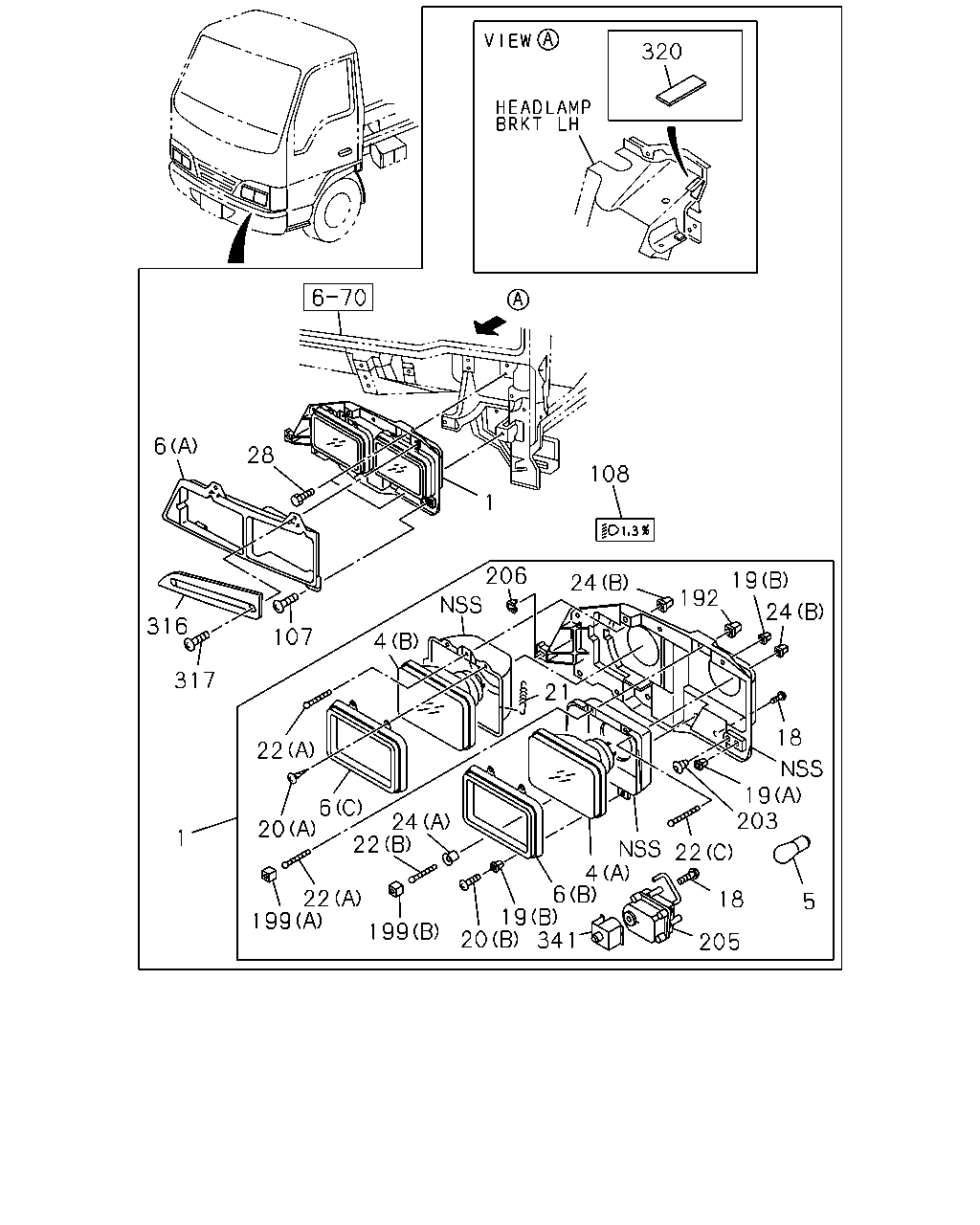

çizim 11915
320 6 28 108 1 206 19 24 192 24 316 107 4 21 317 18 22 19 203 6 24 22 20 1 4 6 19 22 22 199 18 5 199 205 20 341
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-97261-572-0 01 1 0302-0506 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> 		8-97261-572-0 01 1 0302-0506 ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 12V 60/55W 		8-97365-161-6 01 1 0507-0606 ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97365-161-6 01 1 0507-0606 ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-97261-571-0 01 1 0302-0506 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> 		8-97261-571-0 01 1 0302-0506 ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 12V 60/55W 		8-97365-160-6 01 1 0507-0606 ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97365-160-6 01 1 0507-0606 ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 		8-97160-101-0 01 1 0302-0506 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. ADJUST HEADLAMP<6RC> 		8-97160-101-0 01 1 0302-0506 ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 12V 60/55W 		8-97372-527-5 01 1 0507-0606 ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> 12V 60/55W 		8-97372-527-5 01 1 0507-0606 ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 		8-97160-100-0 01 1 0302-0506 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. ADJUST HEADLAMP<6RC> 		8-97160-100-0 01 1 0302-0506 ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 12V 60/55W 		8-97372-526-5 01 1 0507-0606 ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> 12V 60/55W 		8-97372-526-5 01 1 0507-0606 ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97260-772-0 01 1 0302-0506 ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> 24V 75/70W 		8-97365-163-6 01 1 0507-0606 ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 24V 75/70W 		8-97365-163-6 01 1 0507-0606 ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 24V 75/70W 		8-97365-163-6 01 1 0607- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97260-771-0 01 1 0302-0506 ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> 24V 75/70W 		8-97365-162-6 01 1 0507-0606 ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 24V 75/70W 		8-97365-162-6 01 1 0507-0606 ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 24V 75/70W 		8-97365-162-6 01 1 0607- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> 12V 60/55W 		8-97855-050-4 01 1 0302-0506 ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. ADJUST HEADLAMP<6RC> 24V 75/70W 		8-97372-529-5 01 1 0507-0606 ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 24V 75/70W 		8-97372-529-5 01 1 0507-0606 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 24V 75/70W 		8-97372-529-5 01 1 0607- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> 12V 60/55W 		8-97855-049-4 01 1 0302-0506 ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. ADJUST HEADLAMP<6RC> 24V 75/70W 		8-97372-528-5 01 1 0507-0606 ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 24V 75/70W 		8-97372-528-5 01 1 0507-0606 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 24V 75/70W 		8-97372-528-5 01 1 0607- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
(A) TYPE 2 24V 75/70W 		1-82191-031-0 02 1 0302-0506 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> (A) TYPE 2 24V 75/70W 		1-82191-031-0 02 1 0302-0506 ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> (C) 		8-98009-816-0 01 1 0507-0606 ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> (C) 		8-98009-816-0 01 1 0507-0606 ●
4 02.727 HEADLAMP UNIT
(B) TYPE 1 24V 70W 		1-82191-032-0 02 1 0302-0506 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> (B) TYPE 1 24V 70W 		1-82191-032-0 02 1 0302-0506 ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> (C) 		8-98009-817-0 01 1 0507-0606 ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> (C) 		8-98009-817-0 01 1 0507-0606 ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> (A) 12V 40/60W 		8-97855-197-0 02 1 0302-0506 ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-820-0 01 1 0507-0606 ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> (C) 		8-98009-820-0 01 1 0507-0606 ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> (B) 		8-97855-202-0 02 1 0302-0506 ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-821-0 01 1 0507-0606 ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> (C) 		8-98009-821-0 01 1 0507-0606 ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> (A) 		8-97855-200-0 02 1 0302-0506 ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> (C) 		8-98009-814-0 01 1 0507-0606 ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> (C) 		8-98009-814-0 01 1 0507-0606 ● ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> (C) 		8-98009-814-0 01 1 0607- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> (B) 		8-97855-204-0 02 1 0302-0506 ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> (C) 		8-98009-815-0 01 1 0507-0606 ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> (C) 		8-98009-815-0 01 1 0507-0606 ● ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> (C) 		8-98009-815-0 01 1 0607- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-819-0 01 1 0507-0606 ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-819-0 01 1 0507-0606 ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-819-0 01 1 0607- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-818-0 01 1 0507-0606 ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-818-0 01 1 0507-0606 ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-818-0 01 1 0607- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
24V 75/70W 		8-94405-657-0 02 1 0302-0506 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
VOLTAGE 24V<7AE> 24V 75/70W 		8-94405-657-0 02 1 0302-0506 ●
5 02.727 BULB; HEADLAMP
VOLTAGE 24V<7AE> 24V 75/70W 		1-82194-063-0 02 1 0507-0606 ●
5 02.727 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0507-0606 ● ● ● ●
5 02.727 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0607- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
24V 70W 		8-94405-658-0 02 1 0302-0506 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
VOLTAGE 24V<7AE> 24V 70W 		8-94405-658-0 02 1 0302-0506 ●
5 02.727 BULB; HEADLAMP
EXC. VOLTAGE 24V<7AE> 12V 55W 		5-82195-001-0 02 1 0302-0506 ●
5 02.727 BULB; HEADLAMP
EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-94217-817-0 02 1 0302-0506 ●
5 02.727 BULB; HEADLAMP
12V 60/55W 		8-97106-708-0 02 1 0507-0606 ●
5 02.727 BULB; HEADLAMP
EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97106-708-0 02 1 0507-0606 ●
6 02.728 RIM; HEADLAMP
(C) 		1-82114-016-0 02 1 0302-0506 ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
(B) 		8-97855-211-0 02 1 0302-0506 ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
(A) 		8-97581-089-0 01 1 0302-0506 ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
(A) 		8-97581-088-0 01 1 0302-0506 ● ● ● ● ● ● ●
18 02.726 SCREW; GEAR CASE
ADJUST HEADLAMP<6RC> 		1-82119-086-0 06 1 0302-0506 ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
(A) 		8-97044-618-0 08 1 0302-0506 ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
(B) 		8-97044-623-0 08 1 0302-0506 ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
(A) M4X8 		8-94165-886-0 08 1 0302-0506 ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
(C) 		8-97378-871-0 02 1 0507- ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
(B) 		8-97228-675-0 08 1 0302-0506 ● ● ● ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP 1-82119-021-0 02 1 0302-0506 ● ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
(A) 		8-97855-205-0 04 1 0302-0506 ● ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
(C) 		8-97855-207-0 02 1 0302-0506 ● ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. ADJUST HEADLAMP<6RC> (B) 		8-97855-206-0 02 1 0302-0506 ● ● ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
(B) 		8-94387-097-0 06 1 0302-0506 ● ● ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
EXC. ADJUST HEADLAMP<6RC> (A) 		8-97855-208-0 02 1 0302-0506 ● ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0302-0506 ● ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0507-0607 ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0608- ● ● ● ● ● ●
107 02.729 SCREW; RIM,HEADLAMP
M4X20 TAPPING 		8-97326-998-0 04 1 0302-0506 ● ● ● ● ● ● ●
108 02.729 SEAL; HEADLAMP RIM
ADJUST HEADLAMP<6RC> 		8-97049-114-0 01 1 0302-0506 ● ● ● ● ● ● ●
192 02.765 PIVOT; HEADLAMP
02.737 		8-94381-595-0 02 1 0302-0506 ● ● ● ● ● ● ●
199 02.737 BUSHING
(A) 		8-94381-605-0 04 1 0302-0506 ● ● ● ● ● ● ●
199 02.737 BUSHING
(B) 		8-97855-212-0 02 1 0302-0506 ● ● ● ● ● ● ●
203 02.726 FASTENER; HEADLAMP 8-94382-231-0 04 1 0302-0506 ● ● ● ● ● ● ●
205 02.727 ACTUATOR; HEADLAMP
ADJUST HEADLAMP<6RC> 		8-97309-103-0 02 1 0302-0506 ● ● ● ● ● ●
205 02.727 ACTUATOR; HEADLAMP
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> 		8-97309-103-0 02 1 0302-0506 ●
205 02.727 ACTUATOR; HEADLAMP
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 		8-97309-102-0 02 1 0302-0506 ●
206 02.727 HOLDER; HEADLAMP 8-97868-156-0 02 1 0302-0506 ● ● ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP
EXTERIOR ORNAMENTATION DELUXE<B57> 		8-97994-793-0 01 1 0302-0506 ● ● ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP
EXTERIOR ORNAMENTATION DELUXE<B57> 		8-97994-791-0 01 1 0302-0406 ● ● ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP
EXTERIOR ORNAMENTATION DELUXE<B57> 		8-97580-591-0 01 1 0407-0506 ● ● ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP
EXC. EXTERIOR ORNAMENTATION DELUXE<B57> 		8-97867-863-0 01 1 0302-0506 ● ● ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP
EXC. EXTERIOR ORNAMENTATION DELUXE<B57> 		8-97867-864-0 01 1 0302-0506 ● ● ● ● ● ● ●
317 02.726 SCREW; ORNAMENT
02.729 M4X20 TAPPING 		8-97326-998-0 04 1 0302-0506 ● ● ● ● ● ● ●
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 0302-0506 ● ● ● ● ● ● ●
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 0507- ● ● ● ● ● ●
341 02.726 BRACKET; ACTUATOR
ADJUST HEADLAMP<6RC> 		8-97855-210-0 02 1 0302-0506 ● ● ● ● ● ● ●

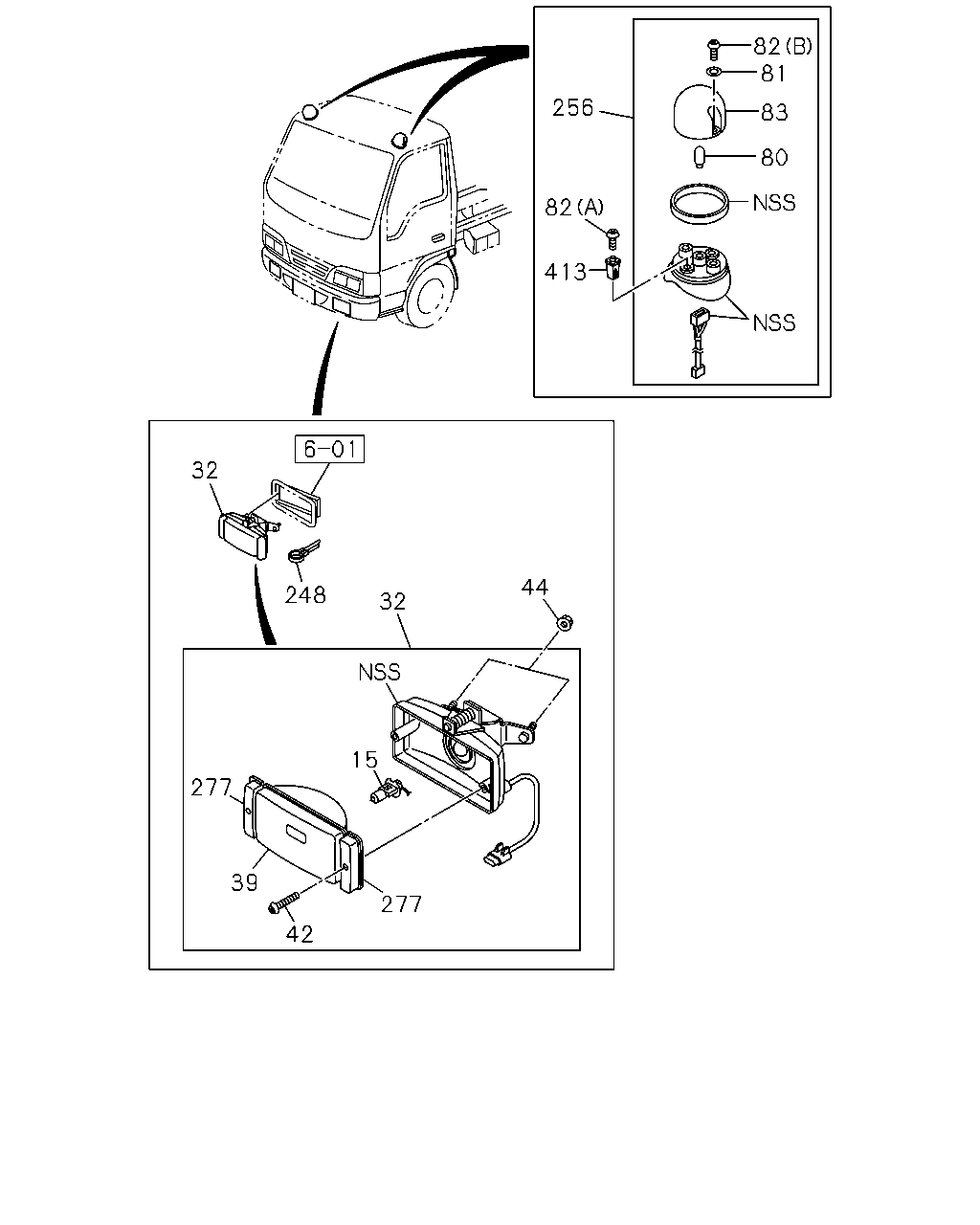

çizim 53096
82 81 256 83 80 82 413 32 44 248 32 15 277 39 277 42
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
15 08.991 BULB; FOG LAMP
24V 70W 		8-97203-926-0 02 1 0302-0506 ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
VOLTAGE 24V<7AE> 24V 70W 		8-97203-926-0 02 1 0302-0506 ●
15 08.991 BULB; FOG LAMP
VOLTAGE 24V<7AE> 24V 70W 		8-97203-926-0 02 1 0507-0606 ●
15 08.991 BULB; FOG LAMP
24V 70W 		8-97203-926-0 02 1 0507-0606 ● ● ● ●
15 08.991 BULB; FOG LAMP
24V 70W 		8-97203-926-0 02 1 0607- ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
EXC. VOLTAGE 24V<7AE> 12V 55W 		8-94458-282-0 02 1 0302-0506 ●
15 08.991 BULB; FOG LAMP
12V 55W 		8-94458-282-0 02 1 0507-0606 ●
15 08.991 BULB; FOG LAMP
EXC. VOLTAGE 24V<7AE> 12V 55W 		8-94458-282-0 02 1 0507-0606 ●
32 02.725 LAMP ASM; FOG 8-97353-955-1 01 1 0302-0506 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
VOLTAGE 24V<7AE> 		8-97353-955-1 01 1 0302-0506 ●
32 02.725 LAMP ASM; FOG
VOLTAGE 24V<7AE> 		8-97353-955-1 01 1 0507-0606 ●
32 02.725 LAMP ASM; FOG 8-97353-955-1 01 1 0507-0606 ● ● ● ●
32 02.725 LAMP ASM; FOG 8-97353-955-1 01 1 0607- ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG 8-97353-954-1 01 1 0302-0506 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
VOLTAGE 24V<7AE> 		8-97353-954-1 01 1 0302-0506 ●
32 02.725 LAMP ASM; FOG
VOLTAGE 24V<7AE> 		8-97353-954-1 01 1 0507-0606 ●
32 02.725 LAMP ASM; FOG 8-97353-954-1 01 1 0507-0606 ● ● ● ●
32 02.725 LAMP ASM; FOG 8-97353-954-1 01 1 0607- ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
EXC. VOLTAGE 24V<7AE> 		8-97353-953-1 01 1 0302-0506 ●
32 02.725 LAMP ASM; FOG 8-97353-953-1 01 1 0507-0606 ●
32 02.725 LAMP ASM; FOG
EXC. VOLTAGE 24V<7AE> 		8-97353-953-1 01 1 0507-0606 ●
32 02.725 LAMP ASM; FOG
EXC. VOLTAGE 24V<7AE> 		8-97353-952-1 01 1 0302-0506 ●
32 02.725 LAMP ASM; FOG 8-97353-952-1 01 1 0507-0606 ●
32 02.725 LAMP ASM; FOG
EXC. VOLTAGE 24V<7AE> 		8-97353-952-1 01 1 0507-0606 ●
39 02.727 UNIT; FOG LAMP 8-97357-929-0 02 1 0302-0506 ● ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP 8-97357-929-0 02 1 0507- ● ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP 8-97357-931-0 04 1 0302-0506 ● ● ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP 8-97357-931-0 04 1 0507- ● ● ● ● ● ●
44 02.737 NUT; FOG LAMP
04.012 M8 FLANGE 		1-09464-018-1 04 1 0302-0506 ● ● ● ● ● ● ●
44 02.737 NUT; FOG LAMP
04.012 M8 FLANGE 		1-09464-018-1 04 1 0507- ● ● ● ● ● ●
80 08.991 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0302-0506 ● ● ● ● ● ●
80 08.991 BULB; MARKER LAMP
VOLTAGE 24V<7AE> 24V 5W 		8-94135-397-0 02 1 0302-0506 ●
80 08.991 BULB; MARKER LAMP
VOLTAGE 24V<7AE> 24V 5W 		8-94135-397-0 02 1 0507-0606 ●
80 08.991 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0507-0606 ● ● ● ●
80 08.991 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0607- ● ● ● ● ● ●
80 08.991 BULB; MARKER LAMP
EXC. VOLTAGE 24V<7AE> 12V 5W 		1-82194-053-0 02 1 0302-0506 ●
80 08.991 BULB; MARKER LAMP
12V 5W 		1-82194-053-0 02 1 0507-0606 ●
80 08.991 BULB; MARKER LAMP
EXC. VOLTAGE 24V<7AE> 12V 5W 		1-82194-053-0 02 1 0507-0606 ●
81 02.587 SEAT; SCREW 1-82219-012-0 04 1 0302-0506 ● ● ● ● ● ● ●
81 02.587 SEAT; SCREW 1-82219-012-0 04 1 0507- ● ● ● ● ● ●
82 02.587 SCREW; MARKER LAMP
(B) 		1-82219-011-0 04 1 0302-0506 ● ● ● ● ● ● ●
82 02.587 SCREW; MARKER LAMP
(B) 		1-82219-011-0 04 1 0507- ● ● ● ● ● ●
82 02.587 SCREW; MARKER LAMP
16.716 (A) M6X25 TAPPING 		9-07067-625-0 04 1 0302-0506 ● ● ● ● ● ● ●
82 02.587 SCREW; MARKER LAMP
16.716 (A) M6X25 TAPPING 		9-07067-625-0 04 1 0507- ● ● ● ● ● ●
83 02.589 LENS; MARKER LAMP 8-97318-299-0 02 1 0302-0506 ● ● ● ● ● ● ●
83 02.589 LENS; MARKER LAMP 8-97318-299-0 02 1 0507- ● ● ● ● ● ●
248 02.727 CLIP; HARNESS
02.559 L=170.3 		1-09987-182-0 02 1 0302-0506 ● ● ● ● ● ● ●
248 02.727 CLIP; HARNESS
02.559 L=170.3 		1-09987-182-0 02 1 0507- ● ● ● ● ● ●
256 02.589 LAMP; MARKER 8-97307-626-0 01 1 0302-0506 ● ● ● ● ● ●
256 02.589 LAMP; MARKER
VOLTAGE 24V<7AE> 		8-97307-626-0 01 1 0302-0506 ●
256 02.589 LAMP; MARKER
VOLTAGE 24V<7AE> 		8-97307-626-0 01 1 0507-0606 ●
256 02.589 LAMP; MARKER 8-97307-626-0 01 1 0507-0606 ● ● ● ●
256 02.589 LAMP; MARKER 8-97307-626-0 01 1 0607- ● ● ● ● ● ●
256 02.589 LAMP; MARKER 8-97307-625-0 01 1 0302-0506 ● ● ● ● ● ●
256 02.589 LAMP; MARKER
VOLTAGE 24V<7AE> 		8-97307-625-0 01 1 0302-0506 ●
256 02.589 LAMP; MARKER
VOLTAGE 24V<7AE> 		8-97307-625-0 01 1 0507-0606 ●
256 02.589 LAMP; MARKER 8-97307-625-0 01 1 0507-0606 ● ● ● ●
256 02.589 LAMP; MARKER 8-97307-625-0 01 1 0607- ● ● ● ● ● ●
256 02.589 LAMP; MARKER
EXC. VOLTAGE 24V<7AE> 		8-97307-628-0 01 1 0302-0506 ●
256 02.589 LAMP; MARKER 8-97307-628-0 01 1 0507-0606 ●
256 02.589 LAMP; MARKER
EXC. VOLTAGE 24V<7AE> 		8-97307-628-0 01 1 0507-0606 ●
256 02.589 LAMP; MARKER
EXC. VOLTAGE 24V<7AE> 		8-97307-627-0 01 1 0302-0506 ●
256 02.589 LAMP; MARKER 8-97307-627-0 01 1 0507-0606 ●
256 02.589 LAMP; MARKER
EXC. VOLTAGE 24V<7AE> 		8-97307-627-0 01 1 0507-0606 ●
277 02.575 CLIP; LENS,FOG LAMP 8-97357-930-0 04 1 0302-0506 ● ● ● ● ● ● ●
277 02.575 CLIP; LENS,FOG LAMP 8-97357-930-0 04 1 0507- ● ● ● ● ● ●
413 02.575 GROMMET; SCREW,MARKER LAMP FIX 8-97289-492-0 04 1 0302-0506 ● ● ● ● ● ● ●
413 02.575 GROMMET; SCREW,MARKER LAMP FIX 8-97289-492-0 04 1 0507- ● ● ● ● ● ●

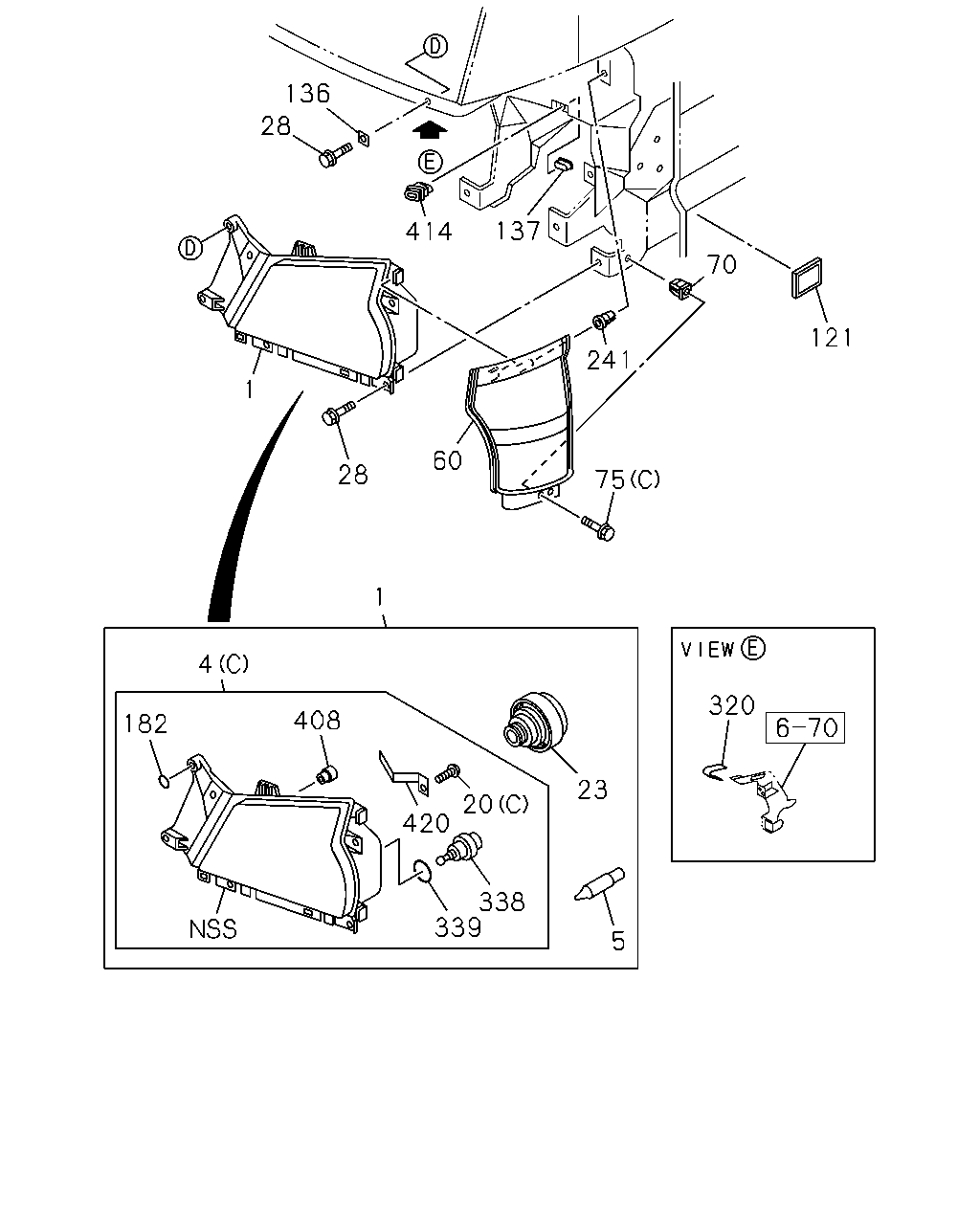

çizim 54087
136 28 137 414 70 121 241 1 60 28 75 1 4 320 408 182 23 20 420 338 339 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-97261-572-0 01 1 0302-0506 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> 		8-97261-572-0 01 1 0302-0506 ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 12V 60/55W 		8-97365-161-6 01 1 0507-0606 ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97365-161-6 01 1 0507-0606 ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-97261-571-0 01 1 0302-0506 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> 		8-97261-571-0 01 1 0302-0506 ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 12V 60/55W 		8-97365-160-6 01 1 0507-0606 ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97365-160-6 01 1 0507-0606 ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 		8-97160-101-0 01 1 0302-0506 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. ADJUST HEADLAMP<6RC> 		8-97160-101-0 01 1 0302-0506 ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 12V 60/55W 		8-97372-527-5 01 1 0507-0606 ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> 12V 60/55W 		8-97372-527-5 01 1 0507-0606 ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 		8-97160-100-0 01 1 0302-0506 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. ADJUST HEADLAMP<6RC> 		8-97160-100-0 01 1 0302-0506 ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 12V 60/55W 		8-97372-526-5 01 1 0507-0606 ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> 12V 60/55W 		8-97372-526-5 01 1 0507-0606 ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97260-772-0 01 1 0302-0506 ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> 24V 75/70W 		8-97365-163-6 01 1 0507-0606 ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 24V 75/70W 		8-97365-163-6 01 1 0507-0606 ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 24V 75/70W 		8-97365-163-6 01 1 0607- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97260-771-0 01 1 0302-0506 ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> 24V 75/70W 		8-97365-162-6 01 1 0507-0606 ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 24V 75/70W 		8-97365-162-6 01 1 0507-0606 ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 24V 75/70W 		8-97365-162-6 01 1 0607- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> 12V 60/55W 		8-97855-050-4 01 1 0302-0506 ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. ADJUST HEADLAMP<6RC> 24V 75/70W 		8-97372-529-5 01 1 0507-0606 ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 24V 75/70W 		8-97372-529-5 01 1 0507-0606 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 24V 75/70W 		8-97372-529-5 01 1 0607- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> 12V 60/55W 		8-97855-049-4 01 1 0302-0506 ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. ADJUST HEADLAMP<6RC> 24V 75/70W 		8-97372-528-5 01 1 0507-0606 ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 24V 75/70W 		8-97372-528-5 01 1 0507-0606 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 24V 75/70W 		8-97372-528-5 01 1 0607- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
(A) TYPE 2 24V 75/70W 		1-82191-031-0 02 1 0302-0506 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> (A) TYPE 2 24V 75/70W 		1-82191-031-0 02 1 0302-0506 ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> (C) 		8-98009-816-0 01 1 0507-0606 ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> (C) 		8-98009-816-0 01 1 0507-0606 ●
4 02.727 HEADLAMP UNIT
(B) TYPE 1 24V 70W 		1-82191-032-0 02 1 0302-0506 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> (B) TYPE 1 24V 70W 		1-82191-032-0 02 1 0302-0506 ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> (C) 		8-98009-817-0 01 1 0507-0606 ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> (C) 		8-98009-817-0 01 1 0507-0606 ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> (A) 12V 40/60W 		8-97855-197-0 02 1 0302-0506 ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-820-0 01 1 0507-0606 ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> (C) 		8-98009-820-0 01 1 0507-0606 ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> (B) 		8-97855-202-0 02 1 0302-0506 ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-821-0 01 1 0507-0606 ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> (C) 		8-98009-821-0 01 1 0507-0606 ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> (A) 		8-97855-200-0 02 1 0302-0506 ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> (C) 		8-98009-814-0 01 1 0507-0606 ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> (C) 		8-98009-814-0 01 1 0507-0606 ● ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> (C) 		8-98009-814-0 01 1 0607- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> (B) 		8-97855-204-0 02 1 0302-0506 ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> (C) 		8-98009-815-0 01 1 0507-0606 ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> (C) 		8-98009-815-0 01 1 0507-0606 ● ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> (C) 		8-98009-815-0 01 1 0607- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-819-0 01 1 0507-0606 ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-819-0 01 1 0507-0606 ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-819-0 01 1 0607- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-818-0 01 1 0507-0606 ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-818-0 01 1 0507-0606 ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-818-0 01 1 0607- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
24V 75/70W 		8-94405-657-0 02 1 0302-0506 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
VOLTAGE 24V<7AE> 24V 75/70W 		8-94405-657-0 02 1 0302-0506 ●
5 02.727 BULB; HEADLAMP
VOLTAGE 24V<7AE> 24V 75/70W 		1-82194-063-0 02 1 0507-0606 ●
5 02.727 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0507-0606 ● ● ● ●
5 02.727 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0607- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
24V 70W 		8-94405-658-0 02 1 0302-0506 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
VOLTAGE 24V<7AE> 24V 70W 		8-94405-658-0 02 1 0302-0506 ●
5 02.727 BULB; HEADLAMP
EXC. VOLTAGE 24V<7AE> 12V 55W 		5-82195-001-0 02 1 0302-0506 ●
5 02.727 BULB; HEADLAMP
EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-94217-817-0 02 1 0302-0506 ●
5 02.727 BULB; HEADLAMP
12V 60/55W 		8-97106-708-0 02 1 0507-0606 ●
5 02.727 BULB; HEADLAMP
EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97106-708-0 02 1 0507-0606 ●
20 02.736 SCREW; HEADLAMP
(A) M4X8 		8-94165-886-0 08 1 0302-0506 ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
(C) 		8-97378-871-0 02 1 0507- ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
(B) 		8-97228-675-0 08 1 0302-0506 ● ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0507- ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0302-0506 ● ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0507-0607 ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0608- ● ● ● ● ● ●

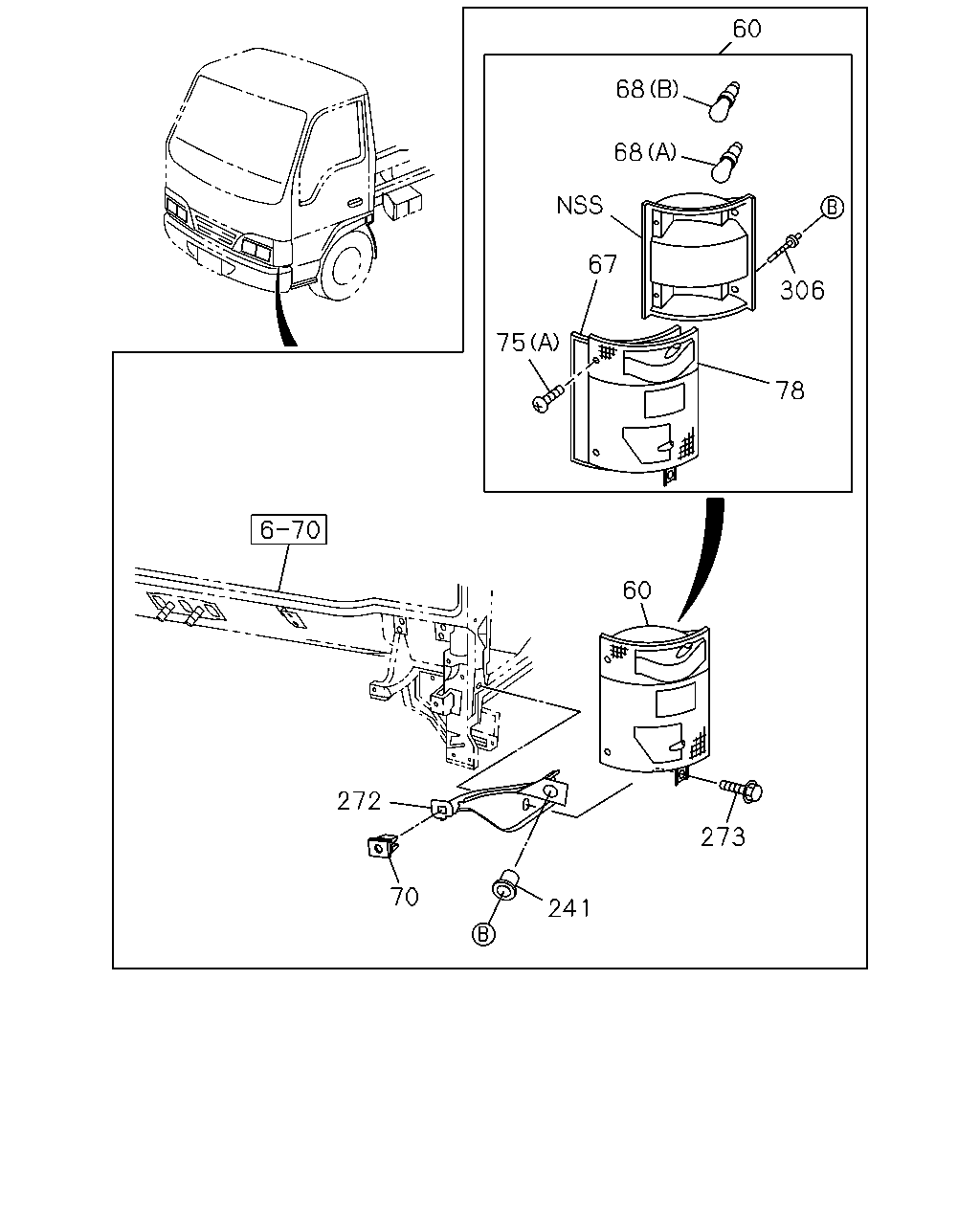

60 02.585 LAMP ASM; FRT COMB 8-97855-113-2 01 1 0302-0506 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-97855-113-2 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-98010-884-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-884-0 01 1 0507-0606 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-884-0 01 1 0607-0701 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98053-941-0 01 1 0702- ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-112-2 01 1 0302-0506 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-97855-112-2 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-98010-883-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-883-0 01 1 0507-0606 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-883-0 01 1 0607-0701 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98053-940-0 01 1 0702- ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97855-111-2 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-882-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-98010-882-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97855-110-2 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-881-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-98010-881-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-97225-925-0 01 1 0302-0506 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-888-0 01 1 0507- ● ●
60 02.585 LAMP ASM; FRT COMB 8-97225-924-0 01 1 0302-0506 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-887-0 01 1 0507- ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 0302-0506 ● ● ● ● ● ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP
16.445 		1-09983-081-0 02 1 0507- ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0302-0506 ● ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0507- ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0507- ● ● ● ● ● ●
121 02.575 REFLECTOR; REFLEX 8-98013-990-1 02 1 0507- ● ● ● ● ● ●
136 02.726 SEAL; HEADLAMP
03.602 25X25 		8-94272-533-0 02 1 0507- ● ● ● ● ● ●
137 02.726 GROMMET; HEADLAMP 8-97581-666-0 02 1 0507- ● ● ● ● ● ●
182 02.722 GASKET; HEADLAMP 8-97378-869-0 02 1 0507- ● ● ● ● ● ●
241 02.726 GROMMET; FRT LAMP 8-94452-095-0 04 1 0302-0506 ● ● ● ● ● ● ●
241 02.726 GROMMET; FRT LAMP 8-97380-030-0 02 1 0507- ● ● ● ● ● ●
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 0302-0506 ● ● ● ● ● ● ●
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 0507- ● ● ● ● ● ●
338 02.727 LEVELING; HEADLAMP
ADJUST HEADLAMP<6RC> 		8-98010-256-0 02 1 0507- ● ● ● ● ● ●
339 02.587 GASKET; LEVELING
ADJUST HEADLAMP<6RC> 		8-97378-870-0 02 1 0507- ● ● ● ● ● ●
408 02.727 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0507- ● ● ● ● ● ●
414 02.736 PIN; HEADLAMP,RIM 8-97581-667-0 02 1 0507- ● ● ● ● ● ●
420 02.737 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 0507- ● ● ● ● ● ●

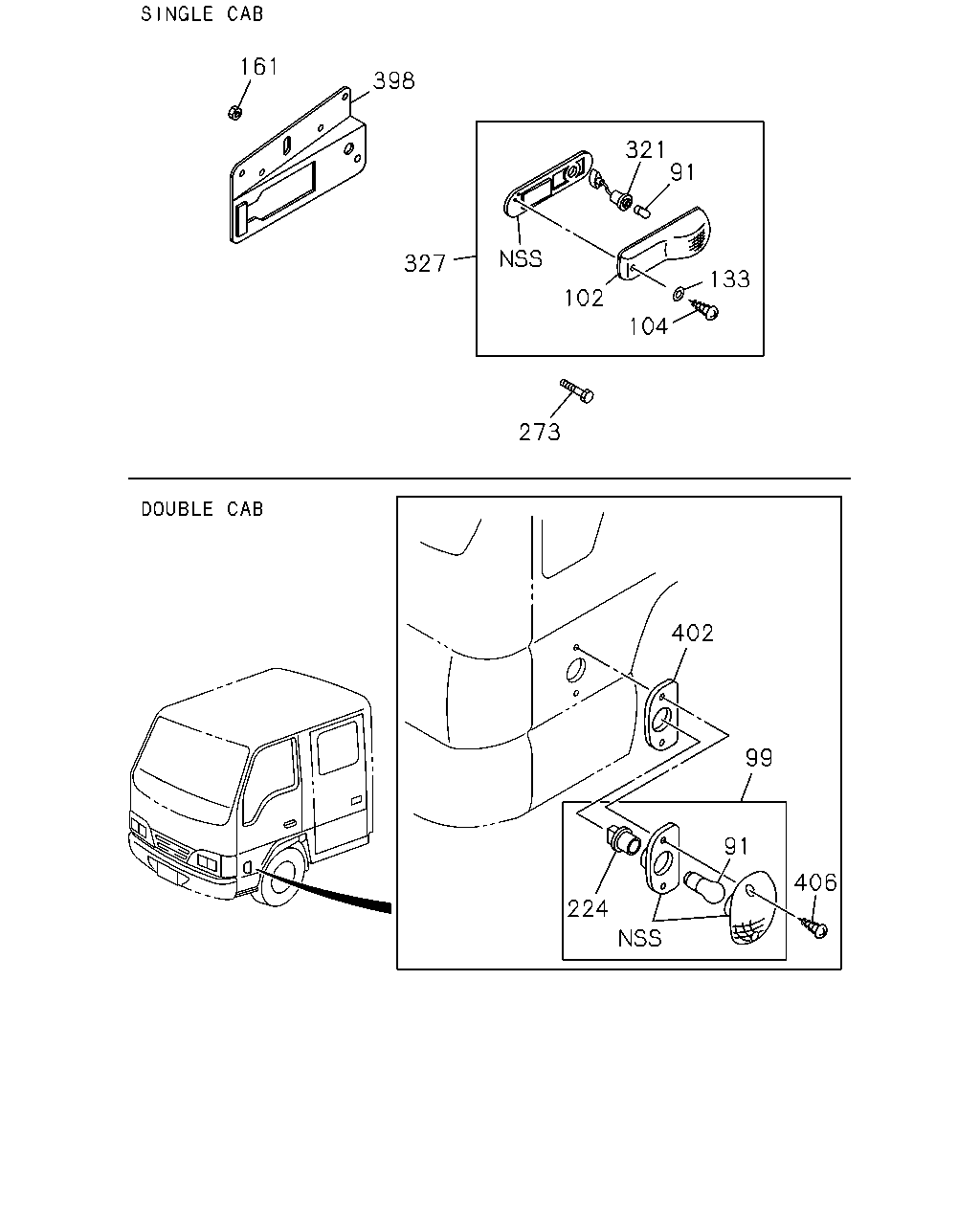

çizim 54196
161 398 321 91 327 102 133 104 273 402 99 91 406 224
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
91 08.991 BULB; SIDE TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0302-0506 ● ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> 24V 21W 		1-82194-036-0 02 1 0302-0506 ●
91 08.991 BULB; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> 24V 21W 		1-82194-036-0 02 1 0507-0606 ●
91 08.991 BULB; SIDE TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0507-0606 ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0607- ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. VOLTAGE 24V<7AE> 12V 21W 		8-94124-074-0 02 1 0302-0606 ●
99 02.585 LAMP; SIDE FLASHER 8-97227-173-0 02 1 0302- ● ●
102 02.589 LENS; SIDE TURN SIGNAL
02.682 		1-82213-021-0 01 1 0302-0506 ● ● ● ● ●
102 02.589 LENS; SIDE TURN SIGNAL
02.682 		1-82213-021-0 01 1 0507- ● ● ●
102 02.589 LENS; SIDE TURN SIGNAL
02.682 		1-82213-020-0 01 1 0302-0506 ● ● ● ● ●
102 02.589 LENS; SIDE TURN SIGNAL
02.682 		1-82213-020-0 01 1 0507- ● ● ●
104 02.587 SCREW; SIDE TURN SIGNAL
02.688 		8-97224-571-0 02 1 0302-0506 ● ● ● ● ●
104 02.587 SCREW; SIDE TURN SIGNAL
02.688 		8-97224-571-0 02 1 0507- ● ● ●
133 02.587 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0302-0506 ● ● ● ● ●
133 02.587 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0507- ● ● ●
161 02.726 NUT; BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.917 M10 FLANGE 		0-91150-210-0 01 1 0302-0506 ● ● ● ● ●
161 02.726 NUT; BRKT
08.917 M10 FLANGE 		0-91150-210-0 01 1 0507-0602 ● ● ●
161 02.726 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 01 1 0603- ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97239-224-0 02 1 0302- ● ●
273 02.726 BOLT; BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.023 M10X30 FLANGE 		0-28691-030-0 01 1 0302-0506 ● ● ● ● ●
273 02.726 BOLT; BRKT
03.023 M10X30 FLANGE 		0-28691-030-0 01 1 0507-0512 ● ● ●
273 02.726 BOLT; BRKT
07.068 M10X30 FLANGE 		0-28661-030-0 01 1 0601- ● ● ●
273 02.726 BOLT; BRKT
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0302-0506 ● ● ● ● ● ● ●
321 02.596 HARNESS; SIDE FLASHER LAMP
02.664 		8-97224-569-0 02 1 0302-0506 ● ● ● ● ●
321 02.596 HARNESS; SIDE FLASHER LAMP
02.664 		8-97224-569-0 02 1 0507- ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
02.679 		8-97221-814-0 01 1 0302-0506 ● ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> 02.679 		8-97221-814-0 01 1 0302-0506 ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> 02.679 		8-97221-814-0 01 1 0507-0606 ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
02.679 		8-97221-814-0 01 1 0507-0606 ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
02.679 		8-97221-814-0 01 1 0607- ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
02.679 		8-97221-813-0 01 1 0302-0506 ● ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> 02.679 		8-97221-813-0 01 1 0302-0506 ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> 02.679 		8-97221-813-0 01 1 0507-0606 ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
02.679 		8-97221-813-0 01 1 0507-0606 ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
02.679 		8-97221-813-0 01 1 0607- ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
EXC. VOLTAGE 24V<7AE> 02.679 		8-97221-277-0 01 1 0302-0606 ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
EXC. VOLTAGE 24V<7AE> 02.679 		8-97221-276-0 01 1 0302-0606 ●
398 02.726 BRACKET; TURN SIGNAL 8-97222-071-0 01 1 0302-0506 ● ● ● ● ●
398 02.726 BRACKET; TURN SIGNAL 8-97222-071-0 01 1 0507- ● ● ●
398 02.726 BRACKET; TURN SIGNAL 8-97222-070-0 01 1 0302-0506 ● ● ● ● ●
398 02.726 BRACKET; TURN SIGNAL 8-97222-070-0 01 1 0507- ● ● ●
402 02.585 SPACER; LAMP,SIDE FLASHER 8-97227-174-1 02 1 0302- ● ●
406 02.594 SCREW; SIDE FLASHER LAMP 8-97230-653-0 04 1 0302- ● ●
çizim 55852
60 68 68 67 306 75 78 60 272 273 70 241
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
60 02.585 LAMP ASM; FRT COMB 8-97855-113-2 01 1 0302-0506 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-97855-113-2 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-98010-884-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-884-0 01 1 0507-0606 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-884-0 01 1 0607-0701 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98053-941-0 01 1 0702- ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-112-2 01 1 0302-0506 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-97855-112-2 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-98010-883-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-883-0 01 1 0507-0606 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-883-0 01 1 0607-0701 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98053-940-0 01 1 0702- ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97855-111-2 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-882-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-98010-882-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97855-110-2 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-881-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-98010-881-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-97225-925-0 01 1 0302-0506 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-888-0 01 1 0507- ● ●
60 02.585 LAMP ASM; FRT COMB 8-97225-924-0 01 1 0302-0506 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-887-0 01 1 0507- ● ●
67 02.590 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 0302-0506 ● ● ● ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP 8-97378-948-0 02 1 0507- ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(B) 24V 21W 		8-94125-956-0 02 1 0302-0506 ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> (B) 24V 21W 		8-94125-956-0 02 1 0302-0506 ●
68 08.991 BULB; FRT COMB LAMP
(D) 12V 21W 		8-97304-590-0 02 1 0507-0606 ●
68 08.991 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (D) 12V 21W 		8-97304-590-0 02 1 0507-0606 ●
68 08.991 BULB; FRT COMB LAMP
(A) 24V 10W 		8-97094-888-0 02 1 0302-0506 ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> (A) 24V 10W 		8-97094-888-0 02 1 0302-0506 ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> (D) 24V 21W AMBER 		8-97323-806-0 02 1 0507-0606 ●
68 08.991 BULB; FRT COMB LAMP
(D) 24V 21W AMBER 		8-97323-806-0 02 1 0507-0606 ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(D) 24V 21W AMBER 		8-97323-806-0 02 1 0607- ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (B) 12V 21W 		8-94124-074-0 02 1 0302-0506 ●
68 08.991 BULB; FRT COMB LAMP
(C) 12V 21/5W 		8-94125-959-0 02 1 0507-0606 ●
68 08.991 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (C) 12V 21/5W 		8-94125-959-0 02 1 0507-0606 ●
68 08.991 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (A) 12V 10W 		8-94126-494-0 02 1 0302-0506 ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> (C) 24V 21/5W 		8-94125-957-0 02 1 0507-0606 ●
68 08.991 BULB; FRT COMB LAMP
(C) 24V 21/5W 		8-94125-957-0 02 1 0507-0606 ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(C) 24V 21/5W 		8-94125-957-0 02 1 0607- ● ● ● ● ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 0302-0506 ● ● ● ● ● ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP
16.445 		1-09983-081-0 02 1 0507- ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0302-0506 ● ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0507- ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0507- ● ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB 8-97855-133-0 01 1 0302-0506 ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB 8-97855-130-0 01 1 0302-0506 ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB 8-97227-813-0 01 1 0302-0506 ● ●
78 02.589 LENS ASM; FRT COMB 8-97227-809-0 01 1 0302-0506 ● ●
241 02.726 GROMMET; FRT LAMP 8-94452-095-0 04 1 0302-0506 ● ● ● ● ● ● ●
241 02.726 GROMMET; FRT LAMP 8-97380-030-0 02 1 0507- ● ● ● ● ● ●
272 02.726 BRACKET; FRT COMB LAMP 8-97853-237-2 01 1 0302-0506 ● ● ● ● ● ● ●
272 02.726 BRACKET; FRT COMB LAMP 8-97853-236-2 01 1 0302-0506 ● ● ● ● ● ● ●
273 02.726 BOLT; BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.023 M10X30 FLANGE 		0-28691-030-0 01 1 0302-0506 ● ● ● ● ●
273 02.726 BOLT; BRKT
03.023 M10X30 FLANGE 		0-28691-030-0 01 1 0507-0512 ● ● ●
273 02.726 BOLT; BRKT
07.068 M10X30 FLANGE 		0-28661-030-0 01 1 0601- ● ● ●
273 02.726 BOLT; BRKT
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0302-0506 ● ● ● ● ● ● ●
306 02.587 PIVOT; FRT COMB LAMP 8-97219-053-0 04 1 0302-0506 ● ● ● ● ● ● ●
çizim 56340
60 93 75 75 315 67 419 76 68 68 75
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
60 02.585 LAMP ASM; FRT COMB 8-97855-113-2 01 1 0302-0506 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-97855-113-2 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-98010-884-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-884-0 01 1 0507-0606 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-884-0 01 1 0607-0701 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98053-941-0 01 1 0702- ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-112-2 01 1 0302-0506 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-97855-112-2 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-98010-883-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-883-0 01 1 0507-0606 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-883-0 01 1 0607-0701 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98053-940-0 01 1 0702- ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97855-111-2 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-882-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-98010-882-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97855-110-2 01 1 0302-0506 ●
60 02.585 LAMP ASM; FRT COMB 8-98010-881-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-98010-881-0 01 1 0507-0606 ●
60 02.585 LAMP ASM; FRT COMB 8-97225-925-0 01 1 0302-0506 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-888-0 01 1 0507- ● ●
60 02.585 LAMP ASM; FRT COMB 8-97225-924-0 01 1 0302-0506 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-887-0 01 1 0507- ● ●
67 02.590 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 0302-0506 ● ● ● ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP 8-97378-948-0 02 1 0507- ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(B) 24V 21W 		8-94125-956-0 02 1 0302-0506 ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> (B) 24V 21W 		8-94125-956-0 02 1 0302-0506 ●
68 08.991 BULB; FRT COMB LAMP
(D) 12V 21W 		8-97304-590-0 02 1 0507-0606 ●
68 08.991 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (D) 12V 21W 		8-97304-590-0 02 1 0507-0606 ●
68 08.991 BULB; FRT COMB LAMP
(A) 24V 10W 		8-97094-888-0 02 1 0302-0506 ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> (A) 24V 10W 		8-97094-888-0 02 1 0302-0506 ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> (D) 24V 21W AMBER 		8-97323-806-0 02 1 0507-0606 ●
68 08.991 BULB; FRT COMB LAMP
(D) 24V 21W AMBER 		8-97323-806-0 02 1 0507-0606 ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(D) 24V 21W AMBER 		8-97323-806-0 02 1 0607- ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (B) 12V 21W 		8-94124-074-0 02 1 0302-0506 ●
68 08.991 BULB; FRT COMB LAMP
(C) 12V 21/5W 		8-94125-959-0 02 1 0507-0606 ●
68 08.991 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (C) 12V 21/5W 		8-94125-959-0 02 1 0507-0606 ●
68 08.991 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (A) 12V 10W 		8-94126-494-0 02 1 0302-0506 ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> (C) 24V 21/5W 		8-94125-957-0 02 1 0507-0606 ●
68 08.991 BULB; FRT COMB LAMP
(C) 24V 21/5W 		8-94125-957-0 02 1 0507-0606 ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(C) 24V 21/5W 		8-94125-957-0 02 1 0607- ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0302-0506 ● ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0507- ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0507- ● ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-97378-962-0 01 1 0507- ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-97378-961-0 01 1 0507- ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-97378-964-0 01 1 0507- ● ●
76 02.589 LENS; FRT COMB LAMP 8-97378-963-0 01 1 0507- ● ●
93 02.892 BRACKET; SIDE COMB LAMP 8-97378-945-0 01 1 0507- ● ● ● ● ● ●
93 02.892 BRACKET; SIDE COMB LAMP 8-97378-943-0 01 1 0507- ● ● ● ● ● ●
315 02.596 HARNESS; FRT COMB LAMP 8-98010-917-0 02 1 0507- ● ● ● ● ● ●
419 02.589 LENS; INNER,FRT COMB LAMP 8-97378-947-0 01 1 0507- ● ● ● ● ● ●
419 02.589 LENS; INNER,FRT COMB LAMP 8-97378-946-0 01 1 0507- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
