◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50950 - NPR/NQR(EUROPE)-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#18929) — 91 parça

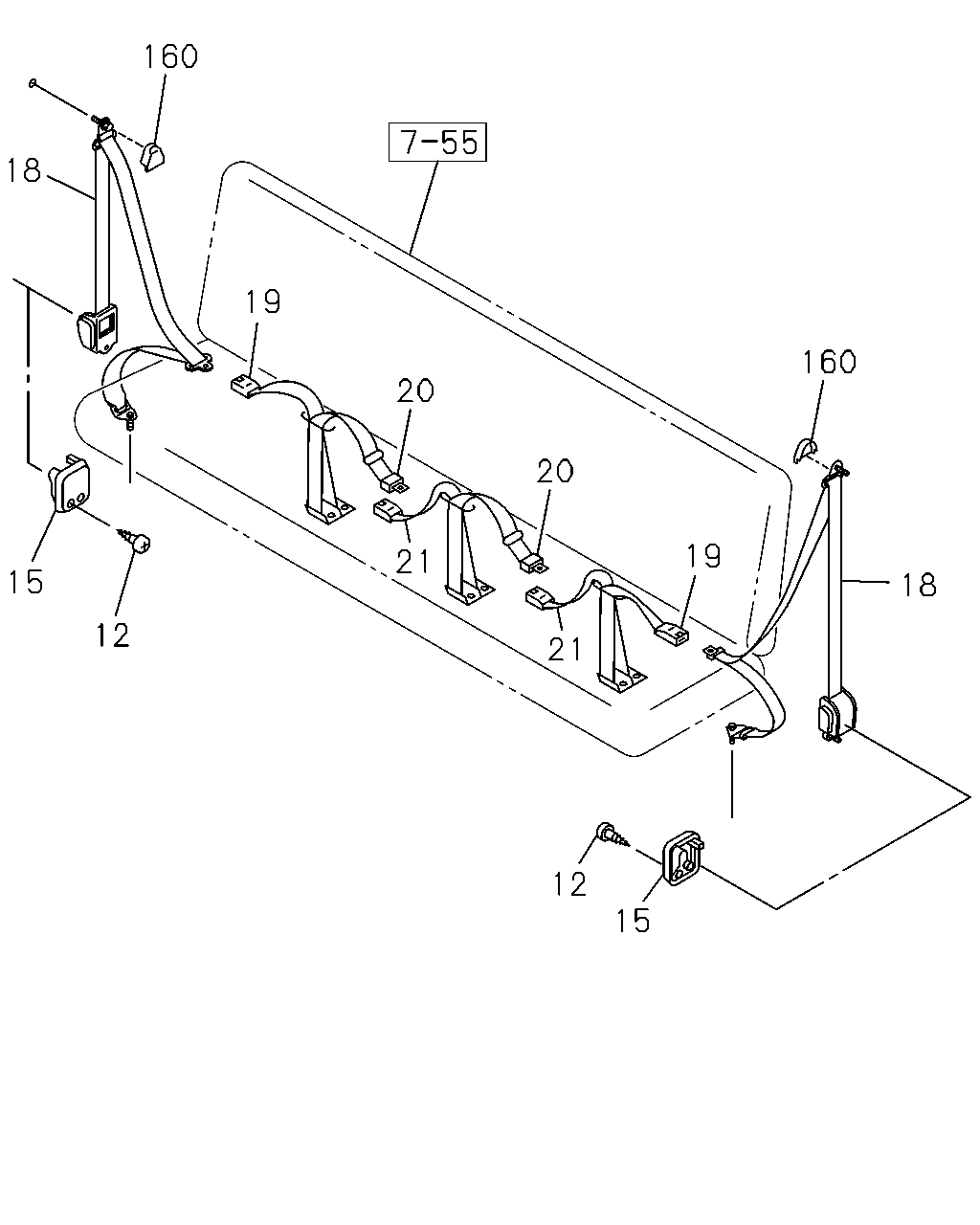

çizim 54647
160 18 19 160 20 20 19 21 15 18 12 21 12 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
16.584 M6X13 		5-09981-074-0 04 1 0302-0611 ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
M4X14 TAPPING 		0-74360-414-0 04 1 0612- ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
DARK GRAY 		8-94351-619-3 02 1 0302-0506 ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRAY 		8-97396-955-3 02 1 0507-0708 ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
16.578 GRAY 		8-97405-192-3 02 1 0709- ● ●
18 16.714 BELT; SEAT,RR
DARK GRAY 		8-97394-532-1 02 1 0302-0406 ● ●
18 16.714 BELT; SEAT,RR
DARK GRAY 		8-97400-799-0 02 1 0407-0503 ● ●
18 16.714 BELT; SEAT,RR
DARK GRAY 		8-97400-912-0 02 1 0504-0506 ● ●
18 16.714 BELT; SEAT,RR
GRAY 		8-97400-930-1 02 1 0507-0606 ● ●
18 16.714 BELT; SEAT,RR
GRAY 		8-97400-930-1 02 1 0607- ● ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
4JJ1 ENG(LFB) GRAY 		8-97400-923-0 02 1 0607- ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
DARK GRAY 		8-97394-528-0 02 1 0302-0406 ● ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
DARK GRAY 		8-97400-797-0 02 1 0407-0503 ● ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
DARK GRAY 		8-97400-911-0 02 1 0504-0506 ● ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
GRAY 		8-97400-922-0 02 1 0507-0606 ● ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
4HK1-TCC ENG(RDV) GRAY 		8-97400-922-0 02 1 0607- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
4JJ1 ENG(LFB) GRAY 		8-97404-043-0 01 1 0607- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
4JJ1 ENG(LFB) GRAY 		8-97404-041-0 01 1 0607- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
DARK GRAY 		8-97394-544-1 01 1 0302-0406 ● ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
DARK GRAY 		8-97400-803-0 01 1 0407-0503 ● ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
DARK GRAY 		8-97400-918-0 01 1 0504-0506 ● ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97404-044-0 01 1 0507-0606 ● ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
4HK1-TCC ENG(RDV) GRAY 		8-97404-044-0 01 1 0607- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
DARK GRAY 		8-97394-543-1 01 1 0302-0406 ● ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
DARK GRAY 		8-97400-802-0 01 1 0407-0503 ● ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
DARK GRAY 		8-97400-916-0 01 1 0504-0506 ● ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97404-042-0 01 1 0507-0606 ● ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
4HK1-TCC ENG(RDV) GRAY 		8-97404-042-0 01 1 0607- ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
DARK GRAY 		8-97393-790-0 01 1 0302-0406 ● ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
DARK GRAY 		8-97400-801-0 01 1 0407-0503 ● ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
DARK GRAY 		8-97400-914-0 01 1 0504-0506 ● ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97400-925-0 01 1 0507- ● ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
DARK GRAY 		8-97393-789-0 01 1 0302-0406 ● ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
DARK GRAY 		8-97400-800-0 01 1 0407-0503 ● ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
DARK GRAY 		8-97400-913-0 01 1 0504-0506 ● ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97400-924-0 01 1 0507-0512 ● ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97404-846-0 01 1 0601- ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0302-0506 ● ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0302-0506 ● ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97396-954-0 02 1 0507- ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97396-954-0 02 1 0507- ● ●

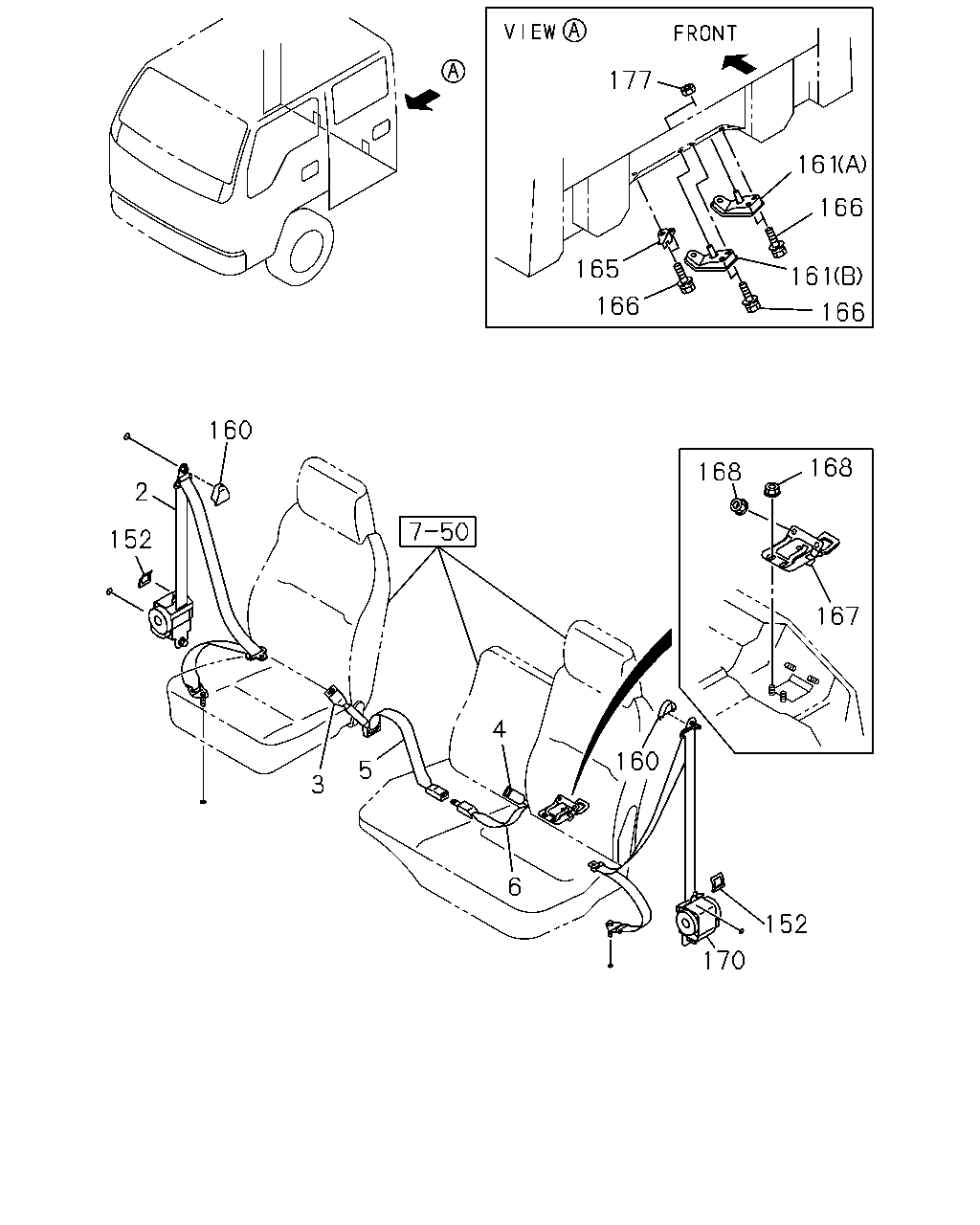

çizim 55183
177 161 166 165 161 166 166 160 168 168 2 152 167 4 160 5 3 6 152 170
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97394-513-1 01 1 0302-0406 ● ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97400-796-0 01 1 0407-0503 ● ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97400-909-0 01 1 0504-0506 ● ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
GRAY 		8-97400-921-1 01 1 0507- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
DARK GRAY 		8-97868-363-0 01 1 0302-0406 ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
DARK GRAY 		8-97400-783-0 01 1 0407-0503 ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
DARK GRAY 		8-97400-897-0 01 1 0504-0506 ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97400-920-0 01 1 0507- ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
DARK GRAY 		8-97394-517-0 01 1 0302-0406 ● ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
DARK GRAY 		8-97400-780-0 01 1 0407-0503 ● ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
DARK GRAY 		8-97400-890-0 01 1 0504-0506 ● ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97400-891-0 01 1 0507- ● ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
DARK GRAY 		8-97326-221-0 01 1 0302-0409 ● ● ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
DARK GRAY 		8-97401-281-0 01 1 0410-0503 ● ● ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
DARK GRAY 		8-97401-501-0 01 1 0504-0506 ● ● ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97401-516-0 01 1 0507-0512 ● ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97404-304-0 01 1 0601- ● ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
DARK GRAY 		8-97394-525-1 01 1 0302-0406 ● ● ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
DARK GRAY 		8-97400-781-0 01 1 0407-0503 ● ● ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
DARK GRAY 		8-97400-892-0 01 1 0504-0506 ● ● ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97400-893-0 01 1 0507- ● ● ● ● ● ●
152 16.714 PROTECTOR 8-97287-563-0 02 1 0302-0506 ● ● ● ● ● ● ●
152 16.714 PROTECTOR 8-97287-563-0 02 1 0302-0506 ● ●
152 16.714 PROTECTOR 8-97287-563-0 02 1 0507- ● ● ● ● ● ●
152 16.714 PROTECTOR 8-97287-563-0 02 1 0507- ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0302-0506 ● ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0302-0506 ● ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97396-954-0 02 1 0507- ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97396-954-0 02 1 0507- ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(B) 		8-97850-329-4 01 1 0302-0506 ● ● ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(B) 		8-97850-329-4 01 1 0507- ● ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(A) 		8-97850-286-5 01 1 0302-0506 ● ● ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(A) 		8-97850-286-5 01 1 0507- ● ● ● ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97869-415-0 01 1 0302-0506 ● ● ● ● ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97869-415-0 01 1 0507- ● ● ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.559 M8X25 FLANGE 		0-28680-825-0 06 1 0302-0506 ● ● ● ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.559 M8X25 FLANGE 		0-28680-825-0 06 1 0507-0512 ● ● ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
06.216 M8X25 FLANGE 		0-28650-825-0 06 1 0601- ● ● ● ● ● ●
167 16.714 PLATE; ANCHOR 8-97869-412-1 01 1 0302-0506 ● ● ● ● ● ● ●
167 16.714 PLATE; ANCHOR 8-97869-412-2 01 1 0507- ● ● ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE 		5-09440-005-0 04 1 0302-0506 ● ● ● ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE 		5-09440-005-0 04 1 0507-0712 ● ● ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
01.062 M8 FLANGE 		0-91180-108-0 04 1 0801- ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
DARK GRAY 		8-97394-520-1 01 1 0302-0406 ● ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
DARK GRAY 		8-97400-779-0 01 1 0407-0503 ● ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
DARK GRAY 		8-97400-889-0 01 1 0504-0506 ● ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97400-886-1 01 1 0507- ● ● ● ● ● ●
177 16.714 NUT
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0302-0506 ● ● ● ● ● ● ●
177 16.714 NUT
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0507-0805 ● ● ● ● ● ●
177 16.714 NUT
03.417 M8 W/LK WASHER 		8-97581-234-0 02 1 0806- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
