◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50950 - NPR/NQR(EUROPE)-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#18927) — 95 parça

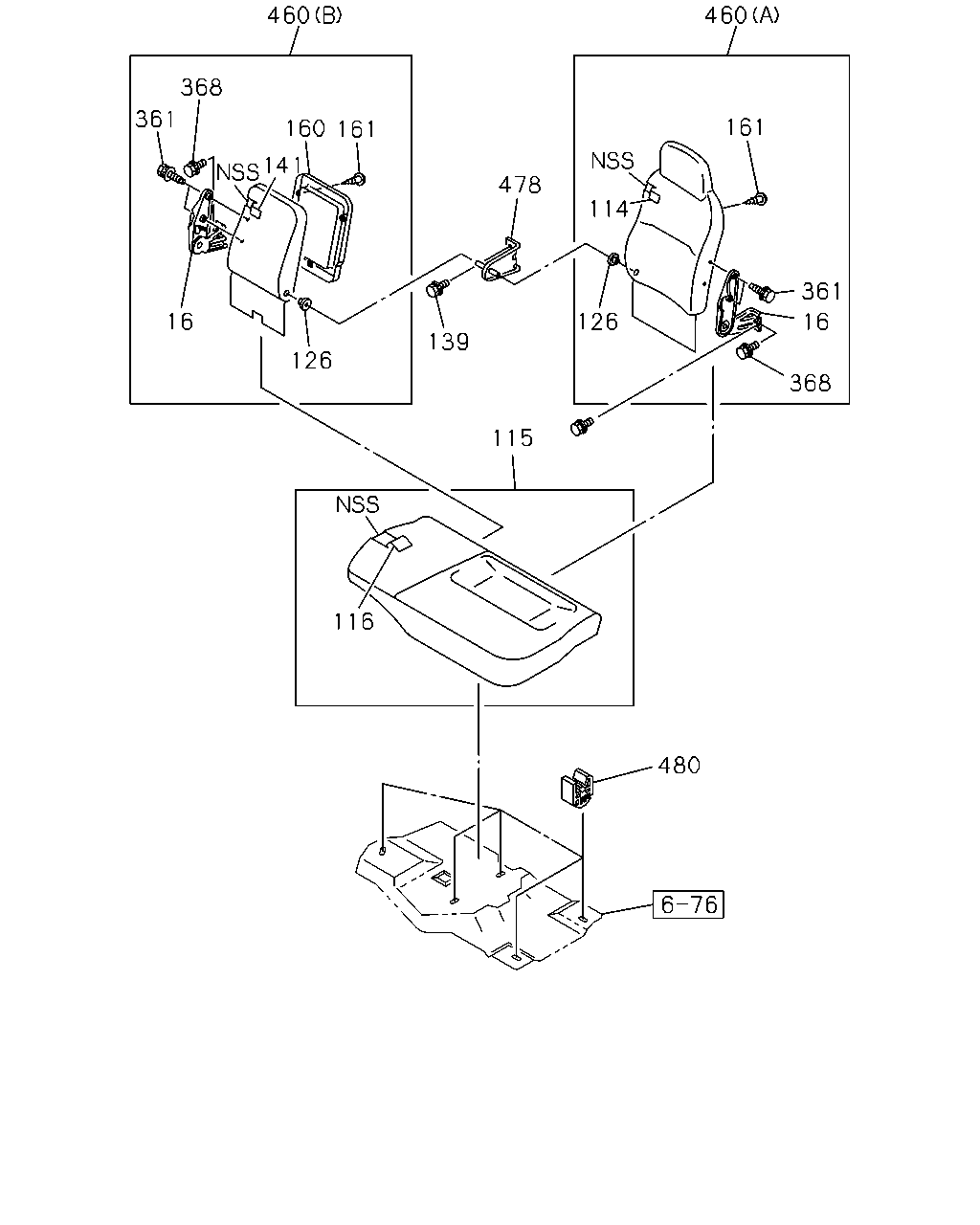

çizim 54010
460 460 368 361 161 160 161 141 478 114 361 16 126 16 139 126 368 115 116 480
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-3 01 1 0302-0506 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-3 01 1 0507- ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 0302-0506 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 0507- ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0302-0506 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0507- ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97394-631-1 01 1 0302-0506 ● ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97400-694-2 01 1 0507- ● ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97394-579-2 01 1 0302-0506 ● ● ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97400-660-2 01 1 0507- ● ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY 		8-97394-534-2 01 1 0302-0506 ● ● ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY 		8-97400-700-1 01 1 0507- ● ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 0302-0506 ● ● ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 0302-0506 ● ● ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 0507-0804 ● ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 0507-0804 ● ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-98069-558-0 01 1 0805- ● ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-98069-558-0 01 1 0805- ● ● ● ● ● ●
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0302-0506 ● ● ● ● ● ● ●
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0507-0611 ● ● ● ● ● ●
139 16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 04 1 0612-0612 ● ● ● ● ● ●
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0701- ● ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
DARK GRAY 		8-97299-798-2 01 1 0302-0506 ● ● ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
DARK GRAY 		8-97400-697-2 01 1 0507- ● ● ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
DARK GRAY 		8-97393-932-0 01 1 0302-0506 ● ● ● ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
GRAY 		8-97398-252-1 01 1 0507- ● ● ● ● ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 0302-0506 ● ● ● ● ● ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 0507- ● ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 0302-0506 ● ● ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 0302-0506 ● ● ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 0507- ● ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 0507- ● ● ● ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0302-0506 ● ● ● ● ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0302-0506 ● ● ● ● ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0507- ● ● ● ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0507- ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
(A) DARK GRAY 		8-97394-570-3 01 1 0302-0506 ● ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
(A) DARK GRAY 		8-97400-654-2 01 1 0507- ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
(B) DARK GRAY 		8-97394-575-1 01 1 0302-0404 ● ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
(B) DARK GRAY 		8-97299-596-3 01 1 0405-0506 ● ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
(B) DARK GRAY 		8-97400-657-4 01 1 0507- ● ● ● ● ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-184-0 01 1 0302-0506 ● ● ● ● ● ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-184-0 01 1 0507- ● ● ● ● ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 0302-0506 ● ● ● ● ● ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 0507- ● ● ● ● ● ●
çizim 54126
1 18 228 24 2 16 99 17 19 12 13 15 69 382 67 71 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.720 BACK ASM; SEAT
DARK GRAY 		8-97394-612-2 01 1 0302-0506 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
DARK GRAY 		8-97400-674-3 01 1 0507- ● ● ● ●
1 16.720 BACK ASM; SEAT
DARK GRAY 		8-97394-624-2 01 1 0302-0506 ● ●
1 16.720 BACK ASM; SEAT
DARK GRAY 		8-97400-680-3 01 1 0507- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97394-613-1 01 1 0302-0506 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97400-675-2 01 1 0507- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97394-625-1 01 1 0302-0506 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97400-681-2 01 1 0507- ● ●
12 16.670 CUSHION; SEAT,FRT
DARK GRAY 		8-97394-614-1 01 1 0302-0506 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
DARK GRAY 		8-97400-488-1 01 1 0507- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
DARK GRAY 		8-97394-626-1 01 1 0302-0506 ● ●
12 16.670 CUSHION; SEAT,FRT
DARK GRAY 		8-97400-682-1 01 1 0507- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97394-615-1 01 1 0302-0506 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97400-489-1 01 1 0507- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97394-627-1 01 1 0302-0506 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97400-683-1 01 1 0507- ● ●
15 16.716 FRAME; CUSHION,FRT SEAT 8-97854-986-1 01 1 0302- ● ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-3 01 1 0302-0506 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-3 01 1 0507- ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 0302-0506 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 0507- ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0302-0506 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0507- ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0302-0506 ● ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0507- ● ● ● ● ● ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0302-0506 ● ● ● ● ● ● ●
18 16.682 COVER; RECLINING
GRAY 		8-97398-249-0 01 1 0507- ● ● ● ● ● ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0302-0506 ● ● ● ● ● ● ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0507-0604 ● ● ● ● ● ●
19 16.686 SCREW; COVER
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0605- ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97867-021-0 01 1 0302-0506 ● ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97398-250-0 01 1 0507-0804 ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97415-445-0 01 1 0805- ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97869-043-0 01 1 0302-0506 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97869-043-0 01 1 0507- ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-059-3 01 1 0302- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0302-0506 ● ● ● ● ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0507-0611 ● ● ● ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
16.679 M8X20 W/PL WASHER 		8-98031-841-0 01 1 0612-0612 ● ● ● ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0701- ● ● ● ● ● ●
69 16.682 NUT; FRT SEAT
M8 		1-09984-109-0 01 1 0302-0506 ● ● ● ● ● ● ●
69 16.682 NUT; FRT SEAT
M8 		1-09984-109-0 01 1 0507- ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0302-0506 ● ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0507- ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 0302-0506 ● ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 0507- ● ● ● ● ● ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 0302-0506 ● ● ● ● ● ● ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 0507- ● ● ● ● ● ●
382 16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 		8-94127-883-1 01 1 0302-0506 ● ● ● ● ● ● ●
382 16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 		8-94127-883-1 01 1 0507- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
