7-40 — INSTRUMENT PANEL AND BOX (#18922) — 229 parça
çizim 12872
16 18 81 521
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
16 16.085 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 0302-0506 ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 0507- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 0302-0506 ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 0507- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4HE1 ENG(RLY) (A) 		8-97997-833-0 01 1 0302-0306 ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4HE1 ENG(RLY) (A) 		8-97853-306-7 01 1 0307-0407 ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ> (A) 		8-97853-306-7 01 1 0408-0506 ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-98012-980-1 01 1 0507-0606 ● ● ● ●
16 16.085 BRACKET; INST PNL
4HK1-TCN ENG(RDQ) (A) 		8-98012-980-1 01 1 0507-0606 ●
16 16.085 BRACKET; INST PNL
(A) 		8-98012-980-1 01 1 0607- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> (A) 		8-97997-833-0 01 1 0408-0506 ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4JH1 ENG(RJX) (A) 		8-97993-079-3 01 1 0302-0506 ●
16 16.085 BRACKET; INST PNL
4JH1-TC ENG(RDM) (A) 		8-97993-079-3 01 1 0507-0606 ● ●
18 16.085 BOLT; BRKT
4JH1 ENG(RJX) 08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0302-0506 ●
18 16.085 BOLT; BRKT
4JH1-TC ENG(RDM) 08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0507-0606 ● ●
81 16.085 BRACKET; ELEC CONT UNIT
4JH1 ENG(RJX) 		8-97996-022-0 01 1 0302-0506 ●
81 16.085 BRACKET; ELEC CONT UNIT
4JH1-TC ENG(RDM) 		8-97996-022-0 01 1 0507-0606 ● ●
521 16.081 COVER; SUN SENSOR
DARK GRAY 		8-97857-529-2 01 1 0302-0506 ● ● ● ● ● ● ●
521 16.081 COVER; SUN SENSOR
4JH1 ENG(RJX) DARK GRAY 		8-97857-529-2 01 1 0302-0506 ●
521 16.081 COVER; SUN SENSOR
DARK GRAY 		8-97582-334-2 01 1 0507-0606 ● ● ● ● ● ●
521 16.081 COVER; SUN SENSOR
4JH1-TC ENG(RDM) DARK GRAY 		8-97582-334-2 01 1 0507-0606 ● ●
521 16.081 COVER; SUN SENSOR
DARK GRAY 		8-97582-334-2 01 1 0607- ● ● ● ● ● ●

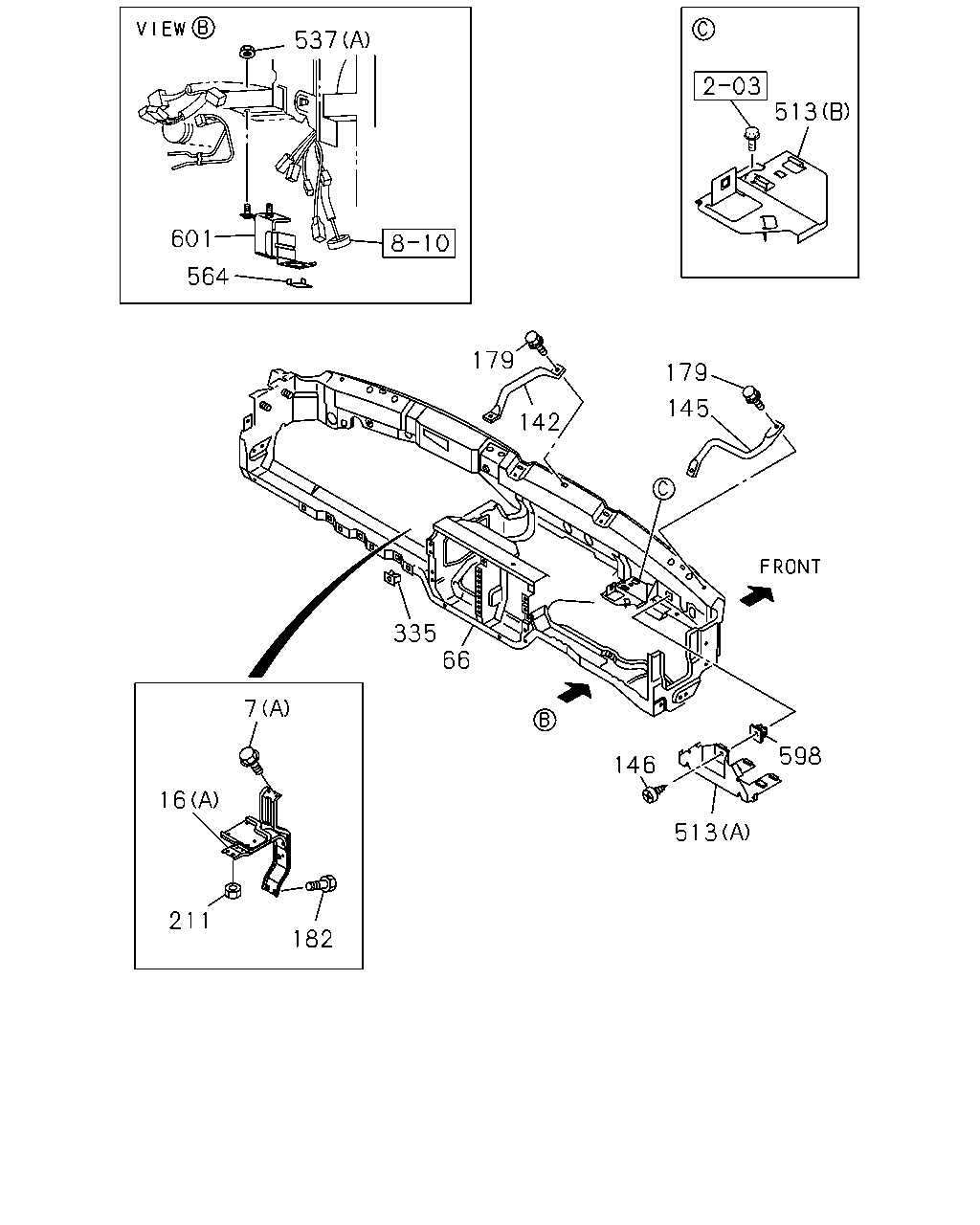

çizim 51665
537 513 601 564 179 179 145 142 335 66 7 598 146 16 513 211 182
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
7 16.085 BOLT; SUPPORT,INST PNL
02.664 (A) M8X20 FLANGE 		0-28680-820-0 02 1 0302-0506 ● ● ● ● ● ● ●
7 16.085 BOLT; SUPPORT,INST PNL
02.664 (A) M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ● ● ● ● ● ●
7 16.085 BOLT; SUPPORT,INST PNL
01.531 (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ● ● ●
7 16.085 BOLT; SUPPORT,INST PNL
16.090 (B) M8X23 FLANGE 		8-97264-766-0 04 1 0302-0506 ● ● ● ● ● ● ●
7 16.085 BOLT; SUPPORT,INST PNL
16.090 (B) M8X23 FLANGE 		8-97264-766-0 04 1 0507- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 0302-0506 ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 0507- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 0302-0506 ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 0507- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4HE1 ENG(RLY) (A) 		8-97997-833-0 01 1 0302-0306 ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4HE1 ENG(RLY) (A) 		8-97853-306-7 01 1 0307-0407 ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ> (A) 		8-97853-306-7 01 1 0408-0506 ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-98012-980-1 01 1 0507-0606 ● ● ● ●
16 16.085 BRACKET; INST PNL
4HK1-TCN ENG(RDQ) (A) 		8-98012-980-1 01 1 0507-0606 ●
16 16.085 BRACKET; INST PNL
(A) 		8-98012-980-1 01 1 0607- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> (A) 		8-97997-833-0 01 1 0408-0506 ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4JH1 ENG(RJX) (A) 		8-97993-079-3 01 1 0302-0506 ●
16 16.085 BRACKET; INST PNL
4JH1-TC ENG(RDM) (A) 		8-97993-079-3 01 1 0507-0606 ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97898-463-4 01 1 0302-0505 ● ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-98013-757-0 01 1 0506-0506 ● ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-98013-757-1 01 1 0507- ● ● ● ● ● ●
142 16.085 STAY; INST PANEL 8-97853-624-4 01 1 0302-0506 ● ● ● ● ● ● ●
142 16.085 STAY; INST PANEL 8-97853-624-4 01 1 0507- ● ● ● ● ● ●
145 16.085 STAY; INST PANEL SIDE 8-97853-625-2 01 1 0302-0506 ● ● ● ● ● ● ●
145 16.085 STAY; INST PANEL SIDE 8-97853-625-2 01 1 0507- ● ● ● ● ● ●
146 16.100 SCREW; TAP
4HE1 ENG(RLY) 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0302-0506 ● ● ● ● ● ● ●
146 16.100 SCREW; TAP
CERAMIC HEATER<6YX> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0507-0604 ● ● ● ● ●
146 16.100 SCREW; TAP
CERAMIC HEATER<6YX> 03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0605-0606 ● ● ● ● ●
146 16.100 SCREW; TAP
CERAMIC HEATER<6YX> 03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0607-0612 ● ● ● ●
146 16.100 SCREW; TAP
CERAMIC HEATER<6YX> 16.090 T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0701-1101 ● ● ● ●
146 16.100 SCREW; TAP
CERAMIC HEATER<6YX> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ● ●
146 16.100 SCREW; TAP
CERAMIC HEATER<6YX> 16.090 T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ● ●
179 16.085 BOLT; STAY,INST PANEL
16.350 M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0302-0307 ● ● ● ● ● ● ●
179 16.085 BOLT; STAY,INST PANEL
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 0308-0506 ● ● ● ● ● ● ●
179 16.085 BOLT; STAY,INST PANEL
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 0507-0512 ● ● ● ● ● ●
179 16.085 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		0-50640-612-0 02 1 0601- ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 0302-0506 ● ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 0507- ● ● ● ● ● ●
211 16.120 NUT; BRKT TO INST
04.594 M6 FLANGE 		0-91150-106-0 02 1 0302-0506 ● ● ● ● ● ● ●
211 16.120 NUT; BRKT TO INST
04.594 M6 FLANGE 		0-91150-106-0 02 1 0507-0602 ● ● ● ● ● ●
211 16.120 NUT; BRKT TO INST
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603- ● ● ● ● ● ●
335 16.115 GROMMET; GLOVE BOX LK
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0302-0506 ● ● ● ● ● ● ●
335 16.115 GROMMET; GLOVE BOX LK
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0507- ● ● ● ● ● ●
513 16.120 BRACKET; RELAY
4HE1 ENG(RLY) (A) 		8-97859-391-2 01 1 0302-0506 ● ● ● ● ● ● ●
513 16.120 BRACKET; RELAY
CERAMIC HEATER<6YX> (A) 		8-97859-391-2 01 1 0507-0606 ● ● ● ● ●
513 16.120 BRACKET; RELAY
CERAMIC HEATER<6YX> (A) 		8-97859-391-2 01 1 0607- ● ● ● ●
513 16.120 BRACKET; RELAY
ADJUST HEADLAMP<6RC> (B) 		8-97410-713-2 01 1 0507-0507 ● ● ● ● ● ●
513 16.120 BRACKET; RELAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. ADJUST HEADLAMP<6RC> (B) 		8-97410-713-2 01 1 0507-0507 ● ● ● ●
513 16.120 BRACKET; RELAY
4HK1-TCN ENG(RDQ) EXC. ADJUST HEADLAMP<6RC> (B) 		8-97410-713-2 01 1 0507-0507 ●
513 16.120 BRACKET; RELAY
4JH1-TC ENG(RDM) ADJUST HEADLAMP<6RC> EXC. TACHOGRAPH ECC REGULATIONS KIEN ZLE<UC9> (B) 		8-97410-713-2 01 1 0508-0601 ● ●
513 16.120 BRACKET; RELAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-97410-713-2 01 1 0508-0601 ● ● ● ●
513 16.120 BRACKET; RELAY
4HK1-TCN ENG(RDQ) (B) 		8-97410-713-2 01 1 0508-0601 ●
513 16.120 BRACKET; RELAY
4JH1-TC ENG(RDM) ADJUST HEADLAMP<6RC> EXC. TACHOGRAPH DIGITAL<EBB>, TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (B) 		8-97410-713-2 01 1 0602-0606 ● ●
513 16.120 BRACKET; RELAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-97410-713-2 01 1 0602-0606 ● ● ● ●
513 16.120 BRACKET; RELAY
4HK1-TCN ENG(RDQ) (B) 		8-97410-713-2 01 1 0602-0606 ●
513 16.120 BRACKET; RELAY
(B) 		8-97410-713-2 01 1 0607- ● ● ● ● ● ●
537 16.085 NUT; BRKT
TACHOGRAPH DIGITAL<EBB> 04.594 (B) M6 FLANGE 		0-91150-106-0 04 1 0601-0602 ● ● ● ● ● ●
537 16.085 NUT; BRKT
TACHOGRAPH DIGITAL<EBB> 01.062 (B) M6 FLANGE 		0-91180-106-0 04 1 0603- ● ● ● ● ● ●
537 16.085 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ● ● ●
537 16.085 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ● ● ● ● ●
537 16.085 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0607- ● ● ● ● ● ●
564 16.081 COVER; SW
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97856-401-3 01 1 0507-0606 ● ● ● ● ●
564 16.081 COVER; SW
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97856-401-3 01 1 0607- ● ● ● ● ● ●
598 09.262 GROMMET; SCREW
4HE1 ENG(RLY) 01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 01 1 0302-0506 ● ● ● ● ● ● ●
598 09.262 GROMMET; SCREW
CERAMIC HEATER<6YX> 01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 01 1 0507-0606 ● ● ● ● ●
598 09.262 GROMMET; SCREW
CERAMIC HEATER<6YX> 01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 01 1 0607- ● ● ● ●
601 16.085 BRACKET; SW
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97184-511-2 01 1 0507-0606 ● ● ● ● ●
601 16.085 BRACKET; SW
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97184-511-2 01 1 0607- ● ● ● ● ● ●

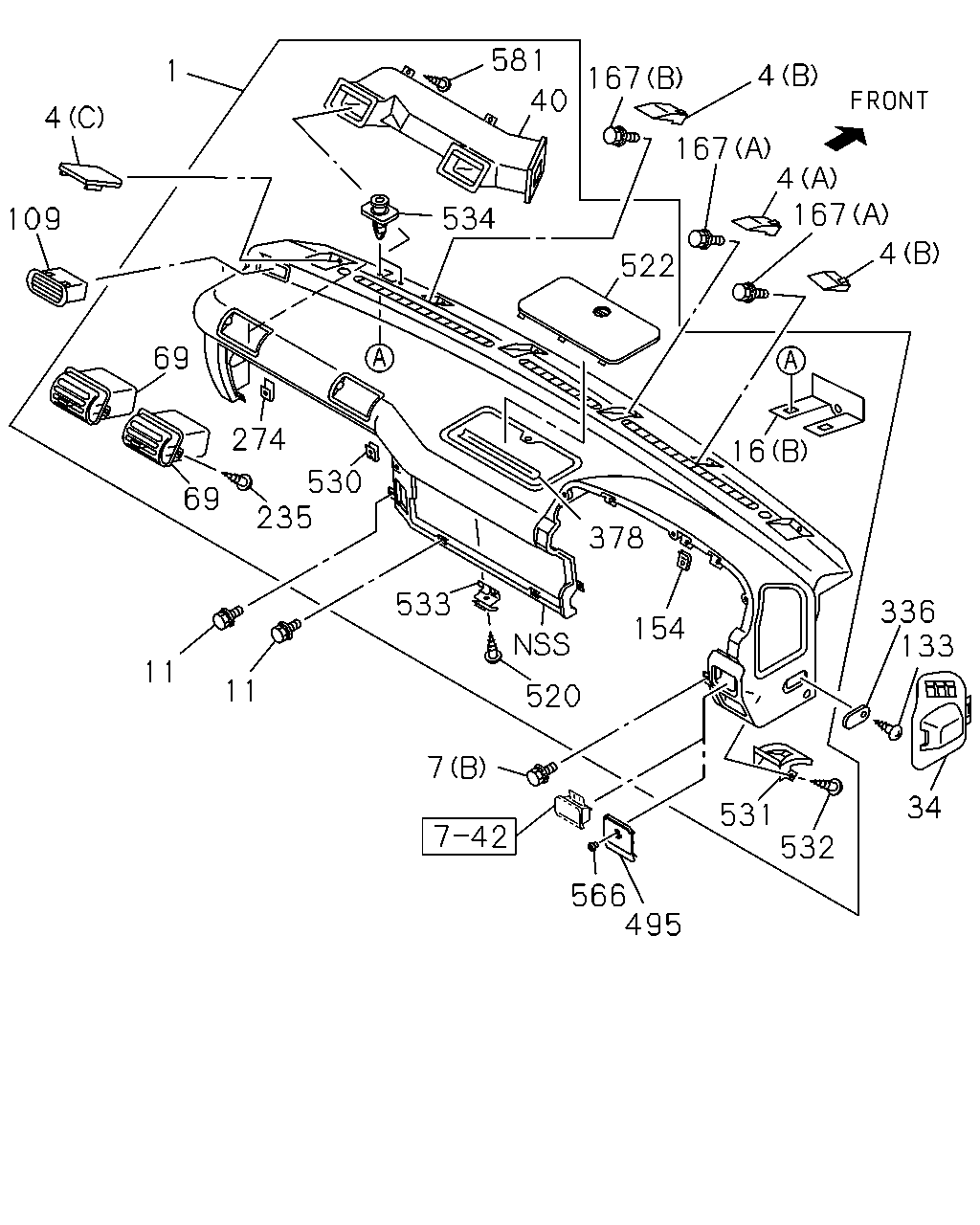

çizim 54089
581 1 4 167 40 4 167 4 167 534 109 4 522 69 16 274 530 235 69 378 533 336 133 154 11 11 520 7 34 531 532 566 495
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.080 PANEL; INST
DARK GRAY 		8-97195-959-1 01 1 0302-0506 ● ● ● ● ● ● ●
1 16.080 PANEL; INST
DARK GRAY 		8-97582-810-1 01 1 0507- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(A) DARK GRAY 		8-97857-523-3 02 1 0302-0506 ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(A) DARK GRAY 		8-97582-215-3 02 1 0507- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97857-525-3 01 1 0302-0506 ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97582-217-3 01 1 0507- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(C) DARK GRAY 		8-97857-527-1 01 1 0302-0506 ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(C) DARK GRAY 		8-97582-813-1 01 1 0507- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97857-524-3 01 1 0302-0506 ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97582-216-3 01 1 0507- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(C) DARK GRAY 		8-97857-526-1 01 1 0302-0506 ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(C) DARK GRAY 		8-97582-812-1 01 1 0507- ● ● ● ● ● ●
7 16.085 BOLT; SUPPORT,INST PNL
02.664 (A) M8X20 FLANGE 		0-28680-820-0 02 1 0302-0506 ● ● ● ● ● ● ●
7 16.085 BOLT; SUPPORT,INST PNL
02.664 (A) M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ● ● ● ● ● ●
7 16.085 BOLT; SUPPORT,INST PNL
01.531 (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ● ● ●
7 16.085 BOLT; SUPPORT,INST PNL
16.090 (B) M8X23 FLANGE 		8-97264-766-0 04 1 0302-0506 ● ● ● ● ● ● ●
7 16.085 BOLT; SUPPORT,INST PNL
16.090 (B) M8X23 FLANGE 		8-97264-766-0 04 1 0507- ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0302-0506 ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0507-1210 ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
02.587 M6X19.5 W/LK&PL WASHER 		8-97360-226-0 06 1 1211- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 0302-0506 ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 0507- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 0302-0506 ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 0507- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4HE1 ENG(RLY) (A) 		8-97997-833-0 01 1 0302-0306 ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4HE1 ENG(RLY) (A) 		8-97853-306-7 01 1 0307-0407 ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4HE1 ENG(RLY) EXC. SPEED LIMITER 90KM<NMJ> (A) 		8-97853-306-7 01 1 0408-0506 ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-98012-980-1 01 1 0507-0606 ● ● ● ●
16 16.085 BRACKET; INST PNL
4HK1-TCN ENG(RDQ) (A) 		8-98012-980-1 01 1 0507-0606 ●
16 16.085 BRACKET; INST PNL
(A) 		8-98012-980-1 01 1 0607- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4HE1 ENG(RLY) SPEED LIMITER 90KM<NMJ> (A) 		8-97997-833-0 01 1 0408-0506 ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4JH1 ENG(RJX) (A) 		8-97993-079-3 01 1 0302-0506 ●
16 16.085 BRACKET; INST PNL
4JH1-TC ENG(RDM) (A) 		8-97993-079-3 01 1 0507-0606 ● ●
34 16.085 LID; OIL TANK
DARK GRAY 		8-97859-800-7 01 1 0302-0506 ● ● ● ● ● ● ●
34 16.085 LID; OIL TANK
DARK GRAY 		8-97582-207-7 01 1 0507- ● ● ● ● ● ●
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL 8-97262-692-0 01 1 0302-0506 ● ● ● ● ● ● ●
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL 8-97262-692-0 01 1 0507- ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97890-631-0 02 1 0302-0506 ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97582-612-0 02 1 0507- ● ● ● ● ● ●
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97859-795-0 01 1 0302-0506 ● ● ● ● ● ● ●
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97582-222-0 01 1 0507- ● ● ● ● ● ●
133 16.081 SCREW; COVER,INST PNL
09.744 M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 0302-0506 ● ● ● ● ● ● ●
133 16.081 SCREW; COVER,INST PNL
09.744 M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 0507-0604 ● ● ● ● ● ●
133 16.081 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74160-520-0 02 1 0605-0612 ● ● ● ● ● ●
133 16.081 SCREW; COVER,INST PNL
09.647 T25 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0701- ● ● ● ● ● ●
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 03 1 0302-0506 ● ● ● ● ● ● ●
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 01 1 0302-0506 ● ● ● ● ● ● ●
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 04 1 0507-0512 ● ● ● ● ● ●
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 01 1 0601- ● ● ● ● ● ●
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 03 1 0601- ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
06.500 (A) M6X25 		8-94279-204-0 04 1 0302-0506 ● ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
06.500 (A) M6X25 		8-94279-204-0 04 1 0507- ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
(B) M6X24 FLANGE 		8-94279-231-1 02 1 0302-0506 ● ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
(B) M6X24 FLANGE 		8-94279-231-1 02 1 0507- ● ● ● ● ● ●
235 16.081 SCREW; GRILLE
16.067 M5X14 		8-94279-325-0 04 1 0302-0506 ● ● ● ● ● ● ●
235 16.081 SCREW; GRILLE
16.067 M5X14 		8-94279-325-0 04 1 0507- ● ● ● ● ● ●
274 16.100 NUT; GLOVE BOX
16.081 M5 SPIRE NUT 		8-94279-051-0 02 1 0302-0506 ● ● ● ● ● ● ●
274 16.100 NUT; GLOVE BOX
16.081 M5 SPIRE NUT 		8-94279-051-0 02 1 0507- ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
DARK GRAY 		8-97857-528-4 02 1 0302-0506 ● ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
DARK GRAY 		8-97582-218-4 02 1 0507- ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL 8-97209-399-0 01 1 0302-0506 ● ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL 8-97209-399-0 01 1 0507- ● ● ● ● ● ●
495 09.743 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97857-548-4 01 1 0302-0506 ● ● ● ● ● ● ●
495 09.743 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97582-214-4 01 1 0507- ● ● ● ● ● ●
520 16.085 SCREW; CLIP,SPRING
16.067 M5X14 		8-94279-325-0 02 1 0302-0506 ● ● ● ● ● ● ●
520 16.085 SCREW; CLIP,SPRING
16.067 M5X14 		8-94279-325-0 02 1 0507- ● ● ● ● ● ●
522 16.085 LID; RELAY BOX
DARK GRAY 		8-97857-520-6 01 1 0302-0506 ● ● ● ● ● ● ●
522 16.085 LID; RELAY BOX
DARK GRAY 		8-97582-494-6 01 1 0507- ● ● ● ● ● ●
530 16.100 CLIP; GLOVE BOX 8-97856-135-0 01 1 0302-0506 ● ● ● ● ● ● ●
530 16.100 CLIP; GLOVE BOX 8-97856-135-0 01 1 0507- ● ● ● ● ● ●
531 16.100 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 		8-97853-130-0 01 1 0302-0506 ● ● ● ● ● ● ●
531 16.100 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 		8-97853-130-0 01 1 0507- ● ● ● ● ● ●
532 16.100 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 16.067 M5X14 		8-94279-325-0 02 1 0302-0506 ● ● ● ● ● ● ●
532 16.100 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 16.067 M5X14 		8-94279-325-0 02 1 0507-0612 ● ● ● ● ● ●
532 16.100 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 09.655 M5X14 TAPPING W/TORQUES 		8-98061-856-0 02 1 0701- ● ● ● ● ● ●
533 16.100 CLIP; SPRING,CTR CLUSTER 8-97853-170-5 02 1 0302-0506 ● ● ● ● ● ● ●
533 16.100 CLIP; SPRING,CTR CLUSTER 8-97853-170-5 02 1 0507- ● ● ● ● ● ●
534 16.100 CLIP; BRKT 8-97856-276-0 04 1 0302-0506 ● ● ● ● ● ● ●
534 16.100 CLIP; BRKT 8-97856-276-0 04 1 0507- ● ● ● ● ● ●
566 16.085 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97868-413-0 01 1 0302-0506 ● ● ● ● ● ● ●
566 16.085 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97582-247-0 01 1 0507- ● ● ● ● ● ●
581 09.744 SCREW
16.067 M5X14 		8-94279-325-0 03 1 0302-0506 ● ● ● ● ● ● ●
581 09.744 SCREW
16.067 M5X14 		8-94279-325-0 03 1 0507- ● ● ● ● ● ●

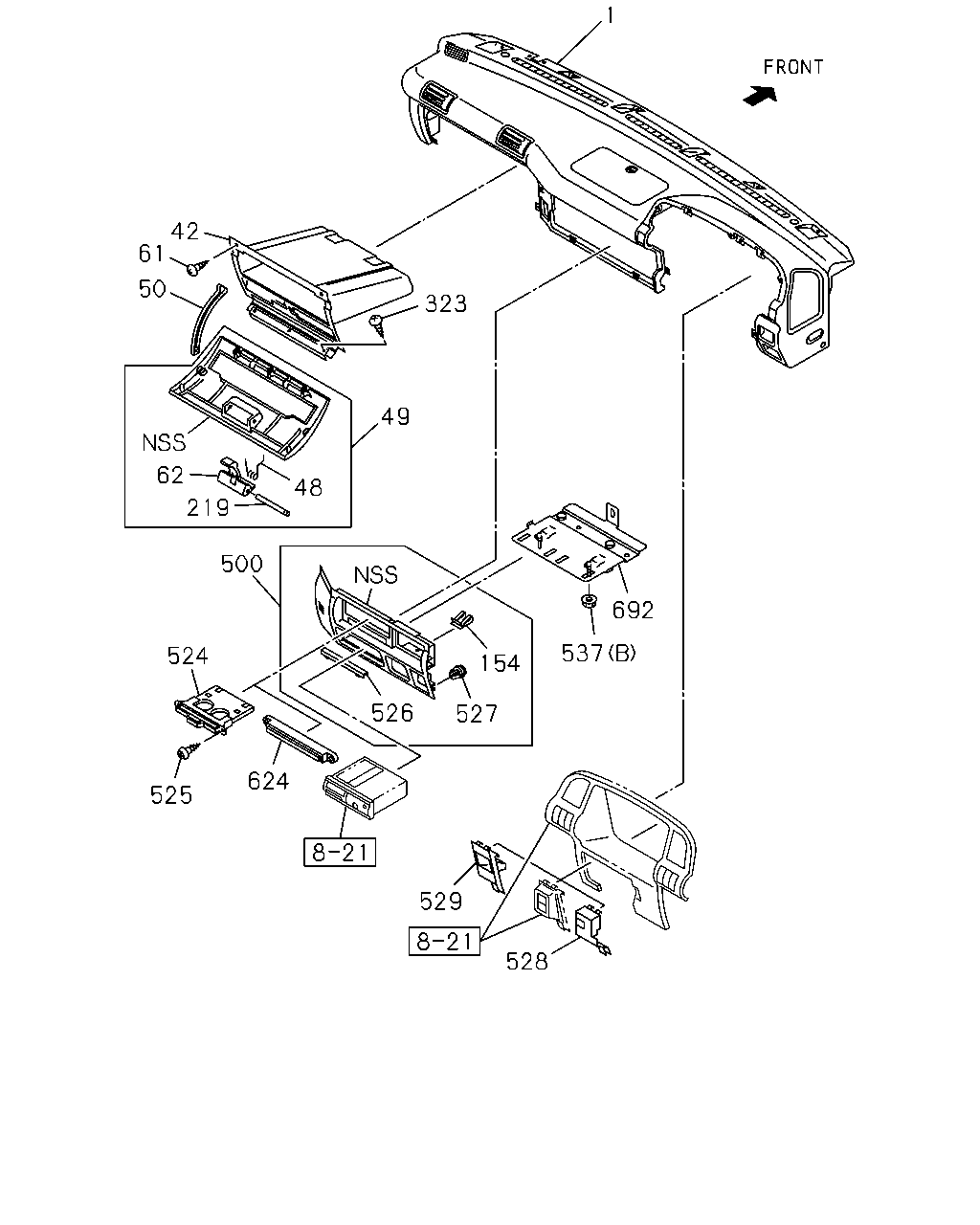

çizim 54330
1 42 61 50 323 49 62 48 219 500 692 537 524 154 526 527 624 525 529 528
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.080 PANEL; INST
DARK GRAY 		8-97195-959-1 01 1 0302-0506 ● ● ● ● ● ● ●
1 16.080 PANEL; INST
DARK GRAY 		8-97582-810-1 01 1 0507- ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL 8-97853-281-6 01 1 0302-0506 ● ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL 8-97853-281-6 01 1 0507- ● ● ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 0302-0506 ● ● ● ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 0507- ● ● ● ● ● ●
49 16.110 LID; GLOVE BOX
DARK GRAY 		8-97857-496-4 01 1 0302-0506 ● ● ● ● ● ● ●
49 16.110 LID; GLOVE BOX
DARK GRAY 		8-97582-808-4 01 1 0507- ● ● ● ● ● ●
50 16.110 STOPPER; LID,GLOVE BOX,INST CLUS 8-97853-152-0 02 1 0302-0506 ● ● ● ● ● ● ●
50 16.110 STOPPER; LID,GLOVE BOX,INST CLUS 8-97853-152-0 02 1 0507- ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0302-0506 ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0507-0604 ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0605-0612 ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.090 T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0701-1101 ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212 ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.090 T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ● ● ● ● ●
62 16.110 KNOB; GLOVE BOX LID
DARK GRAY 		8-97857-498-1 01 1 0302-0506 ● ● ● ● ● ● ●
62 16.110 KNOB; GLOVE BOX LID
DARK GRAY 		8-97582-487-1 01 1 0507- ● ● ● ● ● ●
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 03 1 0302-0506 ● ● ● ● ● ● ●
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 01 1 0302-0506 ● ● ● ● ● ● ●
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 04 1 0507-0512 ● ● ● ● ● ●
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 01 1 0601- ● ● ● ● ● ●
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 03 1 0601- ● ● ● ● ● ●
219 09.744 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 0302-0506 ● ● ● ● ● ● ●
219 09.744 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 0507- ● ● ● ● ● ●
323 16.110 SCREW; GLOVE BOX LK
16.067 M5X14 		8-94279-325-0 03 1 0302-0506 ● ● ● ● ● ● ●
323 16.110 SCREW; GLOVE BOX LK
16.067 M5X14 		8-94279-325-0 03 1 0507-0612 ● ● ● ● ● ●
323 16.110 SCREW; GLOVE BOX LK
09.655 M5X14 TAPPING W/TORQUES 		8-98061-856-0 03 1 0701- ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
DARK GRAY 		8-97199-874-1 01 1 0302-0506 ● ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
DARK GRAY 		8-97582-809-1 01 1 0507-0512 ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
EXC. TACHOGRAPH DIGITAL<EBB> DARK GRAY 		8-97582-809-1 01 1 0601- ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
TACHOGRAPH DIGITAL<EBB> 		8-97406-150-0 01 1 0601- ● ● ● ● ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-97853-172-8 01 1 0302-0506 ● ● ● ● ● ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-97853-172-8 01 1 0507- ● ● ● ● ● ●
525 16.100 SCREW; CUP STAND
16.067 M5X14 		8-94279-325-0 02 1 0302-0506 ● ● ● ● ● ● ●
525 16.100 SCREW; CUP STAND
16.067 M5X14 		8-94279-325-0 02 1 0507-0612 ● ● ● ● ● ●
525 16.100 SCREW; CUP STAND
16.090 T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101 ● ● ● ● ● ●
525 16.100 SCREW; CUP STAND
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ● ● ● ●
525 16.100 SCREW; CUP STAND
16.090 T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ● ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97857-503-1 01 1 0302-0506 ● ● ● ● ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97582-490-1 01 1 0507-0512 ● ● ● ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
EXC. TACHOGRAPH DIGITAL<EBB> DARK GRAY 		8-97582-490-1 01 1 0601- ● ● ● ● ● ●
527 16.100 CLIP; INST CLUSTER 8-97853-169-0 04 1 0302-0506 ● ● ● ● ● ● ●
527 16.100 CLIP; INST CLUSTER 8-97853-169-0 04 1 0507- ● ● ● ● ● ●
528 16.081 COVER; PTO LEVER
PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC> BLACK 		8-97867-544-5 01 1 0302-0506 ● ● ● ● ● ● ●
528 16.081 COVER; PTO LEVER
PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC> BLACK 		8-97867-544-5 01 1 0507- ● ● ● ● ● ●
529 16.100 POCKET; COIN
EXC. PTO TRANSMISSION SIDE(V66), ADJUST HEADLAMP<6RC> BLACK 		8-97867-543-5 01 1 0302-0506 ● ● ● ● ● ● ●
529 16.100 POCKET; COIN
EXC. PTO TRANSMISSION SIDE(V66), ADJUST HEADLAMP<6RC> BLACK 		8-97867-543-5 01 1 0507- ● ● ● ● ● ●
537 16.085 NUT; BRKT
TACHOGRAPH DIGITAL<EBB> 04.594 (B) M6 FLANGE 		0-91150-106-0 04 1 0601-0602 ● ● ● ● ● ●
537 16.085 NUT; BRKT
TACHOGRAPH DIGITAL<EBB> 01.062 (B) M6 FLANGE 		0-91180-106-0 04 1 0603- ● ● ● ● ● ●
537 16.085 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ● ● ●
537 16.085 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ● ● ● ● ●
537 16.085 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0607- ● ● ● ● ● ●
624 16.085 COVER; CUP STAND
EXC. CUP HOLDER<7KZ> 		1-72438-139-1 01 1 0302-0506 ● ● ● ● ● ● ●
624 16.085 COVER; CUP STAND
EXC. CUP HOLDER<7KZ> 		1-72438-139-1 01 1 0507- ● ● ● ● ● ●
692 16.085 BRACKET; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> 		8-98034-097-0 01 1 0601- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
