Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#18920) — 236 parça

4 2 159 3 158 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	16.068 MIRROR; ROOM TRAY ROOF HEAD<7EJ> DARK GRAY	8-97890-469-1	01	1	0302-0506	●	●	●	●	●	●
1	16.068 MIRROR; ROOM VOLTAGE 24V<7AE> TRAY ROOF HEAD<7EJ> DARK GRAY	8-97890-469-1	01	1	0302-0506							●
1	16.068 MIRROR; ROOM VOLTAGE 24V<7AE> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97589-096-1	01	1	0507-0606							●
1	16.068 MIRROR; ROOM TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97589-096-1	01	1	0507-0606		●		●	●	●
1	16.068 MIRROR; ROOM TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97589-096-1	01	1	0607-	●	●		●	●	●	●
1	16.068 MIRROR; ROOM EXC. TRAY ROOF HEAD<7EJ> DARK GRAY	8-97890-468-1	01	1	0302-0506	●	●	●	●	●	●
1	16.068 MIRROR; ROOM VOLTAGE 24V<7AE> EXC. TRAY ROOF HEAD<7EJ> DARK GRAY	8-97890-468-1	01	1	0302-0506							●
1	16.068 MIRROR; ROOM VOLTAGE 24V<7AE> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97589-094-1	01	1	0507-0606							●
1	16.068 MIRROR; ROOM EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97589-094-1	01	1	0507-0606		●		●	●	●
1	16.068 MIRROR; ROOM EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97589-094-1	01	1	0607-	●	●		●	●	●	●
1	16.068 MIRROR; ROOM TRAY ROOF HEAD<7EJ> EXC. VOLTAGE 24V<7AE> DARK GRAY	8-97868-353-2	01	1	0302-0506							●
1	16.068 MIRROR; ROOM TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97588-860-2	01	1	0507-0606	●
1	16.068 MIRROR; ROOM TRAY ROOF HEAD<7EJ> EXC. VOLTAGE 24V<7AE> LIGHT GRAY	8-97588-860-2	01	1	0507-0606							●
1	16.068 MIRROR; ROOM EXC. VOLTAGE 24V<7AE>,TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-352-2	01	1	0302-0506							●
1	16.068 MIRROR; ROOM EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97588-859-2	01	1	0507-0606	●
1	16.068 MIRROR; ROOM EXC. VOLTAGE 24V<7AE>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97588-859-2	01	1	0507-0606							●
2	16.069 SCREW; MIRROR TO BODY 03.671 M5X20	5-09981-059-0	02	1	0302-0405	●	●	●	●	●	●	●
2	16.069 SCREW; MIRROR TO BODY TRAY ROOF HEAD<7EJ> 03.671 M5X20	5-09981-059-0	02	1	0406-0506	●	●	●	●	●	●	●
2	16.069 SCREW; MIRROR TO BODY TRAY ROOF HEAD<7EJ> 03.671 M5X20	5-09981-059-0	02	1	0507-0612	●	●		●	●	●	●
2	16.069 SCREW; MIRROR TO BODY TRAY ROOF HEAD<7EJ> 09.647 T25 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	02	1	0701-0702	●	●		●	●	●	●
2	16.069 SCREW; MIRROR TO BODY TRAY ROOF HEAD<7EJ> 03.671 M5X20	5-09981-059-0	02	1	0703-	●	●		●	●	●	●
2	16.069 SCREW; MIRROR TO BODY EXC. TRAY ROOF HEAD<7EJ> 16.263 M5X16	8-94279-341-0	02	1	0406-0506	●	●	●	●	●	●	●
2	16.069 SCREW; MIRROR TO BODY EXC. TRAY ROOF HEAD<7EJ> 16.263 M5X16	8-94279-341-0	02	1	0507-0612	●	●		●	●	●	●
2	16.069 SCREW; MIRROR TO BODY EXC. TRAY ROOF HEAD<7EJ> M5X16 W/TORQUES	8-98061-741-0	02	1	0701-0702	●	●		●	●	●	●
2	16.069 SCREW; MIRROR TO BODY EXC. TRAY ROOF HEAD<7EJ> 16.263 M5X16	8-94279-341-0	02	1	0703-	●	●		●	●	●	●
3	16.069 STOPPER; RR VIEW MIRROR TRAY ROOF HEAD<7EJ> WINDSHIELD WEATHERSTRIP TYPE<7EL> L=35	8-97867-849-0	01	1	0302-0506	●	●	●	●	●	●	●
3	16.069 STOPPER; RR VIEW MIRROR TRAY ROOF HEAD<7EJ> WINDSHIELD WEATHERSTRIP TYPE<7EL> L=35	8-97867-849-0	01	1	0507-	●	●		●	●	●	●
3	16.069 STOPPER; RR VIEW MIRROR TRAY ROOF HEAD<7EJ> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> L=26	8-97853-263-1	01	1	0302-0506	●	●	●	●	●	●	●
3	16.069 STOPPER; RR VIEW MIRROR TRAY ROOF HEAD<7EJ> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> L=26	8-97853-263-1	01	1	0507-	●	●		●	●	●	●
3	16.069 STOPPER; RR VIEW MIRROR EXC. TRAY ROOF HEAD<7EJ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> L=31	8-97859-098-2	01	1	0302-0506	●	●	●	●	●	●	●
3	16.069 STOPPER; RR VIEW MIRROR EXC. TRAY ROOF HEAD<7EJ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> L=31	8-97859-098-2	01	1	0507-	●	●		●	●	●	●
3	16.069 STOPPER; RR VIEW MIRROR WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. TRAY ROOF HEAD<7EJ> L=40	8-94273-036-3	01	1	0302-0506	●	●	●	●	●	●	●
3	16.069 STOPPER; RR VIEW MIRROR WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. TRAY ROOF HEAD<7EJ> L=40	8-94273-036-3	01	1	0507-	●	●		●	●	●	●
4	16.069 GROMMET; SCREW,ROOM MIRROR 16.588	8-94279-039-0	01	1	0302-0405	●	●	●	●	●	●	●
4	16.069 GROMMET; SCREW,ROOM MIRROR TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	01	1	0406-0506	●	●	●	●	●	●	●
4	16.069 GROMMET; SCREW,ROOM MIRROR TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	01	1	0507-	●	●		●	●	●	●
158	16.495 LENS; ROOM LAMP 16.068	5-73117-108-1	01	1	0302-0506	●	●	●	●	●	●	●
158	16.495 LENS; ROOM LAMP 16.068	5-73117-108-1	01	1	0507-	●	●		●	●	●	●
159	08.991 BULB; ROOM LAMP 24V 10W	5-82194-030-0	01	1	0302-0506	●	●	●	●	●	●
159	08.991 BULB; ROOM LAMP VOLTAGE 24V<7AE> 24V 10W	5-82194-030-0	01	1	0302-0506							●
159	08.991 BULB; ROOM LAMP VOLTAGE 24V<7AE> 24V 10W	5-82194-030-0	01	1	0507-0606							●
159	08.991 BULB; ROOM LAMP 24V 10W	5-82194-030-0	01	1	0507-0606		●		●	●	●
159	08.991 BULB; ROOM LAMP 24V 10W	5-82194-030-0	01	1	0607-	●	●		●	●	●	●
159	08.991 BULB; ROOM LAMP EXC. VOLTAGE 24V<7AE> 12V 10W	8-97128-771-0	01	1	0302-0506							●
159	08.991 BULB; ROOM LAMP 12V 10W	8-97128-771-0	01	1	0507-0606	●
159	08.991 BULB; ROOM LAMP EXC. VOLTAGE 24V<7AE> 12V 10W	8-97128-771-0	01	1	0507-0606							●

90 92 19 126 69 88 142 59 13 59 87 51 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
13	16.068 MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97094-318-0	02	1	0302-0506	●	●	●	●	●	●	●
13	16.068 MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97094-318-1	02	1	0507-0603	●	●		●	●	●	●
13	16.068 MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-98037-582-0	02	1	0604-0611	●	●		●	●	●	●
13	16.068 MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-98051-644-0	02	1	0612-	●	●		●	●	●	●
19	10.186 GASKET; MIRROR DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 16.588	8-97857-925-0	01	1	0302-0506	●	●	●	●	●	●	●
19	10.186 GASKET; MIRROR DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 16.588	8-97857-925-0	01	1	0302-0506	●	●	●	●	●	●	●
34	16.069 CAP; MIRROR DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97995-718-0	02	1	0302-0506	●	●	●	●	●	●	●
34	16.069 CAP; MIRROR DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97995-718-0	02	1	0507-	●	●		●	●	●	●
51	16.069 SCREW; MIRROR DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M6X30	8-94279-327-0	08	1	0302-0506	●	●	●	●	●	●	●
51	16.069 SCREW; MIRROR DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M6X30	8-94279-327-0	08	1	0507-	●	●		●	●	●	●
59	16.069 WASHER; LK DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=2.6	8-94279-073-0	04	1	0302-0506	●	●	●	●	●	●	●
59	16.069 WASHER; LK DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=2.6	8-94279-073-0	04	1	0507-	●	●		●	●	●	●
69	16.069 NUT; CAP DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M10 CAP NUT	1-09984-134-0	02	1	0302-0506	●	●	●	●	●	●	●
69	16.069 NUT; CAP DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M10 CAP NUT	1-09984-134-0	02	1	0507-	●	●		●	●	●	●
87	16.069 SPACER DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-94272-677-0	02	1	0302-0506	●	●	●	●	●	●	●
87	16.069 SPACER DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-94272-677-0	02	1	0507-	●	●		●	●	●	●
88	16.069 WASHER; PL,SUPPORT STAY DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 03.417 ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0302-0506	●	●	●	●	●	●	●
88	16.069 WASHER; PL,SUPPORT STAY DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 03.417 ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0507-	●	●		●	●	●	●
90	16.069 BRACKET; MIRROR STAY DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 16.588	8-97868-528-0	01	1	0302-0506	●	●	●	●	●	●	●
90	16.069 BRACKET; MIRROR STAY DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 16.588	8-97868-527-0	01	1	0302-0506	●	●	●	●	●	●	●
92	16.069 BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	0302-0506	●	●	●	●	●	●	●
92	16.069 BOLT; STAY BRKT,MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M8X30 W/LK WASHER	8-94279-183-1	10	1	0507-0611	●	●		●	●	●	●
92	16.069 BOLT; STAY BRKT,MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M8X30 W/LK WASHER	8-98020-347-0	10	1	0612-	●	●		●	●	●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR WIDE ANGLE<7QF>	8-97995-409-0	01	1	0302-0506	●	●	●	●	●	●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR WIDE ANGLE<7QF>	8-97995-409-1	01	1	0507-	●	●		●	●	●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR WIDE ANGLE<7QF>	8-97995-408-0	01	1	0302-0506	●	●	●	●	●	●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR WIDE ANGLE<7QF>	8-97995-408-1	01	1	0507-	●	●		●	●	●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR<6VE>	8-97995-402-0	01	1	0302-0506	●	●	●	●	●	●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR<6VE>	8-97995-402-0	01	1	0507-0606	●	●		●	●	●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR<6VE>	8-97995-404-1	01	1	0607-	●	●		●	●	●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR<6VE>	8-97995-401-0	01	1	0302-0506	●	●	●	●	●	●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR<6VE>	8-97995-401-0	01	1	0507-0606	●	●		●	●	●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR<6VE>	8-97995-403-1	01	1	0607-	●	●		●	●	●	●
142	16.069 STAY ASM; SUB DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97856-622-2	02	1	0302-0506	●	●	●	●	●	●	●
142	16.069 STAY ASM; SUB DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97856-622-2	02	1	0507-	●	●		●	●	●	●

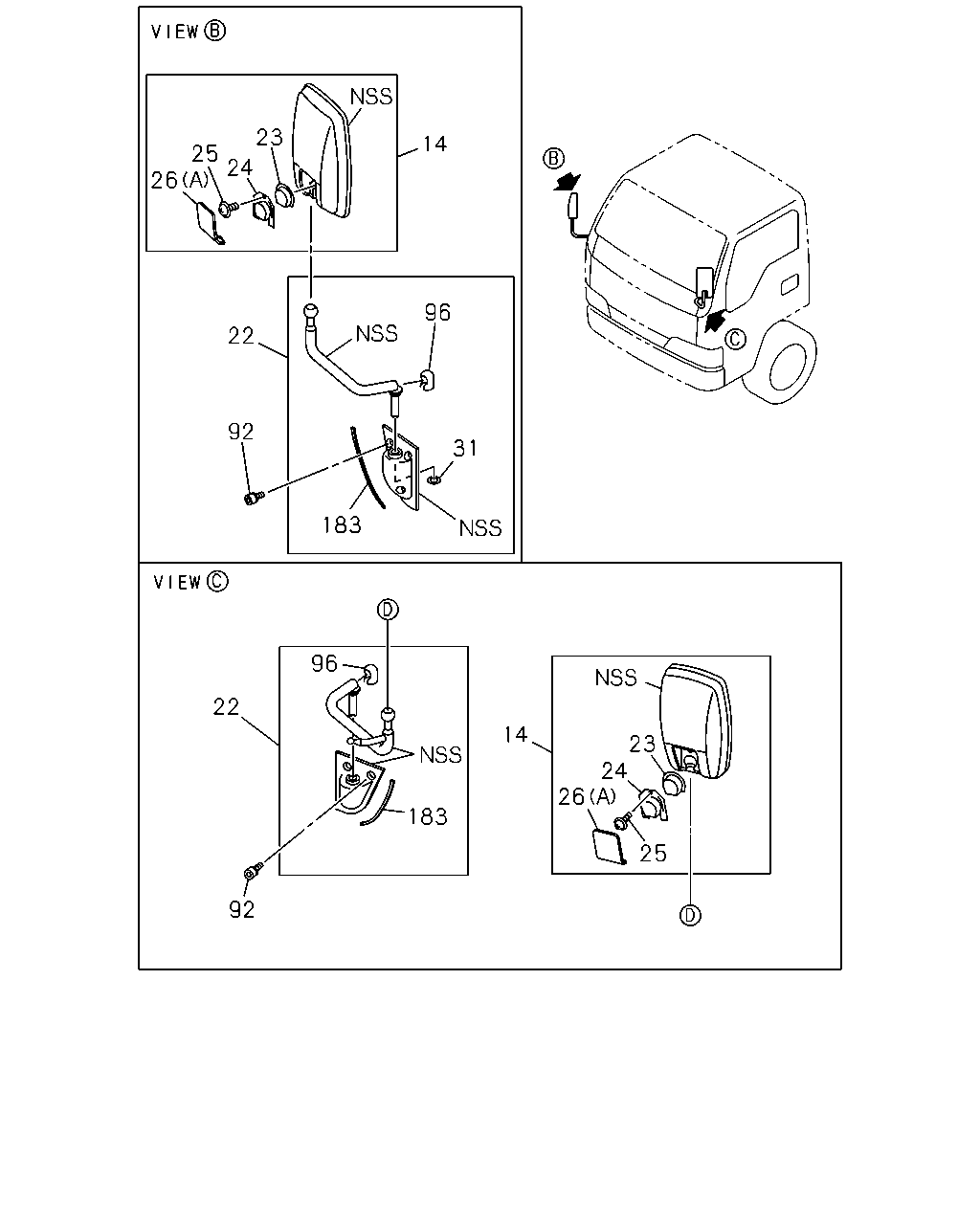

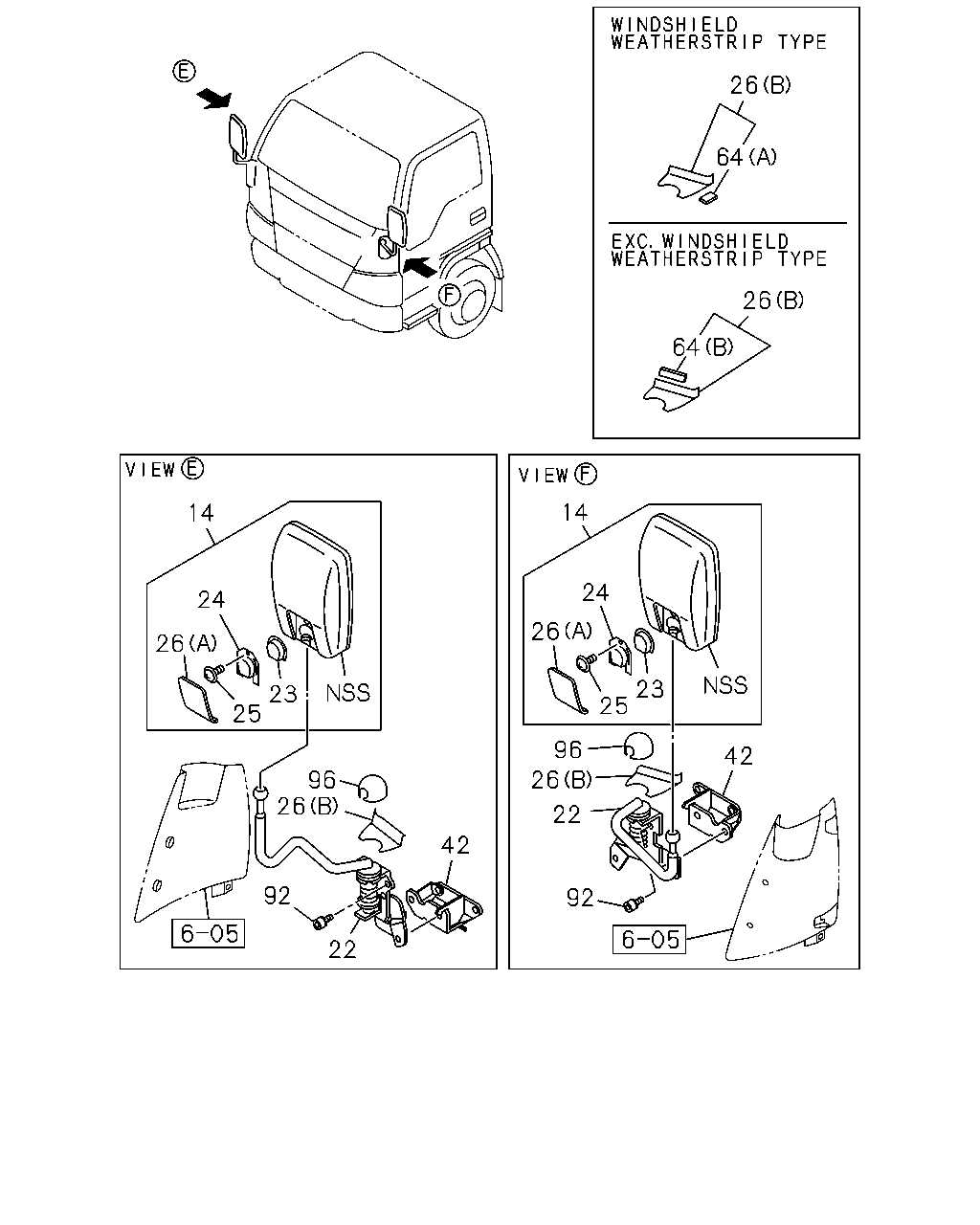

26 64 26 64 14 14 24 24 26 26 23 25 23 25 96 42 26 96 26 22 42 92 92 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
14	16.068 MIRROR ASM; OUTSIDE EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-94262-543-3	01	1	0302-0307	●	●	●	●	●	●	●
14	16.068 MIRROR ASM; OUTSIDE EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-94262-543-3	01	1	0302-0307	●	●	●	●	●	●	●
14	16.068 MIRROR ASM; OUTSIDE EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-94262-543-3	01	1	0507-	●	●		●	●	●	●
14	16.068 MIRROR ASM; OUTSIDE EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-94262-543-3	01	1	0507-	●	●		●	●	●	●
14	16.068 MIRROR ASM; OUTSIDE EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-94262-543-3	02	1	0308-0506	●	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97856-557-8	01	1	0302-0506	●	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97583-376-3	01	1	0507-0701	●	●		●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 06.069	8-98039-586-1	01	1	0702-	●	●		●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97868-237-1	01	1	0302-0506	●	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97581-747-5	01	1	0507-0701	●	●		●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-98039-581-1	01	1	0702-	●	●		●	●	●	●
23	16.069 WASHER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=2.0	8-94262-545-0	01	1	0302-0506	●	●	●	●	●	●	●
23	16.069 WASHER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=2.0	8-94262-545-0	01	1	0302-0506	●	●	●	●	●	●	●
23	16.069 WASHER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=2.0	8-94262-545-0	01	1	0507-	●	●		●	●	●	●
23	16.069 WASHER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=2.0	8-94262-545-0	01	1	0507-	●	●		●	●	●	●
24	16.069 HOLDER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=1.6	8-94262-546-1	01	1	0302-0506	●	●	●	●	●	●	●
24	16.069 HOLDER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=1.6	8-94262-546-1	01	1	0302-0506	●	●	●	●	●	●	●
24	16.069 HOLDER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=1.6	8-94262-546-1	01	1	0507-	●	●		●	●	●	●
24	16.069 HOLDER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=1.6	8-94262-546-1	01	1	0507-	●	●		●	●	●	●
25	16.069 SCREW; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M6X30	8-94279-365-0	01	1	0302-0506	●	●	●	●	●	●	●
25	16.069 SCREW; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M6X30	8-94279-365-0	01	1	0302-0506	●	●	●	●	●	●	●
25	16.069 SCREW; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M6X30	8-94279-365-0	01	1	0507-	●	●		●	●	●	●
25	16.069 SCREW; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M6X30	8-94279-365-0	01	1	0507-	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (A) T=2.3	8-94262-547-2	01	1	0302-0506	●	●	●	●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (A) T=2.3	8-94262-547-2	01	1	0302-0506	●	●	●	●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (A) T=2.3	8-94262-547-2	01	1	0507-	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (A) T=2.3	8-94262-547-2	01	1	0507-	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDE ANGLE<7QF> (B) SILVER	8-97582-842-4	01	1	0507-0807	●	●		●			●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDE ANGLE<7QF> (B) SILVER	8-97582-842-4	01	1	0808-	●	●		●			●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDE ANGLE<7QF> (B) SILVER	8-97582-833-5	01	1	0507-0807	●	●		●			●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDE ANGLE<7QF> (B) SILVER	8-97582-833-5	01	1	0808-	●	●		●			●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (B) SILVER	8-97589-167-0	01	1	0507-	●	●		●			●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (B) SILVER	8-97589-160-1	01	1	0507-	●	●		●			●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDE ANGLE<7QF> (B) WHITE	8-97582-840-4	01	1	0507-0807	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDE ANGLE<7QF> (B) WHITE	8-97582-840-4	01	1	0808-	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDE ANGLE<7QF> (B) WHITE	8-97582-831-5	01	1	0507-0807	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDE ANGLE<7QF> (B) WHITE	8-97582-831-5	01	1	0808-	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (B) WHITE	8-97589-166-0	01	1	0507-0606	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (B) WHITE	8-97589-166-0	01	1	0607-	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (B) WHITE	8-97589-159-1	01	1	0507-0606	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (B) WHITE	8-97589-159-1	01	1	0607-	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDE ANGLE<7QF> (B) BLUE	8-97582-844-4	01	1	0507-0807	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDE ANGLE<7QF> (B) BLUE	8-97582-844-4	01	1	0808-	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDE ANGLE<7QF> (B) BLUE	8-97582-835-5	01	1	0507-0807	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDE ANGLE<7QF> (B) BLUE	8-97582-835-5	01	1	0808-	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (B) BLUE	8-97589-168-0	01	1	0507-0606	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (B) BLUE	8-97589-168-0	01	1	0607-	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (B) BLUE	8-97589-161-1	01	1	0507-0606	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (B) BLUE	8-97589-161-1	01	1	0607-	●	●		●	●	●	●
42	16.069 ATTACHMENT; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97581-755-2	01	1	0507-	●	●		●	●	●	●
42	16.069 ATTACHMENT; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97581-625-2	01	1	0507-	●	●		●	●	●	●
64	16.069 SEAL; MIRROR WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (A)	8-98015-058-0	04	1	0507-0606	●	●		●	●	●	●
64	16.069 SEAL; MIRROR WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (A)	8-98015-058-0	02	1	0607-	●	●		●	●	●	●
64	16.069 SEAL; MIRROR EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDEANGLE<7QF> (B)	8-98015-057-0	02	1	0507-0807	●	●		●	●	●	●
64	16.069 SEAL; MIRROR EXC. IDENTIFICATION LABEL FOR KD<6UT>,DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (B)	8-98015-057-0	02	1	0808-0809	●	●		●	●	●	●
64	16.069 SEAL; MIRROR IDENTIFICATION LABEL FOR KD<6UT> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDE ANGLE<7QF> (B)	8-98015-057-0	02	1	0808-0809	●	●		●	●	●	●
64	16.069 SEAL; MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>,KD PREPARATORY PACK VAR.4<7TV> (B)	8-98015-057-0	02	1	0810-	●	●		●	●	●	●
64	16.069 SEAL; MIRROR KD PREPARATORY PACK VAR.4<7TV> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDE ANGLE<7QF> (B)	8-98015-057-0	02	1	0810-	●	●		●	●	●	●
92	16.069 BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	0302-0506	●	●	●	●	●	●	●
92	16.069 BOLT; STAY BRKT,MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M8X30 W/LK WASHER	8-94279-183-1	10	1	0507-0611	●	●		●	●	●	●
92	16.069 BOLT; STAY BRKT,MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M8X30 W/LK WASHER	8-98020-347-0	10	1	0612-	●	●		●	●	●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> OD=40	8-97853-206-2	01	1	0302-0506	●	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> OD=40	8-97853-206-2	01	1	0302-0506	●	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97581-631-2	02	1	0507-	●	●		●	●	●	●

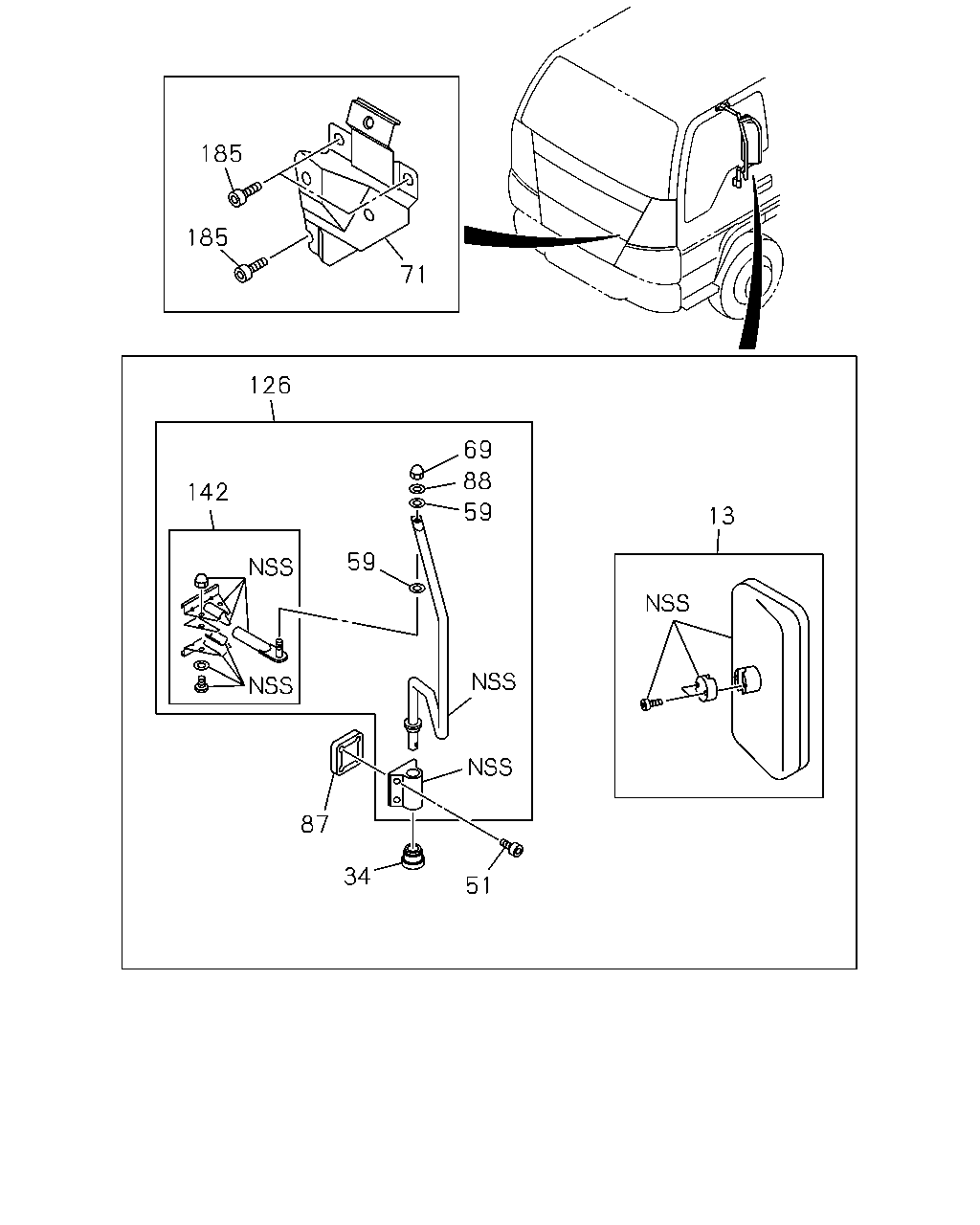

185 185 71 126 69 88 142 59 13 59 87 34 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
13	16.068 MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97094-318-0	02	1	0302-0506	●	●	●	●	●	●	●
13	16.068 MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97094-318-1	02	1	0507-0603	●	●		●	●	●	●
13	16.068 MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-98037-582-0	02	1	0604-0611	●	●		●	●	●	●
13	16.068 MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-98051-644-0	02	1	0612-	●	●		●	●	●	●
34	16.069 CAP; MIRROR DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97995-718-0	02	1	0302-0506	●	●	●	●	●	●	●
34	16.069 CAP; MIRROR DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97995-718-0	02	1	0507-	●	●		●	●	●	●
51	16.069 SCREW; MIRROR DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M6X30	8-94279-327-0	08	1	0302-0506	●	●	●	●	●	●	●
51	16.069 SCREW; MIRROR DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M6X30	8-94279-327-0	08	1	0507-	●	●		●	●	●	●
59	16.069 WASHER; LK DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=2.6	8-94279-073-0	04	1	0302-0506	●	●	●	●	●	●	●
59	16.069 WASHER; LK DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=2.6	8-94279-073-0	04	1	0507-	●	●		●	●	●	●
69	16.069 NUT; CAP DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M10 CAP NUT	1-09984-134-0	02	1	0302-0506	●	●	●	●	●	●	●
69	16.069 NUT; CAP DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M10 CAP NUT	1-09984-134-0	02	1	0507-	●	●		●	●	●	●
71	16.069 BRACKET; OUTSIDE MIRROR DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97581-621-2	01	1	0507-	●	●		●	●	●	●
71	16.069 BRACKET; OUTSIDE MIRROR DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97581-620-2	01	1	0507-	●	●		●	●	●	●
87	16.069 SPACER DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-94272-677-0	02	1	0302-0506	●	●	●	●	●	●	●
87	16.069 SPACER DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-94272-677-0	02	1	0507-	●	●		●	●	●	●
88	16.069 WASHER; PL,SUPPORT STAY DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 03.417 ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0302-0506	●	●	●	●	●	●	●
88	16.069 WASHER; PL,SUPPORT STAY DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 03.417 ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0507-	●	●		●	●	●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR WIDE ANGLE<7QF>	8-97995-409-0	01	1	0302-0506	●	●	●	●	●	●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR WIDE ANGLE<7QF>	8-97995-409-1	01	1	0507-	●	●		●	●	●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR WIDE ANGLE<7QF>	8-97995-408-0	01	1	0302-0506	●	●	●	●	●	●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR WIDE ANGLE<7QF>	8-97995-408-1	01	1	0507-	●	●		●	●	●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR<6VE>	8-97995-402-0	01	1	0302-0506	●	●	●	●	●	●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR<6VE>	8-97995-402-0	01	1	0507-0606	●	●		●	●	●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR<6VE>	8-97995-404-1	01	1	0607-	●	●		●	●	●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR<6VE>	8-97995-401-0	01	1	0302-0506	●	●	●	●	●	●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR<6VE>	8-97995-401-0	01	1	0507-0606	●	●		●	●	●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR<6VE>	8-97995-403-1	01	1	0607-	●	●		●	●	●	●
142	16.069 STAY ASM; SUB DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97856-622-2	02	1	0302-0506	●	●	●	●	●	●	●
142	16.069 STAY ASM; SUB DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97856-622-2	02	1	0507-	●	●		●	●	●	●
185	16.069 BOLT; BRKT DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M8X12.5 HEX SOCKET W/LK WASHER	8-97232-181-0	06	1	0507-0610	●	●		●	●	●	●
185	16.069 BOLT; BRKT DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M8X12.5 W/LK WASHER	8-98020-348-0	06	1	0611-	●	●		●	●	●	●

23 14 25 24 26 96 22 92 31 183 96 22 14 23 24 26 183 25 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
14	16.068 MIRROR ASM; OUTSIDE EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-94262-543-3	01	1	0302-0307	●	●	●	●	●	●	●
14	16.068 MIRROR ASM; OUTSIDE EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-94262-543-3	01	1	0302-0307	●	●	●	●	●	●	●
14	16.068 MIRROR ASM; OUTSIDE EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-94262-543-3	01	1	0507-	●	●		●	●	●	●
14	16.068 MIRROR ASM; OUTSIDE EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-94262-543-3	01	1	0507-	●	●		●	●	●	●
14	16.068 MIRROR ASM; OUTSIDE EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-94262-543-3	02	1	0308-0506	●	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97856-557-8	01	1	0302-0506	●	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97583-376-3	01	1	0507-0701	●	●		●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 06.069	8-98039-586-1	01	1	0702-	●	●		●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97868-237-1	01	1	0302-0506	●	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97581-747-5	01	1	0507-0701	●	●		●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-98039-581-1	01	1	0702-	●	●		●	●	●	●
23	16.069 WASHER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=2.0	8-94262-545-0	01	1	0302-0506	●	●	●	●	●	●	●
23	16.069 WASHER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=2.0	8-94262-545-0	01	1	0302-0506	●	●	●	●	●	●	●
23	16.069 WASHER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=2.0	8-94262-545-0	01	1	0507-	●	●		●	●	●	●
23	16.069 WASHER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=2.0	8-94262-545-0	01	1	0507-	●	●		●	●	●	●
24	16.069 HOLDER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=1.6	8-94262-546-1	01	1	0302-0506	●	●	●	●	●	●	●
24	16.069 HOLDER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=1.6	8-94262-546-1	01	1	0302-0506	●	●	●	●	●	●	●
24	16.069 HOLDER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=1.6	8-94262-546-1	01	1	0507-	●	●		●	●	●	●
24	16.069 HOLDER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=1.6	8-94262-546-1	01	1	0507-	●	●		●	●	●	●
25	16.069 SCREW; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M6X30	8-94279-365-0	01	1	0302-0506	●	●	●	●	●	●	●
25	16.069 SCREW; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M6X30	8-94279-365-0	01	1	0302-0506	●	●	●	●	●	●	●
25	16.069 SCREW; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M6X30	8-94279-365-0	01	1	0507-	●	●		●	●	●	●
25	16.069 SCREW; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M6X30	8-94279-365-0	01	1	0507-	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (A) T=2.3	8-94262-547-2	01	1	0302-0506	●	●	●	●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (A) T=2.3	8-94262-547-2	01	1	0302-0506	●	●	●	●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (A) T=2.3	8-94262-547-2	01	1	0507-	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (A) T=2.3	8-94262-547-2	01	1	0507-	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDE ANGLE<7QF> (B) SILVER	8-97582-842-4	01	1	0507-0807	●	●		●			●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDE ANGLE<7QF> (B) SILVER	8-97582-842-4	01	1	0808-	●	●		●			●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDE ANGLE<7QF> (B) SILVER	8-97582-833-5	01	1	0507-0807	●	●		●			●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDE ANGLE<7QF> (B) SILVER	8-97582-833-5	01	1	0808-	●	●		●			●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (B) SILVER	8-97589-167-0	01	1	0507-	●	●		●			●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (B) SILVER	8-97589-160-1	01	1	0507-	●	●		●			●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDE ANGLE<7QF> (B) WHITE	8-97582-840-4	01	1	0507-0807	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDE ANGLE<7QF> (B) WHITE	8-97582-840-4	01	1	0808-	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDE ANGLE<7QF> (B) WHITE	8-97582-831-5	01	1	0507-0807	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDE ANGLE<7QF> (B) WHITE	8-97582-831-5	01	1	0808-	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (B) WHITE	8-97589-166-0	01	1	0507-0606	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (B) WHITE	8-97589-166-0	01	1	0607-	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (B) WHITE	8-97589-159-1	01	1	0507-0606	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (B) WHITE	8-97589-159-1	01	1	0607-	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDE ANGLE<7QF> (B) BLUE	8-97582-844-4	01	1	0507-0807	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDE ANGLE<7QF> (B) BLUE	8-97582-844-4	01	1	0808-	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDE ANGLE<7QF> (B) BLUE	8-97582-835-5	01	1	0507-0807	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL>,DOOR MIRROR WIDE ANGLE<7QF> (B) BLUE	8-97582-835-5	01	1	0808-	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (B) BLUE	8-97589-168-0	01	1	0507-0606	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (B) BLUE	8-97589-168-0	01	1	0607-	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (B) BLUE	8-97589-161-1	01	1	0507-0606	●	●		●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (B) BLUE	8-97589-161-1	01	1	0607-	●	●		●	●	●	●
31	16.069 PLATE; MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97857-597-1	01	1	0308-0506	●	●	●	●	●	●	●
92	16.069 BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	0302-0506	●	●	●	●	●	●	●
92	16.069 BOLT; STAY BRKT,MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M8X30 W/LK WASHER	8-94279-183-1	10	1	0507-0611	●	●		●	●	●	●
92	16.069 BOLT; STAY BRKT,MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M8X30 W/LK WASHER	8-98020-347-0	10	1	0612-	●	●		●	●	●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> OD=40	8-97853-206-2	01	1	0302-0506	●	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> OD=40	8-97853-206-2	01	1	0302-0506	●	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97581-631-2	02	1	0507-	●	●		●	●	●	●
183	16.069 FINISHER; MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 16.588	8-97857-925-0	01	1	0302-0307	●	●	●	●	●	●	●
183	16.069 FINISHER; MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 16.588	8-97857-925-0	01	1	0302-0307	●	●	●	●	●	●	●
183	16.069 FINISHER; MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 16.588	8-97857-925-0	02	1	0308-0506	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
