Sayfa 6-80 - Isuzu EPC

6-80 — BACK PANEL (#18914) — 146 parça

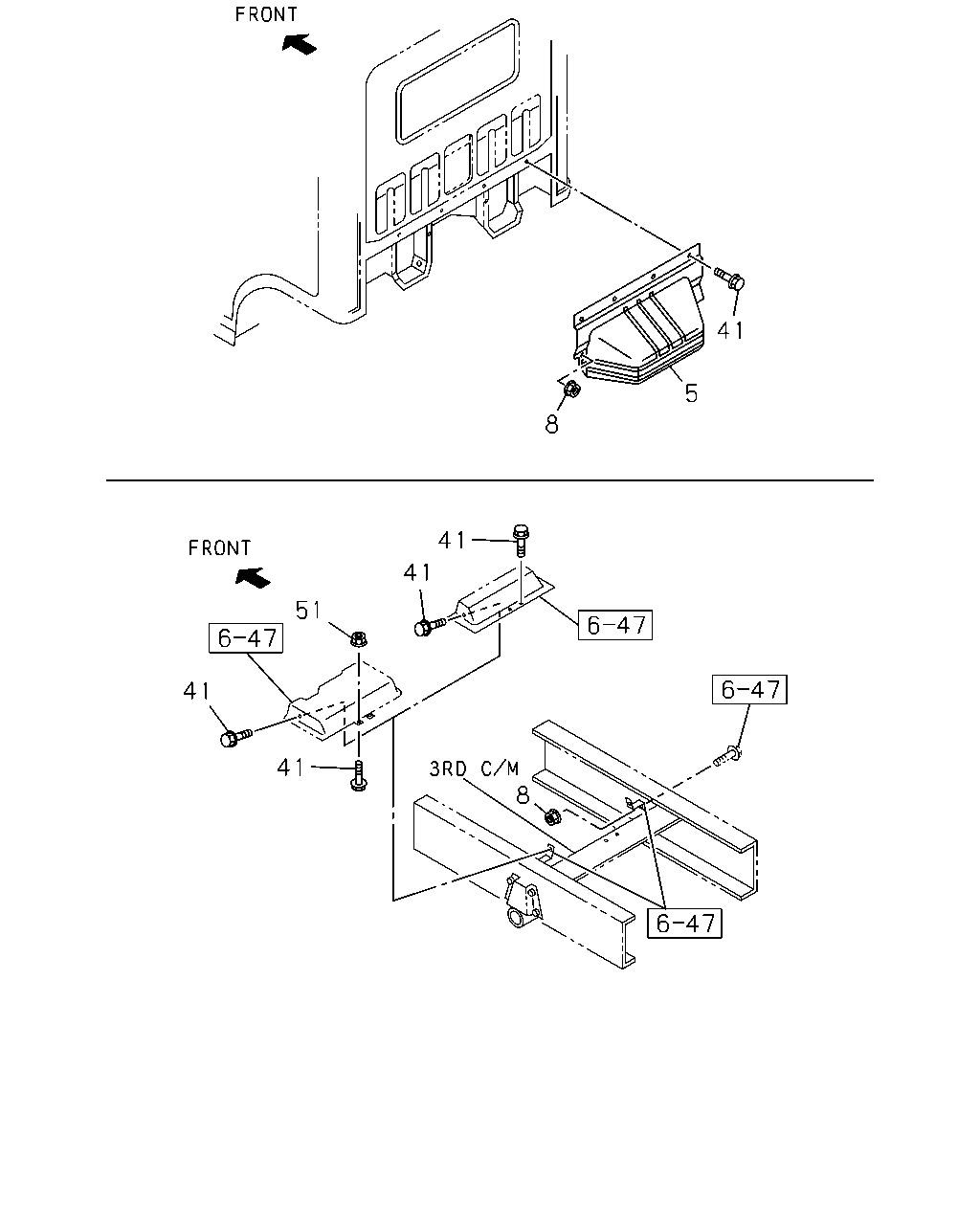

41 5 8 41 41 51 41 41 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
5	16.587 PANEL; CAB BACK 4HE1 ENG(RLY)	8-97287-554-1	01	1	0302-0505	●	●	●	●	●
5	16.587 PANEL; CAB BACK 4HE1 ENG(RLY)	8-98021-287-0	01	1	0506-0506	●	●	●	●	●
5	16.587 PANEL; CAB BACK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98021-287-0	01	1	0507-0606		●	●		●
5	16.587 PANEL; CAB BACK 4HK1-TCC ENG(RDV) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98042-522-0	01	1	0607-		●	●
5	16.587 PANEL; CAB BACK 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98042-522-0	01	1	0607-					●
5	16.587 PANEL; CAB BACK 4JH1 ENG(RJX)	8-97205-590-4	01	1	0302-0506		●
5	16.587 PANEL; CAB BACK 4JH1-TC ENG(RDM)	8-97205-590-5	01	1	0507-0606	●
5	16.587 PANEL; CAB BACK 4JH1-TC ENG(RDM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97205-590-5	01	1	0507-0606		●
8	16.587 NUT; BACK PANEL 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●		●	●	●
8	16.587 NUT; BACK PANEL 4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506		●
8	16.587 NUT; BACK PANEL 4JH1 ENG(RJX),4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506		●
8	16.587 NUT; BACK PANEL 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●		●
8	16.587 NUT; BACK PANEL 4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●
8	16.587 NUT; BACK PANEL 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●	●		●
8	16.587 NUT; BACK PANEL 4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●
8	16.587 NUT; BACK PANEL 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-		●	●		●
8	16.587 NUT; BACK PANEL 4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506		●
8	16.587 NUT; BACK PANEL 4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. IRISH EQUIPMENT(6CU) 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506						●	●
8	16.587 NUT; BACK PANEL 4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0507	●	●
8	16.587 NUT; BACK PANEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. IRISH EQUIPMENT(6CU), TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0507							●
8	16.587 NUT; BACK PANEL 4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●	●
8	16.587 NUT; BACK PANEL 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. IRISH EQUIPMENT(6CU), TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602							●
8	16.587 NUT; BACK PANEL 4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606	●	●
8	16.587 NUT; BACK PANEL 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. IRISH EQUIPMENT(6CU), TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606							●
8	16.587 NUT; BACK PANEL 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) EXC. IRISH EQUIPMENT(6CU), TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-							●
41	16.587 BOLT 4HE1 ENG(RLY) 08.155 M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0302-0506	●		●	●	●
41	16.587 BOLT 4JH1 ENG(RJX),4HE1 ENG(RLY) 08.155 M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0302-0506		●
41	16.587 BOLT 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 08.155 M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0507-0606	●	●	●		●
41	16.587 BOLT 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.155 M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0607-		●	●		●
41	16.587 BOLT 4HE1 ENG(RLY) M/T MZZ6F(RSR) 02.664 M8X20 FLANGE	0-28680-820-0	04	1	0302-0506	●		●	●	●
41	16.587 BOLT 4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 02.664 M8X20 FLANGE	0-28680-820-0	04	1	0302-0506		●
41	16.587 BOLT 4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. IRISH EQUIPMENT(6CU) 02.664 M8X20 FLANGE	0-28680-820-0	04	1	0302-0506						●	●
41	16.587 BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.664 M8X20 FLANGE	0-28680-820-0	04	1	0507-0507		●	●		●
41	16.587 BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. IRISH EQUIPMENT(6CU), TRANSMISSION CONTROL-SMOOTHER(8GF) 02.664 M8X20 FLANGE	0-28680-820-0	04	1	0507-0507							●
41	16.587 BOLT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.664 M8X20 FLANGE	0-28680-820-0	04	1	0507-0512		●	●		●
41	16.587 BOLT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. IRISH EQUIPMENT(6CU), TRANSMISSION CONTROL-SMOOTHER(8GF) 02.664 M8X20 FLANGE	0-28680-820-0	04	1	0507-0512							●
41	16.587 BOLT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0601-0606		●	●		●
41	16.587 BOLT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. IRISH EQUIPMENT(6CU), TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0601-0606							●
41	16.587 BOLT 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0607-		●	●		●
41	16.587 BOLT 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) EXC. IRISH EQUIPMENT(6CU), TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0607-							●
41	16.587 BOLT 4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0302-0506		●
41	16.587 BOLT 4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0507-0512	●	●
41	16.587 BOLT 4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0601-0606	●	●
51	16.587 NUT; PANEL 4HE1 ENG(RLY) M/T MZZ6F(RSR) 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●		●	●	●
51	16.587 NUT; PANEL 4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506		●
51	16.587 NUT; PANEL 4HE1 ENG(RLY) M/T MZZ6F(RSR) EXC. IRISH EQUIPMENT(6CU) 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506						●	●
51	16.587 NUT; PANEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0507		●	●		●
51	16.587 NUT; PANEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. IRISH EQUIPMENT(6CU), TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0507							●
51	16.587 NUT; PANEL 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●		●
51	16.587 NUT; PANEL 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. IRISH EQUIPMENT(6CU), TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602							●
51	16.587 NUT; PANEL 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●		●
51	16.587 NUT; PANEL 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. IRISH EQUIPMENT(6CU), TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606							●
51	16.587 NUT; PANEL 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-		●	●		●
51	16.587 NUT; PANEL 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) EXC. IRISH EQUIPMENT(6CU), TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-							●

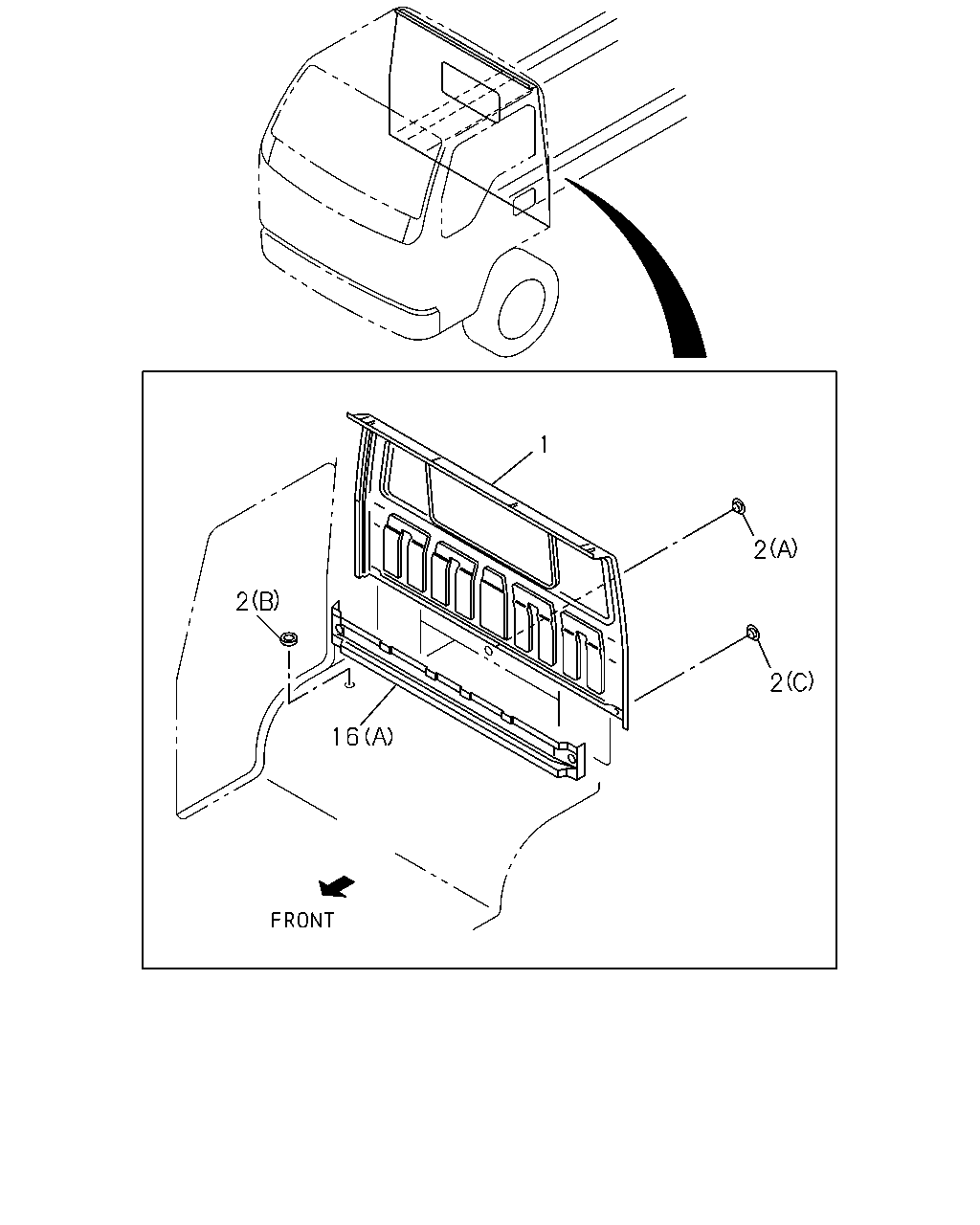

1 2 2 2 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	16.587 PANEL; BACK OUTER 4HE1 ENG(RLY)	8-97851-267-6	01	1	0302-0506						●	●
1	16.587 PANEL; BACK OUTER 4HK1-TCN ENG(RDQ)	8-97851-267-6	01	1	0507-0606						●
1	16.587 PANEL; BACK OUTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97851-267-6	01	1	0507-0606							●
1	16.587 PANEL; BACK OUTER	8-97851-267-6	01	1	0607-						●	●
1	16.587 PANEL; BACK OUTER 4HE1 ENG(RLY)	8-97859-127-0	01	1	0302-0506	●		●	●	●
1	16.587 PANEL; BACK OUTER 4JH1 ENG(RJX),4HE1 ENG(RLY)	8-97859-127-0	01	1	0302-0506		●
1	16.587 PANEL; BACK OUTER 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS)	8-97859-127-0	01	1	0507-0606	●	●	●		●
1	16.587 PANEL; BACK OUTER	8-97859-127-0	01	1	0607-	●	●	●		●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0302-0506	●	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0507-	●	●	●		●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 02.580 (C) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0302-0506	●	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 02.580 (C) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0507-0710	●	●	●		●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.545 (C) OD=32 BLACK	8-98031-126-0	02	1	0711-	●	●	●		●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 00.785 (B) OD=16.2	8-94492-493-0	02	1	0302-0506	●	●	●	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 00.785 (B) OD=16.2	8-94492-493-0	02	1	0507-0512	●	●	●		●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.547 (B) OD=15.0	8-94279-040-0	02	1	0601-	●	●	●		●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 15.222 (D) OD=35	8-94122-971-0	04	1	0302-						●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1 ENG(RLY) (A)	8-97890-837-1	01	1	0302-0506	●	●	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97890-837-1	01	1	0507-0606		●	●		●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HK1-TCC ENG(RDV) (A)	8-97890-837-1	01	1	0607-		●	●		●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4JH1 ENG(RJX) (A)	8-97851-106-9	01	1	0302-0506		●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1 ENG(RLY) (A)	8-97851-106-9	01	1	0302-0506						●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4JH1-TC ENG(RDM) (A)	8-97851-106-9	01	1	0507-0606	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HK1-TCN ENG(RDQ) (A)	8-97851-106-9	01	1	0507-0606						●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97851-106-9	01	1	0507-0606							●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4JJ1 ENG(LFB) (A)	8-97851-106-9	01	1	0607-	●	●	●			●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HK1-TCC ENG(RDV) (A)	8-97851-106-9	01	1	0607-							●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1 ENG(RLY) (B)	8-97851-415-1	01	1	0302-0506						●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HK1-TCN ENG(RDQ) (B)	8-97851-415-1	01	1	0507-0606						●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-97851-415-1	01	1	0507-0606							●
16	16.575 REINFORCEMENT; BACK OUTER PNL (B)	8-97851-415-1	01	1	0607-						●	●

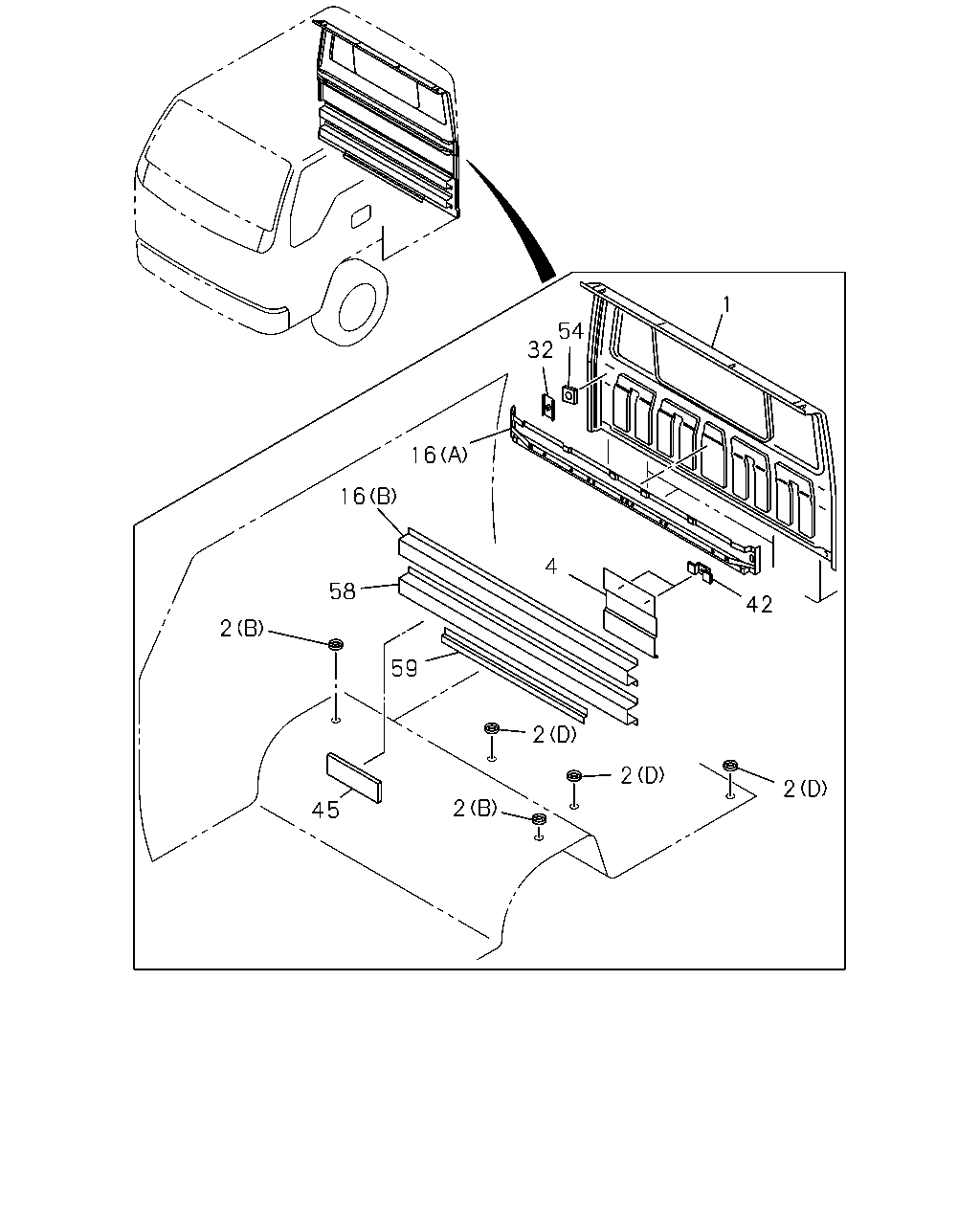

1 54 32 16 16 4 58 42 2 59 2 2 2 2 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	16.587 PANEL; BACK OUTER 4HE1 ENG(RLY)	8-97851-267-6	01	1	0302-0506						●	●
1	16.587 PANEL; BACK OUTER 4HK1-TCN ENG(RDQ)	8-97851-267-6	01	1	0507-0606						●
1	16.587 PANEL; BACK OUTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97851-267-6	01	1	0507-0606							●
1	16.587 PANEL; BACK OUTER	8-97851-267-6	01	1	0607-						●	●
1	16.587 PANEL; BACK OUTER 4HE1 ENG(RLY)	8-97859-127-0	01	1	0302-0506	●		●	●	●
1	16.587 PANEL; BACK OUTER 4JH1 ENG(RJX),4HE1 ENG(RLY)	8-97859-127-0	01	1	0302-0506		●
1	16.587 PANEL; BACK OUTER 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS)	8-97859-127-0	01	1	0507-0606	●	●	●		●
1	16.587 PANEL; BACK OUTER	8-97859-127-0	01	1	0607-	●	●	●		●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0302-0506	●	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0507-	●	●	●		●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 02.580 (C) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0302-0506	●	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 02.580 (C) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0507-0710	●	●	●		●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.545 (C) OD=32 BLACK	8-98031-126-0	02	1	0711-	●	●	●		●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 00.785 (B) OD=16.2	8-94492-493-0	02	1	0302-0506	●	●	●	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 00.785 (B) OD=16.2	8-94492-493-0	02	1	0507-0512	●	●	●		●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.547 (B) OD=15.0	8-94279-040-0	02	1	0601-	●	●	●		●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 15.222 (D) OD=35	8-94122-971-0	04	1	0302-						●	●
4	16.575 PANEL; CAB BACK LWR 4JJ1 ENG(LFB) CENTER	8-97997-979-0	01	1	0607-						●
4	16.575 PANEL; CAB BACK LWR 4JJ1 ENG(LFB) SIDE	8-97997-981-0	01	1	0607-						●
4	16.575 PANEL; CAB BACK LWR 4JJ1 ENG(LFB) SIDE	8-97997-980-0	01	1	0607-						●
4	16.575 PANEL; CAB BACK LWR 4HE1 ENG(RLY) CENTER	8-97851-268-3	01	1	0302-0506						●	●
4	16.575 PANEL; CAB BACK LWR 4HK1-TCN ENG(RDQ) CENTER	8-97851-268-3	01	1	0507-0606						●
4	16.575 PANEL; CAB BACK LWR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) CENTER	8-97851-268-3	01	1	0507-0606							●
4	16.575 PANEL; CAB BACK LWR 4HK1-TCC ENG(RDV) CENTER	8-97851-268-3	01	1	0607-							●
4	16.575 PANEL; CAB BACK LWR 4HE1 ENG(RLY) SIDE	8-97851-293-5	01	1	0302-0506						●	●
4	16.575 PANEL; CAB BACK LWR 4HK1-TCN ENG(RDQ) SIDE	8-97851-293-5	01	1	0507-0606						●
4	16.575 PANEL; CAB BACK LWR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) SIDE	8-97851-293-5	01	1	0507-0606							●
4	16.575 PANEL; CAB BACK LWR 4HK1-TCC ENG(RDV) SIDE	8-97851-293-5	01	1	0607-							●
4	16.575 PANEL; CAB BACK LWR 4HE1 ENG(RLY) SIDE	8-97892-520-1	01	1	0302-0506						●	●
4	16.575 PANEL; CAB BACK LWR 4HK1-TCN ENG(RDQ) SIDE	8-97892-520-1	01	1	0507-0606						●
4	16.575 PANEL; CAB BACK LWR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) SIDE	8-97892-520-1	01	1	0507-0606							●
4	16.575 PANEL; CAB BACK LWR 4HK1-TCC ENG(RDV) SIDE	8-97892-520-1	01	1	0607-							●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1 ENG(RLY) (A)	8-97890-837-1	01	1	0302-0506	●	●	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97890-837-1	01	1	0507-0606		●	●		●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HK1-TCC ENG(RDV) (A)	8-97890-837-1	01	1	0607-		●	●		●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4JH1 ENG(RJX) (A)	8-97851-106-9	01	1	0302-0506		●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1 ENG(RLY) (A)	8-97851-106-9	01	1	0302-0506						●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4JH1-TC ENG(RDM) (A)	8-97851-106-9	01	1	0507-0606	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HK1-TCN ENG(RDQ) (A)	8-97851-106-9	01	1	0507-0606						●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97851-106-9	01	1	0507-0606							●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4JJ1 ENG(LFB) (A)	8-97851-106-9	01	1	0607-	●	●	●			●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HK1-TCC ENG(RDV) (A)	8-97851-106-9	01	1	0607-							●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1 ENG(RLY) (B)	8-97851-415-1	01	1	0302-0506						●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HK1-TCN ENG(RDQ) (B)	8-97851-415-1	01	1	0507-0606						●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-97851-415-1	01	1	0507-0606							●
16	16.575 REINFORCEMENT; BACK OUTER PNL (B)	8-97851-415-1	01	1	0607-						●	●
32	16.587 PATCH; AIR INT DUCT 4HE1 ENG(RLY)	8-97892-522-1	01	1	0302-0506						●	●
32	16.587 PATCH; AIR INT DUCT 4HK1-TCN ENG(RDQ)	8-97892-522-1	01	1	0507-0606						●
32	16.587 PATCH; AIR INT DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97892-522-1	01	1	0507-0606							●
32	16.587 PATCH; AIR INT DUCT	8-97892-522-1	01	1	0607-						●	●
42	16.587 BRACKET; HEAT PROTECTOR 4HE1 ENG(RLY) 16.588	8-94265-170-1	04	1	0302-0506						●	●
42	16.587 BRACKET; HEAT PROTECTOR 4HK1-TCN ENG(RDQ) 16.588	8-94265-170-1	04	1	0507-0606						●
42	16.587 BRACKET; HEAT PROTECTOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 16.588	8-94265-170-1	04	1	0507-0606							●
42	16.587 BRACKET; HEAT PROTECTOR 16.588	8-94265-170-1	04	1	0607-						●	●
45	16.587 SHEET; MELTING,BACK PANEL 4HK1-TCC ENG(RDV) 16.850 NON ASBESTOS 1000X600 T=1.5; PARTS O NLY	8-94262-093-0	01	1	0607-							●
54	16.587 SEAL; STUD 4HE1 ENG(RLY) 16.585 30X30 ID=9 T=0.7	1-61281-444-0	01	1	0302-0506						●	●
54	16.587 SEAL; STUD 4HK1-TCN ENG(RDQ) 16.585 30X30 ID=9 T=0.7	1-61281-444-0	01	1	0507-0606						●
54	16.587 SEAL; STUD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 16.585 30X30 ID=9 T=0.7	1-61281-444-0	01	1	0507-0606							●
54	16.587 SEAL; STUD 16.585 30X30 ID=9 T=0.7	1-61281-444-1	01	1	0607-						●	●
58	16.575 REINFORCEMENT; SEAT BELT ANCHOR 4JJ1 ENG(LFB)	8-97898-590-1	01	1	0607-						●
59	16.587 PLATE; FLOOR TO BACK PANEL 4JJ1 ENG(LFB)	8-97898-593-0	01	1	0607-						●
