◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50950 - NPR/NQR(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-78 - FLOOR HOLE PLUG ▶
6-78 — FLOOR HOLE PLUG (#18913) — 38 parça

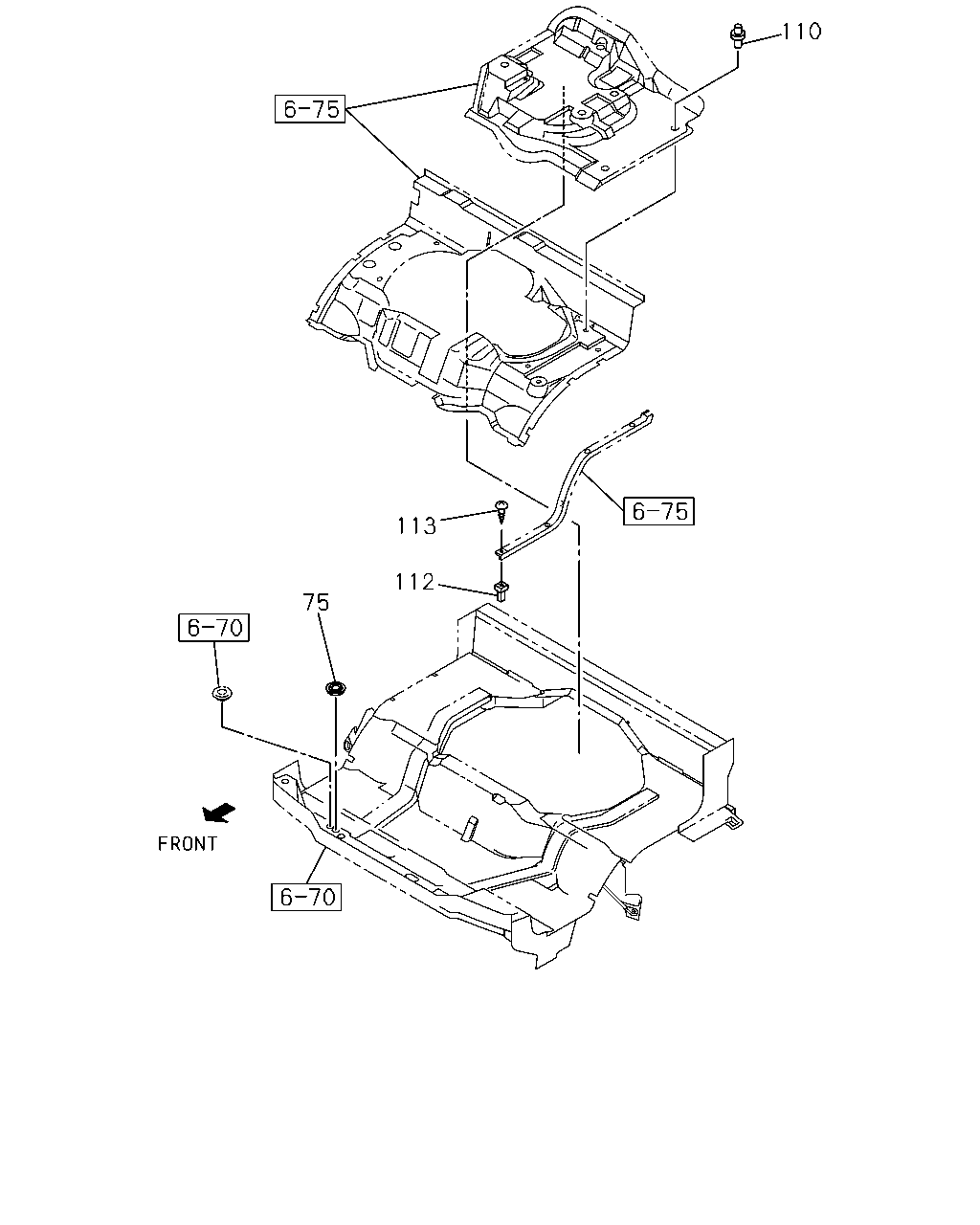

çizim 54155
110 113 112 75
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
75 09.775 PLUG; RUBBER,FLOOR
16.549 OD=38 		8-94159-507-0 01 1 0302-0506 ● ●
75 09.775 PLUG; RUBBER,FLOOR
EXC. HYDRO BRAKE BOOSTER<7QQ> 16.549 OD=38 		8-94159-507-0 01 1 0302-0506 ● ●
75 09.775 PLUG; RUBBER,FLOOR
16.549 OD=38 		8-94159-507-0 01 1 0507-0606 ● ●
75 09.775 PLUG; RUBBER,FLOOR
EXC. HYDRO BRAKE BOOSTER<7QQ> 16.549 OD=38 		8-94159-507-0 01 1 0507-0606 ● ● ● ●
75 09.775 PLUG; RUBBER,FLOOR
16.549 OD=38 		8-94159-507-0 01 1 0607- ● ●
75 09.775 PLUG; RUBBER,FLOOR
EXC. HYDRO BRAKE BOOSTER<7QQ> 16.549 OD=38 		8-94159-507-0 01 1 0607- ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 12 1 0302-0506 ● ● ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 12 1 0507- ● ● ● ● ● ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 0302-0506 ● ● ● ● ● ● ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 0507- ● ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 0302-0506 ● ● ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 0507-0604 ● ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
M5X14 TAPPING W/PL WASHER 		0-74160-514-0 10 1 0605-0612 ● ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 10 1 0701- ● ● ● ● ● ●

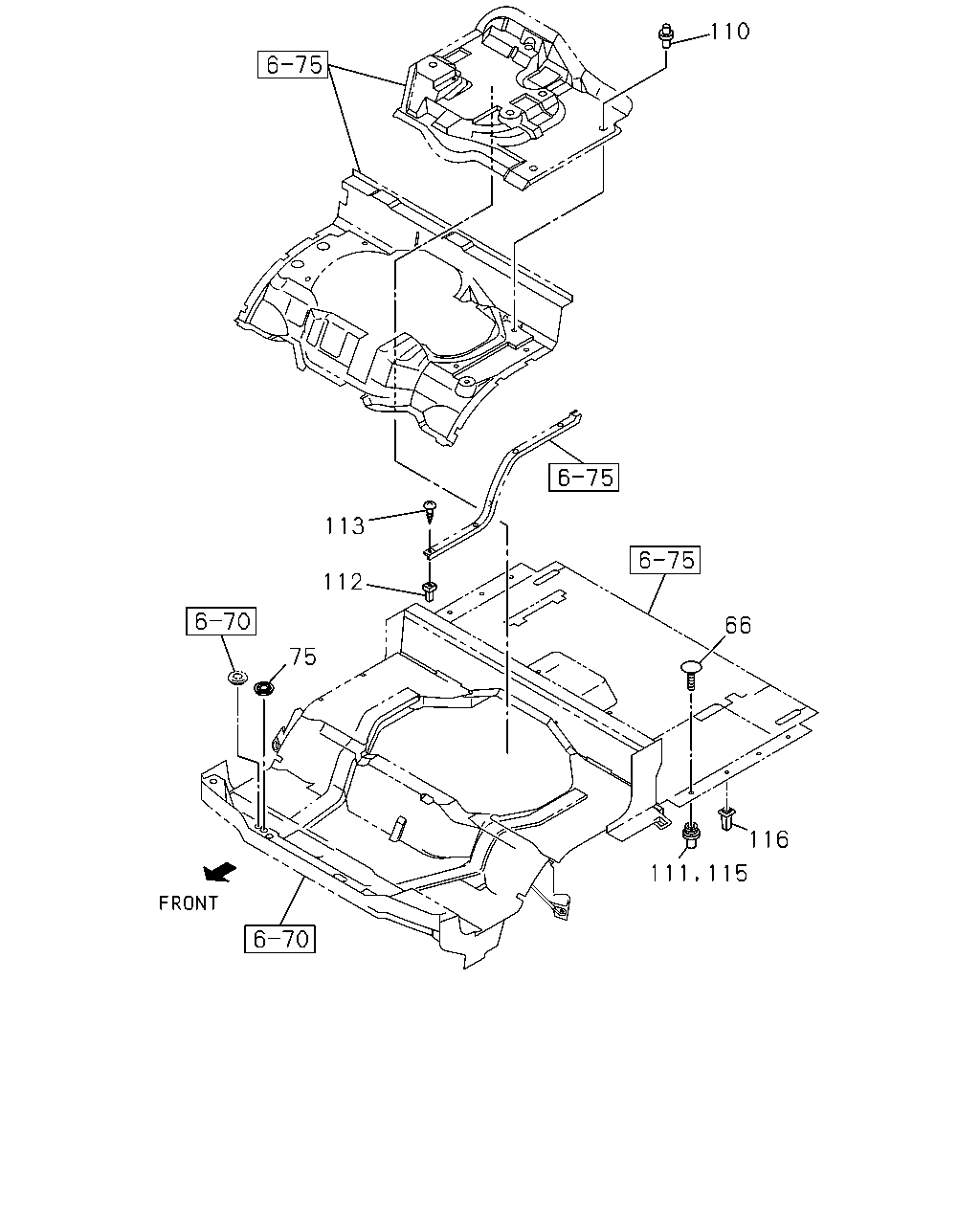

çizim 54294
110 113 112 66 75 116 115 111
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
66 16.800 PLUG; FLOOR MAT,CAB RR FLOOR
DARK GRAY 		8-97867-158-0 04 1 0302-0506 ● ●
66 16.800 PLUG; FLOOR MAT,CAB RR FLOOR
GRAY 		8-97582-244-0 04 1 0507-0708 ● ●
66 16.800 PLUG; FLOOR MAT,CAB RR FLOOR
16.802 GRAY 		8-97405-205-0 04 1 0709- ● ●
75 09.775 PLUG; RUBBER,FLOOR
16.549 OD=38 		8-94159-507-0 01 1 0302-0506 ● ●
75 09.775 PLUG; RUBBER,FLOOR
EXC. HYDRO BRAKE BOOSTER<7QQ> 16.549 OD=38 		8-94159-507-0 01 1 0302-0506 ● ●
75 09.775 PLUG; RUBBER,FLOOR
16.549 OD=38 		8-94159-507-0 01 1 0507-0606 ● ●
75 09.775 PLUG; RUBBER,FLOOR
EXC. HYDRO BRAKE BOOSTER<7QQ> 16.549 OD=38 		8-94159-507-0 01 1 0507-0606 ● ● ● ●
75 09.775 PLUG; RUBBER,FLOOR
16.549 OD=38 		8-94159-507-0 01 1 0607- ● ●
75 09.775 PLUG; RUBBER,FLOOR
EXC. HYDRO BRAKE BOOSTER<7QQ> 16.549 OD=38 		8-94159-507-0 01 1 0607- ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 12 1 0302-0506 ● ● ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 12 1 0507- ● ● ● ● ● ●
111 16.800 FASTENER; FLOOR MAT,CAB RR MTG
4HE1 ENG(RLY) 16.802 BLACK 		8-94279-089-0 15 1 0302-0506 ● ●
111 16.800 FASTENER; FLOOR MAT,CAB RR MTG
4HK1-TCN ENG(RDQ) 16.802 BLACK 		8-94279-089-0 15 1 0507-0606 ●
111 16.800 FASTENER; FLOOR MAT,CAB RR MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 16.802 BLACK 		8-94279-089-0 15 1 0507-0606 ●
111 16.800 FASTENER; FLOOR MAT,CAB RR MTG
4JJ1 ENG(LFB) 16.802 BLACK 		8-94279-089-0 14 1 0607- ●
111 16.800 FASTENER; FLOOR MAT,CAB RR MTG
4HK1-TCC ENG(RDV) 16.802 BLACK 		8-94279-089-0 15 1 0607- ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 0302-0506 ● ● ● ● ● ● ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 0507- ● ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 0302-0506 ● ● ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 0507-0604 ● ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
M5X14 TAPPING W/PL WASHER 		0-74160-514-0 10 1 0605-0612 ● ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 10 1 0701- ● ● ● ● ● ●
115 16.800 FASTENER; FLOOR MAT
4JJ1 ENG(LFB) 16.802 BLACK 		8-94279-089-0 01 1 0607- ●
116 16.547 GROMMET; SCREW,FLOOR MAT
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 0302- ● ●
