◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50950 - NPR/NQR(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#18911) — 80 parça

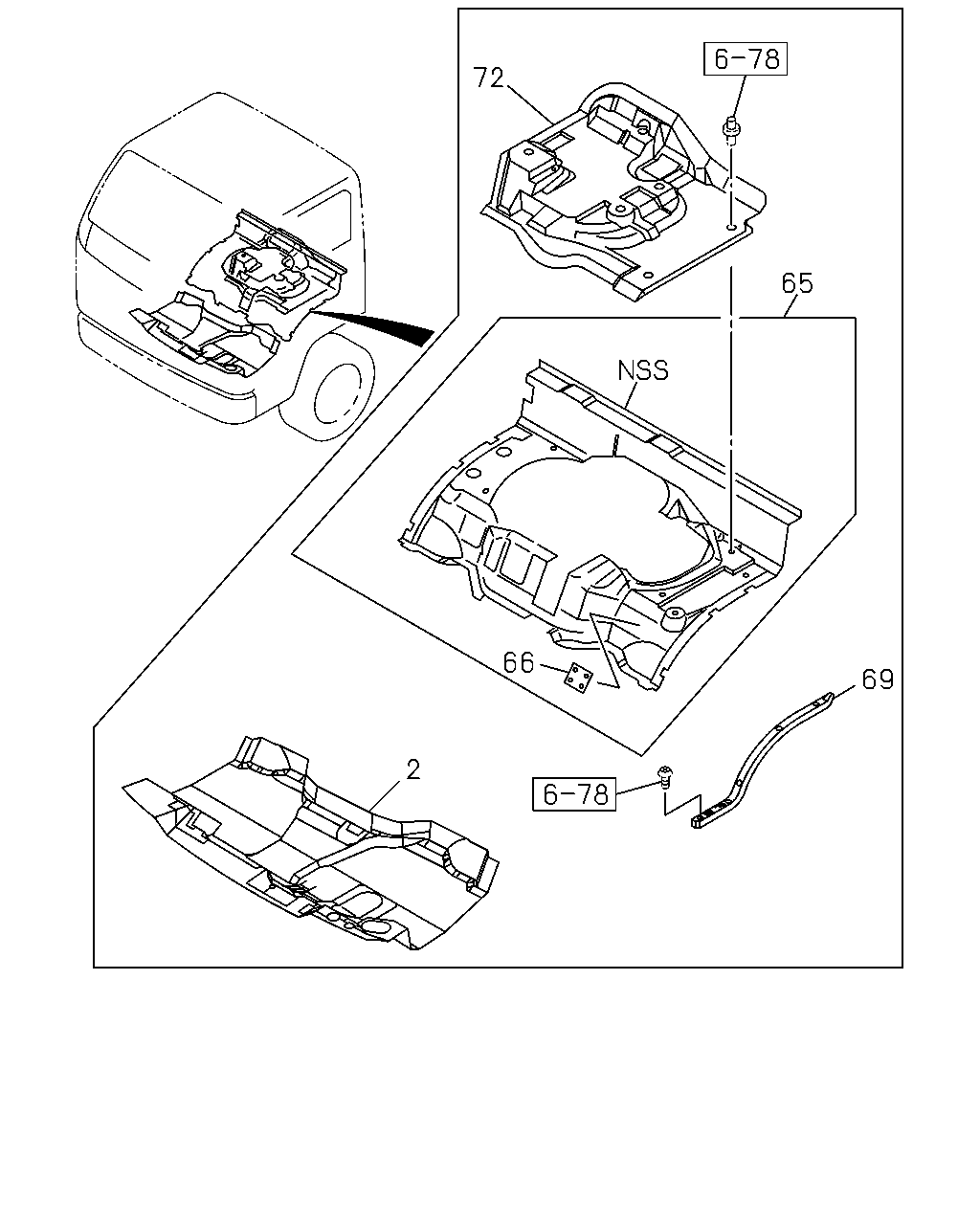

çizim 12734
72 65 66 69 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97581-121-1 01 1 0302-0506 ● ● ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97588-992-2 01 1 0507-0606 ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97588-992-2 01 1 0507-0606 ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97588-992-3 01 1 0607- ● ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97581-120-1 01 1 0302-0506 ● ● ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97588-991-2 01 1 0507-0606 ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60),TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97588-991-2 01 1 0507-0606 ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60),TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97588-991-3 01 1 0607- ● ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97404-549-1 01 1 0507-0606 ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97404-549-2 01 1 0607- ● ● ● ● ● ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97404-548-1 01 1 0507-0606 ● ● ● ● ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97404-548-2 01 1 0607- ● ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ> 		8-97407-853-0 01 1 0607- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97996-687-0 01 1 0302-0506 ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> GRAY 		8-97589-104-1 01 1 0507-0606 ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> GRAY 		8-97589-104-1 01 1 0607- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
4JJ1 ENG(LFB) 		8-97407-854-0 01 1 0607- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
DARK GRAY 		8-97996-691-0 01 1 0302-0506 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
GRAY 		8-97589-105-1 01 1 0507-0606 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
4HK1-TCC ENG(RDV) GRAY 		8-97589-105-1 01 1 0607- ●
66 16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97997-582-0 02 1 0302-0506 ● ● ● ● ●
66 16.549 HOOK; COVER
DARK GRAY 		8-97997-582-0 02 1 0302-0506 ● ●
66 16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> GRAY 		8-97583-948-0 02 1 0507- ● ● ● ●
66 16.549 HOOK; COVER
GRAY 		8-97583-948-0 02 1 0507- ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-552-0 01 1 0302-0506 ● ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-229-1 01 1 0507-0702 ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97409-479-0 01 1 0703- ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-551-0 01 1 0302-0506 ● ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-228-1 01 1 0507-0702 ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97409-478-0 01 1 0703- ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
DARK GRAY 		8-97996-731-0 01 1 0302-0506 ● ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97589-118-1 01 1 0507- ● ● ● ● ● ●

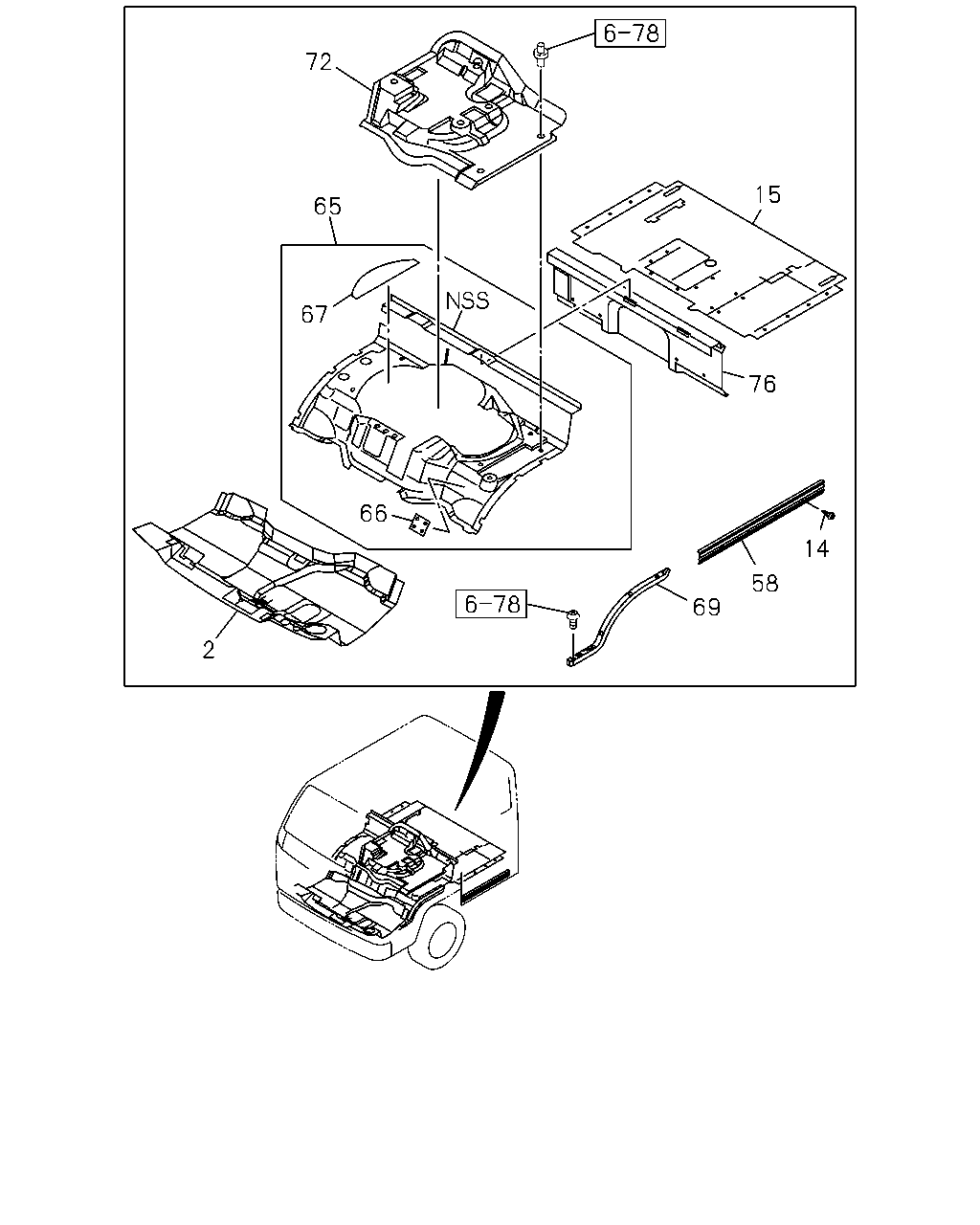

çizim 54127
72 15 65 67 76 66 14 58 69 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97581-121-1 01 1 0302-0506 ● ● ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97588-992-2 01 1 0507-0606 ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97588-992-2 01 1 0507-0606 ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97588-992-3 01 1 0607- ● ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97581-120-1 01 1 0302-0506 ● ● ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97588-991-2 01 1 0507-0606 ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60),TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97588-991-2 01 1 0507-0606 ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60),TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97588-991-3 01 1 0607- ● ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97404-549-1 01 1 0507-0606 ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97404-549-2 01 1 0607- ● ● ● ● ● ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97404-548-1 01 1 0507-0606 ● ● ● ● ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97404-548-2 01 1 0607- ● ● ● ● ● ●
14 16.870 SCREW; PLATE
16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 08 1 0302-0612 ● ●
14 16.870 SCREW; PLATE
16.090 T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0701- ● ●
15 16.800 MAT; FLOOR REAR
4JJ1 ENG(LFB) GRAY 		8-97588-998-1 01 1 0607- ●
15 16.800 MAT; FLOOR REAR
4HE1 ENG(RLY) DARK GRAY 		8-97996-770-0 01 1 0302-0506 ● ●
15 16.800 MAT; FLOOR REAR
4HK1-TCN ENG(RDQ) GRAY 		8-97588-997-1 01 1 0507-0606 ●
15 16.800 MAT; FLOOR REAR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GRAY 		8-97588-997-1 01 1 0507-0606 ●
15 16.800 MAT; FLOOR REAR
4HK1-TCC ENG(RDV) GRAY 		8-97407-763-0 01 1 0607- ●
58 08.153 PLATE; GUARD,RR FLOOR MAT 8-97081-344-3 02 1 0302- ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ> 		8-97407-853-0 01 1 0607- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97996-687-0 01 1 0302-0506 ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> GRAY 		8-97589-104-1 01 1 0507-0606 ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> GRAY 		8-97589-104-1 01 1 0607- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
4JJ1 ENG(LFB) 		8-97407-854-0 01 1 0607- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
DARK GRAY 		8-97996-691-0 01 1 0302-0506 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
GRAY 		8-97589-105-1 01 1 0507-0606 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
4HK1-TCC ENG(RDV) GRAY 		8-97589-105-1 01 1 0607- ●
66 16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97997-582-0 02 1 0302-0506 ● ● ● ● ●
66 16.549 HOOK; COVER
DARK GRAY 		8-97997-582-0 02 1 0302-0506 ● ●
66 16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> GRAY 		8-97583-948-0 02 1 0507- ● ● ● ●
66 16.549 HOOK; COVER
GRAY 		8-97583-948-0 02 1 0507- ● ●
67 16.549 LID; COVER
DARK GRAY 		8-97997-584-0 01 1 0302-0506 ● ●
67 16.549 LID; COVER
GRAY 		8-97583-949-0 01 1 0507- ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-552-0 01 1 0302-0506 ● ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-229-1 01 1 0507-0702 ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97409-479-0 01 1 0703- ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-551-0 01 1 0302-0506 ● ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-228-1 01 1 0507-0702 ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97409-478-0 01 1 0703- ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
DARK GRAY 		8-97996-731-0 01 1 0302-0506 ● ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97589-118-1 01 1 0507- ● ● ● ● ● ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4JJ1 ENG(LFB) 		8-97407-115-1 01 1 0607- ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HE1 ENG(RLY) DARK GRAY 		8-97985-069-0 01 1 0302-0506 ● ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HK1-TCN ENG(RDQ) GRAY 		8-97589-115-0 01 1 0507-0507 ● ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HK1-TCN ENG(RDQ) GRAY 		8-97589-115-1 01 1 0508-0606 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GRAY 		8-97589-115-1 01 1 0508-0606 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HK1-TCC ENG(RDV) 		8-97404-847-1 01 1 0607- ●
