6-70 — FLOOR PANEL (#18910) — 252 parça

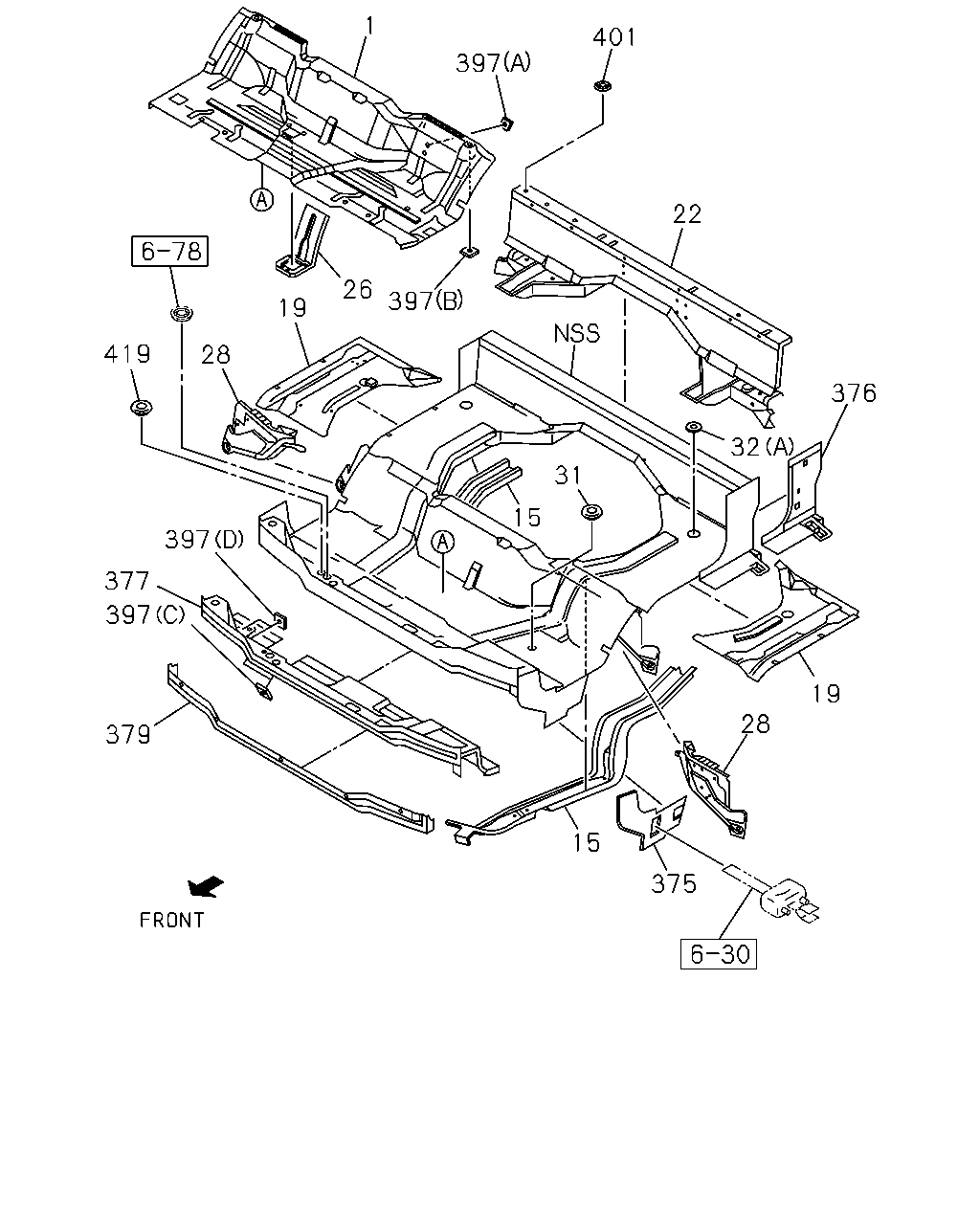

çizim 52936
1 401 397 22 26 397 19 419 28 376 32 31 15 397 377 397 19 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-117-8 01 1 0302-0303 ● ● ● ● ●
1 16.545 PANEL; FLOOR 8-97850-117-8 01 1 0302-0303 ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> 		8-97581-801-0 01 1 0304-0506 ● ● ● ● ●
1 16.545 PANEL; FLOOR 8-97581-801-0 01 1 0304-0506 ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> 		8-97581-801-0 01 1 0507- ● ● ● ●
1 16.545 PANEL; FLOOR 8-97581-801-0 01 1 0507- ● ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-97850-060-9 01 1 0302-0506 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 0302-0506 ● ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-97850-060-9 01 1 0507- ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 0507- ● ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-97850-059-9 01 1 0302-0505 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 0302-0505 ● ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-98013-405-0 01 1 0506-0506 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-98013-405-0 01 1 0506-0506 ● ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-98013-405-0 01 1 0507- ● ● ● ●
15 16.545 FRAME; UNDER 8-98013-405-0 01 1 0507- ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-008-4 01 1 0302-0506 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-008-4 01 1 0302-0506 ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-008-5 01 1 0507- ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-008-5 01 1 0507- ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-118-6 01 1 0302-0506 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-118-6 01 1 0302-0506 ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-118-7 01 1 0507- ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-118-7 01 1 0507- ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-657-5 01 1 0302-0506 ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-657-9 01 1 0507- ● ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-764-5 01 1 0302- ● ●
26 16.545 PANEL; GEAR CONT REINF
MANUAL TILT CAB<RWZ> 		8-97850-140-3 01 1 0302-0506 ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-140-3 01 1 0302-0506 ● ●
26 16.545 PANEL; GEAR CONT REINF
MANUAL TILT CAB<RWZ> 		8-97850-140-3 01 1 0507- ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-140-3 01 1 0507- ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-017-7 01 1 0302-0506 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0302-0506 ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-017-7 01 1 0507-1106 ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0507-1106 ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-98170-771-0 01 1 1107- ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-98170-771-0 01 1 1107- ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-338-5 01 1 0302-0506 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0302-0506 ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-338-5 01 1 0507-1106 ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0507-1106 ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-98170-770-0 01 1 1107- ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-98170-770-0 01 1 1107- ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 0302-0506 ● ● ● ● ● ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 0507- ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 0302-0506 ● ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 0507- ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
15.222 (B) OD=35 		8-94122-971-0 04 1 0302- ● ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-087-3 01 1 0302-0506 ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 0302-0506 ● ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-087-4 01 1 0507- ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-4 01 1 0507- ● ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-086-4 01 1 0302-0506 ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 0302-0506 ● ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-086-5 01 1 0507- ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-5 01 1 0507- ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-923-1 01 1 0302-0506 ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-923-1 01 1 0507- ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-320-6 01 1 0302-0506 ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-320-6 01 1 0507- ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
4JJ1 ENG(LFB) 		8-97898-993-1 01 1 0607- ●
376 16.545 CLOSING; PILLAR,LWR
4JJ1 ENG(LFB) 		8-97898-992-1 01 1 0607- ●
376 16.545 CLOSING; PILLAR,LWR
4HE1 ENG(RLY) 		8-97850-187-3 01 1 0302-0506 ● ●
376 16.545 CLOSING; PILLAR,LWR
4HK1-TCN ENG(RDQ) 		8-97850-187-3 01 1 0507-0606 ●
376 16.545 CLOSING; PILLAR,LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97850-187-3 01 1 0507-0606 ●
376 16.545 CLOSING; PILLAR,LWR
4HK1-TCC ENG(RDV) 		8-97850-187-3 01 1 0607- ●
376 16.545 CLOSING; PILLAR,LWR
4HE1 ENG(RLY) 		8-97850-186-3 01 1 0302-0506 ● ●
376 16.545 CLOSING; PILLAR,LWR
4HK1-TCN ENG(RDQ) 		8-97850-186-3 01 1 0507-0606 ●
376 16.545 CLOSING; PILLAR,LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97850-186-3 01 1 0507-0606 ●
376 16.545 CLOSING; PILLAR,LWR
4HK1-TCC ENG(RDV) 		8-97850-186-3 01 1 0607- ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> 		8-97850-807-2 01 1 0302-0303 ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-807-2 01 1 0302-0303 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> 		8-97997-638-0 01 1 0304-0506 ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97997-638-0 01 1 0304-0506 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> 		8-97997-638-0 01 1 0507- ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97997-638-0 01 1 0507- ● ●
379 16.545 PANEL
MANUAL TILT CAB<RWZ> 		8-97850-129-2 01 1 0302-0307 ● ● ● ● ●
379 16.545 PANEL 8-97850-129-2 01 1 0302-0307 ● ●
379 16.545 PANEL
MANUAL TILT CAB<RWZ> 		8-97581-640-0 01 1 0308-0506 ● ● ● ● ●
379 16.545 PANEL 8-97581-640-0 01 1 0308-0506 ● ●
379 16.545 PANEL
MANUAL TILT CAB<RWZ> 		8-97581-640-0 01 1 0507- ● ● ● ●
379 16.545 PANEL 8-97581-640-0 01 1 0507- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> (D) M10 		9-09114-030-0 03 1 0302-0506 ● ● ● ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 0302-0506 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> (D) M10 		9-09114-030-0 03 1 0507- ● ● ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 0507- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0302-0506 ● ● ● ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0302-0506 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0507- ● ● ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0507- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (C) M8 		9-09114-048-0 04 1 0302-0506 ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 0302-0506 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (C) M8 		9-09114-048-0 04 1 0507- ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 0507- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 06 1 0302-0506 ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 06 1 0302-0506 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 06 1 0507- ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 06 1 0507- ● ●
401 16.545 GROMMET; HOLE
OD=24.5 T=7.5 		8-97224-683-0 01 1 0302-0506 ● ● ● ● ●
401 16.545 GROMMET; HOLE
OD=24.5 T=7.5 		8-97224-683-0 01 1 0507- ● ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 0302-0506 ● ● ● ● ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 0507- ● ● ● ● ● ●

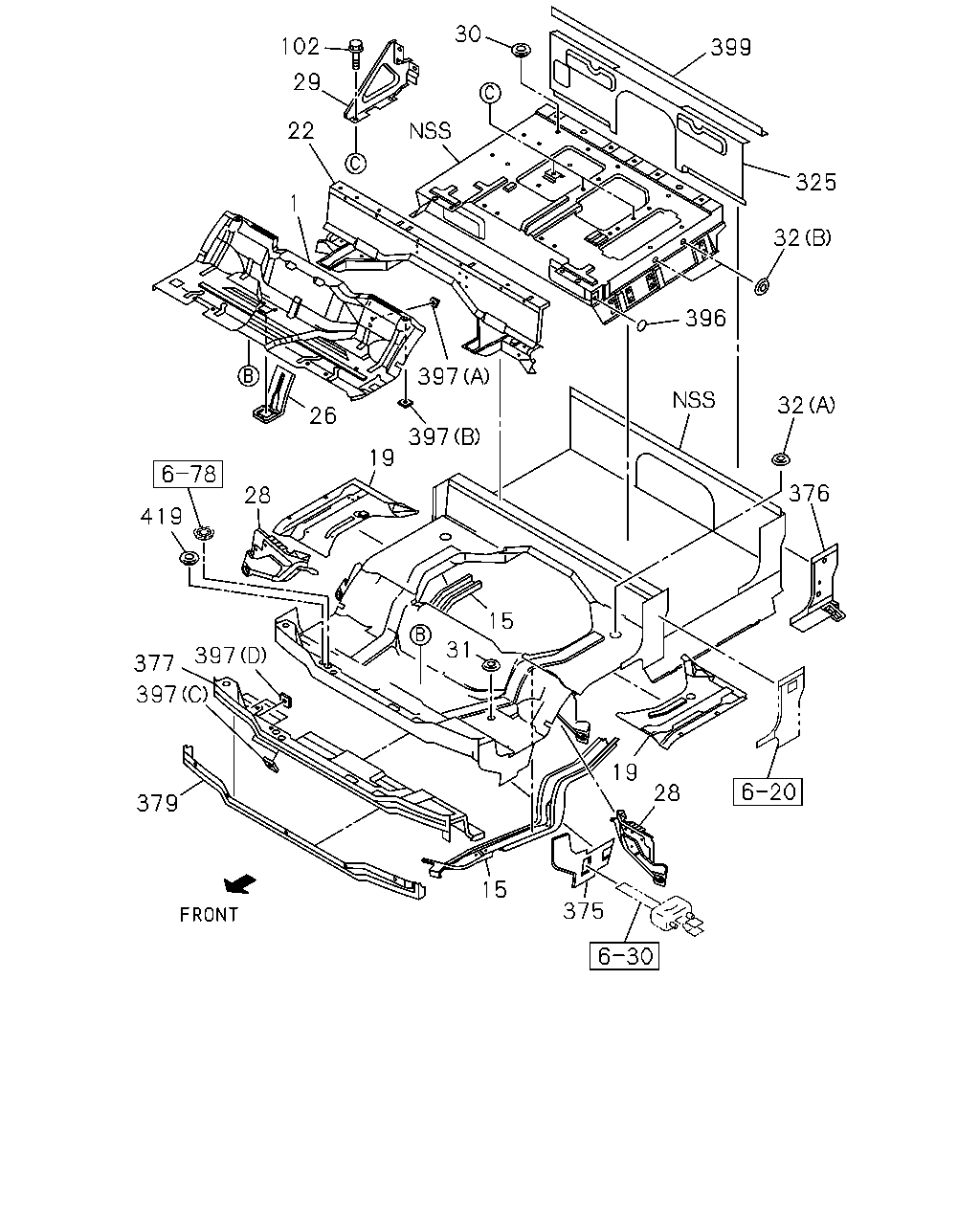

çizim 55146
30 102 399 29 22 325 1 32 396 397 32 26 397 19 376 28 419 15 31 397 377 397 19 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-117-8 01 1 0302-0303 ● ● ● ● ●
1 16.545 PANEL; FLOOR 8-97850-117-8 01 1 0302-0303 ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> 		8-97581-801-0 01 1 0304-0506 ● ● ● ● ●
1 16.545 PANEL; FLOOR 8-97581-801-0 01 1 0304-0506 ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> 		8-97581-801-0 01 1 0507- ● ● ● ●
1 16.545 PANEL; FLOOR 8-97581-801-0 01 1 0507- ● ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-97850-060-9 01 1 0302-0506 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 0302-0506 ● ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-97850-060-9 01 1 0507- ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 0507- ● ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-97850-059-9 01 1 0302-0505 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 0302-0505 ● ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-98013-405-0 01 1 0506-0506 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-98013-405-0 01 1 0506-0506 ● ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-98013-405-0 01 1 0507- ● ● ● ●
15 16.545 FRAME; UNDER 8-98013-405-0 01 1 0507- ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-008-4 01 1 0302-0506 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-008-4 01 1 0302-0506 ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-008-5 01 1 0507- ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-008-5 01 1 0507- ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-118-6 01 1 0302-0506 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-118-6 01 1 0302-0506 ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-118-7 01 1 0507- ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-118-7 01 1 0507- ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-657-5 01 1 0302-0506 ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-657-9 01 1 0507- ● ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-764-5 01 1 0302- ● ●
26 16.545 PANEL; GEAR CONT REINF
MANUAL TILT CAB<RWZ> 		8-97850-140-3 01 1 0302-0506 ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-140-3 01 1 0302-0506 ● ●
26 16.545 PANEL; GEAR CONT REINF
MANUAL TILT CAB<RWZ> 		8-97850-140-3 01 1 0507- ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-140-3 01 1 0507- ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-017-7 01 1 0302-0506 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0302-0506 ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-017-7 01 1 0507-1106 ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0507-1106 ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-98170-771-0 01 1 1107- ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-98170-771-0 01 1 1107- ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-338-5 01 1 0302-0506 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0302-0506 ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-338-5 01 1 0507-1106 ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0507-1106 ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-98170-770-0 01 1 1107- ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-98170-770-0 01 1 1107- ● ●
29 16.545 GUSSET
4JJ1 ENG(LFB) 		8-97898-577-0 03 1 0607- ●
30 16.547 GROMMET; CAB MTG RAIL
OD=74 		8-94279-731-0 02 1 0302- ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 0302-0506 ● ● ● ● ● ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 0507- ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 0302-0506 ● ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 0507- ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
15.222 (B) OD=35 		8-94122-971-0 04 1 0302- ● ●
102 16.549 BOLT; FLOOR BOARD
4JJ1 ENG(LFB) 09.003 M8X20 W/LK&PL WASHER 		8-94279-216-0 12 1 0607- ●
325 16.545 REINFORCEMENT ASM; RR MTG
4JJ1 ENG(LFB) 		8-97898-991-3 01 1 0607- ●
325 16.545 REINFORCEMENT ASM; RR MTG
4HE1 ENG(RLY) 		8-97997-518-0 01 1 0302-0506 ● ●
325 16.545 REINFORCEMENT ASM; RR MTG
4HK1-TCN ENG(RDQ) 		8-97997-518-0 01 1 0507-0606 ●
325 16.545 REINFORCEMENT ASM; RR MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97997-518-0 01 1 0507-0606 ●
325 16.545 REINFORCEMENT ASM; RR MTG
4HK1-TCC ENG(RDV) 		8-98018-777-1 01 1 0607- ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-087-3 01 1 0302-0506 ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 0302-0506 ● ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-087-4 01 1 0507- ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-4 01 1 0507- ● ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-086-4 01 1 0302-0506 ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 0302-0506 ● ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-086-5 01 1 0507- ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-5 01 1 0507- ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-923-1 01 1 0302-0506 ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-923-1 01 1 0507- ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-320-6 01 1 0302-0506 ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-320-6 01 1 0507- ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
4JJ1 ENG(LFB) 		8-97898-993-1 01 1 0607- ●
376 16.545 CLOSING; PILLAR,LWR
4JJ1 ENG(LFB) 		8-97898-992-1 01 1 0607- ●
376 16.545 CLOSING; PILLAR,LWR
4HE1 ENG(RLY) 		8-97850-187-3 01 1 0302-0506 ● ●
376 16.545 CLOSING; PILLAR,LWR
4HK1-TCN ENG(RDQ) 		8-97850-187-3 01 1 0507-0606 ●
376 16.545 CLOSING; PILLAR,LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97850-187-3 01 1 0507-0606 ●
376 16.545 CLOSING; PILLAR,LWR
4HK1-TCC ENG(RDV) 		8-97850-187-3 01 1 0607- ●
376 16.545 CLOSING; PILLAR,LWR
4HE1 ENG(RLY) 		8-97850-186-3 01 1 0302-0506 ● ●
376 16.545 CLOSING; PILLAR,LWR
4HK1-TCN ENG(RDQ) 		8-97850-186-3 01 1 0507-0606 ●
376 16.545 CLOSING; PILLAR,LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97850-186-3 01 1 0507-0606 ●
376 16.545 CLOSING; PILLAR,LWR
4HK1-TCC ENG(RDV) 		8-97850-186-3 01 1 0607- ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> 		8-97850-807-2 01 1 0302-0303 ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-807-2 01 1 0302-0303 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> 		8-97997-638-0 01 1 0304-0506 ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97997-638-0 01 1 0304-0506 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> 		8-97997-638-0 01 1 0507- ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97997-638-0 01 1 0507- ● ●
379 16.545 PANEL
MANUAL TILT CAB<RWZ> 		8-97850-129-2 01 1 0302-0307 ● ● ● ● ●
379 16.545 PANEL 8-97850-129-2 01 1 0302-0307 ● ●
379 16.545 PANEL
MANUAL TILT CAB<RWZ> 		8-97581-640-0 01 1 0308-0506 ● ● ● ● ●
379 16.545 PANEL 8-97581-640-0 01 1 0308-0506 ● ●
379 16.545 PANEL
MANUAL TILT CAB<RWZ> 		8-97581-640-0 01 1 0507- ● ● ● ●
379 16.545 PANEL 8-97581-640-0 01 1 0507- ● ●
396 16.547 GROMMET; LOCATION HOLE 1-09983-049-0 02 1 0302- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> (D) M10 		9-09114-030-0 03 1 0302-0506 ● ● ● ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 0302-0506 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> (D) M10 		9-09114-030-0 03 1 0507- ● ● ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 0507- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0302-0506 ● ● ● ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0302-0506 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0507- ● ● ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0507- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (C) M8 		9-09114-048-0 04 1 0302-0506 ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 0302-0506 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (C) M8 		9-09114-048-0 04 1 0507- ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 0507- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 06 1 0302-0506 ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 06 1 0302-0506 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 06 1 0507- ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 06 1 0507- ● ●
399 16.545 PANEL; EXTENSION,RR MTG RAIL 8-97850-224-1 01 1 0302- ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 0302-0506 ● ● ● ● ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 0507- ● ● ● ● ● ●

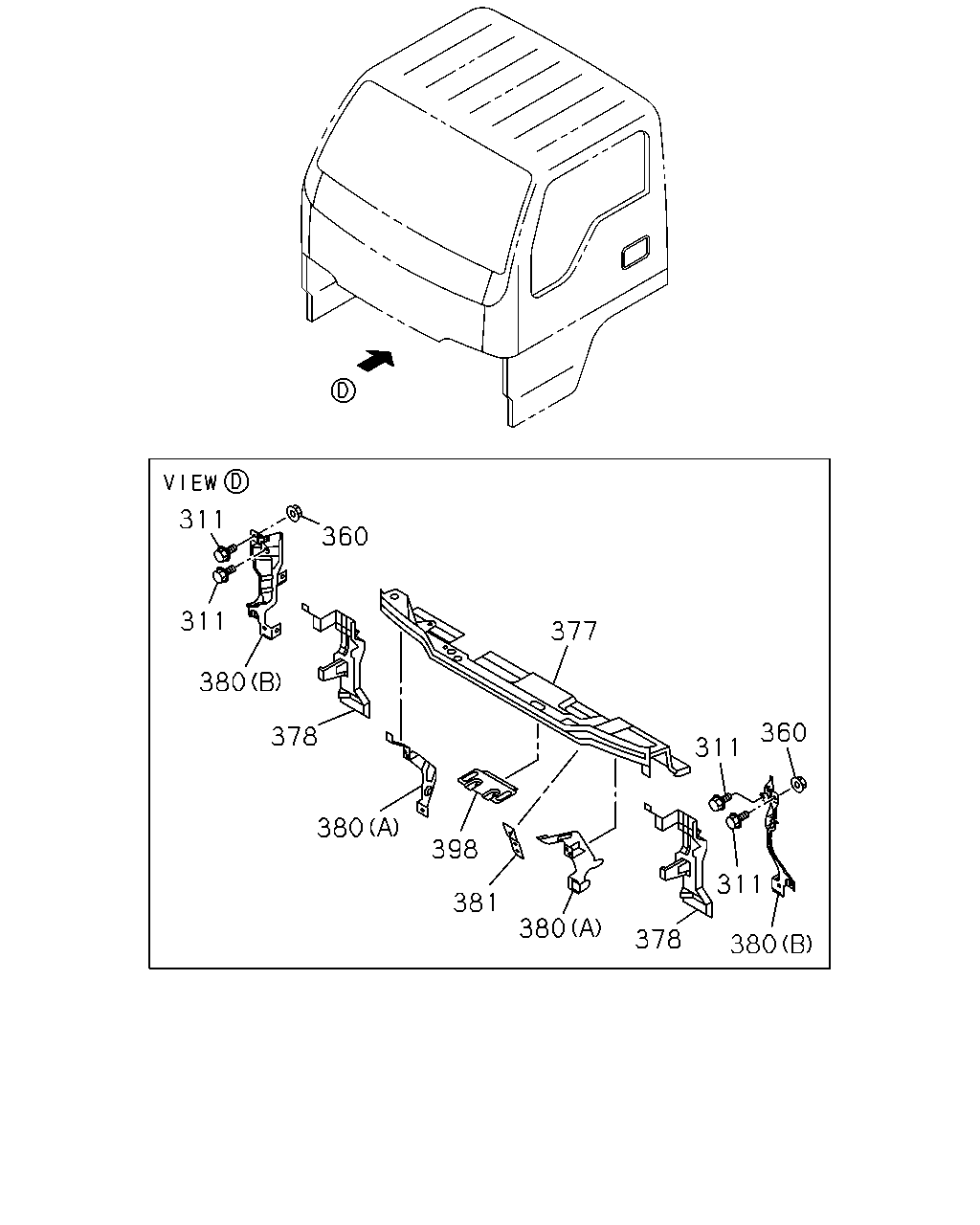

çizim 55511
311 360 311 377 380 360 378 311 380 398 311 381 380 378 380
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
311 16.545 BOLT; BRKT
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0507-0804 ● ● ● ● ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0805- ● ● ● ● ● ●
360 16.545 NUT; BRKT
16.570 M6 POP NUT 		8-94279-537-0 02 1 0507-0805 ● ● ● ● ● ●
360 16.545 NUT; BRKT
09.786 M6 POP NUT 		8-98013-752-0 02 1 0806- ● ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> 		8-97850-807-2 01 1 0302-0303 ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-807-2 01 1 0302-0303 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> 		8-97997-638-0 01 1 0304-0506 ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97997-638-0 01 1 0304-0506 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> 		8-97997-638-0 01 1 0507- ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97997-638-0 01 1 0507- ● ●
378 16.545 GASSET; LWR
MANUAL TILT CAB<RWZ> 		8-97850-672-1 01 1 0302-0305 ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-672-1 01 1 0302-0305 ● ●
378 16.545 GASSET; LWR
MANUAL TILT CAB<RWZ> 		8-97581-828-1 01 1 0306-0506 ● ● ● ● ●
378 16.545 GASSET; LWR 8-97581-828-1 01 1 0306-0506 ● ●
378 16.545 GASSET; LWR
MANUAL TILT CAB<RWZ> 		8-97581-828-2 01 1 0507- ● ● ● ●
378 16.545 GASSET; LWR 8-97581-828-2 01 1 0507- ● ●
378 16.545 GASSET; LWR
MANUAL TILT CAB<RWZ> 		8-97850-671-0 01 1 0302-0305 ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-671-0 01 1 0302-0305 ● ●
378 16.545 GASSET; LWR
MANUAL TILT CAB<RWZ> 		8-97581-827-1 01 1 0306-0506 ● ● ● ● ●
378 16.545 GASSET; LWR 8-97581-827-1 01 1 0306-0506 ● ●
378 16.545 GASSET; LWR
MANUAL TILT CAB<RWZ> 		8-97581-827-2 01 1 0507- ● ● ● ●
378 16.545 GASSET; LWR 8-97581-827-2 01 1 0507- ● ●
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> (A) 		8-97850-705-0 01 1 0302-0506 ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97850-705-0 01 1 0302-0506 ● ●
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> (A) 		8-97850-705-0 01 1 0507- ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97850-705-0 01 1 0507- ● ●
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> (A) 		8-97850-090-2 01 1 0302-0506 ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97850-090-2 01 1 0302-0506 ● ●
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> (A) 		8-97850-090-2 01 1 0507- ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97850-090-2 01 1 0507- ● ●
380 16.545 BRACKET; HEAD LAMP
02.726 (B) 		8-98006-088-0 01 1 0507- ● ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
02.726 (B) 		8-98006-087-0 01 1 0507- ● ● ● ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT
MANUAL TILT CAB<RWZ> 		8-97850-221-5 01 1 0302-0506 ● ● ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-221-5 01 1 0302-0506 ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT
MANUAL TILT CAB<RWZ> 		8-97850-221-5 01 1 0507- ● ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-221-5 01 1 0507- ● ●
398 16.545 BRACKET; PIPE SUPPORT
MANUAL TILT CAB<RWZ> 		8-97850-318-1 01 1 0302-0506 ● ● ● ● ●
398 16.545 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 0302-0506 ● ●
398 16.545 BRACKET; PIPE SUPPORT
MANUAL TILT CAB<RWZ> 		8-97850-318-1 01 1 0507- ● ● ● ●
398 16.545 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 0507- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
