Isuzu WW
▶
TRUCKS
▶
NPR
▶
50950 - NPR/NQR(EUROPE)-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

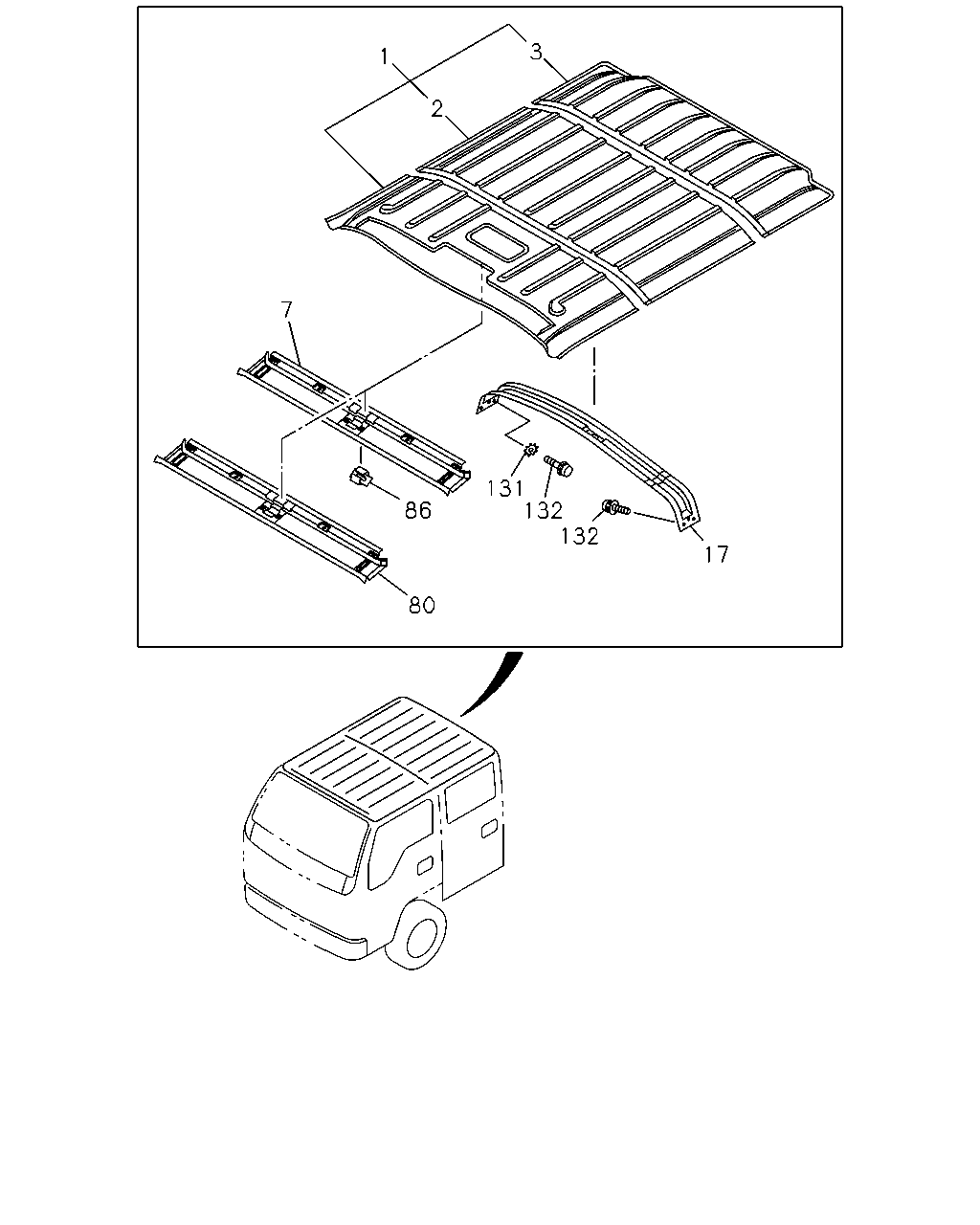

6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#18907) — 33 parça
Tümü
A - NPC5SC
B - NPC5SF
C - NPC5SK
D - NPC5SN
E - NPC5SS
F - NPC5WF
G - NPC5WS
◀
[660A] DBL CAB (20 parça)
[660A] SGL CAB (13 parça)
▶
3
1
2
7
131
132
132
86
17
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
1
16.585 PANEL; ROOF
ROOF VENTILATOR<C55>
8-97898-995-1
01
1
0302-0506
●
●
●
●
●
1
16.585 PANEL; ROOF
ROOF VENTILATOR<C55>
8-97898-995-1
01
1
0507-
●
●
●
●
1
16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ>
8-97898-996-2
01
1
0302-0506
●
●
●
●
●
1
16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ>
8-97898-996-2
01
1
0507-
●
●
●
●
1
16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>
8-97898-997-2
01
1
0302-0506
●
●
●
●
●
1
16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>
8-97898-997-2
01
1
0507-
●
●
●
●
1
16.585 PANEL; ROOF
ROOF VENTILATOR<C55>
8-97898-998-4
01
1
0302-
●
●
1
16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ>
8-97898-999-4
01
1
0302-
●
●
1
16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>
8-97899-001-4
01
1
0302-
●
●
2
16.585 PANEL; ROOF,CENTER
8-97851-256-3
01
1
0302-
●
●
3
16.585 PANEL; ROOF,RR
8-97851-257-5
01
1
0302-
●
●
7
16.585 PANEL; FRT WINDSHIELD UPR
8-97892-143-1
01
1
0302-0405
●
●
●
●
●
●
●
17
16.570 REINFORCEMENT; ROOF PNL CENTER
8-97853-626-3
01
1
0302-
●
●
80
16.585 PANEL; HEADER,ROOF
8-97583-507-0
01
1
0406-0506
●
●
●
●
●
●
●
80
16.585 PANEL; HEADER,ROOF
8-97583-507-0
01
1
0507-
●
●
●
●
●
●
86
16.585 NUT; ROOF
16.069 M5
8-94279-075-1
01
1
0302-0405
●
●
●
●
●
●
●
131
16.585 WASHER; LOCK,ROOF REINF
00.002 ID=6.4 TOOTH LK INT-EXT
9-09152-206-0
01
1
0302-0603
●
●
131
16.585 WASHER; LOCK,ROOF REINF
ID=6.4 TOOTH LK INT-EXT
0-91542-206-0
01
1
0604-
●
●
132
16.585 FASTENER; HEADER SHELF
16.742
8-97892-737-0
04
1
0302-0612
●
●
132
16.585 FASTENER; HEADER SHELF
16.742 M6X16 W/TORQUES
8-98064-273-0
04
1
0701-
●
●
7
1
86
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
1
16.585 PANEL; ROOF
ROOF VENTILATOR<C55>
8-97898-995-1
01
1
0302-0506
●
●
●
●
●
1
16.585 PANEL; ROOF
ROOF VENTILATOR<C55>
8-97898-995-1
01
1
0507-
●
●
●
●
1
16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ>
8-97898-996-2
01
1
0302-0506
●
●
●
●
●
1
16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ>
8-97898-996-2
01
1
0507-
●
●
●
●
1
16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>
8-97898-997-2
01
1
0302-0506
●
●
●
●
●
1
16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>
8-97898-997-2
01
1
0507-
●
●
●
●
1
16.585 PANEL; ROOF
ROOF VENTILATOR<C55>
8-97898-998-4
01
1
0302-
●
●
1
16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ>
8-97898-999-4
01
1
0302-
●
●
1
16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>
8-97899-001-4
01
1
0302-
●
●
7
16.585 PANEL; FRT WINDSHIELD UPR
8-97892-143-1
01
1
0302-0405
●
●
●
●
●
●
●
80
16.585 PANEL; HEADER,ROOF
8-97583-507-0
01
1
0406-0506
●
●
●
●
●
●
●
80
16.585 PANEL; HEADER,ROOF
8-97583-507-0
01
1
0507-
●
●
●
●
●
●
86
16.585 NUT; ROOF
16.069 M5
8-94279-075-1
01
1
0302-0405
●
●
●
●
●
●
●
