6-31 — FRONT DOOR GLASS AND REGULATOR (#18898) — 150 parça

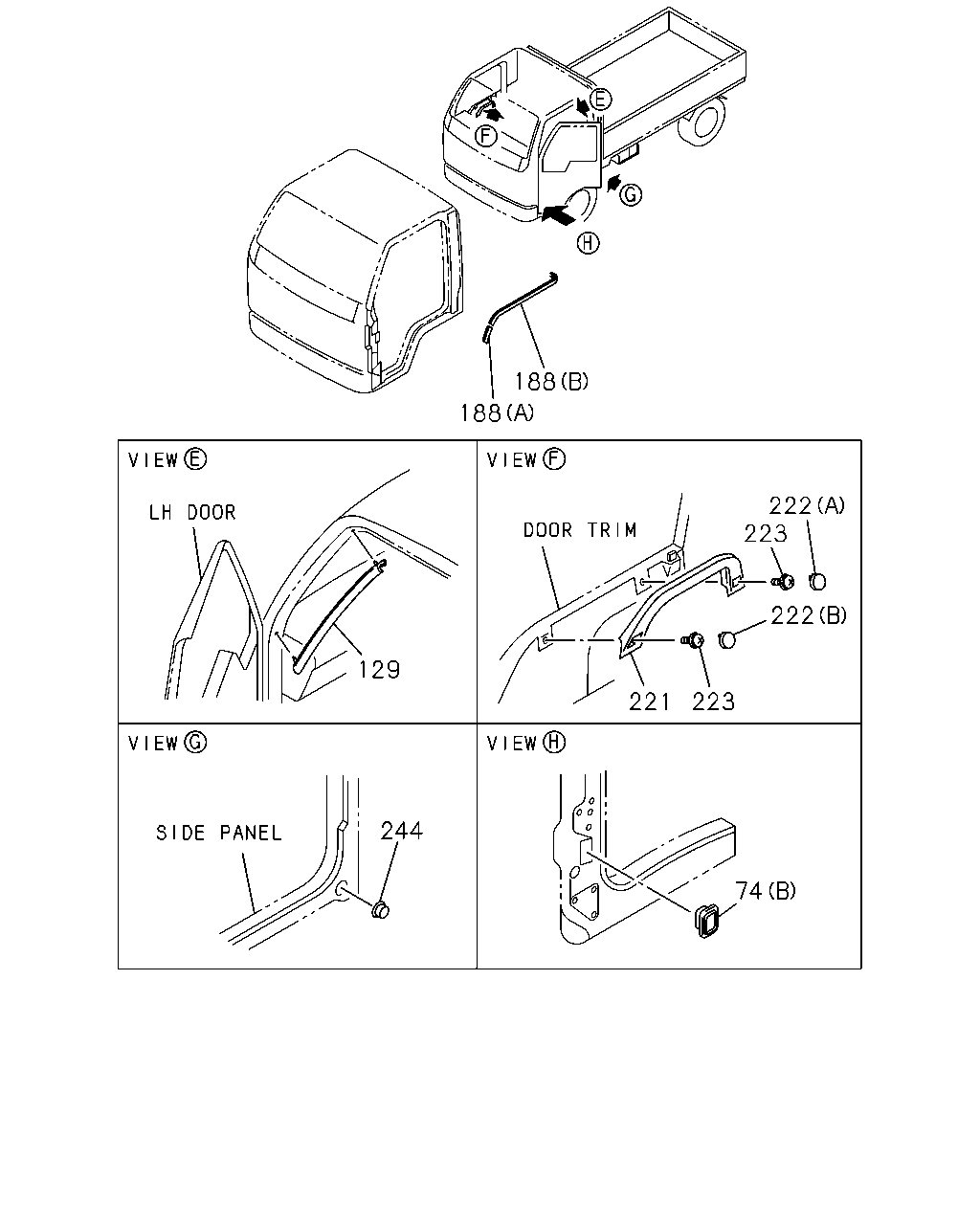

çizim 14040
188 188 129 244 74 223 221 222 223 222
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
74 16.263 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 09.656 (A) OD=48 T=9.1 		8-94279-053-0 02 1 1004- ● ● ● ● ● ●
74 16.263 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 09.775 (B) 		8-94279-736-0 02 1 1004- ● ● ● ● ● ●
129 16.183 SEAL; DOOR,SUB UPR 8-97852-147-3 01 1 0302-0506 ● ● ● ● ● ● ●
129 16.183 SEAL; DOOR,SUB UPR 8-97852-147-3 01 1 0507- ● ● ● ● ● ●
129 16.183 SEAL; DOOR,SUB UPR 8-97852-146-3 01 1 0302-0506 ● ● ● ● ● ● ●
129 16.183 SEAL; DOOR,SUB UPR 8-97852-146-3 01 1 0507- ● ● ● ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
(B) 		8-97890-834-2 01 1 0302-0506 ● ● ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
(B) 		8-97890-834-2 01 1 0507- ● ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
(B) 		8-97890-833-2 01 1 0302-0506 ● ● ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
(B) 		8-97890-833-2 01 1 0507- ● ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
(C) 		8-97994-698-0 02 1 0302-0506 ● ● ● ● ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
(C) 		8-97994-698-1 02 1 0507- ● ● ● ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
16.549 (A) 		8-97868-175-0 01 1 0302-0506 ● ● ● ● ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
16.549 (A) 		8-97868-175-0 01 1 0507- ● ● ● ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
16.549 (A) 		8-97868-174-0 01 1 0302-0506 ● ● ● ● ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
16.549 (A) 		8-97868-174-0 01 1 0507- ● ● ● ● ● ●
221 16.320 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97995-853-0 01 1 0302-0506 ● ● ● ● ● ● ●
221 16.320 BAR ASM; DOOR GLASS GUARD
GRAY 		8-97582-310-1 01 1 0507- ● ● ● ● ● ●
221 16.320 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97995-850-0 01 1 0302-0506 ● ● ● ● ● ● ●
221 16.320 BAR ASM; DOOR GLASS GUARD
GRAY 		8-97582-309-1 01 1 0507- ● ● ● ● ● ●
222 16.320 CAP; GUARD BAR
(A) DARK GRAY 		8-97995-856-0 02 1 0302-0506 ● ● ● ● ● ● ●
222 16.320 CAP; GUARD BAR
(A) GRAY 		8-97582-312-0 02 1 0507- ● ● ● ● ● ●
222 16.320 CAP; GUARD BAR
(B) DARK GRAY 		8-97995-859-0 02 1 0302-0506 ● ● ● ● ● ● ●
222 16.320 CAP; GUARD BAR
(B) GRAY 		8-97582-313-0 02 1 0507- ● ● ● ● ● ●
223 16.320 SCREW; GUARD BAR
16.650 M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0302-0506 ● ● ● ● ● ● ●
223 16.320 SCREW; GUARD BAR
16.650 M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0507-0612 ● ● ● ● ● ●
223 16.320 SCREW; GUARD BAR
M6X18 W/TORQUES 		8-98064-277-0 04 1 0701- ● ● ● ● ● ●
244 16.155 STOPPER; DOOR 8-97890-484-0 02 1 0302-0506 ● ● ● ● ● ● ●
244 16.155 STOPPER; DOOR 8-97890-484-0 02 1 0507- ● ● ● ● ● ●

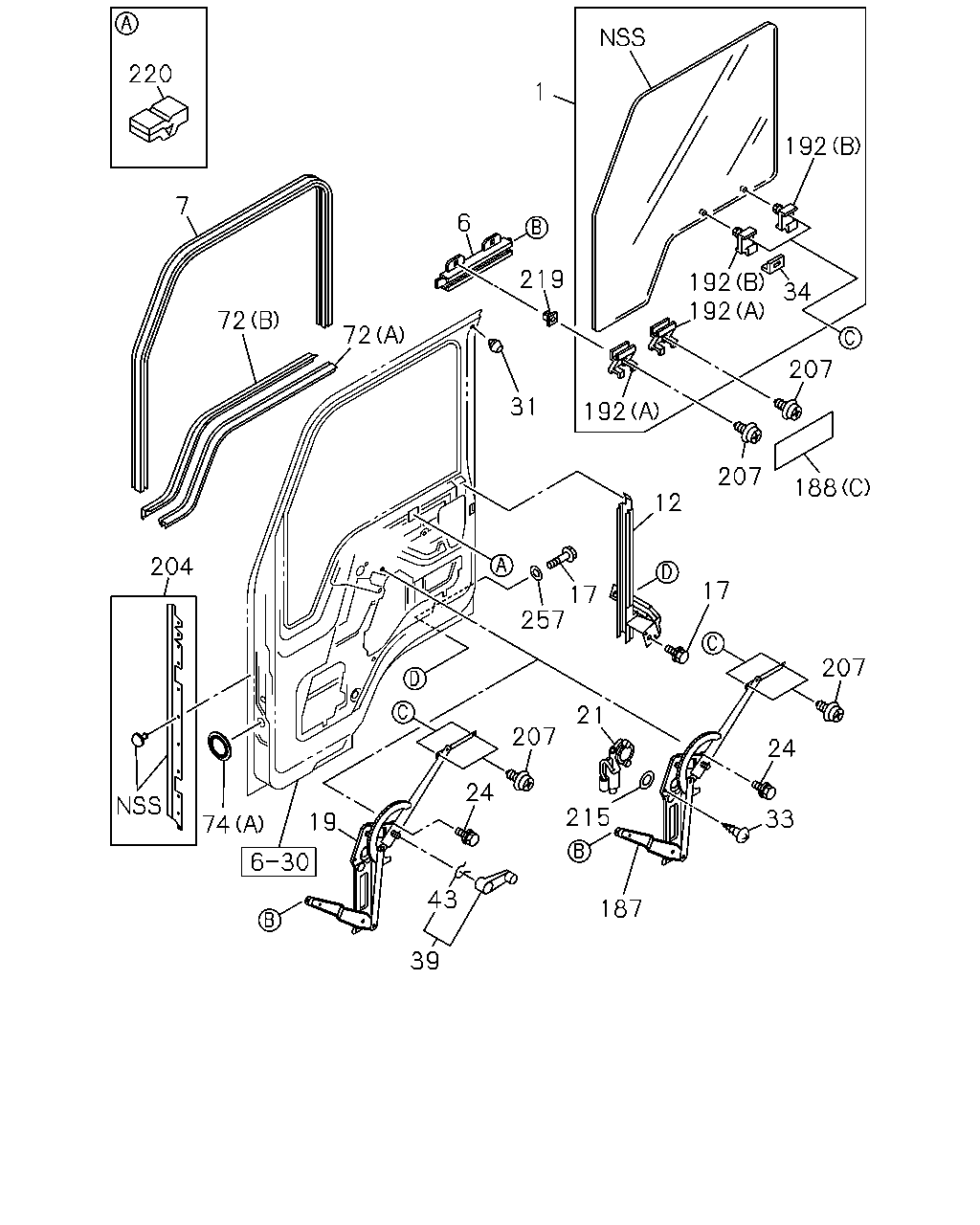

çizim 55510
192 34 192 192 192 207 207 188 12 17 207 24 33 187 215 21 207 24 43 39 19 74 204 72 72 31 219 6 1 7 220 17 257
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.180 GLASS; FRT DOOR
ASAHI 		8-97867-418-1 01 1 0302-0506 ● ● ● ● ● ● ●
1 16.180 GLASS; FRT DOOR
ASAHI 		8-97867-418-1 01 1 0507- ● ● ● ● ● ●
1 16.180 GLASS; FRT DOOR
ASAHI 		8-97867-417-1 01 1 0302-0506 ● ● ● ● ● ● ●
1 16.180 GLASS; FRT DOOR
ASAHI 		8-97867-417-1 01 1 0507- ● ● ● ● ● ●
6 10.685 CHANNEL; DOOR GLASS
W/ROLLER&PROTECTOR 		8-97898-425-1 02 1 0302-0506 ● ● ● ● ● ● ●
6 10.685 CHANNEL; DOOR GLASS
W/ROLLER&PROTECTOR 		8-97898-425-1 02 1 0507- ● ● ● ● ● ●
7 16.190 GLASS RUN; FRT DOOR
4HE1 ENG(RLY) POWER WINDOW FRT DOOR<A32> 		8-97852-143-4 01 1 0302-0506 ● ● ● ● ● ● ●
7 16.190 GLASS RUN; FRT DOOR
4JH1 ENG(RJX) 		8-97852-143-4 01 1 0302-0506 ●
7 16.190 GLASS RUN; FRT DOOR
4JH1-TC ENG(RDM) 		8-97852-143-4 01 1 0507-0606 ● ●
7 16.190 GLASS RUN; FRT DOOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> 		8-97852-143-4 01 1 0507-0606 ● ● ● ● ●
7 16.190 GLASS RUN; FRT DOOR
4JJ1 ENG(LFB) 		8-97852-143-4 01 1 0607- ● ● ● ●
7 16.190 GLASS RUN; FRT DOOR
4HK1-TCC ENG(RDV) POWER WINDOW FRT DOOR<A32> 		8-97852-143-4 01 1 0607- ● ● ● ●
7 16.190 GLASS RUN; FRT DOOR
4HE1 ENG(RLY) POWER WINDOW FRT DOOR<A32> 		8-97852-142-4 01 1 0302-0506 ● ● ● ● ● ● ●
7 16.190 GLASS RUN; FRT DOOR
4JH1 ENG(RJX) 		8-97852-142-4 01 1 0302-0506 ●
7 16.190 GLASS RUN; FRT DOOR
4JH1-TC ENG(RDM) 		8-97852-142-4 01 1 0507-0606 ● ●
7 16.190 GLASS RUN; FRT DOOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> 		8-97852-142-4 01 1 0507-0606 ● ● ● ● ●
7 16.190 GLASS RUN; FRT DOOR
4JJ1 ENG(LFB) 		8-97852-142-4 01 1 0607- ● ● ● ●
7 16.190 GLASS RUN; FRT DOOR
4HK1-TCC ENG(RDV) POWER WINDOW FRT DOOR<A32> 		8-97852-142-4 01 1 0607- ● ● ● ●
7 16.190 GLASS RUN; FRT DOOR
4HE1 ENG(RLY) EXC. POWER WINDOW FRT DOOR<A32> 		8-97859-496-1 01 1 0302-0506 ● ● ● ● ● ● ●
7 16.190 GLASS RUN; FRT DOOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. POWER WINDOW FRT DOOR<A32> 		8-97859-496-1 01 1 0507-0606 ● ● ● ● ●
7 16.190 GLASS RUN; FRT DOOR
4HK1-TCC ENG(RDV) EXC. POWER WINDOW FRT DOOR<A32> 		8-97859-496-1 01 1 0607- ● ● ● ●
7 16.190 GLASS RUN; FRT DOOR
4HE1 ENG(RLY) EXC. POWER WINDOW FRT DOOR<A32> 		8-97859-495-1 01 1 0302-0506 ● ● ● ● ● ● ●
7 16.190 GLASS RUN; FRT DOOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. POWER WINDOW FRT DOOR<A32> 		8-97859-495-1 01 1 0507-0606 ● ● ● ● ●
7 16.190 GLASS RUN; FRT DOOR
4HK1-TCC ENG(RDV) EXC. POWER WINDOW FRT DOOR<A32> 		8-97859-495-1 01 1 0607- ● ● ● ●
12 16.190 CHANNEL; GLASS RUN,FRT 8-97852-112-5 01 1 0302-0506 ● ● ● ● ● ● ●
12 16.190 CHANNEL; GLASS RUN,FRT 8-97852-112-5 01 1 0507-1212 ● ● ● ● ● ●
12 16.190 CHANNEL; GLASS RUN,FRT 8-97996-046-0 01 1 1301- ● ● ● ● ● ●
12 16.190 CHANNEL; GLASS RUN,FRT 8-97852-111-5 01 1 0302-0506 ● ● ● ● ● ● ●
12 16.190 CHANNEL; GLASS RUN,FRT 8-97852-111-5 01 1 0507-1212 ● ● ● ● ● ●
12 16.190 CHANNEL; GLASS RUN,FRT 8-97867-650-0 01 1 1301- ● ● ● ● ● ●
17 16.183 SCREW; RR CHANNEL
M6X16 W/LK&PL WASHER 		8-94279-402-0 04 1 0302-0305 ● ● ● ● ● ● ●
17 16.183 SCREW; RR CHANNEL
M6X16 W/LK&PL WASHER 		8-97582-826-0 04 1 0306-0506 ● ● ● ● ● ● ●
17 16.183 SCREW; RR CHANNEL
M6X16 W/LK&PL WASHER 		8-97582-826-0 04 1 0507-0612 ● ● ● ● ● ●
17 16.183 SCREW; RR CHANNEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 04 1 0701-1101 ● ● ● ● ● ●
17 16.183 SCREW; RR CHANNEL
16.585 T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 04 1 1102-1212 ● ● ● ● ● ●
17 16.183 SCREW; RR CHANNEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 04 1 1301- ● ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-116-7 01 1 0302-0506 ● ● ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-116-8 01 1 0507- ● ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-115-7 01 1 0302-0506 ● ● ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-115-8 01 1 0507- ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-480-0 01 1 0302-0506 ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 		8-97898-480-0 01 1 0302-0506 ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 		8-97898-480-0 01 1 0507-0606 ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-480-0 01 1 0507-0606 ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-480-0 01 1 0607- ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-479-0 01 1 0302-0506 ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 		8-97898-479-0 01 1 0302-0506 ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 		8-97898-479-0 01 1 0507-0606 ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-479-0 01 1 0507-0606 ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-479-0 01 1 0607- ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 		8-97898-478-0 01 1 0302-0506 ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-478-0 01 1 0507-0606 ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 		8-97898-478-0 01 1 0507-0606 ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 		8-97898-477-0 01 1 0302-0506 ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-477-0 01 1 0507-0606 ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 		8-97898-477-0 01 1 0507-0606 ●
24 16.230 SCREW; WINDOW REG
M6X8 W/LK&PL WASHER 		8-94279-401-0 10 1 0302-0506 ● ● ● ● ● ● ●
24 16.230 SCREW; WINDOW REG
M6X8 W/LK&PL WASHER 		8-94279-401-0 10 1 0507-0606 ● ● ● ● ● ●
24 16.230 SCREW; WINDOW REG
M6X8 W/LK&PL WASHER 		8-94279-401-0 10 1 0607-0612 ● ● ● ● ● ●
24 16.230 SCREW; WINDOW REG
M8X6.5 W/TORQUES 		8-98064-275-2 10 1 0701-0710 ● ● ● ● ● ●
24 16.230 SCREW; WINDOW REG
M6X8 W/LK&PL WASHER 		8-94279-401-0 10 1 0711-0802 ● ● ● ● ● ●
24 16.230 SCREW; WINDOW REG
M6X9 LK+W/PL WASHER&TORQUES 		8-98108-677-0 10 1 0803- ● ● ● ● ● ●
31 16.225 STOPPER; RUBBER,DOOR INNER 8-97852-022-1 02 1 0302-0506 ● ● ● ● ● ● ●
31 16.225 STOPPER; RUBBER,DOOR INNER 8-97852-022-1 02 1 0507- ● ● ● ● ● ●
33 16.230 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> 		8-98097-389-0 06 1 0607- ● ● ● ● ● ●
33 16.230 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> M6X12 		8-94279-367-0 06 1 0507-0606 ●
33 16.230 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> M6X12 		8-94279-367-0 06 1 0507-0606 ● ● ● ●
34 16.270 STOPPER; WINDOW REG 8-97852-012-0 02 1 0302-0506 ● ● ● ● ● ● ●
34 16.270 STOPPER; WINDOW REG 8-97852-012-0 02 1 0507- ● ● ● ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97098-453-0 02 1 0302-0506 ● ● ● ● ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97582-306-0 02 1 0507-0709 ● ● ● ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-98090-302-0 02 1 0710- ● ● ● ● ● ●
43 16.270 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-94220-591-0 02 1 0302-0506 ● ● ● ● ● ● ●
43 16.270 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-94220-591-0 02 1 0507- ● ● ● ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-118-5 01 1 0302-0506 ● ● ● ● ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-118-6 01 1 0507- ● ● ● ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97855-293-5 01 1 0302-0506 ● ● ● ● ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97855-293-6 01 1 0507- ● ● ● ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-117-5 01 1 0302-0506 ● ● ● ● ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-117-6 01 1 0507- ● ● ● ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97855-292-5 01 1 0302-0506 ● ● ● ● ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97855-292-6 01 1 0507- ● ● ● ● ● ●
74 16.263 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 09.656 (A) OD=48 T=9.1 		8-94279-053-0 02 1 1004- ● ● ● ● ● ●
74 16.263 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 09.775 (B) 		8-94279-736-0 02 1 1004- ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-114-2 01 1 0302-0506 ● ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-114-2 01 1 0507- ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-113-2 01 1 0302-0506 ● ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-113-2 01 1 0507- ● ● ● ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
(B) 		8-97890-834-2 01 1 0302-0506 ● ● ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
(B) 		8-97890-834-2 01 1 0507- ● ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
(B) 		8-97890-833-2 01 1 0302-0506 ● ● ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
(B) 		8-97890-833-2 01 1 0507- ● ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
(C) 		8-97994-698-0 02 1 0302-0506 ● ● ● ● ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
(C) 		8-97994-698-1 02 1 0507- ● ● ● ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
16.549 (A) 		8-97868-175-0 01 1 0302-0506 ● ● ● ● ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
16.549 (A) 		8-97868-175-0 01 1 0507- ● ● ● ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
16.549 (A) 		8-97868-174-0 01 1 0302-0506 ● ● ● ● ● ● ●
188 16.225 PROTECTOR; DOOR SEAL
16.549 (A) 		8-97868-174-0 01 1 0507- ● ● ● ● ● ●
192 16.183 HOLDER; DOOR GLASS
(A) 		8-97852-076-1 04 1 0302-0506 ● ● ● ● ● ● ●
192 16.183 HOLDER; DOOR GLASS
(A) 		8-97852-076-1 04 1 0507- ● ● ● ● ● ●
192 16.183 HOLDER; DOOR GLASS
(B) 		8-97852-077-1 04 1 0302-0506 ● ● ● ● ● ● ●
192 16.183 HOLDER; DOOR GLASS
(B) 		8-97852-077-1 04 1 0507- ● ● ● ● ● ●
204 16.183 RUBBER; SHIELD,FRT DOOR 8-97852-093-2 01 1 0302-0506 ● ● ● ● ● ● ●
204 16.183 RUBBER; SHIELD,FRT DOOR 8-97852-093-2 01 1 0507- ● ● ● ● ● ●
204 16.183 RUBBER; SHIELD,FRT DOOR 8-97852-092-2 01 1 0302-0506 ● ● ● ● ● ● ●
204 16.183 RUBBER; SHIELD,FRT DOOR 8-97852-092-2 01 1 0507- ● ● ● ● ● ●
207 16.183 SCREW; DOOR GLASS
16.445 REAR M6X16 TAPPING W/PL WASHER 		1-09981-452-0 04 1 0302-0506 ● ● ● ● ● ● ●
207 16.183 SCREW; DOOR GLASS
16.445 REAR M6X16 TAPPING W/PL WASHER 		1-09981-452-0 04 1 0507-0606 ● ● ● ● ● ●
207 16.183 SCREW; DOOR GLASS
16.445 REAR M6X16 TAPPING W/PL WASHER 		1-09981-452-0 04 1 0607-0612 ● ● ● ● ● ●
207 16.183 SCREW; DOOR GLASS
FRONT & REAR M4X14.5 TAPPING 		8-98020-522-2 08 1 0701- ● ● ● ● ● ●
207 16.183 SCREW; DOOR GLASS
FRONT M6X14.5 W/PL WASHER TAPPING 		8-94279-014-0 04 1 0302-0506 ● ● ● ● ● ● ●
207 16.183 SCREW; DOOR GLASS
FRONT M6X14.5 W/PL WASHER TAPPING 		8-94279-014-0 04 1 0507-0606 ● ● ● ● ● ●
207 16.183 SCREW; DOOR GLASS
FRONT M6X14.5 W/PL WASHER TAPPING 		8-94279-014-0 04 1 0607-0612 ● ● ● ● ● ●
215 63.121 SPACER; WINDOW REG
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 16.230 		8-97388-942-0 02 1 0507-0606 ●
215 63.121 SPACER; WINDOW REG
POWER WINDOW FRT DOOR<A32> 16.230 		8-97388-942-0 02 1 0507-0606 ● ● ● ●
215 63.121 SPACER; WINDOW REG
POWER WINDOW FRT DOOR<A32> 16.230 		8-97388-942-0 02 1 0607- ● ● ● ● ● ●
219 16.175 GROMMET; SCREW,CHANNEL,REG 8-94326-756-0 04 1 0302-0506 ● ● ● ● ● ● ●
219 16.175 GROMMET; SCREW,CHANNEL,REG 8-94326-756-0 04 1 0507- ● ● ● ● ● ●
220 16.332 SEAL; LINK ROD 8-97852-321-0 02 1 0302-0506 ● ● ● ● ● ● ●
220 16.332 SEAL; LINK ROD 8-97852-321-0 02 1 0507- ● ● ● ● ● ●
257 03.162 WASHER; G/RUN CHANNEL
ID=6.5 OD=30 		9-09851-911-0 02 1 1301- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
