Sayfa 2-25 - Isuzu EPC

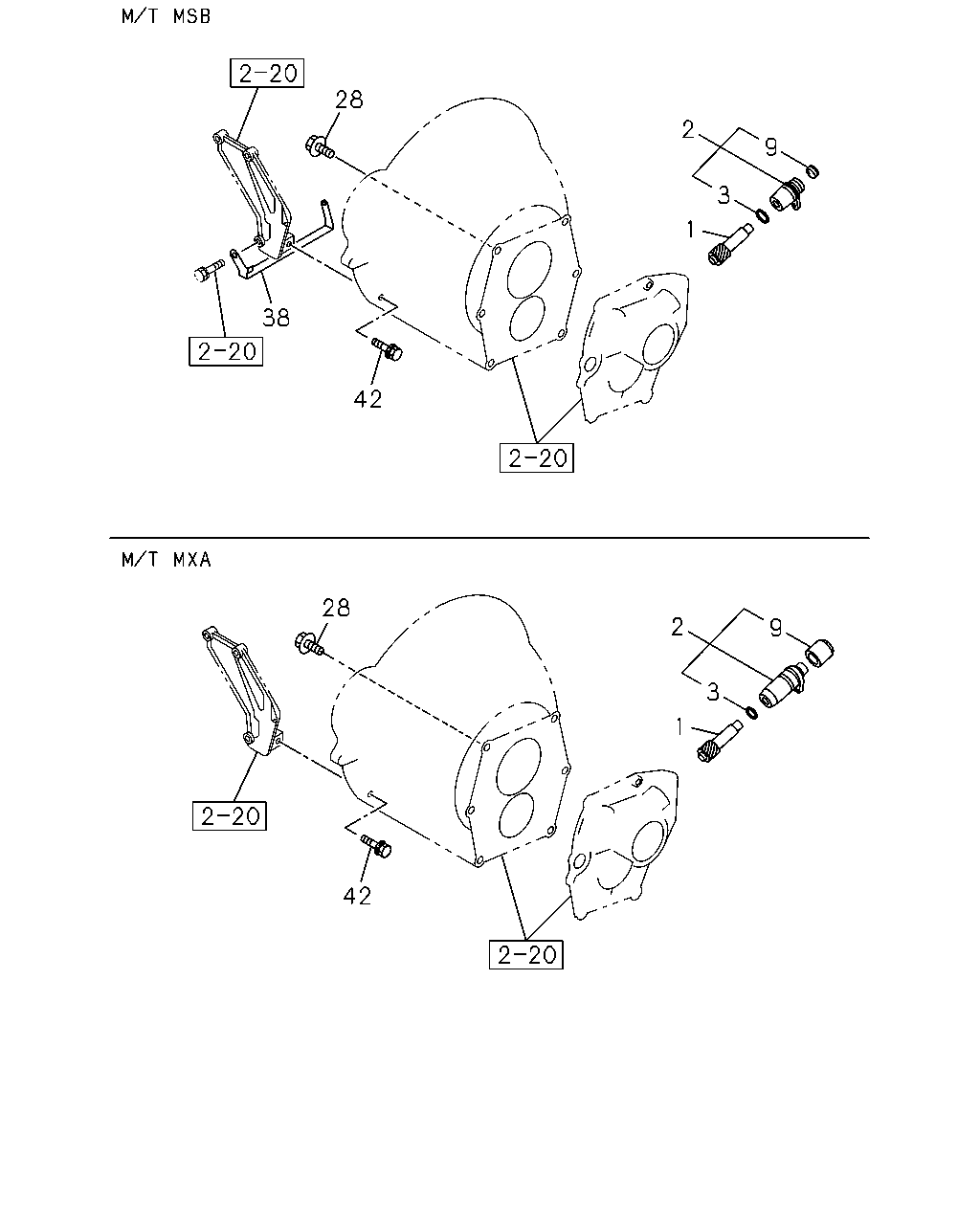

2-25 — SPEEDOMETER DRIVEN GEAR (#18891) — 149 parça

28 2 9 3 1 38 42 28 2 9 3 1 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/9(HC6) (BQU),(9HY) Z=13	8-94119-854-0	01	1	9812-0105	●
1	04.337 GEAR; DRIVEN,SPD M/T MZZ6F(RSR) FINAL GEAR RATIO 41/8(RU1) (AUH),(AUJ),(AUS),(AVK),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V),(9BP),(95V),(97V) Z=13	8-97253-562-1	01	1	0208-	●
1	04.337 GEAR; DRIVEN,SPD M/T MZZ6F(RSR) FINAL GEAR RATIO 43/9(S2J) (06C),(07C),(09C),(10C),(53C),(54C) Z=13	8-97253-562-1	01	1	0208-	●
1	04.337 GEAR; DRIVEN,SPD M/T MZZ6F(RSR) FINAL GEAR RATIO 41/8(RU1) (9ZM),(9ZP),(9ZQ) Z=12	8-97253-563-1	01	1	0208-	●
1	04.337 GEAR; DRIVEN,SPD M/T MZZ6F(RSR) FINAL GEAR RATIO 43/9(S2J) (AUH),(AUJ),(AUS),(AVK),(00C),(01C), (02C),(03C),(04C),(05C),(08C),(11C), (55C),(83V),(9BP),(95V),(97V) Z=12	8-97253-563-1	01	1	0208-	●
1	04.337 GEAR; DRIVEN,SPD M/T MZZ6F(RSR) FINAL GEAR RATIO 43/9(S2J) (9ZM),(9ZP),(9ZQ) Z=11	8-97253-559-1	01	1	0208-	●
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 39/7(GV1) (AUS),(00C),(01C),(02C),(03C),(04C), (05C),(06C),(06H),(07C),(07H),(08C), (08H),(09C),(09H),(10C),(10H),(11C), (11H),(12H),(13H),(14H),(15H),(16H), (17H),(18H),(19H),(50C),(51C),(52C), (53C),(54C),(55C),(83V),(9BP),(94H), (95H),(95V),(96H),(97H),(97V),(98H), (99H) Z=14	8-94249-062-0	01	1	9812-0105	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/7(R41) TIRE SIZE 8.25-16<7QP> Z=14	8-94249-062-0	01	1	9812-0105	●		●
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT) FINAL GEAR RATIO 43/9(S2J) (BQU),(BQV),(9HY) Z=14	8-94249-062-0	01	1	0106-	●
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/7(R41) (AUS),(00C),(01C),(02C),(03C),(04C), (05C),(06C),(06H),(07C),(07H),(08C), (08H),(09C),(09H),(10C),(10H),(11C), (11H),(12H),(13H),(14H),(15H),(16H), (17H),(18H),(19H),(50C),(51C),(52C), (53C),(54C),(55C),(83V),(9BP),(94H), (95H),(95V),(96H),(97H),(97V),(98H), (99H) Z=15	8-94249-063-0	01	1	9812-0105	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 43/7(R42) (00C),(01C),(02C),(03C),(04C),(05C), (09H),(10H),(11H),(12H),(13H),(14H), (15H),(16H),(17H),(18H),(19H),(52C), (55C),(83V),(9BP),(95V),(97V) Z=15	8-94249-063-0	01	1	9812-0105	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 43/7(R42) TIRE SIZE 8.25-16<7QP> Z=15	8-94249-063-0	01	1	9812-0105	●		●
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT) FINAL GEAR RATIO 41/8(RU1) (BQU),(BQV),(9HY) Z=15	8-94249-063-0	01	1	0106-	●
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/9(HC6) (AYS),(BRT),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C) Z=12	8-94249-943-0	01	1	9812-0105	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 43/10(S7C) (AYS),(BRT) Z=12	8-94249-943-0	01	1	9812-0105	●		●
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 43/7(R42) (AUS),(06C),(06H),(07C),(07H),(08C), (08H),(09C),(10C),(11C),(50C),(51C), (53C),(54C),(94H),(95H),(96H),(97H), (98H),(99H) Z=16	8-94249-064-0	01	1	9812-0105	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/7(R41) (AYS),(BQU),(BRT),(9HY) Z=16	8-94249-064-0	01	1	9812-0105	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 39/7(GV1) (BQU),(9HY) Z=16	8-94249-064-0	01	1	9812-0105	●
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 43/7(R42) (AYS),(BQU),(BRT),(9HY) Z=17	8-94249-065-0	01	1	9812-0105	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD M/T MBP6P(RNC) FINAL GEAR RATIO 41/8(RU1) (AUH),(AUJ),(AUS),(AVK) Z=14	1-33372-076-5	01	1	9812-0105	●		●		●	●
1	04.337 GEAR; DRIVEN,SPD M/T MBP6P(RNC) FINAL GEAR RATIO 39/7(GV1) (9BP) EXC. TIRE SIZE 8.25-16<7QP> Z=14	1-33372-076-5	01	1	9812-0105	●		●
1	04.337 GEAR; DRIVEN,SPD M/T MBP6P(RNC) FINAL GEAR RATIO 39/7(GV1) TIRE SIZE 8.25-16<7QP> Z=14	1-33372-076-5	01	1	9812-0105	●		●
1	04.337 GEAR; DRIVEN,SPD M/T MBP6P(RNC) FINAL GEAR RATIO 41/8(RU1) (9BP) EXC. TIRE SIZE 8.25-16<7QP> Z=19	1-33372-122-4	01	1	9812-0105	●		●		●	●
1	04.337 GEAR; DRIVEN,SPD M/T MBP6P(RNC) FINAL GEAR RATIO 41/8(RU1) TIRE SIZE 8.25-16<7QP> Z=19	1-33372-122-4	01	1	9812-0105	●		●		●	●
1	04.337 GEAR; DRIVEN,SPD M/T MBP6P(RNC) FINAL GEAR RATIO 43/9(S2J) (AUH),(AUJ),(AUS),(AVK) Z=19	1-33372-122-4	01	1	9812-0105	●		●		●	●
1	04.337 GEAR; DRIVEN,SPD M/T MBP6P(RNC) FINAL GEAR RATIO 43/9(S2J) (9BP) EXC. PTO TRANSMISSION SIDE(V66) Z=16	1-33372-119-4	01	1	9812-9812	●		●		●	●
1	04.337 GEAR; DRIVEN,SPD M/T MBP6P(RNC) FINAL GEAR RATIO 43/10(S7C) (9BP) PTO TRANSMISSION SIDE(V66) Z=16	1-33372-119-4	01	1	9812-9812	●		●		●	●
1	04.337 GEAR; DRIVEN,SPD M/T MBP6P(RNC) FINAL GEAR RATIO 43/10(S7C) (9BP) EXC. ENGINE POWER N-SPEC(7QV) Z=16	1-33372-119-4	01	1	9901-0105	●		●		●	●
1	04.337 GEAR; DRIVEN,SPD 4HE1 ENG(RLY) M/T MBP6R(RNW) FINAL GEAR RATIO 41/10(GT5) (AUH),(AUJ),(AUS),(AVK) Z=16	1-33372-119-4	01	1	0106-	●	●	●	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD M/T MBP6P(RNC) FINAL GEAR RATIO 43/9(S2J) (9BP) Z=18	1-33372-121-4	01	1	9812-0105	●		●		●	●
1	04.337 GEAR; DRIVEN,SPD M/T MBP6P(RNC) FINAL GEAR RATIO 43/9(S2J) TIRE SIZE 8.25-16<7QP> Z=17	1-33372-120-4	01	1	9812-0105	●		●		●	●
1	04.337 GEAR; DRIVEN,SPD M/T MBP6Q(RNM) FINAL GEAR RATIO 43/10(S7C) Z=17	1-33372-120-4	01	1	9812-0105	●		●		●	●
1	04.337 GEAR; DRIVEN,SPD 4HE1 ENG(RLY) M/T MBP6R(RNW) FINAL GEAR RATIO 41/10(GT5) (AYS),(BRU) Z=17	1-33372-120-4	01	1	0106-	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD M/T MZZ6F(RSR) FINAL GEAR RATIO 41/10(GT5) (AUH),(AUJ),(AUS),(AVK),(CQB),(CQC) Z=16	8-97329-097-1	01	1	0208-	●	●	●	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD M/T MZZ6F(RSR) FINAL GEAR RATIO 41/10(GT5) (AYS),(BRT),(BRU) Z=17	8-97327-119-1	01	1	0208-	●	●	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/9(HC6) (BQU),(9HY) 04.338 Z=13 MARK "3"	8-97080-359-1	01	1	9812-0105	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MZZ6F(RSR) FINAL GEAR RATIO 41/8(RU1) (AUH),(AUJ),(AUS),(AVK),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V),(9BP),(9ZM),(9ZP),(9ZQ), (95V),(97V) MARK "12,13,14,15"	8-97253-125-0	01	1	0208-	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MZZ6F(RSR) FINAL GEAR RATIO 43/9(S2J) (AUH),(AUJ),(AUS),(AVK),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V),(9BP),(95V),(97V) MARK "12,13,14,15"	8-97253-125-0	01	1	0208-	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 39/7(GV1) (AUS),(00C),(01C),(02C),(03C),(04C), (05C),(06C),(06H),(07C),(07H),(08C), (08H),(09C),(09H),(10C),(10H),(11C), (11H),(12H),(13H),(14H),(15H),(16H), (17H),(18H),(19H),(50C),(51C),(52C), (53C),(54C),(55C),(83V),(9BP),(94H), (95H),(95V),(96H),(97H),(97V),(98H), (99H) 04.338 Z=14 MARK "4"	8-97080-360-1	01	1	9812-0105	●	●	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/7(R41) TIRE SIZE 8.25-16<7QP> 04.338 Z=14 MARK "4"	8-97080-360-1	01	1	9812-0105	●		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT) FINAL GEAR RATIO 43/9(S2J) (BQU),(BQV),(9HY) 04.338 Z=14 MARK "4"	8-97080-360-1	01	1	0106-	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/7(R41) (AUS),(00C),(01C),(02C),(03C),(04C), (05C),(06C),(06H),(07C),(07H),(08C), (08H),(09C),(09H),(10C),(10H),(11C), (11H),(12H),(13H),(14H),(15H),(16H), (17H),(18H),(19H),(50C),(51C),(52C), (53C),(54C),(55C),(83V),(9BP),(94H), (95H),(95V),(96H),(97H),(97V),(98H), (99H) 04.338 Z=15 MARK "5"	8-97080-361-1	01	1	9812-0105	●	●	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 43/7(R42) (00C),(01C),(02C),(03C),(04C),(05C), (09H),(10H),(11H),(12H),(13H),(14H), (15H),(16H),(17H),(18H),(19H),(52C), (55C),(83V),(9BP),(95V),(97V) 04.338 Z=15 MARK "5"	8-97080-361-1	01	1	9812-0105	●	●	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 43/7(R42) TIRE SIZE 8.25-16<7QP> 04.338 Z=15 MARK "5"	8-97080-361-1	01	1	9812-0105	●		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT) FINAL GEAR RATIO 41/8(RU1) (BQU),(BQV),(9HY) 04.338 Z=15 MARK "5"	8-97080-361-1	01	1	0106-	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/9(HC6) (AYS),(BRT),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C) 04.338 Z=12 MARK "2"	8-97080-358-1	01	1	9812-0105	●	●	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 43/10(S7C) (AYS),(BRT) 04.338 Z=12 MARK "2"	8-97080-358-1	01	1	9812-0105	●		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 43/7(R42) (AUS),(06C),(06H),(07C),(07H),(08C), (08H),(09C),(10C),(11C),(50C),(51C), (53C),(54C),(94H),(95H),(96H),(97H), (98H),(99H) 04.338 Z=16 MARK "6"	8-97080-362-1	01	1	9812-0105	●	●	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/7(R41) (AYS),(BQU),(BRT),(9HY) 04.338 Z=16 MARK "6"	8-97080-362-1	01	1	9812-0105	●	●	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 39/7(GV1) (BQU),(9HY) 04.338 Z=16 MARK "6"	8-97080-362-1	01	1	9812-0105	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 43/7(R42) (AYS),(BQU),(BRT),(9HY) 04.338 Z=17 MARK "7"	8-97080-363-1	01	1	9812-0105	●	●	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MBP6P(RNC),M/T MBP6Q(RNM) 04.338	1-33373-039-1	01	1	9812-0105	●		●		●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MBP6R(RNW) 04.338	1-33373-039-1	01	1	0106-	●	●	●	●	●	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MZZ6F(RSR) FINAL GEAR RATIO 41/10(GT5) (AUH),(AUJ),(AUS),(AVK),(AYS),(BRT), (BRU),(CQB),(CQC) MARK "10,11,16,17"	8-97253-124-0	01	1	0208-	●	●	●	●	●	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MZZ6F(RSR) FINAL GEAR RATIO 43/9(S2J) (9ZM),(9ZP),(9ZQ) MARK "10,11,16,17"	8-97253-124-0	01	1	0208-	●
3	04.338 GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45)	9-09920-852-0	01	1	9812-0105	●	●	●	●
3	04.338 GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). M/T MXA5R(RMT)	9-09920-852-0	01	1	0106-	●
3	04.338 GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). M/T MBP6P(RNC),M/T MBP6Q(RNM)	1-09623-370-0	01	1	9812-0105	●		●		●	●
3	04.338 GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). M/T MBP6R(RNW)	1-09623-370-0	01	1	0106-	●	●	●	●	●	●	●
9	04.338 SEAL; OIL,DRIVEN GEAR M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) NOK	8-97080-507-0	01	1	9812-0105	●	●	●	●
9	04.338 SEAL; OIL,DRIVEN GEAR M/T MXA5R(RMT) NOK	8-97080-507-0	01	1	0106-	●
9	04.338 SEAL; OIL,DRIVEN GEAR M/T MZZ6F(RSR) NOK	8-97131-328-1	01	1	0208-	●	●	●	●	●	●	●
28	00.685 BOLT; TRANS CASE TO HSG M/T MXA5R(RMT) ENGINE POWER N-SPEC(7QV) 00.683 M12X35 FLANGE	8-94249-246-0	06	1	9812-9903	●	●	●
28	00.685 BOLT; TRANS CASE TO HSG M/T MSB5S(R45) 00.683 M12X35 FLANGE	8-94249-246-0	06	1	9812-9903	●
28	00.685 BOLT; TRANS CASE TO HSG 4HE1 ENG(RLY) M/T MXA5R(RMT) ENGINE POWER N-SPEC(7QV) 00.683 M12X35 FLANGE	8-94249-246-0	06	1	9904-0105	●	●	●	●
28	00.685 BOLT; TRANS CASE TO HSG 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5R(RNN),M/T MSB5S(R45) 00.683 M12X35 FLANGE	8-94249-246-0	06	1	9904-0105	●
28	00.685 BOLT; TRANS CASE TO HSG 4JH1 ENG(RJX) M/T MXA5R(RMT) 00.683 M12X35 FLANGE	8-94249-246-0	06	1	0106-	●
38	00.679 BRACKET; SPACE RUBBER 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97095-937-1	01	1	9812-0105	●
42	00.685 BOLT; TRANS CASE TO STIFFENER 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.613 M10X40 FLANGE	0-28681-040-0	04	1	9812-0105	●
42	00.685 BOLT; TRANS CASE TO STIFFENER 4JH1 ENG(RJX) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0106-	●

18 35 19 27 35 19 34 1 3 2 10 13 2 9 53 4 1 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/9(HC6) (BQU),(9HY) Z=13	8-94119-854-0	01	1	9812-0105	●
1	04.337 GEAR; DRIVEN,SPD M/T MZZ6F(RSR) FINAL GEAR RATIO 41/8(RU1) (AUH),(AUJ),(AUS),(AVK),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V),(9BP),(95V),(97V) Z=13	8-97253-562-1	01	1	0208-	●
1	04.337 GEAR; DRIVEN,SPD M/T MZZ6F(RSR) FINAL GEAR RATIO 43/9(S2J) (06C),(07C),(09C),(10C),(53C),(54C) Z=13	8-97253-562-1	01	1	0208-	●
1	04.337 GEAR; DRIVEN,SPD M/T MZZ6F(RSR) FINAL GEAR RATIO 41/8(RU1) (9ZM),(9ZP),(9ZQ) Z=12	8-97253-563-1	01	1	0208-	●
1	04.337 GEAR; DRIVEN,SPD M/T MZZ6F(RSR) FINAL GEAR RATIO 43/9(S2J) (AUH),(AUJ),(AUS),(AVK),(00C),(01C), (02C),(03C),(04C),(05C),(08C),(11C), (55C),(83V),(9BP),(95V),(97V) Z=12	8-97253-563-1	01	1	0208-	●
1	04.337 GEAR; DRIVEN,SPD M/T MZZ6F(RSR) FINAL GEAR RATIO 43/9(S2J) (9ZM),(9ZP),(9ZQ) Z=11	8-97253-559-1	01	1	0208-	●
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 39/7(GV1) (AUS),(00C),(01C),(02C),(03C),(04C), (05C),(06C),(06H),(07C),(07H),(08C), (08H),(09C),(09H),(10C),(10H),(11C), (11H),(12H),(13H),(14H),(15H),(16H), (17H),(18H),(19H),(50C),(51C),(52C), (53C),(54C),(55C),(83V),(9BP),(94H), (95H),(95V),(96H),(97H),(97V),(98H), (99H) Z=14	8-94249-062-0	01	1	9812-0105	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/7(R41) TIRE SIZE 8.25-16<7QP> Z=14	8-94249-062-0	01	1	9812-0105	●		●
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT) FINAL GEAR RATIO 43/9(S2J) (BQU),(BQV),(9HY) Z=14	8-94249-062-0	01	1	0106-	●
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/7(R41) (AUS),(00C),(01C),(02C),(03C),(04C), (05C),(06C),(06H),(07C),(07H),(08C), (08H),(09C),(09H),(10C),(10H),(11C), (11H),(12H),(13H),(14H),(15H),(16H), (17H),(18H),(19H),(50C),(51C),(52C), (53C),(54C),(55C),(83V),(9BP),(94H), (95H),(95V),(96H),(97H),(97V),(98H), (99H) Z=15	8-94249-063-0	01	1	9812-0105	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 43/7(R42) (00C),(01C),(02C),(03C),(04C),(05C), (09H),(10H),(11H),(12H),(13H),(14H), (15H),(16H),(17H),(18H),(19H),(52C), (55C),(83V),(9BP),(95V),(97V) Z=15	8-94249-063-0	01	1	9812-0105	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 43/7(R42) TIRE SIZE 8.25-16<7QP> Z=15	8-94249-063-0	01	1	9812-0105	●		●
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT) FINAL GEAR RATIO 41/8(RU1) (BQU),(BQV),(9HY) Z=15	8-94249-063-0	01	1	0106-	●
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/9(HC6) (AYS),(BRT),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C) Z=12	8-94249-943-0	01	1	9812-0105	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 43/10(S7C) (AYS),(BRT) Z=12	8-94249-943-0	01	1	9812-0105	●		●
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 43/7(R42) (AUS),(06C),(06H),(07C),(07H),(08C), (08H),(09C),(10C),(11C),(50C),(51C), (53C),(54C),(94H),(95H),(96H),(97H), (98H),(99H) Z=16	8-94249-064-0	01	1	9812-0105	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/7(R41) (AYS),(BQU),(BRT),(9HY) Z=16	8-94249-064-0	01	1	9812-0105	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 39/7(GV1) (BQU),(9HY) Z=16	8-94249-064-0	01	1	9812-0105	●
1	04.337 GEAR; DRIVEN,SPD M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 43/7(R42) (AYS),(BQU),(BRT),(9HY) Z=17	8-94249-065-0	01	1	9812-0105	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD M/T MBP6P(RNC) FINAL GEAR RATIO 41/8(RU1) (AUH),(AUJ),(AUS),(AVK) Z=14	1-33372-076-5	01	1	9812-0105	●		●		●	●
1	04.337 GEAR; DRIVEN,SPD M/T MBP6P(RNC) FINAL GEAR RATIO 39/7(GV1) (9BP) EXC. TIRE SIZE 8.25-16<7QP> Z=14	1-33372-076-5	01	1	9812-0105	●		●
1	04.337 GEAR; DRIVEN,SPD M/T MBP6P(RNC) FINAL GEAR RATIO 39/7(GV1) TIRE SIZE 8.25-16<7QP> Z=14	1-33372-076-5	01	1	9812-0105	●		●
1	04.337 GEAR; DRIVEN,SPD M/T MBP6P(RNC) FINAL GEAR RATIO 41/8(RU1) (9BP) EXC. TIRE SIZE 8.25-16<7QP> Z=19	1-33372-122-4	01	1	9812-0105	●		●		●	●
1	04.337 GEAR; DRIVEN,SPD M/T MBP6P(RNC) FINAL GEAR RATIO 41/8(RU1) TIRE SIZE 8.25-16<7QP> Z=19	1-33372-122-4	01	1	9812-0105	●		●		●	●
1	04.337 GEAR; DRIVEN,SPD M/T MBP6P(RNC) FINAL GEAR RATIO 43/9(S2J) (AUH),(AUJ),(AUS),(AVK) Z=19	1-33372-122-4	01	1	9812-0105	●		●		●	●
1	04.337 GEAR; DRIVEN,SPD M/T MBP6P(RNC) FINAL GEAR RATIO 43/9(S2J) (9BP) EXC. PTO TRANSMISSION SIDE(V66) Z=16	1-33372-119-4	01	1	9812-9812	●		●		●	●
1	04.337 GEAR; DRIVEN,SPD M/T MBP6P(RNC) FINAL GEAR RATIO 43/10(S7C) (9BP) PTO TRANSMISSION SIDE(V66) Z=16	1-33372-119-4	01	1	9812-9812	●		●		●	●
1	04.337 GEAR; DRIVEN,SPD M/T MBP6P(RNC) FINAL GEAR RATIO 43/10(S7C) (9BP) EXC. ENGINE POWER N-SPEC(7QV) Z=16	1-33372-119-4	01	1	9901-0105	●		●		●	●
1	04.337 GEAR; DRIVEN,SPD 4HE1 ENG(RLY) M/T MBP6R(RNW) FINAL GEAR RATIO 41/10(GT5) (AUH),(AUJ),(AUS),(AVK) Z=16	1-33372-119-4	01	1	0106-	●	●	●	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD M/T MBP6P(RNC) FINAL GEAR RATIO 43/9(S2J) (9BP) Z=18	1-33372-121-4	01	1	9812-0105	●		●		●	●
1	04.337 GEAR; DRIVEN,SPD M/T MBP6P(RNC) FINAL GEAR RATIO 43/9(S2J) TIRE SIZE 8.25-16<7QP> Z=17	1-33372-120-4	01	1	9812-0105	●		●		●	●
1	04.337 GEAR; DRIVEN,SPD M/T MBP6Q(RNM) FINAL GEAR RATIO 43/10(S7C) Z=17	1-33372-120-4	01	1	9812-0105	●		●		●	●
1	04.337 GEAR; DRIVEN,SPD 4HE1 ENG(RLY) M/T MBP6R(RNW) FINAL GEAR RATIO 41/10(GT5) (AYS),(BRU) Z=17	1-33372-120-4	01	1	0106-	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD M/T MZZ6F(RSR) FINAL GEAR RATIO 41/10(GT5) (AUH),(AUJ),(AUS),(AVK),(CQB),(CQC) Z=16	8-97329-097-1	01	1	0208-	●	●	●	●	●	●	●
1	04.337 GEAR; DRIVEN,SPD M/T MZZ6F(RSR) FINAL GEAR RATIO 41/10(GT5) (AYS),(BRT),(BRU) Z=17	8-97327-119-1	01	1	0208-	●	●	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/9(HC6) (BQU),(9HY) 04.338 Z=13 MARK "3"	8-97080-359-1	01	1	9812-0105	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MZZ6F(RSR) FINAL GEAR RATIO 41/8(RU1) (AUH),(AUJ),(AUS),(AVK),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V),(9BP),(9ZM),(9ZP),(9ZQ), (95V),(97V) MARK "12,13,14,15"	8-97253-125-0	01	1	0208-	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MZZ6F(RSR) FINAL GEAR RATIO 43/9(S2J) (AUH),(AUJ),(AUS),(AVK),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V),(9BP),(95V),(97V) MARK "12,13,14,15"	8-97253-125-0	01	1	0208-	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 39/7(GV1) (AUS),(00C),(01C),(02C),(03C),(04C), (05C),(06C),(06H),(07C),(07H),(08C), (08H),(09C),(09H),(10C),(10H),(11C), (11H),(12H),(13H),(14H),(15H),(16H), (17H),(18H),(19H),(50C),(51C),(52C), (53C),(54C),(55C),(83V),(9BP),(94H), (95H),(95V),(96H),(97H),(97V),(98H), (99H) 04.338 Z=14 MARK "4"	8-97080-360-1	01	1	9812-0105	●	●	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/7(R41) TIRE SIZE 8.25-16<7QP> 04.338 Z=14 MARK "4"	8-97080-360-1	01	1	9812-0105	●		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT) FINAL GEAR RATIO 43/9(S2J) (BQU),(BQV),(9HY) 04.338 Z=14 MARK "4"	8-97080-360-1	01	1	0106-	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/7(R41) (AUS),(00C),(01C),(02C),(03C),(04C), (05C),(06C),(06H),(07C),(07H),(08C), (08H),(09C),(09H),(10C),(10H),(11C), (11H),(12H),(13H),(14H),(15H),(16H), (17H),(18H),(19H),(50C),(51C),(52C), (53C),(54C),(55C),(83V),(9BP),(94H), (95H),(95V),(96H),(97H),(97V),(98H), (99H) 04.338 Z=15 MARK "5"	8-97080-361-1	01	1	9812-0105	●	●	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 43/7(R42) (00C),(01C),(02C),(03C),(04C),(05C), (09H),(10H),(11H),(12H),(13H),(14H), (15H),(16H),(17H),(18H),(19H),(52C), (55C),(83V),(9BP),(95V),(97V) 04.338 Z=15 MARK "5"	8-97080-361-1	01	1	9812-0105	●	●	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 43/7(R42) TIRE SIZE 8.25-16<7QP> 04.338 Z=15 MARK "5"	8-97080-361-1	01	1	9812-0105	●		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT) FINAL GEAR RATIO 41/8(RU1) (BQU),(BQV),(9HY) 04.338 Z=15 MARK "5"	8-97080-361-1	01	1	0106-	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/9(HC6) (AYS),(BRT),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C) 04.338 Z=12 MARK "2"	8-97080-358-1	01	1	9812-0105	●	●	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 43/10(S7C) (AYS),(BRT) 04.338 Z=12 MARK "2"	8-97080-358-1	01	1	9812-0105	●		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 43/7(R42) (AUS),(06C),(06H),(07C),(07H),(08C), (08H),(09C),(10C),(11C),(50C),(51C), (53C),(54C),(94H),(95H),(96H),(97H), (98H),(99H) 04.338 Z=16 MARK "6"	8-97080-362-1	01	1	9812-0105	●	●	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/7(R41) (AYS),(BQU),(BRT),(9HY) 04.338 Z=16 MARK "6"	8-97080-362-1	01	1	9812-0105	●	●	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 39/7(GV1) (BQU),(9HY) 04.338 Z=16 MARK "6"	8-97080-362-1	01	1	9812-0105	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 43/7(R42) (AYS),(BQU),(BRT),(9HY) 04.338 Z=17 MARK "7"	8-97080-363-1	01	1	9812-0105	●	●	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MBP6P(RNC),M/T MBP6Q(RNM) 04.338	1-33373-039-1	01	1	9812-0105	●		●		●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MBP6R(RNW) 04.338	1-33373-039-1	01	1	0106-	●	●	●	●	●	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MZZ6F(RSR) FINAL GEAR RATIO 41/10(GT5) (AUH),(AUJ),(AUS),(AVK),(AYS),(BRT), (BRU),(CQB),(CQC) MARK "10,11,16,17"	8-97253-124-0	01	1	0208-	●	●	●	●	●	●	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MZZ6F(RSR) FINAL GEAR RATIO 43/9(S2J) (9ZM),(9ZP),(9ZQ) MARK "10,11,16,17"	8-97253-124-0	01	1	0208-	●
3	04.338 GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45)	9-09920-852-0	01	1	9812-0105	●	●	●	●
3	04.338 GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). M/T MXA5R(RMT)	9-09920-852-0	01	1	0106-	●
3	04.338 GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). M/T MBP6P(RNC),M/T MBP6Q(RNM)	1-09623-370-0	01	1	9812-0105	●		●		●	●
3	04.338 GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). M/T MBP6R(RNW)	1-09623-370-0	01	1	0106-	●	●	●	●	●	●	●
4	04.338 BOLT; RET,DRIVEN GEAR M/T MZZ6F(RSR) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0208-	●	●	●	●	●	●	●
9	04.338 SEAL; OIL,DRIVEN GEAR M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) NOK	8-97080-507-0	01	1	9812-0105	●	●	●	●
9	04.338 SEAL; OIL,DRIVEN GEAR M/T MXA5R(RMT) NOK	8-97080-507-0	01	1	0106-	●
9	04.338 SEAL; OIL,DRIVEN GEAR M/T MZZ6F(RSR) NOK	8-97131-328-1	01	1	0208-	●	●	●	●	●	●	●
10	04.338 SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). M/T MBP6P(RNC),M/T MBP6Q(RNM) NOK	1-09625-510-0	01	1	9812-0105	●		●		●	●
10	04.338 SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). M/T MBP6R(RNW) NOK	1-09625-510-0	01	1	0106-	●	●	●	●	●	●	●
13	04.338 SCREW; BUSHING,DRIVEN GEAR M/T MBP6P(RNC),M/T MBP6Q(RNM) M6X12.5 FLANGE	1-09044-063-0	01	1	9812-0105	●		●		●	●
13	04.338 SCREW; BUSHING,DRIVEN GEAR M/T MBP6R(RNW) M6X12.5 FLANGE	1-09044-063-0	01	1	0106-	●	●	●	●	●	●	●
18	00.685 BOLT; CLU HSG TO TRANS M/T MBP6P(RNC),M/T MBP6Q(RNM) M14X40 W/LK&PL WASHER	0-50151-440-0	05	1	9812-0105	●		●		●	●
18	00.685 BOLT; CLU HSG TO TRANS M/T MBP6R(RNW) M14X40 W/LK&PL WASHER	0-50151-440-0	05	1	0106-	●	●	●	●	●	●	●
19	04.104 WASHER; PL,CLU HSG TO TRANS M/T MBP6P(RNC),M/T MBP6Q(RNM) 02.575 ID=15	9-09160-514-0	01	1	9812-0105	●		●		●	●
19	04.104 WASHER; PL,CLU HSG TO TRANS M/T MBP6R(RNW) 02.575 ID=15	9-09160-514-0	01	1	0106-	●	●	●	●	●	●	●
27	00.685 NUT; CLU HSG TO TRANS M/T MBP6P(RNC),M/T MBP6Q(RNM) 07.529 M14	9-99110-514-0	01	1	9812-0105	●		●		●	●
27	00.685 NUT; CLU HSG TO TRANS M/T MBP6R(RNW) 07.529 M14	9-99110-514-0	01	1	0106-	●	●	●	●	●	●	●
34	00.683 STUD; CLU HSG M/T MBP6P(RNC),M/T MBP6Q(RNM) M14X39 L=57	1-09302-145-1	01	1	9812-0105	●		●		●	●
34	00.683 STUD; CLU HSG M/T MBP6R(RNW) M14X39 L=57	1-09302-145-1	01	1	0106-	●	●	●	●	●	●	●
35	00.685 WASHER; LK,CLU HSG TO TRANS M/T MBP6P(RNC),M/T MBP6Q(RNM) 00.796 ID=14.2	9-09150-514-0	01	1	9812-0105	●		●		●	●
35	00.685 WASHER; LK,CLU HSG TO TRANS M/T MBP6R(RNW) 00.796 ID=14.2	9-09150-514-0	01	1	0106-	●	●	●	●	●	●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR M/T MZZ6F(RSR)	8-97252-679-2	01	1	0208-	●	●	●	●	●	●	●
98	04.338 SEAL; OIL,BUSH M/T MZZ6F(RSR) 04.439	9-09561-324-0	01	1	0208-	●	●	●	●	●	●	●
