2-05 — CLUTCH PIPING (#18885) — 212 parça

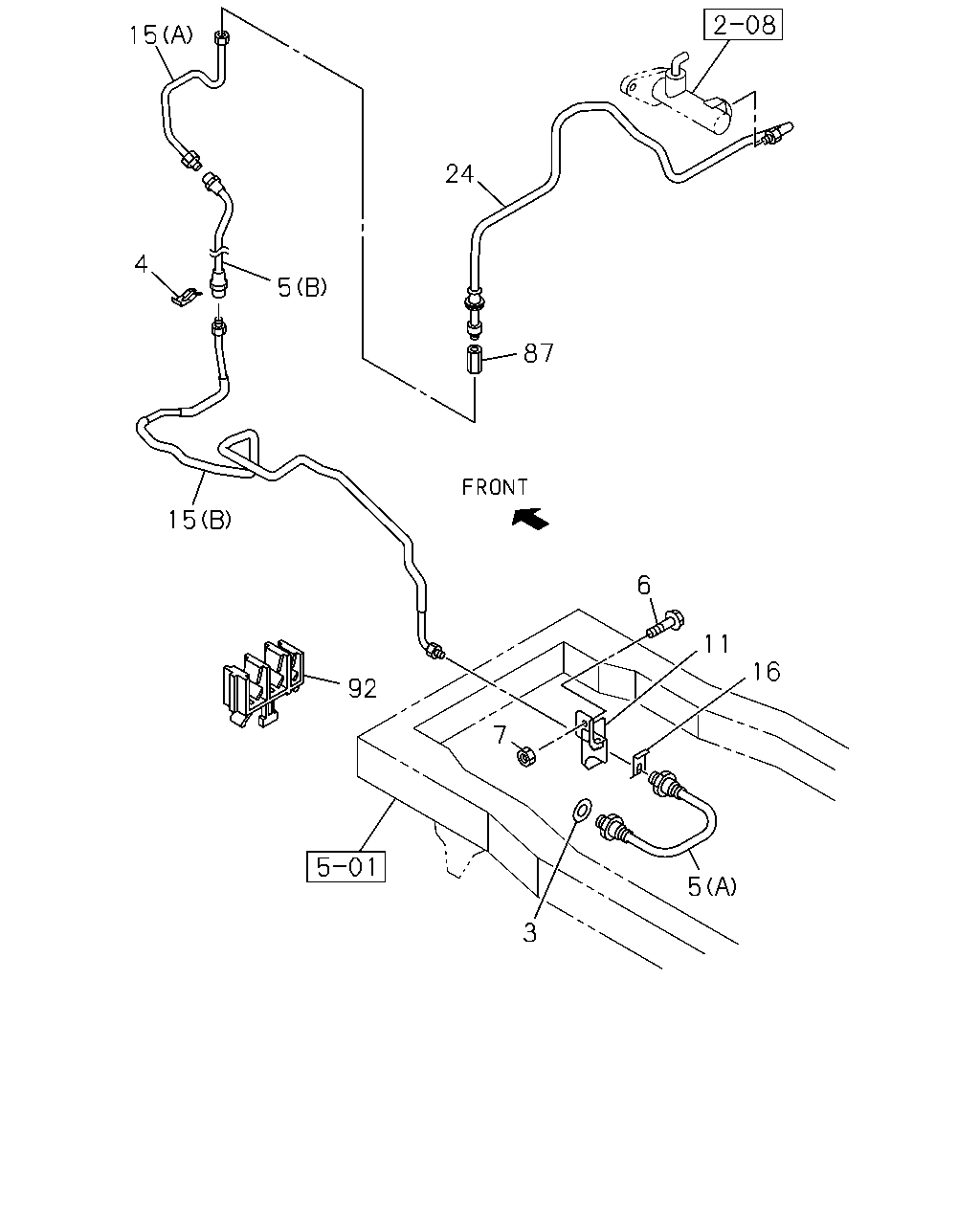

çizim 12100
15 24 4 5 87 15 6 11 16 92 7 5 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 9812-0105 ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4JH1 ENG(RJX) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0106- ●
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0106- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 9812-0105 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 0106- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97070-114-1 01 1 9812-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 9812-0105 ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 0106- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97047-058-1 01 1 9904-0105 ●
5 00.785 HOSE; FLEX,CLU PIPE
(C) 		8-97304-980-1 01 1 0106- ●
5 00.785 HOSE; FLEX,CLU PIPE
ENGINE POWER N-SPEC(7QV) (A) 		8-97148-640-0 01 1 9812-9901 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A) 		8-97148-640-0 01 1 9902-9903 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 9904-0105 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 9904-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0106-0207 ●
5 00.785 HOSE; FLEX,CLU PIPE
CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0208- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 9812-0105 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 0106- ●
5 00.785 HOSE; FLEX,CLU PIPE
CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-94377-793-1 01 1 9812-9903 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV), CLUTCHSYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 9904-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
CHARGE AIR COOLER<6PL> EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 0106- ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9812-0105 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0207 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-0105 ● ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97091-929-0 01 1 9812-0105 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0106-0207 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0208- ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		8-97126-875-0 01 1 9812-0011 ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		8-94366-288-0 01 1 0012-0101 ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		8-97126-875-0 01 1 0102-0105 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97091-940-2 01 1 9812-9905 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97091-940-2 01 1 9906-9910 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97239-833-0 01 1 9911-0105 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97259-587-1 01 1 0106- ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97177-305-0 01 1 9812-0105 ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97177-305-0 01 1 0106- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-312-5 01 1 9812-0105 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 9812-0105 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0106- ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 02 1 9812-9905 ●
16 00.785 CLIP; FLEX HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94167-006-0 02 1 9906-0105 ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 9812-0105 ● ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 0106- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97149-835-0 01 1 9812-0105 ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-97149-835-0 01 1 0106- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97177-034-0 01 1 9812-0105 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97177-034-0 01 1 0106- ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 9812-0105 ● ● ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 0106- ● ● ●
92 00.785 CLIP; OIL PIPE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9812-0105 ● ● ●
92 00.785 CLIP; OIL PIPE
FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 02 1 0106- ● ●
çizim 46838
15 24 4 5 87 15 74 19 20 18 177 3 3 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 9812-0105 ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4JH1 ENG(RJX) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0106- ●
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0106- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 9812-0105 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 0106- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97070-114-1 01 1 9812-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 9812-0105 ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 0106- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97047-058-1 01 1 9904-0105 ●
5 00.785 HOSE; FLEX,CLU PIPE
(C) 		8-97304-980-1 01 1 0106- ●
5 00.785 HOSE; FLEX,CLU PIPE
ENGINE POWER N-SPEC(7QV) (A) 		8-97148-640-0 01 1 9812-9901 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A) 		8-97148-640-0 01 1 9902-9903 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 9904-0105 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 9904-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0106-0207 ●
5 00.785 HOSE; FLEX,CLU PIPE
CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0208- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 9812-0105 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 0106- ●
5 00.785 HOSE; FLEX,CLU PIPE
CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-94377-793-1 01 1 9812-9903 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV), CLUTCHSYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 9904-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
CHARGE AIR COOLER<6PL> EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 0106- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97091-940-2 01 1 9812-9905 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97091-940-2 01 1 9906-9910 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97239-833-0 01 1 9911-0105 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97259-587-1 01 1 0106- ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97177-305-0 01 1 9812-0105 ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97177-305-0 01 1 0106- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-312-5 01 1 9812-0105 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 9812-0105 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0106- ● ●
18 00.830 DAMPER ASM; CLU OIL
4JH1 ENG(RJX) 		8-97304-972-0 01 1 0106- ●
19 00.837 BOLT; CLU DAMPER
4JH1 ENG(RJX) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0106- ●
20 00.837 NUT; CLU OIL DAMPER
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97149-835-0 01 1 9812-0105 ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-97149-835-0 01 1 0106- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97177-034-0 01 1 9812-0105 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97177-034-0 01 1 0106- ● ●
74 00.785 CLIP; CLU OIL PIPE
04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9812-9905 ●
74 00.785 CLIP; CLU OIL PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9906-0105 ● ●
74 00.785 CLIP; CLU OIL PIPE
04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 0106- ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 9812-0105 ● ● ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 0106- ● ● ●
177 00.777 BOLT; EYE,FLEX HOSE TO M/CYL
4JH1 ENG(RJX) 04.665 M10X22 		5-09675-017-0 01 1 0106- ●

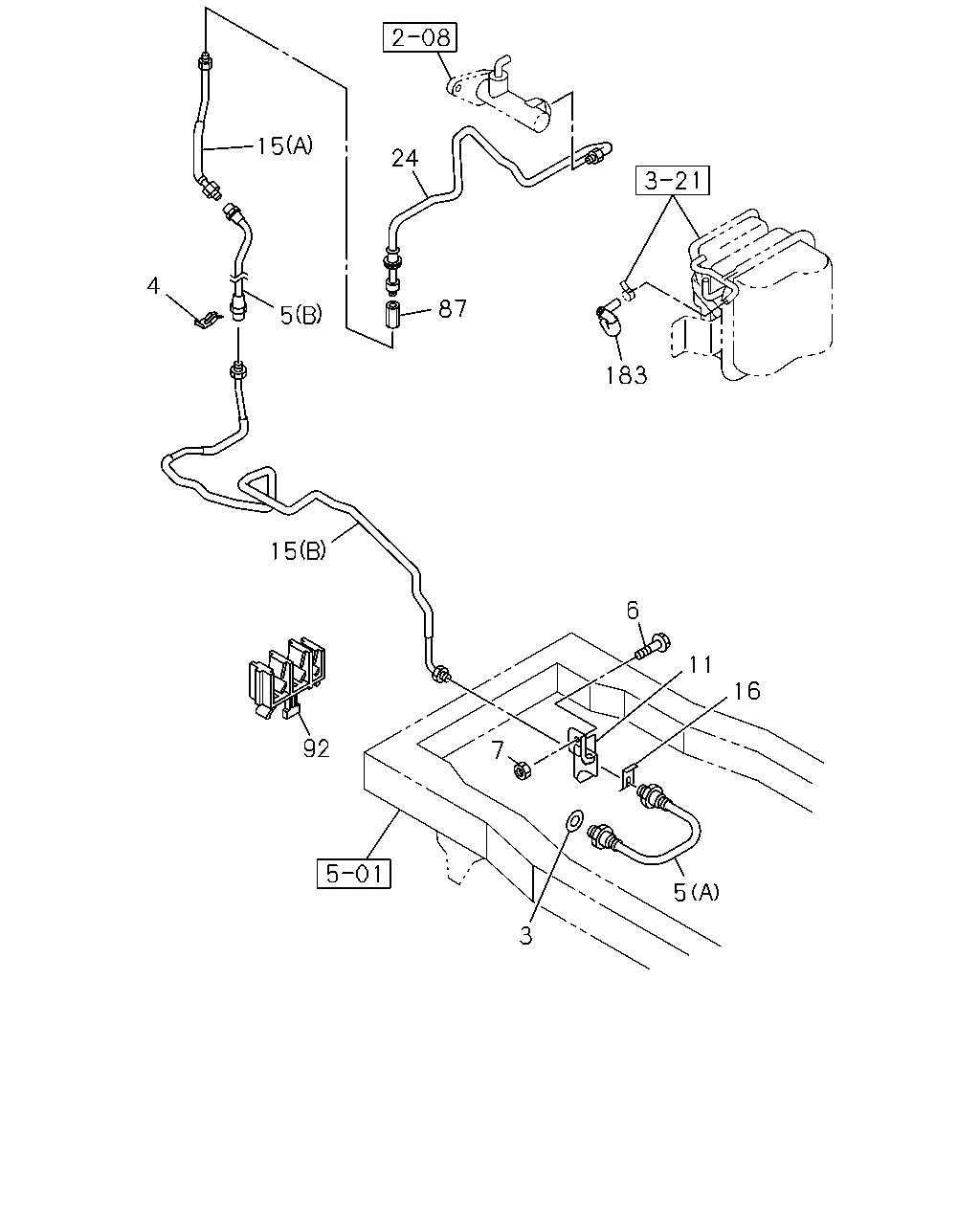

çizim 48273
15 24 4 87 5 183 15 6 11 16 7 92 5 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 9812-0105 ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4JH1 ENG(RJX) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0106- ●
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0106- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 9812-0105 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 0106- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97070-114-1 01 1 9812-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 9812-0105 ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 0106- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97047-058-1 01 1 9904-0105 ●
5 00.785 HOSE; FLEX,CLU PIPE
(C) 		8-97304-980-1 01 1 0106- ●
5 00.785 HOSE; FLEX,CLU PIPE
ENGINE POWER N-SPEC(7QV) (A) 		8-97148-640-0 01 1 9812-9901 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A) 		8-97148-640-0 01 1 9902-9903 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 9904-0105 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 9904-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0106-0207 ●
5 00.785 HOSE; FLEX,CLU PIPE
CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0208- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 9812-0105 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 0106- ●
5 00.785 HOSE; FLEX,CLU PIPE
CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-94377-793-1 01 1 9812-9903 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV), CLUTCHSYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 9904-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
CHARGE AIR COOLER<6PL> EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 0106- ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9812-0105 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0207 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-0105 ● ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97091-929-0 01 1 9812-0105 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0106-0207 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0208- ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		8-97126-875-0 01 1 9812-0011 ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		8-94366-288-0 01 1 0012-0101 ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		8-97126-875-0 01 1 0102-0105 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97091-940-2 01 1 9812-9905 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97091-940-2 01 1 9906-9910 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97239-833-0 01 1 9911-0105 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97259-587-1 01 1 0106- ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97177-305-0 01 1 9812-0105 ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97177-305-0 01 1 0106- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-312-5 01 1 9812-0105 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 9812-0105 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0106- ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 02 1 9812-9905 ●
16 00.785 CLIP; FLEX HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94167-006-0 02 1 9906-0105 ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 9812-0105 ● ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 0106- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97149-835-0 01 1 9812-0105 ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-97149-835-0 01 1 0106- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97177-034-0 01 1 9812-0105 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97177-034-0 01 1 0106- ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 9812-0105 ● ● ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 0106- ● ● ●
92 00.785 CLIP; OIL PIPE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9812-0105 ● ● ●
92 00.785 CLIP; OIL PIPE
FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 02 1 0106- ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 		8-97129-874-0 01 1 9812-0105 ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 		8-97129-874-0 01 1 0106- ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97129-873-0 01 1 9812-0105 ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97129-873-0 01 1 0106- ●

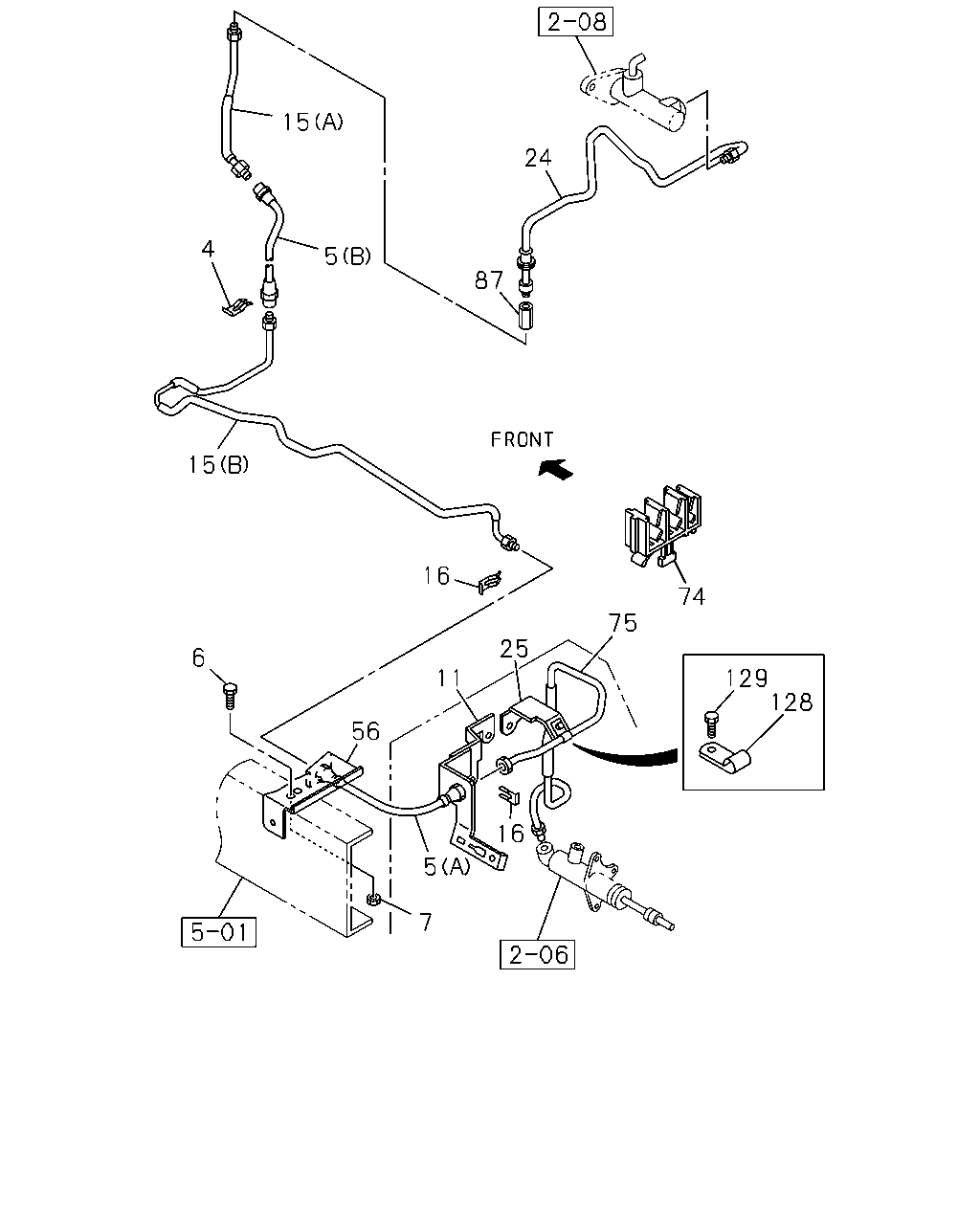

çizim 51332
15 24 4 5 87 15 16 74 75 25 6 129 128 11 56 16 5 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 9812-0105 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 0106- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97070-114-1 01 1 9812-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 9812-0105 ● ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 0106- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97047-058-1 01 1 9904-0105 ●
5 00.785 HOSE; FLEX,CLU PIPE
(C) 		8-97304-980-1 01 1 0106- ●
5 00.785 HOSE; FLEX,CLU PIPE
ENGINE POWER N-SPEC(7QV) (A) 		8-97148-640-0 01 1 9812-9901 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A) 		8-97148-640-0 01 1 9902-9903 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 9904-0105 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 9904-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0106-0207 ●
5 00.785 HOSE; FLEX,CLU PIPE
CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0208- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 9812-0105 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 0106- ●
5 00.785 HOSE; FLEX,CLU PIPE
CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-94377-793-1 01 1 9812-9903 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV), CLUTCHSYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 9904-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
CHARGE AIR COOLER<6PL> EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 0106- ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9812-0105 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0207 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-0105 ● ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
11 00.785 BRACKET; FLEX HOSE,CLU
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97091-929-0 01 1 9812-0105 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0106-0207 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0208- ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		8-97126-875-0 01 1 9812-0011 ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		8-94366-288-0 01 1 0012-0101 ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		8-97126-875-0 01 1 0102-0105 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97091-940-2 01 1 9812-9905 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97091-940-2 01 1 9906-9910 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97239-833-0 01 1 9911-0105 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97259-587-1 01 1 0106- ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97177-305-0 01 1 9812-0105 ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97177-305-0 01 1 0106- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-312-5 01 1 9812-0105 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 9812-0105 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0106- ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 02 1 9812-9905 ●
16 00.785 CLIP; FLEX HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94167-006-0 02 1 9906-0105 ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 9812-0105 ● ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 0106- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97149-835-0 01 1 9812-0105 ● ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-97149-835-0 01 1 0106- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97177-034-0 01 1 9812-0105 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97177-034-0 01 1 0106- ● ●
25 00.785 BRACKET; OIL PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97013-211-1 01 1 9812-0105 ● ●
56 00.785 BRACKET; FLEX HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97090-299-0 01 1 9812-0105 ● ●
74 00.785 CLIP; CLU OIL PIPE
04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9812-9905 ●
74 00.785 CLIP; CLU OIL PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9906-0105 ● ●
74 00.785 CLIP; CLU OIL PIPE
04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 0106- ●
75 00.785 PIPE ASM; CLU,HSG
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97063-756-2 01 1 9812-0105 ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 9812-0105 ● ● ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 0106- ● ● ●
128 00.785 CLIP; AIR PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.145 ID=7 L=16 		9-09524-622-0 02 1 9812-0105 ● ●
129 00.785 BOLT; PIPE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9812-0105 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
