2-05 — CLUTCH PIPING (#1888) — 45 parça

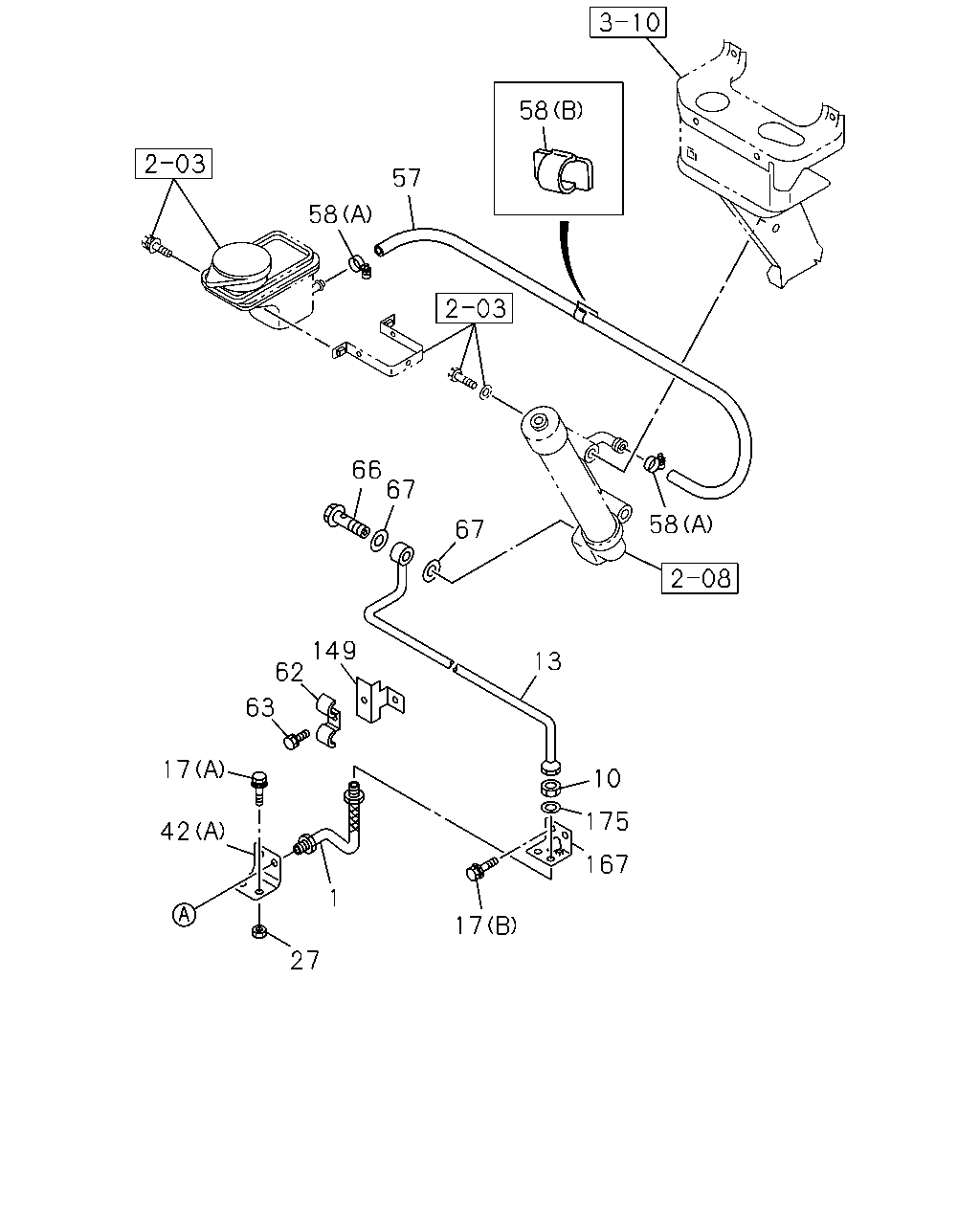

çizim 94079
58 57 58 66 67 58 67 149 62 13 63 17 10 175 42 167 1 17 27
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,CLU CONT
L=400 		1-09364-263-0 01 1 9207-
10 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9207-
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL
L=812 		1-47418-493-4 01 1 9207-9212
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL
L=802 		1-47425-600-0 01 1 9301-
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9207-
17 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9207-
27 NUT; BRKT
M8 		9-09110-408-0 02 1 9207-
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47475-444-4 01 1 9207-9306
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-781-0 01 1 9307-9307
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-371-0 01 1 9308-
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47475-709-0 01 1 9207-
57 HOSE; CLU M/CYL TO OIL TANK
L=630 SERVICED BY L=1800 		1-09360-320-0 01 1 9207-
58 CLIP; RUBBER HOSE TO M/CYL
(A) ID=16 		1-09707-171-0 02 1 9207-
58 CLIP; RUBBER HOSE TO M/CYL
(B) ID=15 		1-09987-115-0 01 1 9207-
62 CLIP; CLU PIPE
ID=5 & 8 		5-09700-165-0 01 1 9207-
63 BOLT; CLIP,PIPE
M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9207-
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 9207-
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=20.0 		9-09571-414-0 02 1 9207-
149 BRACKET; CLIP,OIL PIPE 1-47465-169-1 01 1 9207-
167 BRACKET; UNION 1-79738-107-0 01 1 9207-
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9207-

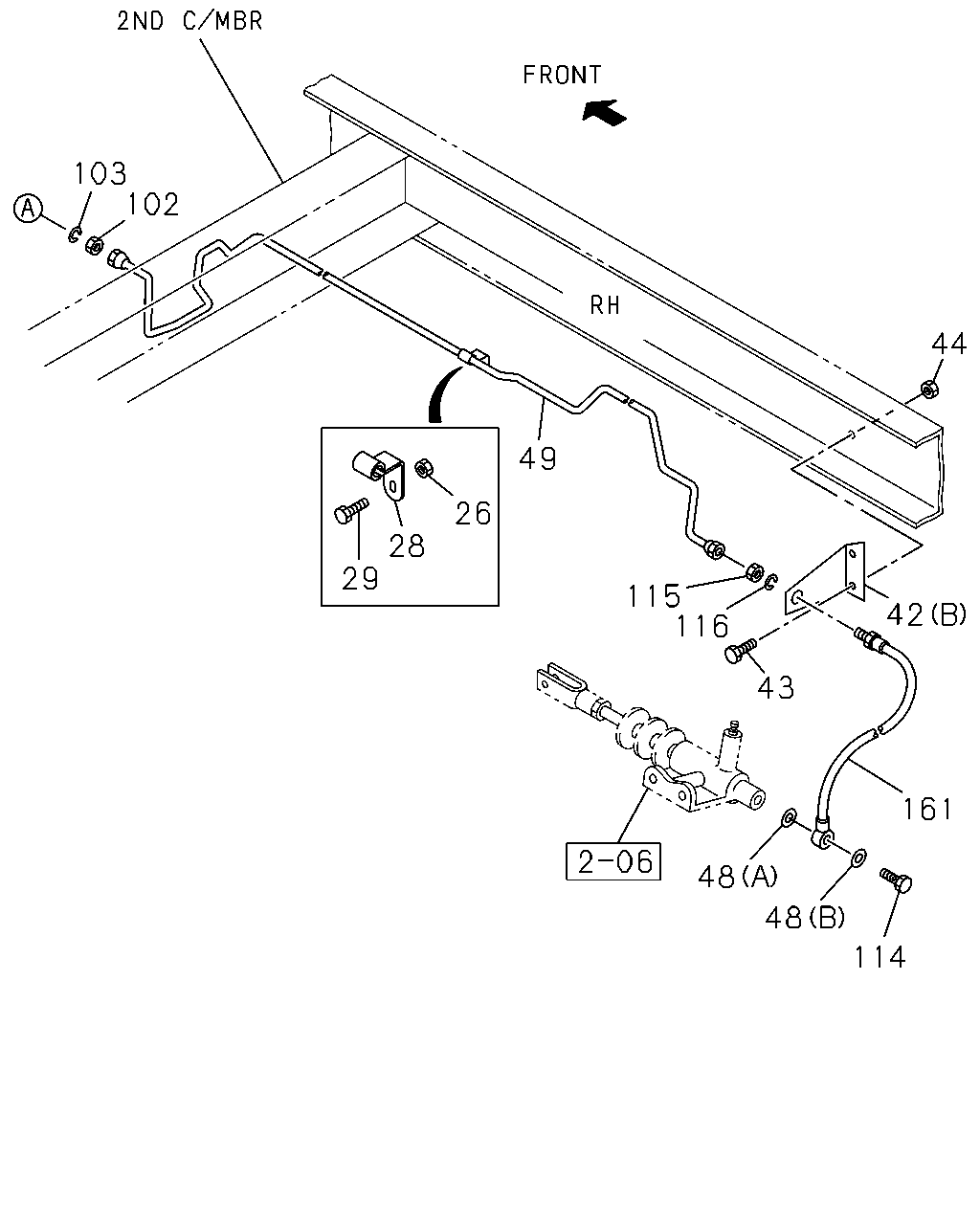

çizim 94736
103 102 44 49 26 28 29 115 116 42 43 161 48 48 114
BalonParca AdiParca NoAdetTipApplied Date
26 NUT; CLIP,OIL PIPE
FSS ALL(FSS***) M8 		9-09110-408-0 01 1 9207-
28 CLIP; OIL PIPE
FSS ALL(FSS***) ID=8 H=20 L=20 		1-09700-604-0 01 1 9207-
29 BOLT; CLIP,OIL PIPE
FSS ALL(FSS***) M8X25 FLANGE 		0-28080-825-0 01 1 9207-
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47475-444-4 01 1 9207-9306
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-781-0 01 1 9307-9307
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-371-0 01 1 9308-
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47475-709-0 01 1 9207-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X25 FLANGE 		0-28080-825-0 02 1 9207-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 		9-09110-408-0 02 1 9207-
48 GASKET; FLEX HOSE,CLU CONT
(B) ID=10.5 		1-09630-074-1 01 1 9207-
48 GASKET; FLEX HOSE,CLU CONT
(A) ID=14.2 		9-09851-004-0 01 1 9207-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
FSS ALL(FSS***) L=2383 SERVICED BY L=2700 		1-47434-415-0 01 1 9207-9212
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
FSS ALL(FSS***) L=2383 SERVICED BY L=2700 		1-47426-396-0 01 1 9301-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
FTS ALL(FTS***) L=2533 SERVICED BY L=2700 		1-47434-415-0 01 1 9207-9212
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
FTS ALL(FTS***) L=2533 SERVICED BY L=2700 		1-47426-396-0 01 1 9301-9310
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
FTS ALL(FTS***) L=2529 SERVICED BY L=2700 		1-47426-396-0 01 1 9311-
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99110-414-0 01 1 9207-
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9207-9312
114 BOLT; EYE,FLEX HOSE 1-09675-158-0 01 1 9207-
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9207-
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9207-9312
161 HOSE; FLEX,SLAVE CYL
FTS ALL(FTS***) TRANSMISSION FRONT PTO<RC2> L=450 		1-09364-595-0 01 1 9207-
161 HOSE; FLEX,SLAVE CYL
FSS ALL(FSS***) L=350 		1-09364-331-0 01 1 9207-
161 HOSE; FLEX,SLAVE CYL
FTS ALL(FTS***) EXC. TRANSMISSION FRONT PTO<RC2> L=280 		1-09364-581-0 01 1 9207-
