1-40 — FUEL TANK (#18877) — 73 parça

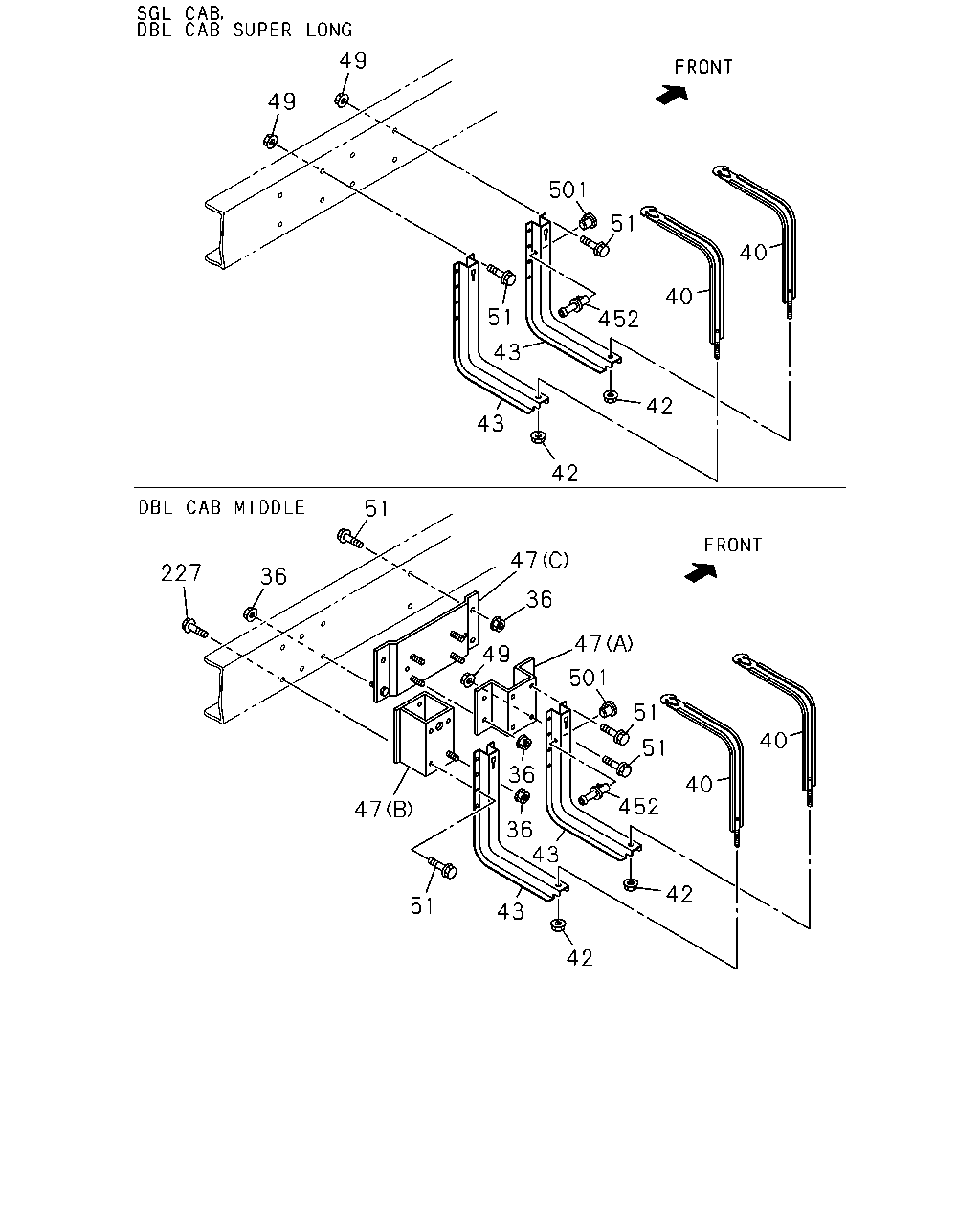

49 49 501 51 40 40 51 452 43 42 43 42 51 47 227 36 36 47 49 501 51 40 51 36 40 452 47 36 43 42 51 43 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
36	03.015 NUT; SPACER,FUEL TANK CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	09	1	9904-0105	●
36	03.015 NUT; SPACER,FUEL TANK 04.785 M10 FLANGE	0-91150-110-0	09	1	0106-	●
40	03.022 BELT; SUPPORT,FUEL TANK	8-94438-385-4	02	1	9812-	●	●	●	●	●	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	9812-	●	●	●	●	●	●	●
43	03.015 BRACKET; FUEL TANK	8-97035-517-0	02	1	9812-	●	●	●	●	●	●	●
47	03.023 SPACER; FUEL TANK CHARGE AIR COOLER<6PL> (B)	8-97043-960-0	01	1	9904-0105	●
47	03.023 SPACER; FUEL TANK (B)	8-97043-960-0	01	1	0106-	●
47	03.023 SPACER; FUEL TANK CHARGE AIR COOLER<6PL> (C)	8-97219-252-2	01	1	9904-0105	●
47	03.023 SPACER; FUEL TANK (C)	8-97219-252-2	01	1	0106-	●
47	03.023 SPACER; FUEL TANK CHARGE AIR COOLER<6PL> (A)	8-97223-013-0	01	1	9904-0105	●
47	03.023 SPACER; FUEL TANK (A)	8-97223-013-0	01	1	0106-	●
49	03.023 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	08	1	9812-		●	●	●	●	●
49	03.023 NUT; BRKT CHARGE AIR COOLER<6PL> 08.917 M10 FLANGE	0-91150-210-0	02	1	9904-0105	●
49	03.023 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	02	1	0106-	●
51	03.023 BOLT; BRKT TO FRAME 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	06	1	9812-9905			●
51	03.023 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	06	1	9906-0105			●
51	03.023 BOLT; BRKT TO FRAME 4JH1 ENG(RJX) M10X30 FLANGE	0-28691-030-0	06	1	0110-			●
51	03.023 BOLT; BRKT TO FRAME EXC. CHARGE AIR COOLER<6PL>,EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9812-9901			●	●	●	●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	9812-9901			●	●	●	●
51	03.023 BOLT; BRKT TO FRAME EXC. CHARGE AIR COOLER<6PL>,EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9902-9902			●	●	●	●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	9902-9902			●	●	●	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	9902-9902		●
51	03.023 BOLT; BRKT TO FRAME EXC. CHARGE AIR COOLER<6PL>,EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9902-9903			●	●	●	●
51	03.023 BOLT; BRKT TO FRAME CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	9902-9903		●
51	03.023 BOLT; BRKT TO FRAME EXC. CHARGE AIR COOLER<6PL>,EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9904-9907	●		●	●	●	●
51	03.023 BOLT; BRKT TO FRAME CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	9904-9907		●
51	03.023 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9908-0105			●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	9908-0105			●
51	03.023 BOLT; BRKT TO FRAME EXC. CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	9908-0105	●			●	●	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	9908-0105		●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	0106-			●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	0106-		●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	07	1	9902-9903			●	●	●	●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	07	1	9904-0105	●		●	●	●	●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	07	1	0106-		●	●	●	●	●	●
227	03.015 BOLT; SPACER,FUEL TANK CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9904-0105	●
227	03.015 BOLT; SPACER,FUEL TANK 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0106-	●
452	03.028 BREATHER; FUEL TANK UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97062-954-1	01	1	9812-9901			●
452	03.028 BREATHER; FUEL TANK UNITED KINGDOM EQUIPMENT(6AA)	8-97062-954-1	01	1	9812-9901		●		●	●	●
452	03.028 BREATHER; FUEL TANK	8-97062-954-1	01	1	9902-	●	●	●	●	●	●	●
501	03.028 GROMMET; BRKT	8-97096-990-0	01	1	9812-0105	●	●	●	●	●	●
501	03.028 GROMMET; BRKT UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-97096-990-0	01	1	9812-0105	●	●	●	●	●	●
501	03.028 GROMMET; BRKT	8-97096-990-0	01	1	0106-	●	●	●	●	●	●	●

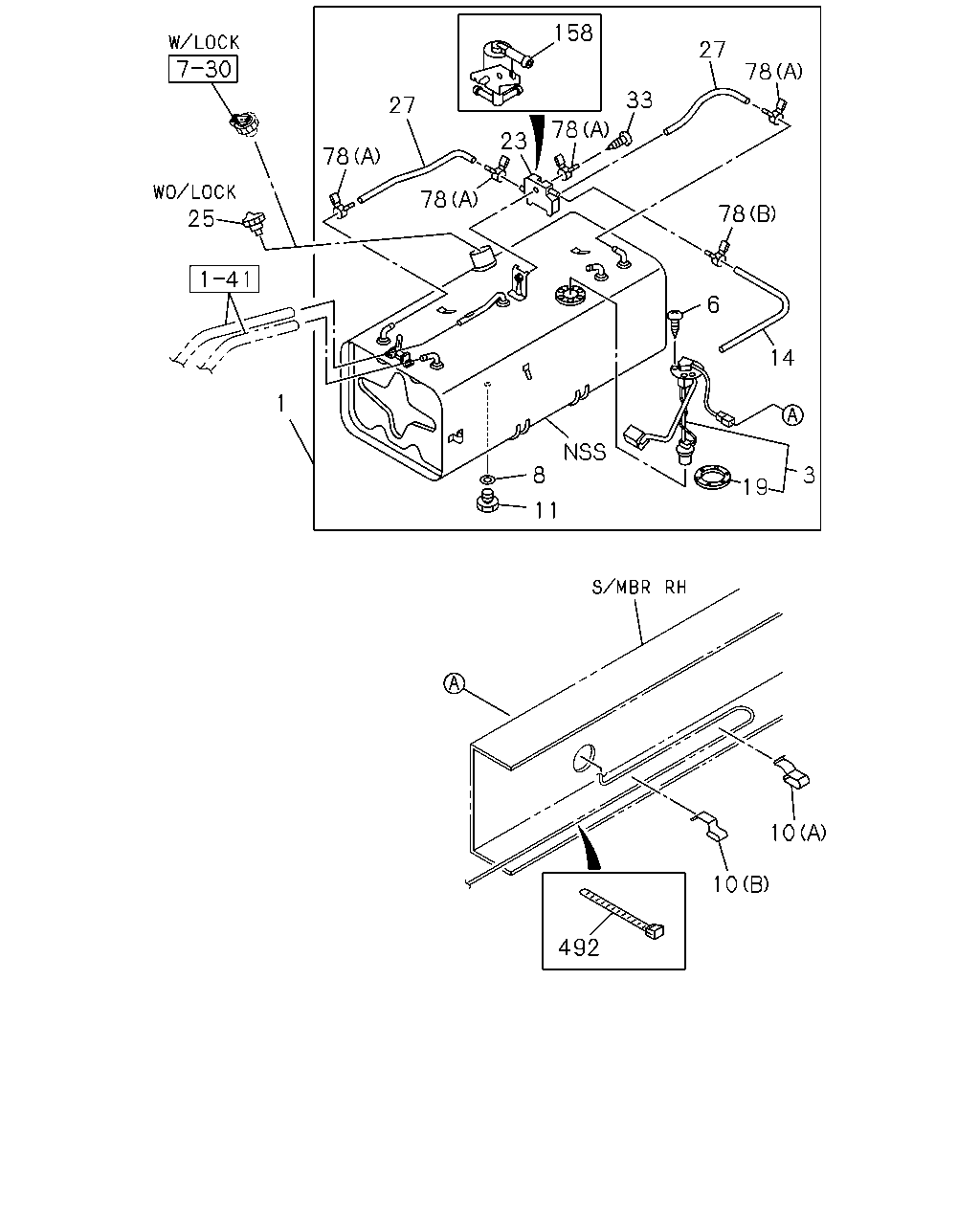

158 27 78 33 27 78 23 78 25 78 78 6 14 1 8 3 19 11 10 10 492

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.001 TANK; FUEL UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 1000X340X327 100L	8-97033-955-2	01	1	9812-0105	●	●	●	●	●	●
1	03.001 TANK; FUEL 4HE1 ENG(RLY) 1000X340X327 100L	8-97259-660-1	01	1	0106-0301	●	●	●	●	●	●	●
1	03.001 TANK; FUEL 4HE1 ENG(RLY) 1000X340X327 100L	8-97350-992-0	01	1	0302-	●	●	●	●	●	●	●
1	03.001 TANK; FUEL EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 1000X340X327 100L	8-97188-865-0	01	1	9812-0105	●	●	●	●	●	●
1	03.001 TANK; FUEL 4JH1 ENG(RJX) 1000X340X327 100L	8-97259-661-1	01	1	0106-0301			●
1	03.001 TANK; FUEL 4JH1 ENG(RJX) 1000X340X327 100L	8-97350-993-0	01	1	0302-			●
3	03.107 UNIT; FUEL TANK,SUB 03.001	8-94316-190-0	01	1	9812-	●	●	●	●	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	9812-	●	●	●	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	9812-	●	●	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.483 (A) T=10.5	5-09709-014-0	AR	1	9812-	●	●	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (B) T=6.0	5-09709-024-0	AR	1	9812-	●	●	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.525 (A) T=8.7	5-09709-048-0	AR	1	9812-0207	●	●	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL (B) T=9 & 10.5	8-97041-091-0	AR	1	9812-	●	●	●	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.453 M14X14	9-09862-156-0	01	1	9812-	●	●	●	●	●	●	●
14	03.163 HOSE; BREATHER,OUTLET 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	9812-	●	●	●	●	●	●	●
19	03.112 GASKET; FUEL TANK UNIT	5-83148-001-0	01	1	9812-	●	●	●	●	●	●	●
23	03.162 JOINT; BREATHER HOSE EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU)	8-97077-713-1	01	1	9812-0105	●	●	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	9812-0105	●	●	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-97259-670-0	01	1	0106-	●	●	●	●	●	●	●
27	03.163 HOSE; BREATHER L=470 SERVICED BY L=3000	8-94128-826-0	02	1	9812-	●	●	●	●	●	●	●
33	03.162 SCREW; JOINT TO FUEL TANK 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	9812-	●	●	●	●	●	●	●
78	03.003 CLIP; BREATHER HOSE UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 03.162 (A) ID=8.5	8-94166-071-0	04	1	9812-0105	●	●	●	●	●	●
78	03.003 CLIP; BREATHER HOSE 03.162 (A) ID=8.5	8-94166-071-0	04	1	0106-	●	●	●	●	●	●	●
78	03.003 CLIP; BREATHER HOSE UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 01.166 (B) ID=14	8-94238-572-0	01	1	9812-0105	●	●	●	●	●	●
78	03.003 CLIP; BREATHER HOSE 01.166 (B) ID=14	8-94238-572-0	01	1	0106-	●	●	●	●	●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU)	8-94437-368-0	01	1	9812-0105	●	●	●	●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-94437-368-0	01	1	0106-	●	●	●	●	●	●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 4HE1 ENG(RLY) 02.559 L=250	5-09707-030-1	01	1	9812-9905	●	●	●	●	●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 4JB1 ENG(RLF),4HE1 ENG(RLY) 02.559 L=250	5-09707-030-1	01	1	9906-0105	●	●	●	●	●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 02.559 L=250	5-09707-030-1	01	1	0106-	●	●	●	●	●	●	●
