1-31 — AIR DUCT (#18875) — 800 parça

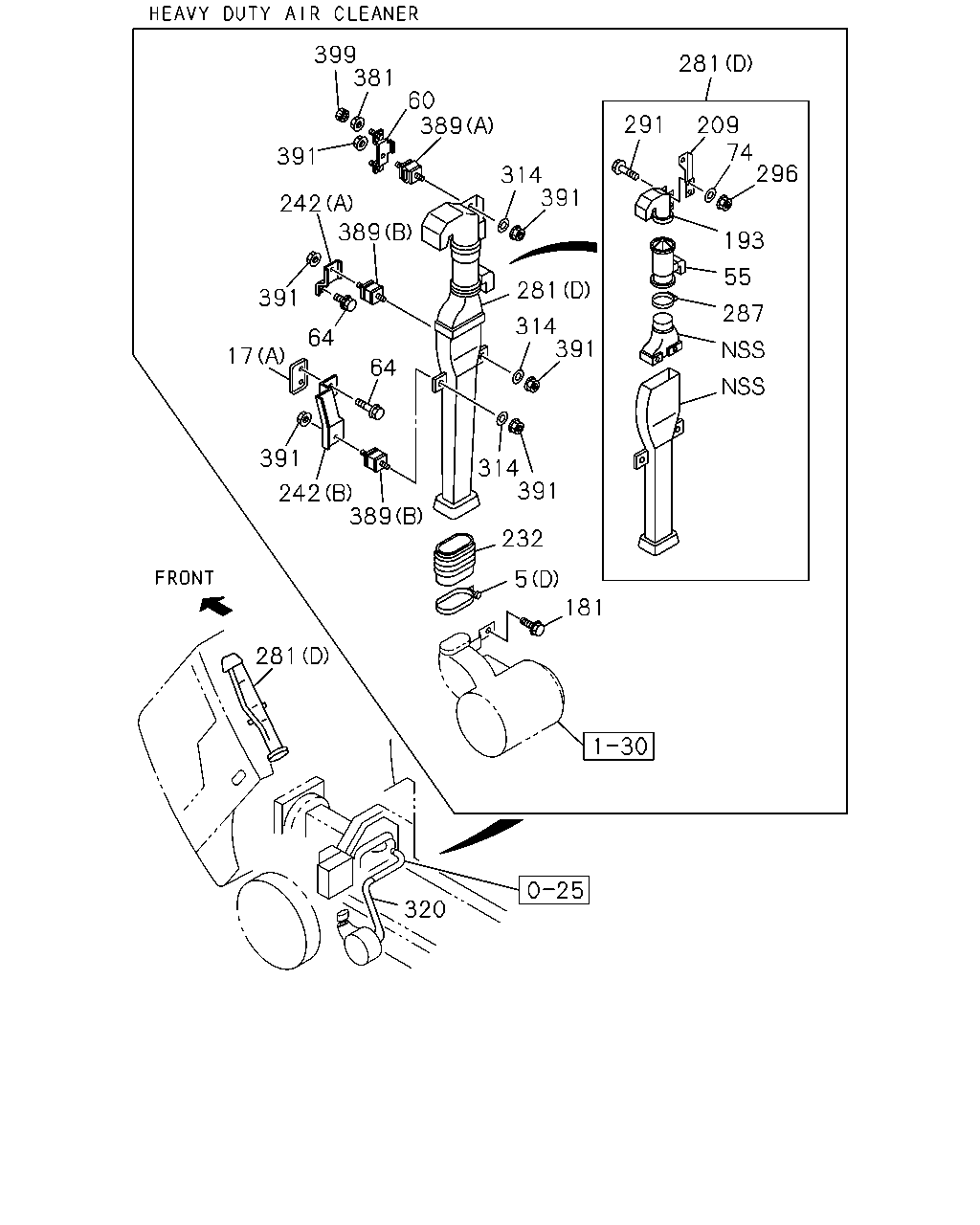

çizim 9779
399 381 281 60 389 291 209 74 296 391 314 391 242 389 193 55 281 391 287 314 391 64 17 64 391 314 391 242 389 232 5 181 281 320
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 03.407 CLIP; AIR DUCT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E) ID=112 		9-09915-074-1 01 1 9906-0105 ●
5 03.407 CLIP; AIR DUCT
4JH1 ENG(RJX) (E) ID=112 		9-09915-074-1 01 1 0106- ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=87 		8-97087-432-0 01 1 9812-9903 ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (B) ID=82 		9-09915-511-1 01 1 9904-0105 ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=67 		9-09915-069-1 01 1 9903-0105 ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79 		1-09707-136-0 01 1 9812-0105 ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79 		1-09707-136-0 01 1 0106- ● ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6 		9-09915-502-1 01 1 9812-0105 ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6 		9-09915-502-1 01 1 0106- ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-699-2 01 1 9812-9905 ● ● ● ● ●
17 03.403 GASKET; AIR DUCT
(A) 		8-97853-699-2 01 1 9812-9905 ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-699-2 01 1 9906-0105 ● ● ● ● ●
17 03.403 GASKET; AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97853-699-2 01 1 9906-0105 ●
17 03.403 GASKET; AIR DUCT
(A) 		8-97853-699-2 01 1 9906-0105 ●
17 03.403 GASKET; AIR DUCT
4JH1 ENG(RJX) (A) 		8-97853-699-2 01 1 0106- ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-699-2 01 1 0106- ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) (A) 		8-97853-699-2 01 1 0106- ● ●
17 03.403 GASKET; AIR DUCT
(B) 		8-97892-723-0 02 1 9904- ● ●
55 03.402 CLEANER ASM; AIR,PRE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97126-267-0 01 1 9904-0105 ● ● ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97856-956-0 01 1 9906-0105 ●
60 03.417 BRACKET; AIR DUCT,UPR
4JH1 ENG(RJX) 		8-97856-956-0 01 1 0106- ●
60 03.417 BRACKET; AIR DUCT,UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97856-957-0 01 1 9812-0105 ● ● ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97856-957-0 01 1 0106- ●
60 03.417 BRACKET; AIR DUCT,UPR 8-97892-525-4 01 1 9904- ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9812-9905 ● ● ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9906-0105 ● ● ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9906-0105 ●
64 03.417 BOLT; BRKT,AIR DUCT
4JH1 ENG(RJX) 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0106- ●
64 03.417 BOLT; BRKT,AIR DUCT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0106- ●
74 03.417 WASHER; PL,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 9904-0105 ● ● ● ● ●
181 03.407 BOLT; AIR DUCT TO RAD
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ● ● ● ● ● ●
181 03.407 BOLT; AIR DUCT TO RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
193 03.417 COVER; DUCT,AIR INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97044-953-0 01 1 9812-9903 ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97044-953-0 01 1 9904-0105 ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97044-953-0 01 1 0106- ●
193 03.417 COVER; DUCT,AIR INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-078-1 01 1 9904-0105 ● ● ● ● ●
209 03.405 BRACKET; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-080-1 01 1 9904-0105 ● ● ● ● ●
232 03.417 HOSE; CONN
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-94456-844-0 01 1 9906-0105 ●
232 03.417 HOSE; CONN
4JH1 ENG(RJX) 		8-94456-844-0 01 1 0106- ●
232 03.417 HOSE; CONN
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 		8-97096-429-1 01 1 9812-0105 ●
232 03.417 HOSE; CONN
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97109-423-0 01 1 9812-0105 ● ● ● ● ●
232 03.417 HOSE; CONN
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97109-423-0 01 1 0106- ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C) 		8-97856-932-0 01 1 9906-0105 ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (C) 		8-97856-932-0 01 1 0106- ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (D) 		8-97856-933-0 01 1 9906-0105 ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (D) 		8-97856-933-0 01 1 0106- ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (E) 		8-97856-958-0 01 1 9906-0105 ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (E) 		8-97856-958-0 01 1 0106- ●
242 03.417 BRACKET; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-633-1 01 1 9812-0105 ● ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-633-1 01 1 0106- ●
242 03.417 BRACKET; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97857-844-0 01 1 9812-0105 ● ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97857-844-0 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E) 		8-94313-520-2 01 1 9906-0105 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) 		8-97125-174-0 01 1 9812-9903 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (C) 		8-97125-174-0 01 1 9904-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) 		8-97125-174-1 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (G) 		8-97180-995-0 01 1 9812-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (G) 		8-97180-995-0 01 1 0106- ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (D) 		8-97120-084-0 01 1 9904-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JH1 ENG(RJX) (F) 		8-97300-255-0 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
CHARGE AIR COOLER<6PL> (A) 		8-97213-911-2 01 1 9904-0105 ●
281 03.417 DUCT; AIR,VERTICAL INT
TURBOCHARGER(K51) (A) 		8-97213-911-2 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) (A) 		8-97213-911-2 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
CHARGE AIR COOLER<6PL> (B) 		8-97213-912-2 01 1 9904-0105 ●
281 03.417 DUCT; AIR,VERTICAL INT
TURBOCHARGER(K51) (B) 		8-97213-912-2 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) (B) 		8-97213-912-2 01 1 0106- ●
287 03.417 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 03.407 ID=87 		9-09915-071-1 01 1 9904-0105 ● ● ● ● ●
291 03.405 BOLT; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9904-0105 ● ● ● ● ●
296 03.405 NUT; ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9904-0105 ● ● ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 9812-0105 ● ● ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 0106- ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9812-9901 ●
320 03.417 HOSE; CONN,ACL
EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9812-9901 ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9902-0105 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 0106- ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97209-707-0 01 1 9812-0105 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97209-707-0 01 1 0106- ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
CHARGE AIR COOLER<6PL> 		8-97211-578-0 01 1 9904-0105 ●
320 03.417 HOSE; CONN,ACL
TURBOCHARGER(K51) 		8-97211-578-0 01 1 0106- ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) 		8-97211-578-0 01 1 0106- ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9812-9905 ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9906-0105 ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9906-0105 ●
381 03.417 NUT; BRKT,AIR DUCT
4JH1 ENG(RJX) 16.800 M6 FLANGE 		1-09984-018-0 02 1 0106- ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE 		1-09984-018-0 02 1 0106- ●
381 03.417 NUT; BRKT,AIR DUCT
16.570 M8 POP NUT 		8-94279-538-0 03 1 9904- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 9812-9905 ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 9906-0105 ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 9906-0105 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1 ENG(RJX) 03.417 (A) 		8-97080-149-0 01 1 0106- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 0106- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 9812-9905 ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 9906-0105 ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 9906-0105 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1 ENG(RJX) 03.417 (B) 		8-97081-886-0 02 1 0106- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 0106- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
CHARGE AIR COOLER<6PL> 03.417 (C) 		8-97080-149-0 03 1 9904-0105 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
TURBOCHARGER(K51) 03.417 (C) 		8-97080-149-0 03 1 0106- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) TURBOCHARGER(K51) 03.417 (C) 		8-97080-149-0 03 1 0106- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 07 1 9906-0105 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 06 1 0106- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 06 1 9812-0105 ● ● ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JH1 ENG(RJX) M8 FLANGE 		8-94279-517-0 07 1 0106- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 03 1 9904-0105 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
TURBOCHARGER(K51) M8 FLANGE 		8-94279-517-0 03 1 0106- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) TURBOCHARGER(K51) M8 FLANGE 		8-94279-517-0 03 1 0106- ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 9812-9905 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 9906-0103 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94273-605-0 02 1 9906-0103 ●
399 03.417 CAP; BRKT,AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB> 		8-94273-605-0 02 1 0104-0104 ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,CHARGE AIRCOOLER<6PL> 		8-94273-605-0 02 1 0104-0104 ●
399 03.417 CAP; BRKT,AIR DUCT
EXC. INTERIOR DELUXE<RBB>,CHARGE AIRCOOLER<6PL> 		8-94273-605-0 02 1 0104-0104 ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 0105-0105 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94273-605-0 02 1 0105-0105 ●
399 03.417 CAP; BRKT,AIR DUCT
4JH1 ENG(RJX) 		8-94273-605-0 02 1 0106- ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 0106- ●

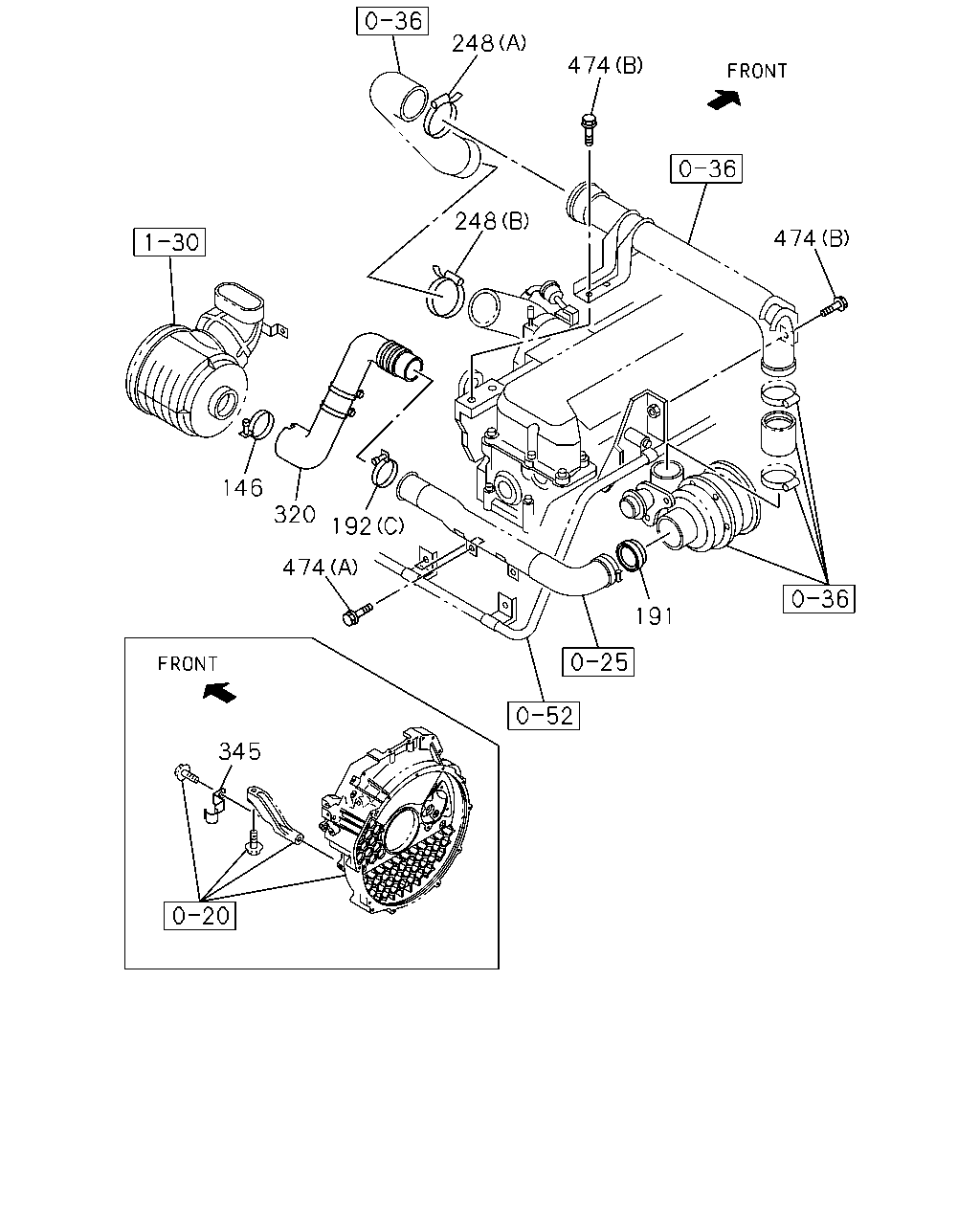

çizim 46840
248 474 248 474 146 320 192 474 191 345
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112 		9-09915-074-1 01 1 9812-0105 ● ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112 		9-09915-074-1 01 1 0106- ● ● ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 9812-0105 ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 0106- ●
191 03.407 RUBBER; SEAL,CONN HOSE,AIR INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-94454-802-0 01 1 9812-0105 ● ● ● ● ●
191 03.407 RUBBER; SEAL,CONN HOSE,AIR INT
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-94454-802-0 01 1 0106- ●
192 03.407 CLIP; HOSE
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9906-0105 ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0106- ●
192 03.407 CLIP; HOSE
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 01.166 (A) ID=44-60 		8-94175-940-0 07 1 9906-0105 ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) (A) ID=50-69 		1-09707-135-0 06 1 0106- ●
192 03.407 CLIP; HOSE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) ID=87 		8-97087-432-0 01 1 9812-0105 ● ● ● ● ●
192 03.407 CLIP; HOSE
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) ID=87 		8-97087-432-0 01 1 0106- ●
248 03.417 CLIP; RUBBER HOSE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.407 (A) ID=50-69 		8-94316-991-0 01 1 9812-0105 ● ● ● ● ●
248 03.417 CLIP; RUBBER HOSE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.407 (A) ID=50-69 		8-94316-991-0 01 1 0106- ●
248 03.417 CLIP; RUBBER HOSE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.407 (B) ID=68-85 		8-94320-428-0 01 1 9812-0105 ● ● ● ● ●
248 03.417 CLIP; RUBBER HOSE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.407 (B) ID=68-85 		8-94320-428-0 01 1 0106- ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9812-9901 ●
320 03.417 HOSE; CONN,ACL
EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9812-9901 ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9902-0105 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 0106- ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97209-707-0 01 1 9812-0105 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97209-707-0 01 1 0106- ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
CHARGE AIR COOLER<6PL> 		8-97211-578-0 01 1 9904-0105 ●
320 03.417 HOSE; CONN,ACL
TURBOCHARGER(K51) 		8-97211-578-0 01 1 0106- ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) 		8-97211-578-0 01 1 0106- ●
345 03.417 CLIP; PCV HOSE
4HE1 ENG(RLY) 		8-97066-710-1 01 1 9812- ● ● ● ● ● ● ●
474 03.417 BOLT; PIPE
4JH1 ENG(RJX) 02.664 (C) M8X20 FLANGE 		0-28680-820-0 01 1 0106- ●
474 03.417 BOLT; PIPE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M10X30 FLANGE 		0-28781-030-0 02 1 9812-0105 ● ● ● ● ●
474 03.417 BOLT; PIPE
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M10X30 FLANGE 		0-28781-030-0 02 1 0106- ●
474 03.417 BOLT; PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 03 1 9812-0105 ● ● ● ● ●
474 03.417 BOLT; PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 03 1 0106- ●

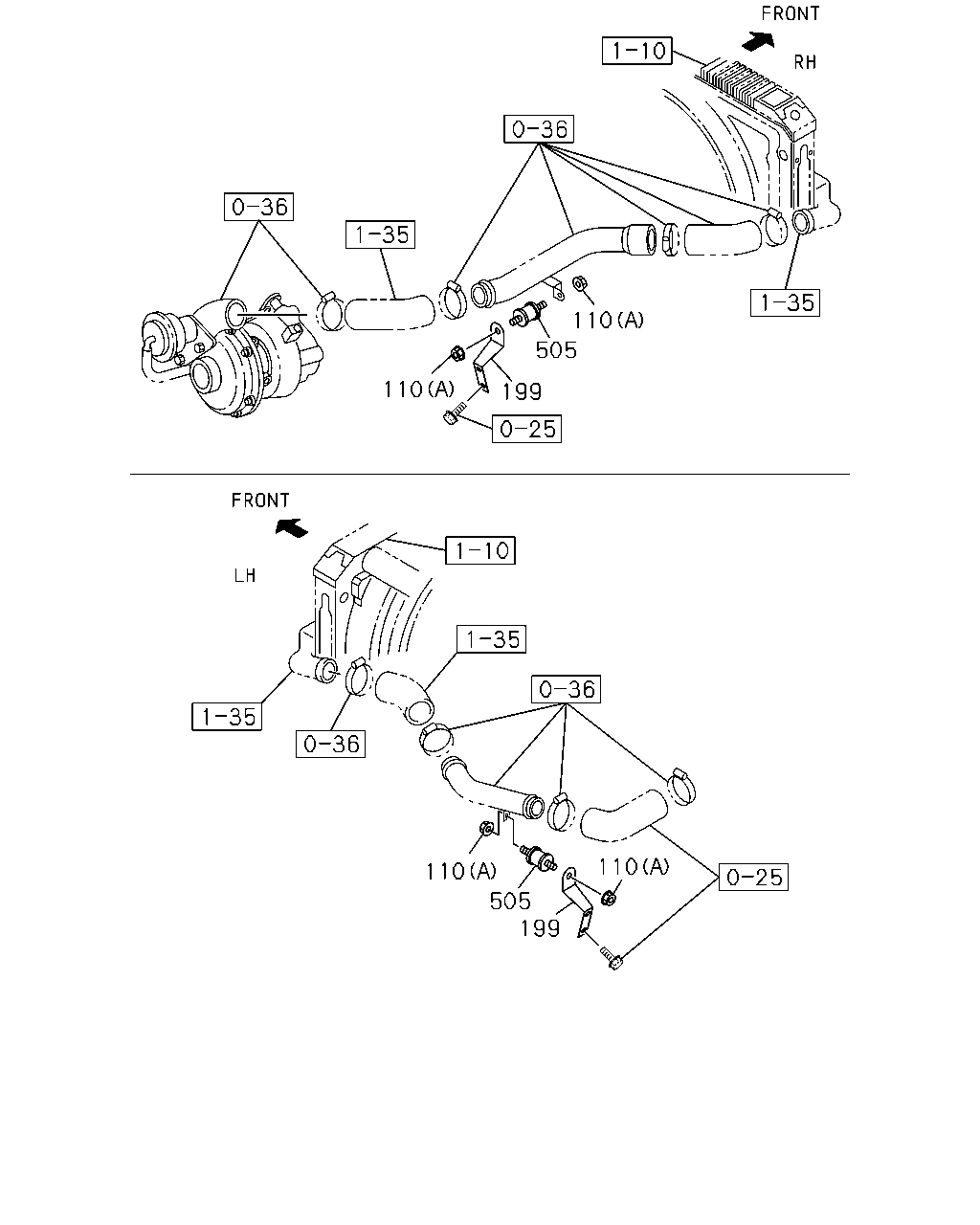

çizim 48586
110 505 110 199 110 110 505 199
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
110 03.403 NUT; RUBBER MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9812- ● ● ● ● ● ● ●
110 03.403 NUT; RUBBER MTG
CHARGE AIR COOLER<6PL> 03.417 (B) M8 FLANGE 		8-94279-517-0 03 1 9904-0105 ●
110 03.403 NUT; RUBBER MTG
TURBOCHARGER(K51) 03.417 (B) M8 FLANGE 		8-94279-517-0 03 1 0106- ●
110 03.403 NUT; RUBBER MTG
4HE1 ENG(RLY) TURBOCHARGER(K51) 03.417 (B) M8 FLANGE 		8-94279-517-0 03 1 0106- ●
199 03.417 BRACKET; PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97189-604-0 01 1 9812- ● ● ● ● ● ● ●
199 03.417 BRACKET; PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97189-603-1 01 1 9812- ● ● ● ● ● ● ●
505 03.406 RUBBER; MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 		8-94158-155-1 02 1 9812- ● ● ● ● ● ● ●

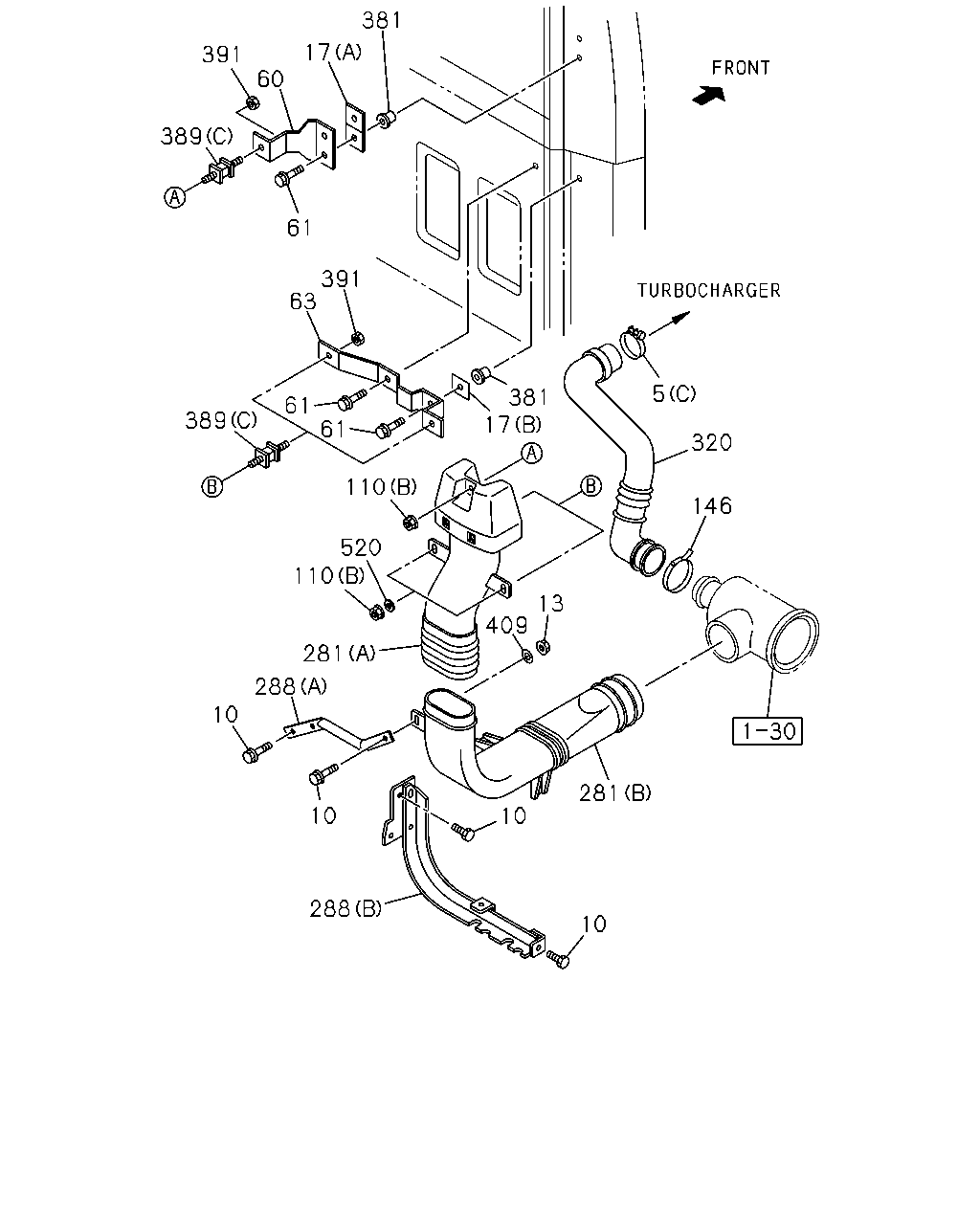

çizim 49795
381 17 391 60 389 61 391 63 381 17 61 389 61 320 110 146 520 110 13 409 281 288 10 281 10 10 288 10 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 03.407 CLIP; AIR DUCT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E) ID=112 		9-09915-074-1 01 1 9906-0105 ●
5 03.407 CLIP; AIR DUCT
4JH1 ENG(RJX) (E) ID=112 		9-09915-074-1 01 1 0106- ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=87 		8-97087-432-0 01 1 9812-9903 ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (B) ID=82 		9-09915-511-1 01 1 9904-0105 ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=67 		9-09915-069-1 01 1 9903-0105 ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79 		1-09707-136-0 01 1 9812-0105 ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79 		1-09707-136-0 01 1 0106- ● ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6 		9-09915-502-1 01 1 9812-0105 ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6 		9-09915-502-1 01 1 0106- ●
10 03.417 BOLT; BRKT FIX
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9906-0105 ●
10 03.417 BOLT; BRKT FIX
4JH1 ENG(RJX) 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0106- ●
10 03.417 BOLT; BRKT FIX
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9812-0105 ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9812-0105 ● ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9812-0105 ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 0106- ● ● ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9904-0105 ●
10 03.417 BOLT; BRKT FIX
TURBOCHARGER(K51) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0106- ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0106- ●
10 03.417 BOLT; BRKT FIX
CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 9904-0105 ●
10 03.417 BOLT; BRKT FIX
TURBOCHARGER(K51) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0106- ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0106- ●
13 03.417 NUT; BRKT FIX
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9906-0105 ●
13 03.417 NUT; BRKT FIX
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106- ●
13 03.417 NUT; BRKT FIX
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-0105 ● ● ● ● ● ●
13 03.417 NUT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ● ● ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-699-2 01 1 9812-9905 ● ● ● ● ●
17 03.403 GASKET; AIR DUCT
(A) 		8-97853-699-2 01 1 9812-9905 ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-699-2 01 1 9906-0105 ● ● ● ● ●
17 03.403 GASKET; AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97853-699-2 01 1 9906-0105 ●
17 03.403 GASKET; AIR DUCT
(A) 		8-97853-699-2 01 1 9906-0105 ●
17 03.403 GASKET; AIR DUCT
4JH1 ENG(RJX) (A) 		8-97853-699-2 01 1 0106- ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-699-2 01 1 0106- ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) (A) 		8-97853-699-2 01 1 0106- ● ●
17 03.403 GASKET; AIR DUCT
(B) 		8-97892-723-0 02 1 9904- ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97856-956-0 01 1 9906-0105 ●
60 03.417 BRACKET; AIR DUCT,UPR
4JH1 ENG(RJX) 		8-97856-956-0 01 1 0106- ●
60 03.417 BRACKET; AIR DUCT,UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97856-957-0 01 1 9812-0105 ● ● ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97856-957-0 01 1 0106- ●
60 03.417 BRACKET; AIR DUCT,UPR 8-97892-525-4 01 1 9904- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
09.003 M8X20 W/LK&PL WASHER 		8-94279-216-0 04 1 9904- ● ●
63 03.417 BRACKET; AIR DUCT,LWR 8-97892-526-3 01 1 9904- ● ●
110 03.403 NUT; RUBBER MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9812- ● ● ● ● ● ● ●
110 03.403 NUT; RUBBER MTG
CHARGE AIR COOLER<6PL> 03.417 (B) M8 FLANGE 		8-94279-517-0 03 1 9904-0105 ●
110 03.403 NUT; RUBBER MTG
TURBOCHARGER(K51) 03.417 (B) M8 FLANGE 		8-94279-517-0 03 1 0106- ●
110 03.403 NUT; RUBBER MTG
4HE1 ENG(RLY) TURBOCHARGER(K51) 03.417 (B) M8 FLANGE 		8-94279-517-0 03 1 0106- ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112 		9-09915-074-1 01 1 9812-0105 ● ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112 		9-09915-074-1 01 1 0106- ● ● ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 9812-0105 ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E) 		8-94313-520-2 01 1 9906-0105 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) 		8-97125-174-0 01 1 9812-9903 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (C) 		8-97125-174-0 01 1 9904-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) 		8-97125-174-1 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (G) 		8-97180-995-0 01 1 9812-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (G) 		8-97180-995-0 01 1 0106- ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (D) 		8-97120-084-0 01 1 9904-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JH1 ENG(RJX) (F) 		8-97300-255-0 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
CHARGE AIR COOLER<6PL> (A) 		8-97213-911-2 01 1 9904-0105 ●
281 03.417 DUCT; AIR,VERTICAL INT
TURBOCHARGER(K51) (A) 		8-97213-911-2 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) (A) 		8-97213-911-2 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
CHARGE AIR COOLER<6PL> (B) 		8-97213-912-2 01 1 9904-0105 ●
281 03.417 DUCT; AIR,VERTICAL INT
TURBOCHARGER(K51) (B) 		8-97213-912-2 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) (B) 		8-97213-912-2 01 1 0106- ●
288 03.417 BRACKET; DUCT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) 		8-97183-041-2 01 1 9812- ● ● ● ● ●
288 03.417 BRACKET; DUCT
CHARGE AIR COOLER<6PL> (A) 		8-97214-827-1 01 1 9904-0105 ●
288 03.417 BRACKET; DUCT
TURBOCHARGER(K51) (A) 		8-97214-827-1 01 1 0106- ●
288 03.417 BRACKET; DUCT
4HE1 ENG(RLY) TURBOCHARGER(K51) (A) 		8-97214-827-1 01 1 0106- ●
288 03.417 BRACKET; DUCT
CHARGE AIR COOLER<6PL> 03.405 (B) 		8-97214-828-0 01 1 9904-0105 ●
288 03.417 BRACKET; DUCT
TURBOCHARGER(K51) 03.405 (B) 		8-97214-828-0 01 1 0106- ●
288 03.417 BRACKET; DUCT
4HE1 ENG(RLY) TURBOCHARGER(K51) 03.405 (B) 		8-97214-828-0 01 1 0106- ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9812-9901 ●
320 03.417 HOSE; CONN,ACL
EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9812-9901 ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9902-0105 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 0106- ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97209-707-0 01 1 9812-0105 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97209-707-0 01 1 0106- ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
CHARGE AIR COOLER<6PL> 		8-97211-578-0 01 1 9904-0105 ●
320 03.417 HOSE; CONN,ACL
TURBOCHARGER(K51) 		8-97211-578-0 01 1 0106- ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) 		8-97211-578-0 01 1 0106- ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9812-9905 ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9906-0105 ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9906-0105 ●
381 03.417 NUT; BRKT,AIR DUCT
4JH1 ENG(RJX) 16.800 M6 FLANGE 		1-09984-018-0 02 1 0106- ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE 		1-09984-018-0 02 1 0106- ●
381 03.417 NUT; BRKT,AIR DUCT
16.570 M8 POP NUT 		8-94279-538-0 03 1 9904- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 9812-9905 ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 9906-0105 ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 9906-0105 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1 ENG(RJX) 03.417 (A) 		8-97080-149-0 01 1 0106- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 0106- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 9812-9905 ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 9906-0105 ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 9906-0105 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1 ENG(RJX) 03.417 (B) 		8-97081-886-0 02 1 0106- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 0106- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
CHARGE AIR COOLER<6PL> 03.417 (C) 		8-97080-149-0 03 1 9904-0105 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
TURBOCHARGER(K51) 03.417 (C) 		8-97080-149-0 03 1 0106- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) TURBOCHARGER(K51) 03.417 (C) 		8-97080-149-0 03 1 0106- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 07 1 9906-0105 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 06 1 0106- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 06 1 9812-0105 ● ● ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JH1 ENG(RJX) M8 FLANGE 		8-94279-517-0 07 1 0106- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 03 1 9904-0105 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
TURBOCHARGER(K51) M8 FLANGE 		8-94279-517-0 03 1 0106- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) TURBOCHARGER(K51) M8 FLANGE 		8-94279-517-0 03 1 0106- ●
409 03.417 WASHER; PL,BRKT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 9812-0105 ● ● ● ● ● ●
409 03.417 WASHER; PL,BRKT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 0106- ● ● ● ● ● ● ●
520 03.403 WASHER; RUBBER MTG
CHARGE AIR COOLER<6PL> 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 9904-0105 ●
520 03.403 WASHER; RUBBER MTG
TURBOCHARGER(K51) 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 0106- ●
520 03.403 WASHER; RUBBER MTG
4HE1 ENG(RLY) TURBOCHARGER(K51) 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 0106- ●

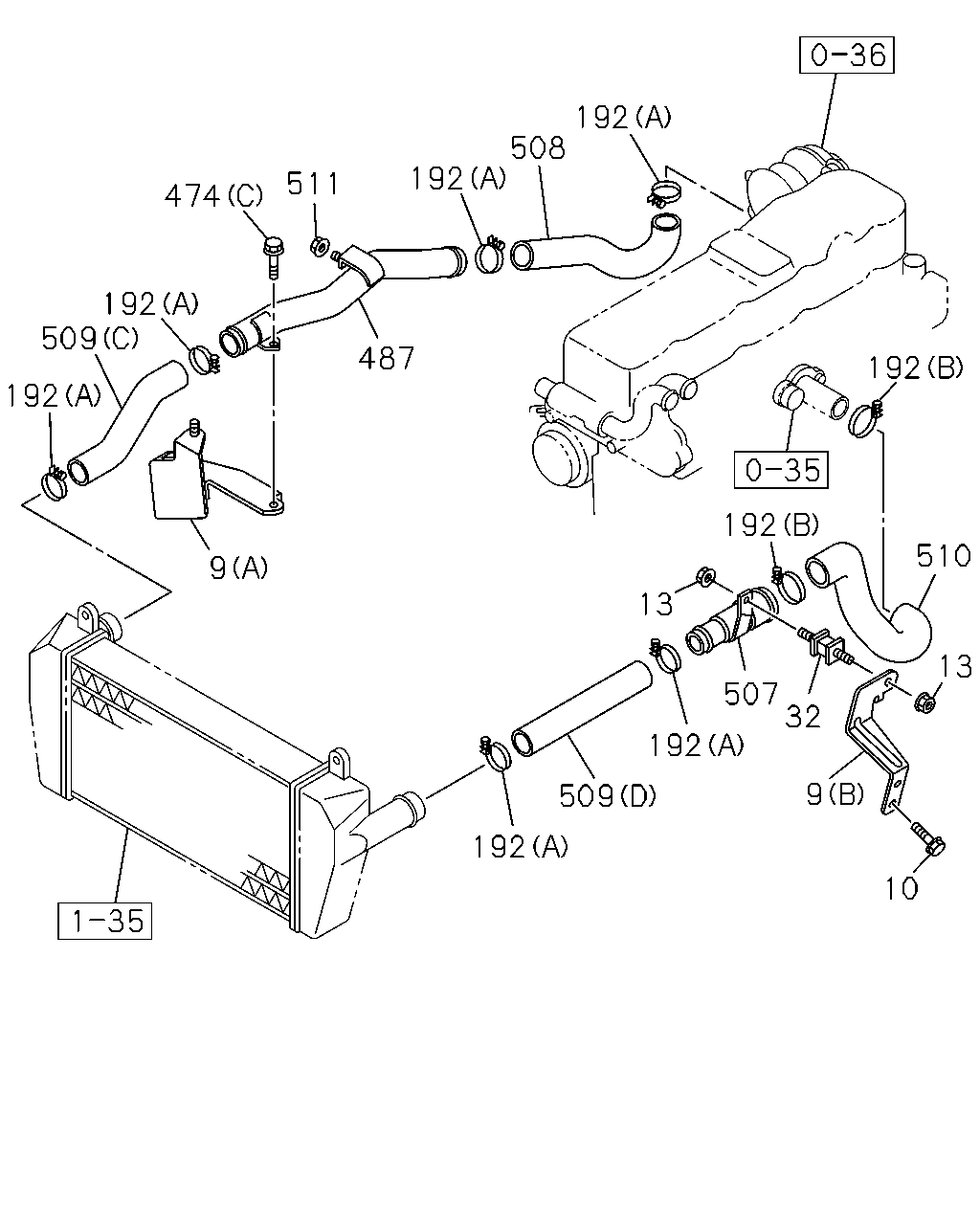

çizim 50276
192 508 192 511 474 192 509 487 192 192 192 510 9 13 13 507 32 192 9 509 192 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
9 03.417 BRACKET; INT PIPE
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) 		8-97226-133-0 01 1 9906-0105 ●
9 03.417 BRACKET; INT PIPE
4JH1 ENG(RJX) (A) 		8-97312-473-1 01 1 0106- ●
9 03.417 BRACKET; INT PIPE
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (D) 		8-97072-966-0 01 1 9812-0105 ●
9 03.417 BRACKET; INT PIPE
4JH1 ENG(RJX) (B) 		8-97300-773-1 01 1 0106- ●
10 03.417 BOLT; BRKT FIX
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9906-0105 ●
10 03.417 BOLT; BRKT FIX
4JH1 ENG(RJX) 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0106- ●
10 03.417 BOLT; BRKT FIX
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9812-0105 ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9812-0105 ● ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9812-0105 ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 0106- ● ● ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9904-0105 ●
10 03.417 BOLT; BRKT FIX
TURBOCHARGER(K51) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0106- ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0106- ●
10 03.417 BOLT; BRKT FIX
CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 9904-0105 ●
10 03.417 BOLT; BRKT FIX
TURBOCHARGER(K51) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0106- ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0106- ●
13 03.417 NUT; BRKT FIX
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9906-0105 ●
13 03.417 NUT; BRKT FIX
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106- ●
13 03.417 NUT; BRKT FIX
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-0105 ● ● ● ● ● ●
13 03.417 NUT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ● ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.405 		8-94158-155-1 01 1 9906-0105 ●
32 03.417 RUBBER; AIR DUCT MTG
4JH1 ENG(RJX) 03.405 		8-94158-155-1 01 1 0106- ●
192 03.407 CLIP; HOSE
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9906-0105 ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0106- ●
192 03.407 CLIP; HOSE
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 01.166 (A) ID=44-60 		8-94175-940-0 07 1 9906-0105 ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) (A) ID=50-69 		1-09707-135-0 06 1 0106- ●
192 03.407 CLIP; HOSE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) ID=87 		8-97087-432-0 01 1 9812-0105 ● ● ● ● ●
192 03.407 CLIP; HOSE
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) ID=87 		8-97087-432-0 01 1 0106- ●
474 03.417 BOLT; PIPE
4JH1 ENG(RJX) 02.664 (C) M8X20 FLANGE 		0-28680-820-0 01 1 0106- ●
474 03.417 BOLT; PIPE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M10X30 FLANGE 		0-28781-030-0 02 1 9812-0105 ● ● ● ● ●
474 03.417 BOLT; PIPE
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M10X30 FLANGE 		0-28781-030-0 02 1 0106- ●
474 03.417 BOLT; PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 03 1 9812-0105 ● ● ● ● ●
474 03.417 BOLT; PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 03 1 0106- ●
487 03.417 PIPE; TURBO TO CHARGE AIR COOLER
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97216-223-0 01 1 9906-0105 ●
487 03.417 PIPE; TURBO TO CHARGE AIR COOLER
4JH1 ENG(RJX) 		8-97312-537-0 01 1 0106- ●
507 03.417 PIPE; CHARGE AIR COOLER TO INL M
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97228-660-0 01 1 9906-0105 ●
507 03.417 PIPE; CHARGE AIR COOLER TO INL M
4JH1 ENG(RJX) 		8-97240-053-0 01 1 0106- ●
508 03.417 HOSE; AIR,TURBO TO PIPE
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97217-911-1 01 1 9906-0105 ●
508 03.417 HOSE; AIR,TURBO TO PIPE
4JH1 ENG(RJX) 		8-97258-837-3 01 1 0106- ●
509 03.417 HOSE; AIR,PIPE TO CHARGE AIR COO
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A) 		8-97221-914-2 01 1 9906-0105 ●
509 03.417 HOSE; AIR,PIPE TO CHARGE AIR COO
4JH1 ENG(RJX) (C) 		8-97240-044-3 01 1 0106- ●
509 03.417 HOSE; AIR,PIPE TO CHARGE AIR COO
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B) 		8-97228-657-0 01 1 9906-0105 ●
509 03.417 HOSE; AIR,PIPE TO CHARGE AIR COO
4JH1 ENG(RJX) (D) 		8-97300-859-2 01 1 0106- ●
510 03.417 HOSE; AIR,PIPE TO INL MANIF
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97228-658-0 01 1 9906-0105 ●
510 03.417 HOSE; AIR,PIPE TO INL MANIF
4JH1 ENG(RJX) 		8-97300-858-2 01 1 0106- ●
511 03.417 NUT; PIPE
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 03 1 0106- ●

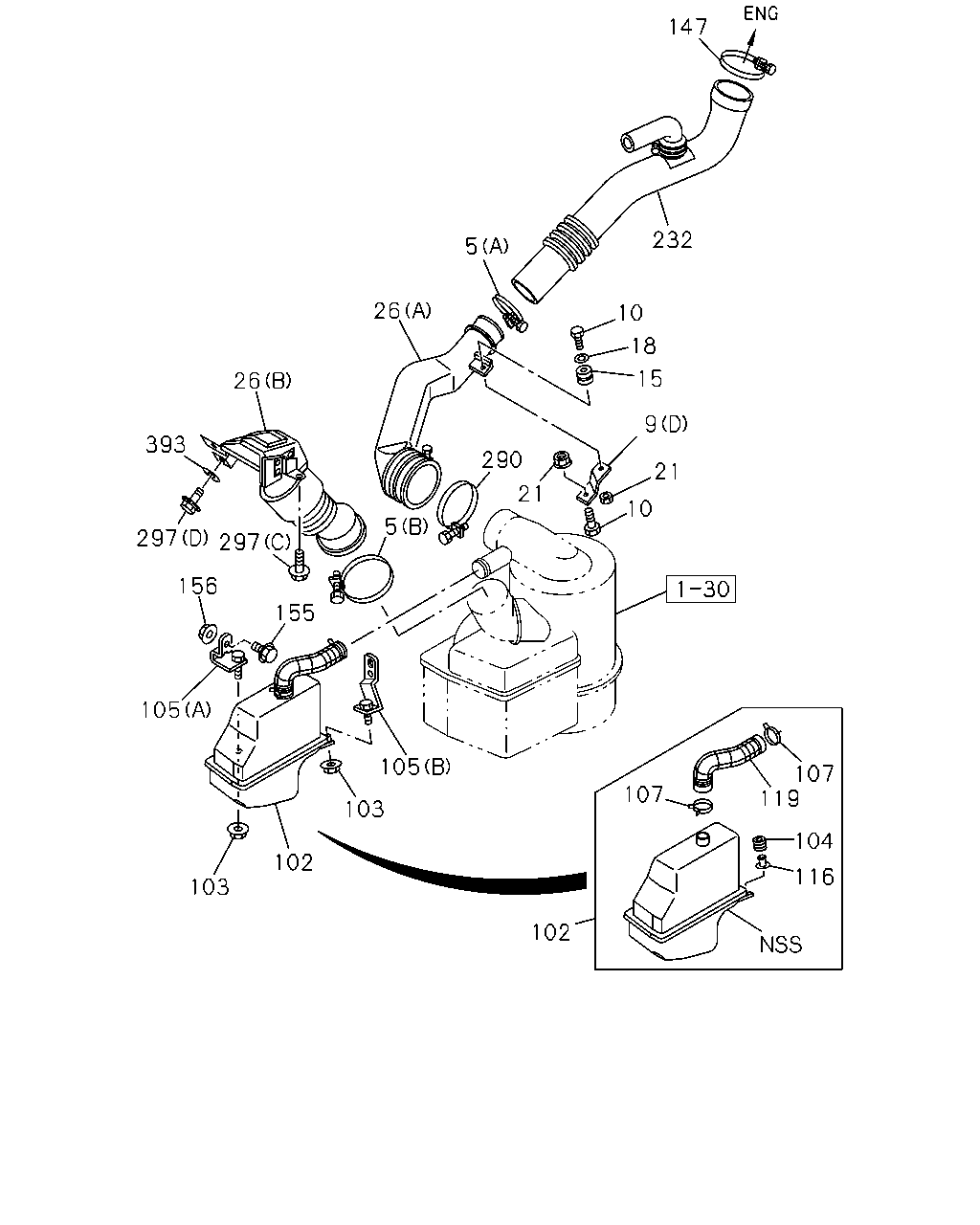

çizim 50823
147 232 5 26 10 18 15 26 9 393 290 21 21 10 5 297 297 156 155 105 105 107 119 107 103 104 102 116 103 102
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 03.407 CLIP; AIR DUCT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E) ID=112 		9-09915-074-1 01 1 9906-0105 ●
5 03.407 CLIP; AIR DUCT
4JH1 ENG(RJX) (E) ID=112 		9-09915-074-1 01 1 0106- ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=87 		8-97087-432-0 01 1 9812-9903 ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (B) ID=82 		9-09915-511-1 01 1 9904-0105 ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=67 		9-09915-069-1 01 1 9903-0105 ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79 		1-09707-136-0 01 1 9812-0105 ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79 		1-09707-136-0 01 1 0106- ● ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6 		9-09915-502-1 01 1 9812-0105 ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6 		9-09915-502-1 01 1 0106- ●
9 03.417 BRACKET; INT PIPE
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) 		8-97226-133-0 01 1 9906-0105 ●
9 03.417 BRACKET; INT PIPE
4JH1 ENG(RJX) (A) 		8-97312-473-1 01 1 0106- ●
9 03.417 BRACKET; INT PIPE
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (D) 		8-97072-966-0 01 1 9812-0105 ●
9 03.417 BRACKET; INT PIPE
4JH1 ENG(RJX) (B) 		8-97300-773-1 01 1 0106- ●
10 03.417 BOLT; BRKT FIX
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9906-0105 ●
10 03.417 BOLT; BRKT FIX
4JH1 ENG(RJX) 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0106- ●
10 03.417 BOLT; BRKT FIX
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9812-0105 ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9812-0105 ● ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9812-0105 ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 0106- ● ● ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9904-0105 ●
10 03.417 BOLT; BRKT FIX
TURBOCHARGER(K51) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0106- ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0106- ●
10 03.417 BOLT; BRKT FIX
CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 9904-0105 ●
10 03.417 BOLT; BRKT FIX
TURBOCHARGER(K51) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0106- ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0106- ●
15 03.417 INSULATOR
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 		8-94338-739-0 01 1 9812-0105 ●
18 03.417 WASHER; PL,PIPE
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9812-0105 ●
21 03.417 NUT; PIPE TO BRKT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9812-0105 ●
26 03.417 DUCT; AIR INT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) 		8-97205-772-0 01 1 9906-0105 ●
26 03.417 DUCT; AIR INT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97092-077-0 01 1 9812-0105 ●
26 03.417 DUCT; AIR INT
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97089-950-2 01 1 9812-0105 ●
102 03.402 RESONATOR; AIR INT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 		8-97103-541-1 01 1 9812-0105 ●
103 03.402 NUT; RESONATOR
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9812-0105 ●
104 03.417 RUBBER; MOUNTING,RESONATOR
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-600-0 02 1 9812-0105 ●
105 03.403 BRACKET; RESONATOR
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97092-039-1 01 1 9812-0105 ●
105 03.403 BRACKET; RESONATOR
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97174-754-0 01 1 9812-0105 ●
107 03.417 CLIP; PROTECTOR
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-785-0 02 1 9812-0105 ●
116 01.745 RETAINER; RESONATOR
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 		8-97105-842-0 02 1 9812-0105 ●
119 03.403 HOSE; RESONATOR
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 		8-97109-542-0 01 1 9812-0105 ●
147 03.417 CLIP; HOSE TO ENG
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79 		9-09915-734-1 01 1 9903-0105 ●
155 03.417 BOLT; BRKT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ●
156 03.417 NUT; BRKT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-0105 ●
232 03.417 HOSE; CONN
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-94456-844-0 01 1 9906-0105 ●
232 03.417 HOSE; CONN
4JH1 ENG(RJX) 		8-94456-844-0 01 1 0106- ●
232 03.417 HOSE; CONN
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 		8-97096-429-1 01 1 9812-0105 ●
232 03.417 HOSE; CONN
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97109-423-0 01 1 9812-0105 ● ● ● ● ●
232 03.417 HOSE; CONN
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97109-423-0 01 1 0106- ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 9906-0105 ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9812-0105 ●
297 03.417 BOLT; DUCT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 9906-0105 ●
297 03.417 BOLT; DUCT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.640 (B) M10X12 FLANGE 		0-28081-012-0 01 1 9906-0105 ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.334 (C) M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9812-0105 ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 16.550 (D) M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9812-0105 ●
393 03.417 WASHER; LK,AIR DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 01.270 ID=10.5 OD=36 		8-97031-437-0 01 1 9812-0105 ●

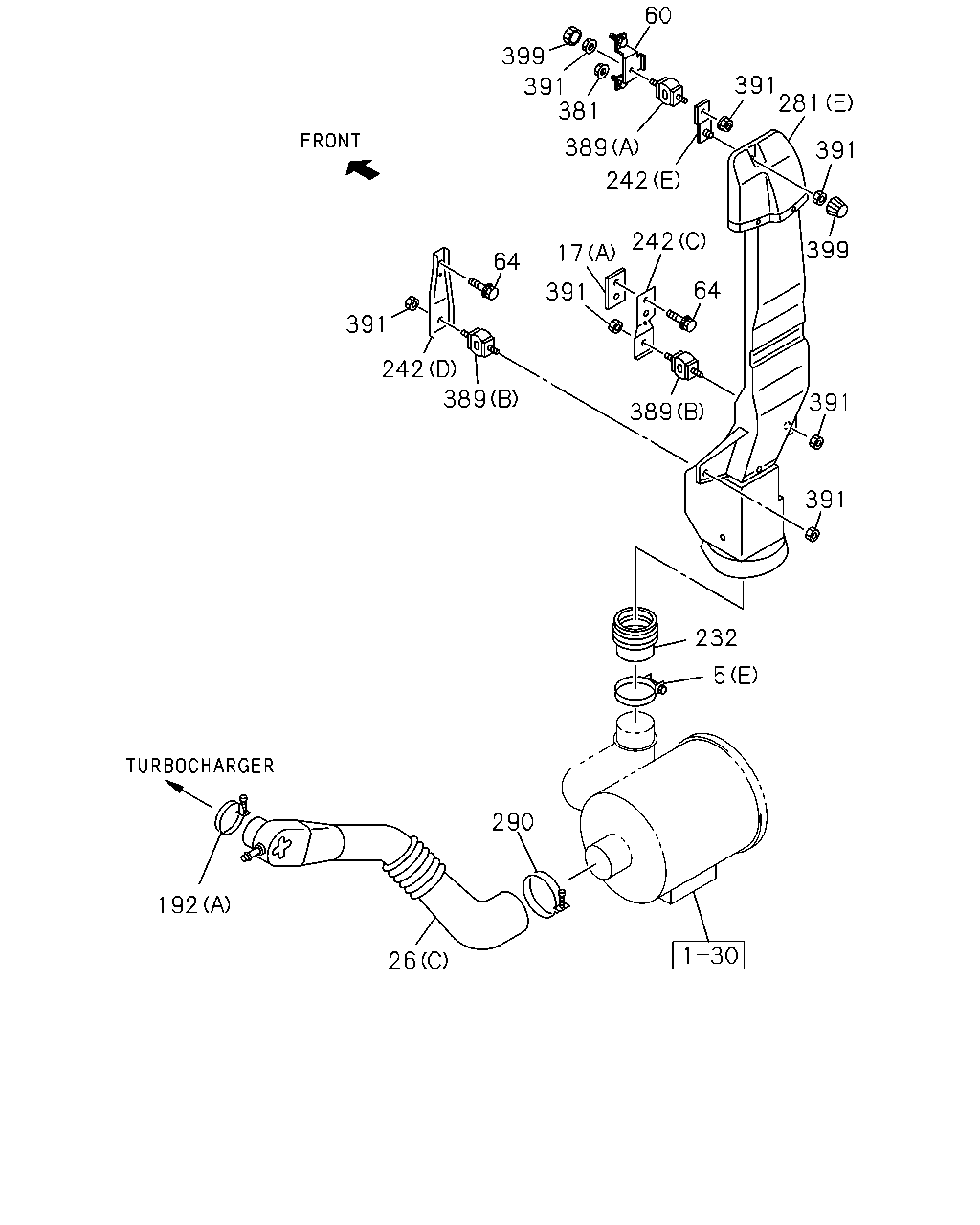

çizim 51288
60 399 391 281 391 381 389 391 242 242 399 17 64 64 391 391 242 389 391 389 391 232 5 290 192 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 03.407 CLIP; AIR DUCT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E) ID=112 		9-09915-074-1 01 1 9906-0105 ●
5 03.407 CLIP; AIR DUCT
4JH1 ENG(RJX) (E) ID=112 		9-09915-074-1 01 1 0106- ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=87 		8-97087-432-0 01 1 9812-9903 ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (B) ID=82 		9-09915-511-1 01 1 9904-0105 ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=67 		9-09915-069-1 01 1 9903-0105 ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79 		1-09707-136-0 01 1 9812-0105 ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79 		1-09707-136-0 01 1 0106- ● ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6 		9-09915-502-1 01 1 9812-0105 ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6 		9-09915-502-1 01 1 0106- ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-699-2 01 1 9812-9905 ● ● ● ● ●
17 03.403 GASKET; AIR DUCT
(A) 		8-97853-699-2 01 1 9812-9905 ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-699-2 01 1 9906-0105 ● ● ● ● ●
17 03.403 GASKET; AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97853-699-2 01 1 9906-0105 ●
17 03.403 GASKET; AIR DUCT
(A) 		8-97853-699-2 01 1 9906-0105 ●
17 03.403 GASKET; AIR DUCT
4JH1 ENG(RJX) (A) 		8-97853-699-2 01 1 0106- ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-699-2 01 1 0106- ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) (A) 		8-97853-699-2 01 1 0106- ● ●
17 03.403 GASKET; AIR DUCT
(B) 		8-97892-723-0 02 1 9904- ● ●
26 03.417 DUCT; AIR INT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) 		8-97205-772-0 01 1 9906-0105 ●
26 03.417 DUCT; AIR INT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97092-077-0 01 1 9812-0105 ●
26 03.417 DUCT; AIR INT
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97089-950-2 01 1 9812-0105 ●
60 03.417 BRACKET; AIR DUCT,UPR
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97856-956-0 01 1 9906-0105 ●
60 03.417 BRACKET; AIR DUCT,UPR
4JH1 ENG(RJX) 		8-97856-956-0 01 1 0106- ●
60 03.417 BRACKET; AIR DUCT,UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97856-957-0 01 1 9812-0105 ● ● ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97856-957-0 01 1 0106- ●
60 03.417 BRACKET; AIR DUCT,UPR 8-97892-525-4 01 1 9904- ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9812-9905 ● ● ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9906-0105 ● ● ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9906-0105 ●
64 03.417 BOLT; BRKT,AIR DUCT
4JH1 ENG(RJX) 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0106- ●
64 03.417 BOLT; BRKT,AIR DUCT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0106- ●
192 03.407 CLIP; HOSE
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9906-0105 ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0106- ●
192 03.407 CLIP; HOSE
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 01.166 (A) ID=44-60 		8-94175-940-0 07 1 9906-0105 ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) (A) ID=50-69 		1-09707-135-0 06 1 0106- ●
192 03.407 CLIP; HOSE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) ID=87 		8-97087-432-0 01 1 9812-0105 ● ● ● ● ●
192 03.407 CLIP; HOSE
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) ID=87 		8-97087-432-0 01 1 0106- ●
232 03.417 HOSE; CONN
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-94456-844-0 01 1 9906-0105 ●
232 03.417 HOSE; CONN
4JH1 ENG(RJX) 		8-94456-844-0 01 1 0106- ●
232 03.417 HOSE; CONN
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 		8-97096-429-1 01 1 9812-0105 ●
232 03.417 HOSE; CONN
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97109-423-0 01 1 9812-0105 ● ● ● ● ●
232 03.417 HOSE; CONN
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97109-423-0 01 1 0106- ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C) 		8-97856-932-0 01 1 9906-0105 ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (C) 		8-97856-932-0 01 1 0106- ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (D) 		8-97856-933-0 01 1 9906-0105 ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (D) 		8-97856-933-0 01 1 0106- ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (E) 		8-97856-958-0 01 1 9906-0105 ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (E) 		8-97856-958-0 01 1 0106- ●
242 03.417 BRACKET; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-633-1 01 1 9812-0105 ● ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-633-1 01 1 0106- ●
242 03.417 BRACKET; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97857-844-0 01 1 9812-0105 ● ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97857-844-0 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E) 		8-94313-520-2 01 1 9906-0105 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) 		8-97125-174-0 01 1 9812-9903 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (C) 		8-97125-174-0 01 1 9904-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) 		8-97125-174-1 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (G) 		8-97180-995-0 01 1 9812-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (G) 		8-97180-995-0 01 1 0106- ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (D) 		8-97120-084-0 01 1 9904-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JH1 ENG(RJX) (F) 		8-97300-255-0 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
CHARGE AIR COOLER<6PL> (A) 		8-97213-911-2 01 1 9904-0105 ●
281 03.417 DUCT; AIR,VERTICAL INT
TURBOCHARGER(K51) (A) 		8-97213-911-2 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) (A) 		8-97213-911-2 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
CHARGE AIR COOLER<6PL> (B) 		8-97213-912-2 01 1 9904-0105 ●
281 03.417 DUCT; AIR,VERTICAL INT
TURBOCHARGER(K51) (B) 		8-97213-912-2 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) (B) 		8-97213-912-2 01 1 0106- ●
290 03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 9906-0105 ●
290 03.374 CLIP; ACL TO AIR DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9812-0105 ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9812-9905 ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9906-0105 ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9906-0105 ●
381 03.417 NUT; BRKT,AIR DUCT
4JH1 ENG(RJX) 16.800 M6 FLANGE 		1-09984-018-0 02 1 0106- ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE 		1-09984-018-0 02 1 0106- ●
381 03.417 NUT; BRKT,AIR DUCT
16.570 M8 POP NUT 		8-94279-538-0 03 1 9904- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 9812-9905 ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 9906-0105 ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 9906-0105 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1 ENG(RJX) 03.417 (A) 		8-97080-149-0 01 1 0106- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 0106- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 9812-9905 ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 9906-0105 ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 9906-0105 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1 ENG(RJX) 03.417 (B) 		8-97081-886-0 02 1 0106- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 0106- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
CHARGE AIR COOLER<6PL> 03.417 (C) 		8-97080-149-0 03 1 9904-0105 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
TURBOCHARGER(K51) 03.417 (C) 		8-97080-149-0 03 1 0106- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) TURBOCHARGER(K51) 03.417 (C) 		8-97080-149-0 03 1 0106- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 07 1 9906-0105 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 06 1 0106- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 06 1 9812-0105 ● ● ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JH1 ENG(RJX) M8 FLANGE 		8-94279-517-0 07 1 0106- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 03 1 9904-0105 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
TURBOCHARGER(K51) M8 FLANGE 		8-94279-517-0 03 1 0106- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) TURBOCHARGER(K51) M8 FLANGE 		8-94279-517-0 03 1 0106- ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 9812-9905 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 9906-0103 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94273-605-0 02 1 9906-0103 ●
399 03.417 CAP; BRKT,AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB> 		8-94273-605-0 02 1 0104-0104 ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,CHARGE AIRCOOLER<6PL> 		8-94273-605-0 02 1 0104-0104 ●
399 03.417 CAP; BRKT,AIR DUCT
EXC. INTERIOR DELUXE<RBB>,CHARGE AIRCOOLER<6PL> 		8-94273-605-0 02 1 0104-0104 ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 0105-0105 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94273-605-0 02 1 0105-0105 ●
399 03.417 CAP; BRKT,AIR DUCT
4JH1 ENG(RJX) 		8-94273-605-0 02 1 0106- ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 0106- ●

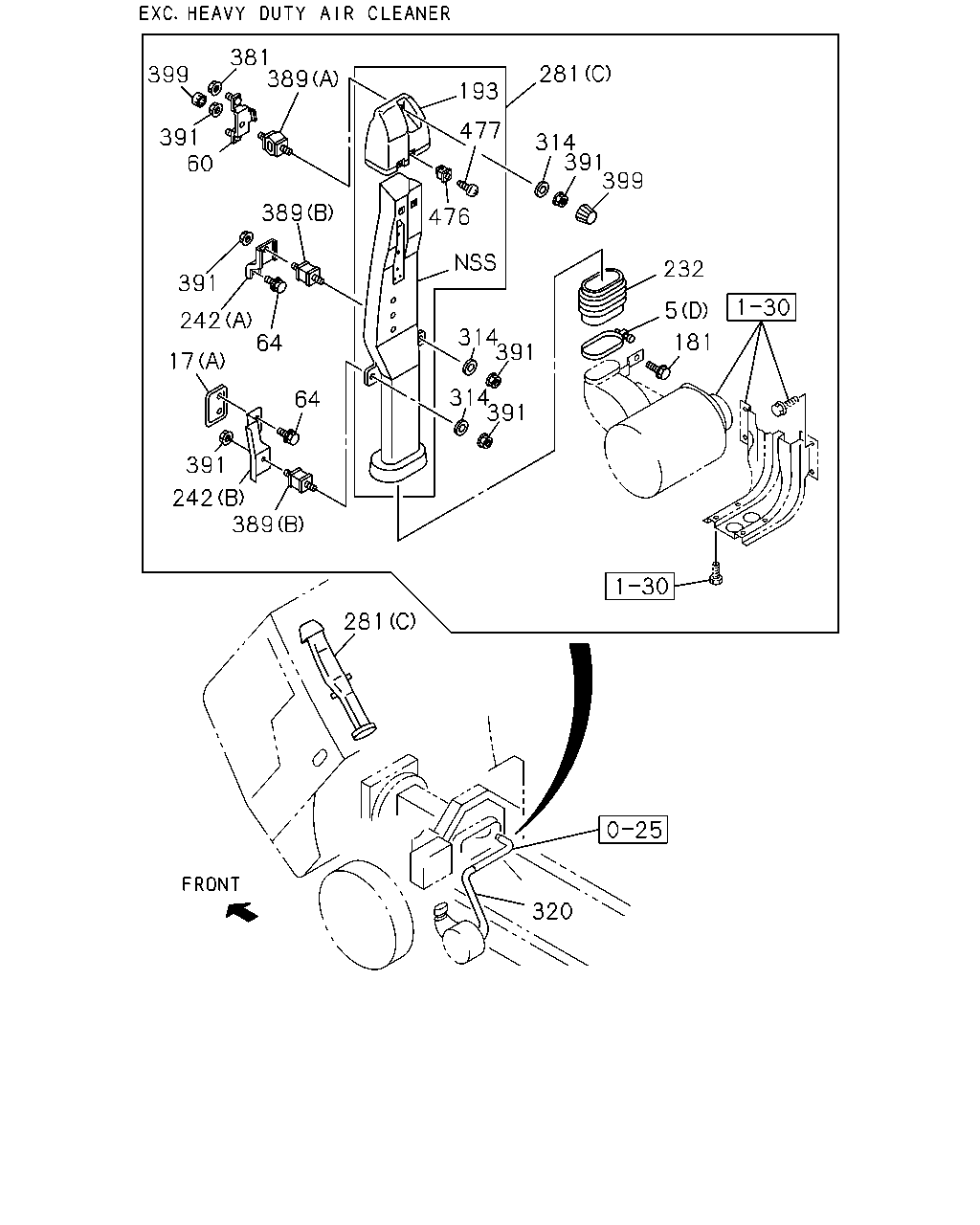

çizim 51336
381 389 281 399 193 477 391 60 314 391 399 389 476 232 391 5 242 64 314 391 181 17 314 391 64 391 242 389 281 320
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 03.407 CLIP; AIR DUCT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E) ID=112 		9-09915-074-1 01 1 9906-0105 ●
5 03.407 CLIP; AIR DUCT
4JH1 ENG(RJX) (E) ID=112 		9-09915-074-1 01 1 0106- ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=87 		8-97087-432-0 01 1 9812-9903 ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (B) ID=82 		9-09915-511-1 01 1 9904-0105 ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=67 		9-09915-069-1 01 1 9903-0105 ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79 		1-09707-136-0 01 1 9812-0105 ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79 		1-09707-136-0 01 1 0106- ● ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6 		9-09915-502-1 01 1 9812-0105 ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6 		9-09915-502-1 01 1 0106- ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-699-2 01 1 9812-9905 ● ● ● ● ●
17 03.403 GASKET; AIR DUCT
(A) 		8-97853-699-2 01 1 9812-9905 ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-699-2 01 1 9906-0105 ● ● ● ● ●
17 03.403 GASKET; AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97853-699-2 01 1 9906-0105 ●
17 03.403 GASKET; AIR DUCT
(A) 		8-97853-699-2 01 1 9906-0105 ●
17 03.403 GASKET; AIR DUCT
4JH1 ENG(RJX) (A) 		8-97853-699-2 01 1 0106- ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-699-2 01 1 0106- ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) (A) 		8-97853-699-2 01 1 0106- ● ●
17 03.403 GASKET; AIR DUCT
(B) 		8-97892-723-0 02 1 9904- ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97856-956-0 01 1 9906-0105 ●
60 03.417 BRACKET; AIR DUCT,UPR
4JH1 ENG(RJX) 		8-97856-956-0 01 1 0106- ●
60 03.417 BRACKET; AIR DUCT,UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97856-957-0 01 1 9812-0105 ● ● ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97856-957-0 01 1 0106- ●
60 03.417 BRACKET; AIR DUCT,UPR 8-97892-525-4 01 1 9904- ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9812-9905 ● ● ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9906-0105 ● ● ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9906-0105 ●
64 03.417 BOLT; BRKT,AIR DUCT
4JH1 ENG(RJX) 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0106- ●
64 03.417 BOLT; BRKT,AIR DUCT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0106- ●
181 03.407 BOLT; AIR DUCT TO RAD
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ● ● ● ● ● ●
181 03.407 BOLT; AIR DUCT TO RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
193 03.417 COVER; DUCT,AIR INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97044-953-0 01 1 9812-9903 ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 		8-97044-953-0 01 1 9904-0105 ● ● ● ● ●
193 03.417 COVER; DUCT,AIR INT
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97044-953-0 01 1 0106- ●
193 03.417 COVER; DUCT,AIR INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97120-078-1 01 1 9904-0105 ● ● ● ● ●
232 03.417 HOSE; CONN
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-94456-844-0 01 1 9906-0105 ●
232 03.417 HOSE; CONN
4JH1 ENG(RJX) 		8-94456-844-0 01 1 0106- ●
232 03.417 HOSE; CONN
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 		8-97096-429-1 01 1 9812-0105 ●
232 03.417 HOSE; CONN
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97109-423-0 01 1 9812-0105 ● ● ● ● ●
232 03.417 HOSE; CONN
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97109-423-0 01 1 0106- ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C) 		8-97856-932-0 01 1 9906-0105 ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (C) 		8-97856-932-0 01 1 0106- ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (D) 		8-97856-933-0 01 1 9906-0105 ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (D) 		8-97856-933-0 01 1 0106- ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (E) 		8-97856-958-0 01 1 9906-0105 ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (E) 		8-97856-958-0 01 1 0106- ●
242 03.417 BRACKET; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-633-1 01 1 9812-0105 ● ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-633-1 01 1 0106- ●
242 03.417 BRACKET; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97857-844-0 01 1 9812-0105 ● ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97857-844-0 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E) 		8-94313-520-2 01 1 9906-0105 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) 		8-97125-174-0 01 1 9812-9903 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (C) 		8-97125-174-0 01 1 9904-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) 		8-97125-174-1 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (G) 		8-97180-995-0 01 1 9812-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (G) 		8-97180-995-0 01 1 0106- ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (D) 		8-97120-084-0 01 1 9904-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JH1 ENG(RJX) (F) 		8-97300-255-0 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
CHARGE AIR COOLER<6PL> (A) 		8-97213-911-2 01 1 9904-0105 ●
281 03.417 DUCT; AIR,VERTICAL INT
TURBOCHARGER(K51) (A) 		8-97213-911-2 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) (A) 		8-97213-911-2 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
CHARGE AIR COOLER<6PL> (B) 		8-97213-912-2 01 1 9904-0105 ●
281 03.417 DUCT; AIR,VERTICAL INT
TURBOCHARGER(K51) (B) 		8-97213-912-2 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) (B) 		8-97213-912-2 01 1 0106- ●
314 03.417 WASHER; PL,AIR INT DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 9812-0105 ● ● ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 0106- ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9812-9901 ●
320 03.417 HOSE; CONN,ACL
EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9812-9901 ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9902-0105 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 0106- ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97209-707-0 01 1 9812-0105 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97209-707-0 01 1 0106- ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
CHARGE AIR COOLER<6PL> 		8-97211-578-0 01 1 9904-0105 ●
320 03.417 HOSE; CONN,ACL
TURBOCHARGER(K51) 		8-97211-578-0 01 1 0106- ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) 		8-97211-578-0 01 1 0106- ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9812-9905 ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9906-0105 ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9906-0105 ●
381 03.417 NUT; BRKT,AIR DUCT
4JH1 ENG(RJX) 16.800 M6 FLANGE 		1-09984-018-0 02 1 0106- ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE 		1-09984-018-0 02 1 0106- ●
381 03.417 NUT; BRKT,AIR DUCT
16.570 M8 POP NUT 		8-94279-538-0 03 1 9904- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 9812-9905 ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 9906-0105 ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 9906-0105 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1 ENG(RJX) 03.417 (A) 		8-97080-149-0 01 1 0106- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 0106- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 9812-9905 ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 9906-0105 ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 9906-0105 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1 ENG(RJX) 03.417 (B) 		8-97081-886-0 02 1 0106- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 0106- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
CHARGE AIR COOLER<6PL> 03.417 (C) 		8-97080-149-0 03 1 9904-0105 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
TURBOCHARGER(K51) 03.417 (C) 		8-97080-149-0 03 1 0106- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) TURBOCHARGER(K51) 03.417 (C) 		8-97080-149-0 03 1 0106- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 07 1 9906-0105 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 06 1 0106- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 06 1 9812-0105 ● ● ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JH1 ENG(RJX) M8 FLANGE 		8-94279-517-0 07 1 0106- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 03 1 9904-0105 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
TURBOCHARGER(K51) M8 FLANGE 		8-94279-517-0 03 1 0106- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) TURBOCHARGER(K51) M8 FLANGE 		8-94279-517-0 03 1 0106- ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 9812-9905 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 9906-0103 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94273-605-0 02 1 9906-0103 ●
399 03.417 CAP; BRKT,AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB> 		8-94273-605-0 02 1 0104-0104 ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,CHARGE AIRCOOLER<6PL> 		8-94273-605-0 02 1 0104-0104 ●
399 03.417 CAP; BRKT,AIR DUCT
EXC. INTERIOR DELUXE<RBB>,CHARGE AIRCOOLER<6PL> 		8-94273-605-0 02 1 0104-0104 ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 0105-0105 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94273-605-0 02 1 0105-0105 ●
399 03.417 CAP; BRKT,AIR DUCT
4JH1 ENG(RJX) 		8-94273-605-0 02 1 0106- ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 0106- ●
476 03.417 GROMMET; SCREW,COVER
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.445 		1-09983-081-0 04 1 9812-9903 ● ● ● ● ●
476 03.417 GROMMET; SCREW,COVER
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 16.445 		1-09983-081-0 04 1 9904-0105 ● ● ● ● ●
476 03.417 GROMMET; SCREW,COVER
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.445 		1-09983-081-0 04 1 0106- ●
477 03.417 SCREW; COVER
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 9812-9903 ● ● ● ● ●
477 03.417 SCREW; COVER
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 9904-0105 ● ● ● ● ●
477 03.417 SCREW; COVER
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 0106- ●

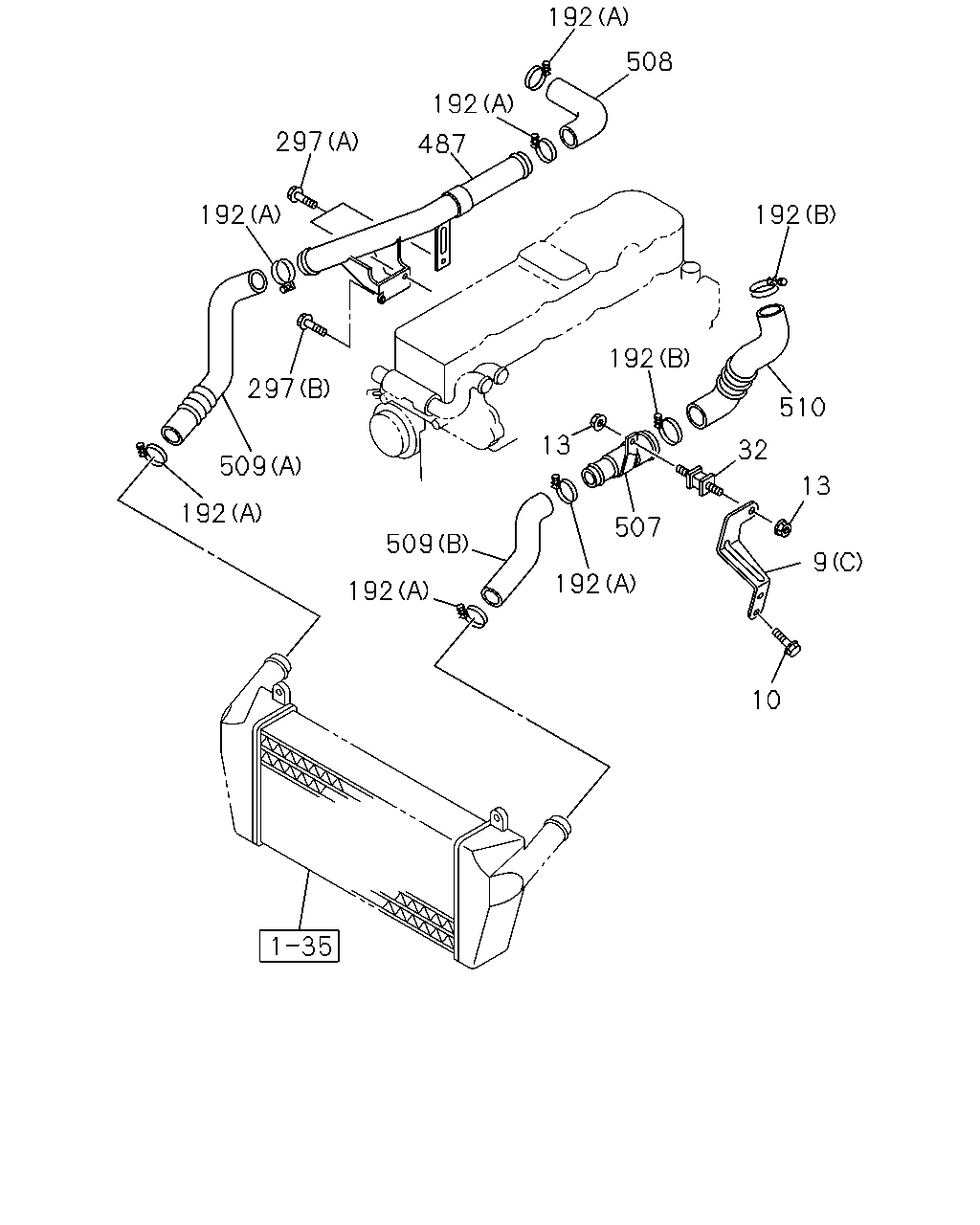

çizim 51370
192 508 192 297 487 192 192 192 297 510 13 32 509 13 192 507 509 9 192 192 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
9 03.417 BRACKET; INT PIPE
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) 		8-97226-133-0 01 1 9906-0105 ●
9 03.417 BRACKET; INT PIPE
4JH1 ENG(RJX) (A) 		8-97312-473-1 01 1 0106- ●
9 03.417 BRACKET; INT PIPE
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (D) 		8-97072-966-0 01 1 9812-0105 ●
9 03.417 BRACKET; INT PIPE
4JH1 ENG(RJX) (B) 		8-97300-773-1 01 1 0106- ●
10 03.417 BOLT; BRKT FIX
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9906-0105 ●
10 03.417 BOLT; BRKT FIX
4JH1 ENG(RJX) 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0106- ●
10 03.417 BOLT; BRKT FIX
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9812-0105 ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9812-0105 ● ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9812-0105 ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 0106- ● ● ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9904-0105 ●
10 03.417 BOLT; BRKT FIX
TURBOCHARGER(K51) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0106- ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0106- ●
10 03.417 BOLT; BRKT FIX
CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 9904-0105 ●
10 03.417 BOLT; BRKT FIX
TURBOCHARGER(K51) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0106- ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0106- ●
13 03.417 NUT; BRKT FIX
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9906-0105 ●
13 03.417 NUT; BRKT FIX
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106- ●
13 03.417 NUT; BRKT FIX
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-0105 ● ● ● ● ● ●
13 03.417 NUT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ● ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.405 		8-94158-155-1 01 1 9906-0105 ●
32 03.417 RUBBER; AIR DUCT MTG
4JH1 ENG(RJX) 03.405 		8-94158-155-1 01 1 0106- ●
192 03.407 CLIP; HOSE
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79 		8-94126-771-0 02 1 9906-0105 ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0106- ●
192 03.407 CLIP; HOSE
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 01.166 (A) ID=44-60 		8-94175-940-0 07 1 9906-0105 ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) (A) ID=50-69 		1-09707-135-0 06 1 0106- ●
192 03.407 CLIP; HOSE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) ID=87 		8-97087-432-0 01 1 9812-0105 ● ● ● ● ●
192 03.407 CLIP; HOSE
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) ID=87 		8-97087-432-0 01 1 0106- ●
297 03.417 BOLT; DUCT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 9906-0105 ●
297 03.417 BOLT; DUCT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.640 (B) M10X12 FLANGE 		0-28081-012-0 01 1 9906-0105 ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.334 (C) M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9812-0105 ●
297 03.417 BOLT; DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 16.550 (D) M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9812-0105 ●
487 03.417 PIPE; TURBO TO CHARGE AIR COOLER
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97216-223-0 01 1 9906-0105 ●
487 03.417 PIPE; TURBO TO CHARGE AIR COOLER
4JH1 ENG(RJX) 		8-97312-537-0 01 1 0106- ●
507 03.417 PIPE; CHARGE AIR COOLER TO INL M
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97228-660-0 01 1 9906-0105 ●
507 03.417 PIPE; CHARGE AIR COOLER TO INL M
4JH1 ENG(RJX) 		8-97240-053-0 01 1 0106- ●
508 03.417 HOSE; AIR,TURBO TO PIPE
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97217-911-1 01 1 9906-0105 ●
508 03.417 HOSE; AIR,TURBO TO PIPE
4JH1 ENG(RJX) 		8-97258-837-3 01 1 0106- ●
509 03.417 HOSE; AIR,PIPE TO CHARGE AIR COO
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A) 		8-97221-914-2 01 1 9906-0105 ●
509 03.417 HOSE; AIR,PIPE TO CHARGE AIR COO
4JH1 ENG(RJX) (C) 		8-97240-044-3 01 1 0106- ●
509 03.417 HOSE; AIR,PIPE TO CHARGE AIR COO
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B) 		8-97228-657-0 01 1 9906-0105 ●
509 03.417 HOSE; AIR,PIPE TO CHARGE AIR COO
4JH1 ENG(RJX) (D) 		8-97300-859-2 01 1 0106- ●
510 03.417 HOSE; AIR,PIPE TO INL MANIF
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97228-658-0 01 1 9906-0105 ●
510 03.417 HOSE; AIR,PIPE TO INL MANIF
4JH1 ENG(RJX) 		8-97300-858-2 01 1 0106- ●

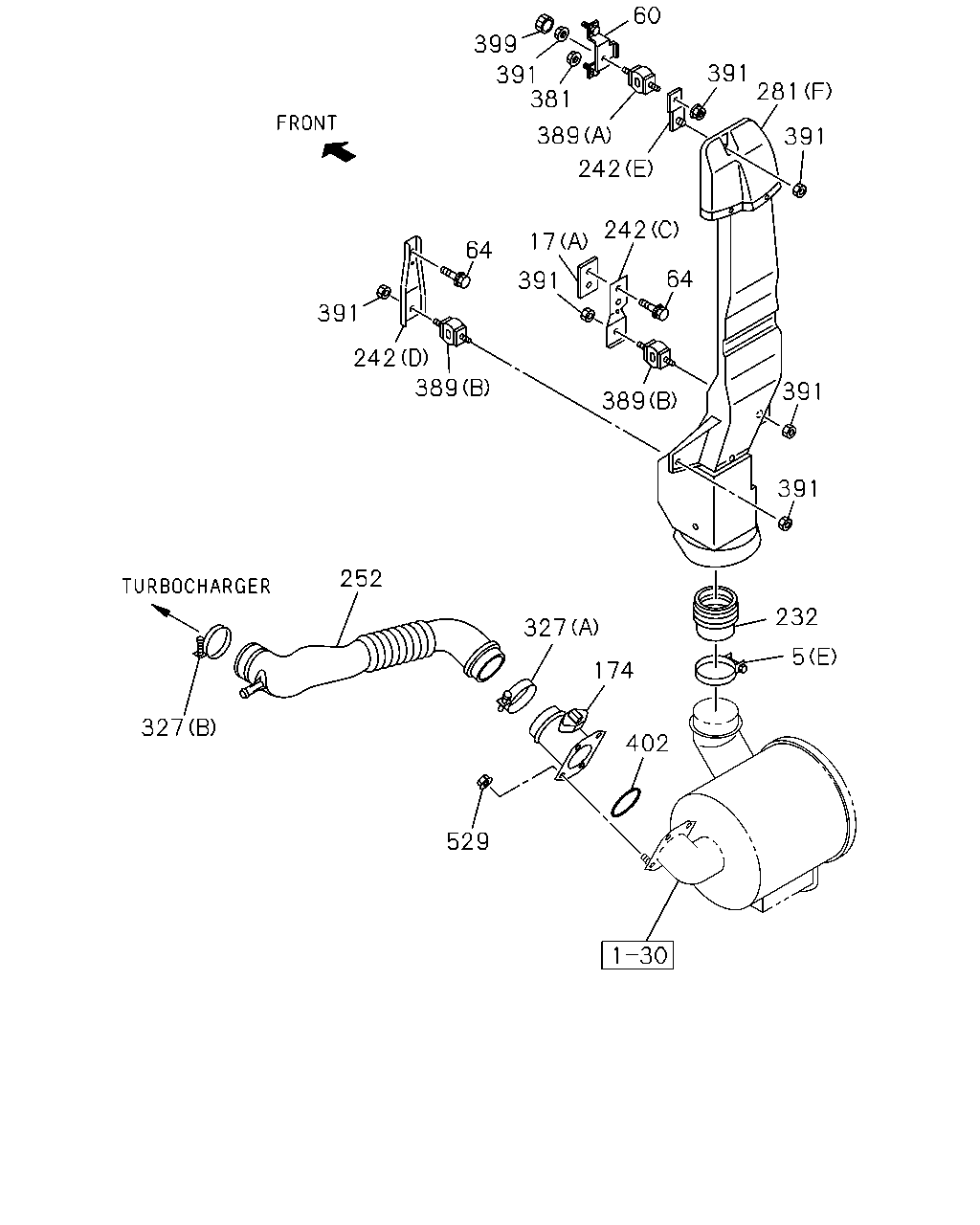

çizim 51804
60 399 391 391 381 281 389 391 242 242 17 64 64 391 391 242 389 391 389 391 252 232 327 5 174 327 402 529
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 03.407 CLIP; AIR DUCT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E) ID=112 		9-09915-074-1 01 1 9906-0105 ●
5 03.407 CLIP; AIR DUCT
4JH1 ENG(RJX) (E) ID=112 		9-09915-074-1 01 1 0106- ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=87 		8-97087-432-0 01 1 9812-9903 ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (B) ID=82 		9-09915-511-1 01 1 9904-0105 ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=67 		9-09915-069-1 01 1 9903-0105 ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79 		1-09707-136-0 01 1 9812-0105 ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79 		1-09707-136-0 01 1 0106- ● ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6 		9-09915-502-1 01 1 9812-0105 ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6 		9-09915-502-1 01 1 0106- ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-699-2 01 1 9812-9905 ● ● ● ● ●
17 03.403 GASKET; AIR DUCT
(A) 		8-97853-699-2 01 1 9812-9905 ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-699-2 01 1 9906-0105 ● ● ● ● ●
17 03.403 GASKET; AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97853-699-2 01 1 9906-0105 ●
17 03.403 GASKET; AIR DUCT
(A) 		8-97853-699-2 01 1 9906-0105 ●
17 03.403 GASKET; AIR DUCT
4JH1 ENG(RJX) (A) 		8-97853-699-2 01 1 0106- ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-699-2 01 1 0106- ●
17 03.403 GASKET; AIR DUCT
4HE1 ENG(RLY) (A) 		8-97853-699-2 01 1 0106- ● ●
17 03.403 GASKET; AIR DUCT
(B) 		8-97892-723-0 02 1 9904- ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97856-956-0 01 1 9906-0105 ●
60 03.417 BRACKET; AIR DUCT,UPR
4JH1 ENG(RJX) 		8-97856-956-0 01 1 0106- ●
60 03.417 BRACKET; AIR DUCT,UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97856-957-0 01 1 9812-0105 ● ● ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97856-957-0 01 1 0106- ●
60 03.417 BRACKET; AIR DUCT,UPR 8-97892-525-4 01 1 9904- ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9812-9905 ● ● ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9906-0105 ● ● ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9906-0105 ●
64 03.417 BOLT; BRKT,AIR DUCT
4JH1 ENG(RJX) 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0106- ●
64 03.417 BOLT; BRKT,AIR DUCT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0106- ●
174 03.682 SENSOR; AIR FLOW CONT
4JH1 ENG(RJX) 		8-97240-057-0 01 1 0106- ●
232 03.417 HOSE; CONN
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-94456-844-0 01 1 9906-0105 ●
232 03.417 HOSE; CONN
4JH1 ENG(RJX) 		8-94456-844-0 01 1 0106- ●
232 03.417 HOSE; CONN
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 		8-97096-429-1 01 1 9812-0105 ●
232 03.417 HOSE; CONN
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97109-423-0 01 1 9812-0105 ● ● ● ● ●
232 03.417 HOSE; CONN
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97109-423-0 01 1 0106- ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C) 		8-97856-932-0 01 1 9906-0105 ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (C) 		8-97856-932-0 01 1 0106- ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (D) 		8-97856-933-0 01 1 9906-0105 ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (D) 		8-97856-933-0 01 1 0106- ●
242 03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (E) 		8-97856-958-0 01 1 9906-0105 ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (E) 		8-97856-958-0 01 1 0106- ●
242 03.417 BRACKET; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-633-1 01 1 9812-0105 ● ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97853-633-1 01 1 0106- ●
242 03.417 BRACKET; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97857-844-0 01 1 9812-0105 ● ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97857-844-0 01 1 0106- ●
252 03.417 DUCT; AIR INT
4JH1 ENG(RJX) 		8-97312-541-1 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E) 		8-94313-520-2 01 1 9906-0105 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) 		8-97125-174-0 01 1 9812-9903 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (C) 		8-97125-174-0 01 1 9904-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) 		8-97125-174-1 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (G) 		8-97180-995-0 01 1 9812-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (G) 		8-97180-995-0 01 1 0106- ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (D) 		8-97120-084-0 01 1 9904-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JH1 ENG(RJX) (F) 		8-97300-255-0 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
CHARGE AIR COOLER<6PL> (A) 		8-97213-911-2 01 1 9904-0105 ●
281 03.417 DUCT; AIR,VERTICAL INT
TURBOCHARGER(K51) (A) 		8-97213-911-2 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) (A) 		8-97213-911-2 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
CHARGE AIR COOLER<6PL> (B) 		8-97213-912-2 01 1 9904-0105 ●
281 03.417 DUCT; AIR,VERTICAL INT
TURBOCHARGER(K51) (B) 		8-97213-912-2 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) (B) 		8-97213-912-2 01 1 0106- ●
327 03.417 CLIP; AIR INT
4JH1 ENG(RJX) 03.407 (A) ID=77-95 		1-09707-114-0 01 1 0106- ●
327 03.417 CLIP; AIR INT
4JH1 ENG(RJX) (B) ID=58-79 		8-94126-771-0 01 1 0106- ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9812-9905 ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9906-0105 ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9906-0105 ●
381 03.417 NUT; BRKT,AIR DUCT
4JH1 ENG(RJX) 16.800 M6 FLANGE 		1-09984-018-0 02 1 0106- ●
381 03.417 NUT; BRKT,AIR DUCT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE 		1-09984-018-0 02 1 0106- ●
381 03.417 NUT; BRKT,AIR DUCT
16.570 M8 POP NUT 		8-94279-538-0 03 1 9904- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 9812-9905 ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 9906-0105 ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 9906-0105 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1 ENG(RJX) 03.417 (A) 		8-97080-149-0 01 1 0106- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (A) 		8-97080-149-0 01 1 0106- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 9812-9905 ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 9906-0105 ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 9906-0105 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1 ENG(RJX) 03.417 (B) 		8-97081-886-0 02 1 0106- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (B) 		8-97081-886-0 02 1 0106- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
CHARGE AIR COOLER<6PL> 03.417 (C) 		8-97080-149-0 03 1 9904-0105 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
TURBOCHARGER(K51) 03.417 (C) 		8-97080-149-0 03 1 0106- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HE1 ENG(RLY) TURBOCHARGER(K51) 03.417 (C) 		8-97080-149-0 03 1 0106- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 07 1 9906-0105 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 06 1 0106- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 06 1 9812-0105 ● ● ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JH1 ENG(RJX) M8 FLANGE 		8-94279-517-0 07 1 0106- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
CHARGE AIR COOLER<6PL> M8 FLANGE 		8-94279-517-0 03 1 9904-0105 ●
391 03.417 NUT; SUPPORT RUBBER,UPR
TURBOCHARGER(K51) M8 FLANGE 		8-94279-517-0 03 1 0106- ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4HE1 ENG(RLY) TURBOCHARGER(K51) M8 FLANGE 		8-94279-517-0 03 1 0106- ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 9812-9905 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 9906-0103 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94273-605-0 02 1 9906-0103 ●
399 03.417 CAP; BRKT,AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB> 		8-94273-605-0 02 1 0104-0104 ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,CHARGE AIRCOOLER<6PL> 		8-94273-605-0 02 1 0104-0104 ●
399 03.417 CAP; BRKT,AIR DUCT
EXC. INTERIOR DELUXE<RBB>,CHARGE AIRCOOLER<6PL> 		8-94273-605-0 02 1 0104-0104 ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 0105-0105 ● ● ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94273-605-0 02 1 0105-0105 ●
399 03.417 CAP; BRKT,AIR DUCT
4JH1 ENG(RJX) 		8-94273-605-0 02 1 0106- ●
399 03.417 CAP; BRKT,AIR DUCT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-94273-605-0 02 1 0106- ●
402 03.417 GASKET; RUBBER
4JH1 ENG(RJX) 		8-97240-056-0 01 1 0106- ●
529 03.425 NUT; SENSOR,AIRFLOW
4JH1 ENG(RJX) 01.062 M6 FLANGE 		0-91150-206-0 04 1 0106-0110 ●
529 03.425 NUT; SENSOR,AIRFLOW
4JH1 ENG(RJX) 04.594 M6 FLANGE 		0-91150-106-0 04 1 0111- ●

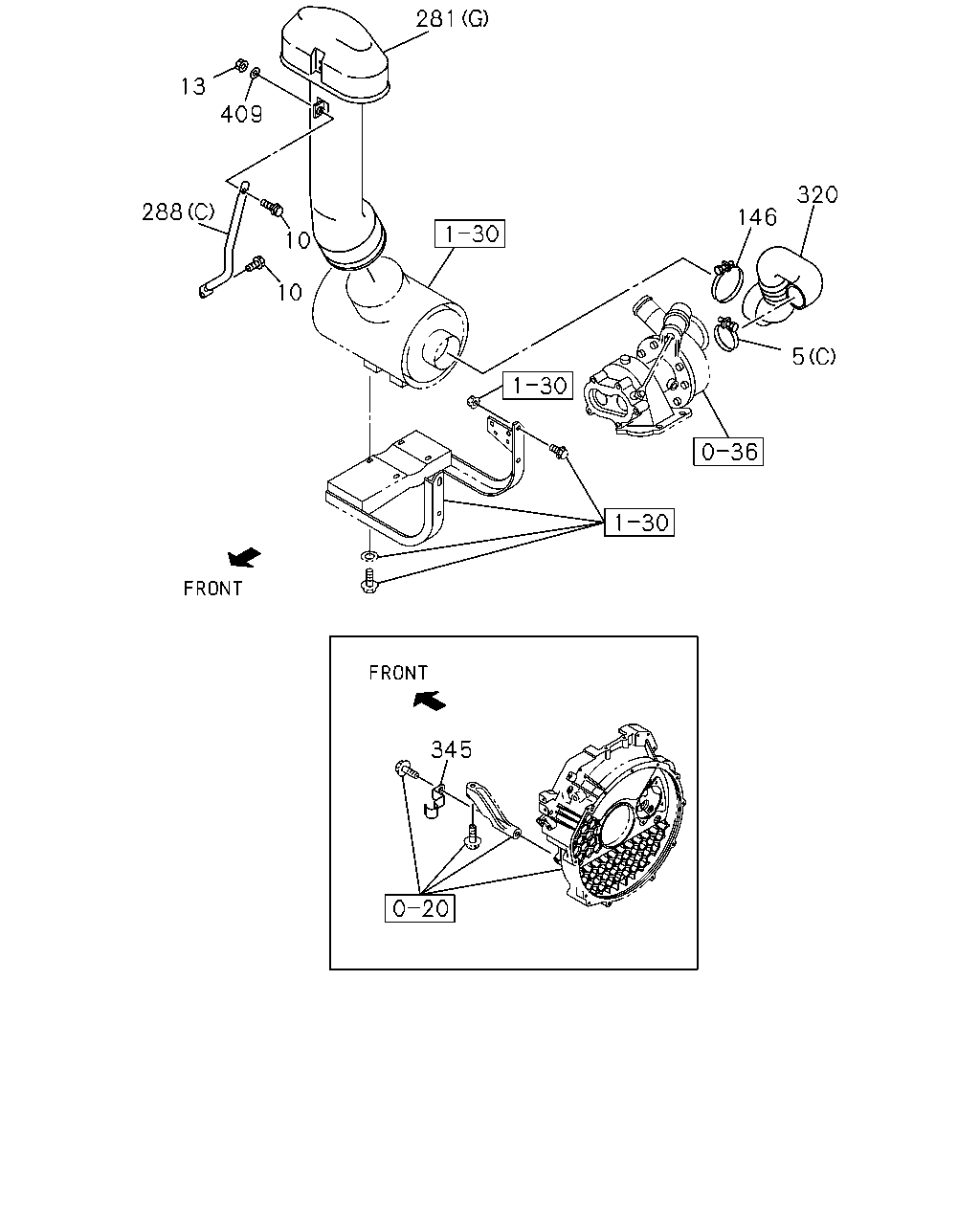

çizim 51806
281 13 409 320 288 146 10 10 5 345
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 03.407 CLIP; AIR DUCT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E) ID=112 		9-09915-074-1 01 1 9906-0105 ●
5 03.407 CLIP; AIR DUCT
4JH1 ENG(RJX) (E) ID=112 		9-09915-074-1 01 1 0106- ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=87 		8-97087-432-0 01 1 9812-9903 ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (B) ID=82 		9-09915-511-1 01 1 9904-0105 ●
5 03.407 CLIP; AIR DUCT
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A) ID=67 		9-09915-069-1 01 1 9903-0105 ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79 		1-09707-136-0 01 1 9812-0105 ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79 		1-09707-136-0 01 1 0106- ● ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6 		9-09915-502-1 01 1 9812-0105 ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6 		9-09915-502-1 01 1 0106- ●
10 03.417 BOLT; BRKT FIX
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9906-0105 ●
10 03.417 BOLT; BRKT FIX
4JH1 ENG(RJX) 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0106- ●
10 03.417 BOLT; BRKT FIX
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9812-0105 ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9812-0105 ● ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9812-0105 ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 0106- ● ● ● ● ● ● ●
10 03.417 BOLT; BRKT FIX
CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9904-0105 ●
10 03.417 BOLT; BRKT FIX
TURBOCHARGER(K51) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0106- ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0106- ●
10 03.417 BOLT; BRKT FIX
CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 9904-0105 ●
10 03.417 BOLT; BRKT FIX
TURBOCHARGER(K51) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0106- ●
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0106- ●
13 03.417 NUT; BRKT FIX
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9906-0105 ●
13 03.417 NUT; BRKT FIX
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106- ●
13 03.417 NUT; BRKT FIX
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-0105 ● ● ● ● ● ●
13 03.417 NUT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112 		9-09915-074-1 01 1 9812-0105 ● ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112 		9-09915-074-1 01 1 0106- ● ● ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 9812-0105 ● ● ● ● ●
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117 		9-09915-075-1 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E) 		8-94313-520-2 01 1 9906-0105 ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) 		8-97125-174-0 01 1 9812-9903 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (C) 		8-97125-174-0 01 1 9904-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (C) 		8-97125-174-1 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (G) 		8-97180-995-0 01 1 9812-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (G) 		8-97180-995-0 01 1 0106- ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (D) 		8-97120-084-0 01 1 9904-0105 ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JH1 ENG(RJX) (F) 		8-97300-255-0 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
CHARGE AIR COOLER<6PL> (A) 		8-97213-911-2 01 1 9904-0105 ●
281 03.417 DUCT; AIR,VERTICAL INT
TURBOCHARGER(K51) (A) 		8-97213-911-2 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) (A) 		8-97213-911-2 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
CHARGE AIR COOLER<6PL> (B) 		8-97213-912-2 01 1 9904-0105 ●
281 03.417 DUCT; AIR,VERTICAL INT
TURBOCHARGER(K51) (B) 		8-97213-912-2 01 1 0106- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) (B) 		8-97213-912-2 01 1 0106- ●
288 03.417 BRACKET; DUCT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) 		8-97183-041-2 01 1 9812- ● ● ● ● ●
288 03.417 BRACKET; DUCT
CHARGE AIR COOLER<6PL> (A) 		8-97214-827-1 01 1 9904-0105 ●
288 03.417 BRACKET; DUCT
TURBOCHARGER(K51) (A) 		8-97214-827-1 01 1 0106- ●
288 03.417 BRACKET; DUCT
4HE1 ENG(RLY) TURBOCHARGER(K51) (A) 		8-97214-827-1 01 1 0106- ●
288 03.417 BRACKET; DUCT
CHARGE AIR COOLER<6PL> 03.405 (B) 		8-97214-828-0 01 1 9904-0105 ●
288 03.417 BRACKET; DUCT
TURBOCHARGER(K51) 03.405 (B) 		8-97214-828-0 01 1 0106- ●
288 03.417 BRACKET; DUCT
4HE1 ENG(RLY) TURBOCHARGER(K51) 03.405 (B) 		8-97214-828-0 01 1 0106- ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9812-9901 ●
320 03.417 HOSE; CONN,ACL
EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9812-9901 ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 9902-0105 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97104-782-2 01 1 0106- ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97209-707-0 01 1 9812-0105 ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97209-707-0 01 1 0106- ● ● ● ● ●
320 03.417 HOSE; CONN,ACL
CHARGE AIR COOLER<6PL> 		8-97211-578-0 01 1 9904-0105 ●
320 03.417 HOSE; CONN,ACL
TURBOCHARGER(K51) 		8-97211-578-0 01 1 0106- ●
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) 		8-97211-578-0 01 1 0106- ●
345 03.417 CLIP; PCV HOSE
4HE1 ENG(RLY) 		8-97066-710-1 01 1 9812- ● ● ● ● ● ● ●
409 03.417 WASHER; PL,BRKT
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 9812-0105 ● ● ● ● ● ●
409 03.417 WASHER; PL,BRKT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 0106- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
