Sayfa 1-30 - Isuzu EPC

1-30 — AIR CLEANER (#18874) — 369 parça

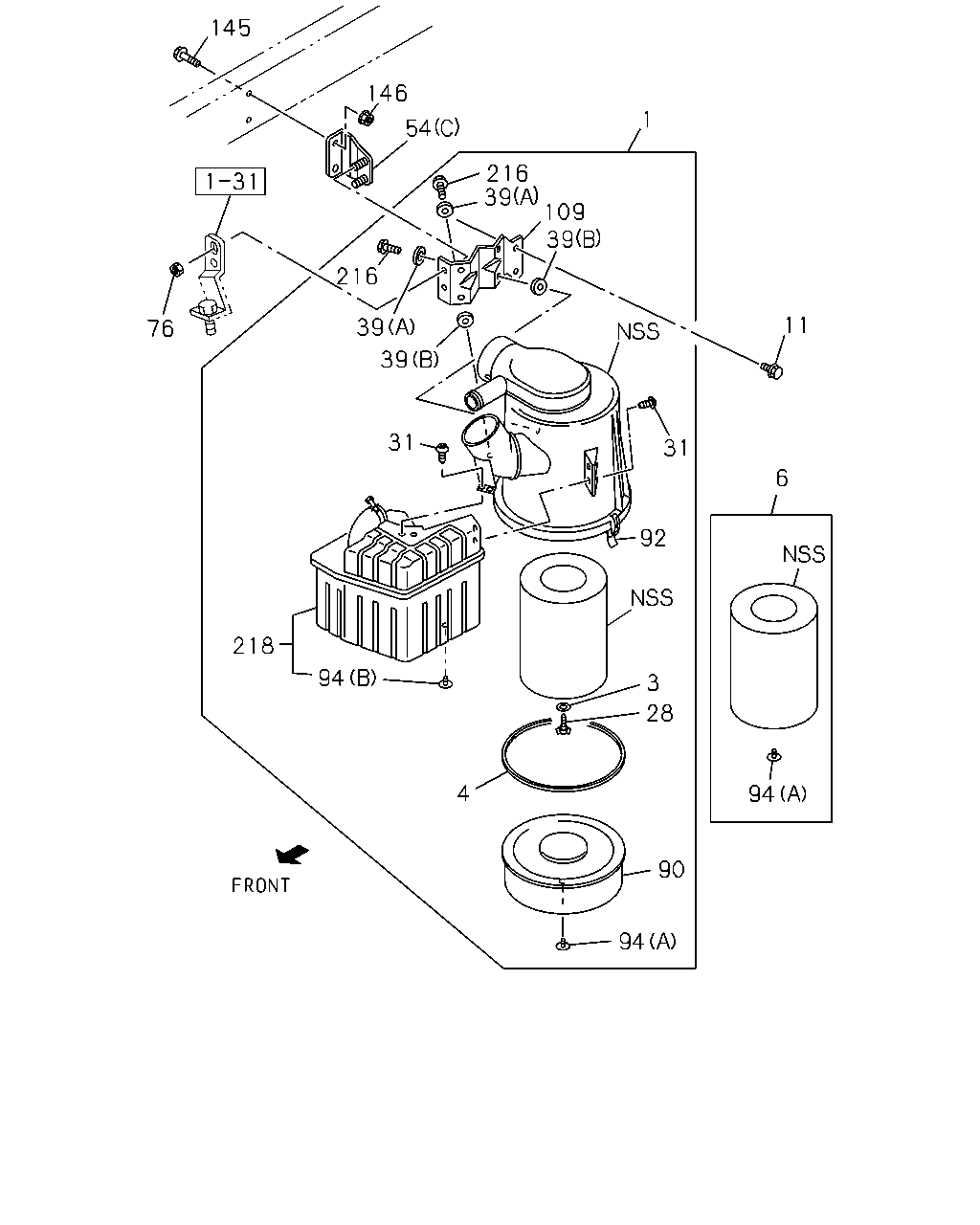

145 146 1 54 216 39 109 39 216 11 39 76 39 31 31 6 92 218 94 3 28 4 94 90 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>	8-97189-262-4	01	1	0201-	●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97062-054-1	01	1	9906-0105	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97090-029-2	01	1	9812-0105	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97140-110-0	01	1	9812-9904	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97228-084-0	01	1	9905-0105	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97228-084-2	01	1	0106-	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97189-166-2	01	1	9812-0105	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97189-166-3	01	1	0106-0112	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL>	8-97189-166-4	01	1	0201-	●
1	03.402 CLEANER ASM; AIR	8-97189-166-4	01	1	0201-		●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY)	8-97189-166-4	01	1	0201-				●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97189-262-2	01	1	9812-0105	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4JH1 ENG(RJX)	8-97240-702-4	01	1	0106-	●
1	03.402 CLEANER ASM; AIR CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97214-829-1	01	1	9904-0105						●
1	03.402 CLEANER ASM; AIR	8-97214-829-3	01	1	0106-						●	●
1	03.402 CLEANER ASM; AIR CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97214-832-1	01	1	9904-0105						●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	1-14219-225-0	02	1	9906-0105	●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX)	1-14219-225-0	02	1	0106-	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	9-14219-279-0	01	1	9812-0105	●
3	03.403 WASHER; SEAL,WING NUT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-94447-990-0	01	1	9812-	●	●	●	●	●	●	●
4	03.403 GASKET; COVER TO BODY 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-94336-334-0	01	1	9906-0105	●
4	03.403 GASKET; COVER TO BODY 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-94361-137-0	01	1	9812-0105	●
4	03.403 GASKET; COVER TO BODY 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97228-092-0	01	1	9905-0105	●	●	●	●	●
4	03.403 GASKET; COVER TO BODY 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97228-092-0	01	1	0106-	●
6	03.410 FILTER; ACL 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-94156-052-0	01	1	9906-0105	●
6	03.410 FILTER; ACL 4JH1 ENG(RJX)	8-94156-052-0	01	1	0106-	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	9812-0105	●
6	03.410 FILTER; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97062-294-0	01	1	9812-0105	●	●	●	●	●
6	03.410 FILTER; ACL 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97062-294-0	01	1	0106-	●
6	03.410 FILTER; ACL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-94430-250-0	01	1	9812-	●	●	●	●	●	●	●
11	03.403 BOLT; ACL 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9812-0105	●
28	03.403 BOLT; WING,ACL 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	9-14217-090-0	01	1	9812-0105	●
31	03.406 SCREW; ACL 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 03.402	8-97100-001-0	04	1	9812-0105	●
39	03.403 RUBBER; MTG,BOLT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97100-002-0	04	1	9812-0105	●
39	03.403 RUBBER; MTG,BOLT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97100-007-0	02	1	9812-0105	●
54	03.405 BRACKET; ACL 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E)	8-94455-317-1	01	1	9906-0105	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97079-949-1	01	1	9812-0105	●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX) (D)	8-97312-719-0	01	1	0106-	●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (A)	8-97096-710-0	01	1	9812-0105	●	●	●	●	●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (A)	8-97096-710-0	01	1	0106-	●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97188-598-0	01	1	9812-0105	●	●	●	●	●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97188-598-0	01	1	0106-	●	●	●	●	●
54	03.405 BRACKET; ACL CHARGE AIR COOLER<6PL> (B)	8-97214-833-3	01	1	9904-0105						●
54	03.405 BRACKET; ACL TURBOCHARGER(K51) (B)	8-97214-833-3	01	1	0106-						●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) (B)	8-97214-833-3	01	1	0106-							●
76	03.405 NUT; BRKT TO ACL 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9812-0105	●
90	03.406 CUP; ACL 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97215-621-0	01	1	9812-0105	●
92	03.405 CLIP; WIRE,ACL 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-94118-230-0	03	1	9812-0105	●
94	03.415 VALVE; VACUATOR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E)	8-94447-157-0	01	1	9906-0105	●
94	03.415 VALVE; VACUATOR 4JH1 ENG(RJX) (E)	8-94447-157-0	01	1	0106-	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94439-205-0	01	1	9812-0105	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	9812-0105	●
94	03.415 VALVE; VACUATOR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (C)	8-97093-694-0	01	1	9812-0105	●	●	●	●	●
94	03.415 VALVE; VACUATOR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (C)	8-97093-694-0	01	1	0106-	●
94	03.415 VALVE; VACUATOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D)	1-14219-075-0	01	1	9812-	●	●	●	●	●	●	●
109	03.405 STAY; ACL 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-175-1	01	1	9812-0105	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> M10X25 FLANGE	0-28681-025-0	02	1	9812-0105	●
145	03.405 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9812-9905	●	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JB1 ENG(RLF),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9906-0105	●	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0106-	●	●	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JH1 ENG(RJX) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0106-	●
145	03.405 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	05	1	9812-0105	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	05	1	0106-	●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	05	1	9812-0105	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	05	1	0106-	●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	04	1	9812-9903	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9812-9903	●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	04	1	9904-9905	●	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9904-9905	●
146	03.405 NUT; BRKT TO FRAME 4JB1 ENG(RLF),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	04	1	9906-0105	●	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9906-0105	●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	04	1	0106-	●	●	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	04	1	0106-	●
216	03.402 BOLT; ACL TO SILENCER 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97126-074-0	04	1	9812-0105	●
218	03.417 RESONATOR; ACL 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97093-071-1	01	1	9812-0105	●

1 2 3 99 6 100 94 145 146 54 50 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>	8-97189-262-4	01	1	0201-	●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97062-054-1	01	1	9906-0105	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97090-029-2	01	1	9812-0105	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97140-110-0	01	1	9812-9904	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97228-084-0	01	1	9905-0105	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97228-084-2	01	1	0106-	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97189-166-2	01	1	9812-0105	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97189-166-3	01	1	0106-0112	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL>	8-97189-166-4	01	1	0201-	●
1	03.402 CLEANER ASM; AIR	8-97189-166-4	01	1	0201-		●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY)	8-97189-166-4	01	1	0201-				●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97189-262-2	01	1	9812-0105	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4JH1 ENG(RJX)	8-97240-702-4	01	1	0106-	●
1	03.402 CLEANER ASM; AIR CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97214-829-1	01	1	9904-0105						●
1	03.402 CLEANER ASM; AIR	8-97214-829-3	01	1	0106-						●	●
1	03.402 CLEANER ASM; AIR CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97214-832-1	01	1	9904-0105						●
2	03.403 NUT; WING,ELEMENT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	1-14217-068-0	02	1	9906-0105	●
2	03.403 NUT; WING,ELEMENT 4JH1 ENG(RJX)	1-14217-068-0	02	1	0106-	●
2	03.403 NUT; WING,ELEMENT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-94447-989-0	01	1	9812-	●	●	●	●	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	1-14219-225-0	02	1	9906-0105	●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX)	1-14219-225-0	02	1	0106-	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	9-14219-279-0	01	1	9812-0105	●
3	03.403 WASHER; SEAL,WING NUT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-94447-990-0	01	1	9812-	●	●	●	●	●	●	●
6	03.410 FILTER; ACL 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-94156-052-0	01	1	9906-0105	●
6	03.410 FILTER; ACL 4JH1 ENG(RJX)	8-94156-052-0	01	1	0106-	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	9812-0105	●
6	03.410 FILTER; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97062-294-0	01	1	9812-0105	●	●	●	●	●
6	03.410 FILTER; ACL 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97062-294-0	01	1	0106-	●
6	03.410 FILTER; ACL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-94430-250-0	01	1	9812-	●	●	●	●	●	●	●
50	03.403 WASHER; PL,ACL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.085 ID=10.5 OD=22	9-09164-610-0	04	1	9812-	●	●	●	●	●	●	●
54	03.405 BRACKET; ACL 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E)	8-94455-317-1	01	1	9906-0105	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97079-949-1	01	1	9812-0105	●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX) (D)	8-97312-719-0	01	1	0106-	●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (A)	8-97096-710-0	01	1	9812-0105	●	●	●	●	●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (A)	8-97096-710-0	01	1	0106-	●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97188-598-0	01	1	9812-0105	●	●	●	●	●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97188-598-0	01	1	0106-	●	●	●	●	●
54	03.405 BRACKET; ACL CHARGE AIR COOLER<6PL> (B)	8-97214-833-3	01	1	9904-0105						●
54	03.405 BRACKET; ACL TURBOCHARGER(K51) (B)	8-97214-833-3	01	1	0106-						●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) (B)	8-97214-833-3	01	1	0106-							●
94	03.415 VALVE; VACUATOR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E)	8-94447-157-0	01	1	9906-0105	●
94	03.415 VALVE; VACUATOR 4JH1 ENG(RJX) (E)	8-94447-157-0	01	1	0106-	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94439-205-0	01	1	9812-0105	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	9812-0105	●
94	03.415 VALVE; VACUATOR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (C)	8-97093-694-0	01	1	9812-0105	●	●	●	●	●
94	03.415 VALVE; VACUATOR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (C)	8-97093-694-0	01	1	0106-	●
94	03.415 VALVE; VACUATOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D)	1-14219-075-0	01	1	9812-	●	●	●	●	●	●	●
99	03.403 CAP; NIPPLE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-94448-008-0	01	1	9812-	●	●	●	●	●	●	●
100	03.417 ADAPTER; ELBOW 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97093-075-0	01	1	9812-0105	●	●	●	●	●
100	03.417 ADAPTER; ELBOW 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97093-075-0	01	1	0106-	●
100	03.417 ADAPTER; ELBOW 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-94430-259-0	01	1	9812-	●	●	●	●	●	●	●
130	03.405 BOLT; BRKT TO ACL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9812-	●	●	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> M10X25 FLANGE	0-28681-025-0	02	1	9812-0105	●
145	03.405 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9812-9905	●	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JB1 ENG(RLF),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9906-0105	●	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0106-	●	●	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JH1 ENG(RJX) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0106-	●
145	03.405 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	05	1	9812-0105	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	05	1	0106-	●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	05	1	9812-0105	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	05	1	0106-	●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	04	1	9812-9903	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9812-9903	●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	04	1	9904-9905	●	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9904-9905	●
146	03.405 NUT; BRKT TO FRAME 4JB1 ENG(RLF),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	04	1	9906-0105	●	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9906-0105	●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	04	1	0106-	●	●	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	04	1	0106-	●

1 145 54 146 44 1 208 100 91 8 4 6 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>	8-97189-262-4	01	1	0201-	●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97062-054-1	01	1	9906-0105	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97090-029-2	01	1	9812-0105	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97140-110-0	01	1	9812-9904	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97228-084-0	01	1	9905-0105	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97228-084-2	01	1	0106-	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97189-166-2	01	1	9812-0105	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97189-166-3	01	1	0106-0112	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL>	8-97189-166-4	01	1	0201-	●
1	03.402 CLEANER ASM; AIR	8-97189-166-4	01	1	0201-		●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY)	8-97189-166-4	01	1	0201-				●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97189-262-2	01	1	9812-0105	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4JH1 ENG(RJX)	8-97240-702-4	01	1	0106-	●
1	03.402 CLEANER ASM; AIR CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97214-829-1	01	1	9904-0105						●
1	03.402 CLEANER ASM; AIR	8-97214-829-3	01	1	0106-						●	●
1	03.402 CLEANER ASM; AIR CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97214-832-1	01	1	9904-0105						●
4	03.403 GASKET; COVER TO BODY 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-94336-334-0	01	1	9906-0105	●
4	03.403 GASKET; COVER TO BODY 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-94361-137-0	01	1	9812-0105	●
4	03.403 GASKET; COVER TO BODY 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97228-092-0	01	1	9905-0105	●	●	●	●	●
4	03.403 GASKET; COVER TO BODY 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97228-092-0	01	1	0106-	●
6	03.410 FILTER; ACL 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-94156-052-0	01	1	9906-0105	●
6	03.410 FILTER; ACL 4JH1 ENG(RJX)	8-94156-052-0	01	1	0106-	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	9812-0105	●
6	03.410 FILTER; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97062-294-0	01	1	9812-0105	●	●	●	●	●
6	03.410 FILTER; ACL 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97062-294-0	01	1	0106-	●
6	03.410 FILTER; ACL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-94430-250-0	01	1	9812-	●	●	●	●	●	●	●
8	03.410 COVER ASM; ACL 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-94336-333-0	01	1	9906-0105	●
8	03.410 COVER ASM; ACL 4JH1 ENG(RJX)	8-97313-386-0	01	1	0106-	●
8	03.410 COVER ASM; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97093-074-0	01	1	9812-9904	●	●	●	●	●
8	03.410 COVER ASM; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97228-090-0	01	1	9905-0105	●	●	●	●	●
8	03.410 COVER ASM; ACL 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97228-090-0	01	1	0106-	●
44	03.403 BOLT; ACL 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9906-0105	●
44	03.403 BOLT; ACL 4JH1 ENG(RJX) 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	0106-	●
44	03.403 BOLT; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	9812-0105	●	●	●	●	●
44	03.403 BOLT; ACL 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0106-	●
54	03.405 BRACKET; ACL 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E)	8-94455-317-1	01	1	9906-0105	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97079-949-1	01	1	9812-0105	●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX) (D)	8-97312-719-0	01	1	0106-	●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (A)	8-97096-710-0	01	1	9812-0105	●	●	●	●	●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (A)	8-97096-710-0	01	1	0106-	●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97188-598-0	01	1	9812-0105	●	●	●	●	●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97188-598-0	01	1	0106-	●	●	●	●	●
54	03.405 BRACKET; ACL CHARGE AIR COOLER<6PL> (B)	8-97214-833-3	01	1	9904-0105						●
54	03.405 BRACKET; ACL TURBOCHARGER(K51) (B)	8-97214-833-3	01	1	0106-						●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) (B)	8-97214-833-3	01	1	0106-							●
91	03.403 CLAMP 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97093-695-1	01	1	9812-0105	●	●	●	●	●
91	03.403 CLAMP 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97093-695-1	01	1	0106-	●
94	03.415 VALVE; VACUATOR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E)	8-94447-157-0	01	1	9906-0105	●
94	03.415 VALVE; VACUATOR 4JH1 ENG(RJX) (E)	8-94447-157-0	01	1	0106-	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94439-205-0	01	1	9812-0105	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	9812-0105	●
94	03.415 VALVE; VACUATOR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (C)	8-97093-694-0	01	1	9812-0105	●	●	●	●	●
94	03.415 VALVE; VACUATOR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (C)	8-97093-694-0	01	1	0106-	●
94	03.415 VALVE; VACUATOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D)	1-14219-075-0	01	1	9812-	●	●	●	●	●	●	●
100	03.417 ADAPTER; ELBOW 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97093-075-0	01	1	9812-0105	●	●	●	●	●
100	03.417 ADAPTER; ELBOW 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97093-075-0	01	1	0106-	●
100	03.417 ADAPTER; ELBOW 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-94430-259-0	01	1	9812-	●	●	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> M10X25 FLANGE	0-28681-025-0	02	1	9812-0105	●
145	03.405 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9812-9905	●	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JB1 ENG(RLF),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9906-0105	●	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0106-	●	●	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JH1 ENG(RJX) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0106-	●
145	03.405 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	05	1	9812-0105	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	05	1	0106-	●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	05	1	9812-0105	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	05	1	0106-	●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	04	1	9812-9903	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9812-9903	●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	04	1	9904-9905	●	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9904-9905	●
146	03.405 NUT; BRKT TO FRAME 4JB1 ENG(RLF),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	04	1	9906-0105	●	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9906-0105	●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	04	1	0106-	●	●	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	04	1	0106-	●
208	03.407 DUCT; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97070-725-0	01	1	9812-9904	●	●	●	●	●
208	03.407 DUCT; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97230-869-0	01	1	9905-0105	●	●	●	●	●
208	03.407 DUCT; ACL 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97230-869-0	01	1	0106-	●

1 2 3 2 3 6 4 8 94 145 54 44 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>	8-97189-262-4	01	1	0201-	●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97062-054-1	01	1	9906-0105	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97090-029-2	01	1	9812-0105	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97140-110-0	01	1	9812-9904	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97228-084-0	01	1	9905-0105	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97228-084-2	01	1	0106-	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97189-166-2	01	1	9812-0105	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97189-166-3	01	1	0106-0112	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL>	8-97189-166-4	01	1	0201-	●
1	03.402 CLEANER ASM; AIR	8-97189-166-4	01	1	0201-		●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY)	8-97189-166-4	01	1	0201-				●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97189-262-2	01	1	9812-0105	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4JH1 ENG(RJX)	8-97240-702-4	01	1	0106-	●
1	03.402 CLEANER ASM; AIR CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97214-829-1	01	1	9904-0105						●
1	03.402 CLEANER ASM; AIR	8-97214-829-3	01	1	0106-						●	●
1	03.402 CLEANER ASM; AIR CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97214-832-1	01	1	9904-0105						●
2	03.403 NUT; WING,ELEMENT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	1-14217-068-0	02	1	9906-0105	●
2	03.403 NUT; WING,ELEMENT 4JH1 ENG(RJX)	1-14217-068-0	02	1	0106-	●
2	03.403 NUT; WING,ELEMENT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-94447-989-0	01	1	9812-	●	●	●	●	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	1-14219-225-0	02	1	9906-0105	●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX)	1-14219-225-0	02	1	0106-	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	9-14219-279-0	01	1	9812-0105	●
3	03.403 WASHER; SEAL,WING NUT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-94447-990-0	01	1	9812-	●	●	●	●	●	●	●
4	03.403 GASKET; COVER TO BODY 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-94336-334-0	01	1	9906-0105	●
4	03.403 GASKET; COVER TO BODY 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-94361-137-0	01	1	9812-0105	●
4	03.403 GASKET; COVER TO BODY 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97228-092-0	01	1	9905-0105	●	●	●	●	●
4	03.403 GASKET; COVER TO BODY 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97228-092-0	01	1	0106-	●
6	03.410 FILTER; ACL 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-94156-052-0	01	1	9906-0105	●
6	03.410 FILTER; ACL 4JH1 ENG(RJX)	8-94156-052-0	01	1	0106-	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	9812-0105	●
6	03.410 FILTER; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97062-294-0	01	1	9812-0105	●	●	●	●	●
6	03.410 FILTER; ACL 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97062-294-0	01	1	0106-	●
6	03.410 FILTER; ACL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-94430-250-0	01	1	9812-	●	●	●	●	●	●	●
8	03.410 COVER ASM; ACL 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-94336-333-0	01	1	9906-0105	●
8	03.410 COVER ASM; ACL 4JH1 ENG(RJX)	8-97313-386-0	01	1	0106-	●
8	03.410 COVER ASM; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97093-074-0	01	1	9812-9904	●	●	●	●	●
8	03.410 COVER ASM; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97228-090-0	01	1	9905-0105	●	●	●	●	●
8	03.410 COVER ASM; ACL 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97228-090-0	01	1	0106-	●
44	03.403 BOLT; ACL 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9906-0105	●
44	03.403 BOLT; ACL 4JH1 ENG(RJX) 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	0106-	●
44	03.403 BOLT; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	9812-0105	●	●	●	●	●
44	03.403 BOLT; ACL 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0106-	●
54	03.405 BRACKET; ACL 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E)	8-94455-317-1	01	1	9906-0105	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97079-949-1	01	1	9812-0105	●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX) (D)	8-97312-719-0	01	1	0106-	●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (A)	8-97096-710-0	01	1	9812-0105	●	●	●	●	●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (A)	8-97096-710-0	01	1	0106-	●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97188-598-0	01	1	9812-0105	●	●	●	●	●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97188-598-0	01	1	0106-	●	●	●	●	●
54	03.405 BRACKET; ACL CHARGE AIR COOLER<6PL> (B)	8-97214-833-3	01	1	9904-0105						●
54	03.405 BRACKET; ACL TURBOCHARGER(K51) (B)	8-97214-833-3	01	1	0106-						●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) (B)	8-97214-833-3	01	1	0106-							●
94	03.415 VALVE; VACUATOR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E)	8-94447-157-0	01	1	9906-0105	●
94	03.415 VALVE; VACUATOR 4JH1 ENG(RJX) (E)	8-94447-157-0	01	1	0106-	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94439-205-0	01	1	9812-0105	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	9812-0105	●
94	03.415 VALVE; VACUATOR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (C)	8-97093-694-0	01	1	9812-0105	●	●	●	●	●
94	03.415 VALVE; VACUATOR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (C)	8-97093-694-0	01	1	0106-	●
94	03.415 VALVE; VACUATOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D)	1-14219-075-0	01	1	9812-	●	●	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> M10X25 FLANGE	0-28681-025-0	02	1	9812-0105	●
145	03.405 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9812-9905	●	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JB1 ENG(RLF),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9906-0105	●	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0106-	●	●	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JH1 ENG(RJX) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0106-	●
145	03.405 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	05	1	9812-0105	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	05	1	0106-	●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	05	1	9812-0105	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	05	1	0106-	●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	04	1	9812-9903	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9812-9903	●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	04	1	9904-9905	●	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9904-9905	●
146	03.405 NUT; BRKT TO FRAME 4JB1 ENG(RLF),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	04	1	9906-0105	●	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9906-0105	●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	04	1	0106-	●	●	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	04	1	0106-	●

1 2 3 2 3 6 8 94 145 54 44 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>	8-97189-262-4	01	1	0201-	●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97062-054-1	01	1	9906-0105	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97090-029-2	01	1	9812-0105	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97140-110-0	01	1	9812-9904	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97228-084-0	01	1	9905-0105	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97228-084-2	01	1	0106-	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97189-166-2	01	1	9812-0105	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97189-166-3	01	1	0106-0112	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL>	8-97189-166-4	01	1	0201-	●
1	03.402 CLEANER ASM; AIR	8-97189-166-4	01	1	0201-		●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY)	8-97189-166-4	01	1	0201-				●	●
1	03.402 CLEANER ASM; AIR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97189-262-2	01	1	9812-0105	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4JH1 ENG(RJX)	8-97240-702-4	01	1	0106-	●
1	03.402 CLEANER ASM; AIR CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97214-829-1	01	1	9904-0105						●
1	03.402 CLEANER ASM; AIR	8-97214-829-3	01	1	0106-						●	●
1	03.402 CLEANER ASM; AIR CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97214-832-1	01	1	9904-0105						●
2	03.403 NUT; WING,ELEMENT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	1-14217-068-0	02	1	9906-0105	●
2	03.403 NUT; WING,ELEMENT 4JH1 ENG(RJX)	1-14217-068-0	02	1	0106-	●
2	03.403 NUT; WING,ELEMENT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-94447-989-0	01	1	9812-	●	●	●	●	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	1-14219-225-0	02	1	9906-0105	●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX)	1-14219-225-0	02	1	0106-	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	9-14219-279-0	01	1	9812-0105	●
3	03.403 WASHER; SEAL,WING NUT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-94447-990-0	01	1	9812-	●	●	●	●	●	●	●
6	03.410 FILTER; ACL 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-94156-052-0	01	1	9906-0105	●
6	03.410 FILTER; ACL 4JH1 ENG(RJX)	8-94156-052-0	01	1	0106-	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	9812-0105	●
6	03.410 FILTER; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97062-294-0	01	1	9812-0105	●	●	●	●	●
6	03.410 FILTER; ACL 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97062-294-0	01	1	0106-	●
6	03.410 FILTER; ACL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-94430-250-0	01	1	9812-	●	●	●	●	●	●	●
8	03.410 COVER ASM; ACL 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-94336-333-0	01	1	9906-0105	●
8	03.410 COVER ASM; ACL 4JH1 ENG(RJX)	8-97313-386-0	01	1	0106-	●
8	03.410 COVER ASM; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97093-074-0	01	1	9812-9904	●	●	●	●	●
8	03.410 COVER ASM; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97228-090-0	01	1	9905-0105	●	●	●	●	●
8	03.410 COVER ASM; ACL 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97228-090-0	01	1	0106-	●
44	03.403 BOLT; ACL 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9906-0105	●
44	03.403 BOLT; ACL 4JH1 ENG(RJX) 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	0106-	●
44	03.403 BOLT; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	9812-0105	●	●	●	●	●
44	03.403 BOLT; ACL 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0106-	●
54	03.405 BRACKET; ACL 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E)	8-94455-317-1	01	1	9906-0105	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97079-949-1	01	1	9812-0105	●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX) (D)	8-97312-719-0	01	1	0106-	●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (A)	8-97096-710-0	01	1	9812-0105	●	●	●	●	●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (A)	8-97096-710-0	01	1	0106-	●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97188-598-0	01	1	9812-0105	●	●	●	●	●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97188-598-0	01	1	0106-	●	●	●	●	●
54	03.405 BRACKET; ACL CHARGE AIR COOLER<6PL> (B)	8-97214-833-3	01	1	9904-0105						●
54	03.405 BRACKET; ACL TURBOCHARGER(K51) (B)	8-97214-833-3	01	1	0106-						●
54	03.405 BRACKET; ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) (B)	8-97214-833-3	01	1	0106-							●
94	03.415 VALVE; VACUATOR 4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (E)	8-94447-157-0	01	1	9906-0105	●
94	03.415 VALVE; VACUATOR 4JH1 ENG(RJX) (E)	8-94447-157-0	01	1	0106-	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94439-205-0	01	1	9812-0105	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	9812-0105	●
94	03.415 VALVE; VACUATOR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (C)	8-97093-694-0	01	1	9812-0105	●	●	●	●	●
94	03.415 VALVE; VACUATOR 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (C)	8-97093-694-0	01	1	0106-	●
94	03.415 VALVE; VACUATOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D)	1-14219-075-0	01	1	9812-	●	●	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> M10X25 FLANGE	0-28681-025-0	02	1	9812-0105	●
145	03.405 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9812-9905	●	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JB1 ENG(RLF),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9906-0105	●	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0106-	●	●	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JH1 ENG(RJX) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0106-	●
145	03.405 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	05	1	9812-0105	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	05	1	0106-	●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	05	1	9812-0105	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	05	1	0106-	●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	04	1	9812-9903	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9812-9903	●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	04	1	9904-9905	●	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9904-9905	●
146	03.405 NUT; BRKT TO FRAME 4JB1 ENG(RLF),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	04	1	9906-0105	●	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9906-0105	●
146	03.405 NUT; BRKT TO FRAME 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	04	1	0106-	●	●	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	04	1	0106-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
