Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#18871) — 326 parça

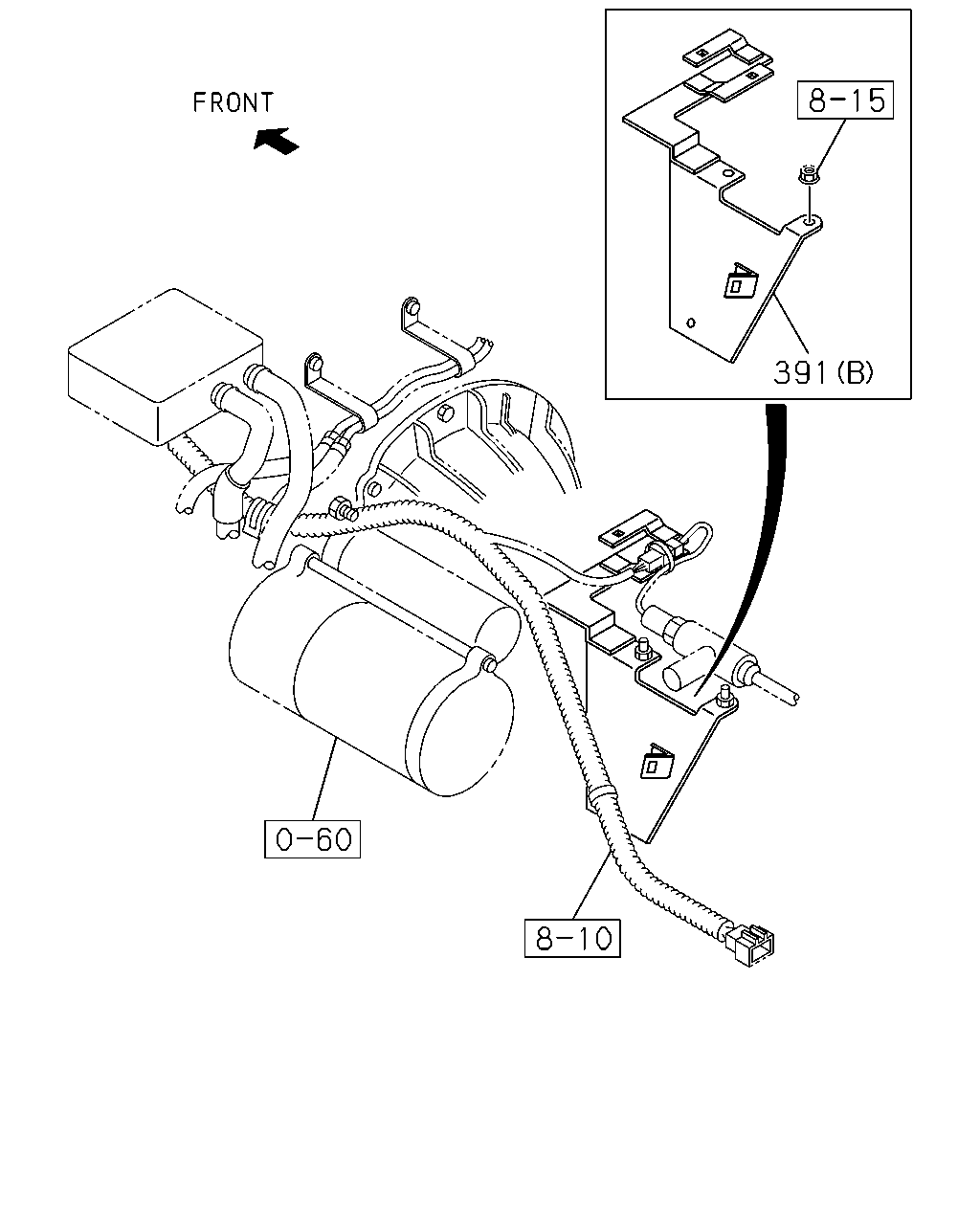

391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
391	03.452 BRACKET; ENG CONT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	9812-0105	●	●	●	●	●	●
391	03.452 BRACKET; ENG CONT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	0106-		●
391	03.452 BRACKET; ENG CONT 4HE1 ENG(RLY) M/T MZZ6F(RSR) (B)	8-97351-929-0	01	1	0208-	●	●	●	●	●	●	●

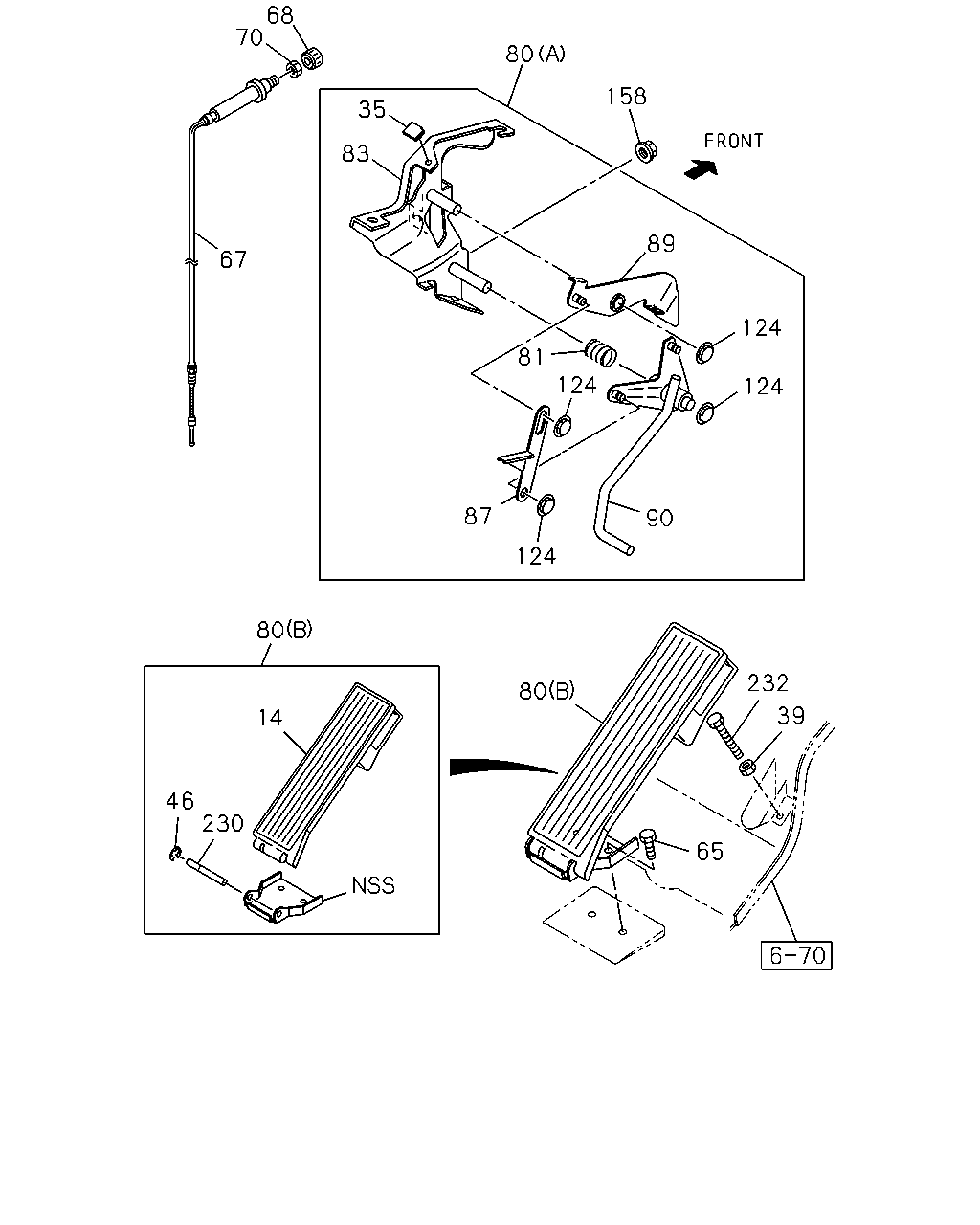

68 70 80 158 35 83 89 67 124 81 124 124 87 90 124 80 232 80 39 14 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	9812-	●	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5S(R45)	8-97857-401-1	01	1	9812-9905	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5R(RNN),M/T MSB5S(R45)	8-97857-401-1	01	1	9906-0012	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5R(RNN),M/T MSB5S(R45)	8-97302-305-0	01	1	0101-0105	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL M/T MBP6R(RNW)	8-97302-305-0	01	1	0106-0207	●	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW),M/T MZZ6F(RSR)	8-97302-305-0	01	1	0208-	●	●	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	9812-	●	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	9812-	●	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	9812-	●	●	●	●	●	●	●
67	03.480 CABLE ASM; IDLE CONT 4HE1 ENG(RLY) L=439	8-97853-058-1	01	1	9812-	●	●	●	●	●	●	●
68	03.480 KNOB; IDLE CONT 4HE1 ENG(RLY)	8-97853-765-1	01	1	9812-	●	●	●	●	●	●	●
70	03.483 NUT; CONT CABLE 4HE1 ENG(RLY) M18	8-97853-233-0	01	1	9812-	●	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4JH1 ENG(RJX) (C)	8-97892-195-7	01	1	0106-		●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	9812-	●	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5S(R45) (A)	8-97853-057-8	01	1	9812-9905	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5R(RNN),M/T MSB5S(R45) (A)	8-97853-057-9	01	1	9906-0105	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT M/T MBP6R(RNW) (A)	8-97853-057-9	01	1	0106-0207	●	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW),M/T MZZ6F(RSR) (A)	8-97853-057-9	01	1	0208-	●	●	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5S(R45)	8-97853-205-1	01	1	9812-9905	●	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5R(RNN),M/T MSB5S(R45)	8-97853-205-1	01	1	9906-0105	●	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER M/T MBP6Q(RNM),M/T MBP6R(RNW)	8-97853-205-1	01	1	0106-0207	●	●	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW),M/T MZZ6F(RSR)	8-97853-205-1	01	1	0208-	●	●	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1 ENG(RJX)	8-97853-205-1	01	1	0208-		●
83	03.452 BRACKET; CONT LINK 4JH1 ENG(RJX)	8-97892-196-2	01	1	0106-		●
83	03.452 BRACKET; CONT LINK M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5S(R45)	8-97853-201-4	01	1	9812-9905	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5R(RNN),M/T MSB5S(R45)	8-97853-201-4	01	1	9906-0105	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK M/T MBP6R(RNW)	8-97853-201-4	01	1	0106-0207	●	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW),M/T MZZ6F(RSR)	8-97853-201-4	01	1	0208-	●	●	●	●	●	●	●
87	03.454 LINK; ENG CONT M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5S(R45)	8-97853-204-1	01	1	9812-9905	●	●	●	●	●	●
87	03.454 LINK; ENG CONT M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5R(RNN),M/T MSB5S(R45)	8-97853-204-1	01	1	9906-0105	●	●	●	●	●	●
87	03.454 LINK; ENG CONT M/T MBP6R(RNW)	8-97853-204-1	01	1	0106-0207	●	●	●	●	●	●	●
87	03.454 LINK; ENG CONT 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW),M/T MZZ6F(RSR)	8-97853-204-1	01	1	0208-	●	●	●	●	●	●	●
89	03.454 LEVER; RELAY M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5S(R45)	8-97868-042-0	01	1	9812-9905	●	●	●	●	●	●
89	03.454 LEVER; RELAY M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5R(RNN),M/T MSB5S(R45)	8-97868-042-0	01	1	9906-0105	●	●	●	●	●	●
89	03.454 LEVER; RELAY M/T MBP6R(RNW)	8-97868-042-0	01	1	0106-0207	●	●	●	●	●	●	●
89	03.454 LEVER; RELAY 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW),M/T MZZ6F(RSR)	8-97868-042-0	01	1	0208-	●	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4JH1 ENG(RJX)	8-97892-197-2	01	1	0106-		●
90	03.454 LEVER; RELAY,ENG CONT M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5S(R45)	8-97868-039-0	01	1	9812-9905	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5R(RNN),M/T MSB5S(R45)	8-97868-039-0	01	1	9906-0105	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT M/T MBP6R(RNW)	8-97868-039-0	01	1	0106-0207	●	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW),M/T MZZ6F(RSR)	8-97868-039-0	01	1	0208-	●	●	●	●	●	●	●
124	03.463 NUT; LEVER 4JH1 ENG(RJX) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0106-		●
124	03.463 NUT; LEVER M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5S(R45) ID=4.9 PUSH NUT	8-94279-042-0	02	1	9812-9905	●	●	●	●	●	●
124	03.463 NUT; LEVER M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5R(RNN),M/T MSB5S(R45) ID=4.9 PUSH NUT	8-94279-042-0	02	1	9906-0105	●	●	●	●	●	●
124	03.463 NUT; LEVER M/T MBP6R(RNW) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0106-0207	●	●	●	●	●	●	●
124	03.463 NUT; LEVER 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW),M/T MZZ6F(RSR) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0208-	●	●	●	●	●	●	●
124	03.463 NUT; LEVER M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5S(R45) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	9812-9905	●	●	●	●	●	●
124	03.463 NUT; LEVER M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5R(RNN),M/T MSB5S(R45) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	9906-0105	●	●	●	●	●	●
124	03.463 NUT; LEVER M/T MBP6R(RNW) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	0106-0207	●	●	●	●	●	●	●
124	03.463 NUT; LEVER 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW),M/T MZZ6F(RSR) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	0208-	●	●	●	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	9812-	●	●	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	9812-	●	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	9812-	●	●	●	●	●	●	●

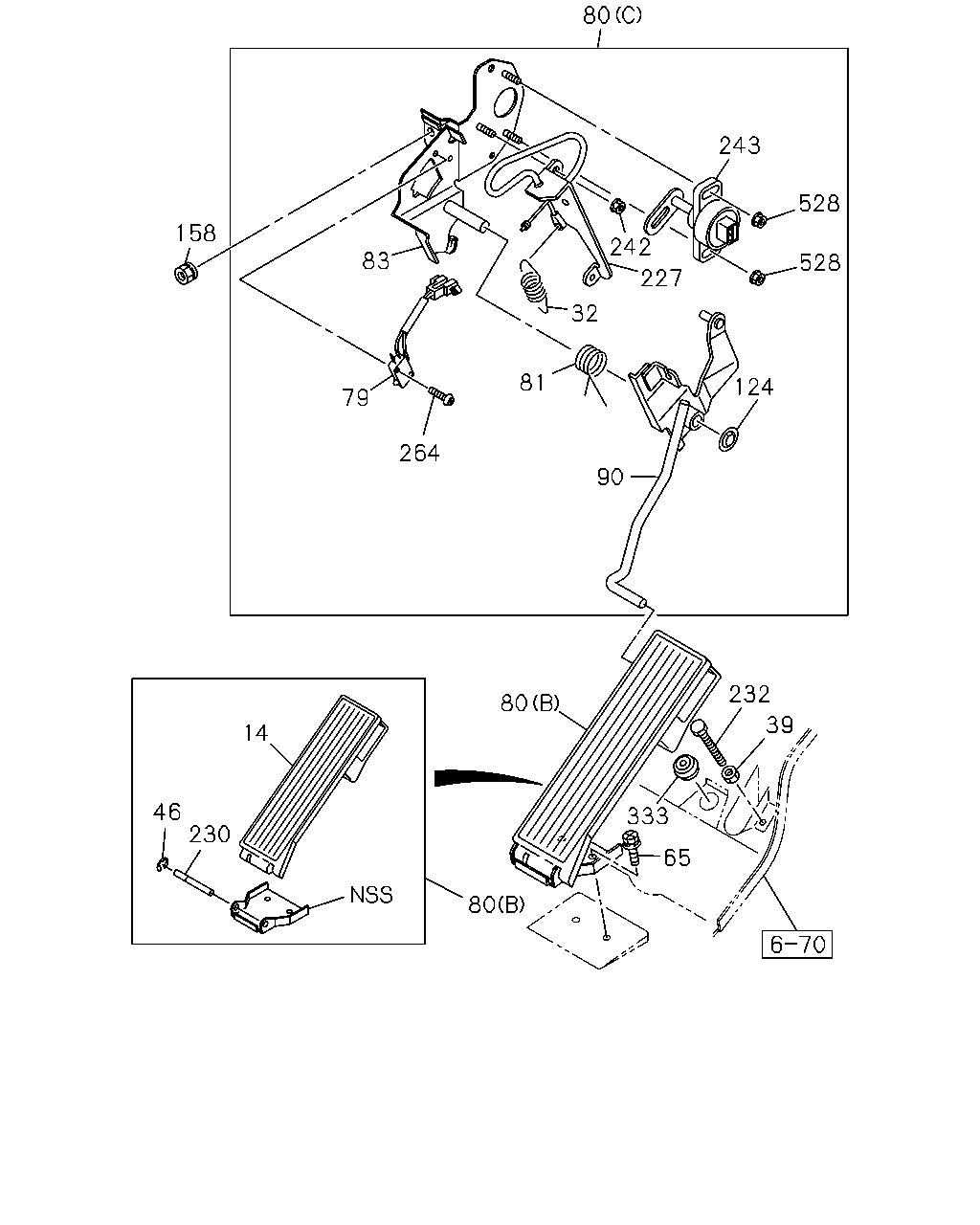

80 243 528 158 242 83 528 227 32 81 124 79 264 90 232 80 39 14 46 230 333 65 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	9812-	●	●	●	●	●	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4JH1 ENG(RJX)	1-71907-268-0	01	1	0106-0208		●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4JH1 ENG(RJX)	8-97997-917-0	01	1	0209-		●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	9812-	●	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	9812-	●	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	9812-	●	●	●	●	●	●	●
79	03.451 SWITCH; ACCEL PEDAL 4JH1 ENG(RJX)	8-97224-056-0	01	1	0106-		●
80	03.452 LINK ASM; ENG CONT 4JH1 ENG(RJX) (C)	8-97892-195-7	01	1	0106-		●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	9812-	●	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5S(R45) (A)	8-97853-057-8	01	1	9812-9905	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5R(RNN),M/T MSB5S(R45) (A)	8-97853-057-9	01	1	9906-0105	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT M/T MBP6R(RNW) (A)	8-97853-057-9	01	1	0106-0207	●	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW),M/T MZZ6F(RSR) (A)	8-97853-057-9	01	1	0208-	●	●	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5S(R45)	8-97853-205-1	01	1	9812-9905	●	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5R(RNN),M/T MSB5S(R45)	8-97853-205-1	01	1	9906-0105	●	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER M/T MBP6Q(RNM),M/T MBP6R(RNW)	8-97853-205-1	01	1	0106-0207	●	●	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW),M/T MZZ6F(RSR)	8-97853-205-1	01	1	0208-	●	●	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1 ENG(RJX)	8-97853-205-1	01	1	0208-		●
83	03.452 BRACKET; CONT LINK 4JH1 ENG(RJX)	8-97892-196-2	01	1	0106-		●
83	03.452 BRACKET; CONT LINK M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5S(R45)	8-97853-201-4	01	1	9812-9905	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5R(RNN),M/T MSB5S(R45)	8-97853-201-4	01	1	9906-0105	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK M/T MBP6R(RNW)	8-97853-201-4	01	1	0106-0207	●	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW),M/T MZZ6F(RSR)	8-97853-201-4	01	1	0208-	●	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4JH1 ENG(RJX)	8-97892-197-2	01	1	0106-		●
90	03.454 LEVER; RELAY,ENG CONT M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5S(R45)	8-97868-039-0	01	1	9812-9905	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5R(RNN),M/T MSB5S(R45)	8-97868-039-0	01	1	9906-0105	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT M/T MBP6R(RNW)	8-97868-039-0	01	1	0106-0207	●	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW),M/T MZZ6F(RSR)	8-97868-039-0	01	1	0208-	●	●	●	●	●	●	●
124	03.463 NUT; LEVER 4JH1 ENG(RJX) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0106-		●
124	03.463 NUT; LEVER M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5S(R45) ID=4.9 PUSH NUT	8-94279-042-0	02	1	9812-9905	●	●	●	●	●	●
124	03.463 NUT; LEVER M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5R(RNN),M/T MSB5S(R45) ID=4.9 PUSH NUT	8-94279-042-0	02	1	9906-0105	●	●	●	●	●	●
124	03.463 NUT; LEVER M/T MBP6R(RNW) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0106-0207	●	●	●	●	●	●	●
124	03.463 NUT; LEVER 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW),M/T MZZ6F(RSR) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0208-	●	●	●	●	●	●	●
124	03.463 NUT; LEVER M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5S(R45) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	9812-9905	●	●	●	●	●	●
124	03.463 NUT; LEVER M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MSB5R(RNN),M/T MSB5S(R45) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	9906-0105	●	●	●	●	●	●
124	03.463 NUT; LEVER M/T MBP6R(RNW) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	0106-0207	●	●	●	●	●	●	●
124	03.463 NUT; LEVER 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW),M/T MZZ6F(RSR) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	0208-	●	●	●	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	9812-	●	●	●	●	●	●	●
227	03.430 CABLE ASM; RETURN,ACCEL PEDAL 4JH1 ENG(RJX)	8-97892-203-5	01	1	0106-		●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	9812-	●	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	9812-	●	●	●	●	●	●	●
242	03.483 NUT; ACCEL PEDAL 4JH1 ENG(RJX) 10.147 M6 W/DISHED WASHER	8-94423-325-0	01	1	0106-		●
243	03.425 SENSOR; ACCEL 4JH1 ENG(RJX)	8-97200-308-0	01	1	0106-		●
264	03.425 SCREW; ACCEL SW 4JH1 ENG(RJX) 03.451 M3X16 TAPPING	0-71280-316-0	02	1	0106-		●
333	03.671 GROMMET; HOLE,CABLE 4JH1 ENG(RJX) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0106-		●
528	03.463 NUT; ACCEL SENSOR 4JH1 ENG(RJX) 10.147 M6 W/DISHED WASHER	8-94423-325-0	02	1	0106-		●

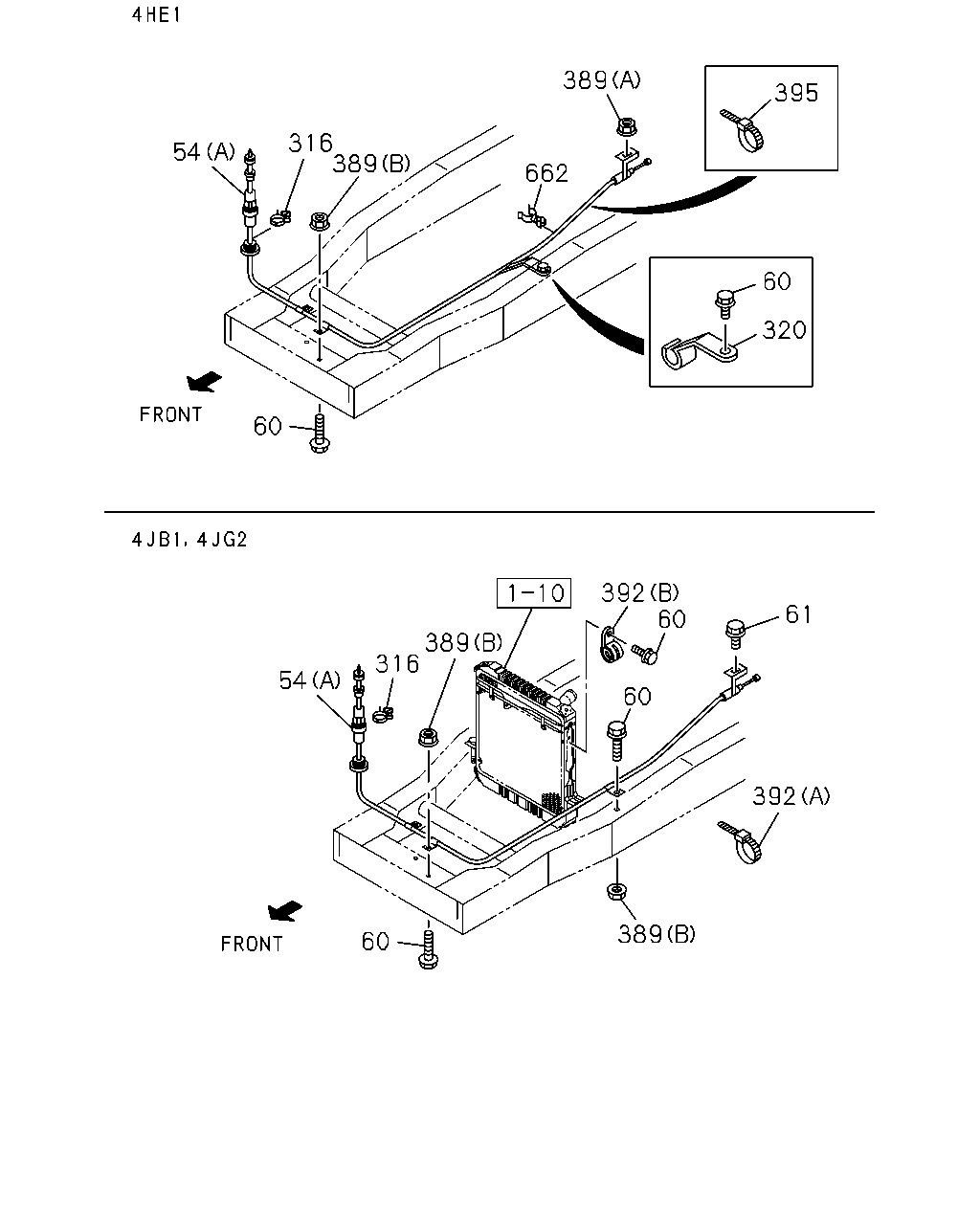

389 395 316 389 54 662 60 320 60 392 60 61 389 316 54 60 392 389 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (B) L=381	8-97352-082-0	01	1	0209-	●	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-1	01	1	9812-		●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC) (A) L=2535	8-97091-626-1	01	1	9812-9905		●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=2535	8-97091-626-1	01	1	9906-0105		●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	9812-0208	●	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (B) L=384	8-97168-299-1	01	1	0209-		●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=3078	8-97148-584-3	01	1	9812-	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	9812-9903		●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	9904-0105		●
54	03.430 CABLE; ENG CONT EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	9904-0105			●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B) L=293	8-97115-730-0	01	1	0106-		●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2913	8-97167-698-1	01	1	9812-0105	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2913	8-97167-698-2	01	1	0106-		●
54	03.430 CABLE; ENG CONT CHARGE AIR COOLER<6PL> (A) L=3078	8-97225-573-0	01	1	9904-0105						●
54	03.430 CABLE; ENG CONT (A) L=3078	8-97225-573-1	01	1	0106-						●	●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28480-825-0	01	1	9812-		●
60	08.155 BOLT; CABLE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9906-0105		●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4HE1 ENG(RLY) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9812-9905		●
60	08.155 BOLT; CABLE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9812-9905	●		●	●	●	●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9906-0105		●
60	08.155 BOLT; CABLE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9906-0105	●		●	●	●	●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0106-	●	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9903	●	●	●	●	●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9903		●
60	08.155 BOLT; CABLE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9903	●		●	●	●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9904-0105		●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9904-0105		●
60	08.155 BOLT; CABLE EXC. HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9904-0105	●		●	●	●	●
60	08.155 BOLT; CABLE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9904-0105	●		●	●	●	●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●	●	●	●	●	●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JG2 ENG(RJC) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9812-9905		●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9906-0105		●
316	03.425 CLIP; LAMP BRKT 16.065 ID=9	5-09707-027-0	01	1	9812-	●	●	●	●	●	●	●
320	03.483 CLIP; FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	9812-	●	●	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	9812-0105		●
389	03.483 NUT; ACCEL CONT CABLE FIX 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	9812-0105	●		●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0106-	●	●	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	03	1	9812-9902		●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	9903-9903	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	9904-0105	●	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0106-	●	●	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0106-		●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	9812-9901		●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4JG2 ENG(RJC) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	9812-9901		●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	9812-9901		●
389	03.483 NUT; ACCEL CONT CABLE FIX 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	9812-9901			●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	9902-9902	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4JG2 ENG(RJC) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	9902-9902		●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	9902-9902		●
389	03.483 NUT; ACCEL CONT CABLE FIX 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	9902-9902	●		●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	9812-9901		●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	9902-9902	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4JG2 ENG(RJC),4HE1 ENG(RLY) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	9903-9905		●
389	03.483 NUT; ACCEL CONT CABLE FIX 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	9903-9905	●		●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	9906-0105		●
389	03.483 NUT; ACCEL CONT CABLE FIX 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	9906-0105	●		●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	0106-	●	●	●	●	●	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.334 (B) ID=16	9-09525-552-0	01	1	9906-0105		●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC) 03.008 (A) L=330	5-09709-118-0	02	1	9812-0105		●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41) FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	9812-	●	●	●	●	●	●	●
662	03.430 CLIP; ACCEL CONT CABLE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 03.634 ID=6 & 6	1-09709-217-0	01	1	9812-		●

54 99 54 100 101 108 391 729 218 101 104 99 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (B) L=381	8-97352-082-0	01	1	0209-	●	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-1	01	1	9812-		●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC) (A) L=2535	8-97091-626-1	01	1	9812-9905		●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=2535	8-97091-626-1	01	1	9906-0105		●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	9812-0208	●	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (B) L=384	8-97168-299-1	01	1	0209-		●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=3078	8-97148-584-3	01	1	9812-	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	9812-9903		●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	9904-0105		●
54	03.430 CABLE; ENG CONT EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	9904-0105			●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B) L=293	8-97115-730-0	01	1	0106-		●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2913	8-97167-698-1	01	1	9812-0105	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2913	8-97167-698-2	01	1	0106-		●
54	03.430 CABLE; ENG CONT CHARGE AIR COOLER<6PL> (A) L=3078	8-97225-573-0	01	1	9904-0105						●
54	03.430 CABLE; ENG CONT (A) L=3078	8-97225-573-1	01	1	0106-						●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-871-3	01	1	9812-0105	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97167-871-3	01	1	0106-0112		●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97167-871-3	01	1	0201-0207		●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (A)	8-97167-871-3	01	1	0201-0207		●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97167-871-3	01	1	0208-	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (A)	8-97167-871-3	01	1	0208-		●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B)	8-97118-729-0	01	1	9812-0105		●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B)	8-97118-729-0	01	1	0106-		●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF (C)	8-97302-112-3	01	1	0106-0207						●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) (C)	8-97302-112-3	01	1	0106-0207							●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (C)	8-97302-112-3	01	1	0208-						●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF CHARGE AIR COOLER<6PL> (A)	8-97225-505-0	01	1	9904-0105						●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (A)	8-97302-093-2	01	1	0106-0112	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> (A)	8-97302-093-2	01	1	0201-	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97225-505-0	01	1	0208-						●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97225-505-0	01	1	0208-							●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-870-2	01	1	9812-0105	●	●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97167-870-2	01	1	0106-0112		●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97167-870-2	01	1	0201-0207		●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (A)	8-97167-870-2	01	1	0201-0207		●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97167-870-2	01	1	0208-	●	●	●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (A)	8-97167-870-2	01	1	0208-		●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B)	8-97118-737-0	01	1	9812-0105		●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B)	8-97118-737-0	01	1	0106-		●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (A)	8-97302-094-0	01	1	0106-0112	●	●	●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> (A)	8-97302-094-0	01	1	0201-	●	●	●	●	●	●	●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.276	8-94142-117-0	02	1	9812-0105	●	●	●	●	●	●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	9812-0105		●	●	●	●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> 01.276	8-94142-117-0	02	1	0106-0112		●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 01.276	8-94142-117-0	02	1	0106-0112		●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) 01.276	8-94142-117-0	02	1	0106-0112	●		●	●	●	●	●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.276	8-94142-117-0	02	1	0201-		●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 01.276	8-94142-117-0	02	1	0201-		●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) 01.276	8-94142-117-0	02	1	0201-	●		●	●	●	●	●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105	●	●	●	●	●	●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105		●	●	●	●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0112		●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0112		●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0112	●		●	●	●	●	●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-		●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-		●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-	●		●	●	●	●	●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	9812-0105	●	●	●	●	●	●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97120-004-0	01	1	9812-0105		●	●	●	●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97120-004-0	01	1	0106-0112		●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97120-004-0	01	1	0106-0112		●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY)	8-97120-004-0	01	1	0106-0112	●		●	●	●	●	●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	0201-		●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97120-004-0	01	1	0201-		●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY)	8-97120-004-0	01	1	0201-	●		●	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9812-	●	●	●	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9812-9903		●	●	●	●
110	03.463 BOLT; BRKT TO HANGER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9904-0105		●
110	03.463 BOLT; BRKT TO HANGER EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9904-0105			●	●	●
110	03.463 BOLT; BRKT TO HANGER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0106-		●
218	03.452 NUT; BRKT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105	●	●	●	●	●	●
218	03.452 NUT; BRKT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-		●
391	03.452 BRACKET; ENG CONT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	9812-0105	●	●	●	●	●	●
391	03.452 BRACKET; ENG CONT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	0106-		●
391	03.452 BRACKET; ENG CONT 4HE1 ENG(RLY) M/T MZZ6F(RSR) (B)	8-97351-929-0	01	1	0208-	●	●	●	●	●	●	●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	9812-0105	●	●	●	●	●	●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	9812-0105		●	●	●	●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97118-760-0	01	1	0106-0112		●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97118-760-0	01	1	0106-0112		●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY)	8-97118-760-0	01	1	0106-0112	●		●	●	●	●	●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	0201-		●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97118-760-0	01	1	0201-		●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY)	8-97118-760-0	01	1	0201-	●		●	●	●	●	●

54 99 99 54 114 99 108 729 104 101 101 100 110 99 108 729 104 101 101 100 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (B) L=381	8-97352-082-0	01	1	0209-	●	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-1	01	1	9812-		●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC) (A) L=2535	8-97091-626-1	01	1	9812-9905		●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=2535	8-97091-626-1	01	1	9906-0105		●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	9812-0208	●	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (B) L=384	8-97168-299-1	01	1	0209-		●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=3078	8-97148-584-3	01	1	9812-	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	9812-9903		●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	9904-0105		●
54	03.430 CABLE; ENG CONT EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	9904-0105			●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B) L=293	8-97115-730-0	01	1	0106-		●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2913	8-97167-698-1	01	1	9812-0105	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2913	8-97167-698-2	01	1	0106-		●
54	03.430 CABLE; ENG CONT CHARGE AIR COOLER<6PL> (A) L=3078	8-97225-573-0	01	1	9904-0105						●
54	03.430 CABLE; ENG CONT (A) L=3078	8-97225-573-1	01	1	0106-						●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-871-3	01	1	9812-0105	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97167-871-3	01	1	0106-0112		●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97167-871-3	01	1	0201-0207		●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (A)	8-97167-871-3	01	1	0201-0207		●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97167-871-3	01	1	0208-	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (A)	8-97167-871-3	01	1	0208-		●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B)	8-97118-729-0	01	1	9812-0105		●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B)	8-97118-729-0	01	1	0106-		●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF (C)	8-97302-112-3	01	1	0106-0207						●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) (C)	8-97302-112-3	01	1	0106-0207							●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (C)	8-97302-112-3	01	1	0208-						●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF CHARGE AIR COOLER<6PL> (A)	8-97225-505-0	01	1	9904-0105						●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (A)	8-97302-093-2	01	1	0106-0112	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> (A)	8-97302-093-2	01	1	0201-	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97225-505-0	01	1	0208-						●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97225-505-0	01	1	0208-							●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-870-2	01	1	9812-0105	●	●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97167-870-2	01	1	0106-0112		●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97167-870-2	01	1	0201-0207		●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (A)	8-97167-870-2	01	1	0201-0207		●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97167-870-2	01	1	0208-	●	●	●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (A)	8-97167-870-2	01	1	0208-		●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B)	8-97118-737-0	01	1	9812-0105		●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B)	8-97118-737-0	01	1	0106-		●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (A)	8-97302-094-0	01	1	0106-0112	●	●	●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> (A)	8-97302-094-0	01	1	0201-	●	●	●	●	●	●	●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.276	8-94142-117-0	02	1	9812-0105	●	●	●	●	●	●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	9812-0105		●	●	●	●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> 01.276	8-94142-117-0	02	1	0106-0112		●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 01.276	8-94142-117-0	02	1	0106-0112		●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) 01.276	8-94142-117-0	02	1	0106-0112	●		●	●	●	●	●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.276	8-94142-117-0	02	1	0201-		●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 01.276	8-94142-117-0	02	1	0201-		●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) 01.276	8-94142-117-0	02	1	0201-	●		●	●	●	●	●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105	●	●	●	●	●	●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105		●	●	●	●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0112		●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0112		●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0112	●		●	●	●	●	●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-		●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-		●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-	●		●	●	●	●	●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	9812-0105	●	●	●	●	●	●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97120-004-0	01	1	9812-0105		●	●	●	●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97120-004-0	01	1	0106-0112		●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97120-004-0	01	1	0106-0112		●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY)	8-97120-004-0	01	1	0106-0112	●		●	●	●	●	●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	0201-		●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97120-004-0	01	1	0201-		●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY)	8-97120-004-0	01	1	0201-	●		●	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9812-	●	●	●	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9812-9903		●	●	●	●
110	03.463 BOLT; BRKT TO HANGER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9904-0105		●
110	03.463 BOLT; BRKT TO HANGER EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9904-0105			●	●	●
110	03.463 BOLT; BRKT TO HANGER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0106-		●
114	03.483 CLIP; HARNESS CONNECTOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 ID=7-10	8-94472-578-0	01	1	9812-	●	●	●	●	●	●	●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	9812-0105	●	●	●	●	●	●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	9812-0105		●	●	●	●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97118-760-0	01	1	0106-0112		●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97118-760-0	01	1	0106-0112		●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY)	8-97118-760-0	01	1	0106-0112	●		●	●	●	●	●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	0201-		●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97118-760-0	01	1	0201-		●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY)	8-97118-760-0	01	1	0201-	●		●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
