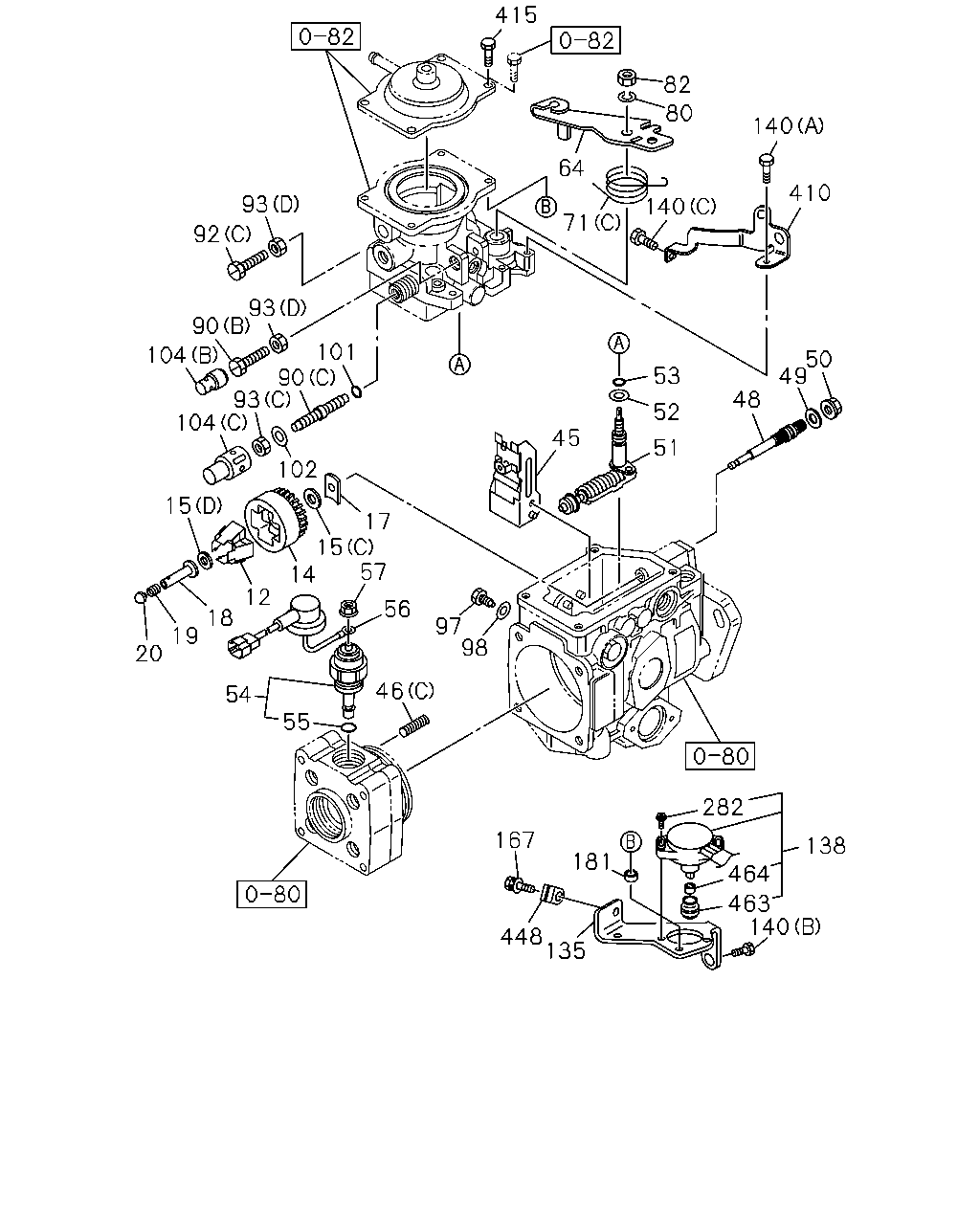

0-81A — GOVERNOR; INJECTION PUMP (#18859) — 373 parça

415 82 80 140 64 410 93 140 71 92 93 90 101 90 93 104 104 50 49 53 48 52 45 51 102 15 17 15 14 57 12 56 18 97 98 19 20 46 54 55 282 167 138 181 464 463 140 448 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	03.308 FLYWEIGHT ASM; GOV 03.318 ASM PART: B = 8-97204-201-7, 97204201	8-94228-403-0	01	1	-
14	03.308 HOLDER; GOV FLYWEIGHT,INJ PUMP 03.318 ASM PART: B = 8-97204-201-7, 97204201	8-94227-613-0	01	1	-
14	03.308 HOLDER; GOV FLYWEIGHT,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97140-921-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV 03.318, (C) ASM PART: B = 8-97204-201-7, 97204201	8-94227-612-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV 03.318, (D) ASM PART: B = 8-97204-201-7, 97204201	8-94227-614-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV (A) ASM PART: A = 8-97138-842-2, 97138842	8-97140-828-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV (B) ASM PART: A = 8-97138-842-2, 97138842	8-97140-830-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.05 ASM PART: B = 8-97204-201-7, 97204201	8-94227-607-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.25 ASM PART: B = 8-97204-201-7, 97204201	8-94227-608-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.45 ASM PART: B = 8-97204-201-7, 97204201	8-94227-609-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.65 ASM PART: B = 8-97204-201-7, 97204201	8-94227-610-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.85 ASM PART: B = 8-97204-201-7, 97204201	8-94227-611-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.15 ASM PART: B = 8-97204-201-7, 97204201	8-94231-123-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.35 ASM PART: B = 8-97204-201-7, 97204201	8-94231-124-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.55 ASM PART: B = 8-97204-201-7, 97204201	8-94231-125-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.75 ASM PART: B = 8-97204-201-7, 97204201	8-94231-126-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.05 ASM PART: A = 8-97138-842-2, 97138842	8-97141-308-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.25 ASM PART: A = 8-97138-842-2, 97138842	8-97141-311-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.45 ASM PART: A = 8-97138-842-2, 97138842	8-97141-313-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.65 ASM PART: A = 8-97138-842-2, 97138842	8-97141-314-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.85 ASM PART: A = 8-97138-842-2, 97138842	8-97141-316-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.55 ASM PART: A = 8-97138-842-2, 97138842	8-97141-318-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.75 ASM PART: A = 8-97138-842-2, 97138842	8-97141-319-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=2.05 ASM PART: A = 8-97138-842-2, 97138842	8-97141-320-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.30 ASM PART: A = 8-97138-842-2, 97138842	8-97141-323-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.40 ASM PART: A = 8-97138-842-2, 97138842	8-97141-324-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 8-97138-842-2, 97138842	8-97141-325-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.60 ASM PART: A = 8-97138-842-2, 97138842	8-97141-326-0	01	1	-
18	03.308 SLEEVE; GOV D=0.40 ASM PART: A = 8-97138-842-2, 97138842	8-97161-861-0	01	1	-
18	03.308 SLEEVE; GOV D=0.45 ASM PART: A = 8-97138-842-2, 97138842	8-97161-862-0	01	1	-
18	03.308 SLEEVE; GOV D=0.50 ASM PART: A = 8-97138-842-2, 97138842	8-97161-863-0	01	1	-
18	03.308 SLEEVE; GOV D=0.55 ASM PART: A = 8-97138-842-2, 97138842	8-97212-361-0	01	1	-
18	03.308 SLEEVE; GOV D=0.60 ASM PART: A = 8-97138-842-2, 97138842	8-97212-362-0	01	1	-
18	03.308 SLEEVE; GOV ASM PART: B = 8-97204-201-7, 97204201	8-97214-475-0	01	1	-
19	03.308 CAP; GOV SLEEVE,INJ PUMP ASM PART: B = 8-97204-201-7, 97204201	8-94408-519-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.20 ASM PART: B = 8-97204-201-7, 97204201	8-94372-499-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.30 ASM PART: B = 8-97204-201-7, 97204201	8-94372-500-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.40 ASM PART: B = 8-97204-201-7, 97204201	8-94372-501-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.50 ASM PART: B = 8-97204-201-7, 97204201	8-94372-502-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.10 ASM PART: B = 8-97204-201-7, 97204201	8-94408-520-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.30 ASM PART: B = 8-97204-201-7, 97204201	8-94408-521-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.50 ASM PART: B = 8-97204-201-7, 97204201	8-94408-522-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.70 ASM PART: B = 8-97204-201-7, 97204201	8-94408-523-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.90 ASM PART: B = 8-97204-201-7, 97204201	8-94408-524-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.10 ASM PART: B = 8-97204-201-7, 97204201	8-94408-525-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: B = 8-97204-201-7, 97204201	8-94408-526-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: B = 8-97204-201-7, 97204201	8-94408-527-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: B = 8-97204-201-7, 97204201	8-94408-528-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: B = 8-97204-201-7, 97204201	8-94408-529-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: B = 8-97204-201-7, 97204201	8-94408-530-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: B = 8-97204-201-7, 97204201	8-94408-531-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: B = 8-97204-201-7, 97204201	8-94408-532-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: B = 8-97204-201-7, 97204201	8-94408-533-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: B = 8-97204-201-7, 97204201	8-94408-534-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.10 ASM PART: B = 8-97204-201-7, 97204201	8-94408-535-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.20 ASM PART: B = 8-97204-201-7, 97204201	8-94428-868-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.40 ASM PART: B = 8-97204-201-7, 97204201	8-94428-869-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.60 ASM PART: B = 8-97204-201-7, 97204201	8-94428-870-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.80 ASM PART: B = 8-97204-201-7, 97204201	8-94428-871-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.00 ASM PART: B = 8-97204-201-7, 97204201	8-94428-872-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: B = 8-97204-201-7, 97204201	8-94428-873-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: B = 8-97204-201-7, 97204201	8-94428-874-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: B = 8-97204-201-7, 97204201	8-94428-875-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: B = 8-97204-201-7, 97204201	8-94428-876-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: B = 8-97204-201-7, 97204201	8-94428-877-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: B = 8-97204-201-7, 97204201	8-94428-878-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: B = 8-97204-201-7, 97204201	8-94428-879-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: B = 8-97204-201-7, 97204201	8-94428-880-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: B = 8-97204-201-7, 97204201	8-94428-881-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: B = 8-97204-201-7, 97204201	8-94428-882-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: A = 8-97138-842-2, 97138842	8-97141-381-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: A = 8-97138-842-2, 97138842	8-97141-384-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: A = 8-97138-842-2, 97138842	8-97141-386-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: A = 8-97138-842-2, 97138842	8-97141-387-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: A = 8-97138-842-2, 97138842	8-97141-388-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: A = 8-97138-842-2, 97138842	8-97141-389-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: A = 8-97138-842-2, 97138842	8-97141-390-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.00 ASM PART: A = 8-97138-842-2, 97138842	8-97161-923-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.10 ASM PART: A = 8-97138-842-2, 97138842	8-97161-925-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: A = 8-97138-842-2, 97138842	8-97161-926-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: A = 8-97138-842-2, 97138842	8-97161-927-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: A = 8-97138-842-2, 97138842	8-97161-928-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: A = 8-97138-842-2, 97138842	8-97161-929-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: A = 8-97138-842-2, 97138842	8-97161-930-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: A = 8-97138-842-2, 97138842	8-97161-931-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: A = 8-97138-842-2, 97138842	8-97161-932-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: A = 8-97138-842-2, 97138842	8-97161-933-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: A = 8-97138-842-2, 97138842	8-97161-934-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: A = 8-97138-842-2, 97138842	8-97161-935-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: A = 8-97138-842-2, 97138842	8-97161-936-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: A = 8-97138-842-2, 97138842	8-97161-937-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.10 ASM PART: A = 8-97138-842-2, 97138842	8-97161-938-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.20 ASM PART: A = 8-97138-842-2, 97138842	8-97161-939-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.30 ASM PART: A = 8-97138-842-2, 97138842	8-97161-940-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.40 ASM PART: A = 8-97138-842-2, 97138842	8-97161-941-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.50 ASM PART: A = 8-97138-842-2, 97138842	8-97161-942-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.60 ASM PART: A = 8-97138-842-2, 97138842	8-97161-943-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.70 ASM PART: A = 8-97138-842-2, 97138842	8-97161-944-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.80 ASM PART: A = 8-97138-842-2, 97138842	8-97161-945-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.90 ASM PART: A = 8-97138-842-2, 97138842	8-97161-946-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.00 ASM PART: A = 8-97138-842-2, 97138842	8-97161-947-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.10 ASM PART: A = 8-97138-842-2, 97138842	8-97161-948-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.20 ASM PART: A = 8-97138-842-2, 97138842	8-97161-949-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.30 ASM PART: A = 8-97138-842-2, 97138842	8-97161-950-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.40 ASM PART: A = 8-97138-842-2, 97138842	8-97161-951-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.50 ASM PART: A = 8-97138-842-2, 97138842	8-97161-952-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.60 ASM PART: A = 8-97138-842-2, 97138842	8-97161-953-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.60 ASM PART: B = 8-97204-201-7, 97204201	8-97163-167-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.70 ASM PART: B = 8-97204-201-7, 97204201	8-97163-168-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.80 ASM PART: B = 8-97204-201-7, 97204201	8-97163-169-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.90 ASM PART: B = 8-97204-201-7, 97204201	8-97163-170-0	01	1	-
45	03.308 LEVER ASM; GOV,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97161-859-0	01	1	-
45	03.308 LEVER ASM; GOV,INJ PUMP ASM PART: B = 8-97204-201-7, 97204201	8-97224-539-0	01	1	-
46	03.308 SPRING; GOV,INJ PUMP (C) ASM PART: B = 8-97204-201-7, 97204201	8-94473-128-0	02	1	-
46	03.308 SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-97138-842-2, 97138842	8-97141-159-0	02	1	-
46	03.308 SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-97138-842-2, 97138842	8-97161-908-0	01	1	-
48	03.308 SHAFT; GOV,INJ PUMP ASM PART: B = 8-97204-201-7, 97204201	8-94248-002-0	01	1	-
48	03.308 SHAFT; GOV,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97161-865-0	01	1	-
49	03.308 GASKET; GOV SHAFT,INJ PUMP 03.318 ASM PART: B = 8-97204-201-7, 97204201	8-94227-606-0	01	1	-
49	03.308 GASKET; GOV SHAFT,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97140-848-0	01	1	-
50	03.308 NUT; GOV SHAFT,INJ PUMP ASM PART: B = 8-97204-201-7, 97204201	8-94473-129-0	01	1	-
50	03.308 NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97161-864-0	01	1	-
51	03.308 SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97138-842-2, 97138842	8-97161-860-0	01	1	-
51	03.308 SHAFT; LOAD CONT LEVER,GOV ASM PART: B = 8-97204-201-7, 97204201	8-97231-938-0	01	1	-
52	03.308 WASHER; CONT SHAFT,GOV ASM PART: B = 8-97204-201-7, 97204201	8-94227-590-0	01	1	-
52	03.308 WASHER; CONT SHAFT,GOV ASM PART: A = 8-97138-842-2, 97138842	8-97141-264-0	01	1	-
53	03.308 GASKET; CONT SHAFT,GOV 03.306 ASM PART: B = 8-97204-201-7, 97204201	8-94227-585-0	01	1	-
53	03.308 GASKET; CONT SHAFT,GOV ASM PART: A = 8-97138-842-2, 97138842	8-97141-190-0	01	1	-
54	03.308 VALVE; MAG,ENG STOP,INJ PUMP 03.314 ASM PART: B = 8-97204-201-7, 97204201	8-94242-275-0	01	1	-
54	03.308 VALVE; MAG,ENG STOP,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97202-042-0	01	1	-
55	03.308 GASKET; MAG VLV,INJ PUMP 03.318 ASM PART: B = 8-97204-201-7, 97204201	8-94239-373-0	01	1	-
55	03.308 GASKET; MAG VLV,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97202-044-0	01	1	-
56	03.308 WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: B = 8-97204-201-7, 97204201	8-94470-582-0	01	1	-
56	03.308 WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97141-439-0	01	1	-
57	03.318 NUT; VLV 03.308 ASM PART: B = 8-97204-201-7, 97204201	8-94473-135-0	01	1	-9908
57	03.318 NUT; VLV ASM PART: B = 8-97204-201-7, 97204201	8-97138-042-1	01	1	9909-
64	03.308 LEVER; LOAD CONT,GOV STAMP 042 ASM PART: B = 8-97204-201-7, 97204201	8-97086-120-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV STAMP 043 ASM PART: B = 8-97204-201-7, 97204201	8-97086-121-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV MARK 605 ASM PART: A = 8-97138-842-2, 97138842	8-97161-912-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV MARK 606 ASM PART: A = 8-97138-842-2, 97138842	8-97161-913-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV MARK 607 ASM PART: A = 8-97138-842-2, 97138842	8-97161-914-0	01	1	-
71	03.306 SPRING; CONT LEVER,GOV (A) ASM PART: A = 8-97138-842-2, 97138842	8-97161-909-0	01	1	-
71	03.306 SPRING; CONT LEVER,GOV (B) ASM PART: A = 8-97138-842-2, 97138842	8-97161-910-0	01	1	-
71	03.306 SPRING; CONT LEVER,GOV (C) ASM PART: B = 8-97204-201-7, 97204201	8-97214-511-0	01	1	-
80	03.308 WASHER; LK,CONT LEVER,GOV 00.206, ID=6.1 ASM PART: B = 8-97204-201-7, 97204201	9-09150-506-0	01	1	-
82	03.308 NUT; CONT LEVER FIX,GOV 03.318 ASM PART: B = 8-97204-201-7, 97204201	1-15729-006-0	01	1	-
82	03.308 NUT; CONT LEVER FIX,GOV ASM PART: A = 8-97138-842-2, 97138842	8-97141-567-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV 01.531, (B) ASM PART: B = 8-97204-201-7, 97204201	8-94313-253-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), L=53.0 ASM PART: B = 8-97204-201-7, 97204201	8-94316-274-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), L=55.0 ASM PART: B = 8-97204-201-7, 97204201	8-94316-275-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), L=57.0 ASM PART: B = 8-97204-201-7, 97204201	8-94316-276-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A) ASM PART: A = 8-97138-842-2, 97138842	8-97161-873-0	01	1	-
92	03.308 BOLT; FULL LOAD STOPPER,GOV 01.531, (C) ASM PART: B = 8-97204-201-7, 97204201	8-94313-253-0	01	1	-
92	03.308 BOLT; FULL LOAD STOPPER,GOV (A) ASM PART: A = 8-97138-842-2, 97138842	8-97141-437-0	01	1	-
92	03.308 BOLT; FULL LOAD STOPPER,GOV (B) ASM PART: A = 8-97138-842-2, 97138842	8-97141-438-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV 03.308, (C) ASM PART: B = 8-97204-201-7, 97204201	8-94316-277-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: B = 8-97204-201-7, 97204201	8-94426-047-1	02	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97138-842-2, 97138842	8-97141-177-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97138-842-2, 97138842	8-97141-216-0	01	1	-
97	03.308 BOLT; PIVOT,GOV LEVER ASM PART: B = 8-97204-201-7, 97204201	8-94227-601-0	02	1	-
97	03.308 BOLT; PIVOT,GOV LEVER ASM PART: A = 8-97138-842-2, 97138842	8-97141-250-0	02	1	-
98	03.308 GASKET; PIVOT BOLT,GOV LEVER 03.306 ASM PART: B = 8-97204-201-7, 97204201	8-94227-602-0	02	1	-
98	03.308 GASKET; PIVOT BOLT,GOV LEVER ASM PART: A = 8-97138-842-2, 97138842	8-97202-045-0	02	1	-
101	03.308 GASKET; ADJ SPRING CAPSULE,GOV ASM PART: B = 8-97204-201-7, 97204201	8-94227-598-0	01	1	-
101	03.308 GASKET; ADJ SPRING CAPSULE,GOV ASM PART: A = 8-97138-842-2, 97138842	8-97209-533-0	01	1	-
102	03.308 WASHER; FULL LOAD ADJ SCREW,GOV ASM PART: B = 8-97204-201-7, 97204201	8-94227-593-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (C), L=16.5 ASM PART: B = 8-97204-201-7, 97204201	8-94316-262-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=18.0 ASM PART: B = 8-97204-201-7, 97204201	8-94316-263-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=21.0 ASM PART: B = 8-97204-201-7, 97204201	8-94316-264-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=24.0 ASM PART: B = 8-97204-201-7, 97204201	8-94316-265-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=27.0 ASM PART: B = 8-97204-201-7, 97204201	8-94316-266-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (A), ID=7.9 L=8 ASM PART: A = 8-97138-842-2, 97138842	8-97141-372-0	01	1	-
135	03.330 BRACKET; POTENTIO METER ASM PART: B = 8-97204-201-7, 97204201	8-97231-937-0	01	1	-
138	03.330 POTENTIO METER ASM PART: B = 8-97204-201-7, 97204201	8-97214-513-0	01	1	-
140	03.330 BOLT; BRKT,INJ PUMP 03.306, (B) ASM PART: B = 8-97204-201-7, 97204201	8-94313-203-0	01	1	-
140	03.330 BOLT; BRKT,INJ PUMP 03.308, (A) ASM PART: B = 8-97204-201-7, 97204201	8-94313-267-0	01	1	-
140	03.330 BOLT; BRKT,INJ PUMP (C) ASM PART: B = 8-97204-201-7, 97204201	8-97218-971-0	01	1	-
167	03.308 BOLT; PLATE ASM PART: B = 8-97204-201-7, 97204201	8-94174-987-0	01	1	-
181	03.308 SPACER; BRKT ASM PART: B = 8-97204-201-7, 97204201	8-97214-506-0	02	1	-
282	03.308 SCREW; POTENTIO METER ASM PART: B = 8-97204-201-7, 97204201	8-97148-143-0	02	1	-
410	03.308 BRACKET; GOV 03.314 ASM PART: B = 8-97204-201-7, 97204201	8-97231-936-0	01	1	-
415	03.306 BOLT; BRKT TO HOUSING 03.308 ASM PART: B = 8-97204-201-7, 97204201	8-94313-264-0	02	1	-9908
448	03.308 PLATE; BRKT ASM PART: B = 8-97204-201-7, 97204201	8-97182-233-0	01	1	-
463	03.308 BOOT; POTENTIO METER ASM PART: B = 8-97204-201-7, 97204201	8-97148-144-0	01	1	-
464	03.308 JOINT; POTENTIO METER ANGLE=15 DEGREES ASM PART: B = 8-97204-201-7, 97204201	8-97168-229-0	01	1	-
464	03.308 JOINT; POTENTIO METER ANGLE=30 DEGREES ASM PART: B = 8-97204-201-7, 97204201	8-97168-230-0	01	1	-
464	03.308 JOINT; POTENTIO METER ANGLE=45 DEGREES ASM PART: B = 8-97204-201-7, 97204201	8-97168-231-0	01	1	-
464	03.308 JOINT; POTENTIO METER ANGLE=60 DEGREES ASM PART: B = 8-97204-201-7, 97204201	8-97168-232-0	01	1	-
464	03.308 JOINT; POTENTIO METER ANGLE=75 DEGREES ASM PART: B = 8-97204-201-7, 97204201	8-97168-233-0	01	1	-
464	03.308 JOINT; POTENTIO METER ANGLE=90 DEGREES ASM PART: B = 8-97204-201-7, 97204201	8-97214-514-0	01	1	-
464	03.308 JOINT; POTENTIO METER ANGLE=105 DEGREES ASM PART: B = 8-97204-201-7, 97204201	8-97214-515-0	01	1	-
464	03.308 JOINT; POTENTIO METER ANGLE=120 DEGREES ASM PART: B = 8-97204-201-7, 97204201	8-97214-516-0	01	1	-
464	03.308 JOINT; POTENTIO METER ANGLE=135 DEGREES ASM PART: B = 8-97204-201-7, 97204201	8-97214-517-0	01	1	-
464	03.308 JOINT; POTENTIO METER ANGLE=150 DEGREES ASM PART: B = 8-97204-201-7, 97204201	8-97214-518-0	01	1	-
464	03.308 JOINT; POTENTIO METER ANGLE=165 DEGREES ASM PART: B = 8-97204-201-7, 97204201	8-97214-519-0	01	1	-
464	03.308 JOINT; POTENTIO METER ANGLE=0 DEGREES ASM PART: B = 8-97204-201-7, 97204201	8-97214-520-0	01	1	-

82 72 64 71 93 92 71 8 7 93 92 11 101 53 49 52 48 104 90 51 17 14 46 97 98 457 45 41 15 15 18 25 458 223 20 56 256 54 55 459 46 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	03.308 COVER; GOV HSG,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97140-743-0	01	1	-
8	01.531 BOLT; GOV COVER,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97141-178-0	04	1	-
11	03.308 GASKET; COVER TO HSG,GOV ASM PART: A = 8-97138-842-2, 97138842	8-97141-201-0	01	1	-
14	03.308 HOLDER; GOV FLYWEIGHT,INJ PUMP 03.318 ASM PART: B = 8-97204-201-7, 97204201	8-94227-613-0	01	1	-
14	03.308 HOLDER; GOV FLYWEIGHT,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97140-921-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV 03.318, (C) ASM PART: B = 8-97204-201-7, 97204201	8-94227-612-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV 03.318, (D) ASM PART: B = 8-97204-201-7, 97204201	8-94227-614-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV (A) ASM PART: A = 8-97138-842-2, 97138842	8-97140-828-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV (B) ASM PART: A = 8-97138-842-2, 97138842	8-97140-830-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.05 ASM PART: B = 8-97204-201-7, 97204201	8-94227-607-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.25 ASM PART: B = 8-97204-201-7, 97204201	8-94227-608-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.45 ASM PART: B = 8-97204-201-7, 97204201	8-94227-609-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.65 ASM PART: B = 8-97204-201-7, 97204201	8-94227-610-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.85 ASM PART: B = 8-97204-201-7, 97204201	8-94227-611-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.15 ASM PART: B = 8-97204-201-7, 97204201	8-94231-123-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.35 ASM PART: B = 8-97204-201-7, 97204201	8-94231-124-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.55 ASM PART: B = 8-97204-201-7, 97204201	8-94231-125-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.75 ASM PART: B = 8-97204-201-7, 97204201	8-94231-126-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.05 ASM PART: A = 8-97138-842-2, 97138842	8-97141-308-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.25 ASM PART: A = 8-97138-842-2, 97138842	8-97141-311-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.45 ASM PART: A = 8-97138-842-2, 97138842	8-97141-313-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.65 ASM PART: A = 8-97138-842-2, 97138842	8-97141-314-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.85 ASM PART: A = 8-97138-842-2, 97138842	8-97141-316-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.55 ASM PART: A = 8-97138-842-2, 97138842	8-97141-318-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.75 ASM PART: A = 8-97138-842-2, 97138842	8-97141-319-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=2.05 ASM PART: A = 8-97138-842-2, 97138842	8-97141-320-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.30 ASM PART: A = 8-97138-842-2, 97138842	8-97141-323-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.40 ASM PART: A = 8-97138-842-2, 97138842	8-97141-324-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 8-97138-842-2, 97138842	8-97141-325-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.60 ASM PART: A = 8-97138-842-2, 97138842	8-97141-326-0	01	1	-
18	03.308 SLEEVE; GOV D=0.40 ASM PART: A = 8-97138-842-2, 97138842	8-97161-861-0	01	1	-
18	03.308 SLEEVE; GOV D=0.45 ASM PART: A = 8-97138-842-2, 97138842	8-97161-862-0	01	1	-
18	03.308 SLEEVE; GOV D=0.50 ASM PART: A = 8-97138-842-2, 97138842	8-97161-863-0	01	1	-
18	03.308 SLEEVE; GOV D=0.55 ASM PART: A = 8-97138-842-2, 97138842	8-97212-361-0	01	1	-
18	03.308 SLEEVE; GOV D=0.60 ASM PART: A = 8-97138-842-2, 97138842	8-97212-362-0	01	1	-
18	03.308 SLEEVE; GOV ASM PART: B = 8-97204-201-7, 97204201	8-97214-475-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.20 ASM PART: B = 8-97204-201-7, 97204201	8-94372-499-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.30 ASM PART: B = 8-97204-201-7, 97204201	8-94372-500-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.40 ASM PART: B = 8-97204-201-7, 97204201	8-94372-501-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.50 ASM PART: B = 8-97204-201-7, 97204201	8-94372-502-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.10 ASM PART: B = 8-97204-201-7, 97204201	8-94408-520-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.30 ASM PART: B = 8-97204-201-7, 97204201	8-94408-521-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.50 ASM PART: B = 8-97204-201-7, 97204201	8-94408-522-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.70 ASM PART: B = 8-97204-201-7, 97204201	8-94408-523-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.90 ASM PART: B = 8-97204-201-7, 97204201	8-94408-524-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.10 ASM PART: B = 8-97204-201-7, 97204201	8-94408-525-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: B = 8-97204-201-7, 97204201	8-94408-526-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: B = 8-97204-201-7, 97204201	8-94408-527-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: B = 8-97204-201-7, 97204201	8-94408-528-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: B = 8-97204-201-7, 97204201	8-94408-529-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: B = 8-97204-201-7, 97204201	8-94408-530-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: B = 8-97204-201-7, 97204201	8-94408-531-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: B = 8-97204-201-7, 97204201	8-94408-532-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: B = 8-97204-201-7, 97204201	8-94408-533-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: B = 8-97204-201-7, 97204201	8-94408-534-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.10 ASM PART: B = 8-97204-201-7, 97204201	8-94408-535-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.20 ASM PART: B = 8-97204-201-7, 97204201	8-94428-868-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.40 ASM PART: B = 8-97204-201-7, 97204201	8-94428-869-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.60 ASM PART: B = 8-97204-201-7, 97204201	8-94428-870-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.80 ASM PART: B = 8-97204-201-7, 97204201	8-94428-871-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.00 ASM PART: B = 8-97204-201-7, 97204201	8-94428-872-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: B = 8-97204-201-7, 97204201	8-94428-873-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: B = 8-97204-201-7, 97204201	8-94428-874-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: B = 8-97204-201-7, 97204201	8-94428-875-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: B = 8-97204-201-7, 97204201	8-94428-876-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: B = 8-97204-201-7, 97204201	8-94428-877-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: B = 8-97204-201-7, 97204201	8-94428-878-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: B = 8-97204-201-7, 97204201	8-94428-879-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: B = 8-97204-201-7, 97204201	8-94428-880-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: B = 8-97204-201-7, 97204201	8-94428-881-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: B = 8-97204-201-7, 97204201	8-94428-882-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: A = 8-97138-842-2, 97138842	8-97141-381-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: A = 8-97138-842-2, 97138842	8-97141-384-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: A = 8-97138-842-2, 97138842	8-97141-386-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: A = 8-97138-842-2, 97138842	8-97141-387-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: A = 8-97138-842-2, 97138842	8-97141-388-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: A = 8-97138-842-2, 97138842	8-97141-389-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: A = 8-97138-842-2, 97138842	8-97141-390-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.00 ASM PART: A = 8-97138-842-2, 97138842	8-97161-923-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.10 ASM PART: A = 8-97138-842-2, 97138842	8-97161-925-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: A = 8-97138-842-2, 97138842	8-97161-926-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: A = 8-97138-842-2, 97138842	8-97161-927-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: A = 8-97138-842-2, 97138842	8-97161-928-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: A = 8-97138-842-2, 97138842	8-97161-929-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: A = 8-97138-842-2, 97138842	8-97161-930-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: A = 8-97138-842-2, 97138842	8-97161-931-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: A = 8-97138-842-2, 97138842	8-97161-932-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: A = 8-97138-842-2, 97138842	8-97161-933-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: A = 8-97138-842-2, 97138842	8-97161-934-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: A = 8-97138-842-2, 97138842	8-97161-935-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: A = 8-97138-842-2, 97138842	8-97161-936-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: A = 8-97138-842-2, 97138842	8-97161-937-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.10 ASM PART: A = 8-97138-842-2, 97138842	8-97161-938-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.20 ASM PART: A = 8-97138-842-2, 97138842	8-97161-939-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.30 ASM PART: A = 8-97138-842-2, 97138842	8-97161-940-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.40 ASM PART: A = 8-97138-842-2, 97138842	8-97161-941-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.50 ASM PART: A = 8-97138-842-2, 97138842	8-97161-942-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.60 ASM PART: A = 8-97138-842-2, 97138842	8-97161-943-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.70 ASM PART: A = 8-97138-842-2, 97138842	8-97161-944-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.80 ASM PART: A = 8-97138-842-2, 97138842	8-97161-945-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.90 ASM PART: A = 8-97138-842-2, 97138842	8-97161-946-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.00 ASM PART: A = 8-97138-842-2, 97138842	8-97161-947-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.10 ASM PART: A = 8-97138-842-2, 97138842	8-97161-948-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.20 ASM PART: A = 8-97138-842-2, 97138842	8-97161-949-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.30 ASM PART: A = 8-97138-842-2, 97138842	8-97161-950-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.40 ASM PART: A = 8-97138-842-2, 97138842	8-97161-951-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.50 ASM PART: A = 8-97138-842-2, 97138842	8-97161-952-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.60 ASM PART: A = 8-97138-842-2, 97138842	8-97161-953-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.60 ASM PART: B = 8-97204-201-7, 97204201	8-97163-167-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.70 ASM PART: B = 8-97204-201-7, 97204201	8-97163-168-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.80 ASM PART: B = 8-97204-201-7, 97204201	8-97163-169-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.90 ASM PART: B = 8-97204-201-7, 97204201	8-97163-170-0	01	1	-
25	03.308 RING; SNAP ASM PART: A = 8-97138-842-2, 97138842	8-97141-563-0	01	1	-
41	03.308 SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 8-97138-842-2, 97138842	8-97161-904-0	01	1	-
45	03.308 LEVER ASM; GOV,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97161-859-0	01	1	-
45	03.308 LEVER ASM; GOV,INJ PUMP ASM PART: B = 8-97204-201-7, 97204201	8-97224-539-0	01	1	-
46	03.308 SPRING; GOV,INJ PUMP (C) ASM PART: B = 8-97204-201-7, 97204201	8-94473-128-0	02	1	-
46	03.308 SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-97138-842-2, 97138842	8-97141-159-0	02	1	-
46	03.308 SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-97138-842-2, 97138842	8-97161-908-0	01	1	-
48	03.308 SHAFT; GOV,INJ PUMP ASM PART: B = 8-97204-201-7, 97204201	8-94248-002-0	01	1	-
48	03.308 SHAFT; GOV,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97161-865-0	01	1	-
49	03.308 GASKET; GOV SHAFT,INJ PUMP 03.318 ASM PART: B = 8-97204-201-7, 97204201	8-94227-606-0	01	1	-
49	03.308 GASKET; GOV SHAFT,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97140-848-0	01	1	-
50	03.308 NUT; GOV SHAFT,INJ PUMP ASM PART: B = 8-97204-201-7, 97204201	8-94473-129-0	01	1	-
50	03.308 NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97161-864-0	01	1	-
51	03.308 SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97138-842-2, 97138842	8-97161-860-0	01	1	-
51	03.308 SHAFT; LOAD CONT LEVER,GOV ASM PART: B = 8-97204-201-7, 97204201	8-97231-938-0	01	1	-
52	03.308 WASHER; CONT SHAFT,GOV ASM PART: B = 8-97204-201-7, 97204201	8-94227-590-0	01	1	-
52	03.308 WASHER; CONT SHAFT,GOV ASM PART: A = 8-97138-842-2, 97138842	8-97141-264-0	01	1	-
53	03.308 GASKET; CONT SHAFT,GOV 03.306 ASM PART: B = 8-97204-201-7, 97204201	8-94227-585-0	01	1	-
53	03.308 GASKET; CONT SHAFT,GOV ASM PART: A = 8-97138-842-2, 97138842	8-97141-190-0	01	1	-
54	03.308 VALVE; MAG,ENG STOP,INJ PUMP 03.314 ASM PART: B = 8-97204-201-7, 97204201	8-94242-275-0	01	1	-
54	03.308 VALVE; MAG,ENG STOP,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97202-042-0	01	1	-
55	03.308 GASKET; MAG VLV,INJ PUMP 03.318 ASM PART: B = 8-97204-201-7, 97204201	8-94239-373-0	01	1	-
55	03.308 GASKET; MAG VLV,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97202-044-0	01	1	-
56	03.308 WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: B = 8-97204-201-7, 97204201	8-94470-582-0	01	1	-
56	03.308 WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97141-439-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV STAMP 042 ASM PART: B = 8-97204-201-7, 97204201	8-97086-120-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV STAMP 043 ASM PART: B = 8-97204-201-7, 97204201	8-97086-121-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV MARK 605 ASM PART: A = 8-97138-842-2, 97138842	8-97161-912-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV MARK 606 ASM PART: A = 8-97138-842-2, 97138842	8-97161-913-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV MARK 607 ASM PART: A = 8-97138-842-2, 97138842	8-97161-914-0	01	1	-
71	03.306 SPRING; CONT LEVER,GOV (A) ASM PART: A = 8-97138-842-2, 97138842	8-97161-909-0	01	1	-
71	03.306 SPRING; CONT LEVER,GOV (B) ASM PART: A = 8-97138-842-2, 97138842	8-97161-910-0	01	1	-
71	03.306 SPRING; CONT LEVER,GOV (C) ASM PART: B = 8-97204-201-7, 97204201	8-97214-511-0	01	1	-
72	03.308 SEAT; SPRING,CONT LEVER,GOV ASM PART: A = 8-97138-842-2, 97138842	8-97161-907-0	01	1	-
82	03.308 NUT; CONT LEVER FIX,GOV 03.318 ASM PART: B = 8-97204-201-7, 97204201	1-15729-006-0	01	1	-
82	03.308 NUT; CONT LEVER FIX,GOV ASM PART: A = 8-97138-842-2, 97138842	8-97141-567-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV 01.531, (B) ASM PART: B = 8-97204-201-7, 97204201	8-94313-253-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), L=53.0 ASM PART: B = 8-97204-201-7, 97204201	8-94316-274-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), L=55.0 ASM PART: B = 8-97204-201-7, 97204201	8-94316-275-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), L=57.0 ASM PART: B = 8-97204-201-7, 97204201	8-94316-276-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A) ASM PART: A = 8-97138-842-2, 97138842	8-97161-873-0	01	1	-
92	03.308 BOLT; FULL LOAD STOPPER,GOV 01.531, (C) ASM PART: B = 8-97204-201-7, 97204201	8-94313-253-0	01	1	-
92	03.308 BOLT; FULL LOAD STOPPER,GOV (A) ASM PART: A = 8-97138-842-2, 97138842	8-97141-437-0	01	1	-
92	03.308 BOLT; FULL LOAD STOPPER,GOV (B) ASM PART: A = 8-97138-842-2, 97138842	8-97141-438-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV 03.308, (C) ASM PART: B = 8-97204-201-7, 97204201	8-94316-277-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: B = 8-97204-201-7, 97204201	8-94426-047-1	02	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97138-842-2, 97138842	8-97141-177-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97138-842-2, 97138842	8-97141-216-0	01	1	-
97	03.308 BOLT; PIVOT,GOV LEVER ASM PART: B = 8-97204-201-7, 97204201	8-94227-601-0	02	1	-
97	03.308 BOLT; PIVOT,GOV LEVER ASM PART: A = 8-97138-842-2, 97138842	8-97141-250-0	02	1	-
98	03.308 GASKET; PIVOT BOLT,GOV LEVER 03.306 ASM PART: B = 8-97204-201-7, 97204201	8-94227-602-0	02	1	-
98	03.308 GASKET; PIVOT BOLT,GOV LEVER ASM PART: A = 8-97138-842-2, 97138842	8-97202-045-0	02	1	-
101	03.308 GASKET; ADJ SPRING CAPSULE,GOV ASM PART: B = 8-97204-201-7, 97204201	8-94227-598-0	01	1	-
101	03.308 GASKET; ADJ SPRING CAPSULE,GOV ASM PART: A = 8-97138-842-2, 97138842	8-97209-533-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (C), L=16.5 ASM PART: B = 8-97204-201-7, 97204201	8-94316-262-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=18.0 ASM PART: B = 8-97204-201-7, 97204201	8-94316-263-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=21.0 ASM PART: B = 8-97204-201-7, 97204201	8-94316-264-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=24.0 ASM PART: B = 8-97204-201-7, 97204201	8-94316-265-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=27.0 ASM PART: B = 8-97204-201-7, 97204201	8-94316-266-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (A), ID=7.9 L=8 ASM PART: A = 8-97138-842-2, 97138842	8-97141-372-0	01	1	-
223	03.308 BEARING; SLEEVE ASM PART: A = 8-97138-842-2, 97138842	8-97141-564-0	01	1	-
256	03.308 SEAT; GOV SPRING ASM PART: A = 8-97138-842-2, 97138842	8-97161-905-0	01	1	-
457	03.308 FLYWEIGHT; GOV ASM PART: A = 8-97138-842-2, 97138842	8-97140-822-0	04	1	-
458	03.308 RING; SLEEVE,GOV ASM PART: A = 8-97138-842-2, 97138842	8-97140-859-0	01	1	-
459	03.300 FILTER; SOLENOID ASM PART: A = 8-97138-842-2, 97138842	8-97141-571-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
