Sayfa 0-56 - Isuzu EPC

0-56 — EMISSION SYSTEM (#18850) — 58 parça

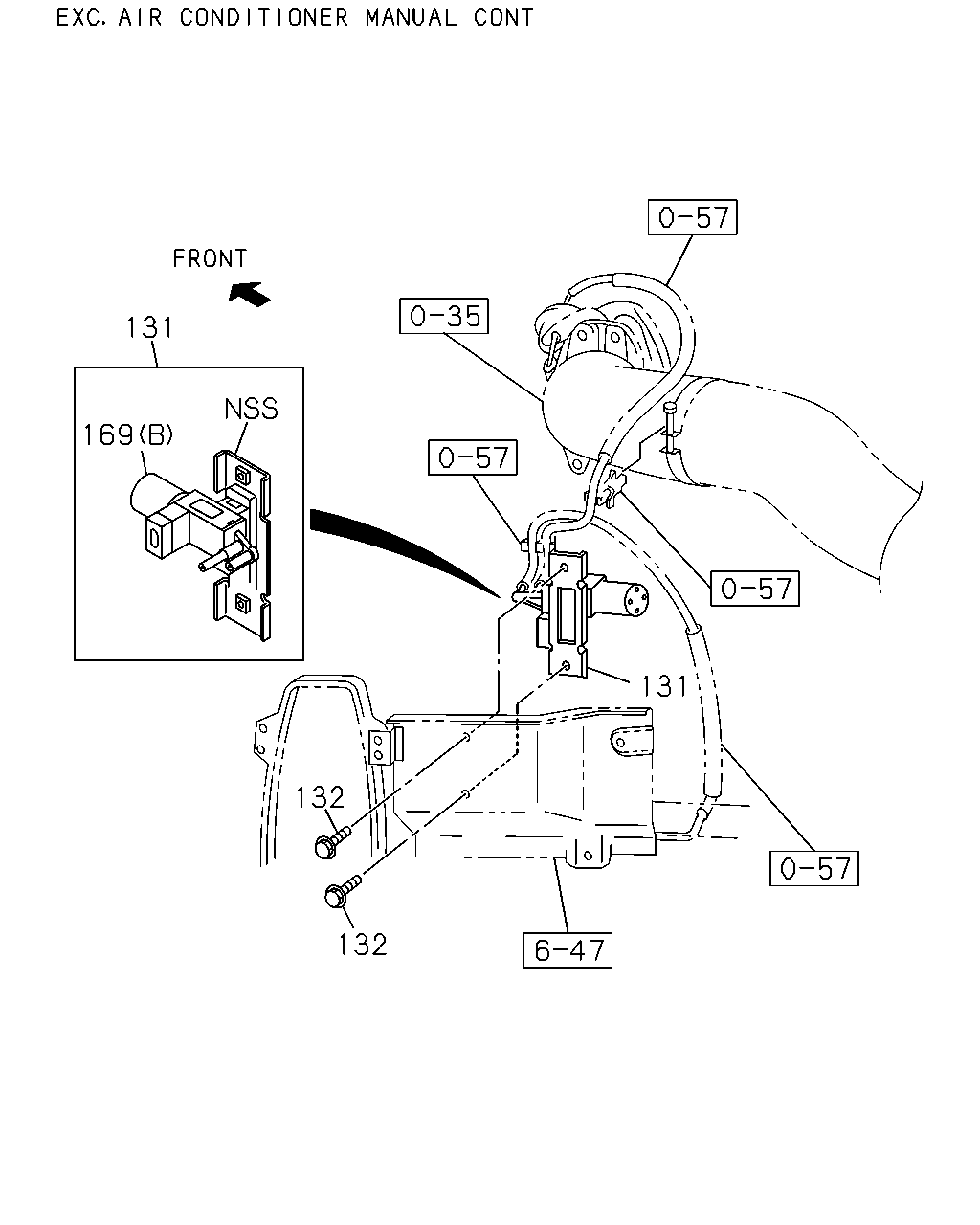

131 169 131 132 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97030-324-1	01	1	9812-	●
131	03.670 VALVE; VAC SWITCHING EXC. AIR CONDITIONER MANUAL CONT(C60), CHARGE AIR COOLER<6PL>	8-97116-759-0	01	1	9812-	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION<7AF>	8-97184-200-0	01	1	9812-0105	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE>	8-97184-200-2	01	1	0106-	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>	8-97182-889-0	01	1	0201-	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF>	8-97182-889-0	01	1	9812-0105	●
132	03.680 BOLT; VSV BRKT EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9812-	●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	8-97012-878-0	01	1	9812-	●
169	03.670 VALVE; VAC SWITCHING EXC. CHARGE AIR COOLER<6PL> (B)	8-97021-705-1	01	1	9812-	●

133 131 131 169 132 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97030-324-1	01	1	9812-	●
131	03.670 VALVE; VAC SWITCHING EXC. AIR CONDITIONER MANUAL CONT(C60), CHARGE AIR COOLER<6PL>	8-97116-759-0	01	1	9812-	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION<7AF>	8-97184-200-0	01	1	9812-0105	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE>	8-97184-200-2	01	1	0106-	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>	8-97182-889-0	01	1	0201-	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF>	8-97182-889-0	01	1	9812-0105	●
132	03.680 BOLT; VSV BRKT EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9812-	●
133	03.675 HOSE; RUBBER,VSV TO INJ PUMP AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.962 L=490 SERVICED BY L=3000	0-04730-300-0	01	1	9812-	●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	8-97012-878-0	01	1	9812-	●
169	03.670 VALVE; VAC SWITCHING EXC. CHARGE AIR COOLER<6PL> (B)	8-97021-705-1	01	1	9812-	●

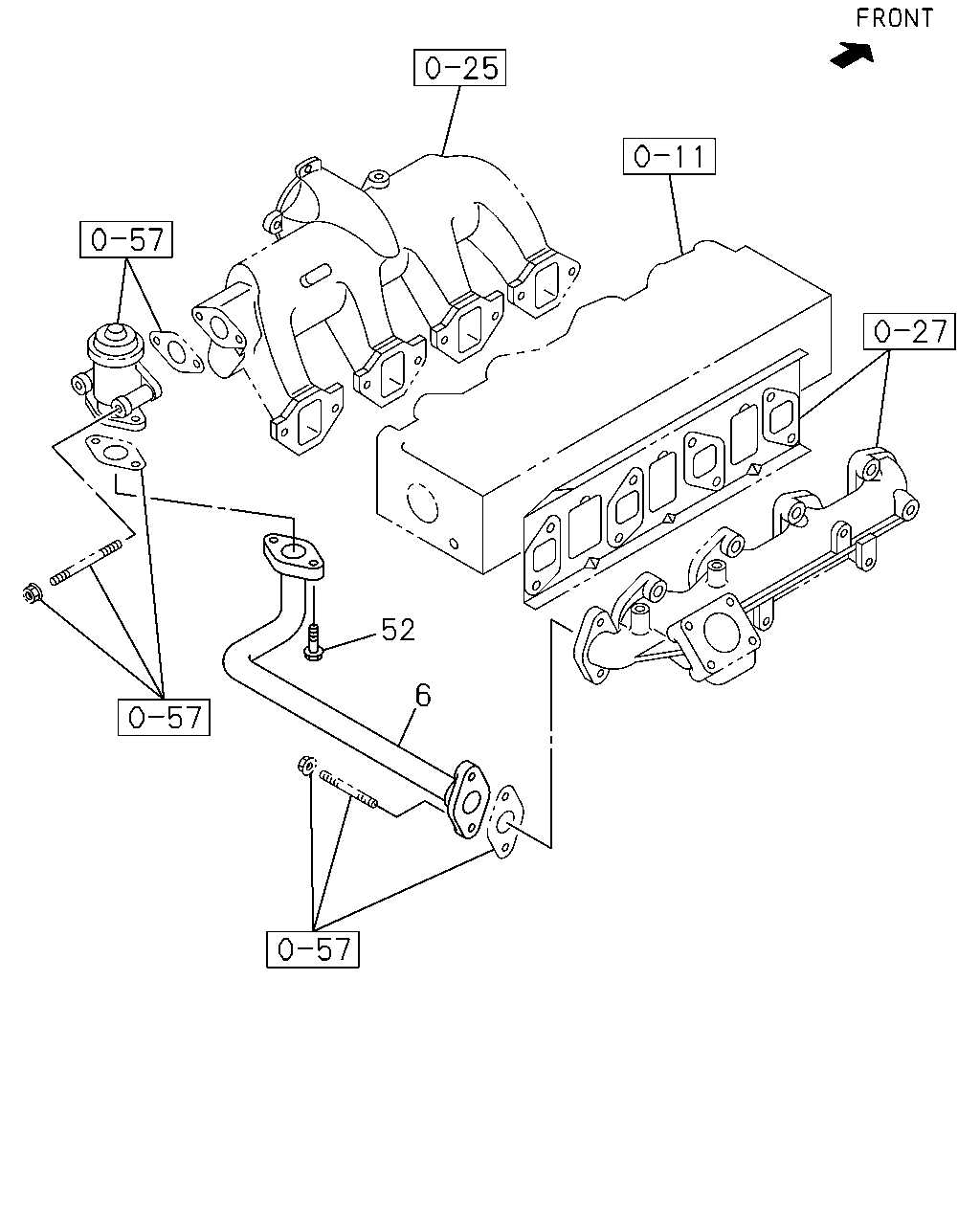

52 6

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	6	03.675 PIPE; EGR	8-97208-682-1	01	1	9906-0105		●
	52	03.680 BOLT; EGR PIPE 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9906-0105		●

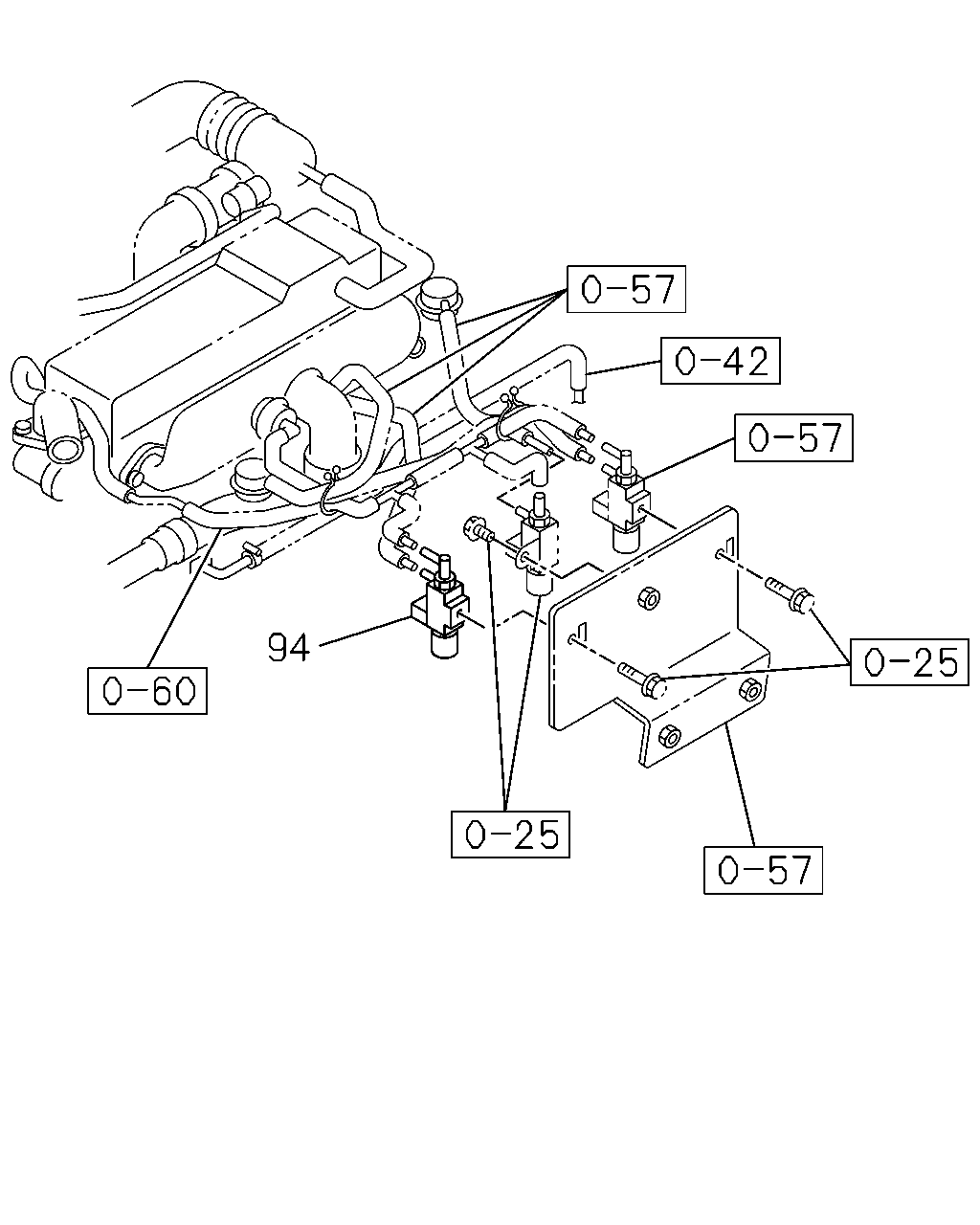

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	94	03.670 VALVE; VAC SWITCH,FAST IDLE	8-94384-335-0	01	1	9906-0105		●

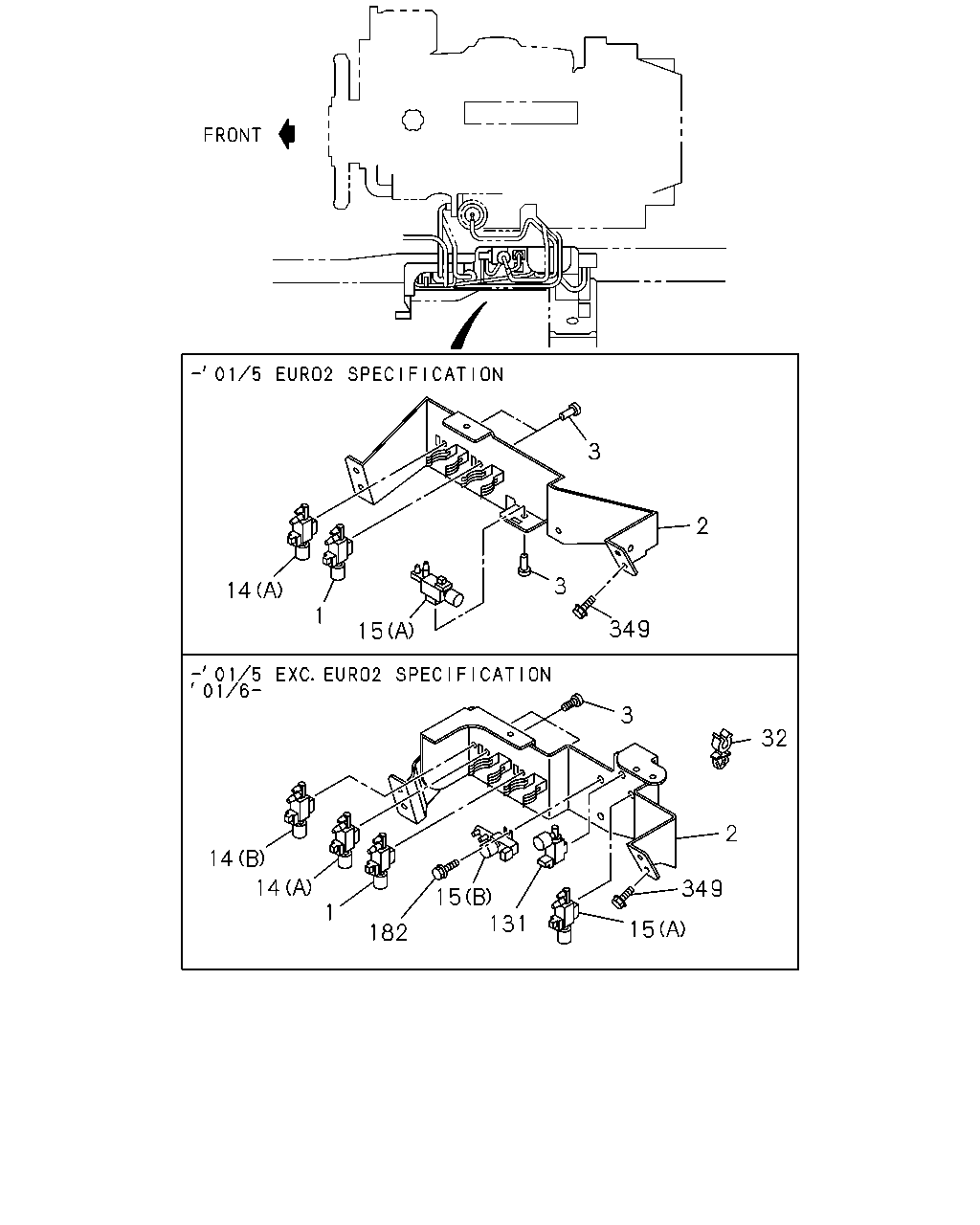

3 2 3 14 1 349 15 3 32 2 14 14 349 15 131 1 15 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
1	03.670 VALVE; VAC SW,EGR CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE>	8-97023-544-2	01	1	9812-	●
1	03.670 VALVE; VAC SW,EGR CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 03.130	8-94384-336-0	01	1	0201-	●
1	03.670 VALVE; VAC SW,EGR CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF> 03.130	8-94384-336-0	01	1	9812-0105	●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97192-228-0	01	1	9812-0105	●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97171-198-3	01	1	9812-0102	●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97305-209-0	01	1	0103-0105	●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL>	8-97305-209-0	01	1	0106-	●
3	03.670 BOLT; VSV CHARGE AIR COOLER<6PL> 09.655 M5X8 W/LK WASHER	9-03910-508-0	03	1	9812-0105	●
3	03.670 BOLT; VSV CHARGE AIR COOLER<6PL> 09.655 M5X8 W/LK WASHER	9-03910-508-0	02	1	0106-	●
3	03.670 BOLT; VSV CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 09.655 M5X8 W/LK WASHER	9-03910-508-0	02	1	9812-0105	●
3	03.670 BOLT; VSV CHARGE AIR COOLER<6PL> 09.655 M5X8 W/LK WASHER	9-03910-508-0	03	1	0106-	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (A)	8-97023-543-2	01	1	9812-	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION<7AF> (B)	8-97023-544-0	01	1	9812-0105	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (B)	8-97023-544-2	01	1	0106-	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (A)	8-94384-335-0	01	1	0201-	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 03.130 (B)	8-94384-336-0	01	1	0201-	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF> (A)	8-94384-335-0	01	1	9812-0105	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF> 03.130 (B)	8-94384-336-0	01	1	9812-0105	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (A)	8-97023-543-2	01	1	9812-	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION<7AF> (B)	8-97184-183-0	01	1	9812-0105	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (B)	8-97184-183-0	01	1	0106-	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (A)	8-94384-335-0	01	1	0201-	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (B)	8-97137-812-0	01	1	0201-	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF> (A)	8-94384-335-0	01	1	9812-0105	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF> (B)	8-97137-812-0	01	1	9812-0105	●
32	03.680 CLIP; EGR HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.162	8-94253-984-0	01	1	9812-0105	●
32	03.680 CLIP; EGR HOSE CHARGE AIR COOLER<6PL> 03.162	8-94253-984-0	01	1	0106-	●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97030-324-1	01	1	9812-	●
131	03.670 VALVE; VAC SWITCHING EXC. AIR CONDITIONER MANUAL CONT(C60), CHARGE AIR COOLER<6PL>	8-97116-759-0	01	1	9812-	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION<7AF>	8-97184-200-0	01	1	9812-0105	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE>	8-97184-200-2	01	1	0106-	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>	8-97182-889-0	01	1	0201-	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF>	8-97182-889-0	01	1	9812-0105	●
182	03.670 BOLT; VLV CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9812-0105	●
182	03.670 BOLT; VLV CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0106-	●
349	03.671 BOLT; CASE CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9812-	●
