0-52 — OIL AND VACUUM PIPING; ENGINE (#18849) — 279 parça

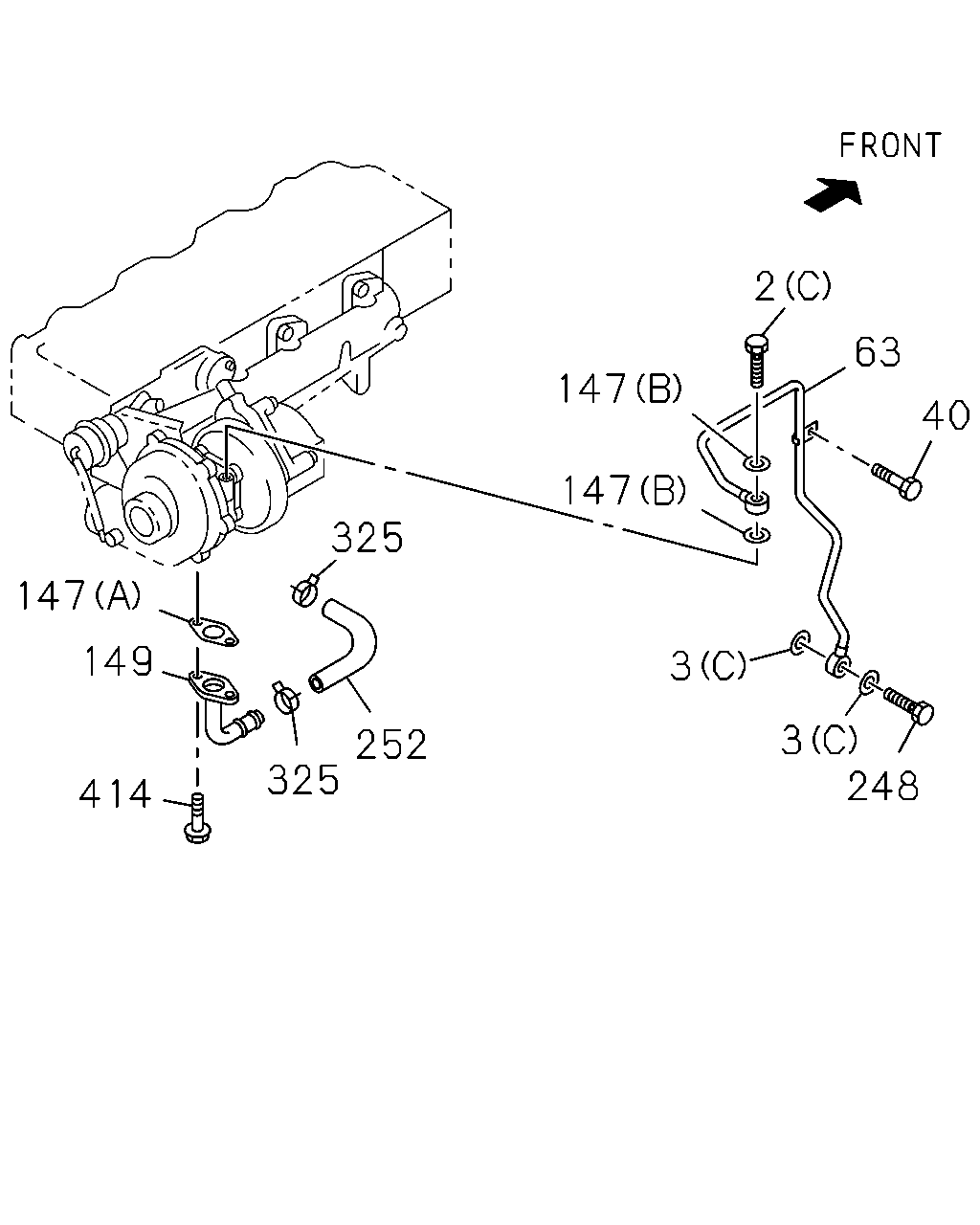

çizim 47315
2 63 147 40 147 325 147 149 3 3 248 252 325 414
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 01.531 BOLT; EYE,OIL PIPE
03.280 (B) M10X24 		9-09906-205-1 01 1 9812- ●
2 01.531 BOLT; EYE,OIL PIPE
CHARGE AIR COOLER<6PL> (A) M10X40 FLANGE 		8-97182-847-0 01 1 9812- ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. CHARGE AIR COOLER<6PL> (A) M10X36 		1-09675-183-0 01 1 9812- ●
2 01.531 BOLT; EYE,OIL PIPE
03.358 (C) M10X23 FLANGE 		8-94332-831-1 01 1 9906-0105 ●
2 01.531 BOLT; EYE,OIL PIPE
(D) M10X27 		8-94443-535-0 01 1 0106- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9812- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2 		9-09571-412-0 02 1 9812- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 06 1 9812- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0 		9-09571-414-0 02 1 9906-0105 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0 		9-09571-414-0 02 1 0106- ●
40 01.531 BOLT; OIL PIPE
CHARGE AIR COOLER<6PL> 03.604 M10X16 FLANGE 		0-28181-016-0 02 1 9812- ●
40 01.531 BOLT; OIL PIPE
02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9906-0105 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> 		8-97214-394-0 01 1 9812-0105 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> 		8-97260-199-1 01 1 0106- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97182-990-0 01 1 9812-9907 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97229-042-0 01 1 9908- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97224-297-0 01 1 9906-0105 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97239-974-4 01 1 0106- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (A) 		8-94362-672-0 01 1 9906-0105 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14 		8-97041-638-0 01 1 0106- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9906-0105 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0106- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97192-313-0 01 1 9906-0105 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97258-833-0 01 1 0106- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
03.162 M14X27 FLANGE 		1-09675-086-0 01 1 9906-0105 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
03.162 M14X27 FLANGE 		1-09675-086-0 01 1 0106- ●
252 01.855 HOSE; RUBBER,TURBOCHARGER RETURN 8-97176-141-0 01 1 9906-0105 ●
252 01.855 HOSE; RUBBER,TURBOCHARGER RETURN 8-97258-872-1 01 1 0106- ●
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
01.166 ID=20.8 		8-94125-862-1 02 1 9906-0105 ●
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
01.166 ID=20.8 		8-94125-862-1 02 1 0106- ●
414 01.531 BOLT; OIL PIPE
02.559 M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9906-0105 ●
414 01.531 BOLT; OIL PIPE
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 0106- ●
çizim 47379
89 86 89 340 202 202 202 65 202 202 202 65 83 83 202 65 27 202 65 27
BalonParca AdiParca NoAdetTipApplied Date A B C D
27 01.531 BOLT; OIL PIPE FIX
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9812-0109 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0110- ●
27 01.531 BOLT; OIL PIPE FIX
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0110- ●
27 01.531 BOLT; OIL PIPE FIX
EXC. CHARGE AIR COOLER<6PL> 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9812- ●
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		1-09675-078-0 01 1 9812-0105 ●
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		1-09675-078-0 01 1 0106- ● ●
65 01.531 BOLT; JOINT,OIL PIPE
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 9812-0105 ●
65 01.531 BOLT; JOINT,OIL PIPE
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 0106- ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97029-287-1 01 1 9812-0109 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97228-671-0 01 1 0110- ●
86 01.519 PIPE; OIL,VAC PUMP RETURN
01.430 		8-94455-311-1 01 1 9812- ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 9812- ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 9812- ●
202 01.531 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9812-0105 ●
202 01.531 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0106- ● ●
202 01.531 GASKET; OIL PIPE
03.163 (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9812-0105 ●
202 01.531 GASKET; OIL PIPE
03.163 (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0106- ● ●
340 03.280 HOSE; VAC PUMP,RETURN
04.681 		8-94339-073-3 01 1 9812-0105 ●
340 03.280 HOSE; VAC PUMP,RETURN
04.681 		8-94339-073-3 01 1 0106- ● ●

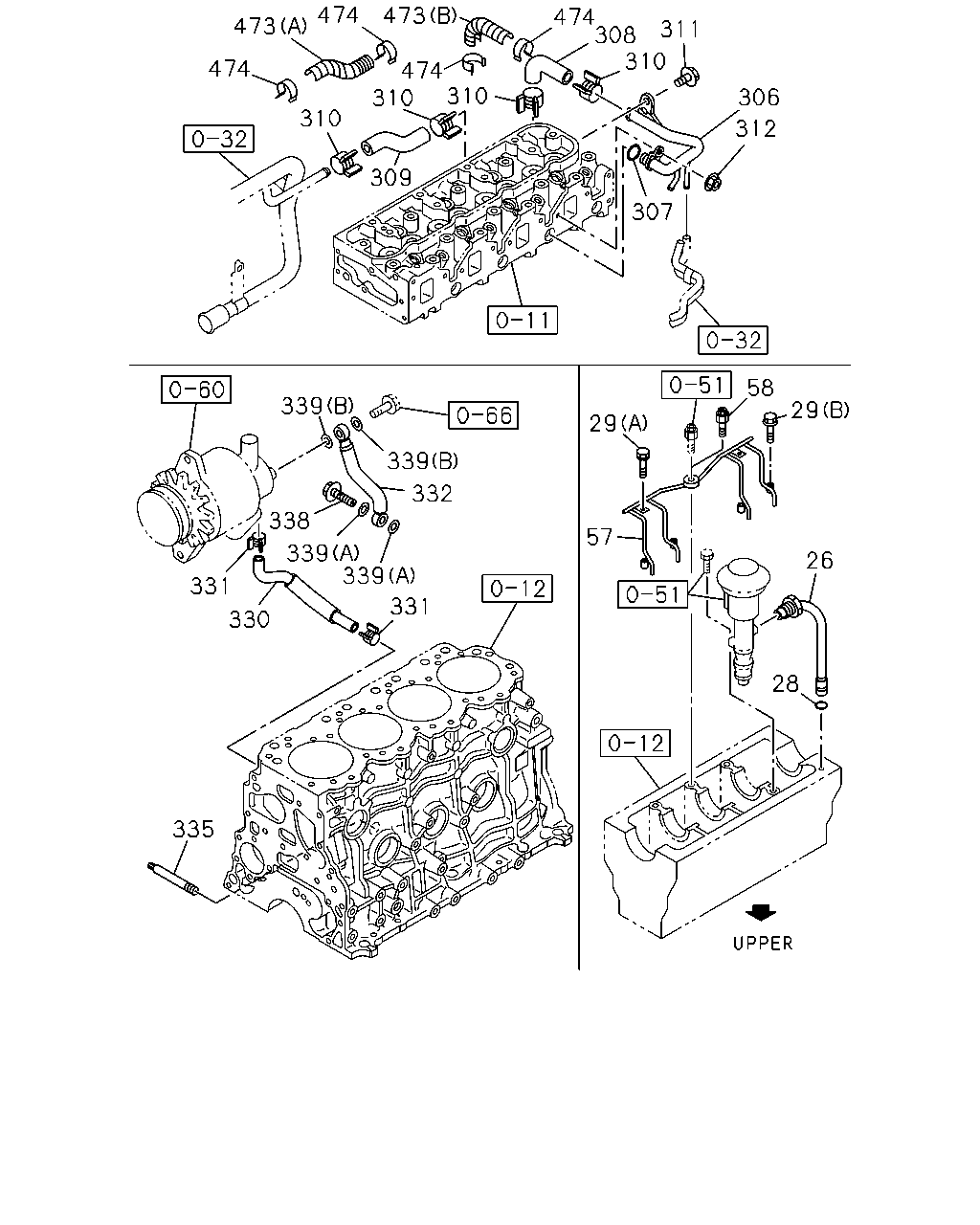

çizim 49041
474 473 474 308 310 473 311 474 474 306 310 312 309 307 58 339 29 29 339 332 338 57 339 339 26 331 331 330 28 335 310 310
BalonParca AdiParca NoAdetTipApplied Date A B C D
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-0 01 1 9812-0105 ● ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-2 01 1 0106- ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 02 1 9812-0105 ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 02 1 0106- ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 9812-0105 ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0106- ●
29 01.531 BOLT; OIL PIPE,OIL JET
01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 9812-0105 ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 0106- ●
57 01.519 PIPE; OIL,OIL JET 8-97043-741-1 01 1 9812-0105 ●
57 01.519 PIPE; OIL,OIL JET 8-94469-709-2 01 1 9906-0105 ●
57 01.519 PIPE; OIL,OIL JET 8-97116-971-1 01 1 0106- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97145-612-0 01 1 9906-0104 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
01.639 		8-97311-976-0 01 1 0105-0105 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-0 01 1 0106- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97176-316-0 01 1 9812-0105 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97225-604-0 01 1 9906-0105 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97239-979-2 01 1 0106- ●
307 01.531 GASKET; WATER PIPE 8-97124-640-0 01 1 9812-0105 ● ●
307 01.531 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 0106- ●
308 01.540 HOSE; OIL COOLER FEED 8-97078-193-3 01 1 9812-0105 ●
308 01.540 HOSE; OIL COOLER FEED 8-94174-464-0 01 1 9906-0105 ●
308 01.540 HOSE; OIL COOLER FEED 8-97300-062-0 01 1 0106- ●
309 01.540 HOSE; OIL COOLER RETURN 8-97147-960-0 01 1 9812-0105 ●
309 01.540 HOSE; OIL COOLER RETURN 8-97224-318-0 01 1 9906-0105 ●
309 01.540 HOSE; OIL COOLER RETURN 8-97300-063-0 01 1 0106- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 9812-0105 ● ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 0106- ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9812-0105 ● ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0106- ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 9812-9905 ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 9906-0105 ● ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 0106- ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-1 01 1 9812-0105 ● ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-1 01 1 0106- ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 9812-0105 ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 0106- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-94443-644-1 01 1 9812-0105 ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-94443-644-1 01 1 0106- ●
335 01.531 STOPPER; OIL PIPE 8-97203-568-0 01 1 9812-0105 ● ●
335 01.531 STOPPER; OIL PIPE 8-97203-568-0 01 1 0106- ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 01 1 9812-0105 ● ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 01 1 0106- ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9812-0105 ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 0106- ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9812-0105 ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0106- ●
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 9812-0105 ●
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 0106- ●
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 9812-0105 ●
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 0106- ●
473 01.540 INSULATOR; HOSE
(A),(B) 		8-97101-331-0 02 1 9906-0105 ●
473 01.540 INSULATOR; HOSE
(C) 		8-97305-283-1 01 1 0106- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 04 1 9812-0105 ● ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 06 1 0106- ●

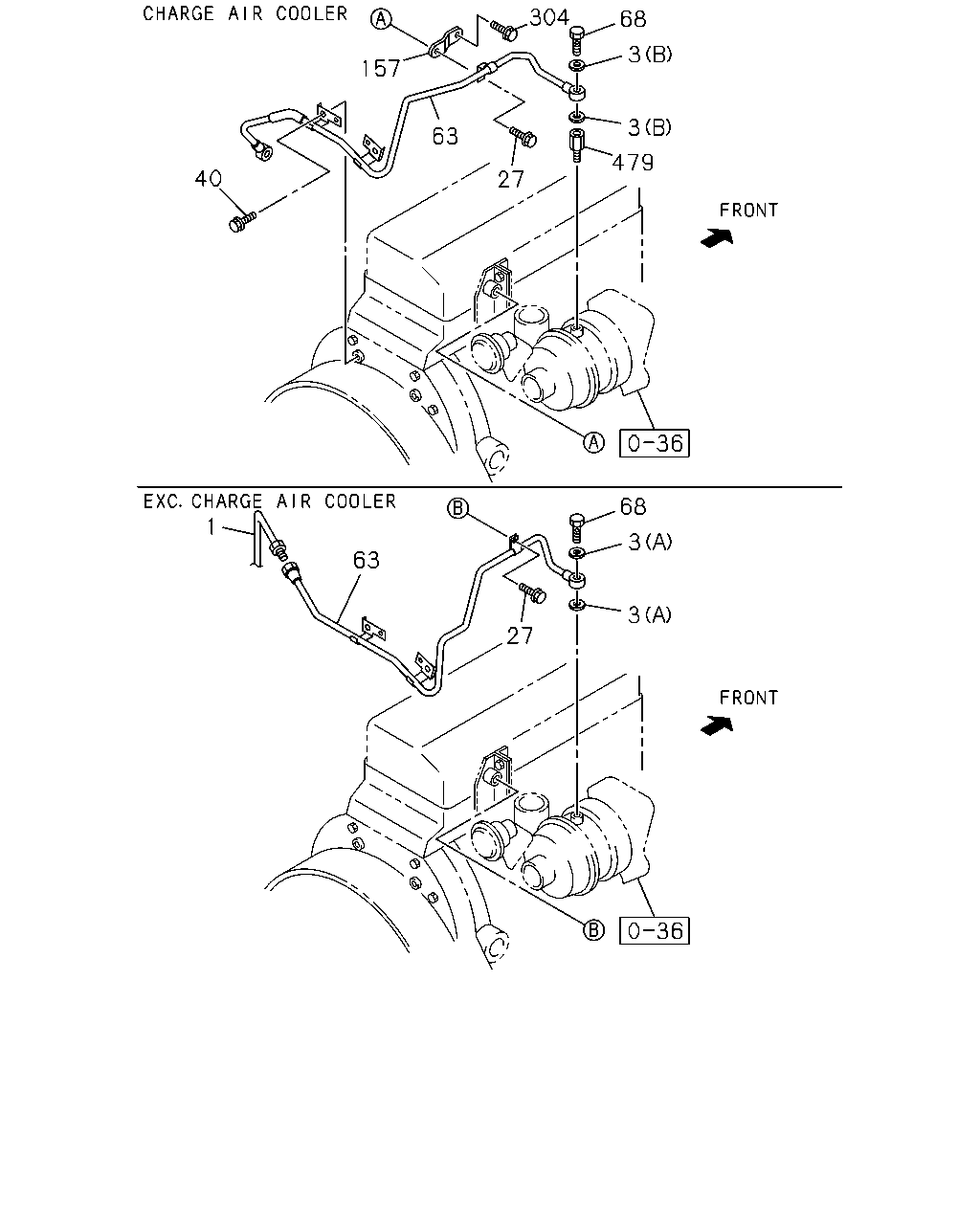

çizim 49960
304 68 3 157 3 63 479 40 27 1 68 3 63 3 27
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
CHARGE AIR COOLER<6PL> 		8-97148-923-3 01 1 9812-0104 ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
CHARGE AIR COOLER<6PL> 		8-97314-008-0 01 1 0105- ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
EXC. CHARGE AIR COOLER<6PL> 		8-97074-790-2 01 1 9812- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9812- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2 		9-09571-412-0 02 1 9812- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 06 1 9812- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0 		9-09571-414-0 02 1 9906-0105 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0 		9-09571-414-0 02 1 0106- ●
27 01.531 BOLT; OIL PIPE FIX
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9812-0109 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0110- ●
27 01.531 BOLT; OIL PIPE FIX
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0110- ●
27 01.531 BOLT; OIL PIPE FIX
EXC. CHARGE AIR COOLER<6PL> 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9812- ●
40 01.531 BOLT; OIL PIPE
CHARGE AIR COOLER<6PL> 03.604 M10X16 FLANGE 		0-28181-016-0 02 1 9812- ●
40 01.531 BOLT; OIL PIPE
02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9906-0105 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> 		8-97214-394-0 01 1 9812-0105 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> 		8-97260-199-1 01 1 0106- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97182-990-0 01 1 9812-9907 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97229-042-0 01 1 9908- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97224-297-0 01 1 9906-0105 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97239-974-4 01 1 0106- ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
CHARGE AIR COOLER<6PL> M12X28 FLANGE 		8-97166-518-0 01 1 9812- ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
EXC. CHARGE AIR COOLER<6PL> M10X26 		8-97081-817-0 01 1 9812- ●
157 01.519 BRACKET; OIL PIPE
CHARGE AIR COOLER<6PL> 		8-97181-586-0 01 1 9812-0105 ●
304 01.540 BOLT; BRKT,OIL PIPE
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9812-0105 ●
479 01.531 ADAPTER
CHARGE AIR COOLER<6PL> 01.800 		8-94436-891-0 01 1 9812- ●
çizim 49996
63 3 2 3 1 3 3 2 63 3 3 3 1 3 3 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
CHARGE AIR COOLER<6PL> 		8-97148-923-3 01 1 9812-0104 ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
CHARGE AIR COOLER<6PL> 		8-97314-008-0 01 1 0105- ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
EXC. CHARGE AIR COOLER<6PL> 		8-97074-790-2 01 1 9812- ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (B) M10X24 		9-09906-205-1 01 1 9812- ●
2 01.531 BOLT; EYE,OIL PIPE
CHARGE AIR COOLER<6PL> (A) M10X40 FLANGE 		8-97182-847-0 01 1 9812- ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. CHARGE AIR COOLER<6PL> (A) M10X36 		1-09675-183-0 01 1 9812- ●
2 01.531 BOLT; EYE,OIL PIPE
03.358 (C) M10X23 FLANGE 		8-94332-831-1 01 1 9906-0105 ●
2 01.531 BOLT; EYE,OIL PIPE
(D) M10X27 		8-94443-535-0 01 1 0106- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9812- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2 		9-09571-412-0 02 1 9812- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 06 1 9812- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0 		9-09571-414-0 02 1 9906-0105 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0 		9-09571-414-0 02 1 0106- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> 		8-97214-394-0 01 1 9812-0105 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> 		8-97260-199-1 01 1 0106- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97182-990-0 01 1 9812-9907 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97229-042-0 01 1 9908- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97224-297-0 01 1 9906-0105 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97239-974-4 01 1 0106- ●
çizim 50493
2 147 147 63 248 3 3 147 149 414 252 325 325 474 473 474
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 01.531 BOLT; EYE,OIL PIPE
03.280 (B) M10X24 		9-09906-205-1 01 1 9812- ●
2 01.531 BOLT; EYE,OIL PIPE
CHARGE AIR COOLER<6PL> (A) M10X40 FLANGE 		8-97182-847-0 01 1 9812- ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. CHARGE AIR COOLER<6PL> (A) M10X36 		1-09675-183-0 01 1 9812- ●
2 01.531 BOLT; EYE,OIL PIPE
03.358 (C) M10X23 FLANGE 		8-94332-831-1 01 1 9906-0105 ●
2 01.531 BOLT; EYE,OIL PIPE
(D) M10X27 		8-94443-535-0 01 1 0106- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9812- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2 		9-09571-412-0 02 1 9812- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 06 1 9812- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0 		9-09571-414-0 02 1 9906-0105 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0 		9-09571-414-0 02 1 0106- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> 		8-97214-394-0 01 1 9812-0105 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> 		8-97260-199-1 01 1 0106- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97182-990-0 01 1 9812-9907 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97229-042-0 01 1 9908- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97224-297-0 01 1 9906-0105 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97239-974-4 01 1 0106- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (A) 		8-94362-672-0 01 1 9906-0105 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14 		8-97041-638-0 01 1 0106- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9906-0105 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0106- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97192-313-0 01 1 9906-0105 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97258-833-0 01 1 0106- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
03.162 M14X27 FLANGE 		1-09675-086-0 01 1 9906-0105 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
03.162 M14X27 FLANGE 		1-09675-086-0 01 1 0106- ●
252 01.855 HOSE; RUBBER,TURBOCHARGER RETURN 8-97176-141-0 01 1 9906-0105 ●
252 01.855 HOSE; RUBBER,TURBOCHARGER RETURN 8-97258-872-1 01 1 0106- ●
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
01.166 ID=20.8 		8-94125-862-1 02 1 9906-0105 ●
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
01.166 ID=20.8 		8-94125-862-1 02 1 0106- ●
414 01.531 BOLT; OIL PIPE
02.559 M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9906-0105 ●
414 01.531 BOLT; OIL PIPE
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 0106- ●
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 9812-0105 ●
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 0106- ●
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 9812-0105 ●
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 0106- ●
473 01.540 INSULATOR; HOSE
(A),(B) 		8-97101-331-0 02 1 9906-0105 ●
473 01.540 INSULATOR; HOSE
(C) 		8-97305-283-1 01 1 0106- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 04 1 9812-0105 ● ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 06 1 0106- ●

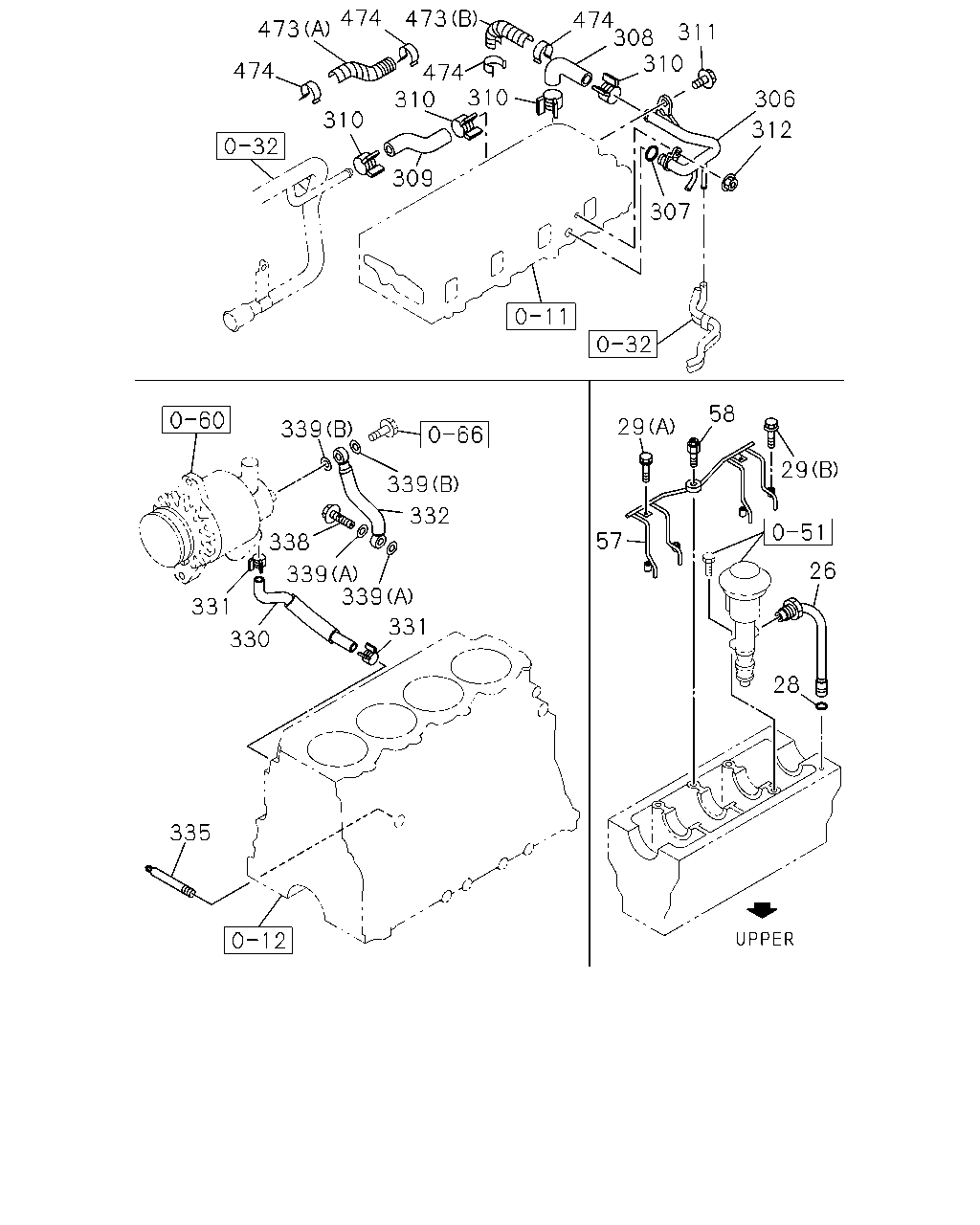

çizim 50529
474 473 474 308 310 473 311 474 474 310 310 306 310 312 309 307 58 29 339 29 339 332 57 338 26 339 339 331 331 330 28 335
BalonParca AdiParca NoAdetTipApplied Date A B C D
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-0 01 1 9812-0105 ● ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-2 01 1 0106- ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 02 1 9812-0105 ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 02 1 0106- ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 9812-0105 ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0106- ●
29 01.531 BOLT; OIL PIPE,OIL JET
01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 9812-0105 ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 0106- ●
57 01.519 PIPE; OIL,OIL JET 8-97043-741-1 01 1 9812-0105 ●
57 01.519 PIPE; OIL,OIL JET 8-94469-709-2 01 1 9906-0105 ●
57 01.519 PIPE; OIL,OIL JET 8-97116-971-1 01 1 0106- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97145-612-0 01 1 9906-0104 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
01.639 		8-97311-976-0 01 1 0105-0105 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-0 01 1 0106- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97176-316-0 01 1 9812-0105 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97225-604-0 01 1 9906-0105 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97239-979-2 01 1 0106- ●
307 01.531 GASKET; WATER PIPE 8-97124-640-0 01 1 9812-0105 ● ●
307 01.531 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 0106- ●
308 01.540 HOSE; OIL COOLER FEED 8-97078-193-3 01 1 9812-0105 ●
308 01.540 HOSE; OIL COOLER FEED 8-94174-464-0 01 1 9906-0105 ●
308 01.540 HOSE; OIL COOLER FEED 8-97300-062-0 01 1 0106- ●
309 01.540 HOSE; OIL COOLER RETURN 8-97147-960-0 01 1 9812-0105 ●
309 01.540 HOSE; OIL COOLER RETURN 8-97224-318-0 01 1 9906-0105 ●
309 01.540 HOSE; OIL COOLER RETURN 8-97300-063-0 01 1 0106- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 9812-0105 ● ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 0106- ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9812-0105 ● ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0106- ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 9812-9905 ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 9906-0105 ● ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 0106- ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-1 01 1 9812-0105 ● ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-1 01 1 0106- ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 9812-0105 ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 0106- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-94443-644-1 01 1 9812-0105 ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-94443-644-1 01 1 0106- ●
335 01.531 STOPPER; OIL PIPE 8-97203-568-0 01 1 9812-0105 ● ●
335 01.531 STOPPER; OIL PIPE 8-97203-568-0 01 1 0106- ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 01 1 9812-0105 ● ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 01 1 0106- ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9812-0105 ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 0106- ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9812-0105 ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0106- ●
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 9812-0105 ●
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 0106- ●
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 9812-0105 ●
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 0106- ●
473 01.540 INSULATOR; HOSE
(A),(B) 		8-97101-331-0 02 1 9906-0105 ●
473 01.540 INSULATOR; HOSE
(C) 		8-97305-283-1 01 1 0106- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 04 1 9812-0105 ● ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 06 1 0106- ●

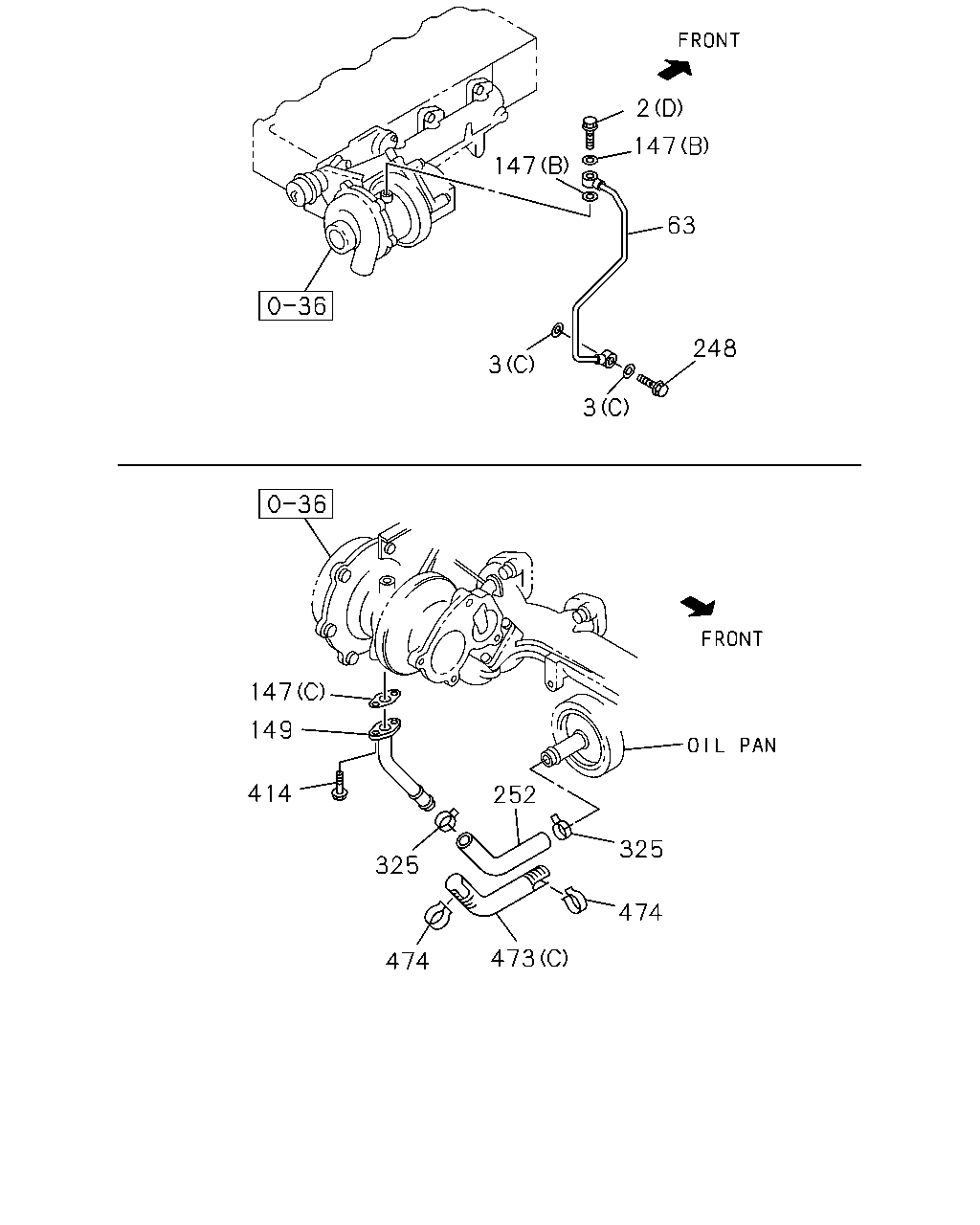

çizim 51428
2 147 147 63 248 3 3 147 149 414 252 325 325 474 473 474
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 01.531 BOLT; EYE,OIL PIPE
03.280 (B) M10X24 		9-09906-205-1 01 1 9812- ●
2 01.531 BOLT; EYE,OIL PIPE
CHARGE AIR COOLER<6PL> (A) M10X40 FLANGE 		8-97182-847-0 01 1 9812- ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. CHARGE AIR COOLER<6PL> (A) M10X36 		1-09675-183-0 01 1 9812- ●
2 01.531 BOLT; EYE,OIL PIPE
03.358 (C) M10X23 FLANGE 		8-94332-831-1 01 1 9906-0105 ●
2 01.531 BOLT; EYE,OIL PIPE
(D) M10X27 		8-94443-535-0 01 1 0106- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9812- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2 		9-09571-412-0 02 1 9812- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 06 1 9812- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0 		9-09571-414-0 02 1 9906-0105 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0 		9-09571-414-0 02 1 0106- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> 		8-97214-394-0 01 1 9812-0105 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> 		8-97260-199-1 01 1 0106- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97182-990-0 01 1 9812-9907 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97229-042-0 01 1 9908- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97224-297-0 01 1 9906-0105 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97239-974-4 01 1 0106- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (A) 		8-94362-672-0 01 1 9906-0105 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14 		8-97041-638-0 01 1 0106- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9906-0105 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0106- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97192-313-0 01 1 9906-0105 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97258-833-0 01 1 0106- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
03.162 M14X27 FLANGE 		1-09675-086-0 01 1 9906-0105 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
03.162 M14X27 FLANGE 		1-09675-086-0 01 1 0106- ●
252 01.855 HOSE; RUBBER,TURBOCHARGER RETURN 8-97176-141-0 01 1 9906-0105 ●
252 01.855 HOSE; RUBBER,TURBOCHARGER RETURN 8-97258-872-1 01 1 0106- ●
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
01.166 ID=20.8 		8-94125-862-1 02 1 9906-0105 ●
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
01.166 ID=20.8 		8-94125-862-1 02 1 0106- ●
414 01.531 BOLT; OIL PIPE
02.559 M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9906-0105 ●
414 01.531 BOLT; OIL PIPE
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 0106- ●
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 9812-0105 ●
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 0106- ●
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 9812-0105 ●
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 0106- ●
473 01.540 INSULATOR; HOSE
(A),(B) 		8-97101-331-0 02 1 9906-0105 ●
473 01.540 INSULATOR; HOSE
(C) 		8-97305-283-1 01 1 0106- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 04 1 9812-0105 ● ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 06 1 0106- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
