0-50 — OIL COOLER AND OIL FILTER (#18847) — 82 parça

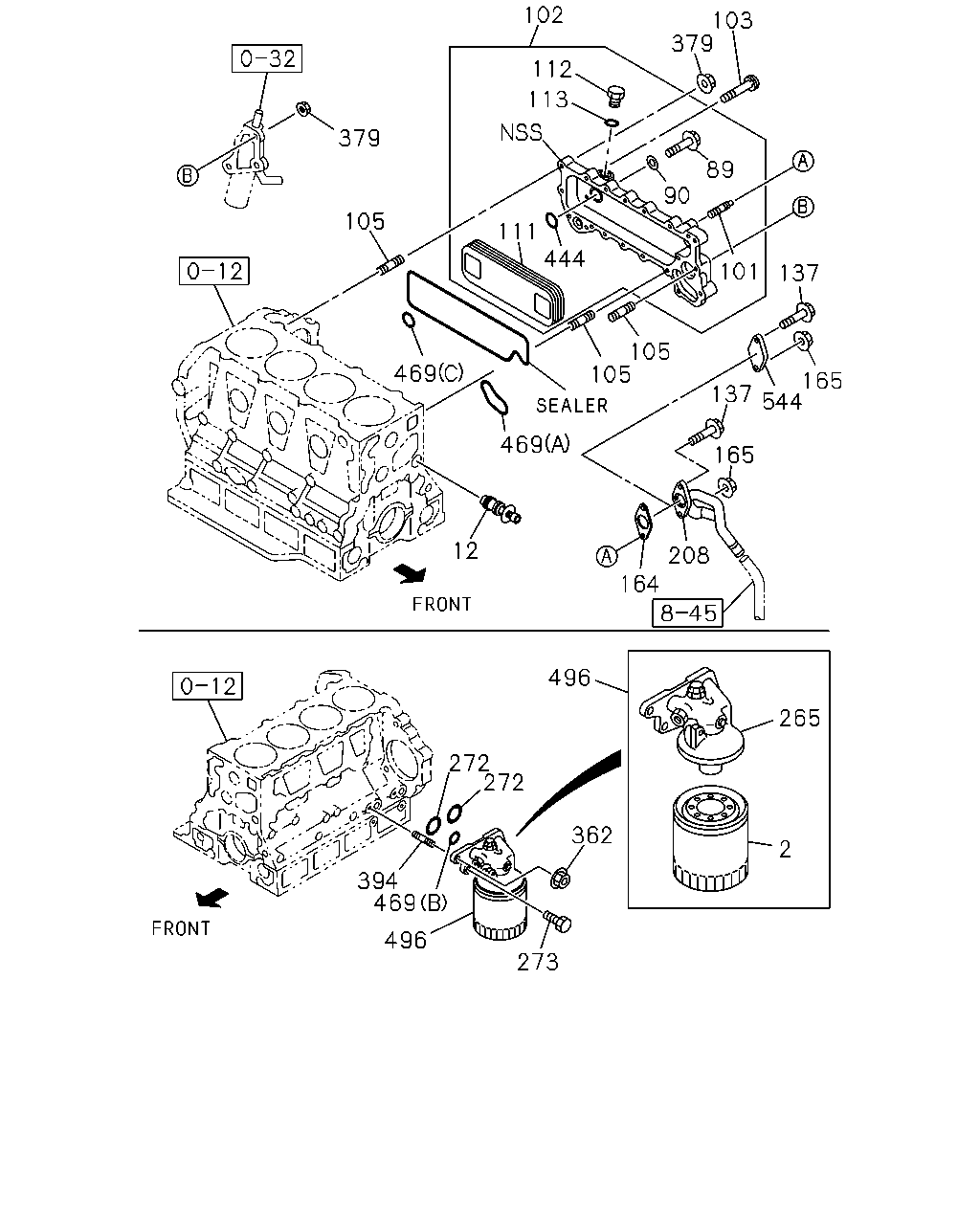

102 103 379 112 113 379 89 90 105 111 444 101 137 105 105 469 165 544 137 469 165 12 208 164 496 265 272 272 362 2 394 469 496 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	01.836 ELEMENT; OIL FILTER	8-94360-427-1	01	1	9812-9908	●
2	01.836 ELEMENT; OIL FILTER	8-97148-270-1	01	1	9812-		●
2	01.836 ELEMENT; OIL FILTER	8-94340-697-1	01	1	9906-9908			●
2	01.836 ELEMENT; OIL FILTER	8-94340-697-1	01	1	9909-0105	●		●
2	01.836 ELEMENT; OIL FILTER 01.826	8-97301-752-0	01	1	0106-0204				●
2	01.836 ELEMENT; OIL FILTER	8-97329-911-0	01	1	0205-				●
12	01.540 VALVE ASM; BYPASS CHARGE AIR COOLER<6PL>	8-97075-754-0	01	1	9812-		●
12	01.540 VALVE ASM; BYPASS EXC. CHARGE AIR COOLER<6PL>	8-97013-566-2	01	1	9812-		●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9812-		●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	9812-		●
101	01.540 STUD; OIL COOLER TO PIPE 03.407 M8X20 L=38	0-49740-820-0	01	1	9812-0206		●
102	01.540 COOLER ASM; OIL	8-97178-814-1	01	1	9812-9906		●
102	01.540 COOLER ASM; OIL	8-97212-763-0	01	1	9907-0206		●
102	01.540 COOLER ASM; OIL	8-97333-784-0	01	1	0207-0208		●
102	01.540 COOLER ASM; OIL	8-97333-877-0	01	1	0209-		●
103	01.540 BOLT; OIL COOLER 07.010 M8X20 FLANGE	0-28080-820-0	08	1	9812-		●
103	01.540 BOLT; OIL COOLER 03.415 M8X35 FLANGE	0-28080-835-0	08	1	9812-		●
105	01.540 STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	9812-		●
111	01.540 CORE; OIL COOLER	8-97033-802-0	01	1	9812-0206		●
111	01.540 CORE; OIL COOLER	8-97334-100-0	01	1	0207-		●
112	01.540 PLUG; OIL COOLER CASE	8-97028-587-0	01	1	9812-9906		●
113	01.540 GASKET; PLUG,OIL COOLER CASE 06.673 ID=18	9-09571-418-0	01	1	9812-9906		●
137	01.840 BOLT 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9812-0206		●
137	01.840 BOLT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0207-		●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-684-0	01	1	9812-		●
165	01.540 NUT; HTR PIPE 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0206		●
208	01.540 PIPE; WATER,HTR	8-97146-519-0	01	1	9812-		●
265	01.837 BODY; OIL FILTER	8-97096-677-3	01	1	9812-		●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	9812-0105	●		●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	0106-				●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	9812-0211		●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0212-		●
273	01.840 BOLT; OIL FILTER 08.900 M10X30 FLANGE	0-28781-030-0	02	1	9812-		●
362	01.837 NUT; OIL FILTER 04.785 M10 FLANGE	0-91150-110-0	02	1	9812-		●
379	01.540 NUT; OIL COOLER 07.633 M8 FLANGE	0-91150-108-0	03	1	9812-		●
394	01.837 STUD; OIL FILTER 03.275 M10X25 L=40	0-49841-025-0	02	1	9812-		●
444	01.550 GASKET; ELEMENT TO BODY	8-97028-586-0	02	1	9812-		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	9812-		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-713-0	01	1	9812-0211		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8	8-94399-339-0	01	1	0212-		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.35	8-97137-500-0	01	1	9812-0211		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	9-09566-226-0	01	1	0212-		●
496	01.835 FILTER ASM; OIL	8-97148-268-2	01	1	9812-		●
544	08.845 COVER; HEATER CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41)	8-97147-028-0	01	1	0004-0105		●

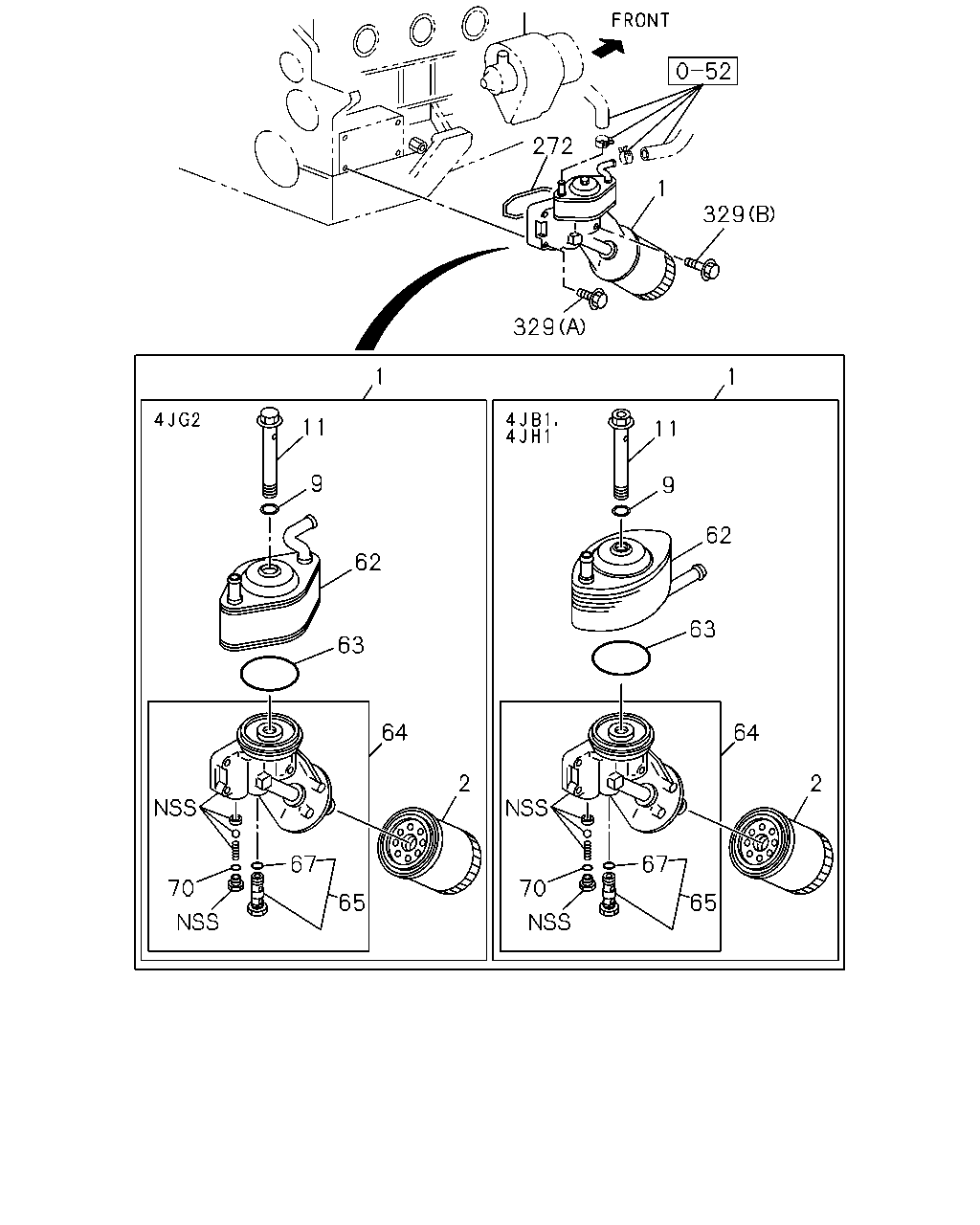

272 1 329 329 1 1 11 11 9 9 62 62 63 63 64 64 2 2 67 67 70 70 65 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.540 FILTER & COOLER ASM; OIL	8-97120-286-2	01	1	9812-0105	●
1	01.540 FILTER & COOLER ASM; OIL	8-97224-298-0	01	1	9906-0105			●
1	01.540 FILTER & COOLER ASM; OIL	8-97239-978-1	01	1	0106-				●
2	01.836 ELEMENT; OIL FILTER	8-94360-427-1	01	1	9812-9908	●
2	01.836 ELEMENT; OIL FILTER	8-97148-270-1	01	1	9812-		●
2	01.836 ELEMENT; OIL FILTER	8-94340-697-1	01	1	9906-9908			●
2	01.836 ELEMENT; OIL FILTER	8-94340-697-1	01	1	9909-0105	●		●
2	01.836 ELEMENT; OIL FILTER 01.826	8-97301-752-0	01	1	0106-0204				●
2	01.836 ELEMENT; OIL FILTER	8-97329-911-0	01	1	0205-				●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97047-000-0	01	1	9812-0105	●		●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97047-000-0	01	1	0106-				●
11	01.840 BOLT; CENTER	8-97144-713-0	01	1	9812-0105	●		●
11	01.840 BOLT; CENTER	8-97094-724-1	01	1	0106-				●
62	01.540 COOLER ASM; OIL	8-97144-716-1	01	1	9812-0105	●
62	01.540 COOLER ASM; OIL	8-97226-391-0	01	1	9906-0105			●
62	01.540 COOLER ASM; OIL	8-97301-588-0	01	1	0106-				●
63	01.550 GASKET; COOLER TO BRKT	8-94383-720-0	01	1	9812-0105	●		●
63	01.550 GASKET; COOLER TO BRKT	8-94383-720-0	01	1	0106-				●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97144-712-0	01	1	9812-0105	●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97166-497-0	01	1	9906-0105			●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97166-497-0	01	1	0106-0204				●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97313-207-1	01	1	0205-				●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	9812-0105	●		●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	0106-				●
67	01.550 GASKET; VLV 01.837	9-09920-975-0	01	1	9812-0105	●		●
67	01.550 GASKET; VLV 01.837	9-09920-975-0	01	1	0106-				●
70	01.844 GASKET; PLUG,OIL FILTER	9-09921-193-0	01	1	9812-0105	●		●
70	01.844 GASKET; PLUG,OIL FILTER	9-09921-193-0	01	1	0106-				●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	9812-0105	●		●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	0106-				●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	9812-0211		●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0212-		●
329	01.840 BOLT; OIL FILTER 01.540 (A) M8X35 W/LK WASHER	0-50040-835-0	02	1	9812-9906	●		●
329	01.840 BOLT; OIL FILTER 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	9907-0105	●		●
329	01.840 BOLT; OIL FILTER 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	0106-				●
329	01.840 BOLT; OIL FILTER 00.206 (B) M8X65 W/LK WASHER	8-94205-986-1	02	1	9812-9903	●
329	01.840 BOLT; OIL FILTER 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	9904-0105	●		●
329	01.840 BOLT; OIL FILTER 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	0106-				●
