0-41 — FUEL FILTER AND BRACKET (#18845) — 86 parça

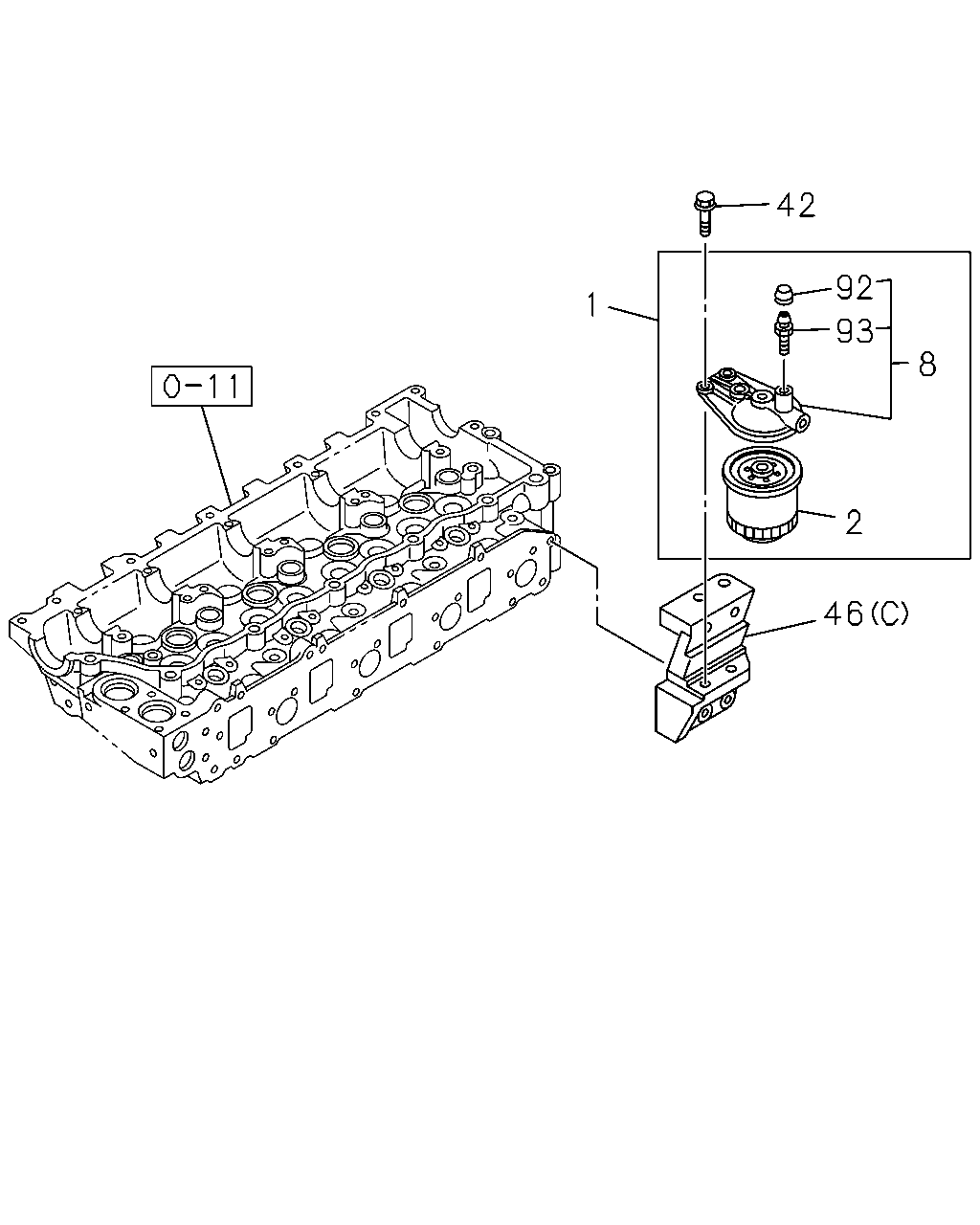

42 92 1 93 8 2 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL<S6B>	8-97070-864-0	01	1	9812-0105	●	●
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU>	8-97240-124-0	01	1	0106-			●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL<S6B>	8-97070-865-0	01	1	9812-0105	●	●
1	03.890 FILTER ASM; FUEL CHARGE AIR COOLER<6PL>	1-13200-890-3	01	1	9812-				●
1	03.890 FILTER ASM; FUEL EXC. CHARGE AIR COOLER<6PL>	8-97171-451-2	01	1	9812-				●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL<S6B> 01.836	8-94144-613-0	02	1	9812-0105	●	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-3	01	1	0106-			●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-94246-908-0	01	1	9812-0105	●	●
2	03.890 ELEMENT KIT; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13240-079-1	01	1	9812-				●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>	8-97172-549-1	01	1	9812-				●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-94254-730-0	01	1	9812-0105	●	●
8	03.890 COVER; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13212-108-0	01	1	9812-0206				●
8	03.890 COVER; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13212-159-2	01	1	0207-				●
8	03.890 COVER; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>	8-97172-543-1	01	1	9812-				●
42	03.890 BOLT; FUEL FILTER EXC. CHARGE AIR COOLER<6PL> 08.900 M10X30 FLANGE	0-28781-030-0	02	1	9812-				●
46	03.890 BRACKET CHARGE AIR COOLER<6PL> (A)	8-97148-962-2	01	1	9812-0105				●
46	03.890 BRACKET CHARGE AIR COOLER<6PL> (B)	8-97241-009-2	01	1	0106-				●
46	03.890 BRACKET EXC. CHARGE AIR COOLER<6PL> (C)	8-97061-452-0	01	1	9812-				●
92	03.417 CAP; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>	8-97172-548-0	01	1	9812-				●
93	03.890 CONNECTOR; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>	8-97172-546-1	01	1	9812-				●

62 1 2 2 62 8 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL<S6B>	8-97070-864-0	01	1	9812-0105	●	●
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU>	8-97240-124-0	01	1	0106-			●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL<S6B>	8-97070-865-0	01	1	9812-0105	●	●
1	03.890 FILTER ASM; FUEL CHARGE AIR COOLER<6PL>	1-13200-890-3	01	1	9812-				●
1	03.890 FILTER ASM; FUEL EXC. CHARGE AIR COOLER<6PL>	8-97171-451-2	01	1	9812-				●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL<S6B> 01.836	8-94144-613-0	02	1	9812-0105	●	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-3	01	1	0106-			●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-94246-908-0	01	1	9812-0105	●	●
2	03.890 ELEMENT KIT; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13240-079-1	01	1	9812-				●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>	8-97172-549-1	01	1	9812-				●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-94254-730-0	01	1	9812-0105	●	●
8	03.890 COVER; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13212-108-0	01	1	9812-0206				●
8	03.890 COVER; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13212-159-2	01	1	0207-				●
8	03.890 COVER; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>	8-97172-543-1	01	1	9812-				●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9812-	●	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL<S6B> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9812-				●
62	03.895 NUT; FUEL FILTER CHARGE AIR COOLER<6PL> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9812-				●

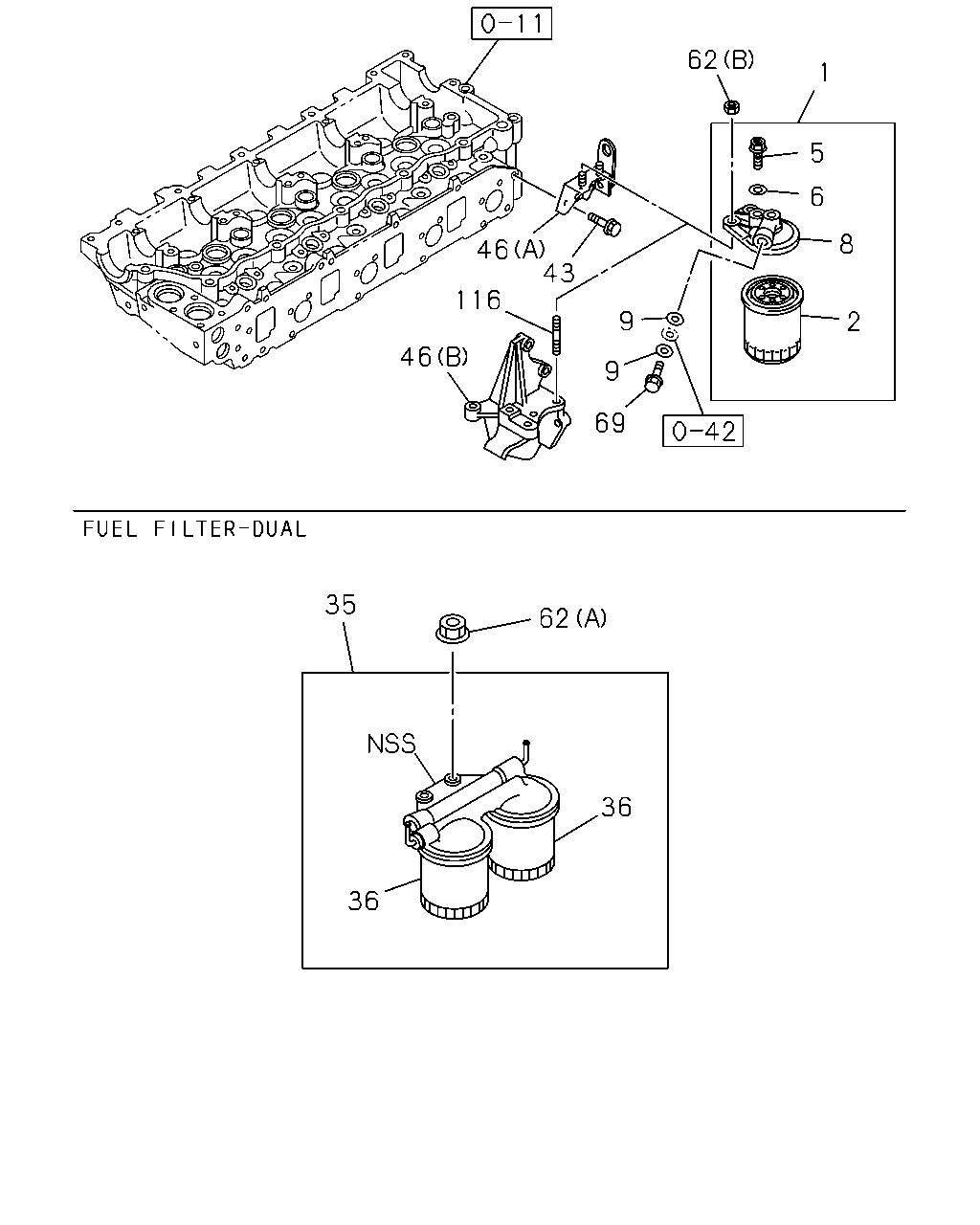

62 1 5 6 46 8 43 116 9 2 46 9 69 35 62 36 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL<S6B>	8-97070-864-0	01	1	9812-0105	●	●
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU>	8-97240-124-0	01	1	0106-			●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL<S6B>	8-97070-865-0	01	1	9812-0105	●	●
1	03.890 FILTER ASM; FUEL CHARGE AIR COOLER<6PL>	1-13200-890-3	01	1	9812-				●
1	03.890 FILTER ASM; FUEL EXC. CHARGE AIR COOLER<6PL>	8-97171-451-2	01	1	9812-				●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL<S6B> 01.836	8-94144-613-0	02	1	9812-0105	●	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-3	01	1	0106-			●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-94246-908-0	01	1	9812-0105	●	●
2	03.890 ELEMENT KIT; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13240-079-1	01	1	9812-				●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>	8-97172-549-1	01	1	9812-				●
5	03.890 BOLT; FUEL FILTER CHARGE AIR COOLER<6PL> 08.971 M14X9	9-99202-314-0	01	1	9812-0206				●
5	03.890 BOLT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0106-			●
6	03.890 GASKET; FUEL FILTER CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	01	1	9812-0206				●
6	03.890 GASKET; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0106-			●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-94254-730-0	01	1	9812-0105	●	●
8	03.890 COVER; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13212-108-0	01	1	9812-0206				●
8	03.890 COVER; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13212-159-2	01	1	0207-				●
8	03.890 COVER; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>	8-97172-543-1	01	1	9812-				●
9	03.890 GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9812-0112				●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL<S6B>	8-97070-864-0	01	1	9812-				●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL<S6B> 01.836	8-94144-613-0	02	1	9812-				●
43	03.890 BOLT; BRKT CHARGE AIR COOLER<6PL> M12X25	0-28781-225-0	02	1	9812-0105				●
43	03.890 BOLT; BRKT CHARGE AIR COOLER<6PL> 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0106-				●
46	03.890 BRACKET CHARGE AIR COOLER<6PL> (A)	8-97148-962-2	01	1	9812-0105				●
46	03.890 BRACKET CHARGE AIR COOLER<6PL> (B)	8-97241-009-2	01	1	0106-				●
46	03.890 BRACKET EXC. CHARGE AIR COOLER<6PL> (C)	8-97061-452-0	01	1	9812-				●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9812-	●	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL<S6B> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9812-				●
62	03.895 NUT; FUEL FILTER CHARGE AIR COOLER<6PL> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9812-				●
69	03.890 BOLT; EYE,FUEL FILTER CHARGE AIR COOLER<6PL>	1-15619-310-0	01	1	9812-0112				●
116	03.407 STUD; BRKT,FUEL FILTER CHARGE AIR COOLER<6PL> 03.275 M10X25 L=40	0-49841-025-0	02	1	0106-				●

1 2 5 6 112 3 112 112 66 66 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL<S6B>	8-97070-864-0	01	1	9812-0105	●	●
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU>	8-97240-124-0	01	1	0106-			●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL<S6B>	8-97070-865-0	01	1	9812-0105	●	●
1	03.890 FILTER ASM; FUEL CHARGE AIR COOLER<6PL>	1-13200-890-3	01	1	9812-				●
1	03.890 FILTER ASM; FUEL EXC. CHARGE AIR COOLER<6PL>	8-97171-451-2	01	1	9812-				●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL<S6B> 01.836	8-94144-613-0	02	1	9812-0105	●	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-3	01	1	0106-			●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-94246-908-0	01	1	9812-0105	●	●
2	03.890 ELEMENT KIT; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13240-079-1	01	1	9812-				●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>	8-97172-549-1	01	1	9812-				●
3	03.890 SENSOR ASM; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97079-821-0	01	1	0106-			●
5	03.890 BOLT; FUEL FILTER CHARGE AIR COOLER<6PL> 08.971 M14X9	9-99202-314-0	01	1	9812-0206				●
5	03.890 BOLT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0106-			●
6	03.890 GASKET; FUEL FILTER CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	01	1	9812-0206				●
6	03.890 GASKET; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0106-			●
7	03.890 PLUG; SENSOR,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	0106-			●
66	03.890 GASKET; PLUG,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0106-			●
112	06.605 GASKET; SENSOR TO CASE FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0106-			●
