◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50818 - NPR/NQR(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35 - ENGINE CONTROL VALVE AND LEVER ▶
0-35 — ENGINE CONTROL VALVE AND LEVER (#18841) — 28 parça

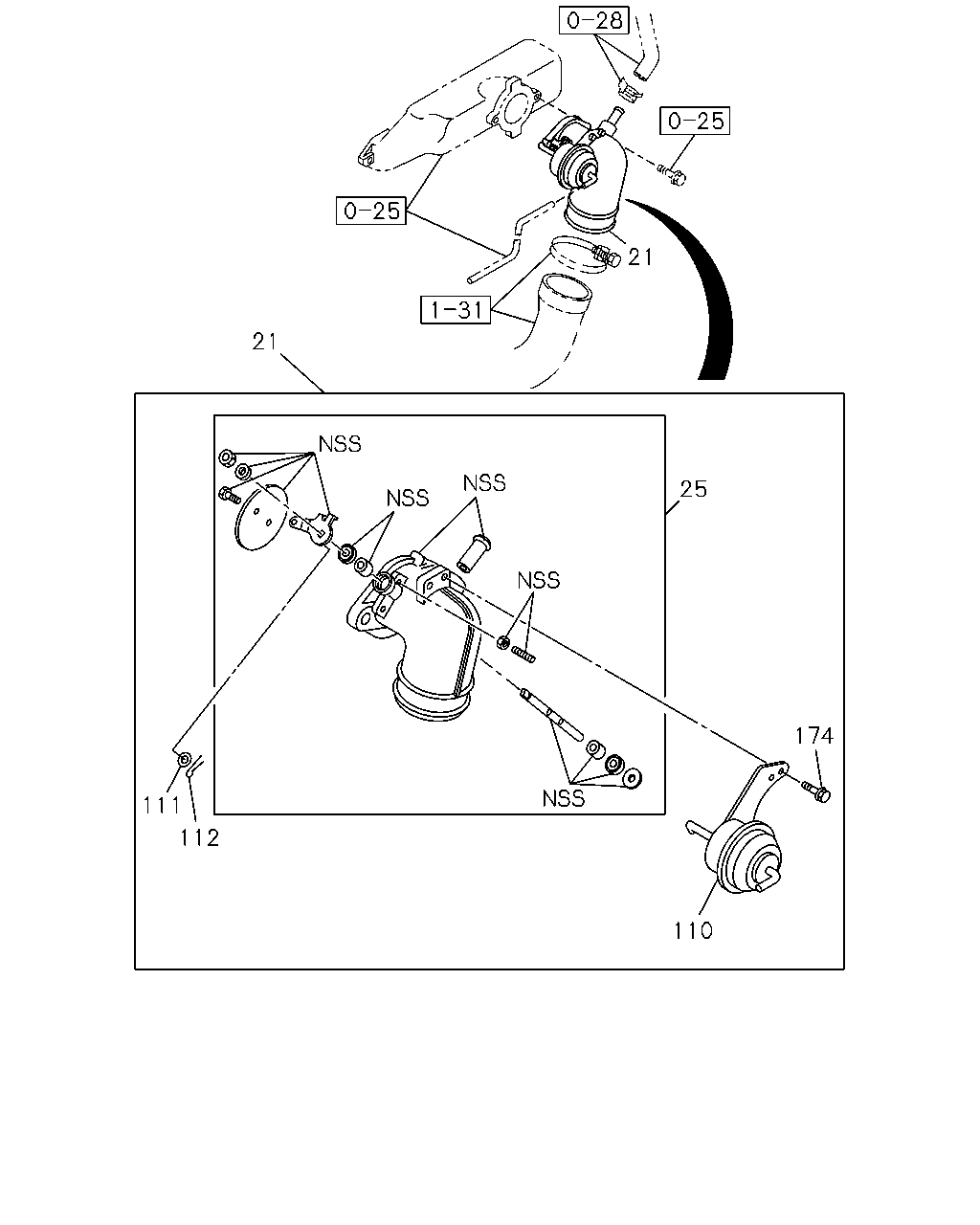

çizim 9963
21 21 25 174 111 112 110
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 03.440 VALVE ASM; THROTTLE
AIR INTAKE SYSTEM FRONT<6PC> 		8-97042-996-0 01 1 9812-0105 ●
21 03.440 VALVE ASM; THROTTLE
EXC. CHARGE AIR COOLER<6PL> 		8-97135-660-1 01 1 9812- ●
21 03.440 VALVE ASM; THROTTLE 8-97212-097-1 01 1 9906-0105 ●
21 03.440 VALVE ASM; THROTTLE 8-97245-248-1 01 1 0106-0106 ●
21 03.440 VALVE ASM; THROTTLE 8-97309-925-2 01 1 0106- ●
25 03.440 BODY ASM; THROTTLE
AIR INTAKE SYSTEM FRONT<6PC> 		8-97094-116-0 01 1 9812-0105 ●
25 03.440 BODY ASM; THROTTLE 8-97222-772-0 01 1 9906-0105 ●
25 03.440 BODY ASM; THROTTLE 8-97350-521-0 01 1 0106-0106 ●
25 03.440 BODY ASM; THROTTLE 8-97317-384-1 01 1 0106- ●
110 03.440 CHAMBER ASM; DIAPH
AIR INTAKE SYSTEM FRONT<6PC> 		8-97019-267-0 01 1 9812-0105 ●
110 03.440 CHAMBER ASM; DIAPH 8-97094-120-0 01 1 9906-0105 ●
110 03.440 CHAMBER ASM; DIAPH 8-97094-120-0 01 1 0106-0106 ●
110 03.440 CHAMBER ASM; DIAPH 8-97317-385-0 01 1 0106- ●
111 03.440 WASHER; SPLIT PIN
AIR INTAKE SYSTEM FRONT<6PC> 		8-94467-828-0 01 1 9812-0105 ●
111 03.440 WASHER; SPLIT PIN 8-94467-828-0 01 1 9812-0105 ●
111 03.440 WASHER; SPLIT PIN 8-94467-828-0 01 1 0106- ●
112 03.440 PIN; SPLIT,LEVER
AIR INTAKE SYSTEM FRONT<6PC> 		9-08112-010-0 01 1 9812-0105 ●
112 03.440 PIN; SPLIT,LEVER 9-08112-010-0 01 1 9812-0105 ●
112 03.440 PIN; SPLIT,LEVER 9-08112-010-0 01 1 0106- ●
174 03.440 BOLT; CHAMBER
AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9812-0105 ●
174 03.440 BOLT; CHAMBER
00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9812-0105 ●
174 03.440 BOLT; CHAMBER
00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 0106-0208 ●
174 03.440 BOLT; CHAMBER
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0209- ●
çizim 12234
21
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 03.440 VALVE ASM; THROTTLE
AIR INTAKE SYSTEM FRONT<6PC> 		8-97042-996-0 01 1 9812-0105 ●
21 03.440 VALVE ASM; THROTTLE
EXC. CHARGE AIR COOLER<6PL> 		8-97135-660-1 01 1 9812- ●
21 03.440 VALVE ASM; THROTTLE 8-97212-097-1 01 1 9906-0105 ●
21 03.440 VALVE ASM; THROTTLE 8-97245-248-1 01 1 0106-0106 ●
21 03.440 VALVE ASM; THROTTLE 8-97309-925-2 01 1 0106- ●
