◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50818 - NPR/NQR(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶
0-33 — FAN AND FAN BELT (#18840) — 119 parça

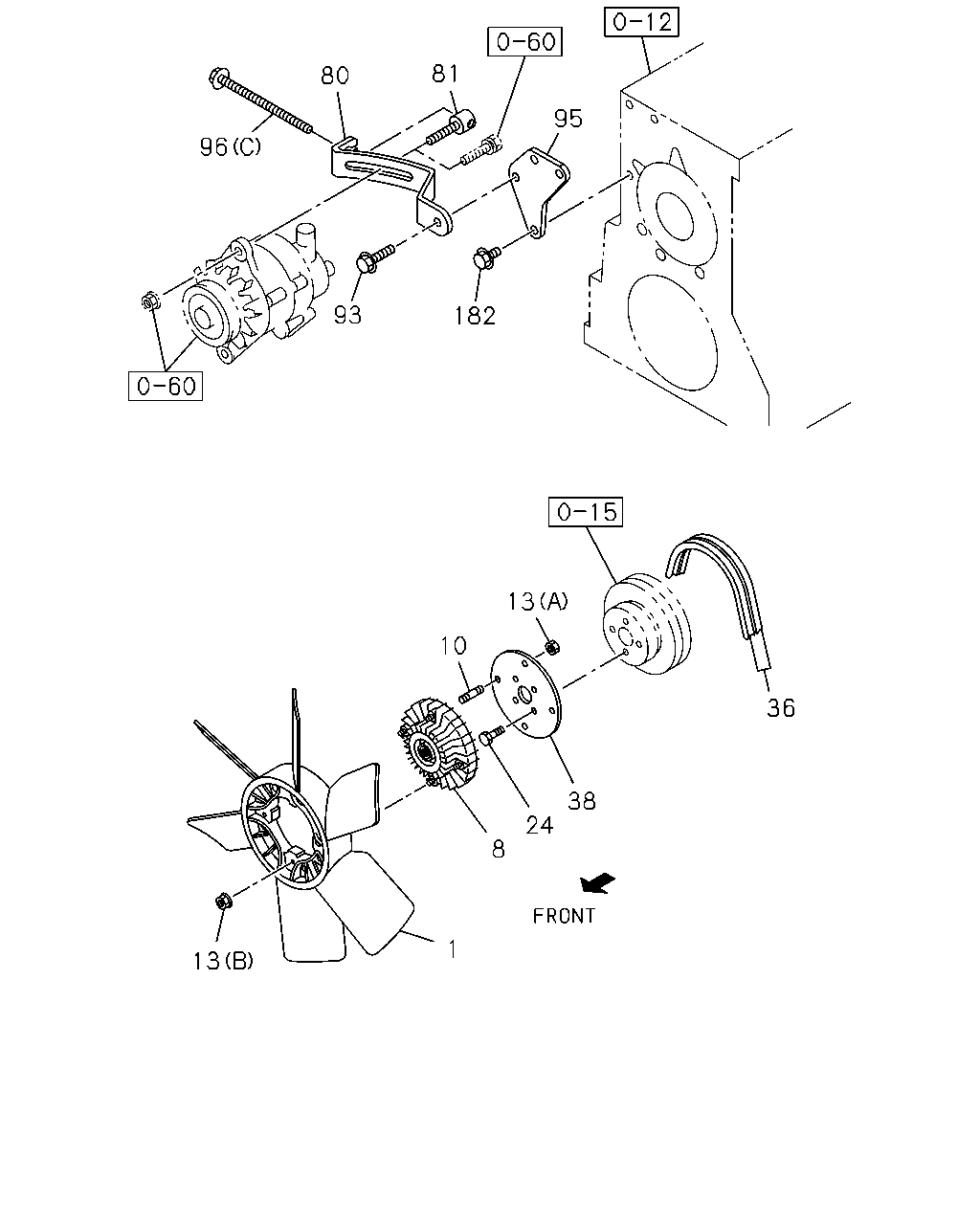

çizim 47350
81 80 95 96 93 182 13 10 36 38 24 8 1 13
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.064 FAN; COOLING
OD=410 		8-97129-769-0 01 1 9812-0105 ● ●
1 01.064 FAN; COOLING 8-97128-531-0 01 1 0106- ●
1 01.064 FAN; COOLING
CHARGE AIR COOLER<6PL> 		5-13662-012-1 01 1 9812- ●
1 01.064 FAN; COOLING
EXC. CHARGE AIR COOLER<6PL> 		8-97141-195-1 01 1 9812- ●
8 01.064 CLUTCH; COOLING FAN 8-97129-735-0 01 1 9812-0105 ● ●
8 01.064 CLUTCH; COOLING FAN 8-97129-736-0 01 1 0106- ●
8 01.064 CLUTCH; COOLING FAN
CHARGE AIR COOLER<6PL> 		8-97148-797-0 01 1 9812- ●
8 01.064 CLUTCH; COOLING FAN
EXC. CHARGE AIR COOLER<6PL> 		8-97139-299-0 01 1 9812- ●
10 01.062 STUD; FAN CLU TO PLATE
CHARGE AIR COOLER<6PL> 01.428 M8X20 L=32 		9-04110-820-0 04 1 9812- ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9812-0105 ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0106- ● ●
13 01.062 NUT; COOLING FAN
CHARGE AIR COOLER<6PL> 07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 9812-9905 ●
13 01.062 NUT; COOLING FAN
CHARGE AIR COOLER<6PL> 07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 9906-0105 ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 9906-0105 ●
13 01.062 NUT; COOLING FAN
CHARGE AIR COOLER<6PL> 07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0106- ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0106- ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 9812- ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9812-0105 ● ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97141-514-0 01 1 0106-0206 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 0207- ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 9812-0105 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0106- ● ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9812- ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 9812-0105 ● ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 0106- ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 9812- ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97086-228-1 01 1 9812-0005 ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97257-223-0 01 1 0006- ●
93 02.317 BOLT; ADJ PLATE BRKT
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9812- ●
95 02.317 BRACKET; ADJ PLATE 8-97037-510-0 01 1 9812- ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 9812-0105 ● ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 0106- ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9812-0105 ● ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0106- ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) (C) M8X130 FLANGE 		8-97172-720-1 01 1 9812- ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 03 1 9812- ●

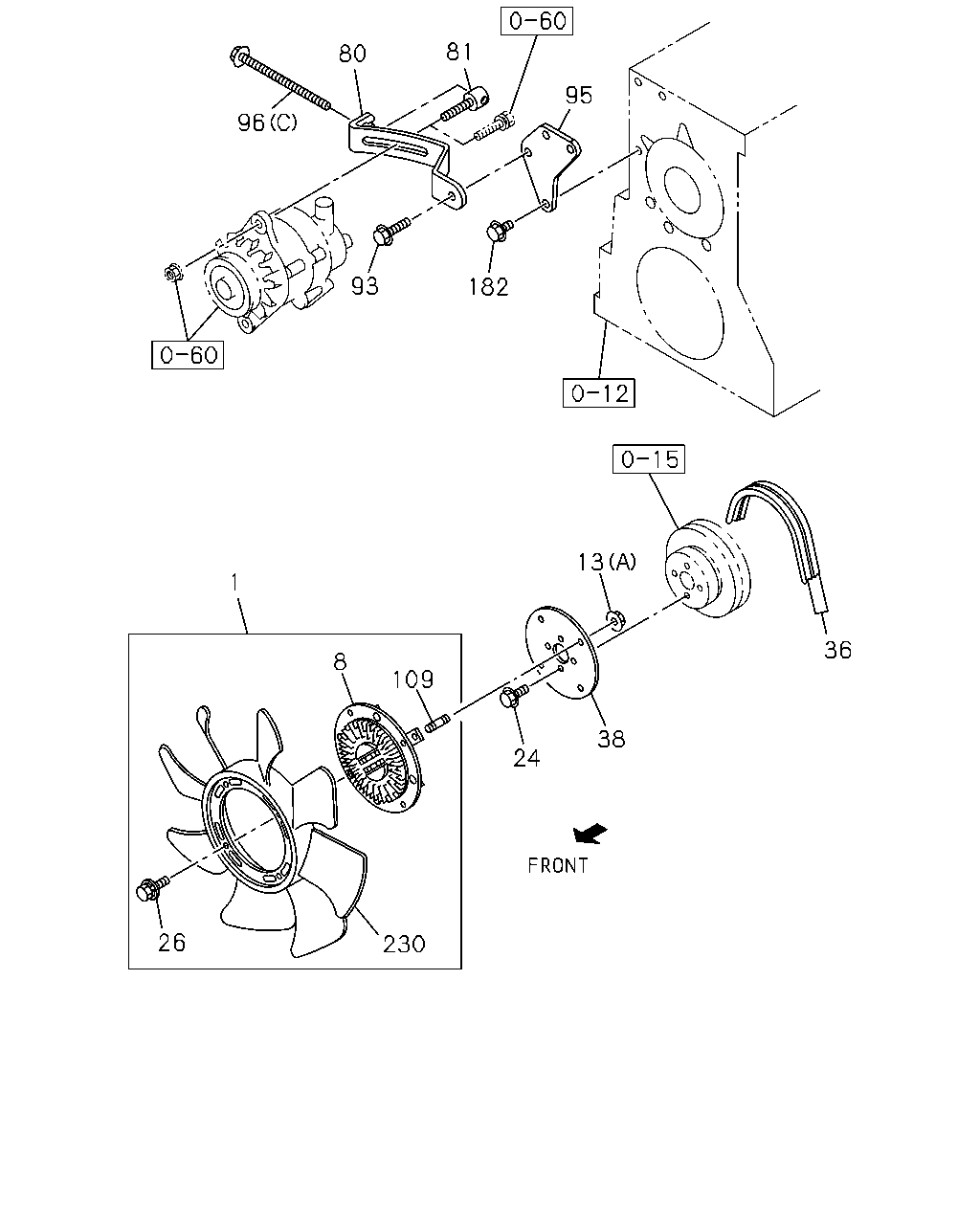

çizim 48999
81 80 95 96 93 182 13 1 36 8 109 38 24 26 230
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.064 FAN; COOLING
OD=410 		8-97129-769-0 01 1 9812-0105 ● ●
1 01.064 FAN; COOLING 8-97128-531-0 01 1 0106- ●
1 01.064 FAN; COOLING
CHARGE AIR COOLER<6PL> 		5-13662-012-1 01 1 9812- ●
1 01.064 FAN; COOLING
EXC. CHARGE AIR COOLER<6PL> 		8-97141-195-1 01 1 9812- ●
8 01.064 CLUTCH; COOLING FAN 8-97129-735-0 01 1 9812-0105 ● ●
8 01.064 CLUTCH; COOLING FAN 8-97129-736-0 01 1 0106- ●
8 01.064 CLUTCH; COOLING FAN
CHARGE AIR COOLER<6PL> 		8-97148-797-0 01 1 9812- ●
8 01.064 CLUTCH; COOLING FAN
EXC. CHARGE AIR COOLER<6PL> 		8-97139-299-0 01 1 9812- ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9812-0105 ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0106- ● ●
13 01.062 NUT; COOLING FAN
CHARGE AIR COOLER<6PL> 07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 9812-9905 ●
13 01.062 NUT; COOLING FAN
CHARGE AIR COOLER<6PL> 07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 9906-0105 ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 9906-0105 ●
13 01.062 NUT; COOLING FAN
CHARGE AIR COOLER<6PL> 07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0106- ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0106- ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 9812- ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9812-0105 ● ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0106- ●
26 01.062 BOLT; FAN TO CLU
EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9812- ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9812-0105 ● ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97141-514-0 01 1 0106-0206 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 0207- ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 9812-0105 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0106- ● ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9812- ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 9812-0105 ● ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 0106- ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 9812- ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97086-228-1 01 1 9812-0005 ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97257-223-0 01 1 0006- ●
93 02.317 BOLT; ADJ PLATE BRKT
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9812- ●
95 02.317 BRACKET; ADJ PLATE 8-97037-510-0 01 1 9812- ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 9812-0105 ● ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 0106- ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9812-0105 ● ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0106- ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) (C) M8X130 FLANGE 		8-97172-720-1 01 1 9812- ●
109 01.062 STUD; FAN CLU
EXC. CHARGE AIR COOLER<6PL> M8X13.5 L=22 		8-97049-577-1 04 1 9812- ●
109 01.062 STUD; FAN CLU
01.073 M6X18 L=27 		9-04110-618-0 04 1 9906-0105 ●
109 01.062 STUD; FAN CLU
01.073 M6X18 L=27 		9-04110-618-0 04 1 0106- ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 03 1 9812- ●
230 01.055 FAN; COOLING
01.064 		8-97094-660-0 01 1 9812-0105 ● ●
230 01.055 FAN; COOLING 8-97131-664-0 01 1 0106- ●
230 01.055 FAN; COOLING
EXC. CHARGE AIR COOLER<6PL> 		8-97140-854-1 01 1 9812- ●

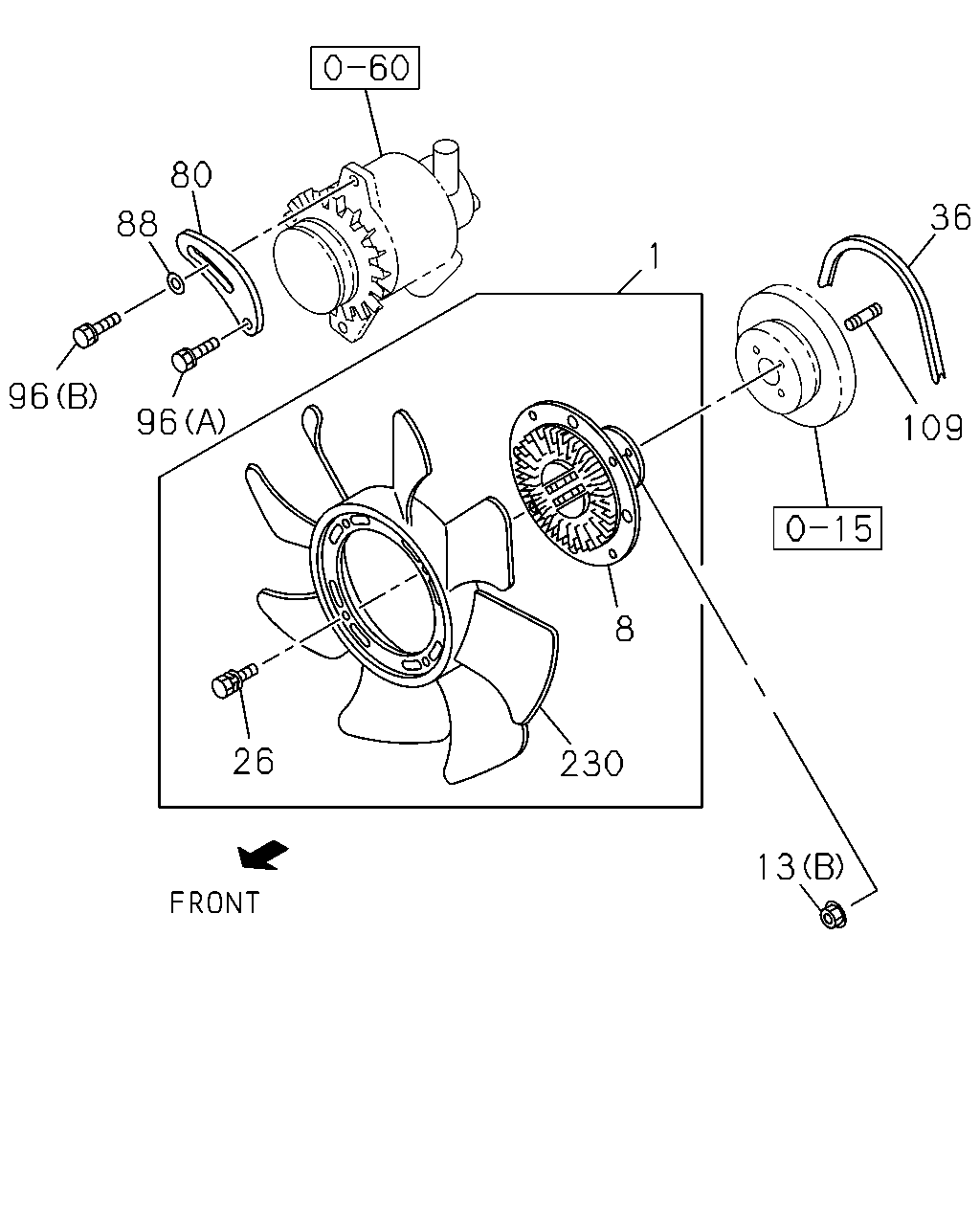

çizim 51916
80 36 88 1 96 96 109 8 26 230 13
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.064 FAN; COOLING
OD=410 		8-97129-769-0 01 1 9812-0105 ● ●
1 01.064 FAN; COOLING 8-97128-531-0 01 1 0106- ●
1 01.064 FAN; COOLING
CHARGE AIR COOLER<6PL> 		5-13662-012-1 01 1 9812- ●
1 01.064 FAN; COOLING
EXC. CHARGE AIR COOLER<6PL> 		8-97141-195-1 01 1 9812- ●
8 01.064 CLUTCH; COOLING FAN 8-97129-735-0 01 1 9812-0105 ● ●
8 01.064 CLUTCH; COOLING FAN 8-97129-736-0 01 1 0106- ●
8 01.064 CLUTCH; COOLING FAN
CHARGE AIR COOLER<6PL> 		8-97148-797-0 01 1 9812- ●
8 01.064 CLUTCH; COOLING FAN
EXC. CHARGE AIR COOLER<6PL> 		8-97139-299-0 01 1 9812- ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9812-0105 ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0106- ● ●
13 01.062 NUT; COOLING FAN
CHARGE AIR COOLER<6PL> 07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 9812-9905 ●
13 01.062 NUT; COOLING FAN
CHARGE AIR COOLER<6PL> 07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 9906-0105 ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 9906-0105 ●
13 01.062 NUT; COOLING FAN
CHARGE AIR COOLER<6PL> 07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0106- ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0106- ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9812-0105 ● ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0106- ●
26 01.062 BOLT; FAN TO CLU
EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9812- ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9812-0105 ● ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97141-514-0 01 1 0106-0206 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 0207- ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 9812-0105 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0106- ● ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 9812-0105 ● ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 0106- ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 9812- ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9812-0105 ● ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 0106- ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 9812-0105 ● ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 0106- ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9812-0105 ● ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0106- ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) (C) M8X130 FLANGE 		8-97172-720-1 01 1 9812- ●
109 01.062 STUD; FAN CLU
EXC. CHARGE AIR COOLER<6PL> M8X13.5 L=22 		8-97049-577-1 04 1 9812- ●
109 01.062 STUD; FAN CLU
01.073 M6X18 L=27 		9-04110-618-0 04 1 9906-0105 ●
109 01.062 STUD; FAN CLU
01.073 M6X18 L=27 		9-04110-618-0 04 1 0106- ●
230 01.055 FAN; COOLING
01.064 		8-97094-660-0 01 1 9812-0105 ● ●
230 01.055 FAN; COOLING 8-97131-664-0 01 1 0106- ●
230 01.055 FAN; COOLING
EXC. CHARGE AIR COOLER<6PL> 		8-97140-854-1 01 1 9812- ●
