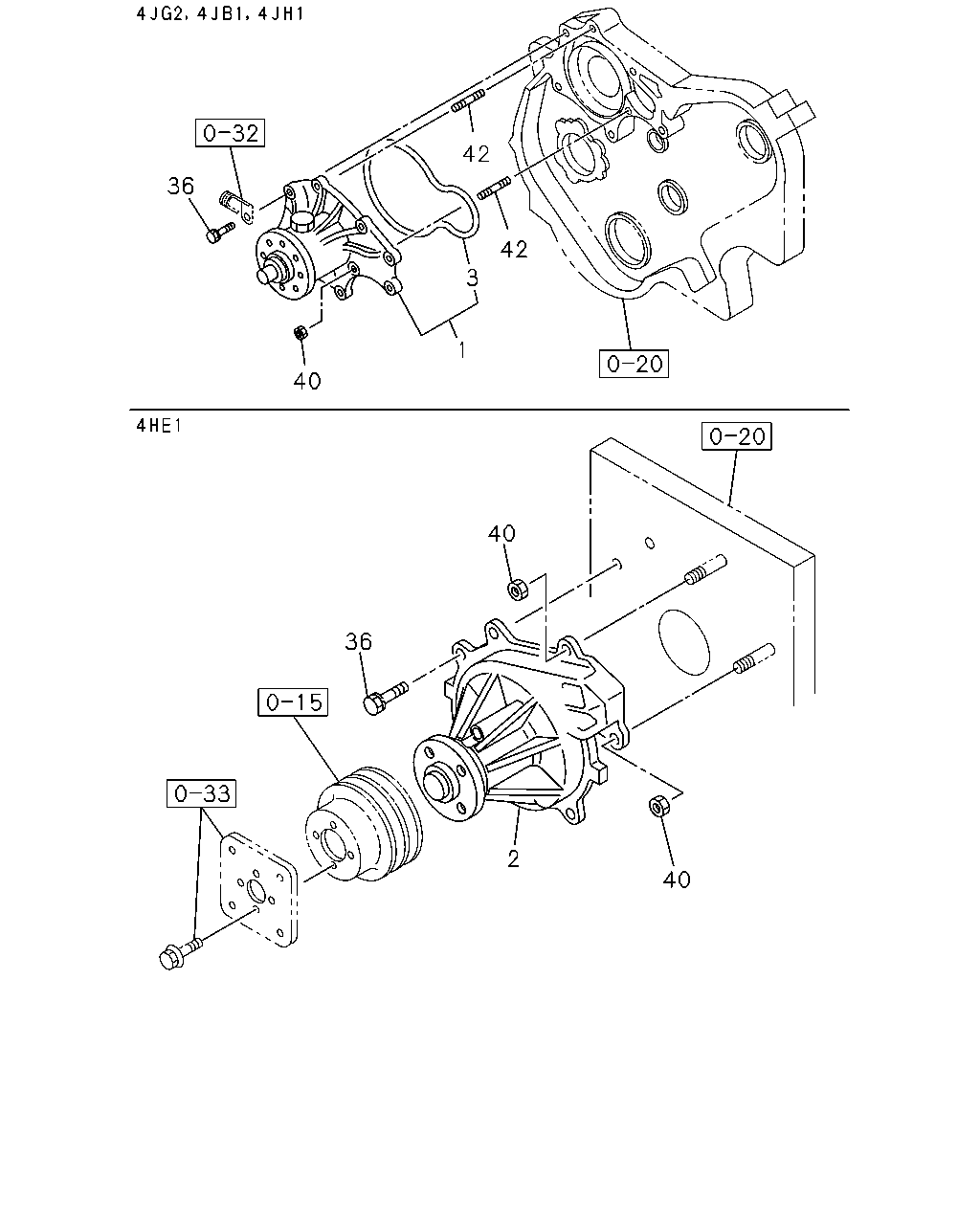

0-30 — WATER PUMP AND CORROSION RESISTOR (#18837) — 27 parça

42 36 42 3 1 40 40 36 2 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.069 PUMP ASM; WATER,W/GASKET	8-97123-330-2	01	1	9812-0105	●	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97123-330-2	01	1	0106-0201			●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97105-012-3	01	1	0202-			●
2	01.069 PUMP ASM; WATER CHARGE AIR COOLER<6PL>	8-97149-237-0	01	1	9812-0104				●
2	01.069 PUMP ASM; WATER CHARGE AIR COOLER<6PL>	8-97314-118-0	01	1	0105-				●
2	01.069 PUMP ASM; WATER EXC. CHARGE AIR COOLER<6PL>	8-97109-676-1	01	1	9812-0104				●
2	01.069 PUMP ASM; WATER EXC. CHARGE AIR COOLER<6PL> 10.690	8-97313-904-0	01	1	0105-0202				●
2	01.069 PUMP ASM; WATER EXC. CHARGE AIR COOLER<6PL>	8-97333-361-0	01	1	0203-				●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94178-081-0	01	1	9812-0105	●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94178-081-0	01	1	0106-			●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	05	1	9812-0105	●	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	05	1	0106-			●
36	00.386 BOLT; WATER PUMP TO C/BL 03.704 M8X40 FLANGE	0-28680-840-0	06	1	9812-				●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-0105	●	●		●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-			●	●
42	01.073 STUD; WATER PUMP 09.173 M8X22 L=34	9-04110-822-0	02	1	9812-0105	●	●
42	01.073 STUD; WATER PUMP 09.173 M8X22 L=34	9-04110-822-0	02	1	0106-			●

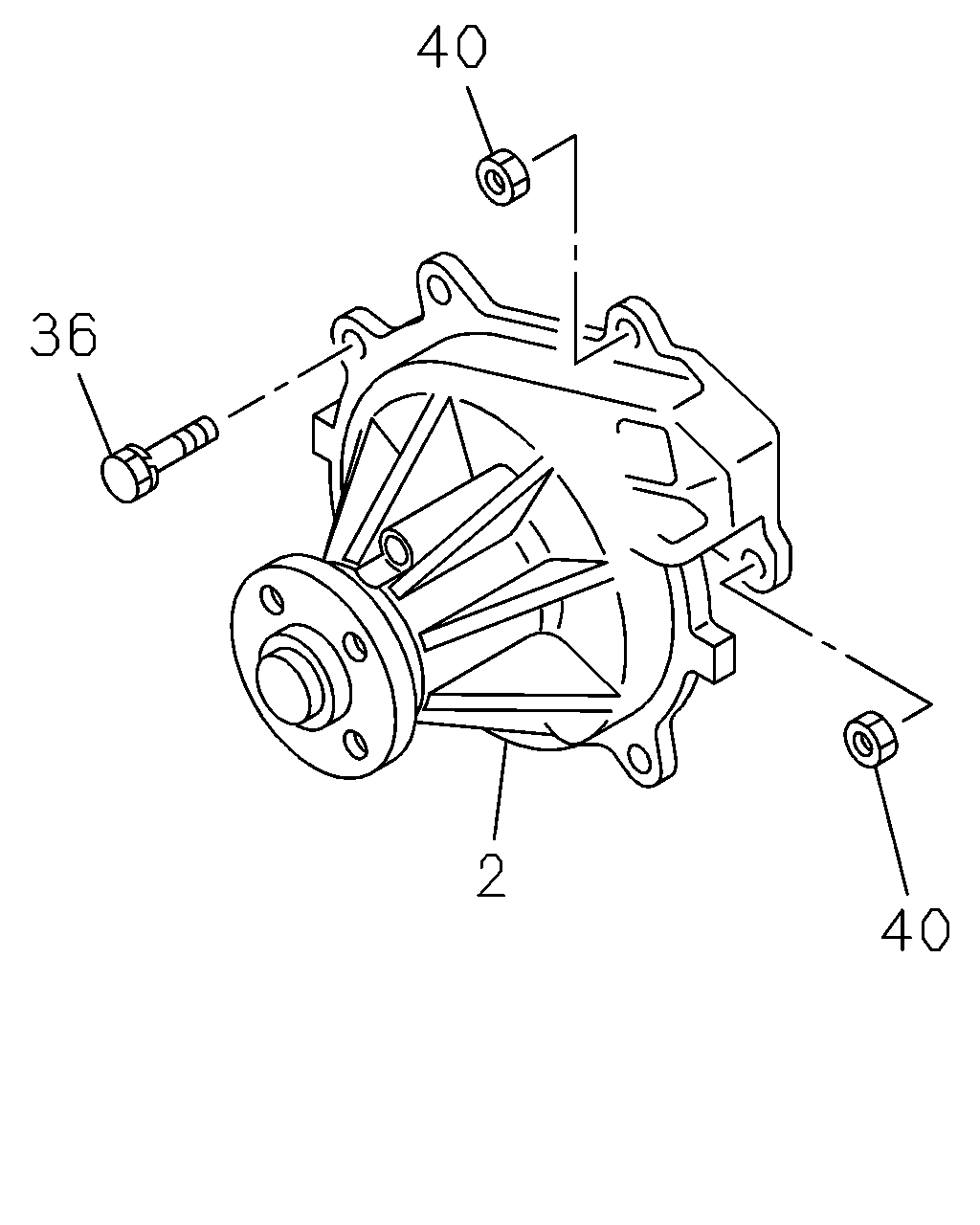

40 36 2 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	01.069 PUMP ASM; WATER CHARGE AIR COOLER<6PL>	8-97149-237-0	01	1	9812-0104				●
2	01.069 PUMP ASM; WATER CHARGE AIR COOLER<6PL>	8-97314-118-0	01	1	0105-				●
2	01.069 PUMP ASM; WATER EXC. CHARGE AIR COOLER<6PL>	8-97109-676-1	01	1	9812-0104				●
2	01.069 PUMP ASM; WATER EXC. CHARGE AIR COOLER<6PL> 10.690	8-97313-904-0	01	1	0105-0202				●
2	01.069 PUMP ASM; WATER EXC. CHARGE AIR COOLER<6PL>	8-97333-361-0	01	1	0203-				●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	05	1	9812-0105	●	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	05	1	0106-			●
36	00.386 BOLT; WATER PUMP TO C/BL 03.704 M8X40 FLANGE	0-28680-840-0	06	1	9812-				●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-0105	●	●		●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-			●	●
