Isuzu WW
▶
TRUCKS
▶
NPR
▶
50818 - NPR/NQR(EUROPE)-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶
0-28 — VENTILATION SYSTEM
(#18836) — 49 parça
Tümü
A - 4HE1 ENG
B - 4JG2 ENG
C - 4JB1 ENG
D - 4JH1 ENG
◀

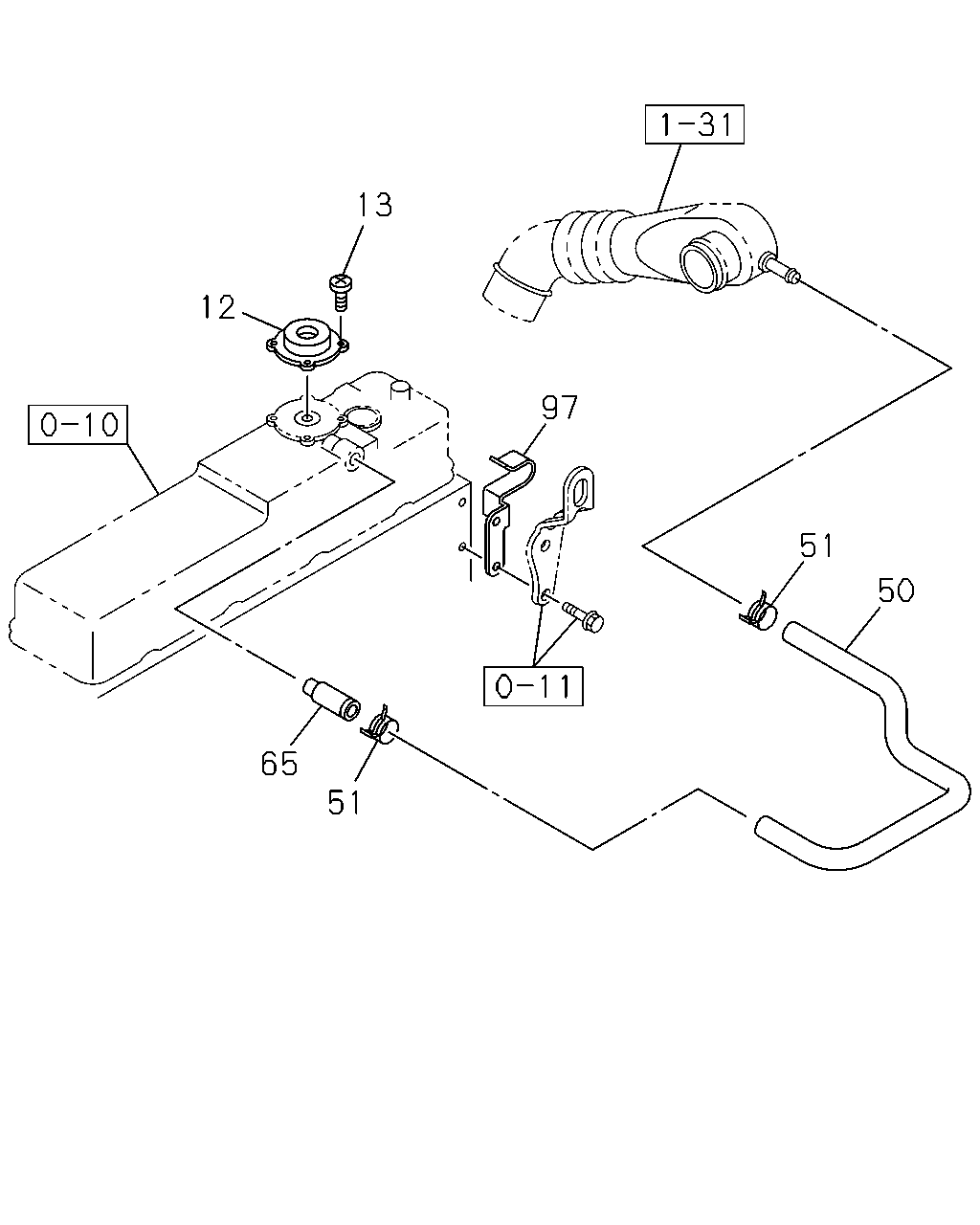

[028A] 4HE1 (7 parça)

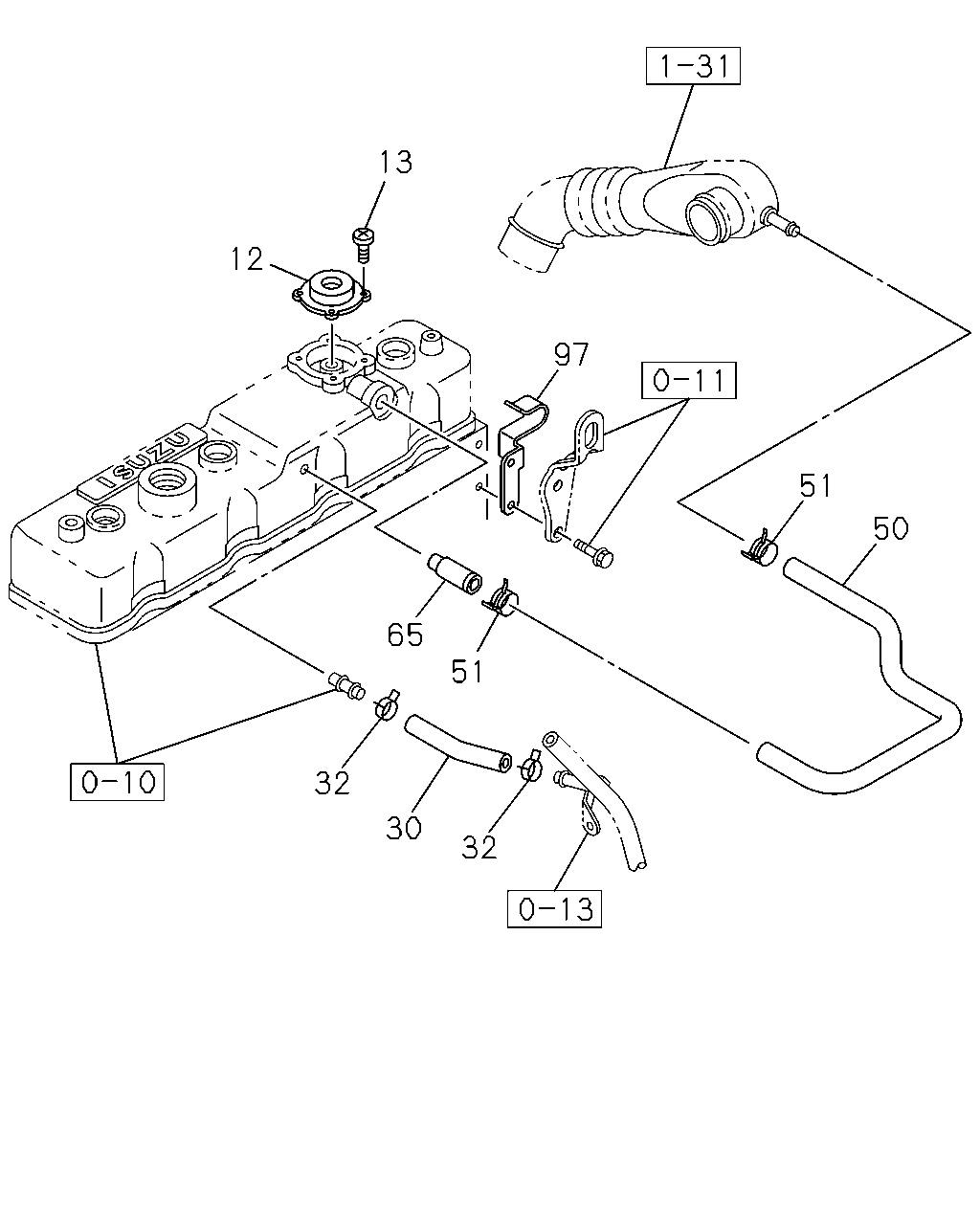

[028A] 4JG2 (12 parça)
[028A] 4JB1 (14 parça)
[028A] 4JH1 (16 parça)
▶
44
44
43
43
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
43

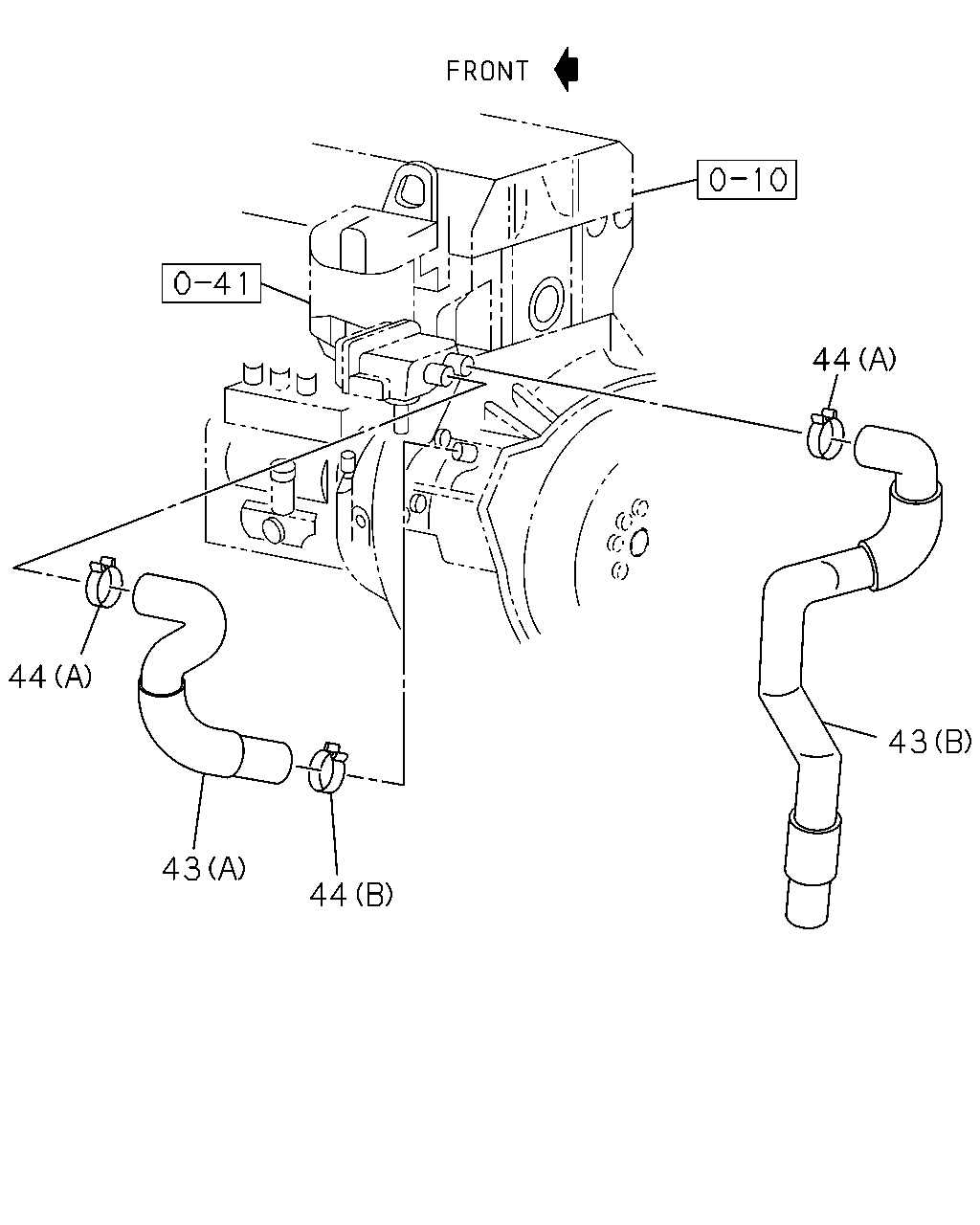

03.278 HOSE; PCV
CHARGE AIR COOLER<6PL> (A)
8-97149-012-2
01
1
9812-
●
43
03.278 HOSE; PCV
CHARGE AIR COOLER<6PL> (B)
8-97181-607-2
01
1
9812-0204
●
43
03.278 HOSE; PCV
CHARGE AIR COOLER<6PL> (B)
8-97351-236-1
01
1
0205-
●
43
03.278 HOSE; PCV
EXC. CHARGE AIR COOLER<6PL> (A)
8-97088-682-1
01
1
9812-
●
43
03.278 HOSE; PCV
EXC. CHARGE AIR COOLER<6PL> (B)
8-97088-683-1
01
1
9812-
●
44
03.278 CLIP; HOSE,PCV
06.672 (B) ID=21
8-94242-034-0
01
1
9812-
●
44
03.278 CLIP; HOSE,PCV
01.252 (A) ID=22.7
8-94466-382-0
02
1
9812-
●
13
12
65
51
50
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
12
01.745 VENTILATOR; AIR
8-94250-172-0
01
1
9812-0105
●
●
12
01.745 VENTILATOR; AIR
8-94250-172-0
01
1
0106-0212
●
12
01.745 VENTILATOR; AIR
03.415
8-97119-887-0
01
1
0301-
●
13
00.386 SCREW; VENTILATOR TO HD COVER
06.321 M4X8 W/LK WASHER
9-03910-408-0
04
1
9812-0105
●
●
13
00.386 SCREW; VENTILATOR TO HD COVER
06.321 M4X8 W/LK WASHER
9-03910-408-0
04
1
0106-
●
50
03.265 HOSE; PCV
AIR INTAKE SYSTEM FRONT<6PC>
8-97049-423-2
01
1
9812-0105
●
50
03.265 HOSE; PCV
8-97248-984-1
01
1
0106-
●
50
03.265 HOSE; PCV
8-97212-347-1
01
1
9906-0105
●
51
03.265 CLIP; PCV HOSE
ID=20.4
8-94121-113-0
02
1
9812-0105
●
●
51
03.265 CLIP; PCV HOSE
ID=20.4
8-94121-113-0
02
1
0106-
●
65
01.762 PIPE; BREATHER
8-94250-615-1
01
1
9812-0105
●
●
65
01.762 PIPE; BREATHER
8-94250-615-1
01
1
0106-
●
13
12
97
51
50
65
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
12
01.745 VENTILATOR; AIR
8-94250-172-0
01
1
9812-0105
●
●
12
01.745 VENTILATOR; AIR
8-94250-172-0
01
1
0106-0212
●
12
01.745 VENTILATOR; AIR
03.415
8-97119-887-0
01
1
0301-
●
13
00.386 SCREW; VENTILATOR TO HD COVER
06.321 M4X8 W/LK WASHER
9-03910-408-0
04
1
9812-0105
●
●
13
00.386 SCREW; VENTILATOR TO HD COVER
06.321 M4X8 W/LK WASHER
9-03910-408-0
04
1
0106-
●
50
03.265 HOSE; PCV
AIR INTAKE SYSTEM FRONT<6PC>
8-97049-423-2
01
1
9812-0105
●
50
03.265 HOSE; PCV
8-97248-984-1
01
1
0106-
●
50
03.265 HOSE; PCV
8-97212-347-1
01
1
9906-0105
●
51
03.265 CLIP; PCV HOSE
ID=20.4
8-94121-113-0
02
1
9812-0105
●
●
51
03.265 CLIP; PCV HOSE
ID=20.4
8-94121-113-0
02
1
0106-
●
65
01.762 PIPE; BREATHER
8-94250-615-1
01
1
9812-0105
●
●
65
01.762 PIPE; BREATHER
8-94250-615-1
01
1
0106-
●
97
01.750 BRACKET; HOSE
8-97212-350-0
01
1
9906-0105
●
97
01.750 BRACKET; HOSE
8-97212-350-0
01
1
0106-
●
13
12
97
51
50
65
51
32
30
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
12
01.745 VENTILATOR; AIR
8-94250-172-0
01
1
9812-0105
●
●
12
01.745 VENTILATOR; AIR
8-94250-172-0
01
1
0106-0212
●
12
01.745 VENTILATOR; AIR
03.415
8-97119-887-0
01
1
0301-
●
13
00.386 SCREW; VENTILATOR TO HD COVER
06.321 M4X8 W/LK WASHER
9-03910-408-0
04
1
9812-0105
●
●
13
00.386 SCREW; VENTILATOR TO HD COVER
06.321 M4X8 W/LK WASHER
9-03910-408-0
04
1
0106-
●
30
03.417 HOSE; VENTILATOR,CYL HD COVER
8-97240-031-0
01
1
0106-
●
32
03.417 CLIP; VENT HOSE
01.097 ID=14.8
8-94448-727-0
02
1
0106-
●
50
03.265 HOSE; PCV
AIR INTAKE SYSTEM FRONT<6PC>
8-97049-423-2
01
1
9812-0105
●
50
03.265 HOSE; PCV
8-97248-984-1
01
1
0106-
●
50
03.265 HOSE; PCV
8-97212-347-1
01
1
9906-0105
●
51
03.265 CLIP; PCV HOSE
ID=20.4
8-94121-113-0
02
1
9812-0105
●
●
51
03.265 CLIP; PCV HOSE
ID=20.4
8-94121-113-0
02
1
0106-
●
65
01.762 PIPE; BREATHER
8-94250-615-1
01
1
9812-0105
●
●
65
01.762 PIPE; BREATHER
8-94250-615-1
01
1
0106-
●
97
01.750 BRACKET; HOSE
8-97212-350-0
01
1
9906-0105
●
97
01.750 BRACKET; HOSE
8-97212-350-0
01
1
0106-
●
