Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#18834) — 185 parça

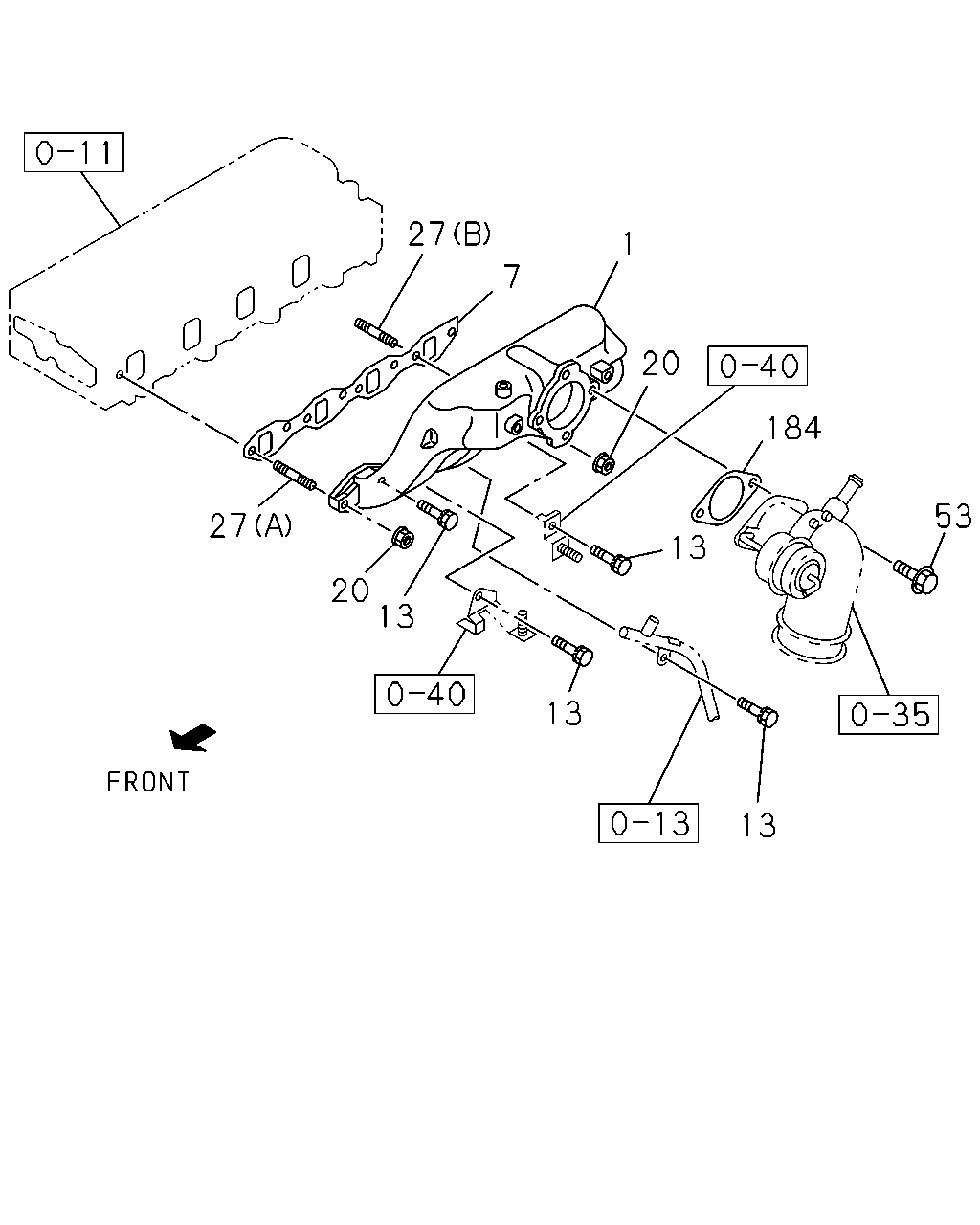

27 1 7 20 184 53 27 13 20 13 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.265 MANIFOLD; INL	8-97147-920-0	01	1	9812-0105	●
1	03.265 MANIFOLD; INL	8-97192-327-1	01	1	9906-0105		●
1	03.265 MANIFOLD; INL	8-97192-327-1	01	1	0106-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97144-623-0	04	1	9812-0105	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97228-044-0	01	1	9906-0101		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97301-838-0	01	1	0102-0105		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97228-044-0	01	1	0106-0112			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97301-838-0	01	1	0201-			●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9812-0105	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0106-			●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	06	1	9812-				●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	07	1	9812-				●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	05	1	9906-0105		●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9906-0105		●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0106-			●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9812-0105	●	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0106-			●
20	03.275 NUT; INL MANIF EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-				●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9812-0105	●	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0106-			●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9812-0105	●	●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0106-			●
53	03.602 BOLT; INL PIPE 09.181 M10X25 FLANGE	0-28781-025-0	02	1	9906-0105		●
53	03.602 BOLT; INL PIPE 09.181 M10X25 FLANGE	0-28781-025-0	02	1	0106-0208			●
53	03.602 BOLT; INL PIPE 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0209-			●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.406	8-97035-883-0	01	1	9906-0105		●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.406	8-97035-883-1	01	1	0106-			●

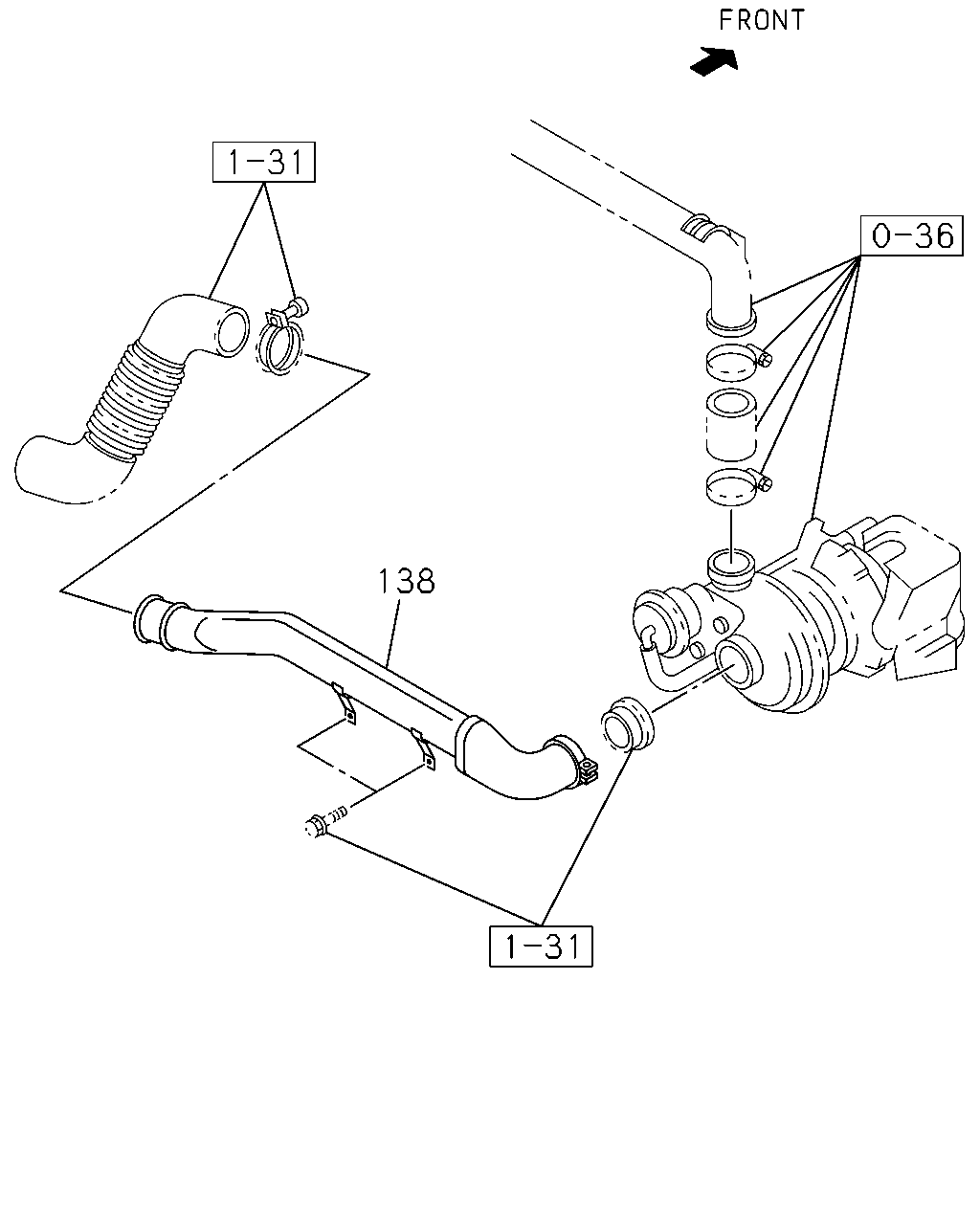

138

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKEBOOSTER<7QQ>	8-97214-593-0	01	1	9812-				●
	138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97214-594-0	01	1	9812-				●

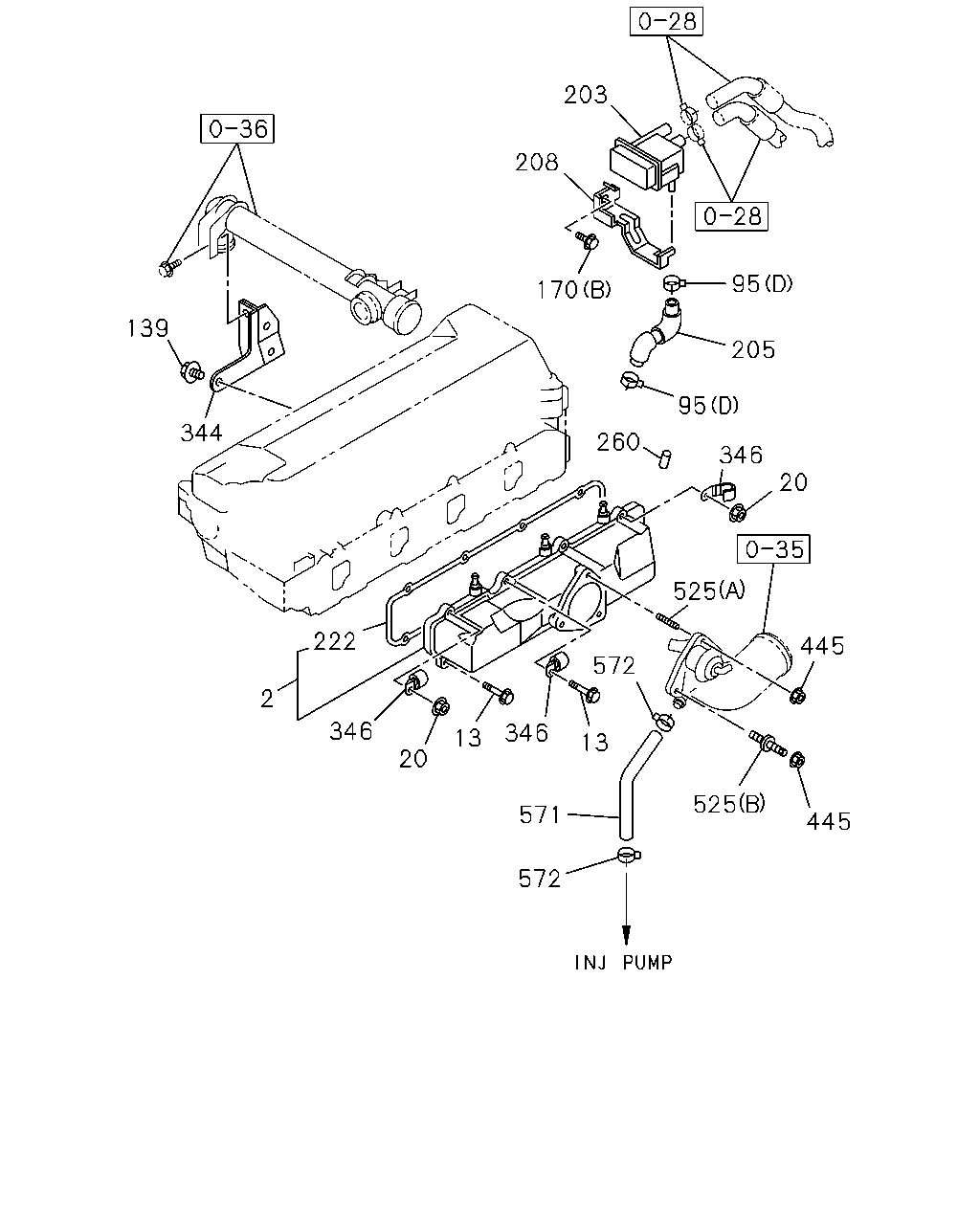

203 208 95 170 139 205 95 344 260 346 20 525 222 445 572 2 346 346 13 13 20 525 571 445 572

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97190-248-1	01	1	9812-9901				●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97219-653-0	01	1	9902-				●
2	03.407 COVER; INL EXC. CHARGE AIR COOLER<6PL>	8-97074-680-1	01	1	9812-				●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9812-0105	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0106-			●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	06	1	9812-				●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	07	1	9812-				●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	05	1	9906-0105		●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9906-0105		●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0106-			●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9812-0105	●	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0106-			●
20	03.275 NUT; INL MANIF EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-				●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	01	1	9812-				●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.163 (A) ID=11	8-94238-570-0	01	1	9812-				●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 01.097 (C) ID=11	8-94238-925-0	01	1	9812-				●
95	03.278 CLIP; RUBBER HOSE EXC. CHARGE AIR COOLER<6PL> 01.219 (D) ID=13	8-94238-571-0	02	1	9812-				●
139	03.162 BOLT; BRKT FIX EXC. CHARGE AIR COOLER<6PL> 00.662 M8X14 FLANGE	0-28080-814-0	02	1	9812-0001				●
139	03.162 BOLT; BRKT FIX EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0002-				●
170	03.162 BOLT; BRKT 02.483 (B) M12X20 FLANGE	0-28181-220-0	01	1	9812-				●
170	03.162 BOLT; BRKT CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	9812-				●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	9812-				●
205	01.745 HOSE; OIL DRAIN CHARGE AIR COOLER<6PL>	8-97149-011-1	01	1	9812-				●
205	01.745 HOSE; OIL DRAIN EXC. CHARGE AIR COOLER<6PL>	8-97088-684-1	01	1	9812-				●
208	01.750 BRACKET; CATCH TANK,OIL CHARGE AIR COOLER<6PL>	8-97166-887-0	01	1	9812-				●
208	01.750 BRACKET; CATCH TANK,OIL EXC. CHARGE AIR COOLER<6PL>	8-97094-449-0	01	1	9812-				●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHARGE AIR COOLER<6PL>	8-97170-807-0	01	1	9812-9901				●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHARGE AIR COOLER<6PL>	8-97219-649-0	01	1	9902-				●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. CHARGE AIR COOLER<6PL>	8-97074-682-0	01	1	9812-				●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	9812-				●
344	03.407 BRACKET; INL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97065-482-3	01	1	9812-0008				●
344	03.407 BRACKET; INL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97252-310-0	01	1	0009-0102				●
344	03.407 BRACKET; INL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97289-654-0	01	1	0103-				●
346	02.559 CLIP; ENG HARNESS CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9812-				●
346	02.559 CLIP; ENG HARNESS EXC. CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9812-				●
445	03.275 NUT; THROTTLE BODY TO MANIF EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-				●
525	03.275 STUD; CONT VLV EXC. CHARGE AIR COOLER<6PL> 01.428 (A) M8X20 L=38	8-97021-431-0	02	1	9812-				●
525	03.275 STUD; CONT VLV EXC. CHARGE AIR COOLER<6PL> 03.270 (B)	8-97033-689-0	01	1	9812-				●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> 08.962 L=350 SERVICED BY L=3000	0-01254-300-0	01	1	9812-0105				●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> L=350	8-97304-609-1	01	1	0106-				●
571	03.265 HOSE; AIR BOOST EXC. CHARGE AIR COOLER<6PL> 08.962 L=230 SERVICED BY L=3000	0-01254-300-0	01	1	9812-				●
572	03.407 CLIP; BOOST HOSE 03.163 ID=11	8-94238-570-0	02	1	9812-				●

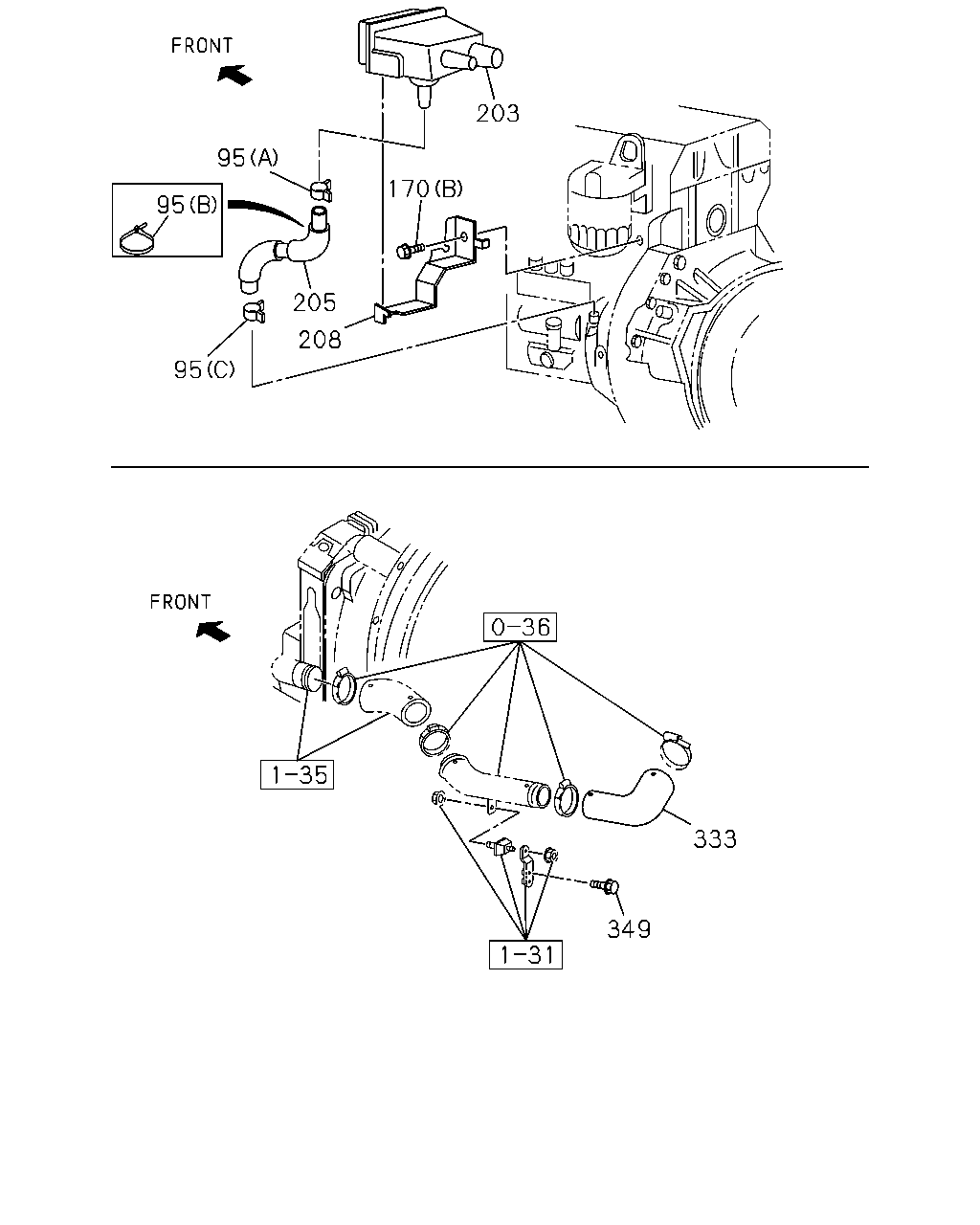

203 95 170 95 205 208 95 333 349

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	01	1	9812-	●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.163 (A) ID=11	8-94238-570-0	01	1	9812-	●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 01.097 (C) ID=11	8-94238-925-0	01	1	9812-	●
95	03.278 CLIP; RUBBER HOSE EXC. CHARGE AIR COOLER<6PL> 01.219 (D) ID=13	8-94238-571-0	02	1	9812-	●
170	03.162 BOLT; BRKT 02.483 (B) M12X20 FLANGE	0-28181-220-0	01	1	9812-	●
170	03.162 BOLT; BRKT CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	9812-	●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	9812-	●
205	01.745 HOSE; OIL DRAIN CHARGE AIR COOLER<6PL>	8-97149-011-1	01	1	9812-	●
205	01.745 HOSE; OIL DRAIN EXC. CHARGE AIR COOLER<6PL>	8-97088-684-1	01	1	9812-	●
208	01.750 BRACKET; CATCH TANK,OIL CHARGE AIR COOLER<6PL>	8-97166-887-0	01	1	9812-	●
208	01.750 BRACKET; CATCH TANK,OIL EXC. CHARGE AIR COOLER<6PL>	8-97094-449-0	01	1	9812-	●
333	03.278 HOSE; RUBBER,INL PIPE CHARGE AIR COOLER<6PL>	8-97189-631-0	01	1	9812-	●
349	03.417 BOLT; BRKT,INL PIPE CHARGE AIR COOLER<6PL> 04.595 M8X20 FLANGE	0-28480-820-0	04	1	9812-	●

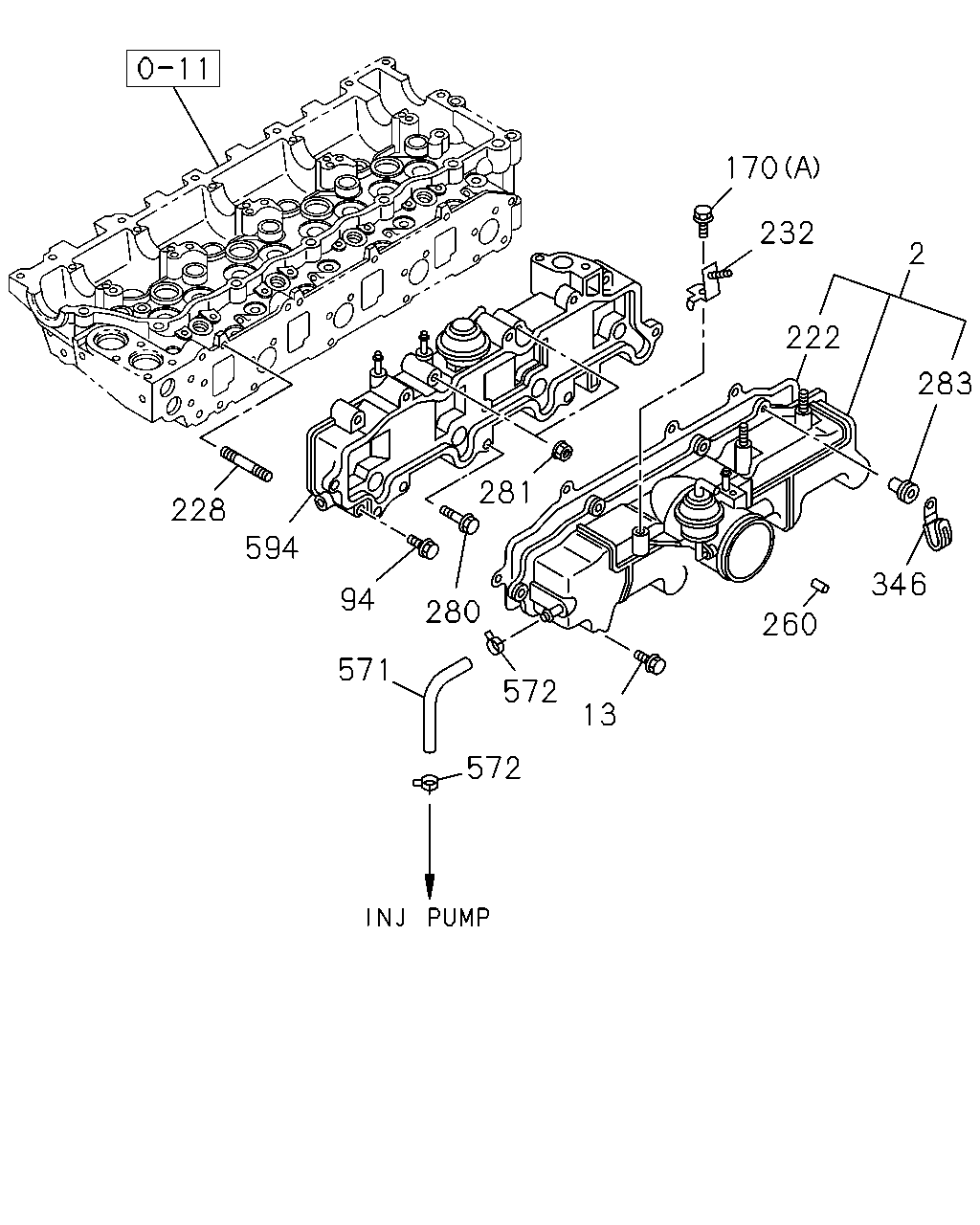

170 232 2 222 283 281 228 594 346 94 280 260 571 572 13 572

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97190-248-1	01	1	9812-9901				●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97219-653-0	01	1	9902-				●
2	03.407 COVER; INL EXC. CHARGE AIR COOLER<6PL>	8-97074-680-1	01	1	9812-				●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9812-0105	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0106-			●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	06	1	9812-				●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	07	1	9812-				●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	05	1	9906-0105		●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9906-0105		●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0106-			●
94	02.559 BOLT CHARGE AIR COOLER<6PL> 01.540 M8X45 FLANGE	0-28080-845-0	04	1	9812-				●
94	02.559 BOLT CHARGE AIR COOLER<6PL> 01.780 M8X50 FLANGE	0-28080-850-0	02	1	9812-				●
170	03.162 BOLT; BRKT 02.483 (B) M12X20 FLANGE	0-28181-220-0	01	1	9812-				●
170	03.162 BOLT; BRKT CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	9812-				●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHARGE AIR COOLER<6PL>	8-97170-807-0	01	1	9812-9901				●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) CHARGE AIR COOLER<6PL>	8-97219-649-0	01	1	9902-				●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. CHARGE AIR COOLER<6PL>	8-97074-682-0	01	1	9812-				●
228	03.407 STUD; INL COVER CHARGE AIR COOLER<6PL> M8X84 L=95	8-97181-739-0	02	1	9812-				●
232	03.407 BRACKET; INJ PIPE CHARGE AIR COOLER<6PL>	8-97190-249-0	01	1	9812-				●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	9812-				●
280	03.403 BOLT; INL COVER CHARGE AIR COOLER<6PL> 09.171 M8X80 FLANGE	0-28080-880-0	01	1	9812-				●
281	03.407 NUT; INL COVER CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-				●
283	03.265 RUBBER CHARGE AIR COOLER<6PL> OD=23	8-97105-689-6	09	1	9812-9901				●
283	03.265 RUBBER CHARGE AIR COOLER<6PL> L=18	8-97219-650-0	09	1	9902-				●
346	02.559 CLIP; ENG HARNESS CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9812-				●
346	02.559 CLIP; ENG HARNESS EXC. CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9812-				●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> 08.962 L=350 SERVICED BY L=3000	0-01254-300-0	01	1	9812-0105				●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> L=350	8-97304-609-1	01	1	0106-				●
571	03.265 HOSE; AIR BOOST EXC. CHARGE AIR COOLER<6PL> 08.962 L=230 SERVICED BY L=3000	0-01254-300-0	01	1	9812-				●
572	03.407 CLIP; BOOST HOSE 03.163 ID=11	8-94238-570-0	02	1	9812-				●
594	03.278 CASE CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97187-617-0	01	1	9812-0003				●
594	03.278 CASE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97187-617-0	01	1	0004-0105				●
594	03.278 CASE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97148-948-4	01	1	9812-9911				●
594	03.278 CASE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97230-991-0	01	1	9912-0105				●
594	03.278 CASE CHARGE AIR COOLER<6PL>	8-97230-991-0	01	1	0106-				●

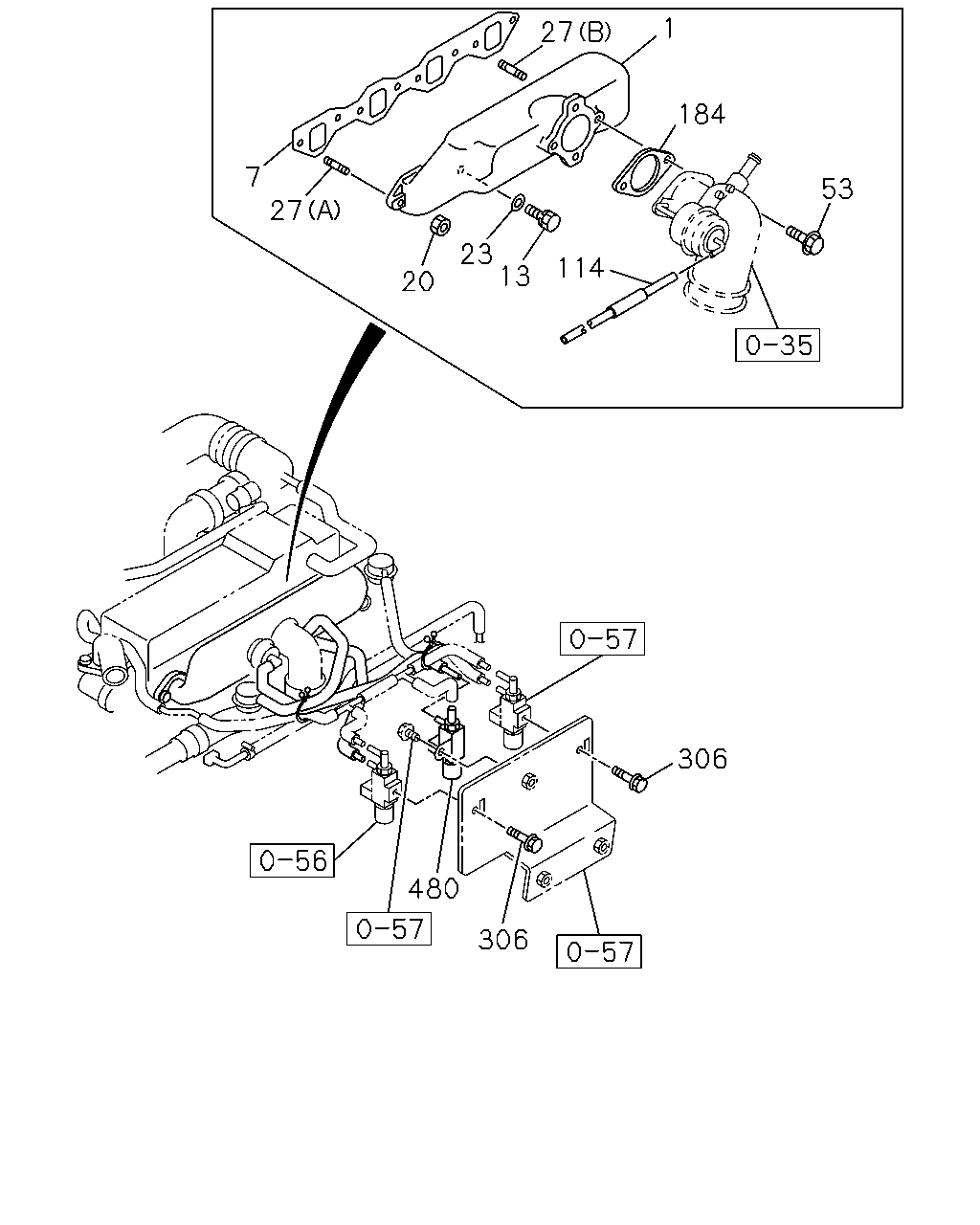

1 27 184 7 27 53 23 13 114 20 306 480 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.265 MANIFOLD; INL	8-97147-920-0	01	1	9812-0105	●
1	03.265 MANIFOLD; INL	8-97192-327-1	01	1	9906-0105		●
1	03.265 MANIFOLD; INL	8-97192-327-1	01	1	0106-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97144-623-0	04	1	9812-0105	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97228-044-0	01	1	9906-0101		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97301-838-0	01	1	0102-0105		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97228-044-0	01	1	0106-0112			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97301-838-0	01	1	0201-			●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9812-0105	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0106-			●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	06	1	9812-				●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	07	1	9812-				●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	05	1	9906-0105		●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9906-0105		●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0106-			●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9812-0105	●	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0106-			●
20	03.275 NUT; INL MANIF EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-				●
23	03.275 WASHER; PL,INL MANIF 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9812-0105	●	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9812-0105	●	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0106-			●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9812-0105	●	●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0106-			●
53	03.602 BOLT; INL PIPE 09.181 M10X25 FLANGE	0-28781-025-0	02	1	9906-0105		●
53	03.602 BOLT; INL PIPE 09.181 M10X25 FLANGE	0-28781-025-0	02	1	0106-0208			●
53	03.602 BOLT; INL PIPE 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0209-			●
114	03.265 HOSE; VAC,INT THROTTLE L=1320	8-97096-148-1	01	1	9812-9904	●
114	03.265 HOSE; VAC,INT THROTTLE L=1320	8-97227-211-0	01	1	9905-0105	●
114	03.265 HOSE; VAC,INT THROTTLE L=403	8-97228-401-0	01	1	9906-0105		●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.406	8-97035-883-0	01	1	9906-0105		●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.406	8-97035-883-1	01	1	0106-			●
306	03.265 BOLT; VLV 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9906-0105		●
306	03.265 BOLT; VLV 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	9906-0105		●
480	03.314 VALVE ASM; VAC SW 03.670	8-94144-597-1	01	1	9906-0105		●

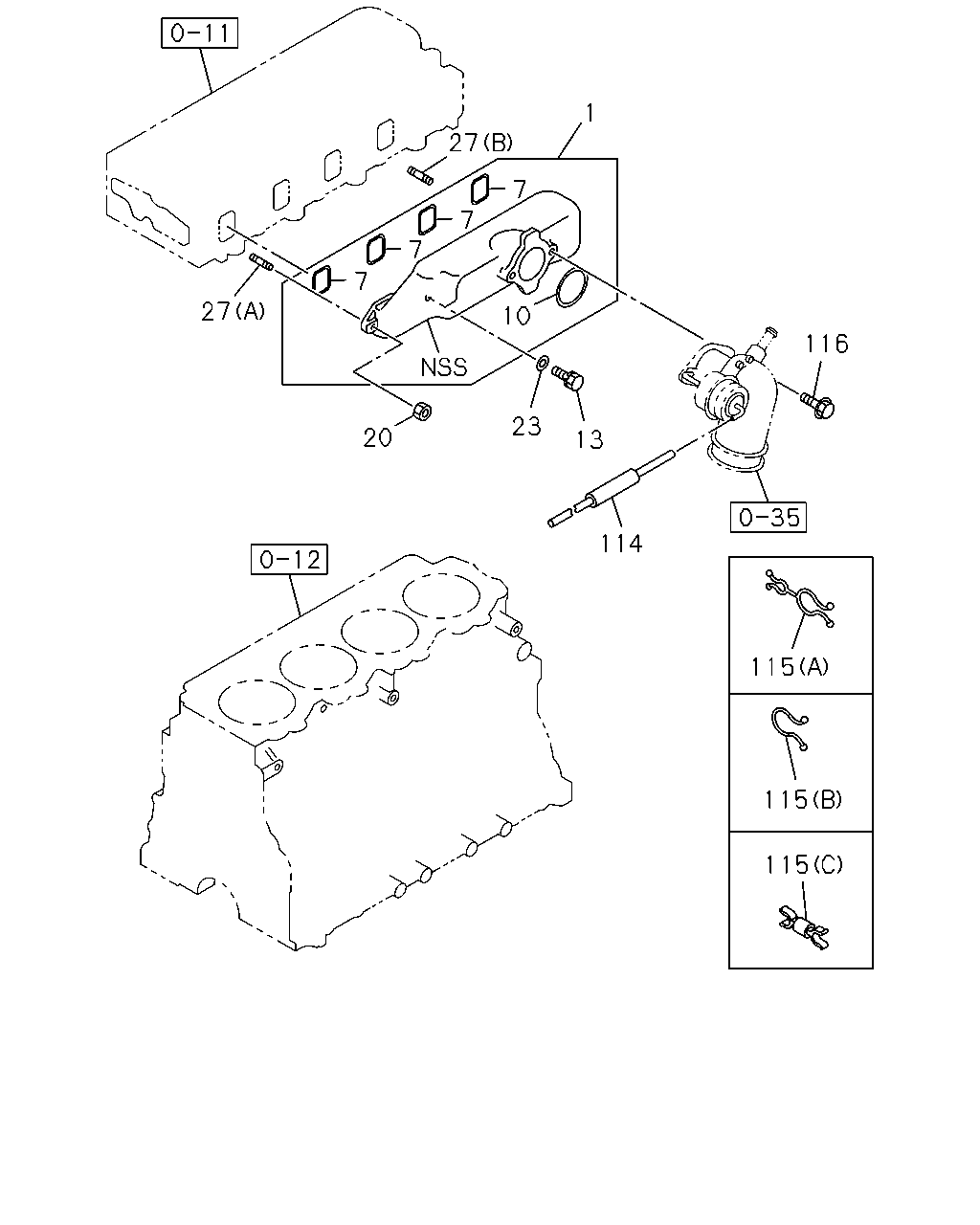

1 27 7 7 7 7 27 10 116 23 20 13 114 115 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.265 MANIFOLD; INL	8-97147-920-0	01	1	9812-0105	●
1	03.265 MANIFOLD; INL	8-97192-327-1	01	1	9906-0105		●
1	03.265 MANIFOLD; INL	8-97192-327-1	01	1	0106-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97144-623-0	04	1	9812-0105	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97228-044-0	01	1	9906-0101		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97301-838-0	01	1	0102-0105		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97228-044-0	01	1	0106-0112			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97301-838-0	01	1	0201-			●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97144-622-0	01	1	9812-0105	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9812-0105	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0106-			●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	06	1	9812-				●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	07	1	9812-				●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	05	1	9906-0105		●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9906-0105		●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0106-			●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9812-0105	●	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0106-			●
20	03.275 NUT; INL MANIF EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-				●
23	03.275 WASHER; PL,INL MANIF 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9812-0105	●	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9812-0105	●	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0106-			●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9812-0105	●	●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0106-			●
114	03.265 HOSE; VAC,INT THROTTLE L=1320	8-97096-148-1	01	1	9812-9904	●
114	03.265 HOSE; VAC,INT THROTTLE L=1320	8-97227-211-0	01	1	9905-0105	●
114	03.265 HOSE; VAC,INT THROTTLE L=403	8-97228-401-0	01	1	9906-0105		●
115	03.265 CLIP; VAC HOSE,INT THROTTLE 08.852 (A) ID=8 & 23	5-09707-002-0	01	1	9812-0105	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE 08.852 (A) ID=8 & 16	5-09707-032-0	03	1	9812-0105	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE 03.483 (C) ID=6 & 6	8-94463-708-0	01	1	9812-0105	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE 03.278 (B) ID=37	8-94481-468-0	01	1	9812-0105	●
116	03.275 BOLT; MANIF TO INL PIPE 01.540 M10X20 FLANGE	0-28181-020-0	02	1	9812-0105	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
