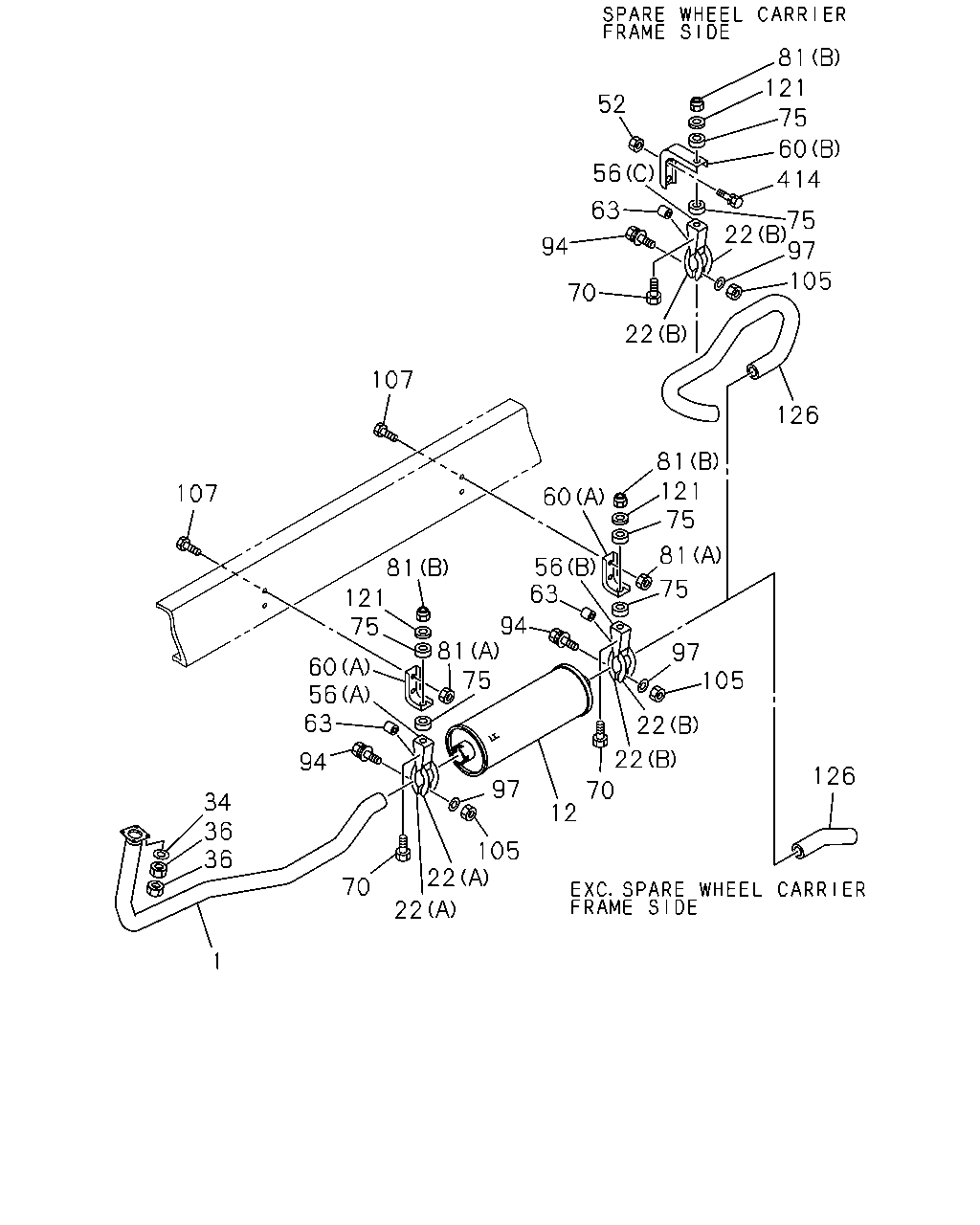

1-50 — EXHAUST PIPE AND SILENCER (#1883) — 38 parça

81 121 75 52 56 60 414 63 75 22 97 105 94 70 22 107 126 81 121 75 107 60 81 56 63 81 75 121 75 94 81 75 97 105 60 56 63 22 22 94 126 97 70 12 34 36 36 105 22 70 22 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH FSS ALL(FSS***)	1-22121-634-1	01	1	9207-
1	PIPE; EXH FTS ALL(FTS***)	1-22121-717-1	01	1	9207-
12	SILENCER ASM; EXH	1-22140-497-2	01	1	9207-
22	CLAMP; EXH PIPE (A) L=120	1-22133-231-0	02	1	9207-
22	CLAMP; EXH PIPE (B) ID=75-78	1-22133-232-0	02	1	9207-
22	CLAMP; EXH PIPE SPARE WHEEL CARRIER FRAME SIDE<P13> (B) ID=75-78	1-22133-232-0	02	1	9207-
34	WASHER; EXH PIPE	1-09500-007-0	04	1	9207-
36	NUT; EXH PIPE	9-09842-016-0	08	1	9207-
52	NUT; BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> M10	9-09110-510-0	02	1	9207-
56	BRACKET; CLAMP,EXH PIPE (A) H=107	1-22139-047-0	01	1	9207-
56	BRACKET; CLAMP,EXH PIPE (B) H=100	1-22139-052-0	01	1	9207-
56	BRACKET; CLAMP,EXH PIPE SPARE WHEEL CARRIER FRAME SIDE<P13> (C) H=67	1-22139-041-0	01	1	9207-
60	BRACKET; FRAME TO BRKT (A)	1-22151-433-1	02	1	9207-
60	BRACKET; FRAME TO BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-22131-471-0	01	1	9207-
63	TUBE; DIST,BRKT L=11	1-22139-026-0	02	1	9207-
63	TUBE; DIST,BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> L=11	1-22139-026-0	01	1	9207-
70	BOLT; BRKT M10X50	0-10806-050-0	02	1	9207-
70	BOLT; BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> M10X50	0-10806-050-0	01	1	9207-
75	RUBBER; SUPPORT,BRKT OD=30	1-22159-106-1	04	1	9207-
75	RUBBER; SUPPORT,BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> OD=30	1-22159-106-1	02	1	9207-
81	NUT; BRKT (B) M10 LOCK NUT	9-09131-510-0	02	1	9207-
81	NUT; BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M10 LOCK NUT	9-09131-510-0	01	1	9207-
81	NUT; BRKT (A) M10	9-09110-510-0	04	1	9207-
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9207-
94	BOLT; CLAMP SPARE WHEEL CARRIER FRAME SIDE<P13> M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9207-
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	9207-
97	WASHER; PL,CLAMP SPARE WHEEL CARRIER FRAME SIDE<P13> ID=10.5	9-09164-510-0	02	1	9207-
105	NUT; CLAMP SPARE WHEEL CARRIER FRAME SIDE<P13> M10	9-09110-510-0	02	1	9207-
105	NUT; CLAMP M10	9-09110-510-0	04	1	9207-
107	BOLT; BRKT M10X30 W/LK WASHER	0-50041-030-0	04	1	9207-9307
107	BOLT; BRKT M10X30 FLANGE	0-28081-030-0	04	1	9308-9506
107	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	04	1	9507-
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	02	1	9207-
121	WASHER; PL,BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> ID=10.5 OD=32	9-09164-810-0	01	1	9207-
126	PIPE; EXH,RR SPARE WHEEL CARRIER FRAME SIDE<P13>	1-22113-068-0	01	1	9207-
126	PIPE; EXH,RR EXC. SPARE WHEEL CARRIER FRAME SIDE<P13>	1-22112-851-1	01	1	9207-
414	BOLT; BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> M10X30 W/LK WASHER	0-50041-030-0	02	1	9207-9307
414	BOLT; BRKT SPARE WHEEL CARRIER FRAME SIDE<P13> M10X30 FLANGE	0-28081-030-0	02	1	9308-
