Sayfa 0-13 - Isuzu EPC

0-13 — OIL PAN AND LEVEL GAUGE (#18829) — 220 parça

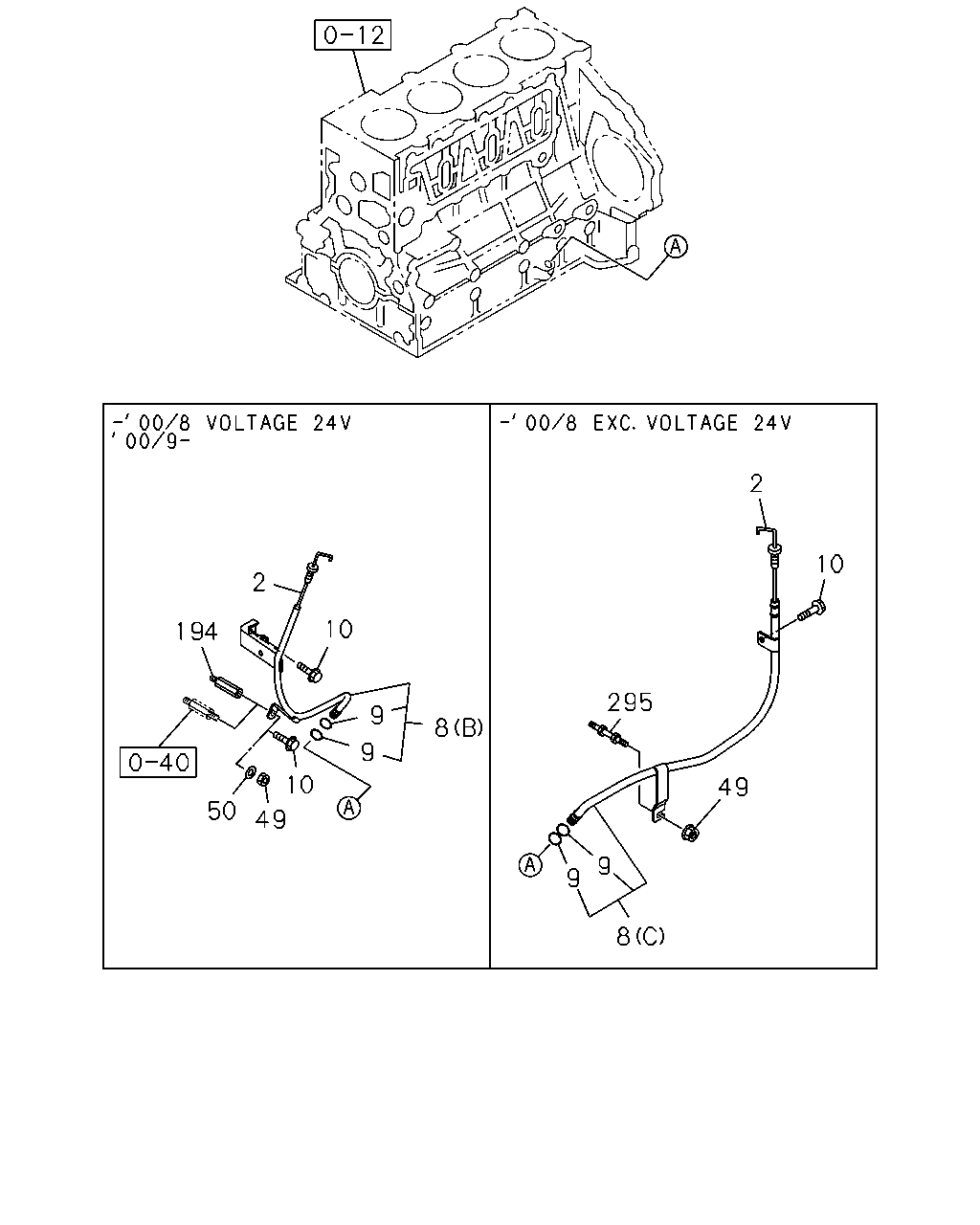

2 10 2 10 194 295 9 8 9 10 49 50 49 9 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9812-0105	●
2	01.516 GAUGE; OIL LEVEL	8-97019-885-1	01	1	9812-9906		●
2	01.516 GAUGE; OIL LEVEL EXC. CHARGE AIR COOLER<6PL>	8-97227-945-0	01	1	9907-		●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL>	8-97019-885-1	01	1	9907-9908		●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE>	8-97019-885-1	01	1	9909-9910		●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL>	8-97019-885-1	01	1	9911-		●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	9906-0105			●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0106-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-97044-886-0	01	1	9812-0105	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (B)	8-97182-794-0	01	1	9812-9903		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (B)	8-97226-751-0	01	1	9904-9910		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> (B)	8-97226-751-1	01	1	9911-0211		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> (B)	8-97354-831-0	01	1	0212-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. CHARGE AIR COOLER<6PL> (B)	8-97130-265-0	01	1	9812-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. VOLTAGE 24V<7AE> (C)	8-97165-493-2	01	1	9812-9908		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF>,ENGINE POWER N-SPEC(7QV) (C)	8-97165-493-2	01	1	9909-0008		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-97221-497-0	01	1	9906-0105			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (D)	8-97239-977-0	01	1	0106-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> ID=11	1-09623-469-0	02	1	0212-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9812-0105	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	9812-0105		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	9812-0105		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0106-0211		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	0212-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9906-0105			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	0106-				●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9812-9903		●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9904-9910		●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9911-		●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 00.029 M10X20 FLANGE	0-28191-020-0	01	1	9904-9908		●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 04.785 M10X20 FLANGE	0-28781-020-0	01	1	9909-9910		●
10	01.516 BOLT; GUIDE TUBE CHARGE AIR COOLER<6PL> 04.785 M10X20 FLANGE	0-28781-020-0	01	1	9911-0002		●
10	01.516 BOLT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9812-		●
49	01.516 NUT; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	01	1	9812-		●
49	01.516 NUT; GUIDE TUBE EXC. VOLTAGE 24V<7AE> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9908		●
49	01.516 NUT; GUIDE TUBE CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF>,ENGINE POWER N-SPEC(7QV) 07.633 M8 FLANGE	0-91150-108-0	01	1	9909-0008		●
50	01.516 WASHER; PL,GUIDE TUBE EXC. CHARGE AIR COOLER<6PL> 04.085 ID=10.5 OD=26	9-09164-710-0	01	1	9812-		●
194	01.429 SPACER; GUIDE TUBE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE>	8-97101-215-0	01	1	9904-9910		●
194	01.429 SPACER; GUIDE TUBE CHARGE AIR COOLER<6PL>	8-97101-215-0	01	1	9911-		●
295	01.516 STUD; GUIDE TUBE EXC. VOLTAGE 24V<7AE>	8-97182-961-0	01	1	9812-9908		●
295	01.516 STUD; GUIDE TUBE CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF>,ENGINE POWER N-SPEC(7QV)	8-97182-961-0	01	1	9909-0008		●

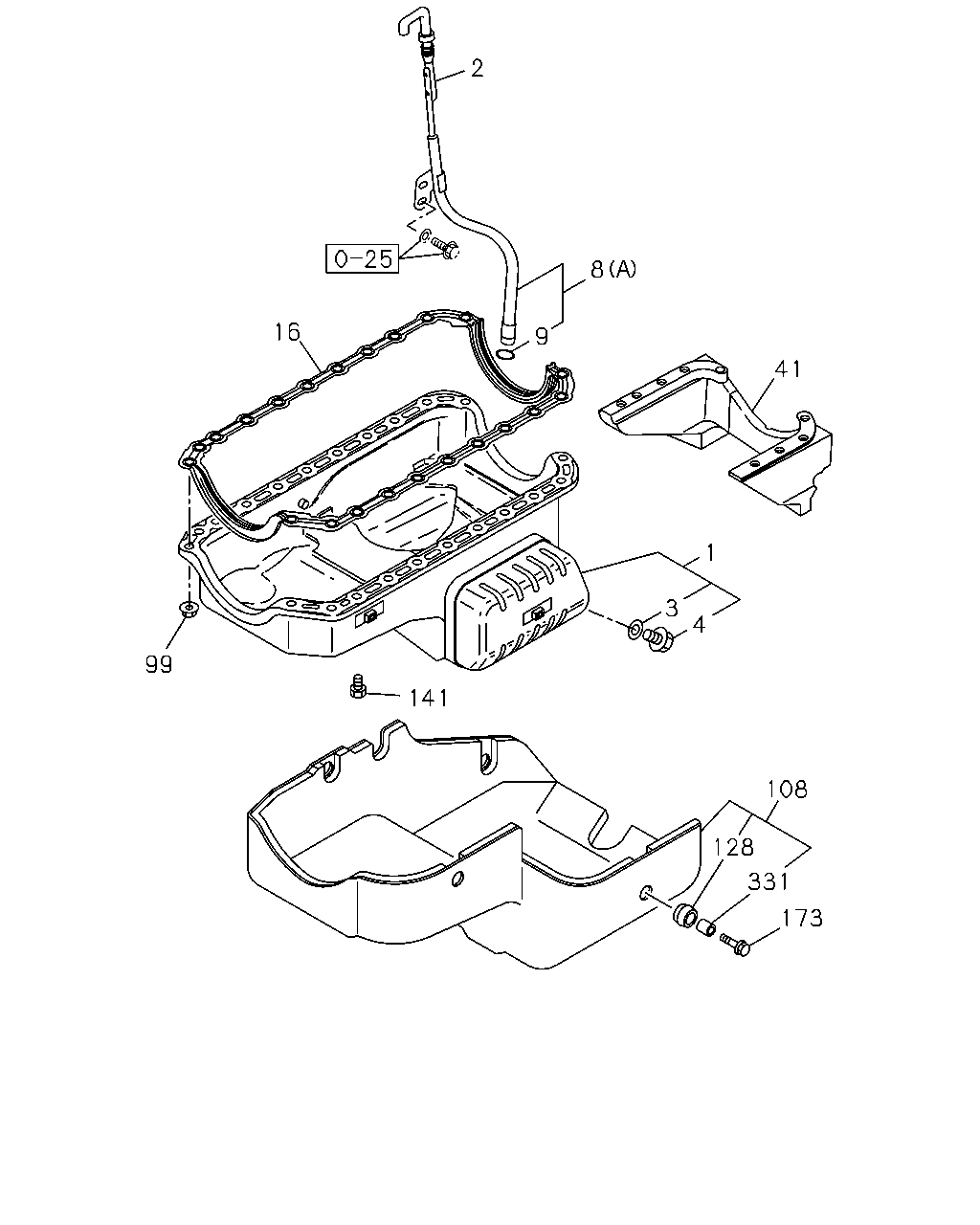

2 8 16 9 41 1 3 4 99 141 108 128 331 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9812-0105	●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97117-937-0	01	1	9812-9907		●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97209-847-2	01	1	9908-0105		●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL>	8-97209-847-2	01	1	0106-		●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97149-314-0	01	1	9812-0003		●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97149-314-0	01	1	0004-0105		●
1	01.426 PAN ASM; OIL EXC. CHARGE AIR COOLER<6PL>	8-97075-348-2	01	1	9812-		●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	9906-0105			●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0106-				●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9812-0105	●
2	01.516 GAUGE; OIL LEVEL	8-97019-885-1	01	1	9812-9906		●
2	01.516 GAUGE; OIL LEVEL EXC. CHARGE AIR COOLER<6PL>	8-97227-945-0	01	1	9907-		●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL>	8-97019-885-1	01	1	9907-9908		●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE>	8-97019-885-1	01	1	9909-9910		●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL>	8-97019-885-1	01	1	9911-		●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	9906-0105			●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0106-				●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9812-0105	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0106-0111		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0112-		●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9906-0105			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0106-0111				●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9812-0105	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0106-0111		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0112-		●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9906-0105			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0106-0111				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-97044-886-0	01	1	9812-0105	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (B)	8-97182-794-0	01	1	9812-9903		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (B)	8-97226-751-0	01	1	9904-9910		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> (B)	8-97226-751-1	01	1	9911-0211		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> (B)	8-97354-831-0	01	1	0212-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. CHARGE AIR COOLER<6PL> (B)	8-97130-265-0	01	1	9812-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. VOLTAGE 24V<7AE> (C)	8-97165-493-2	01	1	9812-9908		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF>,ENGINE POWER N-SPEC(7QV) (C)	8-97165-493-2	01	1	9909-0008		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-97221-497-0	01	1	9906-0105			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (D)	8-97239-977-0	01	1	0106-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> ID=11	1-09623-469-0	02	1	0212-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9812-0105	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	9812-0105		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	9812-0105		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0106-0211		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	0212-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9906-0105			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	0106-				●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	9812-0105	●		●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	0106-				●
41	00.137 RUBBER; SPACE	8-97095-936-0	01	1	9812-0105	●		●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	0106-				●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	9812-0105	●		●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	0106-				●
108	01.426 COVER; OIL PAN	8-97224-447-1	01	1	9906-0105			●
108	01.426 COVER; OIL PAN	8-97248-296-2	01	1	0106-				●
128	01.516 RUBBER; MTG,OIL PAN	8-97227-521-0	04	1	9906-0105			●
128	01.516 RUBBER; MTG,OIL PAN	8-97227-521-0	04	1	0106-				●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	9812-0105	●		●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	0106-				●
173	01.428 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	9906-0105			●
173	01.428 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	0106-				●
331	01.516 COLLAR; MTG RUBBER	8-97224-450-0	04	1	9906-0105			●
331	01.516 COLLAR; MTG RUBBER	8-97224-450-0	04	1	0106-				●

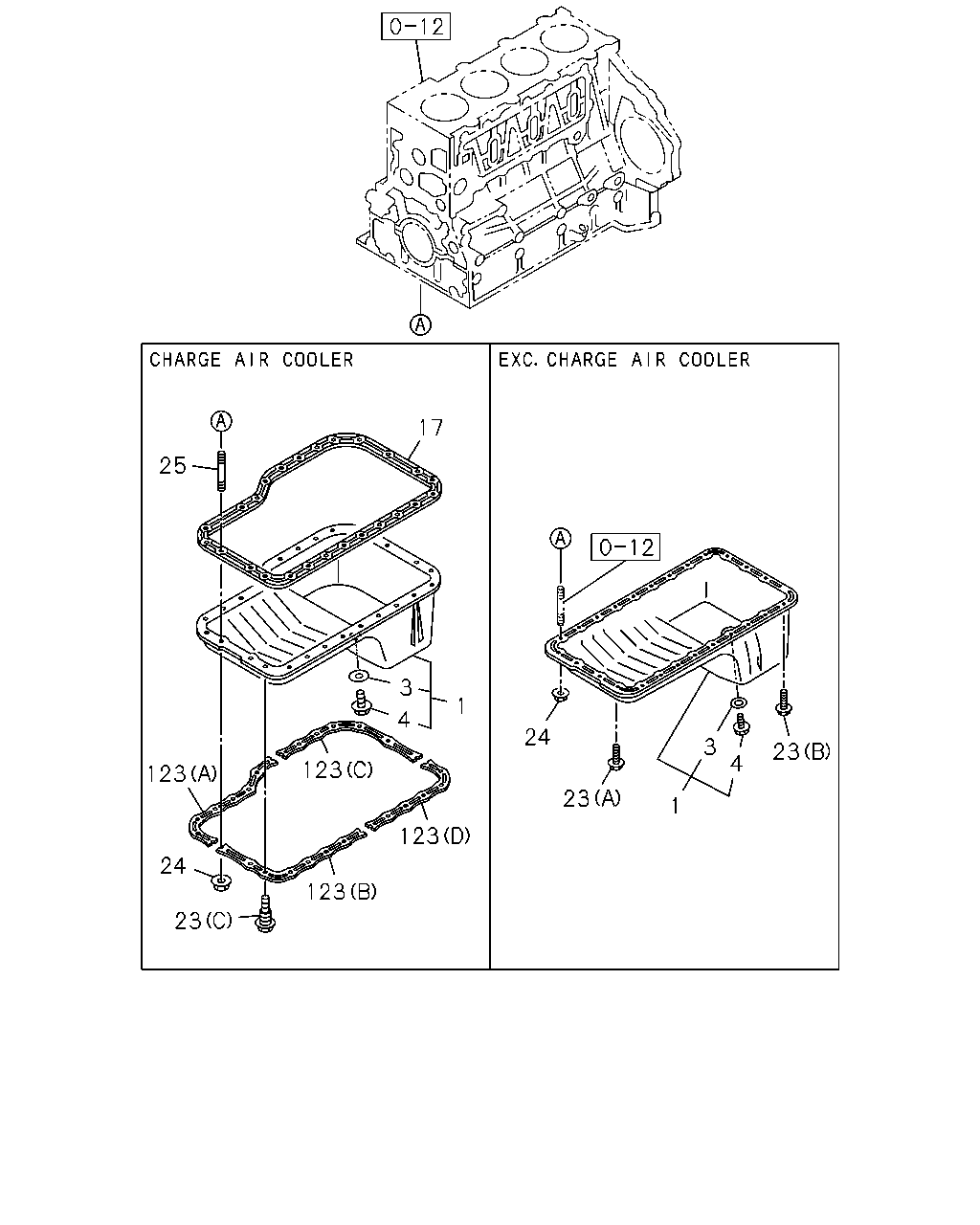

17 25 3 1 4 24 3 23 4 123 123 23 1 123 24 123 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9812-0105	●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97117-937-0	01	1	9812-9907		●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97209-847-2	01	1	9908-0105		●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL>	8-97209-847-2	01	1	0106-		●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97149-314-0	01	1	9812-0003		●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97149-314-0	01	1	0004-0105		●
1	01.426 PAN ASM; OIL EXC. CHARGE AIR COOLER<6PL>	8-97075-348-2	01	1	9812-		●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	9906-0105			●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0106-				●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9812-0105	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0106-0111		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0112-		●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9906-0105			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0106-0111				●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9812-0105	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0106-0111		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0112-		●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9906-0105			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0106-0111				●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97146-148-2	01	1	9812-0012		●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97190-191-1	01	1	0101-0105		●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL>	8-97190-191-1	01	1	0106-		●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9812-0005		●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	13	1	0006-0012		●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0101-0105		●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0106-		●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A) M8X14	8-97047-004-1	01	1	9812-0105		●
23	01.428 BOLT; OIL PAN EXC. CHARGE AIR COOLER<6PL> (A) M8X14	8-97047-004-1	01	1	9812-0105		●
23	01.428 BOLT; OIL PAN EXC. CHARGE AIR COOLER<6PL> (A) M8X14	8-97047-004-1	01	1	0106-		●
23	01.428 BOLT; OIL PAN CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B) M8X14	8-97047-005-0	18	1	9812-0105		●
23	01.428 BOLT; OIL PAN EXC. CHARGE AIR COOLER<6PL> (B) M8X14	8-97047-005-0	18	1	9812-0105		●
23	01.428 BOLT; OIL PAN EXC. CHARGE AIR COOLER<6PL> (B) M8X14	8-97047-005-0	18	1	0106-		●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	15	1	9812-0005		●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	13	1	0006-0105		●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	13	1	0106-		●
24	01.453 NUT; OIL PAN CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	9812-0105		●
24	01.453 NUT; OIL PAN EXC. CHARGE AIR COOLER<6PL> 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	9812-0105		●
24	01.453 NUT; OIL PAN EXC. CHARGE AIR COOLER<6PL> 07.833 M8 W/LK WASHER	8-94327-073-0	07	1	0106-		●
25	01.453 STUD; OIL PAN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 01.428 M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	10	1	9812-0005		●
25	01.453 STUD; OIL PAN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 01.428 M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	09	1	0006-0012		●
25	01.453 STUD; OIL PAN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0101-0105		●
25	01.453 STUD; OIL PAN CHARGE AIR COOLER<6PL> 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0106-		●
25	01.453 STUD; OIL PAN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER	8-97087-680-2	01	1	9812-0012		●
25	01.453 STUD; OIL PAN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0101-0105		●
25	01.453 STUD; OIL PAN CHARGE AIR COOLER<6PL> M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0106-		●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97087-619-2	01	1	9812-0012		●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97186-988-0	01	1	0101-0105		●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> (A)	8-97186-988-0	01	1	0106-		●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97087-622-2	01	1	9812-0012		●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97186-994-0	01	1	0101-0105		●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> (B)	8-97186-994-0	01	1	0106-		●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97087-625-2	01	1	9812-0012		●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97186-998-0	01	1	0101-0105		●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> (C)	8-97186-998-0	01	1	0106-		●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (D)	8-97087-628-2	01	1	9812-0012		●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (D)	8-97187-000-0	01	1	0101-0105		●
123	01.516 RUBBER; SEAL OIL CHARGE AIR COOLER<6PL> (D)	8-97212-596-0	01	1	0106-		●

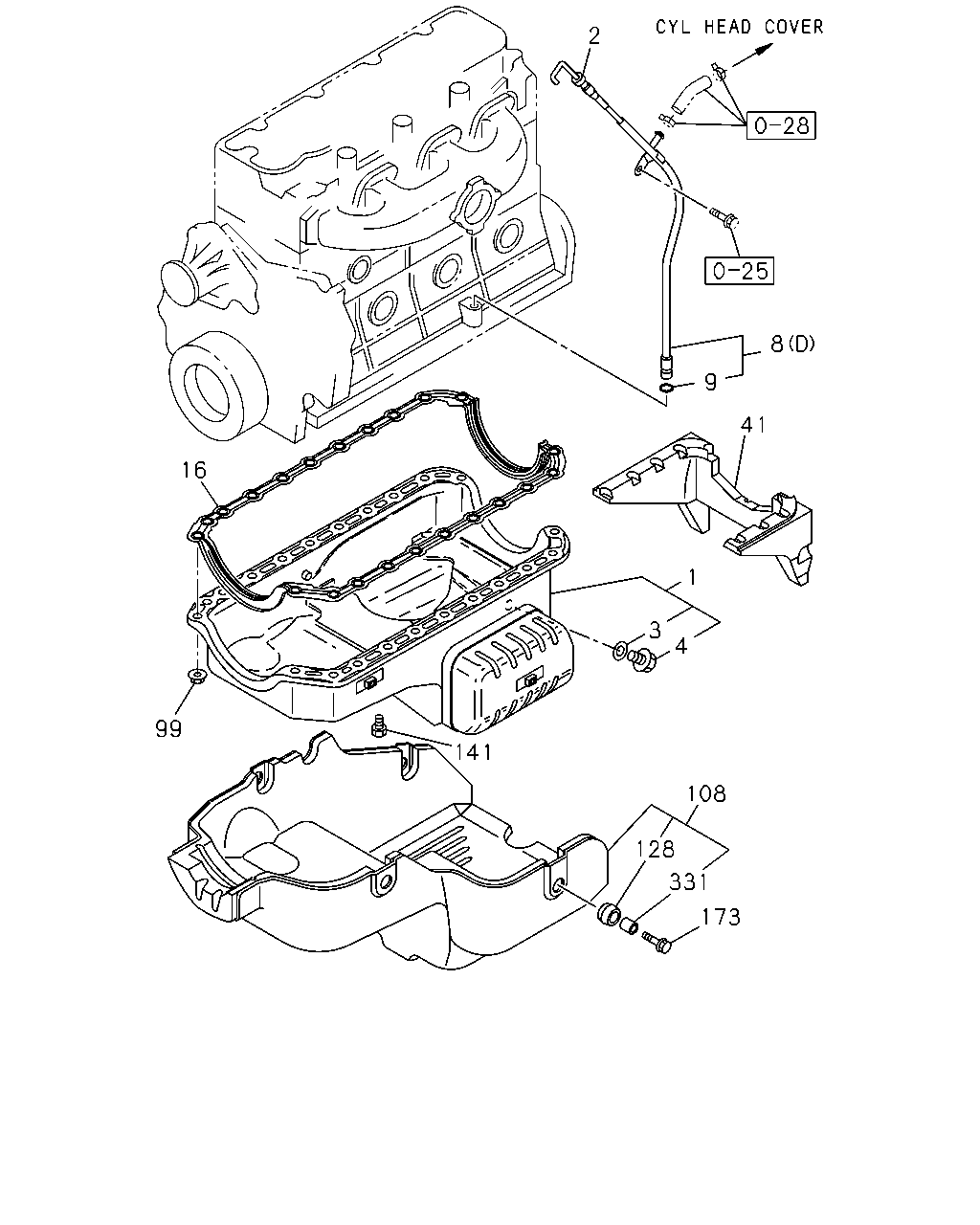

2 8 9 41 16 1 3 4 141 99 108 128 331 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9812-0105	●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97117-937-0	01	1	9812-9907		●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97209-847-2	01	1	9908-0105		●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL>	8-97209-847-2	01	1	0106-		●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97149-314-0	01	1	9812-0003		●
1	01.426 PAN ASM; OIL CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97149-314-0	01	1	0004-0105		●
1	01.426 PAN ASM; OIL EXC. CHARGE AIR COOLER<6PL>	8-97075-348-2	01	1	9812-		●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	9906-0105			●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0106-				●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9812-0105	●
2	01.516 GAUGE; OIL LEVEL	8-97019-885-1	01	1	9812-9906		●
2	01.516 GAUGE; OIL LEVEL EXC. CHARGE AIR COOLER<6PL>	8-97227-945-0	01	1	9907-		●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL>	8-97019-885-1	01	1	9907-9908		●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE>	8-97019-885-1	01	1	9909-9910		●
2	01.516 GAUGE; OIL LEVEL CHARGE AIR COOLER<6PL>	8-97019-885-1	01	1	9911-		●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	9906-0105			●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0106-				●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9812-0105	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0106-0111		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0112-		●		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9906-0105			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0106-0111				●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9812-0105	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0106-0111		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0112-		●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9906-0105			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0106-0111				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-97044-886-0	01	1	9812-0105	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (B)	8-97182-794-0	01	1	9812-9903		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (B)	8-97226-751-0	01	1	9904-9910		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> (B)	8-97226-751-1	01	1	9911-0211		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> (B)	8-97354-831-0	01	1	0212-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. CHARGE AIR COOLER<6PL> (B)	8-97130-265-0	01	1	9812-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. VOLTAGE 24V<7AE> (C)	8-97165-493-2	01	1	9812-9908		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,EURO2 SPECIFICATION<7AF>,ENGINE POWER N-SPEC(7QV) (C)	8-97165-493-2	01	1	9909-0008		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-97221-497-0	01	1	9906-0105			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (D)	8-97239-977-0	01	1	0106-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> ID=11	1-09623-469-0	02	1	0212-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9812-0105	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	9812-0105		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	9812-0105		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0106-0211		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> ID=11	5-09623-002-0	02	1	0212-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9906-0105			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	0106-				●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	9812-0105	●		●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	0106-				●
41	00.137 RUBBER; SPACE	8-97095-936-0	01	1	9812-0105	●		●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	0106-				●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	9812-0105	●		●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	0106-				●
108	01.426 COVER; OIL PAN	8-97224-447-1	01	1	9906-0105			●
108	01.426 COVER; OIL PAN	8-97248-296-2	01	1	0106-				●
128	01.516 RUBBER; MTG,OIL PAN	8-97227-521-0	04	1	9906-0105			●
128	01.516 RUBBER; MTG,OIL PAN	8-97227-521-0	04	1	0106-				●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	9812-0105	●		●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	0106-				●
173	01.428 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	9906-0105			●
173	01.428 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	0106-				●
331	01.516 COLLAR; MTG RUBBER	8-97224-450-0	04	1	9906-0105			●
331	01.516 COLLAR; MTG RUBBER	8-97224-450-0	04	1	0106-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
