0-12 — CYLINDER BLOCK (#18828) — 459 parça

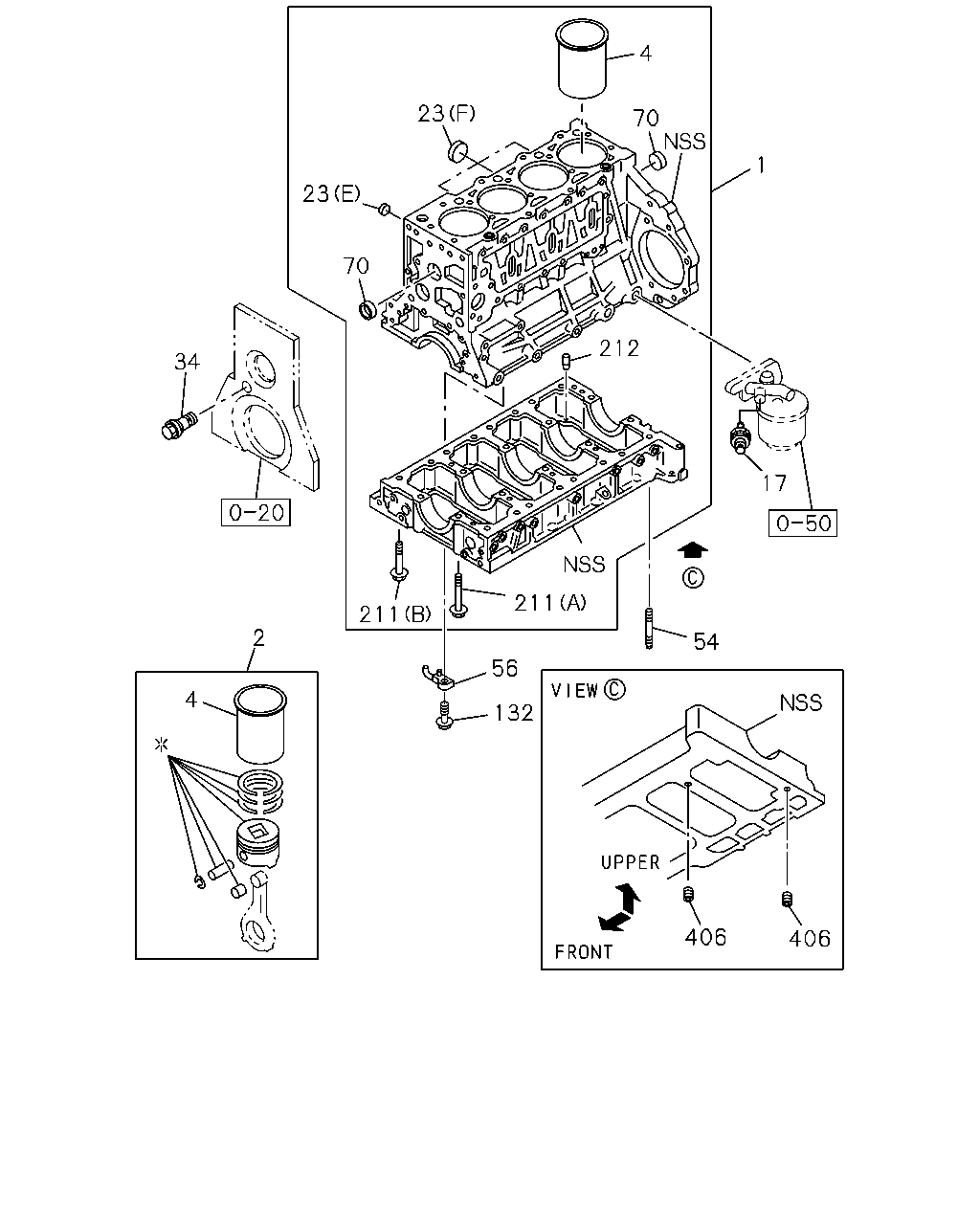

çizim 47278
4 23 70 1 23 70 212 34 17 211 211 2 54 56 4 132 406 406
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.033 BLOCK ASM; CYL 8-97043-280-0 01 1 9812-0105 ●
1 00.033 BLOCK ASM; CYL 8-97148-885-1 01 1 9812- ●
1 00.033 BLOCK ASM; CYL 8-94437-397-6 01 1 9906-0105 ●
1 00.033 BLOCK ASM; CYL 8-97257-264-2 01 1 0106- ●
2 00.030 LINER SET; ENG CYL
CHARGE AIR COOLER<6PL> GRADE=1X 		5-87813-744-1 04 1 0106- ●
2 00.030 LINER SET; ENG CYL
CHARGE AIR COOLER<6PL> GRADE=3X 		5-87813-745-1 04 1 0106- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=1 		5-87813-209-0 04 1 9812-0105 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=2 		5-87813-210-0 04 1 9812-0105 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=3 		5-87813-211-0 04 1 9812-0105 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=4 		5-87813-212-0 04 1 9812-0105 ●
2 00.030 LINER SET; ENG CYL
CHARGE AIR COOLER<6PL> GRADE=1 		5-87813-409-0 04 1 9812-9907 ●
2 00.030 LINER SET; ENG CYL
CHARGE AIR COOLER<6PL> GRADE=1X 		5-87813-744-1 04 1 9908-0105 ●
2 00.030 LINER SET; ENG CYL
CHARGE AIR COOLER<6PL> GRADE=3X 		5-87813-410-0 04 1 9812-9907 ●
2 00.030 LINER SET; ENG CYL
CHARGE AIR COOLER<6PL> GRADE=3X 		5-87813-745-1 04 1 9908-0105 ●
2 00.030 LINER SET; ENG CYL
EXC. CHARGE AIR COOLER<6PL> GRADE=1X 		5-87813-328-0 04 1 9812- ●
2 00.030 LINER SET; ENG CYL
EXC. CHARGE AIR COOLER<6PL> GRADE=3X 		5-87813-329-0 04 1 9812- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=1 		5-87813-193-0 04 1 9906-0105 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=2 		5-87813-194-0 04 1 9906-0105 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=3 		5-87813-195-0 04 1 9906-0105 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=4 		5-87813-196-0 04 1 9906-0105 ●
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87814-090-1 04 1 0106- ●
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87814-091-1 04 1 0106- ●
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87814-092-1 04 1 0106- ●
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87814-093-1 04 1 0106- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-699-0 04 1 9812-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-699-0 04 1 0106- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-700-0 04 1 9812-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-700-0 04 1 0106- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-701-0 04 1 9812-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-701-0 04 1 0106- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-702-0 04 1 9812-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-702-0 04 1 0106- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-703-0 04 1 9812-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-703-0 04 1 0106- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-704-0 04 1 9812-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-704-0 04 1 0106- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-705-0 04 1 9812-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-705-0 04 1 0106- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-706-0 04 1 9812-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-706-0 04 1 0106- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX 		8-97176-723-0 04 1 9812- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX 		8-97176-724-0 04 1 9812- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX 		8-97176-725-0 04 1 9812- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX 		8-97176-726-0 04 1 9812- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-683-0 04 1 9906-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-684-0 04 1 9906-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-685-0 04 1 9906-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-686-0 04 1 9906-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-687-0 04 1 9906-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-688-0 04 1 9906-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-689-0 04 1 9906-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-690-0 04 1 9906-0105 ●
17 01.800 SWITCH; OIL PRESSURE 8-97072-947-0 01 1 9812-0105 ● ●
17 01.800 SWITCH; OIL PRESSURE 8-97072-947-0 01 1 0106- ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 9812- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) OD=45 		1-09600-005-1 03 1 9812-0105 ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) OD=45 		1-09600-005-1 03 1 0106-0210 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 9812-0105 ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 0106- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 9812-0105 ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 0106- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 03 1 9812-0105 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 02 1 0106- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (E) OD=25 		1-09600-016-0 01 1 9812- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(F) OD=45 		8-97036-550-1 03 1 9812- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 02 1 9906-0105 ●
34 01.609 VALVE; OIL RELIEF 8-94386-047-1 01 1 9812- ●
54 01.428 STUD; OIL PAN TO BLOCK 8-94133-974-2 10 1 9812-0105 ● ●
54 01.428 STUD; OIL PAN TO BLOCK 8-94133-974-2 10 1 0106- ●
54 01.428 STUD; OIL PAN TO BLOCK
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> M8X20 L=38 		8-97021-431-0 03 1 9812-0105 ●
54 01.428 STUD; OIL PAN TO BLOCK
EXC. CHARGE AIR COOLER<6PL> M8X20 L=38 		8-97021-431-0 03 1 9812-0105 ●
54 01.428 STUD; OIL PAN TO BLOCK
EXC. CHARGE AIR COOLER<6PL> M8X20 L=38 		8-97021-431-0 03 1 0106- ●
56 01.519 JET; OIL,PISTON COOLING 8-94399-166-0 04 1 9812- ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 02 1 9812-0105 ● ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 02 1 0106- ●
70 00.034 CUP; SEALING,FRT & RR
00.293 OD=25 		1-09600-016-0 01 1 9812- ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 9812- ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 04 1 9812- ●
211 01.428 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 9812- ●
211 01.428 BOLT; CRANKCASE
00.293 (A) M14X115 W/FLANGE 		8-97077-638-0 10 1 9812- ●
212 01.428 PIN; CRANKCASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 9812- ●
406 01.531 PLUG; CRANK CASE
01.073 PT3/8 		5-09605-005-0 02 1 9812- ●

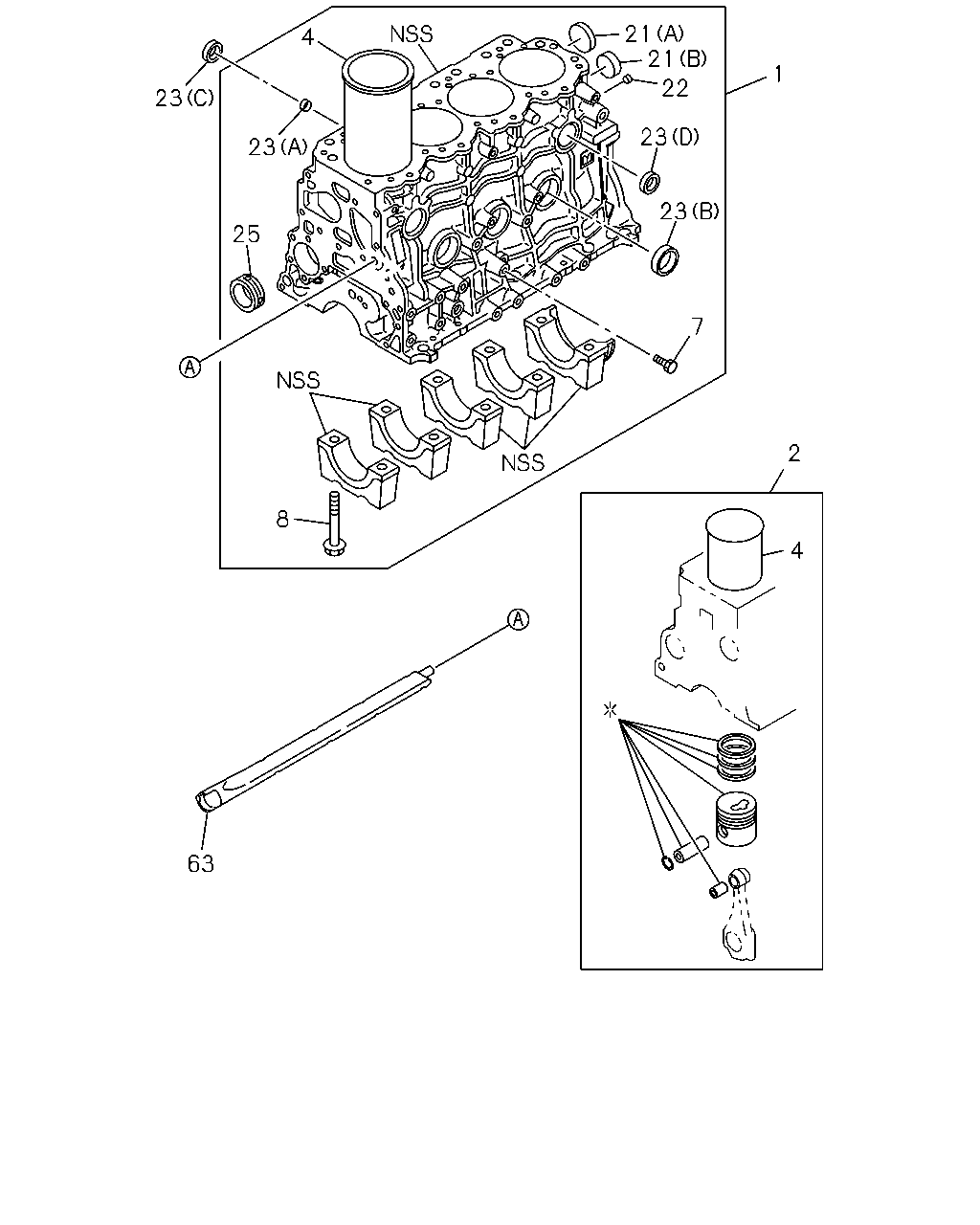

çizim 47346
21 2 4 1 22 23 23 23 23 25 7 2 8 4 63
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.033 BLOCK ASM; CYL 8-97043-280-0 01 1 9812-0105 ●
1 00.033 BLOCK ASM; CYL 8-97148-885-1 01 1 9812- ●
1 00.033 BLOCK ASM; CYL 8-94437-397-6 01 1 9906-0105 ●
1 00.033 BLOCK ASM; CYL 8-97257-264-2 01 1 0106- ●
2 00.030 LINER SET; ENG CYL
CHARGE AIR COOLER<6PL> GRADE=1X 		5-87813-744-1 04 1 0106- ●
2 00.030 LINER SET; ENG CYL
CHARGE AIR COOLER<6PL> GRADE=3X 		5-87813-745-1 04 1 0106- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=1 		5-87813-209-0 04 1 9812-0105 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=2 		5-87813-210-0 04 1 9812-0105 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=3 		5-87813-211-0 04 1 9812-0105 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=4 		5-87813-212-0 04 1 9812-0105 ●
2 00.030 LINER SET; ENG CYL
CHARGE AIR COOLER<6PL> GRADE=1 		5-87813-409-0 04 1 9812-9907 ●
2 00.030 LINER SET; ENG CYL
CHARGE AIR COOLER<6PL> GRADE=1X 		5-87813-744-1 04 1 9908-0105 ●
2 00.030 LINER SET; ENG CYL
CHARGE AIR COOLER<6PL> GRADE=3X 		5-87813-410-0 04 1 9812-9907 ●
2 00.030 LINER SET; ENG CYL
CHARGE AIR COOLER<6PL> GRADE=3X 		5-87813-745-1 04 1 9908-0105 ●
2 00.030 LINER SET; ENG CYL
EXC. CHARGE AIR COOLER<6PL> GRADE=1X 		5-87813-328-0 04 1 9812- ●
2 00.030 LINER SET; ENG CYL
EXC. CHARGE AIR COOLER<6PL> GRADE=3X 		5-87813-329-0 04 1 9812- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=1 		5-87813-193-0 04 1 9906-0105 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=2 		5-87813-194-0 04 1 9906-0105 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=3 		5-87813-195-0 04 1 9906-0105 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=4 		5-87813-196-0 04 1 9906-0105 ●
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87814-090-1 04 1 0106- ●
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87814-091-1 04 1 0106- ●
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87814-092-1 04 1 0106- ●
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87814-093-1 04 1 0106- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-699-0 04 1 9812-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-699-0 04 1 0106- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-700-0 04 1 9812-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-700-0 04 1 0106- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-701-0 04 1 9812-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-701-0 04 1 0106- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-702-0 04 1 9812-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-702-0 04 1 0106- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-703-0 04 1 9812-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-703-0 04 1 0106- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-704-0 04 1 9812-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-704-0 04 1 0106- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-705-0 04 1 9812-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-705-0 04 1 0106- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-706-0 04 1 9812-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-706-0 04 1 0106- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX 		8-97176-723-0 04 1 9812- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX 		8-97176-724-0 04 1 9812- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX 		8-97176-725-0 04 1 9812- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX 		8-97176-726-0 04 1 9812- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-683-0 04 1 9906-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-684-0 04 1 9906-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-685-0 04 1 9906-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-686-0 04 1 9906-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-687-0 04 1 9906-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-688-0 04 1 9906-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-689-0 04 1 9906-0105 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-690-0 04 1 9906-0105 ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 9812-0105 ● ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0106- ●
7 00.034 PLUG; WATER DRAIN
04.105 M10X7 		9-09861-010-0 01 1 9812-0208 ●
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0209- ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 9812-0105 ● ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 0106- ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 9812-0105 ● ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 0106- ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 9812-0105 ● ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 0106- ●
22 00.034 CUP; SEALING,DUCT HOLE
00.253 OD=12.3 		5-09600-013-0 01 1 9812-0105 ● ●
22 00.034 CUP; SEALING,DUCT HOLE
00.253 OD=12.3 		5-09600-013-0 01 1 0106- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) OD=45 		1-09600-005-1 03 1 9812-0105 ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) OD=45 		1-09600-005-1 03 1 0106-0210 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 9812-0105 ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 0106- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 9812-0105 ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 0106- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 03 1 9812-0105 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 02 1 0106- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (E) OD=25 		1-09600-016-0 01 1 9812- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(F) OD=45 		8-97036-550-1 03 1 9812- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 02 1 9906-0105 ●
25 00.539 METAL; CM/SHF
CENTER & REAR 		8-94427-201-2 02 1 9812-0105 ● ●
25 00.539 METAL; CM/SHF
CENTER & REAR 		8-94427-201-2 02 1 0106- ●
25 00.539 METAL; CM/SHF
FRONT 		8-94427-206-2 01 1 9812-0105 ● ●
25 00.539 METAL; CM/SHF
FRONT 		8-94427-206-2 01 1 0106- ●
63 01.153 DUCT; WATER,C/BL 8-94456-794-2 01 1 9812-0105 ●
63 01.153 DUCT; WATER,C/BL 8-94419-436-1 01 1 9906-0105 ●
63 01.153 DUCT; WATER,C/BL 8-94456-794-2 01 1 0106- ●

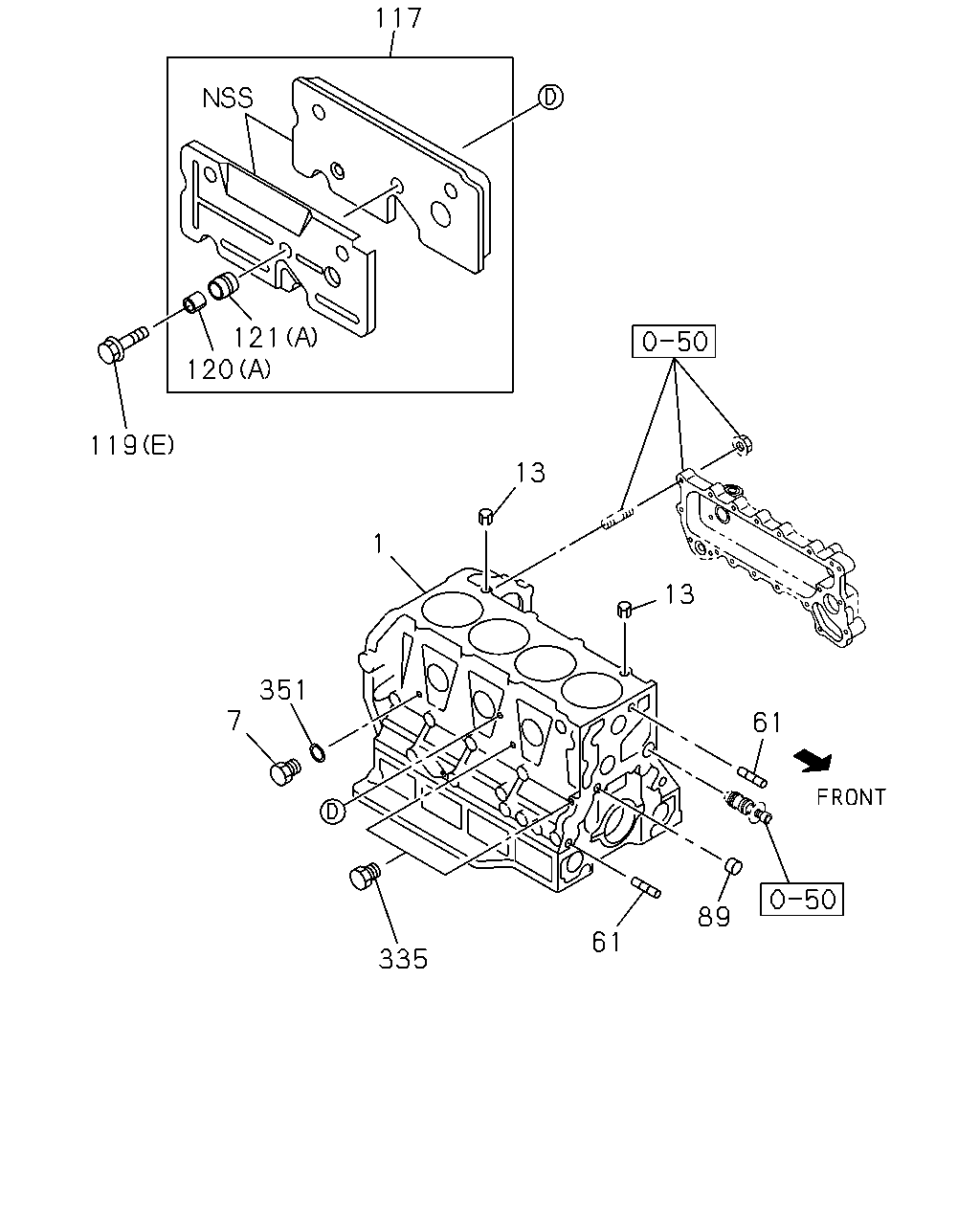

çizim 47819
117 121 120 119 13 1 13 351 7 61 89 61 335
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.033 BLOCK ASM; CYL 8-97043-280-0 01 1 9812-0105 ●
1 00.033 BLOCK ASM; CYL 8-97148-885-1 01 1 9812- ●
1 00.033 BLOCK ASM; CYL 8-94437-397-6 01 1 9906-0105 ●
1 00.033 BLOCK ASM; CYL 8-97257-264-2 01 1 0106- ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 9812-0105 ● ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0106- ●
7 00.034 PLUG; WATER DRAIN
04.105 M10X7 		9-09861-010-0 01 1 9812-0208 ●
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0209- ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 9812-0105 ● ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 0106- ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 9812- ●
61 00.206 PIN; STRAIGHT
00.669 OD=10 L=20 		9-08151-020-0 02 1 9812-0105 ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 9812- ●
61 00.206 PIN; STRAIGHT
00.669 OD=10 L=20 		9-08151-020-0 01 1 9906-0105 ●
61 00.206 PIN; STRAIGHT
00.669 OD=10 L=20 		9-08151-020-0 01 1 0106-0201 ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 01 1 0202- ●
89 00.034 CUP; SEALING,OIL GALLERY
03.265 OD=20 		9-11219-192-0 03 1 9812-9907 ●
89 00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20 		9-11129-128-0 03 1 9908- ●
117 00.030 COVER ASM; C/BL 8-97141-686-0 01 1 9812-0105 ●
117 00.030 COVER ASM; C/BL 8-97141-685-1 01 1 9812-0105 ●
117 00.030 COVER ASM; C/BL
CHARGE AIR COOLER<6PL> 		8-97258-620-1 01 1 0106- ●
117 00.030 COVER ASM; C/BL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97118-347-0 01 1 9812-0105 ●
117 00.030 COVER ASM; C/BL
EXC. CHARGE AIR COOLER<6PL> 		8-97118-347-0 01 1 9812-0105 ●
117 00.030 COVER ASM; C/BL
EXC. CHARGE AIR COOLER<6PL> 		8-97118-347-0 01 1 0106- ●
117 00.030 COVER ASM; C/BL 8-97020-126-0 01 1 9906-0105 ●
117 00.030 COVER ASM; C/BL 8-97259-600-0 01 1 0106- ●
117 00.030 COVER ASM; C/BL 8-97204-191-0 01 1 9906-0105 ●
117 00.030 COVER ASM; C/BL 8-97300-309-1 01 1 0106- ●
119 00.034 BOLT; COVER FIX
00.206 (C) M8X10 FLANGE 		0-28080-810-0 01 1 9812-0105 ●
119 00.034 BOLT; COVER FIX
11.377 (C) M10X20 W/LK WASHER 		0-50041-020-0 01 1 9812-9905 ●
119 00.034 BOLT; COVER FIX
11.377 (C) M10X20 W/LK WASHER 		0-50041-020-0 01 1 9906-0105 ● ●
119 00.034 BOLT; COVER FIX
(A) M10X28 		8-94329-952-1 01 1 9812-0105 ● ●
119 00.034 BOLT; COVER FIX
(D) M10X28 		8-94329-952-1 01 1 0106- ●
119 00.034 BOLT; COVER FIX
(B) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 9812-0105 ● ●
119 00.034 BOLT; COVER FIX
CHARGE AIR COOLER<6PL> (E) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0106- ●
119 00.034 BOLT; COVER FIX
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (E) M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 9812-0105 ●
119 00.034 BOLT; COVER FIX
EXC. CHARGE AIR COOLER<6PL> (E) M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 9812-0105 ●
119 00.034 BOLT; COVER FIX
EXC. CHARGE AIR COOLER<6PL> (E) M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 0106- ●
119 00.034 BOLT; COVER FIX
(E) M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 0106- ●
119 00.034 BOLT; COVER FIX
00.206 (C) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9906-0105 ●
119 00.034 BOLT; COVER FIX
00.004 (F) M8X32 FLANGE 		0-28080-832-0 01 1 0106- ●
120 00.034 BUSHING; MTG RUBBER
(A) OD=13 T=9.5 		8-94140-427-1 06 1 9812-0105 ●
120 00.034 BUSHING; MTG RUBBER
CHARGE AIR COOLER<6PL> (A) OD=13 T=9.5 		8-94140-427-1 05 1 0106- ●
120 00.034 BUSHING; MTG RUBBER
(A) OD=13 T=9.5 		8-94140-427-1 05 1 0106- ●
120 00.034 BUSHING; MTG RUBBER
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (A) OD=13 T=9.5 		8-94140-427-1 04 1 9812-0105 ●
120 00.034 BUSHING; MTG RUBBER
EXC. CHARGE AIR COOLER<6PL> (A) OD=13 T=9.5 		8-94140-427-1 04 1 9812-0105 ●
120 00.034 BUSHING; MTG RUBBER
(B) OD=18 T=4.5 		8-97188-506-0 01 1 0106- ●
120 00.034 BUSHING; MTG RUBBER
(A) OD=13 T=9.5 		8-94140-427-1 06 1 9906-0105 ●
120 00.034 BUSHING; MTG RUBBER
EXC. CHARGE AIR COOLER<6PL> (A) OD=13 T=9.5 		8-94140-427-1 04 1 0106- ●
121 00.034 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 06 1 9812-0105 ●
121 00.034 RUBBER; MTG,COVER
CHARGE AIR COOLER<6PL> (A) OD=22 		8-94140-428-1 05 1 0106-0106 ●
121 00.034 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 05 1 0106-0106 ●
121 00.034 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 05 1 0107- ●
121 00.034 RUBBER; MTG,COVER
CHARGE AIR COOLER<6PL> (A) 		8-97315-987-0 05 1 0107- ●
121 00.034 RUBBER; MTG,COVER
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (A) OD=22 		8-94140-428-1 04 1 9812-0105 ●
121 00.034 RUBBER; MTG,COVER
EXC. CHARGE AIR COOLER<6PL> (A) OD=22 		8-94140-428-1 04 1 9812-0105 ●
121 00.034 RUBBER; MTG,COVER
(B) OD=16 		8-97188-507-0 01 1 0106- ●
121 00.034 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 06 1 9906-0105 ●
121 00.034 RUBBER; MTG,COVER
EXC. CHARGE AIR COOLER<6PL> (A) OD=22 		8-94140-428-1 04 1 0106- ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 02 1 9812- ●
351 01.531 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 9812- ●

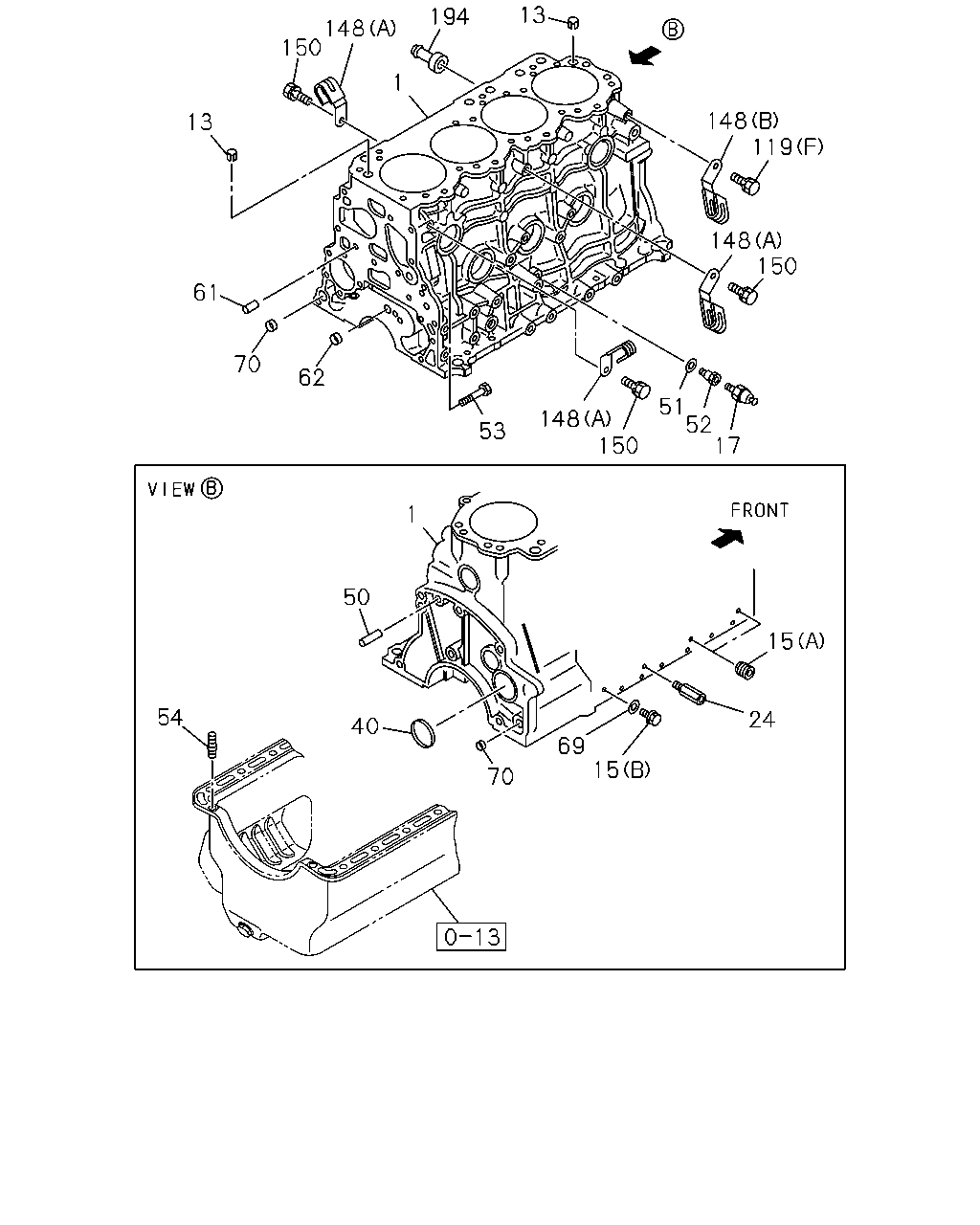

çizim 48449
13 194 148 150 1 148 119 13 148 150 61 70 62 51 52 17 148 150 53 1 50 15 54 24 40 69 15 70
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.033 BLOCK ASM; CYL 8-97043-280-0 01 1 9812-0105 ●
1 00.033 BLOCK ASM; CYL 8-97148-885-1 01 1 9812- ●
1 00.033 BLOCK ASM; CYL 8-94437-397-6 01 1 9906-0105 ●
1 00.033 BLOCK ASM; CYL 8-97257-264-2 01 1 0106- ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 9812-0105 ● ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 0106- ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 9812- ●
15 01.531 PLUG; OIL GALLERY
(A) PT1/8 		1-09605-050-0 02 1 9812-0105 ● ●
15 01.531 PLUG; OIL GALLERY
(A) PT1/8 		1-09605-050-0 02 1 0106- ●
15 01.531 PLUG; OIL GALLERY
03.001 (B) M14X14 		8-94152-613-0 01 1 9812-0105 ●
17 01.800 SWITCH; OIL PRESSURE 8-97072-947-0 01 1 9812-0105 ● ●
17 01.800 SWITCH; OIL PRESSURE 8-97072-947-0 01 1 0106- ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 9812- ●
24 01.531 NIPPLE; OIL FEED,VAC PUMP 8-94443-670-1 01 1 9812-0105 ● ●
24 01.531 NIPPLE; OIL FEED,VAC PUMP 8-94443-670-1 01 1 0106- ●
40 00.034 CUP; SEALING,C/BL RR
00.253 OD=56 		8-94250-514-0 01 1 9812-0105 ● ●
40 00.034 CUP; SEALING,C/BL RR
00.253 OD=56 		8-94250-514-0 01 1 0106- ●
50 00.685 PIN; STRAIGHT,RR PLATE
08.939 OD=10 L=32 		9-08161-032-0 01 1 9812-0105 ● ●
50 00.685 PIN; STRAIGHT,RR PLATE
08.939 OD=10 L=32 		9-08161-032-0 01 1 0106- ●
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94336-292-0 01 1 9812-0105 ● ●
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94336-292-0 01 1 0106- ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-94167-750-2 01 1 9812-0105 ● ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-94167-750-2 01 1 0106- ●
53 00.862 BOLT; REAMER
00.683 M10X52 		9-09806-020-0 01 1 9812-0105 ● ●
53 00.862 BOLT; REAMER
M10X43 		9-09606-535-0 01 1 0106- ●
54 01.428 STUD; OIL PAN TO BLOCK 8-94133-974-2 10 1 9812-0105 ● ●
54 01.428 STUD; OIL PAN TO BLOCK 8-94133-974-2 10 1 0106- ●
54 01.428 STUD; OIL PAN TO BLOCK
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> M8X20 L=38 		8-97021-431-0 03 1 9812-0105 ●
54 01.428 STUD; OIL PAN TO BLOCK
EXC. CHARGE AIR COOLER<6PL> M8X20 L=38 		8-97021-431-0 03 1 9812-0105 ●
54 01.428 STUD; OIL PAN TO BLOCK
EXC. CHARGE AIR COOLER<6PL> M8X20 L=38 		8-97021-431-0 03 1 0106- ●
61 00.206 PIN; STRAIGHT
00.669 OD=10 L=20 		9-08151-020-0 02 1 9812-0105 ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 9812- ●
61 00.206 PIN; STRAIGHT
00.669 OD=10 L=20 		9-08151-020-0 01 1 9906-0105 ●
61 00.206 PIN; STRAIGHT
00.669 OD=10 L=20 		9-08151-020-0 01 1 0106-0201 ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 01 1 0202- ●
62 00.034 CUP; SEALING,C/BL FRT
OD=14 		5-11219-011-0 01 1 9812-0105 ●
69 01.531 GASKET; PLUG,OIL GALLERY,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 9812-0105 ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 02 1 9812-0105 ● ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 02 1 0106- ●
70 00.034 CUP; SEALING,FRT & RR
00.293 OD=25 		1-09600-016-0 01 1 9812- ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 9812- ●
119 00.034 BOLT; COVER FIX
00.206 (C) M8X10 FLANGE 		0-28080-810-0 01 1 9812-0105 ●
119 00.034 BOLT; COVER FIX
11.377 (C) M10X20 W/LK WASHER 		0-50041-020-0 01 1 9812-9905 ●
119 00.034 BOLT; COVER FIX
11.377 (C) M10X20 W/LK WASHER 		0-50041-020-0 01 1 9906-0105 ● ●
119 00.034 BOLT; COVER FIX
(A) M10X28 		8-94329-952-1 01 1 9812-0105 ● ●
119 00.034 BOLT; COVER FIX
(D) M10X28 		8-94329-952-1 01 1 0106- ●
119 00.034 BOLT; COVER FIX
(B) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 9812-0105 ● ●
119 00.034 BOLT; COVER FIX
CHARGE AIR COOLER<6PL> (E) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0106- ●
119 00.034 BOLT; COVER FIX
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (E) M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 9812-0105 ●
119 00.034 BOLT; COVER FIX
EXC. CHARGE AIR COOLER<6PL> (E) M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 9812-0105 ●
119 00.034 BOLT; COVER FIX
EXC. CHARGE AIR COOLER<6PL> (E) M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 0106- ●
119 00.034 BOLT; COVER FIX
(E) M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 0106- ●
119 00.034 BOLT; COVER FIX
00.206 (C) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9906-0105 ●
119 00.034 BOLT; COVER FIX
00.004 (F) M8X32 FLANGE 		0-28080-832-0 01 1 0106- ●
148 02.313 CLIP; HARNESS
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 9812-9812 ●
148 02.313 CLIP; HARNESS
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9901-9906 ● ●
148 02.313 CLIP; HARNESS
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 9907-0105 ● ●
148 02.313 CLIP; HARNESS
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 02 1 0106- ●
148 02.313 CLIP; HARNESS
04.930 (B) L=91 ID=8.5 		8-94329-956-0 01 1 9907-0105 ● ●
148 02.313 CLIP; HARNESS
04.785 (B) ID=16 H=30 L=30 		1-09701-080-0 01 1 0106-0107 ●
148 02.313 CLIP; HARNESS
04.686 (B) ID=21 L=24 		8-94176-807-1 01 1 0108- ●
148 02.313 CLIP; HARNESS
01.516 (A) ID=13 L=20 		9-09525-235-0 01 1 0106- ●
150 02.313 BOLT; CLIP
08.900 M8X12 FLANGE 		0-28080-812-0 03 1 9812-9812 ●
150 02.313 BOLT; CLIP
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9901-0105 ● ●
150 02.313 BOLT; CLIP
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0106- ●
194 00.439 PIPE; OIL DRAIN,C/BL 8-97137-781-0 01 1 9906-0105 ●
194 00.439 PIPE; OIL DRAIN,C/BL 8-97137-781-0 01 1 0106- ●

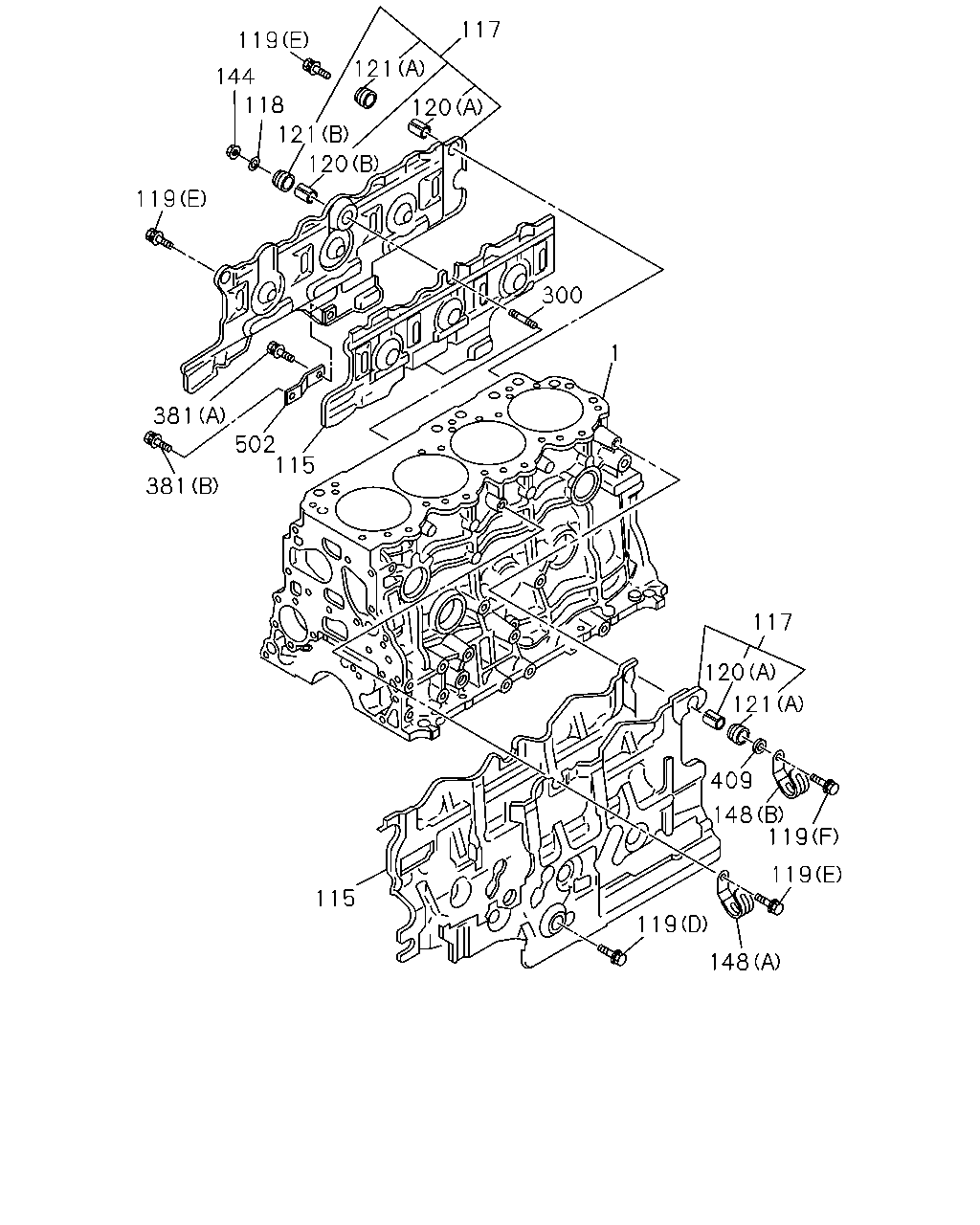

çizim 48850
117 119 121 144 118 120 121 120 119 300 1 381 502 115 381 117 120 121 409 148 119 119 115 119 148
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.033 BLOCK ASM; CYL 8-97043-280-0 01 1 9812-0105 ●
1 00.033 BLOCK ASM; CYL 8-97148-885-1 01 1 9812- ●
1 00.033 BLOCK ASM; CYL 8-94437-397-6 01 1 9906-0105 ●
1 00.033 BLOCK ASM; CYL 8-97257-264-2 01 1 0106- ●
115 00.034 RUBBER; SPACE 8-97141-688-2 01 1 9812-0105 ●
115 00.034 RUBBER; SPACE 8-97141-687-0 01 1 9812-0105 ●
115 00.034 RUBBER; SPACE 8-97204-194-0 01 1 9906-0105 ●
115 00.034 RUBBER; SPACE 8-97204-194-0 01 1 0106- ●
115 00.034 RUBBER; SPACE 8-97204-193-0 01 1 9906-0105 ●
115 00.034 RUBBER; SPACE 8-97204-193-0 01 1 0106- ●
117 00.030 COVER ASM; C/BL 8-97141-686-0 01 1 9812-0105 ●
117 00.030 COVER ASM; C/BL 8-97141-685-1 01 1 9812-0105 ●
117 00.030 COVER ASM; C/BL
CHARGE AIR COOLER<6PL> 		8-97258-620-1 01 1 0106- ●
117 00.030 COVER ASM; C/BL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97118-347-0 01 1 9812-0105 ●
117 00.030 COVER ASM; C/BL
EXC. CHARGE AIR COOLER<6PL> 		8-97118-347-0 01 1 9812-0105 ●
117 00.030 COVER ASM; C/BL
EXC. CHARGE AIR COOLER<6PL> 		8-97118-347-0 01 1 0106- ●
117 00.030 COVER ASM; C/BL 8-97020-126-0 01 1 9906-0105 ●
117 00.030 COVER ASM; C/BL 8-97259-600-0 01 1 0106- ●
117 00.030 COVER ASM; C/BL 8-97204-191-0 01 1 9906-0105 ●
117 00.030 COVER ASM; C/BL 8-97300-309-1 01 1 0106- ●
118 00.446 WASHER; PL,COVER FIX
02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 0106- ●
119 00.034 BOLT; COVER FIX
00.206 (C) M8X10 FLANGE 		0-28080-810-0 01 1 9812-0105 ●
119 00.034 BOLT; COVER FIX
11.377 (C) M10X20 W/LK WASHER 		0-50041-020-0 01 1 9812-9905 ●
119 00.034 BOLT; COVER FIX
11.377 (C) M10X20 W/LK WASHER 		0-50041-020-0 01 1 9906-0105 ● ●
119 00.034 BOLT; COVER FIX
(A) M10X28 		8-94329-952-1 01 1 9812-0105 ● ●
119 00.034 BOLT; COVER FIX
(D) M10X28 		8-94329-952-1 01 1 0106- ●
119 00.034 BOLT; COVER FIX
(B) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 9812-0105 ● ●
119 00.034 BOLT; COVER FIX
CHARGE AIR COOLER<6PL> (E) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0106- ●
119 00.034 BOLT; COVER FIX
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (E) M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 9812-0105 ●
119 00.034 BOLT; COVER FIX
EXC. CHARGE AIR COOLER<6PL> (E) M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 9812-0105 ●
119 00.034 BOLT; COVER FIX
EXC. CHARGE AIR COOLER<6PL> (E) M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 0106- ●
119 00.034 BOLT; COVER FIX
(E) M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 0106- ●
119 00.034 BOLT; COVER FIX
00.206 (C) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9906-0105 ●
119 00.034 BOLT; COVER FIX
00.004 (F) M8X32 FLANGE 		0-28080-832-0 01 1 0106- ●
120 00.034 BUSHING; MTG RUBBER
(A) OD=13 T=9.5 		8-94140-427-1 06 1 9812-0105 ●
120 00.034 BUSHING; MTG RUBBER
CHARGE AIR COOLER<6PL> (A) OD=13 T=9.5 		8-94140-427-1 05 1 0106- ●
120 00.034 BUSHING; MTG RUBBER
(A) OD=13 T=9.5 		8-94140-427-1 05 1 0106- ●
120 00.034 BUSHING; MTG RUBBER
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (A) OD=13 T=9.5 		8-94140-427-1 04 1 9812-0105 ●
120 00.034 BUSHING; MTG RUBBER
EXC. CHARGE AIR COOLER<6PL> (A) OD=13 T=9.5 		8-94140-427-1 04 1 9812-0105 ●
120 00.034 BUSHING; MTG RUBBER
(B) OD=18 T=4.5 		8-97188-506-0 01 1 0106- ●
120 00.034 BUSHING; MTG RUBBER
(A) OD=13 T=9.5 		8-94140-427-1 06 1 9906-0105 ●
120 00.034 BUSHING; MTG RUBBER
EXC. CHARGE AIR COOLER<6PL> (A) OD=13 T=9.5 		8-94140-427-1 04 1 0106- ●
121 00.034 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 06 1 9812-0105 ●
121 00.034 RUBBER; MTG,COVER
CHARGE AIR COOLER<6PL> (A) OD=22 		8-94140-428-1 05 1 0106-0106 ●
121 00.034 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 05 1 0106-0106 ●
121 00.034 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 05 1 0107- ●
121 00.034 RUBBER; MTG,COVER
CHARGE AIR COOLER<6PL> (A) 		8-97315-987-0 05 1 0107- ●
121 00.034 RUBBER; MTG,COVER
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (A) OD=22 		8-94140-428-1 04 1 9812-0105 ●
121 00.034 RUBBER; MTG,COVER
EXC. CHARGE AIR COOLER<6PL> (A) OD=22 		8-94140-428-1 04 1 9812-0105 ●
121 00.034 RUBBER; MTG,COVER
(B) OD=16 		8-97188-507-0 01 1 0106- ●
121 00.034 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 06 1 9906-0105 ●
121 00.034 RUBBER; MTG,COVER
EXC. CHARGE AIR COOLER<6PL> (A) OD=22 		8-94140-428-1 04 1 0106- ●
144 02.100 NUT; COVER FIX
01.540 M8 FLANGE 		0-91150-208-0 01 1 0106- ●
148 02.313 CLIP; HARNESS
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 9812-9812 ●
148 02.313 CLIP; HARNESS
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9901-9906 ● ●
148 02.313 CLIP; HARNESS
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 9907-0105 ● ●
148 02.313 CLIP; HARNESS
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 02 1 0106- ●
148 02.313 CLIP; HARNESS
04.930 (B) L=91 ID=8.5 		8-94329-956-0 01 1 9907-0105 ● ●
148 02.313 CLIP; HARNESS
04.785 (B) ID=16 H=30 L=30 		1-09701-080-0 01 1 0106-0107 ●
148 02.313 CLIP; HARNESS
04.686 (B) ID=21 L=24 		8-94176-807-1 01 1 0108- ●
148 02.313 CLIP; HARNESS
01.516 (A) ID=13 L=20 		9-09525-235-0 01 1 0106- ●
300 02.042 STUD; COVER
05.387 M8X30 L=41 		9-04110-830-0 01 1 0106- ●
381 01.531 BOLT; BRKT
00.206 (B) M8X12 W/LK WASHER 		0-50040-812-0 01 1 0106-0202 ●
381 01.531 BOLT; BRKT
00.206 (B) M8X10 FLANGE 		0-28080-810-0 01 1 0203- ●
381 01.531 BOLT; BRKT
11.377 (A) M10X20 W/LK WASHER 		0-50041-020-0 01 1 0106- ●
409 00.033 SPACER; COVER
ID=8.5 L=10 		5-13642-077-0 01 1 0106- ●
502 00.340 BRACKET; BODY COVER 8-97209-129-0 01 1 0106- ●

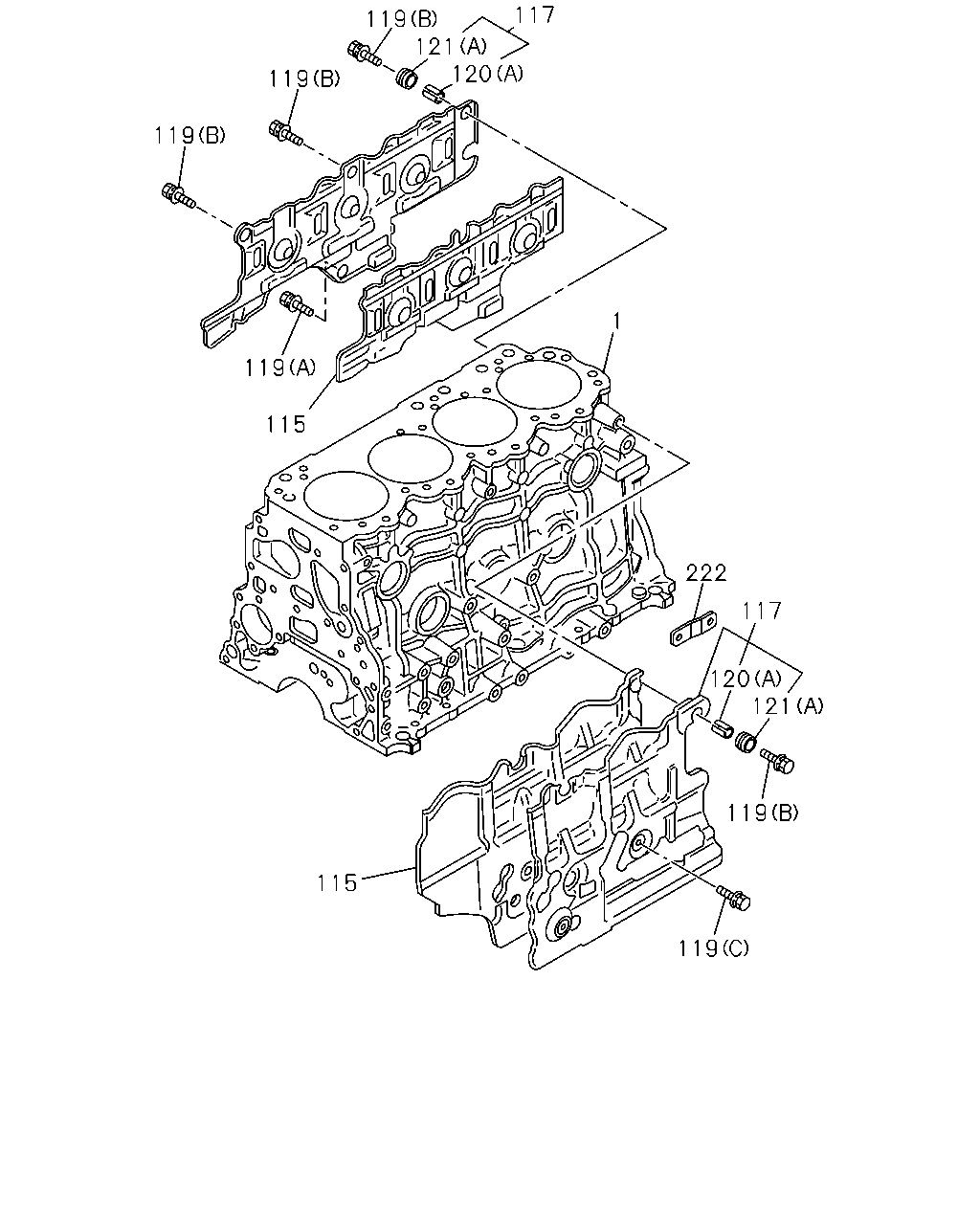

çizim 48853
117 119 121 120 119 119 1 119 115 222 117 120 121 119 115 119
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.033 BLOCK ASM; CYL 8-97043-280-0 01 1 9812-0105 ●
1 00.033 BLOCK ASM; CYL 8-97148-885-1 01 1 9812- ●
1 00.033 BLOCK ASM; CYL 8-94437-397-6 01 1 9906-0105 ●
1 00.033 BLOCK ASM; CYL 8-97257-264-2 01 1 0106- ●
115 00.034 RUBBER; SPACE 8-97141-688-2 01 1 9812-0105 ●
115 00.034 RUBBER; SPACE 8-97141-687-0 01 1 9812-0105 ●
115 00.034 RUBBER; SPACE 8-97204-194-0 01 1 9906-0105 ●
115 00.034 RUBBER; SPACE 8-97204-194-0 01 1 0106- ●
115 00.034 RUBBER; SPACE 8-97204-193-0 01 1 9906-0105 ●
115 00.034 RUBBER; SPACE 8-97204-193-0 01 1 0106- ●
117 00.030 COVER ASM; C/BL 8-97141-686-0 01 1 9812-0105 ●
117 00.030 COVER ASM; C/BL 8-97141-685-1 01 1 9812-0105 ●
117 00.030 COVER ASM; C/BL
CHARGE AIR COOLER<6PL> 		8-97258-620-1 01 1 0106- ●
117 00.030 COVER ASM; C/BL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97118-347-0 01 1 9812-0105 ●
117 00.030 COVER ASM; C/BL
EXC. CHARGE AIR COOLER<6PL> 		8-97118-347-0 01 1 9812-0105 ●
117 00.030 COVER ASM; C/BL
EXC. CHARGE AIR COOLER<6PL> 		8-97118-347-0 01 1 0106- ●
117 00.030 COVER ASM; C/BL 8-97020-126-0 01 1 9906-0105 ●
117 00.030 COVER ASM; C/BL 8-97259-600-0 01 1 0106- ●
117 00.030 COVER ASM; C/BL 8-97204-191-0 01 1 9906-0105 ●
117 00.030 COVER ASM; C/BL 8-97300-309-1 01 1 0106- ●
119 00.034 BOLT; COVER FIX
00.206 (C) M8X10 FLANGE 		0-28080-810-0 01 1 9812-0105 ●
119 00.034 BOLT; COVER FIX
11.377 (C) M10X20 W/LK WASHER 		0-50041-020-0 01 1 9812-9905 ●
119 00.034 BOLT; COVER FIX
11.377 (C) M10X20 W/LK WASHER 		0-50041-020-0 01 1 9906-0105 ● ●
119 00.034 BOLT; COVER FIX
(A) M10X28 		8-94329-952-1 01 1 9812-0105 ● ●
119 00.034 BOLT; COVER FIX
(D) M10X28 		8-94329-952-1 01 1 0106- ●
119 00.034 BOLT; COVER FIX
(B) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 9812-0105 ● ●
119 00.034 BOLT; COVER FIX
CHARGE AIR COOLER<6PL> (E) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0106- ●
119 00.034 BOLT; COVER FIX
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (E) M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 9812-0105 ●
119 00.034 BOLT; COVER FIX
EXC. CHARGE AIR COOLER<6PL> (E) M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 9812-0105 ●
119 00.034 BOLT; COVER FIX
EXC. CHARGE AIR COOLER<6PL> (E) M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 0106- ●
119 00.034 BOLT; COVER FIX
(E) M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 0106- ●
119 00.034 BOLT; COVER FIX
00.206 (C) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9906-0105 ●
119 00.034 BOLT; COVER FIX
00.004 (F) M8X32 FLANGE 		0-28080-832-0 01 1 0106- ●
120 00.034 BUSHING; MTG RUBBER
(A) OD=13 T=9.5 		8-94140-427-1 06 1 9812-0105 ●
120 00.034 BUSHING; MTG RUBBER
CHARGE AIR COOLER<6PL> (A) OD=13 T=9.5 		8-94140-427-1 05 1 0106- ●
120 00.034 BUSHING; MTG RUBBER
(A) OD=13 T=9.5 		8-94140-427-1 05 1 0106- ●
120 00.034 BUSHING; MTG RUBBER
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (A) OD=13 T=9.5 		8-94140-427-1 04 1 9812-0105 ●
120 00.034 BUSHING; MTG RUBBER
EXC. CHARGE AIR COOLER<6PL> (A) OD=13 T=9.5 		8-94140-427-1 04 1 9812-0105 ●
120 00.034 BUSHING; MTG RUBBER
(B) OD=18 T=4.5 		8-97188-506-0 01 1 0106- ●
120 00.034 BUSHING; MTG RUBBER
(A) OD=13 T=9.5 		8-94140-427-1 06 1 9906-0105 ●
120 00.034 BUSHING; MTG RUBBER
EXC. CHARGE AIR COOLER<6PL> (A) OD=13 T=9.5 		8-94140-427-1 04 1 0106- ●
121 00.034 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 06 1 9812-0105 ●
121 00.034 RUBBER; MTG,COVER
CHARGE AIR COOLER<6PL> (A) OD=22 		8-94140-428-1 05 1 0106-0106 ●
121 00.034 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 05 1 0106-0106 ●
121 00.034 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 05 1 0107- ●
121 00.034 RUBBER; MTG,COVER
CHARGE AIR COOLER<6PL> (A) 		8-97315-987-0 05 1 0107- ●
121 00.034 RUBBER; MTG,COVER
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (A) OD=22 		8-94140-428-1 04 1 9812-0105 ●
121 00.034 RUBBER; MTG,COVER
EXC. CHARGE AIR COOLER<6PL> (A) OD=22 		8-94140-428-1 04 1 9812-0105 ●
121 00.034 RUBBER; MTG,COVER
(B) OD=16 		8-97188-507-0 01 1 0106- ●
121 00.034 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 06 1 9906-0105 ●
121 00.034 RUBBER; MTG,COVER
EXC. CHARGE AIR COOLER<6PL> (A) OD=22 		8-94140-428-1 04 1 0106- ●
222 00.340 BRACKET; COVER,C/BL 8-94460-512-0 01 1 9812-0105 ● ●

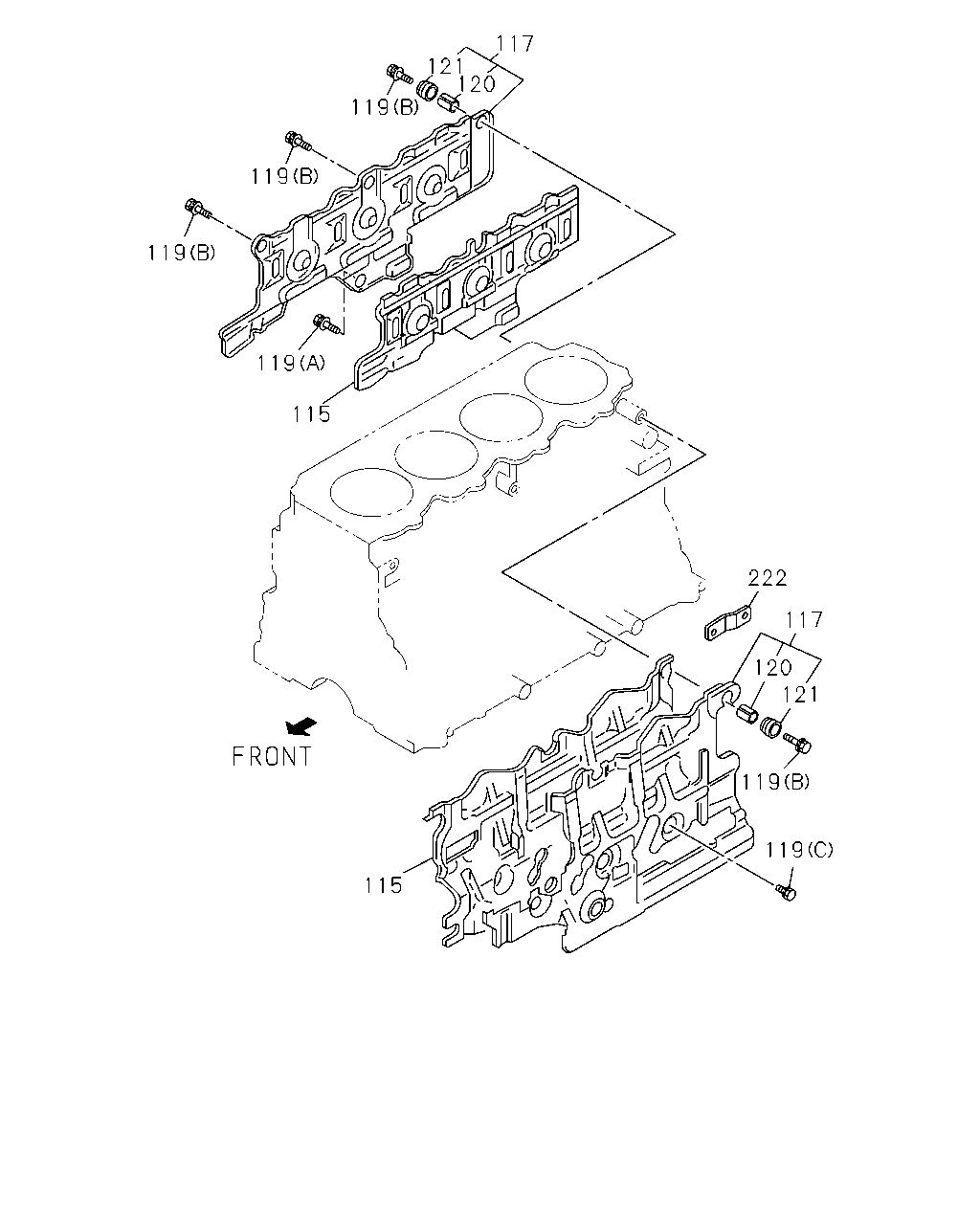

çizim 49601
117 120 121 119 119 119 119 115 222 117 120 121 119 119 115
BalonParca AdiParca NoAdetTipApplied Date A B C D
115 00.034 RUBBER; SPACE 8-97141-688-2 01 1 9812-0105 ●
115 00.034 RUBBER; SPACE 8-97141-687-0 01 1 9812-0105 ●
115 00.034 RUBBER; SPACE 8-97204-194-0 01 1 9906-0105 ●
115 00.034 RUBBER; SPACE 8-97204-194-0 01 1 0106- ●
115 00.034 RUBBER; SPACE 8-97204-193-0 01 1 9906-0105 ●
115 00.034 RUBBER; SPACE 8-97204-193-0 01 1 0106- ●
117 00.030 COVER ASM; C/BL 8-97141-686-0 01 1 9812-0105 ●
117 00.030 COVER ASM; C/BL 8-97141-685-1 01 1 9812-0105 ●
117 00.030 COVER ASM; C/BL
CHARGE AIR COOLER<6PL> 		8-97258-620-1 01 1 0106- ●
117 00.030 COVER ASM; C/BL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97118-347-0 01 1 9812-0105 ●
117 00.030 COVER ASM; C/BL
EXC. CHARGE AIR COOLER<6PL> 		8-97118-347-0 01 1 9812-0105 ●
117 00.030 COVER ASM; C/BL
EXC. CHARGE AIR COOLER<6PL> 		8-97118-347-0 01 1 0106- ●
117 00.030 COVER ASM; C/BL 8-97020-126-0 01 1 9906-0105 ●
117 00.030 COVER ASM; C/BL 8-97259-600-0 01 1 0106- ●
117 00.030 COVER ASM; C/BL 8-97204-191-0 01 1 9906-0105 ●
117 00.030 COVER ASM; C/BL 8-97300-309-1 01 1 0106- ●
119 00.034 BOLT; COVER FIX
00.206 (C) M8X10 FLANGE 		0-28080-810-0 01 1 9812-0105 ●
119 00.034 BOLT; COVER FIX
11.377 (C) M10X20 W/LK WASHER 		0-50041-020-0 01 1 9812-9905 ●
119 00.034 BOLT; COVER FIX
11.377 (C) M10X20 W/LK WASHER 		0-50041-020-0 01 1 9906-0105 ● ●
119 00.034 BOLT; COVER FIX
(A) M10X28 		8-94329-952-1 01 1 9812-0105 ● ●
119 00.034 BOLT; COVER FIX
(D) M10X28 		8-94329-952-1 01 1 0106- ●
119 00.034 BOLT; COVER FIX
(B) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 9812-0105 ● ●
119 00.034 BOLT; COVER FIX
CHARGE AIR COOLER<6PL> (E) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0106- ●
119 00.034 BOLT; COVER FIX
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (E) M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 9812-0105 ●
119 00.034 BOLT; COVER FIX
EXC. CHARGE AIR COOLER<6PL> (E) M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 9812-0105 ●
119 00.034 BOLT; COVER FIX
EXC. CHARGE AIR COOLER<6PL> (E) M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 0106- ●
119 00.034 BOLT; COVER FIX
(E) M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 0106- ●
119 00.034 BOLT; COVER FIX
00.206 (C) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9906-0105 ●
119 00.034 BOLT; COVER FIX
00.004 (F) M8X32 FLANGE 		0-28080-832-0 01 1 0106- ●
120 00.034 BUSHING; MTG RUBBER
(A) OD=13 T=9.5 		8-94140-427-1 06 1 9812-0105 ●
120 00.034 BUSHING; MTG RUBBER
CHARGE AIR COOLER<6PL> (A) OD=13 T=9.5 		8-94140-427-1 05 1 0106- ●
120 00.034 BUSHING; MTG RUBBER
(A) OD=13 T=9.5 		8-94140-427-1 05 1 0106- ●
120 00.034 BUSHING; MTG RUBBER
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (A) OD=13 T=9.5 		8-94140-427-1 04 1 9812-0105 ●
120 00.034 BUSHING; MTG RUBBER
EXC. CHARGE AIR COOLER<6PL> (A) OD=13 T=9.5 		8-94140-427-1 04 1 9812-0105 ●
120 00.034 BUSHING; MTG RUBBER
(B) OD=18 T=4.5 		8-97188-506-0 01 1 0106- ●
120 00.034 BUSHING; MTG RUBBER
(A) OD=13 T=9.5 		8-94140-427-1 06 1 9906-0105 ●
120 00.034 BUSHING; MTG RUBBER
EXC. CHARGE AIR COOLER<6PL> (A) OD=13 T=9.5 		8-94140-427-1 04 1 0106- ●
121 00.034 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 06 1 9812-0105 ●
121 00.034 RUBBER; MTG,COVER
CHARGE AIR COOLER<6PL> (A) OD=22 		8-94140-428-1 05 1 0106-0106 ●
121 00.034 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 05 1 0106-0106 ●
121 00.034 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 05 1 0107- ●
121 00.034 RUBBER; MTG,COVER
CHARGE AIR COOLER<6PL> (A) 		8-97315-987-0 05 1 0107- ●
121 00.034 RUBBER; MTG,COVER
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (A) OD=22 		8-94140-428-1 04 1 9812-0105 ●
121 00.034 RUBBER; MTG,COVER
EXC. CHARGE AIR COOLER<6PL> (A) OD=22 		8-94140-428-1 04 1 9812-0105 ●
121 00.034 RUBBER; MTG,COVER
(B) OD=16 		8-97188-507-0 01 1 0106- ●
121 00.034 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 06 1 9906-0105 ●
121 00.034 RUBBER; MTG,COVER
EXC. CHARGE AIR COOLER<6PL> (A) OD=22 		8-94140-428-1 04 1 0106- ●
222 00.340 BRACKET; COVER,C/BL 8-94460-512-0 01 1 9812-0105 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
