◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50818 - NPR/NQR(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#18825) — 216 parça

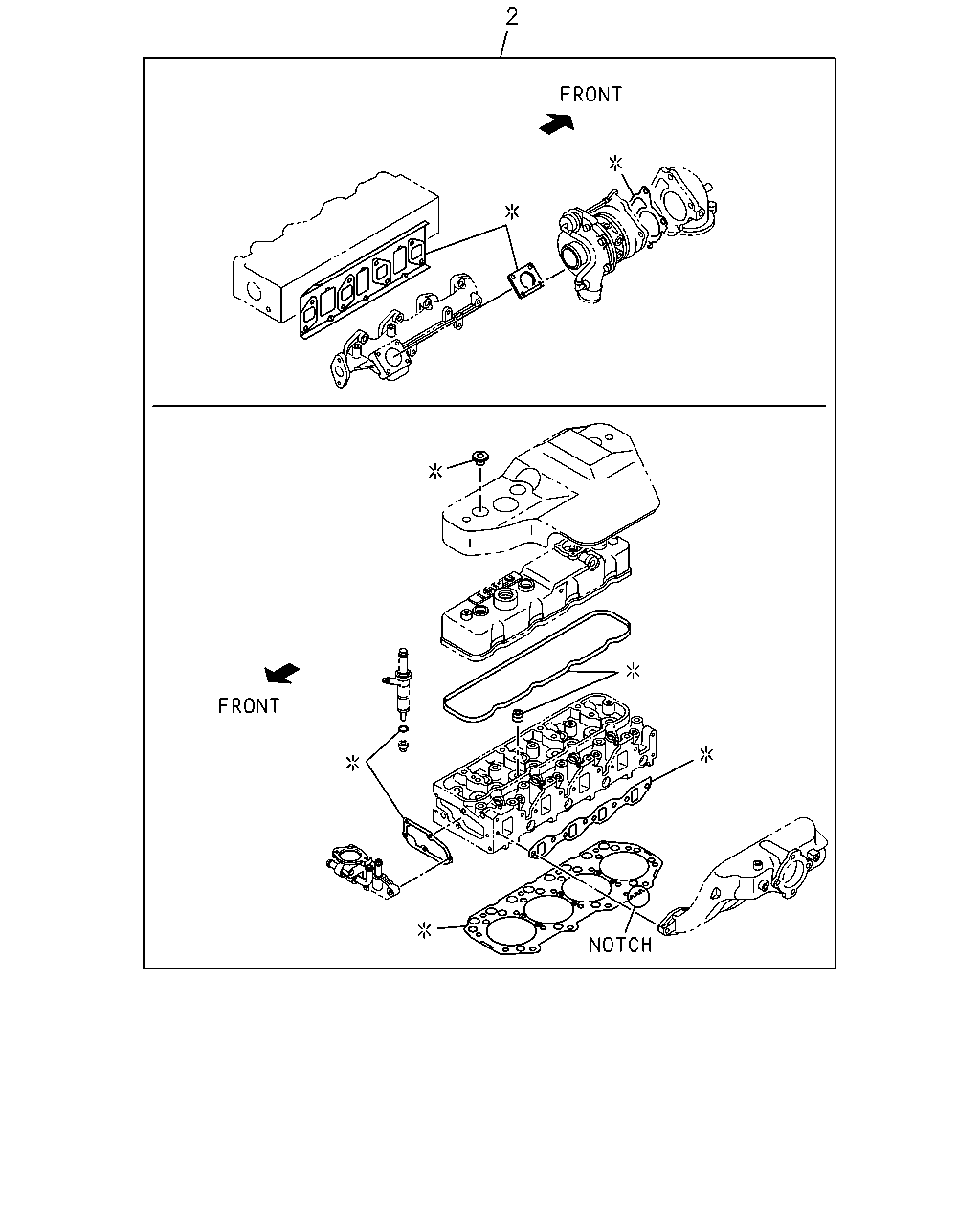

çizim 11730
2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-338-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-339-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-340-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-353-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-354-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-355-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87813-021-2 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87813-022-2 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87813-023-2 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-406-4 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-407-4 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-408-4 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-406-4 01 1 0106-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-407-4 01 1 0106-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-408-4 01 1 0106-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-233-3 01 1 9812-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-234-3 01 1 9812-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-235-3 01 1 9812-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-711-1 01 1 9906-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-712-1 01 1 9906-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-713-1 01 1 9906-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0106- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0106- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0106- ●

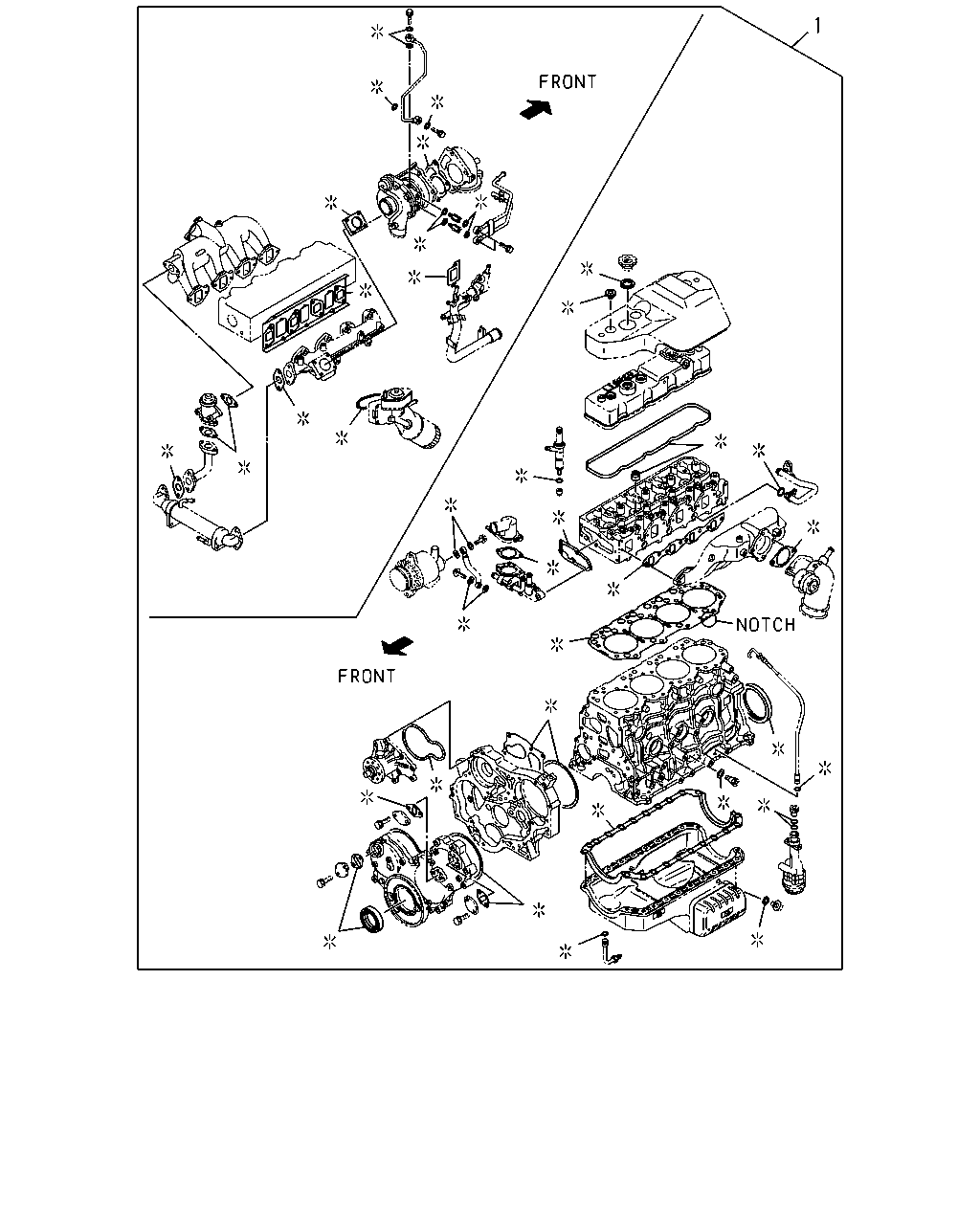

çizim 11731
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-335-1 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-336-1 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-337-1 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-341-0 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-342-0 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-343-0 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-913-2 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-914-2 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-915-2 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-104-1 01 1 0106-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-105-1 01 1 0106-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-106-1 01 1 0106-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87813-403-4 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87813-404-4 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87813-405-4 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> T=1.70 WO/NOTCH 		5-87813-400-3 01 1 9812-0003 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87813-400-4 01 1 0004-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> T=1.75 1-NOTCH 		5-87813-401-3 01 1 9812-0003 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87813-401-4 01 1 0004-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> T=1.80 2-NOTCH 		5-87813-402-3 01 1 9812-0003 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87813-402-4 01 1 0004-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-230-4 01 1 9812-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-231-4 01 1 9812-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-232-4 01 1 9812-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87813-708-2 01 1 9909-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87813-709-2 01 1 9906-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87813-710-2 01 1 9906-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-084-4 01 1 0106- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-085-4 01 1 0106- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-086-4 01 1 0106- ●

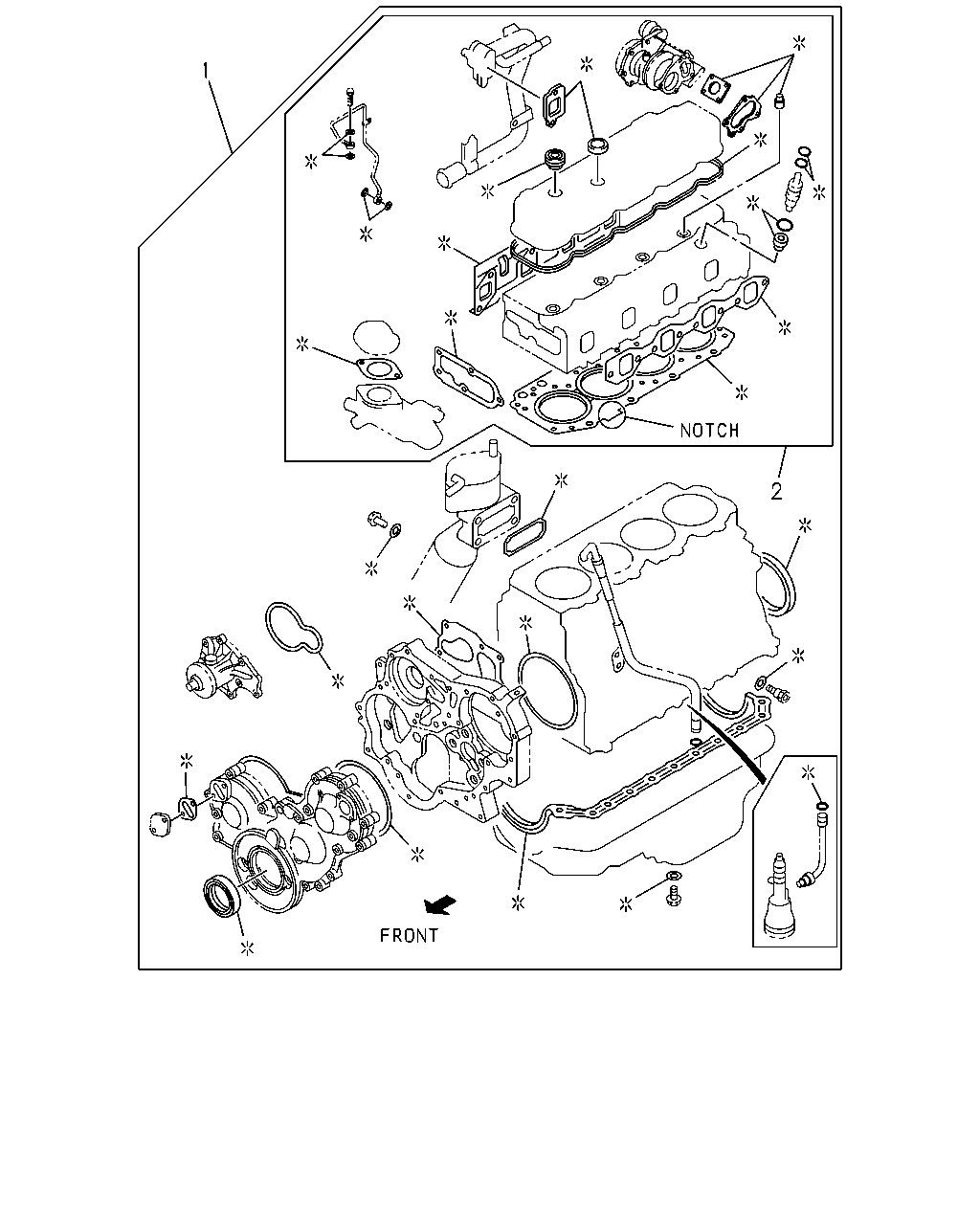

çizim 12429
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-335-1 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-336-1 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-337-1 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-341-0 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-342-0 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-343-0 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-913-2 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-914-2 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-915-2 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-104-1 01 1 0106-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-105-1 01 1 0106-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-106-1 01 1 0106-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87813-403-4 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87813-404-4 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87813-405-4 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> T=1.70 WO/NOTCH 		5-87813-400-3 01 1 9812-0003 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87813-400-4 01 1 0004-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> T=1.75 1-NOTCH 		5-87813-401-3 01 1 9812-0003 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87813-401-4 01 1 0004-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> T=1.80 2-NOTCH 		5-87813-402-3 01 1 9812-0003 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87813-402-4 01 1 0004-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-230-4 01 1 9812-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-231-4 01 1 9812-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-232-4 01 1 9812-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87813-708-2 01 1 9909-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87813-709-2 01 1 9906-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87813-710-2 01 1 9906-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-084-4 01 1 0106- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-085-4 01 1 0106- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-086-4 01 1 0106- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-338-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-339-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-340-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-353-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-354-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-355-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87813-021-2 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87813-022-2 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87813-023-2 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-406-4 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-407-4 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-408-4 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-406-4 01 1 0106-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-407-4 01 1 0106-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-408-4 01 1 0106-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-233-3 01 1 9812-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-234-3 01 1 9812-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-235-3 01 1 9812-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-711-1 01 1 9906-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-712-1 01 1 9906-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-713-1 01 1 9906-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0106- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0106- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0106- ●

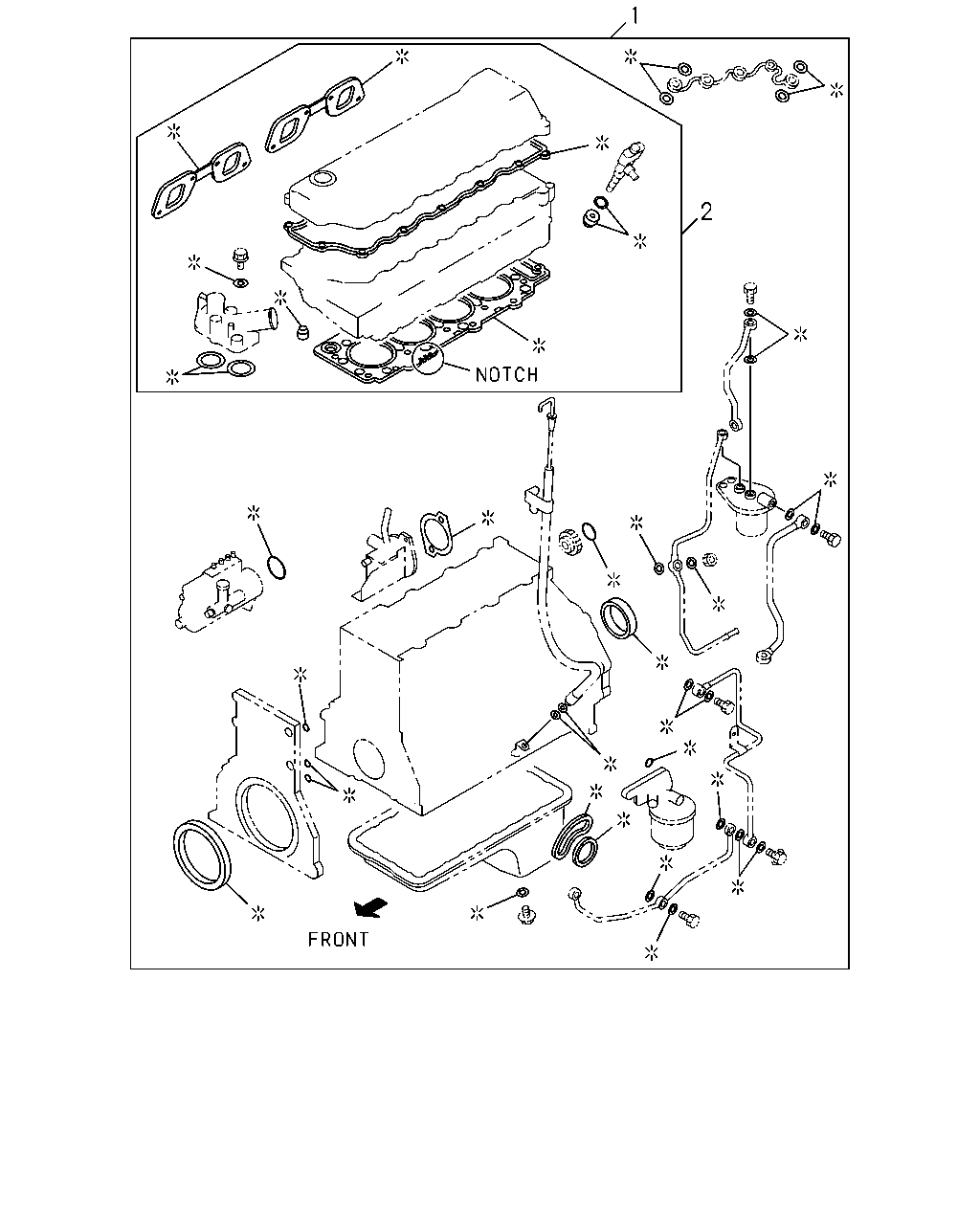

çizim 12521
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-335-1 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-336-1 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-337-1 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-341-0 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-342-0 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-343-0 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-913-2 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-914-2 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-915-2 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-104-1 01 1 0106-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-105-1 01 1 0106-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-106-1 01 1 0106-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87813-403-4 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87813-404-4 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87813-405-4 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> T=1.70 WO/NOTCH 		5-87813-400-3 01 1 9812-0003 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87813-400-4 01 1 0004-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> T=1.75 1-NOTCH 		5-87813-401-3 01 1 9812-0003 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87813-401-4 01 1 0004-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> T=1.80 2-NOTCH 		5-87813-402-3 01 1 9812-0003 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87813-402-4 01 1 0004-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-230-4 01 1 9812-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-231-4 01 1 9812-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-232-4 01 1 9812-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87813-708-2 01 1 9909-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87813-709-2 01 1 9906-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87813-710-2 01 1 9906-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-084-4 01 1 0106- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-085-4 01 1 0106- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-086-4 01 1 0106- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-338-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-339-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-340-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-353-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-354-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-355-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87813-021-2 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87813-022-2 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87813-023-2 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-406-4 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-407-4 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-408-4 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-406-4 01 1 0106-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-407-4 01 1 0106-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-408-4 01 1 0106-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-233-3 01 1 9812-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-234-3 01 1 9812-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-235-3 01 1 9812-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-711-1 01 1 9906-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-712-1 01 1 9906-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-713-1 01 1 9906-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0106- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0106- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0106- ●
çizim 47250
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-335-1 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-336-1 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-337-1 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-341-0 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-342-0 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-343-0 01 1 0208- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-913-2 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-914-2 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-915-2 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-104-1 01 1 0106-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-105-1 01 1 0106-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-106-1 01 1 0106-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87813-403-4 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87813-404-4 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87813-405-4 01 1 9812-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> T=1.70 WO/NOTCH 		5-87813-400-3 01 1 9812-0003 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> T=1.70 WO/NOTCH 		5-87813-400-4 01 1 0004-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> T=1.75 1-NOTCH 		5-87813-401-3 01 1 9812-0003 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> T=1.75 1-NOTCH 		5-87813-401-4 01 1 0004-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> T=1.80 2-NOTCH 		5-87813-402-3 01 1 9812-0003 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> T=1.80 2-NOTCH 		5-87813-402-4 01 1 0004-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-230-4 01 1 9812-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-231-4 01 1 9812-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-232-4 01 1 9812-0207 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87813-708-2 01 1 9909-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87813-709-2 01 1 9906-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87813-710-2 01 1 9906-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-084-4 01 1 0106- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-085-4 01 1 0106- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-086-4 01 1 0106- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-338-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-339-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-340-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-353-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-354-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-355-0 01 1 0208- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87813-021-2 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87813-022-2 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87813-023-2 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-406-4 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-407-4 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-408-4 01 1 9812-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-406-4 01 1 0106-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-407-4 01 1 0106-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-408-4 01 1 0106-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87813-233-3 01 1 9812-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87813-234-3 01 1 9812-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87813-235-3 01 1 9812-0207 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-711-1 01 1 9906-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-712-1 01 1 9906-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-713-1 01 1 9906-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0106- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0106- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0106- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
