Sayfa 9-33 - Isuzu EPC

9-33 — REAR BODY; GATE AND SIDE GUARD (#18823) — 155 parça

40 70 37 40 40 70 37 70 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	17.202 SCREW RR BODY FLAT BED<RS6>	8-94194-119-0	06	1	9811-	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	9811-	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	9811-	●	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> 17.202 (C) OD=45 H=28	8-94192-532-0	02	1	9811-	●	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> 17.507 (A) OD=60 H=22	8-94193-455-0	02	1	9811-	●	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> (B) OD=60 H=28	8-94194-895-0	02	1	9811-	●	●

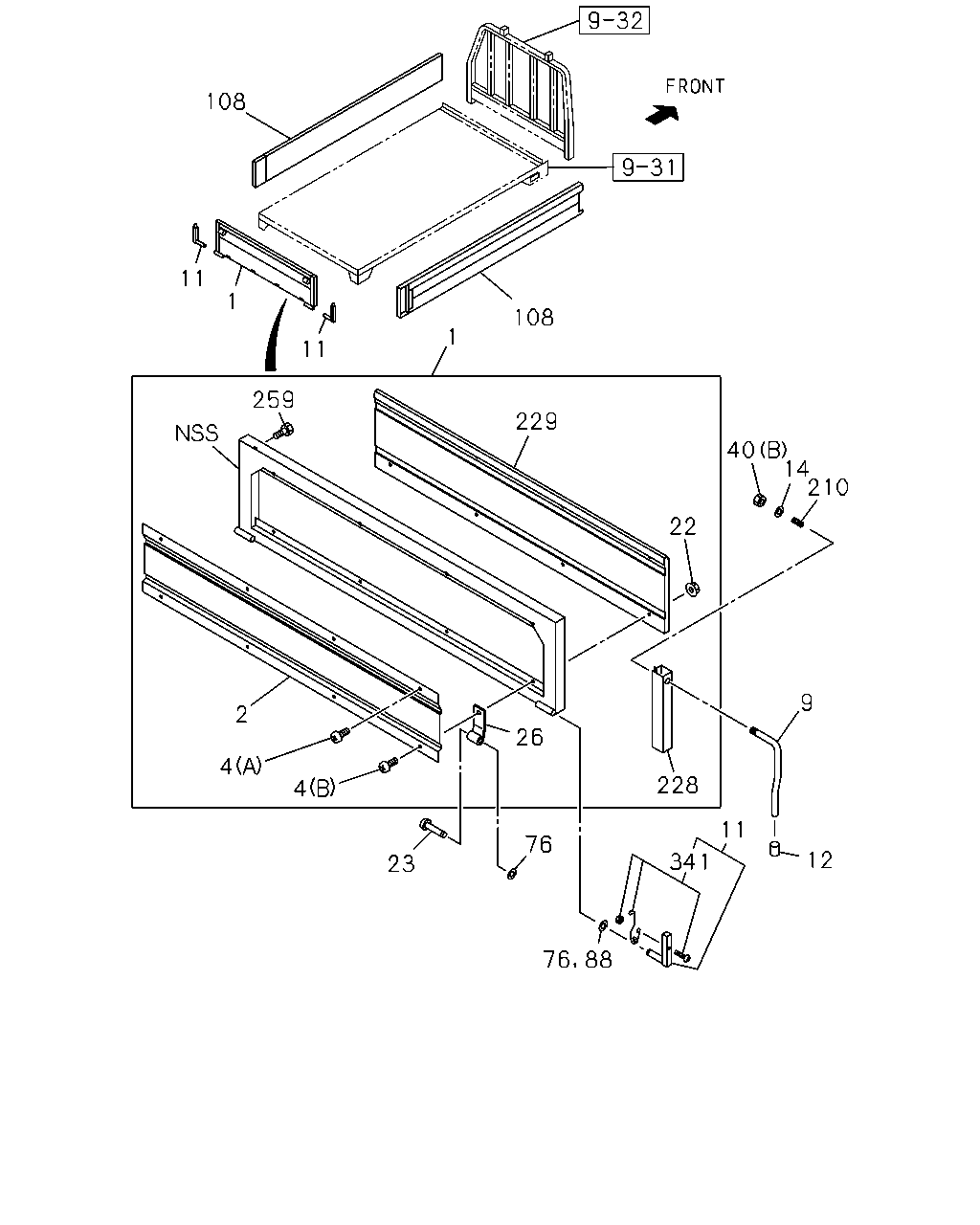

108 11 1 108 1 11 259 229 40 14 210 22 9 2 26 4 228 4 11 76 12 341 23 76 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=2067 H=398 B=50 PLYWOOD	8-94195-515-4	01	1	0008-	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=2067 H=398 B=50 PLYWOOD	8-94195-515-4	01	1	0008-		●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=2057 H=398 B=55 PLYWOOD	8-94193-819-1	01	1	9811-0007	●	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> L=2057 H=398 B=55 PLYWOOD	8-94193-819-1	01	1	0008-		●
2	17.185 PANEL; RR GATE RR BODY FLAT BED<RS6> TAKADA	8-97590-084-0	01	1	0008-	●
2	17.185 PANEL; RR GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97590-084-0	01	1	0008-		●
2	17.185 PANEL; RR GATE RR BODY FLAT BED<RS6>	8-94194-027-0	01	1	9811-0007	●	●
2	17.185 PANEL; RR GATE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	8-94194-027-0	01	1	0008-		●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED<RS6> (A) M8X16	8-94193-952-1	04	1	9811-	●	●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED<RS6> (B) M8X21	8-94193-953-1	04	1	9811-	●	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6> TAKADA	8-94196-401-0	01	1	0008-	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94196-401-0	01	1	0008-		●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6> TAKADA	8-94196-400-0	01	1	0008-	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94196-400-0	01	1	0008-		●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6>	8-94193-795-0	01	1	9811-0007	●	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	8-94193-795-0	01	1	0008-		●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6>	8-94193-794-0	01	1	9811-0007	●	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	8-94193-794-0	01	1	0008-		●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> TAKADA	8-94196-399-0	01	1	0008-	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94196-399-0	01	1	0008-		●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> TAKADA	8-94196-398-0	01	1	0008-	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94196-398-0	01	1	0008-		●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6>	8-94193-347-0	01	1	9811-0007	●	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	8-94193-347-0	01	1	0008-		●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6>	8-94193-346-0	01	1	9811-0007	●	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	8-94193-346-0	01	1	0008-		●
12	17.204 PIECE; END,RR HANDLE RR BODY FLAT BED<RS6> TAKADA	8-94193-344-0	02	1	9811-	●
12	17.204 PIECE; END,RR HANDLE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94193-344-0	02	1	9811-		●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED<RS6> 06.172 ID=12.5	9-09164-512-0	02	1	9811-	●	●
22	17.185 NUT; PLATE,RR GATE RR BODY FLAT BED<RS6> M8	8-94193-954-0	08	1	9811-	●	●
23	17.208 PIN; HINGE,RR GATE RR BODY FLAT BED<RS6> OD=10 L=58.5	8-94193-933-0	04	1	9811-	●	●
26	17.208 HINGE; UPR,RR GATE RR BODY FLAT BED<RS6> TAKADA	8-97590-079-0	04	1	0008-	●
26	17.208 HINGE; UPR,RR GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97590-079-0	04	1	0008-		●
26	17.208 HINGE; UPR,RR GATE RR BODY FLAT BED<RS6>	8-94194-377-0	04	1	9811-0007	●	●
26	17.208 HINGE; UPR,RR GATE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	8-94194-377-0	04	1	0008-		●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	9811-	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	9811-	●	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	14	1	9811-0007	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	18	1	0008-	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> SIDE ID=9	8-94194-116-0	18	1	0008-		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> REAR ID=8	8-94194-117-0	04	1	9811-0007	●	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> SIDE ID=9	8-94194-116-0	18	1	9811-0007		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> REAR ID=8	8-94194-117-0	04	1	0008-		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> SIDE ID=9	8-94194-116-0	16	1	9811-0007		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> ID=9	8-94194-116-0	20	1	0008-		●
88	17.505 RING; SNAP,VERTICAL LOCK RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	8-94194-123-0	02	1	0101-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=55 PLYWOOD	8-94193-818-1	01	1	9811-0007	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=50 PLYWOOD	8-94195-527-3	01	1	0008-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=55 PLYWOOD	8-94193-817-1	01	1	9811-0007	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=50 PLYWOOD	8-94195-526-3	01	1	0008-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=55 PLYWOOD	8-94195-559-0	01	1	9811-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=55 PLYWOOD	8-94195-558-0	01	1	9811-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=55 PLYWOOD	8-94193-838-1	01	1	9811-0007		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-94195-545-3	01	1	0008-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=55 PLYWOOD	8-94193-837-1	01	1	9811-0007		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-94195-544-3	01	1	0008-		●
210	17.505 SPRING; LATCH HANDLE RR BODY FLAT BED<RS6> TAKADA	8-94194-192-1	02	1	9811-	●	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6>	8-97590-095-0	01	1	0008-	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97590-095-0	01	1	0008-		●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6>	8-97590-094-0	01	1	0008-	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97590-094-0	01	1	0008-		●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6>	8-94194-399-0	01	1	9811-0007	●	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	8-94194-399-0	01	1	0008-		●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6>	8-94194-398-0	01	1	9811-0007	●	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	8-94194-398-0	01	1	0008-		●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6>	8-97590-089-0	01	1	0008-	●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97590-089-0	01	1	0008-		●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6>	8-94194-416-0	01	1	9811-0007	●	●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	8-94194-416-0	01	1	0008-		●
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED<RS6> M8X40 TAKADA	8-97590-325-0	04	1	0008-	●
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> M8X40 TAKADA	8-97590-325-0	04	1	0008-		●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-449-0	01	1	0008-	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97594-449-0	01	1	0008-		●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-448-0	01	1	0008-	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97594-448-0	01	1	0008-		●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9811-0007	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97594-466-0	01	1	0008-		●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9811-0007	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97594-465-0	01	1	0008-		●

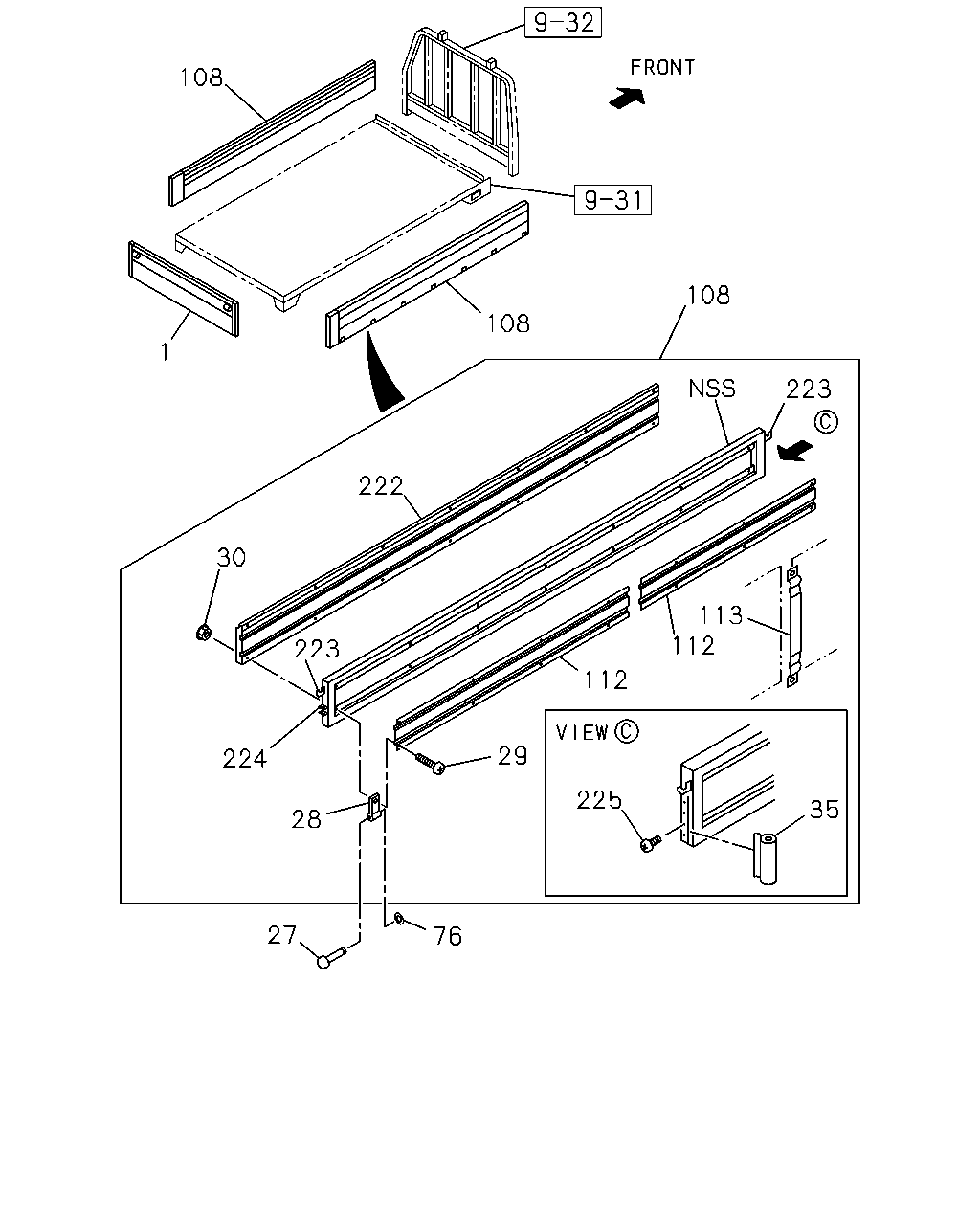

108 108 108 1 223 222 30 113 112 223 112 29 224 225 35 28 27 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=2067 H=398 B=50 PLYWOOD	8-94195-515-4	01	1	0008-	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=2067 H=398 B=50 PLYWOOD	8-94195-515-4	01	1	0008-		●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=2057 H=398 B=55 PLYWOOD	8-94193-819-1	01	1	9811-0007	●	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> L=2057 H=398 B=55 PLYWOOD	8-94193-819-1	01	1	0008-		●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED<RS6> OD=12 L=88.5	8-94193-932-0	14	1	9811-0007	●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED<RS6> OD=10 L=89.5	8-94195-763-0	14	1	0008-	●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> OD=12 L=88.5	8-94193-932-0	18	1	9811-		●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> OD=12 L=88.5	8-94193-932-0	16	1	9811-0007		●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> OD=10 L=89.5	8-94195-763-0	16	1	0008-		●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED<RS6>	8-94194-271-0	14	1	9811-0007	●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED<RS6> TAKADA	8-97590-027-0	14	1	0008-	●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	8-94194-271-0	18	1	9811-		●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-271-0	16	1	9811-0007		●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97590-027-0	16	1	0008-		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 UPPER M8X16	8-94193-952-1	14	1	9811-	●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 LOWER M8X21	8-94193-953-1	14	1	9811-	●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 17.185 UPPER M8X16	8-94193-952-0	18	1	9811-		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 17.185 LOWER M8X21	8-94193-953-0	18	1	9811-		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.185 UPPER M8X16	8-94193-952-1	16	1	9811-		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.185 LOWER M8X21	8-94193-953-1	16	1	9811-		●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED<RS6> 17.185 M8	8-94193-954-0	28	1	9811-	●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 17.185 M8	8-94193-954-0	28	1	9811-		●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.185 M8	8-94193-954-0	32	1	9811-		●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED<RS6>	8-94194-277-0	02	1	9811-	●	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	14	1	9811-0007	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	18	1	0008-	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> SIDE ID=9	8-94194-116-0	18	1	0008-		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> REAR ID=8	8-94194-117-0	04	1	9811-0007	●	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> SIDE ID=9	8-94194-116-0	18	1	9811-0007		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> REAR ID=8	8-94194-117-0	04	1	0008-		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> SIDE ID=9	8-94194-116-0	16	1	9811-0007		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> ID=9	8-94194-116-0	20	1	0008-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=55 PLYWOOD	8-94193-818-1	01	1	9811-0007	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=50 PLYWOOD	8-94195-527-3	01	1	0008-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=55 PLYWOOD	8-94193-817-1	01	1	9811-0007	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=50 PLYWOOD	8-94195-526-3	01	1	0008-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=55 PLYWOOD	8-94195-559-0	01	1	9811-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=55 PLYWOOD	8-94195-558-0	01	1	9811-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=55 PLYWOOD	8-94193-838-1	01	1	9811-0007		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-94195-545-3	01	1	0008-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=55 PLYWOOD	8-94193-837-1	01	1	9811-0007		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-94195-544-3	01	1	0008-		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> 16.575	8-94193-326-0	02	1	9811-0007	●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> TAKADA	8-97590-037-0	02	1	0008-	●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT SIDE	8-94193-331-0	01	1	9811-0007		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT SIDE TAKADA	8-97590-046-0	01	1	0008-		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR SIDE	8-94193-333-0	01	1	9811-0007		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT SIDE	8-94193-330-0	01	1	9811-0007		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT SIDE TAKADA	8-97590-045-0	01	1	0008-		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR SIDE	8-94193-332-0	01	1	9811-0007		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR SIDE TAKADA	8-97590-047-0	01	1	0008-		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR SIDE TAKADA	8-97590-048-0	01	1	0008-		●
113	17.505 BAR; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94193-435-0	02	1	9811-0007		●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6>	8-94194-408-0	02	1	9811-0007	●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6>	8-97590-063-0	02	1	0008-	●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-426-0	02	1	9811-0007		●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97590-071-0	02	1	0008-		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> FRONT SIDE	8-94194-292-0	01	1	9811-	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT SIDE	8-94194-292-0	01	1	9811-		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR SIDE TAKADA	8-94194-397-0	01	1	9811-	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR SIDE TAKADA	8-94194-397-0	01	1	9811-		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> FRONT SIDE	8-94194-291-0	01	1	9811-	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT SIDE	8-94194-291-0	01	1	9811-		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR SIDE TAKADA	8-94194-396-0	01	1	9811-	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR SIDE TAKADA	8-94194-396-0	01	1	9811-		●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6>	8-94194-374-0	01	1	9811-	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-374-0	01	1	9811-		●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6>	8-94194-373-0	01	1	9811-	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-373-0	01	1	9811-		●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED<RS6>	8-94194-351-0	08	1	9811-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
