9-01 — TOOLS (#18819) — 132 parça

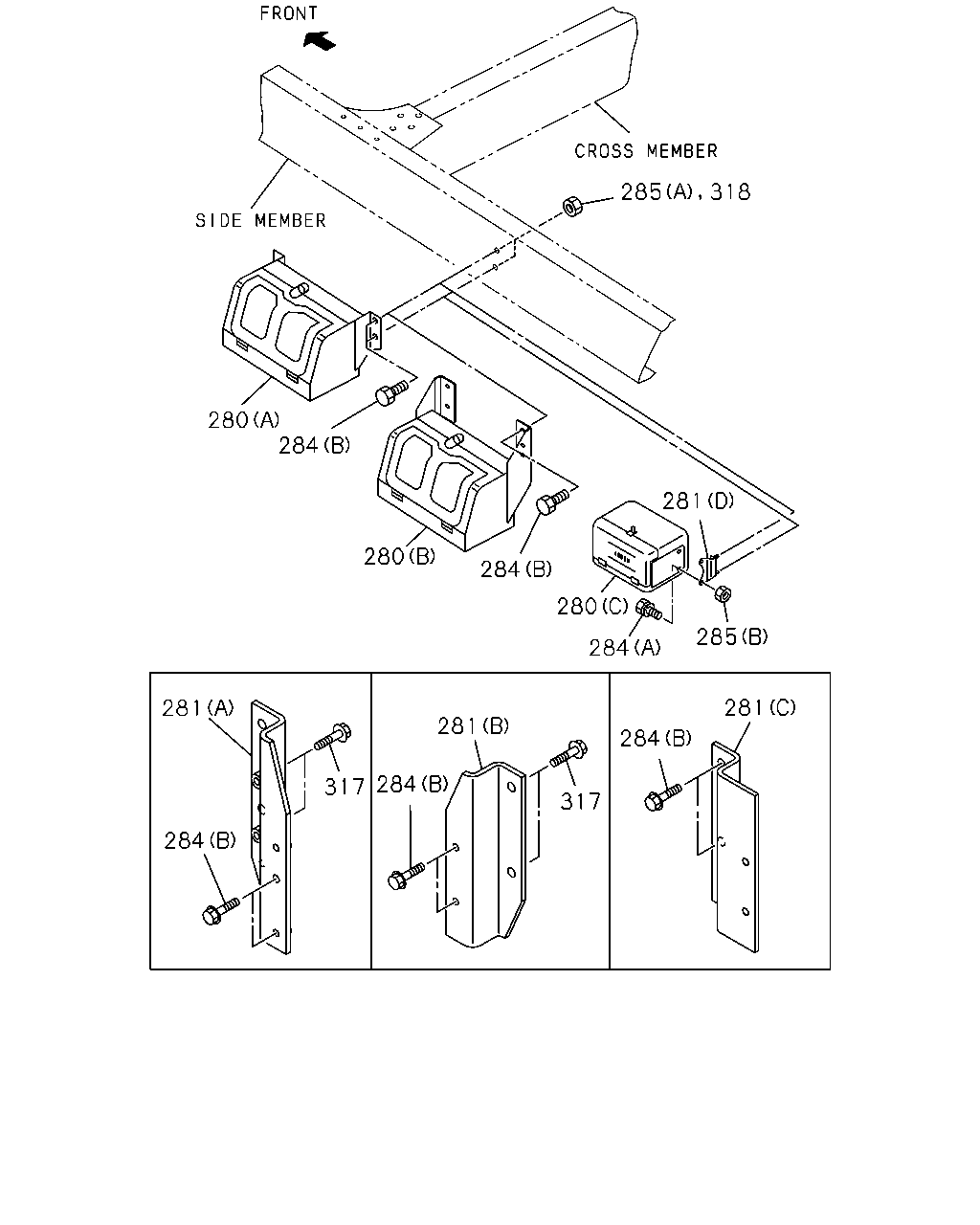

çizim 49301
285 318 280 284 281 280 284 280 285 284 281 281 281 284 284 317 317 284
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> (B) 		8-94123-034-1 01 1 9811-0105 ●
280 08.821 BOX; TOOL
AUSTRALIA EQUIPMENT(RR3) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-94123-034-1 01 1 9811-0105 ● ● ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> EXC. AUSTRALIA EQUIPMENT(RR3),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> (B) 		8-94123-034-1 01 1 0106-0208 ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> (B) 		8-94123-034-1 01 1 0209- ●
280 08.821 BOX; TOOL
AUSTRALIA EQUIPMENT(RR3) TOOL & STORAGE BOX<VK2> (C) 		1-85561-006-2 01 1 0106-0208 ● ● ● ● ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97161-497-0 01 1 9811-9904 ● ● ● ● ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> EXC. AUSTRALIA EQUIPMENT(RR3),FRAME STRAIGHT TYPE<7KJ> (A) 		8-97161-497-0 01 1 9811-9904 ● ● ● ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> (A) 		8-97161-497-0 01 1 9811-9904 ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97222-496-0 01 1 9905-0105 ● ● ● ● ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> EXC. AUSTRALIA EQUIPMENT(RR3),FRAME STRAIGHT TYPE<7KJ> (A) 		8-97222-496-0 01 1 9905-0105 ● ● ● ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> (A) 		8-97222-496-0 01 1 9905-0105 ● ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97222-496-0 01 1 0106-0208 ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97222-496-0 01 1 0106-0208 ● ● ● ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> (A) 		8-97222-496-0 01 1 0106-0208 ● ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97222-496-0 01 1 0209- ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> (A) 		8-97222-496-0 01 1 0209- ● ● ● ● ● ●
281 08.821 BRACKET; TOOL BOX
AUSTRALIA EQUIPMENT(RR3) TOOL & STORAGE BOX<VK2> (D) 		1-53459-665-2 02 1 0106-0208 ● ● ● ● ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) TOOL & STORAGE BOX<VK2> CHARGE AIR COOLER<6PL> (C) 		8-97254-340-0 01 1 0004-0005 ● ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) TOOL & STORAGE BOX<VK2> CHARGE AIR COOLER<6PL> (C) 		8-97254-546-0 01 1 0006-0105 ● ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. AUSTRALIA EQUIPMENT(RR3) (C) 		8-97254-546-0 01 1 0106-0208 ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> EXC. AUSTRALIA EQUIPMENT(RR3) (C) 		8-97254-546-0 01 1 0106-0208 ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97254-546-0 01 1 0209- ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> (C) 		8-97254-546-0 01 1 0209- ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97095-539-0 01 1 9811-0003 ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) TOOL & STORAGE BOX<VK2> CHARGE AIR COOLER<6PL> (A) 		8-97095-539-0 01 1 0004-0105 ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97095-539-0 01 1 0004-0105 ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97095-539-0 01 1 0106-0206 ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97095-539-0 01 1 0207-0208 ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97095-539-0 01 1 0209- ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97209-719-0 01 1 9811-0003 ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) TOOL & STORAGE BOX<VK2> CHARGE AIR COOLER<6PL> (B) 		8-97209-719-0 01 1 0004-0105 ● ● ● ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97209-719-0 01 1 0004-0105 ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97209-719-0 01 1 0106-0206 ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		8-97209-719-0 01 1 0207-0208 ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97209-719-0 01 1 0209- ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 04 1 9811-0105 ● ● ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> EXC. AUSTRALIA EQUIPMENT(RR3) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 04 1 0106-0208 ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 04 1 0106-0208 ● ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 04 1 0209- ● ● ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
AUSTRALIA EQUIPMENT(RR3) TOOL & STORAGE BOX<VK2> 03.611 (A) M10X20 FLANGE 		0-28681-020-0 04 1 0106-0208 ● ● ● ● ●
285 08.821 NUT; TOOL BOX
4HF1 ENG(RLS),4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9811-0007 ● ● ● ● ● ●
285 08.821 NUT; TOOL BOX
4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9811-0007 ● ● ● ● ●
285 08.821 NUT; TOOL BOX
AUSTRALIA EQUIPMENT(RR3) TOOL & STORAGE BOX<VK2> 08.917 (B) M10 FLANGE 		0-91150-210-0 04 1 0106-0208 ● ● ● ● ●
285 08.821 NUT; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9811-0007 ●
285 08.821 NUT; TOOL BOX
4HF1 ENG(RLS) TOOL & STORAGE BOX<VK2> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0008-0105 ● ● ● ●
285 08.821 NUT; TOOL BOX
4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0008-0105 ● ● ● ●
285 08.821 NUT; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0008-0105 ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0008-0105 ●
285 08.821 NUT; TOOL BOX
4HF1 ENG(RLS) TOOL & STORAGE BOX<VK2> EXC. AUSTRALIA EQUIPMENT(RR3) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0106-0208 ● ● ● ●
285 08.821 NUT; TOOL BOX
4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0106-0208 ● ● ●
285 08.821 NUT; TOOL BOX
4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0106-0208 ●
285 08.821 NUT; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0106-0208 ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0106-0208 ●
285 08.821 NUT; TOOL BOX
4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0209- ● ● ●
285 08.821 NUT; TOOL BOX
4HF1 ENG(RLS) TOOL & STORAGE BOX<VK2> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0209- ● ● ●
285 08.821 NUT; TOOL BOX
4HG1 ENG(RJH),4HF1 ENG(RLS) TOOL & STORAGE BOX<VK2> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0209- ●
285 08.821 NUT; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0209- ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0209- ●
317 08.821 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9811- ●
318 08.821 NUT; BRKT TO FRAME
AUSTRALIA EQUIPMENT(RR3) TOOL & STORAGE BOX<VK2> 08.917 M10 FLANGE 		0-91150-210-0 04 1 0106-0208 ● ● ● ● ●

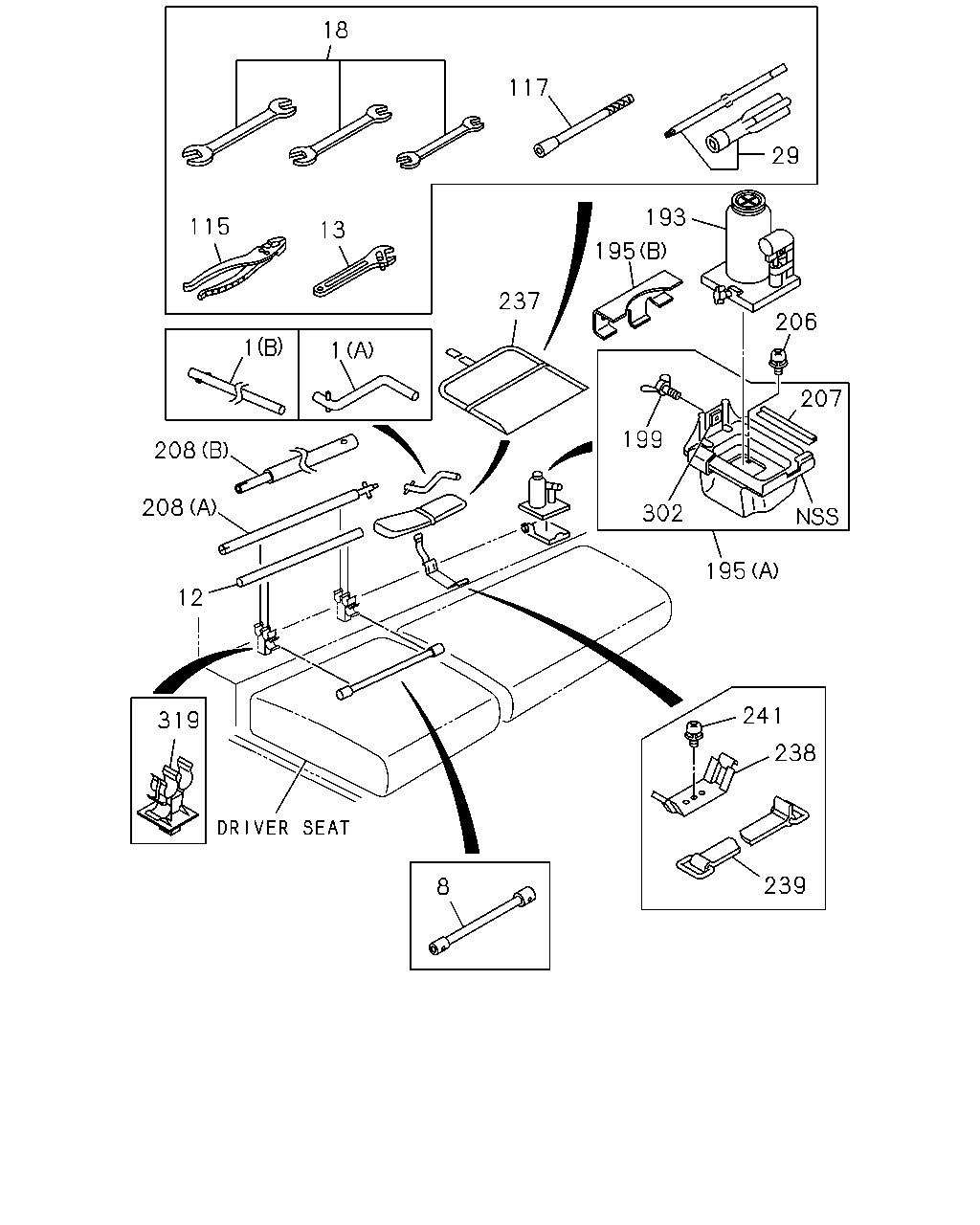

çizim 51547
18 117 29 193 115 13 195 237 206 1 1 207 199 208 208 302 195 12 241 319 238 239 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 07.629 HANDLE; SPARE TIRE CARRIER
FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280 		1-85515-007-0 01 1 9811- ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 (A) 		9-85512-608-0 01 1 9811-9902 ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
08.820 (A) 		9-85512-608-0 01 1 9811-9902 ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97218-985-0 01 1 9903- ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 9903- ● ● ●
8 08.821 WRENCH; WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6 .00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP), FRT&RR 8.25-16-14L 16X6.00GS-135 6-W HL/NUT(9ZQ),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7. 5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC (97V) EXC. HYDRO MASTER<7LT> B=41X21 L=440 		1-85113-015-1 01 1 9811-0105 ● ● ● ● ● ●
8 08.821 WRENCH; WHEEL
HYDRO MASTER<7LT> B=41X21 L=440 		1-85113-015-1 01 1 9811-0105 ● ● ●
8 08.821 WRENCH; WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6 .00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP), FRT&RR 8.25-16-14L 16X6.00GS-135 6-W HL/NUT(9ZQ),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7. 5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC (97V) EXC. HYDRO MASTER<7LT> B=41X21 L=440 		1-85113-015-1 01 1 0106- ● ● ● ● ●
8 08.821 WRENCH; WHEEL
HYDRO MASTER<7LT> B=41X21 L=440 		1-85113-015-1 01 1 0106- ● ● ●
8 08.821 WRENCH; WHEEL
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-127(ASF),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5F-115(08H), FRT&RR 7.5-16-6 6GSX16-127(09H), FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7 .5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16- 6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16-10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX 16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-12 7(18H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5 FX16-115 H/D(51C),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C),FRT&RR 7-16-8 16X 5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-1 2 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX 16-115 T/VLV TR177A(98H),FRT&RR 7-16-12L 5.5FX16-115(99H) B=41X19 L=330 		8-94386-490-1 01 1 9811-9903 ● ● ● ●
8 08.821 WRENCH; WHEEL
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-127(ASF),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5F-115(08H), FRT&RR 7.5-16-6 6GSX16-127(09H), FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7 .5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16- 6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16-10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX 16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-12 7(18H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5 FX16-115 H/D(51C),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C),FRT&RR 7-16-8 16X 5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-1 2 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX 16-115 T/VLV TR177A(98H),FRT&RR 7-16-12L 5.5FX16-115(99H) B=41X19 L=330 		8-94386-490-1 01 1 9904-0012 ● ● ● ●
8 08.821 WRENCH; WHEEL
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-127(ASF),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5F-115(08H), FRT&RR 7.5-16-6 6GSX16-127(09H), FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7 .5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16- 6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16-10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX 16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-12 7(18H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5 FX16-115 H/D(51C),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C),FRT&RR 7-16-8 16X 5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-1 2 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX 16-115 T/VLV TR177A(98H),FRT&RR 7-16-12L 5.5FX16-115(99H) B=41X19 L=330 		8-94386-490-1 01 1 0101- ● ● ● ●
8 08.821 WRENCH; WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) B=41X19 L=330 		8-94386-490-1 01 1 0101- ●
8 08.821 WRENCH; WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) B=35X17 L=300 		8-94341-283-1 01 1 0101- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590 		8-94430-092-0 01 1 9811-0204 ● ● ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-94430-092-0 01 1 9811-0204 ● ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590 		8-97332-988-0 01 1 0205- ● ● ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-97332-988-0 01 1 0205- ● ● ●
13 08.821 WRENCH; MONKEY
HYDRO MASTER<7LT> 		8-94310-178-0 01 1 9811- ● ● ●
18 08.821 WRENCH KIT 9-85161-902-0 01 1 9811- ● ● ● ● ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 9811- ● ● ● ● ● ● ●
115 08.821 PLIER 5-85171-002-0 01 1 9811- ● ● ● ● ● ●
117 08.821 WRENCH; VALVE CAP 9-85163-906-1 01 1 9811- ● ● ● ● ● ●
193 08.820 JACK ASM
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) FRAME STRAIGHT TYPE<7KJ> 5TON 		8-97131-077-2 01 1 9811-0105 ● ● ● ●
193 08.820 JACK ASM
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) 5TON 		8-97131-077-2 01 1 9811-0105 ●
193 08.820 JACK ASM
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) FRAME STRAIGHT TYPE<7KJ> 5TON 		8-97131-077-2 01 1 0106- ● ●
193 08.820 JACK ASM
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) 5TON 		8-97131-077-2 01 1 0106- ●
193 08.820 JACK ASM
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR T IRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 195/85R16 16 X5.5J-116.5(AZX),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT(06C),FRT&RR 7R-16- 8 16X5.5F-115(06H),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R- 16-10 16X5.5F-115(07H),FRT&RR 7R-16-10 5.5FX16-127 6-WHL/NUT(08C),FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7- 16-12 5.5FX16-127 6-WHL/NUT(09C), FRT&RR 7-16-12L 5.5FX16-127 6-WHL/NUT(10C),FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-11 5 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16- 10 5.5FX16-127 6-WHL/NUT H/D(53C), FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT H /D(54C),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLVTR177A(95H),FRT&RR 7-16-12 16X5.5F-1 15(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H),FRT&RR 7-16-12L 5.5FX1 6-115(99H) AUSTRALIA EQUIPMENT(RR3) 4TON 		8-94438-019-0 01 1 9811-9903 ● ● ● ● ●
193 08.820 JACK ASM
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR T IRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 205/85R16 16 X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7-16-10 5.5F X16-127 6-WHL/NUT(06C),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7-16-10L 5 .5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16- 10 5.5FX16-127 6-WHL/NUT(08C), FRT&RR7R-16-12 16X5.5F-115(08H),FRT&RR 7- 16-12 5.5FX16-127 6-WHL/NUT(09C), FRT&RR 7-16-12L 5.5FX16-127 6-WHL/NUT(10C),FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-11 5 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16- 10 5.5FX16-127 6-WHL/NUT H/D(53C), FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT H /D(54C),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLVTR177A(95H),FRT&RR 7-16-12 16X5.5F-1 15(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H),FRT&RR 7-16-12L 5.5FX1 6-115(99H) AUSTRALIA EQUIPMENT(RR3) 4TON 		8-94438-019-1 01 1 9904- ● ● ● ● ●
193 08.820 JACK ASM
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR T IRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 195/85R16 16 X5.5J-116.5(AZX),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT(06C),FRT&RR 7R-16- 8 16X5.5F-115(06H),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R- 16-10 16X5.5F-115(07H),FRT&RR 7R-16-10 5.5FX16-127 6-WHL/NUT(08C),FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7- 16-12 5.5FX16-127 6-WHL/NUT(09C), FRT&RR 7-16-12L 5.5FX16-127 6-WHL/NUT(10C),FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-11 5 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16- 10 5.5FX16-127 6-WHL/NUT H/D(53C), FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT H /D(54C),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLVTR177A(95H),FRT&RR 7-16-12 16X5.5F-1 15(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H),FRT&RR 7-16-12L 5.5FX1 6-115(99H) EXC. AUSTRALIA EQUIPMENT(RR3) 4TON 		8-97131-075-1 01 1 9811-9903 ● ● ● ● ●
193 08.820 JACK ASM
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR T IRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 205/85R16 16 X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7-16-10 5.5F X16-127 6-WHL/NUT(06C),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7-16-10L 5 .5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16- 10 5.5FX16-127 6-WHL/NUT(08C), FRT&RR7R-16-12 16X5.5F-115(08H),FRT&RR 7- 16-12 5.5FX16-127 6-WHL/NUT(09C), FRT&RR 7-16-12L 5.5FX16-127 6-WHL/NUT(10C),FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-11 5 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16- 10 5.5FX16-127 6-WHL/NUT H/D(53C), FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT H /D(54C),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLVTR177A(95H),FRT&RR 7-16-12 16X5.5F-1 15(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H),FRT&RR 7-16-12L 5.5FX1 6-115(99H) EXC. AUSTRALIA EQUIPMENT(RR3) 4TON 		8-97131-075-2 01 1 9904-0012 ● ● ● ● ●
193 08.820 JACK ASM
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR T IRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 205/85R16 16 X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7-16-10 5.5F X16-127 6-WHL/NUT(06C),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7-16-10L 5 .5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16- 10 5.5FX16-127 6-WHL/NUT(08C), FRT&RR7R-16-12 16X5.5F-115(08H),FRT&RR 7- 16-12 5.5FX16-127 6-WHL/NUT(09C), FRT&RR 7-16-12L 5.5FX16-127 6-WHL/NUT(10C),FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-11 5 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16- 10 5.5FX16-127 6-WHL/NUT H/D(53C), FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT H /D(54C),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLVTR177A(95H),FRT&RR 7-16-12 16X5.5F-1 15(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H),FRT&RR 7-16-12L 5.5FX1 6-115(99H) EXC. AUSTRALIA EQUIPMENT(RR3) 4TON 		8-97131-075-2 01 1 0101-0105 ● ● ● ● ●
193 08.820 JACK ASM
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) 4TON 		8-97131-075-2 01 1 0101-0105 ●
193 08.820 JACK ASM
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR T IRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 205/85R16 16 X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7-16-10 5.5F X16-127 6-WHL/NUT(06C),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7-16-10L 5 .5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16- 10 5.5FX16-127 6-WHL/NUT(08C), FRT&RR7R-16-12 16X5.5F-115(08H),FRT&RR 7- 16-12 5.5FX16-127 6-WHL/NUT(09C), FRT&RR 7-16-12L 5.5FX16-127 6-WHL/NUT(10C),FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-11 5 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16- 10 5.5FX16-127 6-WHL/NUT H/D(53C), FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT H /D(54C),FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 1 6X5.5F-115 RR 175R14-8 14X5J-112(73C),FRT&RR 7-16-8 16X5.5F-115(94H),FRT &RR 7-16-10 16X5.5F-115 T/VLV TR177A (95H),FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FR T&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H),FRT&RR 7-16-12L 5.5FX16-115(99H) EXC. AUSTRALIA EQUIPMENT(RR3) 4TON 		8-97131-075-2 01 1 0106- ● ● ● ● ● ● ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-127(ASG),FRT&RR 7.5R-16-12 FRT& RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C),FRT&RR 7 .5-16-8L 6GSX16-127 6-WHL/NUT(01C), FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT (02C),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX1 6-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-1 0 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX 16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16-10L 6GSX16-12 7(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H), FRT&RR 7.5R-16-12 6GSX16-127(19H), FRT&RR 7.5-16-10 6GSX16-127 H/D(52C),F RT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-1 27 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5- 16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) AUSTRALIA EQUIPMENT(RR3) 5TON 		8-94438-021-1 01 1 9811-0105 ● ● ● ● ●
193 08.820 JACK ASM
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> 5TON 		8-94438-021-1 01 1 9811-0105 ● ● ● ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-127(ASG),FRT&RR 7.5R-16-12 FRT& RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C),FRT&RR 7 .5-16-8L 6GSX16-127 6-WHL/NUT(01C), FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT (02C),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX1 6-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-1 0 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX 16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16-10L 6GSX16-12 7(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H), FRT&RR 7.5R-16-12 6GSX16-127(19H), FRT&RR 7.5-16-10 6GSX16-127 H/D(52C),F RT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-1 27 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5- 16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) AUSTRALIA EQUIPMENT(RR3) 5TON 		8-94438-021-1 01 1 0106- ● ● ● ● ●
193 08.820 JACK ASM
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> 5TON 		8-94438-021-1 01 1 0106- ● ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-127(ASG),FRT&RR 7.5R-16-12 FRT& RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C),FRT&RR 7 .5-16-8L 6GSX16-127 6-WHL/NUT(01C), FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT (02C),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX1 6-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-1 0 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX 16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16-10L 6GSX16-12 7(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H), FRT&RR 7.5R-16-12 6GSX16-127(19H), FRT&RR 7.5-16-10 6GSX16-127 H/D(52C),F RT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-1 27 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5- 16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. AUSTRALIA EQUIPMENT(RR3) 5TON 		8-97131-076-2 01 1 9811-0105 ● ● ● ● ●
193 08.820 JACK ASM
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) EXC. AUSTRALIA EQUIPMENT(RR3),FRAME STRAIGHT TYPE<7KJ> 5TON 		8-97131-076-2 01 1 9811-0105 ● ● ● ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-127(ASG),FRT&RR 7.5R-16-12 FRT& RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C),FRT&RR 7 .5-16-8L 6GSX16-127 6-WHL/NUT(01C), FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT (02C),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX1 6-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-1 0 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX 16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16-10L 6GSX16-12 7(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H), FRT&RR 7.5R-16-12 6GSX16-127(19H), FRT&RR 7.5-16-10 6GSX16-127 H/D(52C),F RT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-1 27 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5- 16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. AUSTRALIA EQUIPMENT(RR3) 5TON 		8-97131-076-2 01 1 0106- ● ● ● ● ● ●
193 08.820 JACK ASM
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) EXC. AUSTRALIA EQUIPMENT(RR3),FRAME STRAIGHT TYPE<7KJ> 5TON 		8-97131-076-2 01 1 0106- ● ●
195 08.820 BRACKET; JACK
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7R-16-8 16X5.5F-115(06H), FRT&RR 7R-16-10 16X5.5F-115(07H),FRT& RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAM IC(95V) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97857-476-2 01 1 0106- ● ● ●
195 08.820 BRACKET; JACK
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7R-16-8 16X5.5F-115(06H), FRT&RR 7R-16-10 16X5.5F-115(07H),FRT& RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAM IC(95V) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97857-476-2 01 1 9811-0010 ● ● ● ●
195 08.820 BRACKET; JACK
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97866-907-1 01 1 9811- ● ● ● ● ●
195 08.820 BRACKET; JACK
AUSTRALIA EQUIPMENT(RR3) (A) 		8-97867-267-2 01 1 9811- ● ● ● ● ●
195 08.820 BRACKET; JACK
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-94262-068-2 01 1 9811- ● ● ● ● ●
195 08.820 BRACKET; JACK
(A) 		8-94262-068-2 01 1 9811- ● ●
195 08.820 BRACKET; JACK
AUSTRALIA EQUIPMENT(RR3) (A) 		8-94273-769-4 01 1 9811- ●
199 08.820 BOLT; JACK
AUSTRALIA EQUIPMENT(RR3) M8X30 WING 		8-94279-018-1 01 1 9811- ● ● ● ● ●
199 08.820 BOLT; JACK
EXC. AUSTRALIA EQUIPMENT(RR3) M8X50 WING 		8-94279-136-0 01 1 9811- ● ● ● ● ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 9811- ● ●
206 08.820 SCREW; OIL JACK BRKT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9811- ● ● ● ● ● ● ●
207 08.820 PROTECTOR; JACK
AUSTRALIA EQUIPMENT(RR3) 		8-97866-908-2 01 1 9811- ● ● ● ● ●
208 08.820 HANDLE; JACK
FRAME STRAIGHT TYPE<7KJ> (B) L=580 		1-85515-005-1 01 1 9811- ● ● ● ●
208 08.820 HANDLE; JACK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		9-85512-607-0 01 1 9811-9909 ● ● ● ●
208 08.820 HANDLE; JACK
(A) 		9-85512-607-0 01 1 9811-9909 ● ●
208 08.820 HANDLE; JACK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642 		8-97217-800-0 01 1 9910- ● ● ● ●
208 08.820 HANDLE; JACK
(A) L=642 		8-97217-800-0 01 1 9910- ● ● ●
237 08.821 BAG; TOOL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6 .00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP), FRT&RR 8.25-16-14L 16X6.00GS-135 6-W HL/NUT(9ZQ),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7. 5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC (97V) EXC. HYDRO MASTER<7LT> 		8-97130-903-0 01 1 9811-9811 ● ● ● ● ● ●
237 08.821 BAG; TOOL
HYDRO MASTER<7LT> 		8-97130-903-0 01 1 9811-9811 ● ● ●
237 08.821 BAG; TOOL 8-97130-903-0 01 1 9812- ● ● ● ● ● ● ●
237 08.821 BAG; TOOL
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-127(ASF),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5F-115(08H), FRT&RR 7.5-16-6 6GSX16-127(09H), FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7 .5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16- 6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16-10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX 16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-12 7(18H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5 FX16-115 H/D(51C),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C),FRT&RR 7-16-8 16X 5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-1 2 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX 16-115 T/VLV TR177A(98H),FRT&RR 7-16-12L 5.5FX16-115(99H) 		8-97130-902-0 01 1 9811-9811 ● ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-97866-879-0 01 1 9811-0101 ● ● ● ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0102- ● ● ● ● ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 9811- ● ● ● ● ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9811- ● ● ● ● ● ●
302 08.820 NUT; JACK BRKT
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94279-522-0 01 1 9811-0010 ● ● ● ●
302 08.820 NUT; JACK BRKT
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-127(ASF),FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-127(ASG),FRT&RR 7.5R-16-12 F RT&RR 6.00GSX16-127(ASH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127(AUS),F RT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT (02C),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5R-16-12 6GSX1 6-127 6-WHL/NUT(05C),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5 F-115(08H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-10L 6G SX16-127 6WHL/NUT DYNAMIC(95V) 		8-94279-522-0 01 1 9811-0010 ● ● ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 9811-0010 ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 0011- ● ● ● ● ● ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 9811- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
