◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#18813) — 64 parça
çizim 8162
74 78 210
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
31 09.181 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 9811- ● ● ● ● ● ●
33 09.181 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 9811- ● ● ● ● ● ●
74 09.215 DUCT; EVAP TO HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-97042-260-4 01 1 9811-0007 ● ● ● ● ● ● ●
74 09.215 DUCT; EVAP TO HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-97262-801-0 01 1 0008- ● ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9811- ● ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9811- ● ● ● ● ● ● ●
210 09.242 CLIP; HARNESS
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9811- ● ● ● ● ● ● ●
210 09.242 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 9811- ● ● ● ● ● ● ●
çizim 8844
74 78 210
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
31 09.181 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 9811- ● ● ● ● ● ●
33 09.181 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 9811- ● ● ● ● ● ●
74 09.215 DUCT; EVAP TO HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-97042-260-4 01 1 9811-0007 ● ● ● ● ● ● ●
74 09.215 DUCT; EVAP TO HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-97262-801-0 01 1 0008- ● ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9811- ● ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9811- ● ● ● ● ● ● ●
210 09.242 CLIP; HARNESS
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9811- ● ● ● ● ● ● ●
210 09.242 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 9811- ● ● ● ● ● ● ●

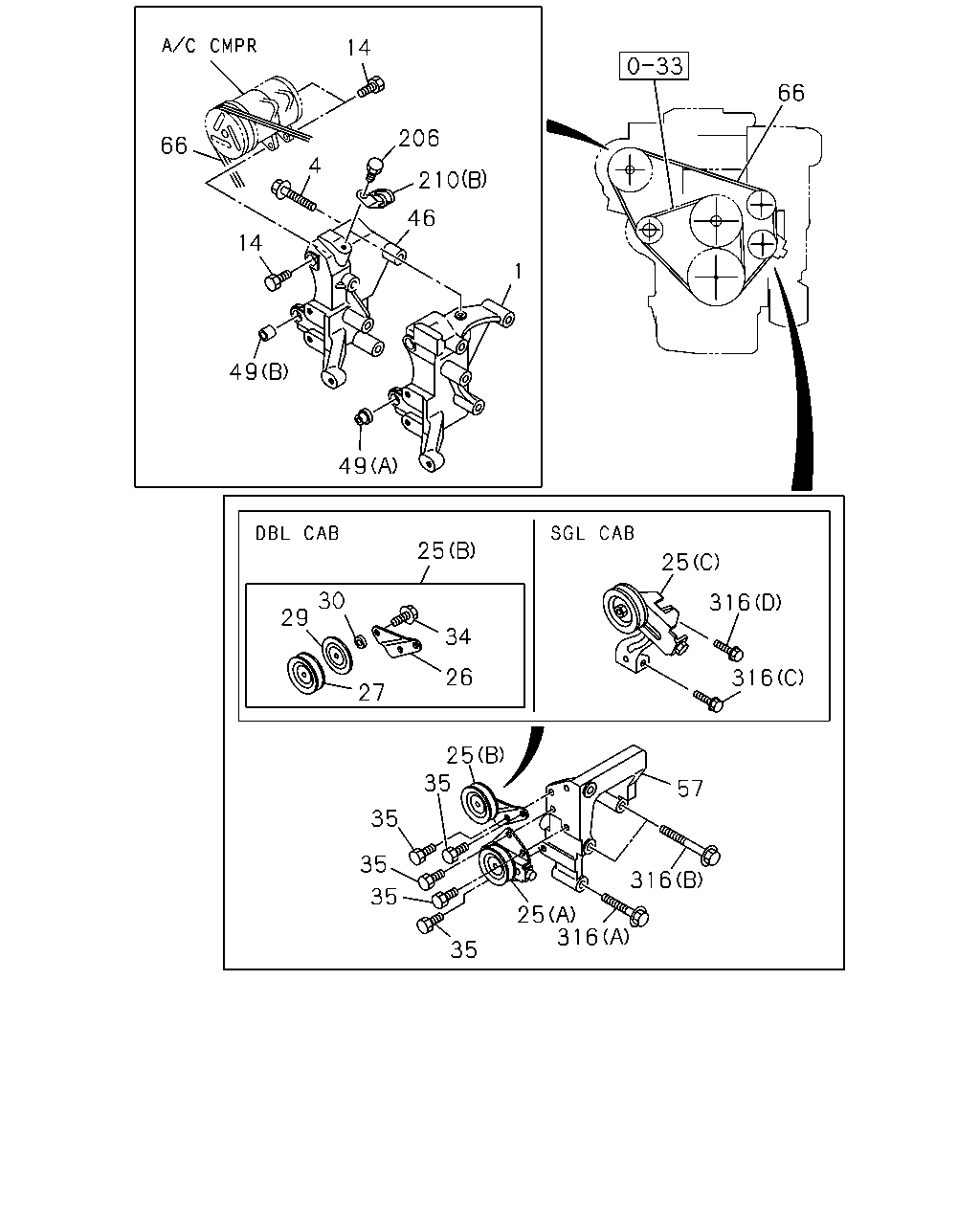

çizim 50937
14 66 206 66 4 210 46 14 1 49 49 25 25 30 316 29 34 26 316 27 25 35 57 35 35 316 35 25 316 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 09.242 BRACKET; A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97116-230-2 01 1 9811- ● ● ● ● ●
1 09.242 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97116-230-2 01 1 9811- ●
4 09.171 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE 		8-94399-863-1 02 1 9811- ● ● ● ● ● ● ●
4 09.171 BOLT; A/C CMPR BRKT
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 01.062 M10X85 FLANGE 		8-94397-359-1 02 1 9811- ● ● ● ● ●
4 09.171 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONT(C60) 01.062 M10X85 FLANGE 		8-94397-359-1 02 1 9811- ●
4 09.171 BOLT; A/C CMPR BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.173 M10X90 FLANGE 		0-28181-090-0 01 1 9811- ● ● ● ● ● ●
14 09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) 03.708 M10X40 		0-28281-040-0 04 1 9811- ● ● ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE 		8-97161-198-0 01 1 9811- ● ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE 		8-94334-696-2 01 1 9811-0105 ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE 		8-94334-696-2 01 1 0106- ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE 		8-94334-873-0 01 1 9811-0105 ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE 		8-94334-873-0 01 1 0106- ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97060-362-0 01 1 9811-0105 ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-97060-362-0 01 1 0106- ●
26 09.180 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97161-031-0 01 1 9811- ● ● ● ● ● ●
27 09.180 PULLEY; IDLE,A/C
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		9-13663-606-0 01 1 9811-0105 ●
27 09.180 PULLEY; IDLE,A/C
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		9-13663-606-0 01 1 0106- ●
27 09.180 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97386-869-0 01 1 9811- ● ● ● ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		9-13669-603-0 02 1 9811-0105 ●
29 09.181 COVER; DUST,IDLE PULLEY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (A) 		9-13669-603-0 02 1 0106- ●
29 09.181 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-114-0 01 1 9811- ● ● ● ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97384-115-0 01 1 9811- ● ● ● ● ● ●
30 09.181 COLLAR; IDLE PULLEY
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-94207-192-0 01 1 9811-0105 ●
30 09.181 COLLAR; IDLE PULLEY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-94207-192-0 01 1 0106- ●
30 09.181 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-117-0 01 1 9811- ● ● ● ● ● ●
31 09.181 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 9811- ● ● ● ● ● ●
33 09.181 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 9811- ● ● ● ● ● ●
34 09.181 SHAFT; IDLE PULLEY
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.277 M10X30 		0-28121-030-0 01 1 9811-0105 ●
34 09.181 SHAFT; IDLE PULLEY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 02.277 M10X30 		0-28121-030-0 01 1 0106- ●
34 09.181 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-116-0 01 1 9811- ● ● ● ● ● ●
35 09.181 BOLT; IDLER PULLEY TO C/BL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 M8X16 FLANGE 		0-28080-816-0 05 1 9811-0105 ●
35 09.181 BOLT; IDLER PULLEY TO C/BL
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 01.062 M8X16 FLANGE 		0-28080-816-0 05 1 0106- ●
46 09.171 BRACKET; CMPR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97147-029-0 01 1 9811- ● ● ● ● ● ●
49 09.171 COLLAR; BRKT,CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94201-057-1 02 1 9811- ● ● ● ● ●
49 09.171 COLLAR; BRKT,CMPR
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94201-057-1 02 1 9811- ●
49 09.171 COLLAR; BRKT,CMPR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97147-059-0 02 1 9811- ● ● ● ● ● ●
57 09.171 BRACKET; IDLER PULLEY
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97081-262-2 01 1 9811-0105 ●
57 09.171 BRACKET; IDLER PULLEY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-97081-262-2 01 1 0106- ●
66 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-2 01 1 9811- ● ● ● ● ● ● ●
206 09.242 BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE 		0-28280-612-0 01 1 9811- ● ● ● ● ● ● ●
210 09.242 CLIP; HARNESS
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9811- ● ● ● ● ● ● ●
210 09.242 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 9811- ● ● ● ● ● ● ●
316 09.242 BOLT; BRKT FIX
AIR CONDITIONER MANUAL CONT(C60) 01.780 (D) M8X50 FLANGE 		0-28080-850-0 01 1 9811- ● ● ● ● ● ●
316 09.242 BOLT; BRKT FIX
AIR CONDITIONER MANUAL CONT(C60) 04.510 (C) M10X65 FLANGE 		8-94344-540-1 01 1 9811- ● ● ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X100 FLANGE 		0-28181-000-0 01 1 9811-0105 ●
316 09.242 BOLT; BRKT FIX
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X100 FLANGE 		0-28181-000-0 01 1 0106- ●
316 09.242 BOLT; BRKT FIX
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.330 (B) M10X60 FLANGE 		0-28181-060-0 02 1 9811-0105 ●
316 09.242 BOLT; BRKT FIX
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 03.330 (B) M10X60 FLANGE 		0-28181-060-0 02 1 0106- ●
