8-45 — HEATER PIPING (#18812) — 81 parça

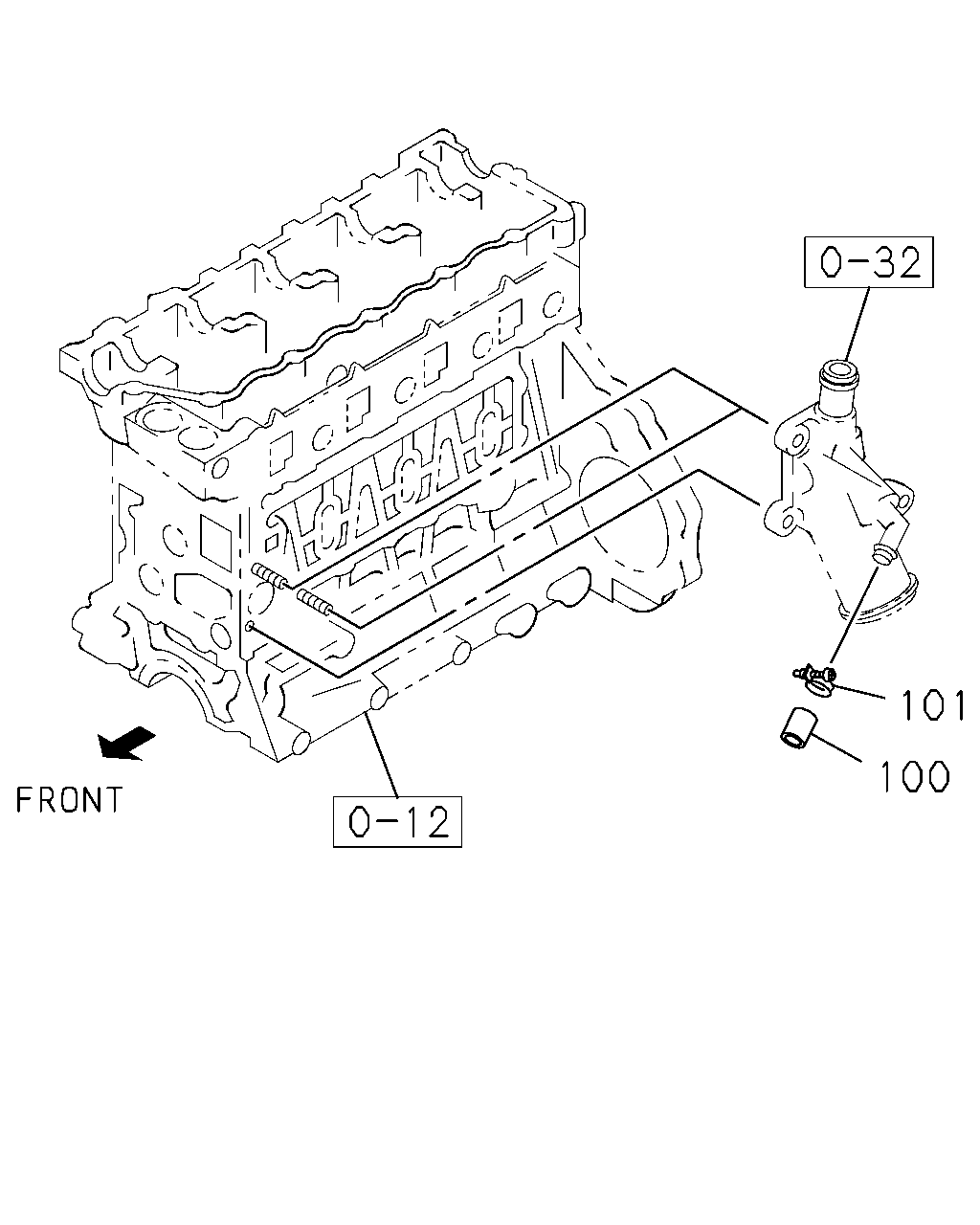

çizim 8161
101 100
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
100 08.846 CAP; RUBBER,WATER PIPE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 		8-94107-793-0 01 1 9811-9902 ● ● ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 		8-94107-793-0 02 1 9903-0105 ● ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 		8-94107-793-0 02 1 0106- ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POW ER N-SPEC(7QV) 01.166 		8-94107-793-0 01 1 9903-0012 ● ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POW ER N-SPEC(7QV) 01.166 		8-94107-793-0 01 1 0101-0105 ● ● ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POW ER N-SPEC(7QV) 01.166 		8-94107-793-0 01 1 0106-0205 ● ● ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> EXC. HEATER & DEFROSTER(C41) 01.166 		8-94107-793-0 01 1 0106-0205 ● ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41),EURO3 SPECIFICATION<NT3> 01.166 		8-94107-793-0 01 1 0206-0207 ● ● ● ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POW ER N-SPEC(7QV) 01.166 		8-94107-793-0 01 1 0206-0207 ● ● ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41),EURO3 SPECIFICATION<NT3> 01.166 		8-94107-793-0 01 1 0208- ● ● ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POW ER N-SPEC(7QV) 01.166 		8-94107-793-0 01 1 0208- ● ● ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HE1 ENG(RLY) M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 01.166 		8-94107-793-0 01 1 0208- ● ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25 		8-94233-115-0 01 1 9811-9902 ● ● ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25 		8-94233-115-0 02 1 9903-0105 ● ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25 		8-94233-115-0 02 1 0106- ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POW ER N-SPEC(7QV) 01.166 ID=25 		8-94233-115-0 01 1 9903-0012 ● ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POW ER N-SPEC(7QV) 01.166 ID=25 		8-94233-115-0 01 1 0101-0105 ● ● ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POW ER N-SPEC(7QV) 01.166 ID=25 		8-94233-115-0 01 1 0106-0205 ● ● ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> EXC. HEATER & DEFROSTER(C41) 01.166 ID=25 		8-94233-115-0 01 1 0106-0205 ● ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41),EURO3 SPECIFICATION<NT3> 01.166 ID=25 		8-94233-115-0 01 1 0206-0207 ● ● ● ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POW ER N-SPEC(7QV) 01.166 ID=25 		8-94233-115-0 01 1 0206-0207 ● ● ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41),EURO3 SPECIFICATION<NT3> 01.166 ID=25 		8-94233-115-0 01 1 0208- ● ● ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POW ER N-SPEC(7QV) 01.166 ID=25 		8-94233-115-0 01 1 0208- ● ● ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HE1 ENG(RLY) M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 01.166 ID=25 		8-94233-115-0 01 1 0208- ● ● ● ● ●

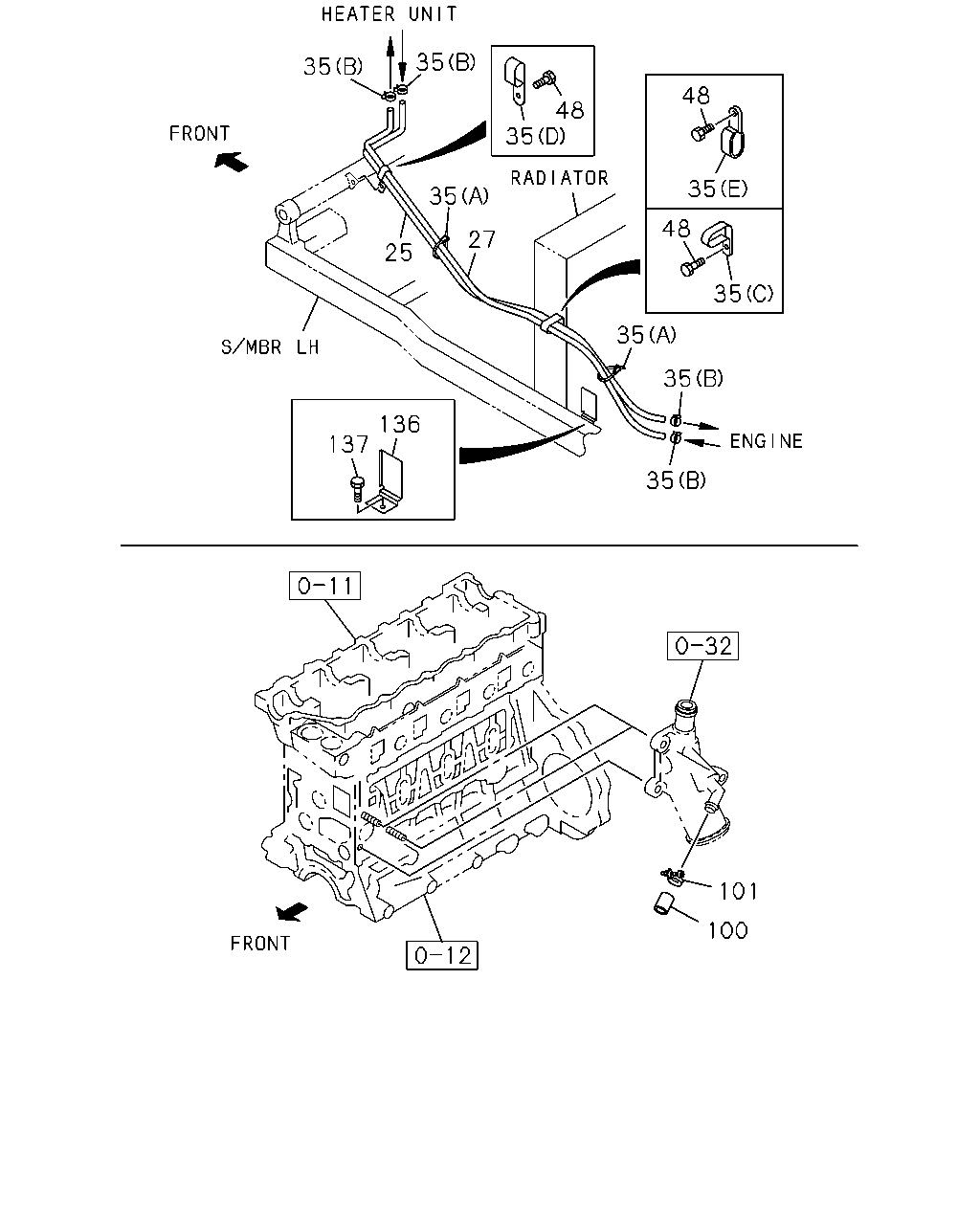

çizim 46805
35 35 48 48 35 35 35 48 27 25 35 35 35 136 137 35 101 100
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 		8-97129-209-1 01 1 9811-0105 ● ● ● ● ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97129-209-1 01 1 9811-0105 ● ● ● ● ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 		8-97259-400-0 01 1 0106-0106 ● ● ● ● ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97259-400-0 01 1 0106-0106 ● ● ● ● ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 		8-97321-708-0 01 1 0107- ● ● ● ● ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97321-708-0 01 1 0107- ● ● ● ● ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 		8-97149-152-4 01 1 9811-0105 ● ● ● ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 		8-97149-152-4 01 1 9811-0105 ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 		8-97149-152-4 01 1 0106- ● ● ● ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97149-152-4 01 1 0106- ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 		8-97129-208-1 01 1 9811-0105 ● ● ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97129-208-1 01 1 9811-0105 ● ● ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 		8-97259-401-0 01 1 0106- ● ● ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97259-401-0 01 1 0106- ● ● ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 		8-97149-153-2 01 1 9811-0105 ● ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 		8-97149-153-2 01 1 9811-0105 ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 		8-97149-153-2 01 1 0106- ● ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97149-153-2 01 1 0106- ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250 		5-09707-030-1 02 1 9811- ● ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22 		8-94382-401-0 04 1 9811- ● ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18 		9-83651-948-1 01 1 9811- ● ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (D) B=18 		9-83651-948-1 01 1 9811- ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (C) 		5-83574-006-0 01 1 9811-0105 ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 9811-0105 ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) 		8-97191-097-0 01 1 0106- ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (E) 		8-97191-097-0 01 1 0106- ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250 		5-09707-030-1 01 1 9811- ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9811- ● ● ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9811- ● ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9811- ● ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9811- ● ● ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 		8-94107-793-0 01 1 9811-9902 ● ● ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 		8-94107-793-0 02 1 9903-0105 ● ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 		8-94107-793-0 02 1 0106- ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POW ER N-SPEC(7QV) 01.166 		8-94107-793-0 01 1 9903-0012 ● ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POW ER N-SPEC(7QV) 01.166 		8-94107-793-0 01 1 0101-0105 ● ● ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POW ER N-SPEC(7QV) 01.166 		8-94107-793-0 01 1 0106-0205 ● ● ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> EXC. HEATER & DEFROSTER(C41) 01.166 		8-94107-793-0 01 1 0106-0205 ● ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41),EURO3 SPECIFICATION<NT3> 01.166 		8-94107-793-0 01 1 0206-0207 ● ● ● ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POW ER N-SPEC(7QV) 01.166 		8-94107-793-0 01 1 0206-0207 ● ● ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41),EURO3 SPECIFICATION<NT3> 01.166 		8-94107-793-0 01 1 0208- ● ● ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POW ER N-SPEC(7QV) 01.166 		8-94107-793-0 01 1 0208- ● ● ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HE1 ENG(RLY) M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 01.166 		8-94107-793-0 01 1 0208- ● ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25 		8-94233-115-0 01 1 9811-9902 ● ● ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25 		8-94233-115-0 02 1 9903-0105 ● ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25 		8-94233-115-0 02 1 0106- ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POW ER N-SPEC(7QV) 01.166 ID=25 		8-94233-115-0 01 1 9903-0012 ● ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POW ER N-SPEC(7QV) 01.166 ID=25 		8-94233-115-0 01 1 0101-0105 ● ● ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POW ER N-SPEC(7QV) 01.166 ID=25 		8-94233-115-0 01 1 0106-0205 ● ● ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> EXC. HEATER & DEFROSTER(C41) 01.166 ID=25 		8-94233-115-0 01 1 0106-0205 ● ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41),EURO3 SPECIFICATION<NT3> 01.166 ID=25 		8-94233-115-0 01 1 0206-0207 ● ● ● ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POW ER N-SPEC(7QV) 01.166 ID=25 		8-94233-115-0 01 1 0206-0207 ● ● ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41),EURO3 SPECIFICATION<NT3> 01.166 ID=25 		8-94233-115-0 01 1 0208- ● ● ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POW ER N-SPEC(7QV) 01.166 ID=25 		8-94233-115-0 01 1 0208- ● ● ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HE1 ENG(RLY) M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 01.166 ID=25 		8-94233-115-0 01 1 0208- ● ● ● ● ●
136 08.846 GUIDE; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 		8-97183-818-2 01 1 9811- ● ● ● ● ● ●
137 08.846 BOLT; GUIDE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9811- ● ● ● ● ● ●
