Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#18810) — 114 parça

72 72 45 44 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK>	8-97109-363-0	01	1	9811-	●	●	●	●	●	●	●
44	02.810 HORN; HIGH NOTE DUAL TONE HORN<U05>	8-97211-741-1	01	1	9812-	●	●	●	●	●	●	●
45	02.810 HORN; LOW NOTE EXC. SINGLE HEAVY DUTY HORN<6HG>	8-97211-740-0	01	1	9812-9904	●	●	●	●	●	●
45	02.810 HORN; LOW NOTE EXC. SINGLE HEAVY DUTY HORN<6HG>, DUAL HEAVY DUTY HORN<6KK>	8-97211-740-1	01	1	9905-	●	●	●	●	●	●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK>	8-97109-364-1	01	1	9811-9811	●	●	●	●	●	●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>	8-97109-364-1	01	1	9812-9904	●	●	●	●	●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK>	8-97109-364-1	01	1	9905-	●	●	●	●	●	●	●
46	02.812 BOLT; HORN TO BODY DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9811-9811	●	●	●	●	●	●
46	02.812 BOLT; HORN TO BODY SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9811-9811	●	●	●	●	●	●
46	02.812 BOLT; HORN TO BODY DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	9812-9904	●	●	●	●	●	●
46	02.812 BOLT; HORN TO BODY DUAL TONE HORN<U05>,DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	9905-	●	●	●	●	●	●	●
46	02.812 BOLT; HORN TO BODY EXC. DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9812-9904	●	●	●	●	●	●
46	02.812 BOLT; HORN TO BODY EXC. DUAL TONE HORN<U05>,DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9905-	●	●	●	●	●	●	●
72	02.760 PROTECTOR; RELAY FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 02.530 (B) L=65	8-94235-856-0	01	1	9811-	●	●	●	●		●
72	02.760 PROTECTOR; RELAY PTO TRANSMISSION SIDE(V66) 02.530 (B) L=65	8-94235-856-0	01	1	9811-					●		●
72	02.760 PROTECTOR; RELAY FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 16.225 (A) L=200 SERVICED BY L=3060	9-65731-223-1	01	1	9811-0012	●	●	●	●		●
72	02.760 PROTECTOR; RELAY FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 16.225 (A) L=200 SERVICED BY L=3060	9-65731-223-1	01	1	0101-0105	●	●	●	●		●
72	02.760 PROTECTOR; RELAY PTO TRANSMISSION SIDE(V66) 16.225 (A) L=200 SERVICED BY L=3060	9-65731-223-1	01	1	0101-0105							●
72	02.760 PROTECTOR; RELAY FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (A) L=200	8-97096-423-0	01	1	0106-	●	●	●			●
72	02.760 PROTECTOR; RELAY PTO TRANSMISSION SIDE(V66) 04.785 (A) L=200	8-97096-423-0	01	1	0106-							●

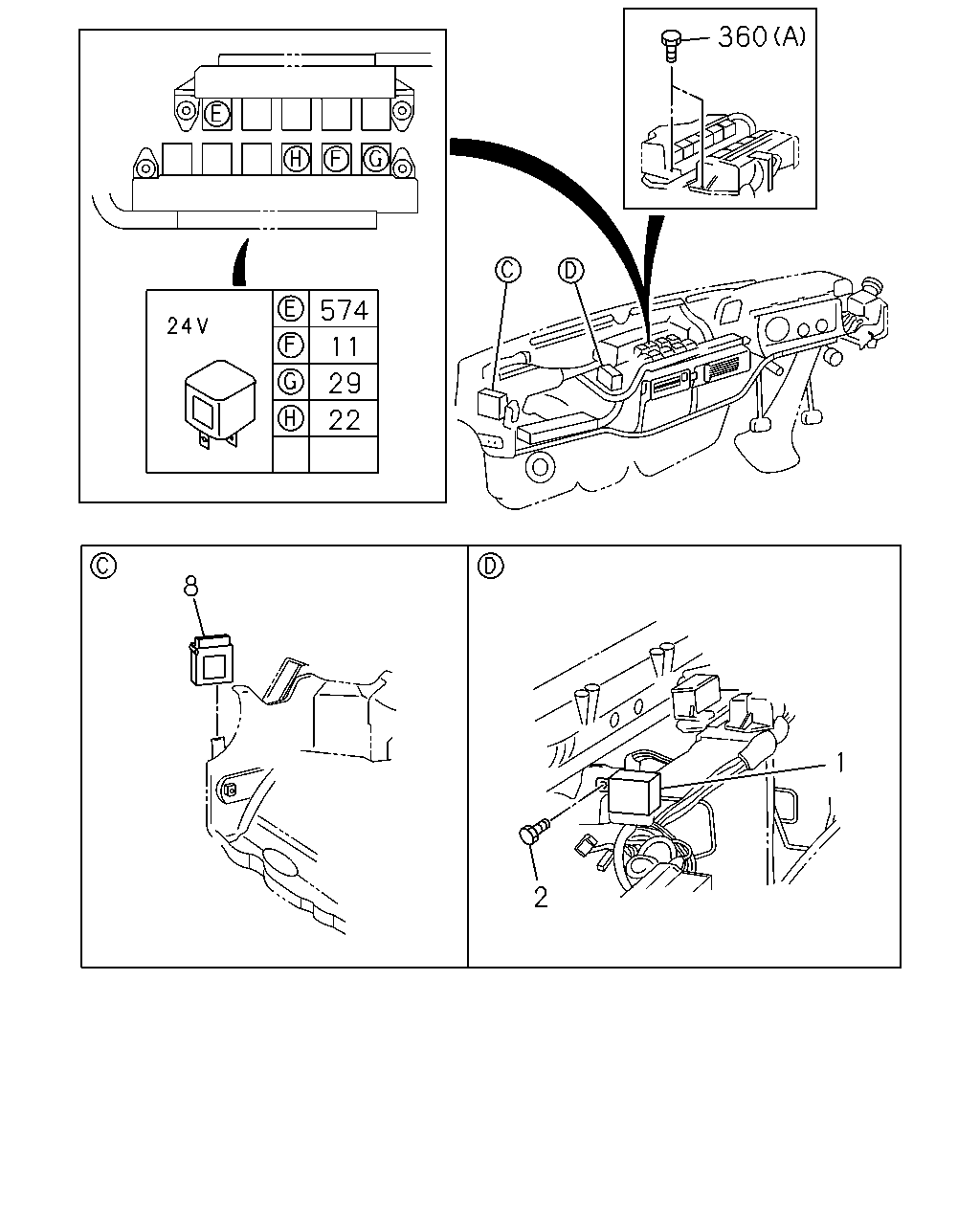

360 574 11 29 22 8 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	02.575 UNIT; FLASHER	8-97086-508-1	01	1	9811-0212	●	●	●	●	●	●	●
1	02.575 UNIT; FLASHER	8-97360-084-0	01	1	0301-	●	●	●	●	●	●	●
2	02.892 BOLT; FLASHER UNIT 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9811-	●	●	●	●	●	●	●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13>	8-97184-233-0	01	1	9811-	●	●	●	●	●	●	●
11	02.485 RELAY; DIMMER 02.510 24V 12.5A JIDECO	8-97062-815-1	01	1	9811-0104	●	●	●	●	●	●	●
11	02.485 RELAY; DIMMER 02.510 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0105-	●	●	●	●	●	●	●
22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A JIDECO	8-97062-815-1	01	1	9811-0104	●	●	●	●	●	●	●
22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0105-	●	●	●	●	●	●	●
29	02.815 RELAY; HORN 02.510 24V 12.5A JIDECO	8-97062-815-1	01	1	9811-0104	●	●	●	●	●	●	●
29	02.815 RELAY; HORN 02.510 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0105-	●	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH),4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	9811-0105	●	●	●	●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH),4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	0106-		●	●	●
360	02.483 BOLT; RELAY BOX AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9811-0012	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	0101-0105	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	0101-0105							●
360	02.483 BOLT; RELAY BOX AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	0106-	●	●	●	●		●
360	02.483 BOLT; RELAY BOX 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	0106-							●
360	02.483 BOLT; RELAY BOX AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	9811-0012	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0101-0105	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0101-0105							●
360	02.483 BOLT; RELAY BOX AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0106-	●	●	●	●		●
360	02.483 BOLT; RELAY BOX 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0106-							●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9811-0105	●	●	●	●		●
360	02.483 BOLT; RELAY BOX CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9811-0105					●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0106-	●	●	●	●		●
360	02.483 BOLT; RELAY BOX 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0106-					●
360	02.483 BOLT; RELAY BOX 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9811-0012	●				●	●
360	02.483 BOLT; RELAY BOX EXC. THAILAND EQUIPMENT(PM9) 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9811-0012		●	●	●
360	02.483 BOLT; RELAY BOX 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	0101-0105	●				●	●	●
360	02.483 BOLT; RELAY BOX EXC. THAILAND EQUIPMENT(PM9) 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	0101-0105		●	●	●
360	02.483 BOLT; RELAY BOX 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	0106-	●	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX THAILAND EQUIPMENT(PM9) 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	9811-0105		●	●	●
574	02.510 RELAY; CANCEL,BUZZER HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A JIDECO	8-97062-815-1	01	1	9811-0104	●	●	●	●
574	02.510 RELAY; CANCEL,BUZZER 24V 12.5A JIDECO	8-97062-815-1	01	1	9811-0104					●
574	02.510 RELAY; CANCEL,BUZZER HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0105-0105	●	●	●	●
574	02.510 RELAY; CANCEL,BUZZER 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0105-0105					●
574	02.510 RELAY; CANCEL,BUZZER HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0106-		●	●	●
574	02.510 RELAY; CANCEL,BUZZER 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0106-					●

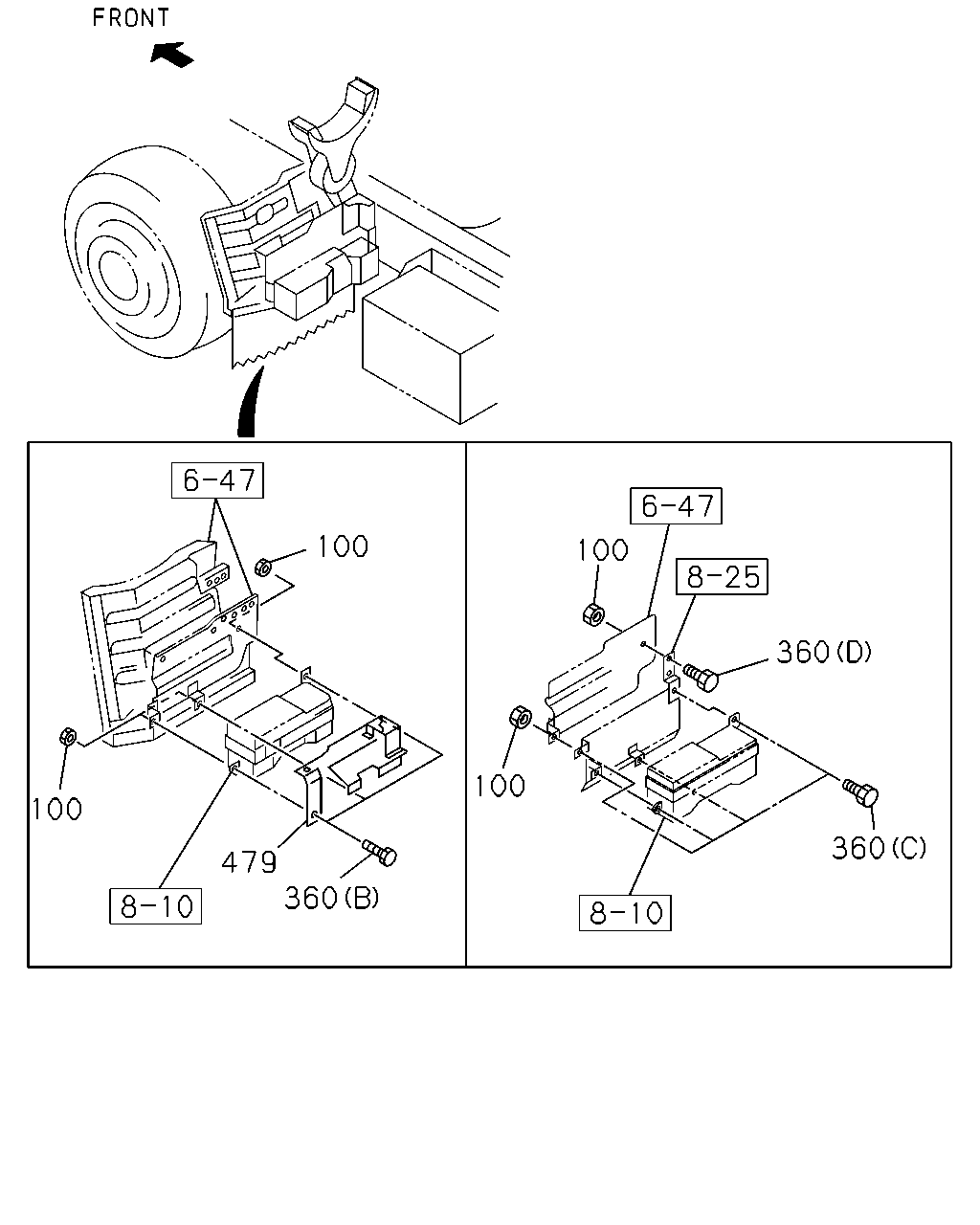

100 100 360 100 100 360 479 360

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
100	09.277 NUT; RELAY BOX COVER AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-0012	●	●	●	●	●	●
100	09.277 NUT; RELAY BOX COVER AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	02	1	0101-0105	●	●	●	●	●	●
100	09.277 NUT; RELAY BOX COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	0101-0105							●
100	09.277 NUT; RELAY BOX COVER AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●	●	●	●		●
100	09.277 NUT; RELAY BOX COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-							●
100	09.277 NUT; RELAY BOX COVER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	03	1	9811-0105	●	●	●	●	●	●
100	09.277 NUT; RELAY BOX COVER 4HG1 ENG(RJH),4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	03	1	9811-0105	●	●	●	●
100	09.277 NUT; RELAY BOX COVER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	03	1	0106-	●	●	●	●	●	●
100	09.277 NUT; RELAY BOX COVER 4HG1 ENG(RJH),4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	03	1	0106-		●	●	●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH),4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	9811-0105	●	●	●	●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH),4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	0106-		●	●	●
360	02.483 BOLT; RELAY BOX AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9811-0012	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	0101-0105	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	0101-0105							●
360	02.483 BOLT; RELAY BOX AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	0106-	●	●	●	●		●
360	02.483 BOLT; RELAY BOX 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	0106-							●
360	02.483 BOLT; RELAY BOX AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	9811-0012	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0101-0105	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0101-0105							●
360	02.483 BOLT; RELAY BOX AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0106-	●	●	●	●		●
360	02.483 BOLT; RELAY BOX 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0106-							●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9811-0105	●	●	●	●		●
360	02.483 BOLT; RELAY BOX CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9811-0105					●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0106-	●	●	●	●		●
360	02.483 BOLT; RELAY BOX 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0106-					●
360	02.483 BOLT; RELAY BOX 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9811-0012	●				●	●
360	02.483 BOLT; RELAY BOX EXC. THAILAND EQUIPMENT(PM9) 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9811-0012		●	●	●
360	02.483 BOLT; RELAY BOX 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	0101-0105	●				●	●	●
360	02.483 BOLT; RELAY BOX EXC. THAILAND EQUIPMENT(PM9) 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	0101-0105		●	●	●
360	02.483 BOLT; RELAY BOX 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	0106-	●	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX THAILAND EQUIPMENT(PM9) 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	9811-0105		●	●	●
479	09.277 PROTECTOR; RELAY BOX DUMP CHASSIS(V4D)	8-97114-263-0	01	1	9811-9901	●

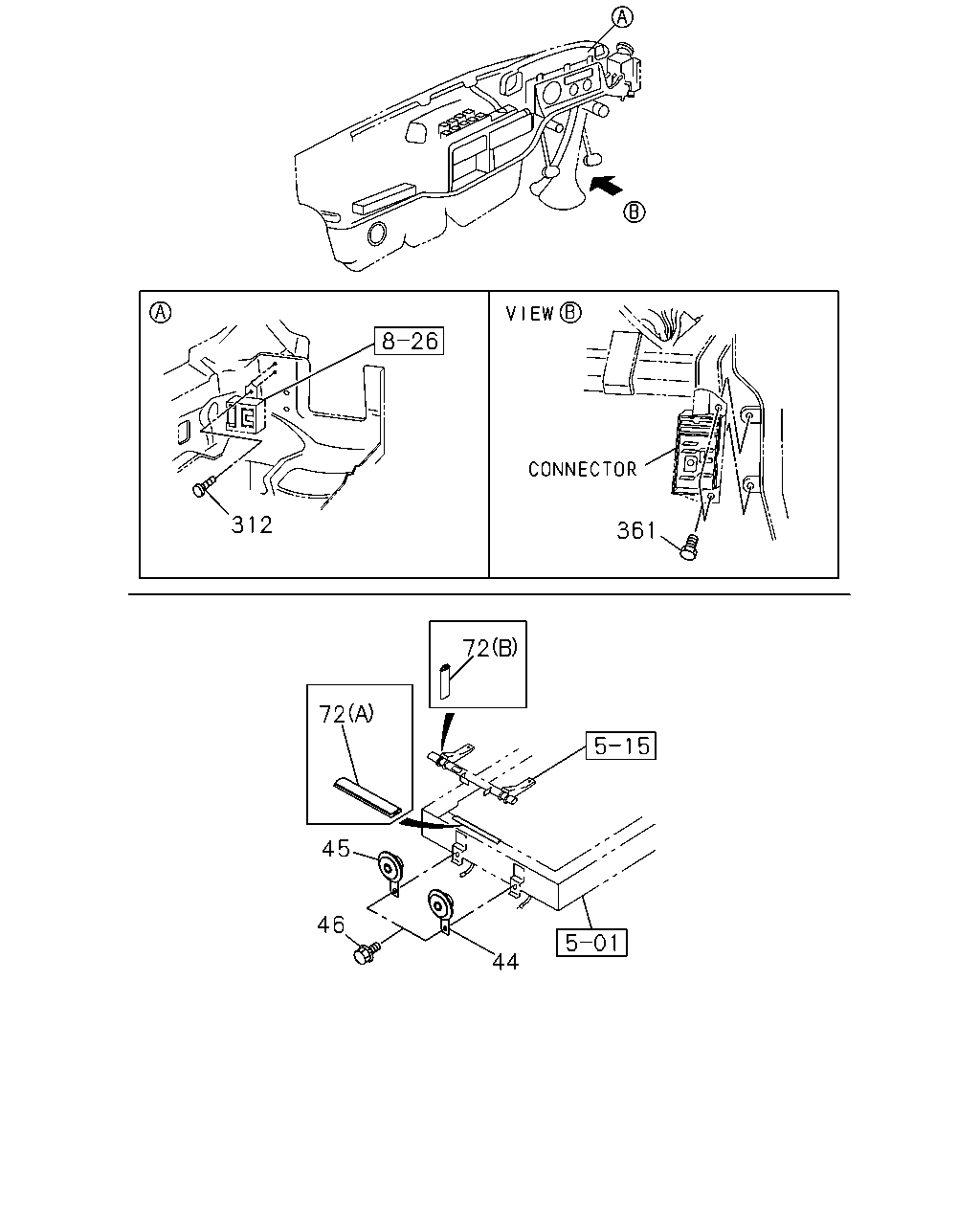

312 361 72 72 45 46 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK>	8-97109-363-0	01	1	9811-	●	●	●	●	●	●	●
44	02.810 HORN; HIGH NOTE DUAL TONE HORN<U05>	8-97211-741-1	01	1	9812-	●	●	●	●	●	●	●
45	02.810 HORN; LOW NOTE EXC. SINGLE HEAVY DUTY HORN<6HG>	8-97211-740-0	01	1	9812-9904	●	●	●	●	●	●
45	02.810 HORN; LOW NOTE EXC. SINGLE HEAVY DUTY HORN<6HG>, DUAL HEAVY DUTY HORN<6KK>	8-97211-740-1	01	1	9905-	●	●	●	●	●	●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK>	8-97109-364-1	01	1	9811-9811	●	●	●	●	●	●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>	8-97109-364-1	01	1	9812-9904	●	●	●	●	●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK>	8-97109-364-1	01	1	9905-	●	●	●	●	●	●	●
46	02.812 BOLT; HORN TO BODY DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9811-9811	●	●	●	●	●	●
46	02.812 BOLT; HORN TO BODY SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9811-9811	●	●	●	●	●	●
46	02.812 BOLT; HORN TO BODY DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	9812-9904	●	●	●	●	●	●
46	02.812 BOLT; HORN TO BODY DUAL TONE HORN<U05>,DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	9905-	●	●	●	●	●	●	●
46	02.812 BOLT; HORN TO BODY EXC. DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9812-9904	●	●	●	●	●	●
46	02.812 BOLT; HORN TO BODY EXC. DUAL TONE HORN<U05>,DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9905-	●	●	●	●	●	●	●
72	02.760 PROTECTOR; RELAY FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 02.530 (B) L=65	8-94235-856-0	01	1	9811-	●	●	●	●		●
72	02.760 PROTECTOR; RELAY PTO TRANSMISSION SIDE(V66) 02.530 (B) L=65	8-94235-856-0	01	1	9811-					●		●
72	02.760 PROTECTOR; RELAY FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 16.225 (A) L=200 SERVICED BY L=3060	9-65731-223-1	01	1	9811-0012	●	●	●	●		●
72	02.760 PROTECTOR; RELAY FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 16.225 (A) L=200 SERVICED BY L=3060	9-65731-223-1	01	1	0101-0105	●	●	●	●		●
72	02.760 PROTECTOR; RELAY PTO TRANSMISSION SIDE(V66) 16.225 (A) L=200 SERVICED BY L=3060	9-65731-223-1	01	1	0101-0105							●
72	02.760 PROTECTOR; RELAY FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (A) L=200	8-97096-423-0	01	1	0106-	●	●	●			●
72	02.760 PROTECTOR; RELAY PTO TRANSMISSION SIDE(V66) 04.785 (A) L=200	8-97096-423-0	01	1	0106-							●
312	09.765 BOLT; BUZZER A/T 4 SPEED-AISIN(RNJ) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9811-	●		●
312	09.765 BOLT; BUZZER A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9811-		●
361	02.559 BOLT; CONNECTOR 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9811-	●	●	●	●	●	●	●
361	02.559 BOLT; CONNECTOR 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-	●	●	●	●	●	●	●
