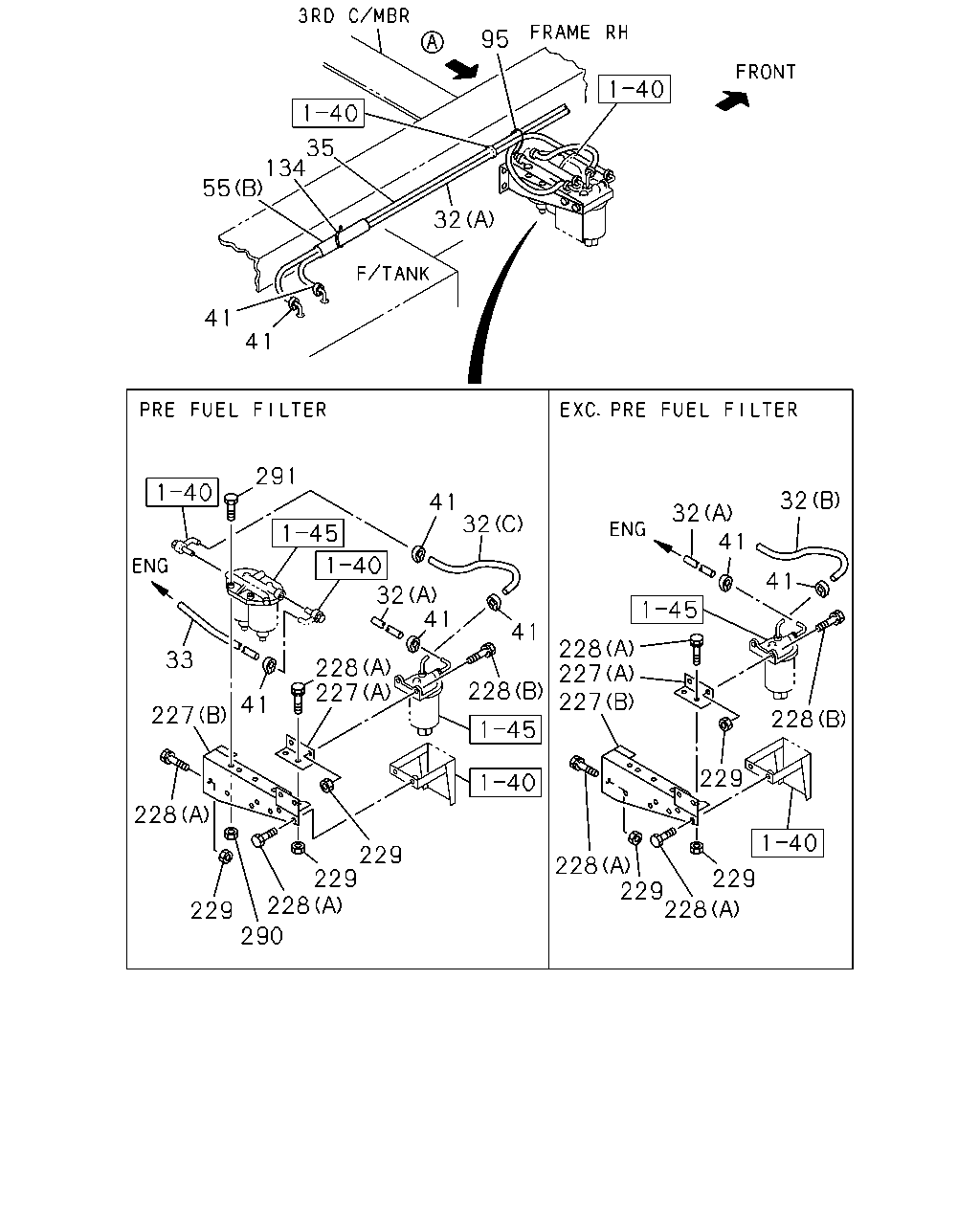

1-41 — FUEL PIPING; CHASSIS (#1881) — 95 parça

95 35 134 55 32 41 41 291 32 41 32 32 41 32 41 41 41 228 227 227 33 228 227 228 41 227 228 229 228 229 229 228 228 229 228 229 229 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	PIPE; DELIVERY,FUEL TANK FIRE TRUCK(RA9) EXC. PRE FUEL FILTER<W21> (B) L=1550 SERVICED BY L=10000	9-09914-701-0	01	1	9207-
32	PIPE; DELIVERY,FUEL TANK PRE FUEL FILTER<W21> (C) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9207-
32	PIPE; DELIVERY,FUEL TANK FSS SHORT CHASSIS(FSS6MC) (A) L=800 SERVICED BY L=10000	9-09914-701-0	01	1	9207-
32	PIPE; DELIVERY,FUEL TANK FSS SHORT CHASSIS(FSS6MC) (B) L=1900 SERVICED BY L=10000	9-09914-701-0	01	1	9207-
32	PIPE; DELIVERY,FUEL TANK FSS MIDDLE CHASSIS(FSS6MF) EXC. PRE FUEL FILTER<W21> (B) L=2000 SERVICED BY L=10000	9-09914-701-0	01	1	9207-
32	PIPE; DELIVERY,FUEL TANK FSS MIDDLE CHASSIS(FSS6MF) FTS SHORT CHASSIS(FTS6MC) (A) L=900 SERVICED BY L=10000	9-09914-701-0	01	1	9207-9309
32	PIPE; DELIVERY,FUEL TANK FSS MIDDLE CHASSIS(FSS6MF) FTS SHORT CHASSIS(FTS6MC) (A) L=900 SERVICED BY L=10000	9-09914-701-0	01	1	9310-
32	PIPE; DELIVERY,FUEL TANK FTS MIDDLE CHASSIS(FTS6MF) EXC. FUEL TANK 200L FRAME SIDE<N20> (A) L=900 SERVICED BY L=10000	9-09914-701-0	01	1	9310-
32	PIPE; DELIVERY,FUEL TANK FTS ALL(FTS***) EXC. FIRE TRUCK(RA9),PRE FUEL FILTER<W21> (B) L=2300 SERVICED BY L=10000	9-09914-701-0	01	1	9207-
32	PIPE; DELIVERY,FUEL TANK FTS MIDDLE CHASSIS(FTS6MF) (A) L=1050 SERVICED BY L=10000	9-09914-701-0	01	1	9207-9309
32	PIPE; DELIVERY,FUEL TANK FTS MIDDLE CHASSIS(FTS6MF) FUEL TANK 200L FRAME SIDE<N20> (A) L=1050 SERVICED BY L=10000	9-09914-701-0	01	1	9310-
33	PIPE; VINYL,DELIVERY,PRE FILTER FIRE TRUCK(RA9) PRE FUEL FILTER<W21> L=1150 SERVICED BY L=10000	9-09914-701-0	01	1	9207-
33	PIPE; VINYL,DELIVERY,PRE FILTER FSS MIDDLE CHASSIS(FSS6MF) PRE FUEL FILTER<W21> L=1840 SERVICED BY L=10000	9-09914-701-0	01	1	9207-
33	PIPE; VINYL,DELIVERY,PRE FILTER FTS ALL(FTS***) PRE FUEL FILTER<W21> EXC. FIRE TRUCK(RA9) L=2050 SERVICED BY L=10000	9-09914-701-0	01	1	9207-9309
33	PIPE; VINYL,DELIVERY,PRE FILTER FTS ALL(FTS***) PRE FUEL FILTER<W21> EXC. FIRE TRUCK(RA9) L=1930 SERVICED BY L=10000	9-09914-701-0	01	1	9310-
35	PIPE; FUEL TANK,RETURN FTS ALL(FTS***) FIRE TRUCK(RA9) L=2000 SERVICED BY L=10000	1-09366-161-0	01	1	9207-
35	PIPE; FUEL TANK,RETURN FSS SHORT CHASSIS(FSS6MC) L=2350 SERVICED BY L=10000	1-09366-161-0	01	1	9207-
35	PIPE; FUEL TANK,RETURN FSS MIDDLE CHASSIS(FSS6MF) L=2410 SERVICED BY L=10000	1-09366-161-0	01	1	9207-
35	PIPE; FUEL TANK,RETURN FTS SHORT CHASSIS(FTS6MC) L=2550 SERVICED BY L=10000	1-09366-161-0	01	1	9207-9309
35	PIPE; FUEL TANK,RETURN FTS SHORT CHASSIS(FTS6MC) L=2550 SERVICED BY L=10000	1-09366-161-0	01	1	9310-
35	PIPE; FUEL TANK,RETURN FTS MIDDLE CHASSIS(FTS6MF) EXC. FUEL TANK 200L FRAME SIDE<N20>,FIRE TRUCK(RA9) L=2550 SERVICED BY L=10000	1-09366-161-0	01	1	9310-
35	PIPE; FUEL TANK,RETURN FTS MIDDLE CHASSIS(FTS6MF) EXC. FIRE TRUCK(RA9) L=2750 SERVICED BY L=10000	1-09366-161-0	01	1	9207-9309
35	PIPE; FUEL TANK,RETURN FTS MIDDLE CHASSIS(FTS6MF) FUEL TANK 200L FRAME SIDE<N20> EXC. FIRE TRUCK(RA9) L=2750 SERVICED BY L=10000	1-09366-161-0	01	1	9310-
41	CLIP; FUEL PIPE,FUEL TANK PRE FUEL FILTER<W21> ID=15	9-09715-098-0	08	1	9207-
41	CLIP; FUEL PIPE,FUEL TANK EXC. PRE FUEL FILTER<W21> ID=15	9-09715-098-0	06	1	9207-
55	COVER; PIPE,FUEL TANK (B) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9207-
55	COVER; PIPE,FUEL TANK FTS ALL(FTS***) FIRE TRUCK(RA9) (A) L=800	1-09360-379-1	01	1	9207-9310
55	COVER; PIPE,FUEL TANK FTS ALL(FTS***) FIRE TRUCK(RA9) (A) L=400	1-09360-183-1	01	1	9311-
55	COVER; PIPE,FUEL TANK FSS ALL(FSS***) (A) L=1050	1-09360-184-1	01	1	9207-9211
55	COVER; PIPE,FUEL TANK FSS ALL(FSS***) (A) L=900	1-09360-622-1	01	1	9212-
55	COVER; PIPE,FUEL TANK FTS ALL(FTS***) EXC. FIRE TRUCK(RA9) (A) L=1200	1-09360-710-1	01	1	9207-9309
55	COVER; PIPE,FUEL TANK FTS ALL(FTS***) EXC. FIRE TRUCK(RA9) (A) L=1050	1-09360-184-1	01	1	9310-
95	BUSHING; PIPE,FUEL TANK FTS ALL(FTS***) ID=28 OD=35 T=17	9-09956-256-1	01	1	9207-
134	CLIP; BAND,FUEL PIPE L=250	5-09707-030-0	02	1	9207-9211
134	CLIP; BAND,FUEL PIPE INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> L=250	5-09707-030-1	02	1	9212-
134	CLIP; BAND,FUEL PIPE EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> L=250	5-09707-030-1	01	1	9212-
227	BRACKET; FUEL SEDIMENTER FSS SHORT CHASSIS(FSS6MC) (B)	1-22518-126-1	01	1	9207-
227	BRACKET; FUEL SEDIMENTER FSS MIDDLE CHASSIS(FSS6MF) FTS ALL(FTS***) (A)	1-19755-108-1	01	1	9207-
227	BRACKET; FUEL SEDIMENTER FSS MIDDLE CHASSIS(FSS6MF) FTS ALL(FTS***) (B)	1-22518-092-3	01	1	9207-
228	BOLT; BRKT,SEDIMENTER (B) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9207-
228	BOLT; BRKT,SEDIMENTER FSS SHORT CHASSIS(FSS6MC) (A) M10X30 W/LK WASHER	0-50041-030-0	02	1	9207-
228	BOLT; BRKT,SEDIMENTER FSS MIDDLE CHASSIS(FSS6MF) FTS ALL(FTS***) (A) M10X30 W/LK WASHER	0-50041-030-0	05	1	9207-
229	NUT; BRKT,FUEL FILTER FSS MIDDLE CHASSIS(FSS6MF) FTS ALL(FTS***) M10	9-09110-510-0	05	1	9207-
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9207-
229	NUT; BRKT,FUEL FILTER FSS SHORT CHASSIS(FSS6MC) M10	9-09110-510-0	02	1	9207-
290	NUT; FILTER TO BRKT PRE FUEL FILTER<W21> M10	9-09110-510-0	02	1	9207-
291	BOLT; FILER TO BRKT PRE FUEL FILTER<W21> M10X40 W/LK&PL WASHER	0-50141-040-0	02	1	9207-

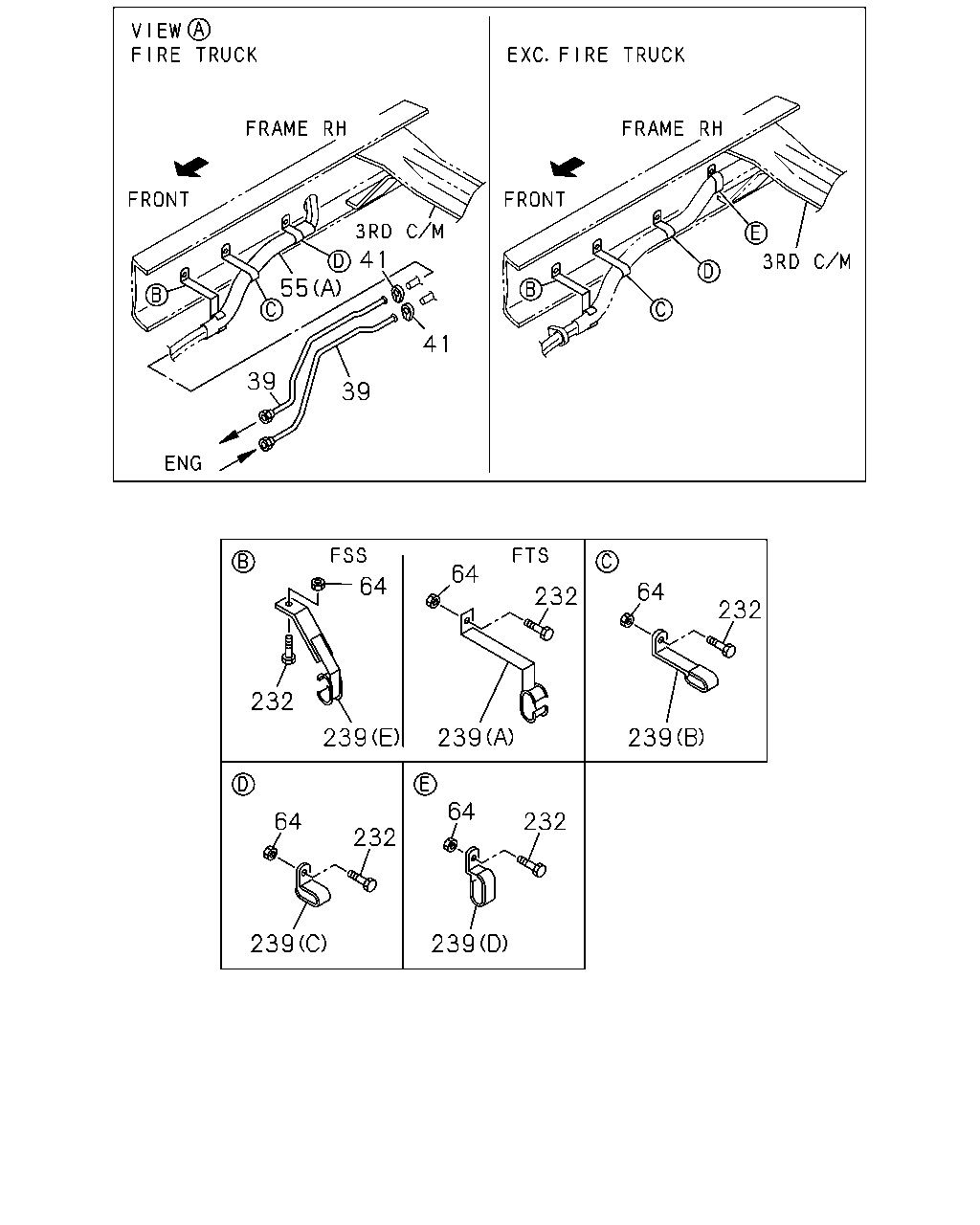

41 55 41 39 39 64 64 64 232 232 232 239 239 239 64 64 232 232 239 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL FTS ALL(FTS***) FIRE TRUCK(RA9) DELIVERY	1-22511-637-0	01	1	9207-9212
39	PIPE; FUEL FTS ALL(FTS***) FIRE TRUCK(RA9) DELIVERY	1-22511-738-0	01	1	9301-
39	PIPE; FUEL FTS ALL(FTS***) FIRE TRUCK(RA9) RETURN	1-22511-638-0	01	1	9207-9212
39	PIPE; FUEL FTS ALL(FTS***) FIRE TRUCK(RA9) RETURN	1-22511-747-0	01	1	9301-
41	CLIP; FUEL PIPE,FUEL TANK PRE FUEL FILTER<W21> ID=15	9-09715-098-0	08	1	9207-
41	CLIP; FUEL PIPE,FUEL TANK EXC. PRE FUEL FILTER<W21> ID=15	9-09715-098-0	06	1	9207-
55	COVER; PIPE,FUEL TANK (B) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9207-
55	COVER; PIPE,FUEL TANK FTS ALL(FTS***) FIRE TRUCK(RA9) (A) L=800	1-09360-379-1	01	1	9207-9310
55	COVER; PIPE,FUEL TANK FTS ALL(FTS***) FIRE TRUCK(RA9) (A) L=400	1-09360-183-1	01	1	9311-
55	COVER; PIPE,FUEL TANK FSS ALL(FSS***) (A) L=1050	1-09360-184-1	01	1	9207-9211
55	COVER; PIPE,FUEL TANK FSS ALL(FSS***) (A) L=900	1-09360-622-1	01	1	9212-
55	COVER; PIPE,FUEL TANK FTS ALL(FTS***) EXC. FIRE TRUCK(RA9) (A) L=1200	1-09360-710-1	01	1	9207-9309
55	COVER; PIPE,FUEL TANK FTS ALL(FTS***) EXC. FIRE TRUCK(RA9) (A) L=1050	1-09360-184-1	01	1	9310-
64	NUT; CLIP FSS SHORT CHASSIS(FSS6MC) M8	9-09110-408-0	03	1	9207-
64	NUT; CLIP FSS MIDDLE CHASSIS(FSS6MF) PRE FUEL FILTER<W21> M8	9-09110-408-0	03	1	9207-
64	NUT; CLIP FSS MIDDLE CHASSIS(FSS6MF) EXC. PRE FUEL FILTER<W21> M8	9-09110-408-0	04	1	9207-
64	NUT; CLIP FTS ALL(FTS***) PRE FUEL FILTER<W21> M8	9-09110-408-0	06	1	9207-9210
64	NUT; CLIP FTS ALL(FTS***) PRE FUEL FILTER<W21> M8	9-09110-408-0	05	1	9211-
64	NUT; CLIP FTS ALL(FTS***) EXC. PRE FUEL FILTER<W21> M8	9-09110-408-0	07	1	9207-9210
64	NUT; CLIP FTS ALL(FTS***) EXC. PRE FUEL FILTER<W21> M8	9-09110-408-0	06	1	9211-
232	BOLT; CLIP,PIPE PRE FUEL FILTER<W21> M8X16 FLANGE	0-28080-816-0	01	1	9207-
232	BOLT; CLIP,PIPE FSS SHORT CHASSIS(FSS6MC) M8X25 FLANGE	0-28080-825-0	05	1	9207-9210
232	BOLT; CLIP,PIPE FSS MIDDLE CHASSIS(FSS6MF) PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	05	1	9207-9210
232	BOLT; CLIP,PIPE FSS SHORT CHASSIS(FSS6MC) M8X25 FLANGE	0-28080-825-0	05	1	9211-
232	BOLT; CLIP,PIPE FSS MIDDLE CHASSIS(FSS6MF) FTS ALL(FTS***) PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	05	1	9211-
232	BOLT; CLIP,PIPE FSS MIDDLE CHASSIS(FSS6MF) EXC. PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	06	1	9207-9210
232	BOLT; CLIP,PIPE FTS ALL(FTS***) PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	06	1	9207-9210
232	BOLT; CLIP,PIPE FSS MIDDLE CHASSIS(FSS6MF) FTS ALL(FTS***) EXC. PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	06	1	9211-
232	BOLT; CLIP,PIPE FTS ALL(FTS***) EXC. PRE FUEL FILTER<W21> M8X25 FLANGE	0-28080-825-0	07	1	9207-9210
239	CLIP; FUEL PIPE (D) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9207-9210
239	CLIP; FUEL PIPE (C) L=25	1-09700-927-0	01	1	9211-9310
239	CLIP; FUEL PIPE FSS ALL(FSS***) (C) L=25	1-09700-927-0	01	1	9311-
239	CLIP; FUEL PIPE FSS ALL(FSS***) (C) L=25	1-09700-927-0	01	1	9207-9210
239	CLIP; FUEL PIPE FSS ALL(FSS***) (D) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9211-
239	CLIP; FUEL PIPE FSS ALL(FSS***) (E)	1-15419-193-1	01	1	9207-
239	CLIP; FUEL PIPE FSS SHORT CHASSIS(FSS6MC) (D) L=70 ID=20X2 L=55	1-09700-554-0	01	1	9207-9207
239	CLIP; FUEL PIPE FSS ALL(FSS***) (D) L=70 ID=20X2 L=55	1-09700-554-0	01	1	9208-
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS(FSS6MF) (D) L=70 ID=20X2 L=55	1-09700-554-0	02	1	9207-9207
239	CLIP; FUEL PIPE FSS MIDDLE CHASSIS(FSS6MF) (D) ID=16X2 L=50	9-09535-586-0	01	1	9208-
239	CLIP; FUEL PIPE FTS ALL(FTS***) (C) L=35 ID=20	1-09700-781-1	02	1	9207-9207
239	CLIP; FUEL PIPE FTS ALL(FTS***) (C) L=35 ID=20	1-09700-781-1	01	1	9208-9210
239	CLIP; FUEL PIPE FTS ALL(FTS***) (D) L=35 ID=14X29 H=15 L=20	1-09700-744-0	03	1	9211-
239	CLIP; FUEL PIPE FTS ALL(FTS***) (B) ID=14X2 H=85 L=30	1-09701-062-0	01	1	9207-9207
239	CLIP; FUEL PIPE FTS ALL(FTS***) (B) L=90	1-09700-926-0	01	1	9208-9310
239	CLIP; FUEL PIPE FTS ALL(FTS***) EXC. FIRE TRUCK(RA9) (B) L=90	1-09700-926-0	02	1	9311-
239	CLIP; FUEL PIPE FTS ALL(FTS***) (B) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9207-9210
239	CLIP; FUEL PIPE FTS ALL(FTS***) (A)	1-15419-210-1	01	1	9207-
239	CLIP; FUEL PIPE FTS ALL(FTS***) (B) L=53	8-94107-544-0	01	1	9208-9210
