◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#18808) — 121 parça
çizim 8568
584
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
584 02.510 RELAY; TIMING
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 24V 12.5A JIDECO 		8-97062-815-1 01 1 9811-0104 ● ● ● ● ● ●
584 02.510 RELAY; TIMING
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105- ● ● ● ● ● ●

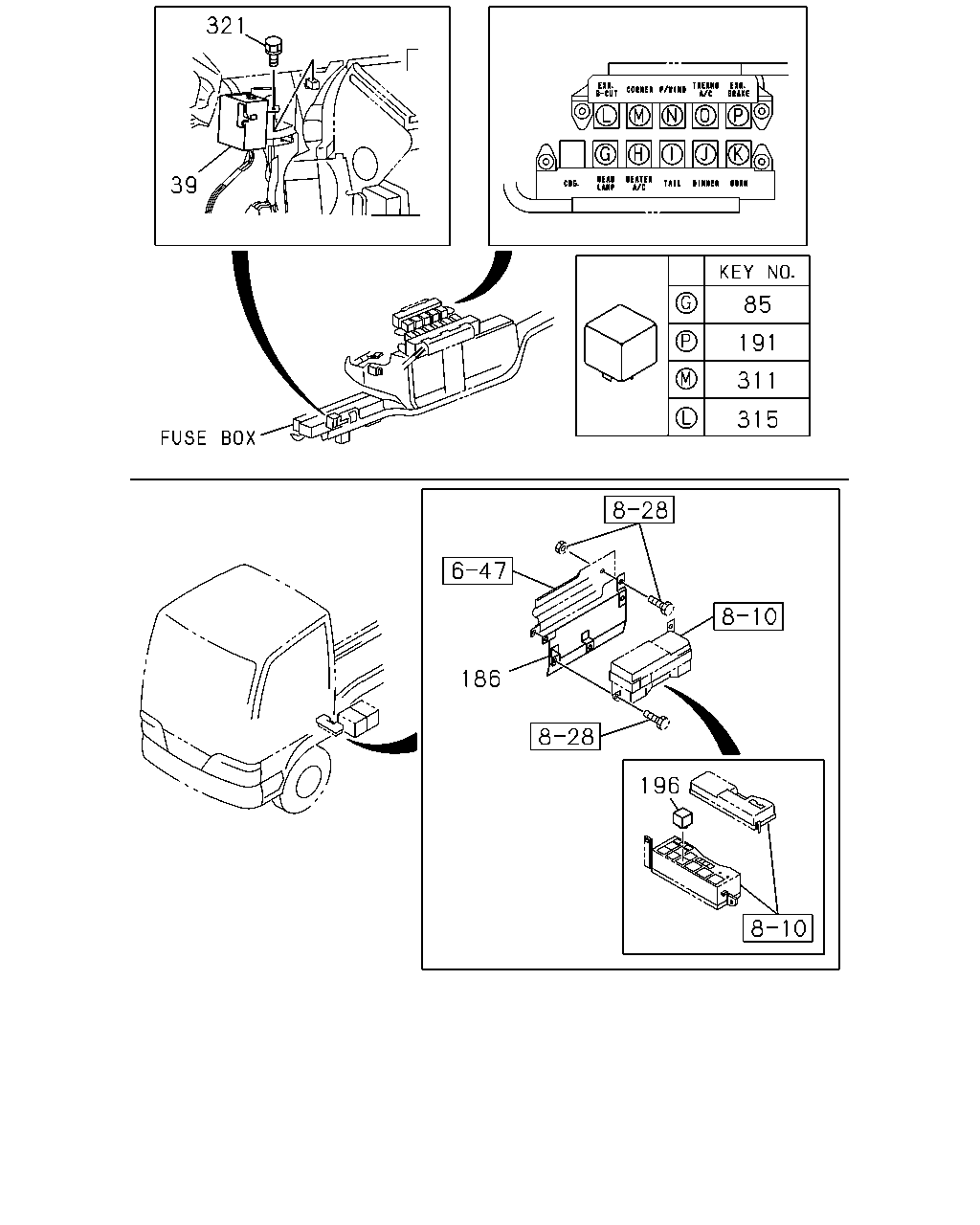

çizim 49640
321 39 85 191 311 315 186 196
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97177-214-0 01 1 9811- ● ● ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9811-0104 ● ● ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105- ● ● ● ● ● ● ●
186 09.277 BRACKET; RELAY BOX
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 		8-97088-652-1 01 1 9811-0012 ● ● ● ● ● ●
186 09.277 BRACKET; RELAY BOX
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 		8-97088-652-1 01 1 0101-0105 ● ● ● ● ● ●
186 09.277 BRACKET; RELAY BOX 8-97088-652-1 01 1 0101-0105 ●
186 09.277 BRACKET; RELAY BOX
EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 		8-97088-652-1 01 1 0106- ● ● ● ● ●
186 09.277 BRACKET; RELAY BOX 8-97088-652-1 01 1 0106- ●
191 02.510 RELAY; EXH BRK CUT
24V 12.5A JIDECO 		8-97062-815-1 01 1 9811-0104 ● ● ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105- ● ● ● ● ● ● ●
196 02.510 RELAY; BACKUP LAMP
A/T 4 SPEED-AISIN(RNJ) 24V 12.5A JIDECO 		8-97062-815-1 01 1 9811-0104 ● ● ●
196 02.510 RELAY; BACKUP LAMP
A/T 4 SPEED-AISIN(RNJ) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105- ● ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9811-0104 ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9811-0104 ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105- ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105- ● ●
315 09.277 RELAY; EXH BRAKE CONT
02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9811-0104 ● ● ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105- ● ● ● ● ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20 		8-94436-927-0 01 1 9811- ● ● ● ● ● ● ●

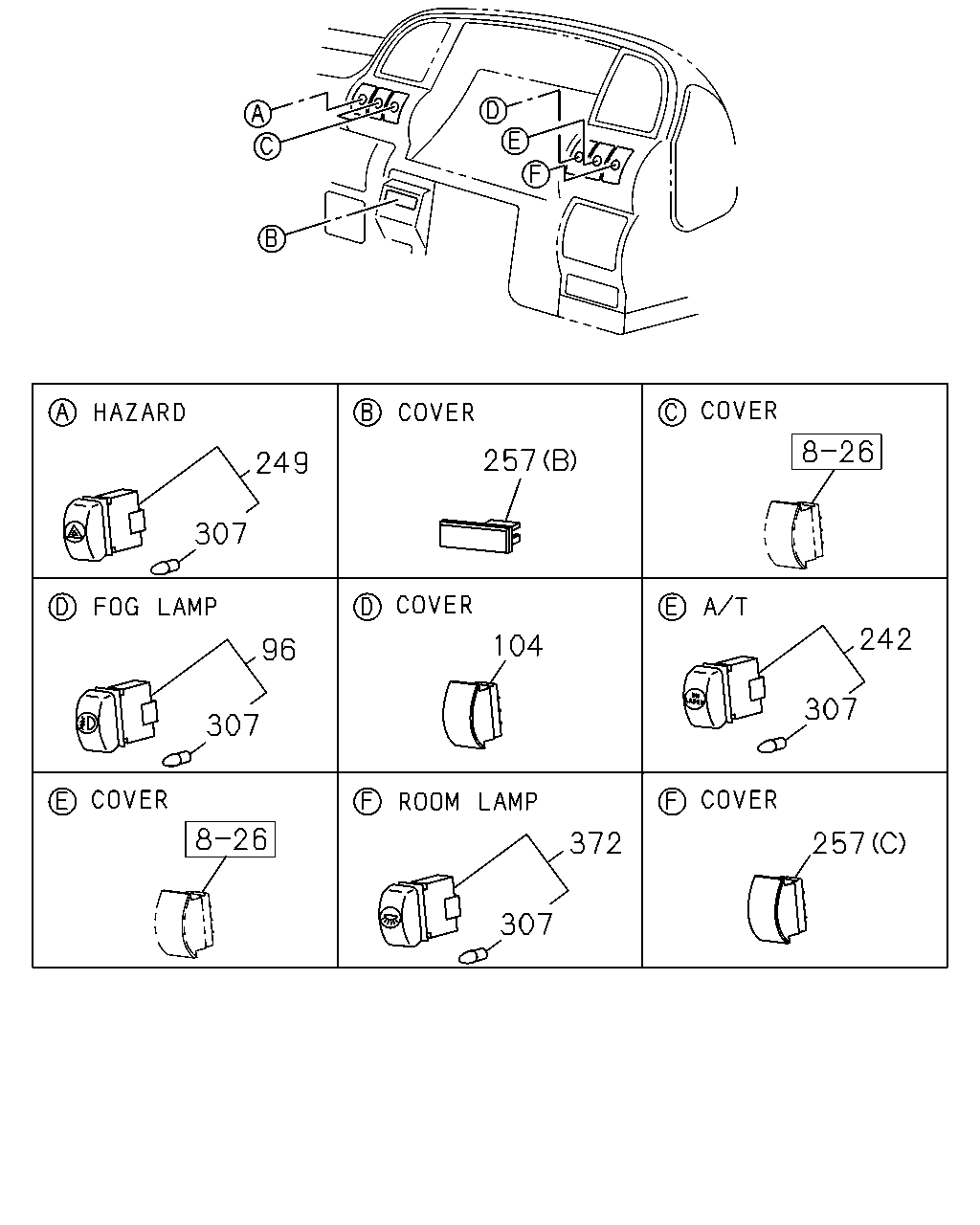

çizim 50151
257 249 307 242 104 96 307 307 372 257 307
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97170-441-0 01 1 9811-0012 ● ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. FOG LAMP<T96> 		8-97170-441-0 01 1 9811-0012 ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97170-441-0 01 1 0101-0105 ● ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. FOG LAMP<T96> 		8-97170-441-0 01 1 0101-0105 ● ● ● ●
96 02.485 SWITCH; FOG LAMP 8-97170-441-0 01 1 0101-0105 ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3),FOG LAMP<T96> 		8-97170-441-0 01 1 0106- ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97170-441-0 01 1 0106- ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP 8-97170-441-0 01 1 0106- ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,FOG LAMP<T96> 09.744 		8-97136-694-0 01 1 9811-0105 ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 09.744 		8-97136-694-0 01 1 9811-0105 ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 09.744 		8-97136-694-0 01 1 0106- ● ● ● ● ●
242 04.054 SWITCH
A/T 4 SPEED-JATCO(RMK) 		8-97171-167-0 01 1 9811- ●
249 02.485 SWITCH; HAZARD 8-97202-475-0 01 1 9811- ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9811-0012 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0101-0105 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. AUSTRALIA EQUIPMENT(RR3) 16.494 (A) 		8-94229-914-1 01 1 0106-0109 ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0106-0109 ● ●
257 16.081 COVER; HOLE,SW
EXC. LAMP-ROOM,W/ALL DOORS SW<SDF> 16.494 (A) 		8-94229-914-1 01 1 0110- ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0110- ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 9811- ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 9811- ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 9811-0105 ●
257 16.081 COVER; HOLE,SW
EXC. AUSTRALIA EQUIPMENT(RR3) 16.494 (A) 		8-94229-914-1 02 1 0106-0109 ●
257 16.081 COVER; HOLE,SW
EXC. LAMP-ROOM,W/ALL DOORS SW<SDF> 16.494 (A) 		8-94229-914-1 02 1 0110- ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 9811- ● ● ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> 28V 40MA 		8-97116-331-0 01 1 9811-0012 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 9811-0012 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. FOG LAMP<T96> 28V 40MA 		8-97116-331-0 01 1 9811-0012 ● ● ● ●
307 08.991 BULB ASM; SW
A/T 4 SPEED-JATCO(RMK) 28V 40MA 		8-97116-331-0 01 1 9811-0012 ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0101-0105 ● ● ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> 28V 40MA 		8-97116-331-0 01 1 0101-0105 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. FOG LAMP<T96> 28V 40MA 		8-97116-331-0 01 1 0101-0105 ● ● ● ●
307 08.991 BULB ASM; SW
A/T 4 SPEED-JATCO(RMK) 28V 40MA 		8-97116-331-0 01 1 0101-0105 ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 01 1 0101-0105 ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0106- ● ● ● ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3),FOG LAMP<T96> 28V 40MA 		8-97116-331-0 01 1 0106- ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> 28V 40MA 		8-97116-331-0 01 1 0106- ● ● ● ● ●
307 08.991 BULB ASM; SW
A/T 4 SPEED-JATCO(RMK) 28V 40MA 		8-97116-331-0 01 1 0106- ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 01 1 0106- ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97136-693-0 01 1 9811- ● ● ● ● ● ● ●

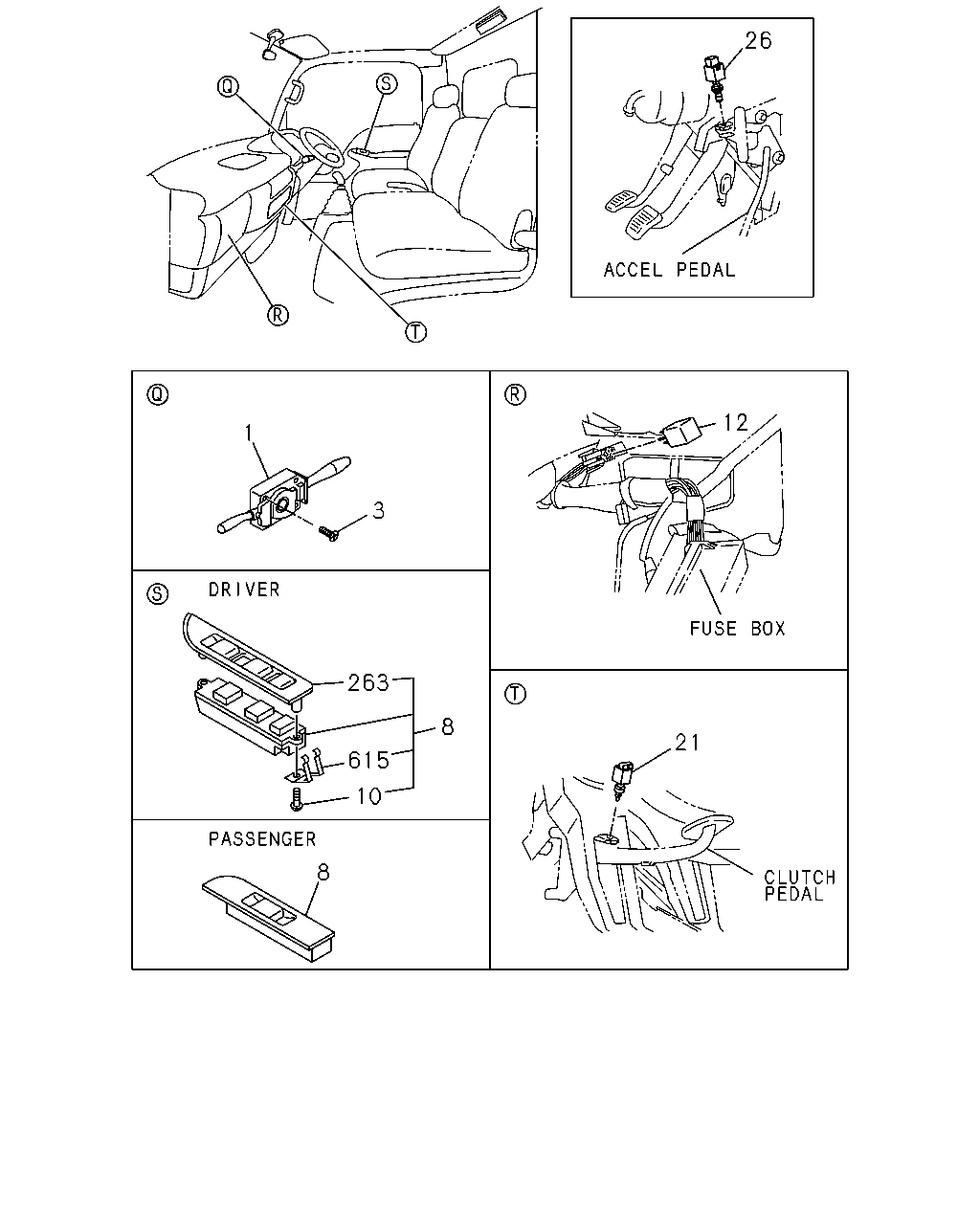

çizim 50231
26 12 1 3 263 8 21 615 10 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-97170-393-0 01 1 9811-0101 ● ● ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-97287-892-2 01 1 0102- ● ● ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-97071-217-1 01 1 9811-0101 ● ● ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-97287-886-2 01 1 0102- ● ● ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 9811- ● ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97166-342-0 01 1 9811-9811 ● ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97214-599-0 01 1 9812-9905 ● ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97222-592-0 01 1 9906-0004 ● ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97249-350-0 01 1 0005-0106 ● ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97315-176-0 01 1 0107- ● ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97205-726-0 01 1 9811-9901 ● ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 		8-97214-398-0 01 1 9902- ● ● ● ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 9811- ● ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9811-0104 ● ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105- ● ● ● ● ● ● ●
21 02.575 SWITCH; CLU
FLOOR REMOTE SHIFT<M11> 04.054 		8-94331-723-1 01 1 9811-0212 ● ● ● ● ●
21 02.575 SWITCH; CLU
04.054 		8-94331-723-1 01 1 9811-0212 ● ●
21 02.575 SWITCH; CLU
FLOOR REMOTE SHIFT<M11> 		8-97358-248-0 01 1 0301- ● ● ● ● ●
21 02.575 SWITCH; CLU 8-97358-248-0 01 1 0301- ● ●
26 03.636 SWITCH; ACCEL
04.054 		8-94368-343-0 01 1 9811-0212 ● ● ● ● ● ● ●
26 03.636 SWITCH; ACCEL 8-97358-315-0 01 1 0301- ● ● ● ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-234-0 01 1 9811- ● ● ● ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 9811- ● ● ● ● ● ● ●

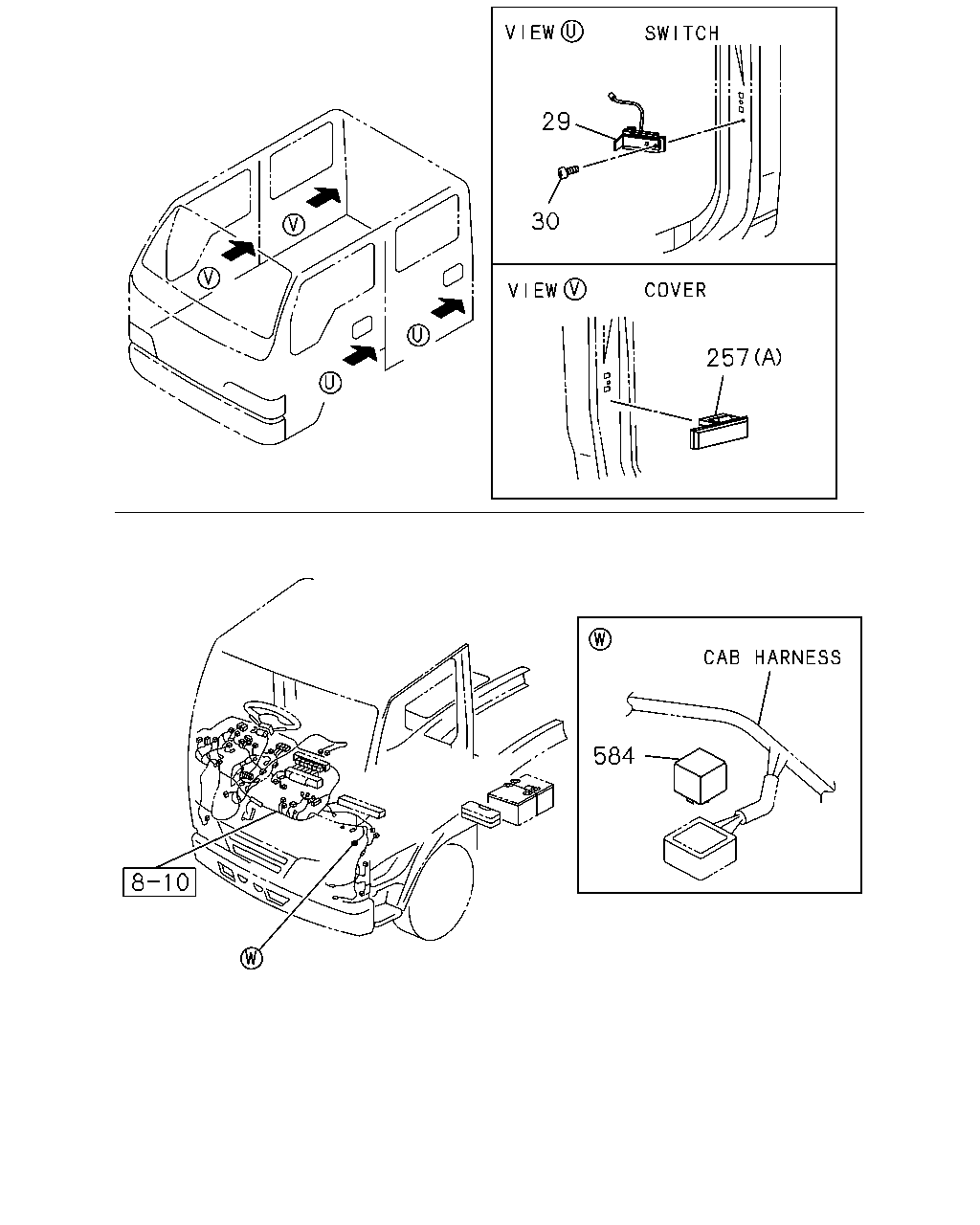

çizim 51094
29 30 257 584
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
29 16.263 SWITCH; DOOR 8-97855-032-2 01 1 9811-0105 ● ● ● ● ● ●
29 16.263 SWITCH; DOOR
AUSTRALIA EQUIPMENT(RR3) 		8-97855-032-2 02 1 0106-0109 ● ● ● ●
29 16.263 SWITCH; DOOR
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97855-032-2 02 1 0106-0109 ●
29 16.263 SWITCH; DOOR
LAMP-ROOM,W/ALL DOORS SW<SDF> 		8-97855-032-3 02 1 0110- ● ● ● ●
29 16.263 SWITCH; DOOR
EXC. LAMP-ROOM,W/ALL DOORS SW<SDF> 		8-97855-032-3 02 1 0110- ●
29 16.263 SWITCH; DOOR 8-97855-032-2 02 1 9811-0105 ●
29 16.263 SWITCH; DOOR
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97855-032-2 01 1 0106-0109 ● ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-2 01 1 0106-0109 ● ●
29 16.263 SWITCH; DOOR
EXC. LAMP-ROOM,W/ALL DOORS SW<SDF> 		8-97855-032-3 01 1 0110- ● ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-3 01 1 0110- ● ●
29 16.263 SWITCH; DOOR
AUSTRALIA EQUIPMENT(RR3) 		8-97855-032-2 04 1 0106-0109 ●
29 16.263 SWITCH; DOOR
LAMP-ROOM,W/ALL DOORS SW<SDF> 		8-97855-032-3 04 1 0110- ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9811-0105 ● ● ● ● ● ●
30 16.263 SCREW; DOOR SW
AUSTRALIA EQUIPMENT(RR3) M5X16 		8-94279-341-0 02 1 0106-0109 ● ● ● ●
30 16.263 SCREW; DOOR SW
EXC. AUSTRALIA EQUIPMENT(RR3) M5X16 		8-94279-341-0 02 1 0106-0109 ●
30 16.263 SCREW; DOOR SW
LAMP-ROOM,W/ALL DOORS SW<SDF> M5X16 		8-94279-341-0 02 1 0110- ● ● ● ●
30 16.263 SCREW; DOOR SW
EXC. LAMP-ROOM,W/ALL DOORS SW<SDF> M5X16 		8-94279-341-0 02 1 0110- ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 02 1 9811-0105 ●
30 16.263 SCREW; DOOR SW
EXC. AUSTRALIA EQUIPMENT(RR3) M5X16 		8-94279-341-0 01 1 0106-0109 ● ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 0106-0109 ● ●
30 16.263 SCREW; DOOR SW
EXC. LAMP-ROOM,W/ALL DOORS SW<SDF> M5X16 		8-94279-341-0 01 1 0110- ● ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 0110- ● ●
30 16.263 SCREW; DOOR SW
AUSTRALIA EQUIPMENT(RR3) M5X16 		8-94279-341-0 04 1 0106-0109 ●
30 16.263 SCREW; DOOR SW
LAMP-ROOM,W/ALL DOORS SW<SDF> M5X16 		8-94279-341-0 04 1 0110- ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9811-0012 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0101-0105 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. AUSTRALIA EQUIPMENT(RR3) 16.494 (A) 		8-94229-914-1 01 1 0106-0109 ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0106-0109 ● ●
257 16.081 COVER; HOLE,SW
EXC. LAMP-ROOM,W/ALL DOORS SW<SDF> 16.494 (A) 		8-94229-914-1 01 1 0110- ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0110- ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 9811- ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 9811- ● ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 9811-0105 ●
257 16.081 COVER; HOLE,SW
EXC. AUSTRALIA EQUIPMENT(RR3) 16.494 (A) 		8-94229-914-1 02 1 0106-0109 ●
257 16.081 COVER; HOLE,SW
EXC. LAMP-ROOM,W/ALL DOORS SW<SDF> 16.494 (A) 		8-94229-914-1 02 1 0110- ●
584 02.510 RELAY; TIMING
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 24V 12.5A JIDECO 		8-97062-815-1 01 1 9811-0104 ● ● ● ● ● ●
584 02.510 RELAY; TIMING
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0105- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
