◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#18806) — 669 parça
çizim 8033
48 48 48 48 53 53 53 317 53 412 504 514
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
48 02.559 CLIP; FRAME HARNESS
04.197 (H) ID=32 L=75 		1-09700-702-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=31 L=30 		1-09700-969-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(P) ID=10 & 10 		1-09709-221-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) L=170.3 		1-09987-182-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=20 		5-09700-321-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.446 (L) ID=12 B=14 ID=8.5 		5-09700-350-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) L=250 		5-09707-030-1 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (K) L=140 		5-09707-031-1 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (R) T=4.5 & 9 		5-09709-023-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) L=110 		8-94149-419-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) ID=24 		8-94149-610-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=20 		8-94169-650-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.115 (Q) T=9 & 10.5 		8-97041-091-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) ID=9 		8-97063-874-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (E) ID=11 L=28 		9-09525-055-0 AR 1 9811- ● ● ● ● ● ● ●
53 02.483 BRACKET; HARNESS
4HE1 ENG(RLY) M/T MZZ6U(RSF) (D) 		8-97352-527-0 01 1 0208- ● ● ● ● ●
53 02.483 BRACKET; HARNESS
M/T MZZ6U(RSF) (D) 		8-97352-527-0 01 1 0208- ●
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97062-178-3 01 1 9811-0012 ● ● ● ● ●
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97062-178-3 01 1 0101-0105 ● ● ● ● ●
53 02.483 BRACKET; HARNESS
(A) 		8-97062-178-3 01 1 0101-0105 ●
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97062-178-3 01 1 0106- ● ● ● ●
53 02.483 BRACKET; HARNESS
(A) 		8-97062-178-3 01 1 0106- ●
53 02.483 BRACKET; HARNESS
A/T 4 SPEED-JATCO(RMK) (B) 		8-97094-990-1 01 1 9811-9903 ●
53 02.483 BRACKET; HARNESS
THAILAND EQUIPMENT(PM9) (C) 		8-97065-158-2 01 1 9811-9903 ● ● ●
53 02.483 BRACKET; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97065-158-2 01 1 9904-0012 ● ● ● ● ●
53 02.483 BRACKET; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97065-158-2 01 1 0101-0105 ● ● ● ● ●
53 02.483 BRACKET; HARNESS
(C) 		8-97065-158-2 01 1 0101-0105 ●
53 02.483 BRACKET; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97065-158-2 01 1 0106- ● ● ● ●
53 02.483 BRACKET; HARNESS
(C) 		8-97065-158-2 01 1 0106- ●
317 02.559 CLAMP; CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (C) 		8-94466-377-0 01 1 9811-0105 ● ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> (C) 		8-94466-377-0 01 1 9811-0105 ● ● ● ●
317 02.559 CLAMP; CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (C) 		8-94466-377-0 01 1 0106- ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> (C) 		8-94466-377-0 01 1 0106- ● ● ●
317 02.559 CLAMP; CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> (B) 		8-94366-903-0 01 1 9811-0105 ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> (B) 		8-94366-903-0 01 1 0106- ● ● ● ●
317 02.559 CLAMP; CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> (A) 		8-94441-365-0 01 1 9811- ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
4HE1 ENG(RLY) M/T MZZ6U(RSF) 		8-97324-451-1 01 1 0208- ● ● ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
M/T MZZ6U(RSF) 		8-97324-451-1 01 1 0208- ●
504 02.559 PROTECTOR; HARNESS
FRAME STRAIGHT TYPE<7KJ> 16.225 L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9811-9908 ● ● ● ● ●
504 02.559 PROTECTOR; HARNESS
16.225 L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9811-9908 ●
504 02.559 PROTECTOR; HARNESS
FRAME STRAIGHT TYPE<7KJ> 16.225 L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9909-0105 ● ● ● ● ● ●
504 02.559 PROTECTOR; HARNESS
FRAME STRAIGHT TYPE<7KJ> 04.785 L=200 		8-97096-423-0 01 1 0106- ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 L=120 SERVICED BY L=2040 		1-71997-513-1 03 1 9811- ● ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 9811- ● ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 16.550 L=250 SERVICED BY L=2040 		1-71997-513-1 01 1 9811-0003 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) 16.550 L=250 SERVICED BY L=2040 		1-71997-513-1 01 1 9811-0003 ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0004-0012 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0004-0012 ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0101-0105 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0101-0105 ● ● ● ● ●
514 02.559 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0101-0105 ●
514 02.559 FINISHER; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0106- ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0106- ● ● ● ● ●
514 02.559 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0106- ● ●

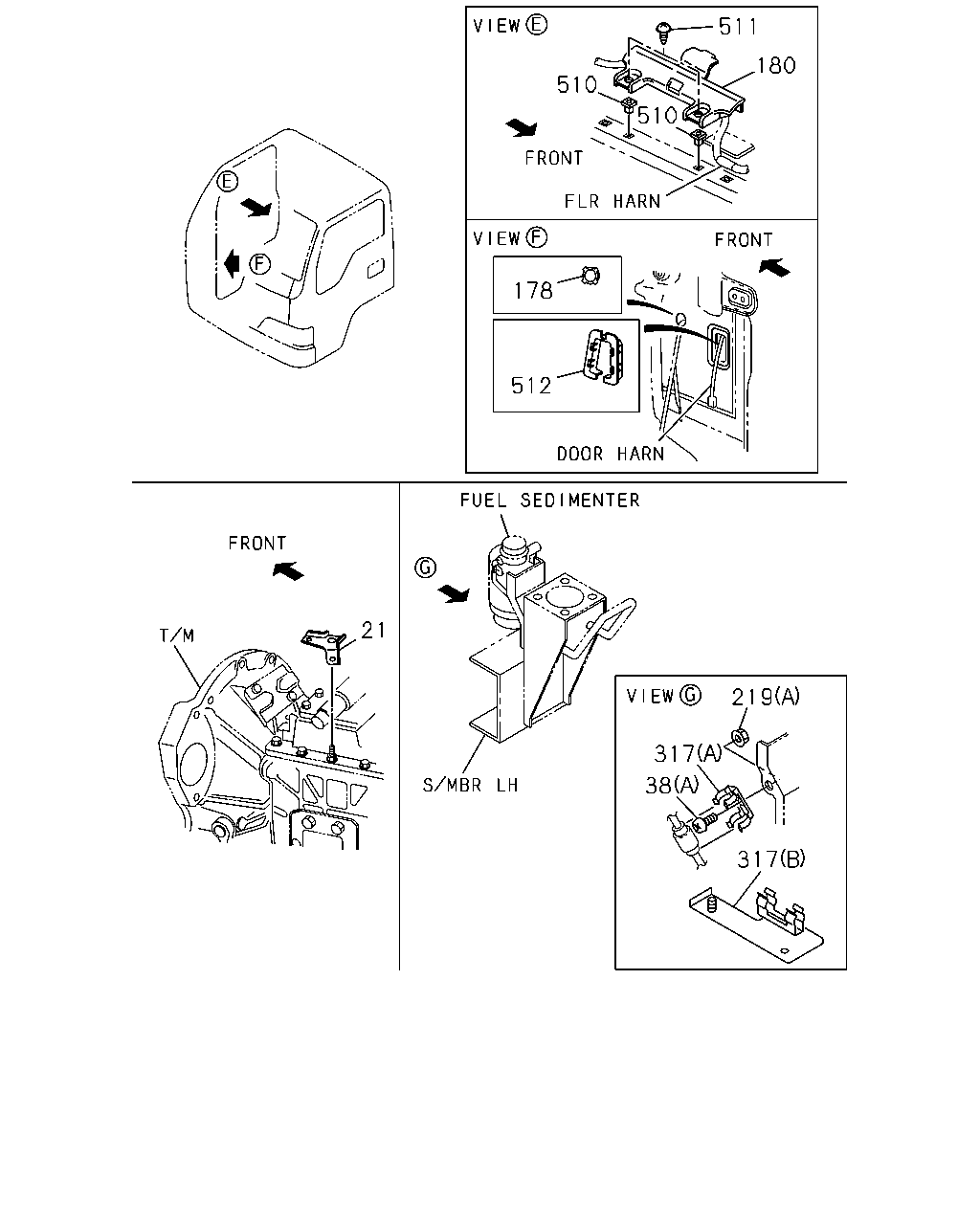

çizim 47730
511 180 510 510 178 512 21 219 317 38 317
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
21 02.483 BRACKET; ENG HARNESS
4HE1 ENG(RLY) M/T MBP6P(RNC) 		8-97061-052-1 01 1 9811-0105 ● ● ●
21 02.483 BRACKET; ENG HARNESS 8-97061-052-1 01 1 9811-0105 ●
21 02.483 BRACKET; ENG HARNESS
4HE1 ENG(RLY) M/T MBP6P(RNC) 		8-97061-052-1 01 1 0106-0207 ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS 8-97061-052-1 01 1 0106-0207 ●
21 02.483 BRACKET; ENG HARNESS
4HE1 ENG(RLY) M/T MBP6P(RNC) 		8-97061-052-1 01 1 0208- ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
M/T MBP6P(RNC) 		8-97061-052-1 01 1 0208- ●
38 02.559 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D) M8X25 FLANGE 		0-28680-825-0 01 1 9811-9812 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D) M8X25 FLANGE 		0-28680-825-0 01 1 9811-9812 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 9811-9812 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 9811-9812 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 9811-9812 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> (D) M8X25 FLANGE 		0-28680-825-0 01 1 9811-9812 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 9811-9812 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 9901-0012 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 9901-0012 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D) M8X25 FLANGE 		0-28680-825-0 01 1 9901-0012 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> (D) M8X25 FLANGE 		0-28680-825-0 01 1 9901-0012 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 9901-0012 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME STRAIGHT TYPE<7KJ> 04.686 (E) M8X30 FLANGE 		0-28680-830-0 01 1 9901-0105 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME STRAIGHT TYPE<7KJ> 04.686 (E) M8X30 FLANGE 		0-28680-830-0 01 1 0106- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
04.686 (E) M8X30 FLANGE 		0-28680-830-0 01 1 0106- ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 9811-0012 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 9811-0012 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 9811-0012 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0101-0105 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0101-0105 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0101-0105 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0101-0105 ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0101-0105 ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0101-0105 ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0106- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0106- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0106- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0106- ●
38 02.559 BOLT; CLIP,HARNESS
4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0106- ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0106- ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0106- ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0106- ●
38 02.559 BOLT; CLIP,HARNESS
M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 9811-0012 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 0101-0105 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 0101-0105 ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 0106- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 0106- ●
38 02.559 BOLT; CLIP,HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9811- ● ● ●
178 02.559 GROMMET; HARNESS
ID=47 		8-94279-735-0 01 1 9811- ● ● ● ● ● ● ●
180 02.559 COVER; HARNESS 8-97856-130-4 02 1 9811- ● ● ● ● ● ● ●
219 02.559 NUT
07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ● ● ● ● ● ●
219 02.559 NUT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ● ● ● ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ● ● ● ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ● ● ● ● ● ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ● ● ● ● ● ●
219 02.559 NUT
FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ● ● ● ●
219 02.559 NUT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ● ● ●
219 02.559 NUT
07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ● ● ● ● ●
219 02.559 NUT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ● ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ● ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ● ● ● ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ● ● ● ●
219 02.559 NUT
FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ● ●
219 02.559 NUT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ●
219 02.559 NUT
FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ● ● ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ● ● ●
219 02.559 NUT
07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ● ● ●
219 02.559 NUT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ● ●
219 02.559 NUT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9811-0012 ● ● ● ● ●
219 02.559 NUT
M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9811-0012 ● ● ● ● ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9811-0012 ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0101-0105 ● ● ● ● ●
219 02.559 NUT
M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0101-0105 ● ● ● ● ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0101-0105 ● ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0106- ● ● ● ● ● ● ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9811-0012 ● ● ● ● ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9811-0012 ● ● ● ● ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0101-0105 ● ● ● ● ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0101-0105 ● ● ● ● ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0101-0105 ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0101-0105 ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0106- ● ● ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0106- ● ● ●
219 02.559 NUT
4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0106- ●
219 02.559 NUT
4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0106- ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0106- ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0106- ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 07.829 (B) M6 FLANGE 		5-09440-004-0 01 1 9811-0105 ● ● ● ● ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 07.829 (B) M6 FLANGE 		5-09440-004-0 01 1 0106- ● ● ● ●
219 02.559 NUT
M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 9811-0012 ● ● ● ● ●
219 02.559 NUT
M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 0101-0105 ● ● ● ● ●
219 02.559 NUT
04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 0101-0105 ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ● ●
219 02.559 NUT
04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 0106- ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> 09.744 (D) M5 FLANGE 		5-09440-003-0 01 1 9811- ● ● ●
317 02.559 CLAMP; CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (C) 		8-94466-377-0 01 1 9811-0105 ● ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> (C) 		8-94466-377-0 01 1 9811-0105 ● ● ● ●
317 02.559 CLAMP; CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (C) 		8-94466-377-0 01 1 0106- ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> (C) 		8-94466-377-0 01 1 0106- ● ● ●
317 02.559 CLAMP; CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> (B) 		8-94366-903-0 01 1 9811-0105 ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> (B) 		8-94366-903-0 01 1 0106- ● ● ● ●
317 02.559 CLAMP; CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> (A) 		8-94441-365-0 01 1 9811- ● ● ●
510 02.559 GROMMET; SCREW
04.931 H=15 		8-94463-268-1 04 1 9811- ● ● ● ● ● ● ●
511 02.559 SCREW; HARNESS COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 9811- ● ● ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) 		8-97072-950-0 02 1 9811-0012 ● ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97072-950-0 02 1 9811-0012 ● ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97072-950-0 02 1 9811-0012 ● ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) 		8-97072-950-0 02 1 9811-0012 ● ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
AUSTRALIA EQUIPMENT(RR3) 		8-97072-950-0 02 1 9811-0012 ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) 		8-97072-950-0 02 1 0101- ● ● ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97072-950-0 02 1 0101- ● ● ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97072-950-0 02 1 0101- ● ● ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) 		8-97072-950-0 02 1 0101- ● ● ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
AUSTRALIA EQUIPMENT(RR3) 		8-97072-950-0 02 1 0101- ● ● ● ● ●
çizim 47731
139 358 377 386 38 38 239 38 139 19 38 64 219 219 294 515 219 294 515 294 469 515 519 525
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
19 02.559 BOLT; PROTECTOR
4HF1 ENG(RLS),4HE1 ENG(RLY) M/T MXA5R(RMT) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 9811-9903 ●
19 02.559 BOLT; PROTECTOR
M/T MXA5R(RMT) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 9811-9903 ● ● ●
19 02.559 BOLT; PROTECTOR
M/T MXA5R(RMT),M/T MXA5S(RNA) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 9811-9903 ●
19 02.559 BOLT; PROTECTOR
4HF1 ENG(RLS),4HE1 ENG(RLY) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 9904-0105 ● ● ● ● ●
19 02.559 BOLT; PROTECTOR
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 9904-0105 ● ● ● ● ●
19 02.559 BOLT; PROTECTOR
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 9904-0105 ● ● ● ● ●
19 02.559 BOLT; PROTECTOR
03.162 M10X35 FLANGE 		0-28681-035-0 01 1 9904-0105 ●
19 02.559 BOLT; PROTECTOR
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0106- ● ● ● ●
19 02.559 BOLT; PROTECTOR
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0106- ● ● ● ●
19 02.559 BOLT; PROTECTOR
4HF1 ENG(RLS),4HE1 ENG(RLY) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0106- ● ● ● ●
19 02.559 BOLT; PROTECTOR
03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0106- ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D) M8X25 FLANGE 		0-28680-825-0 01 1 9811-9812 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D) M8X25 FLANGE 		0-28680-825-0 01 1 9811-9812 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 9811-9812 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 9811-9812 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 9811-9812 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> (D) M8X25 FLANGE 		0-28680-825-0 01 1 9811-9812 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 9811-9812 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 9901-0012 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 9901-0012 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D) M8X25 FLANGE 		0-28680-825-0 01 1 9901-0012 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> (D) M8X25 FLANGE 		0-28680-825-0 01 1 9901-0012 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 9901-0012 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME STRAIGHT TYPE<7KJ> 04.686 (E) M8X30 FLANGE 		0-28680-830-0 01 1 9901-0105 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME STRAIGHT TYPE<7KJ> 04.686 (E) M8X30 FLANGE 		0-28680-830-0 01 1 0106- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
04.686 (E) M8X30 FLANGE 		0-28680-830-0 01 1 0106- ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 9811-0012 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 9811-0012 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 9811-0012 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0101-0105 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0101-0105 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0101-0105 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0101-0105 ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0101-0105 ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0101-0105 ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0106- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0106- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0106- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0106- ●
38 02.559 BOLT; CLIP,HARNESS
4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0106- ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0106- ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0106- ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0106- ●
38 02.559 BOLT; CLIP,HARNESS
M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 9811-0012 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 0101-0105 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 0101-0105 ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 0106- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 0106- ●
38 02.559 BOLT; CLIP,HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9811- ● ● ●
64 02.559 SCREW; CLIP
A/T 4 SPEED-JATCO(RMK) 16.742 M4X16 TAPPING 		1-09981-477-0 01 1 9811- ●
64 02.559 SCREW; CLIP
16.742 M4X16 TAPPING 		1-09981-477-0 01 1 9811- ●
139 02.559 BOLT; BRKT
01.062 (B) M8X16 FLANGE 		0-28080-816-0 03 1 9811- ● ● ● ● ● ● ●
139 02.559 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97028-451-3 01 1 9811-0012 ● ● ● ● ●
139 02.559 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97028-451-3 01 1 0101-0105 ● ● ● ● ●
139 02.559 BOLT; BRKT
(A) 		8-97028-451-3 01 1 0101-0105 ●
139 02.559 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97028-451-3 01 1 0106- ● ● ● ●
139 02.559 BOLT; BRKT
(A) 		8-97028-451-3 01 1 0106- ●
139 02.559 BOLT; BRKT
A/T 4 SPEED-JATCO(RMK) 03.417 (C) M10X25 FLANGE 		0-28081-025-0 02 1 9811-9903 ●
219 02.559 NUT
07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ● ● ● ● ● ●
219 02.559 NUT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ● ● ● ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ● ● ● ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ● ● ● ● ● ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ● ● ● ● ● ●
219 02.559 NUT
FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ● ● ● ●
219 02.559 NUT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ● ● ●
219 02.559 NUT
07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ● ● ● ● ●
219 02.559 NUT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ● ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ● ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ● ● ● ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ● ● ● ●
219 02.559 NUT
FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ● ●
219 02.559 NUT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ●
219 02.559 NUT
FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ● ● ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ● ● ●
219 02.559 NUT
07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ● ● ●
219 02.559 NUT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ● ●
219 02.559 NUT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9811-0012 ● ● ● ● ●
219 02.559 NUT
M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9811-0012 ● ● ● ● ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9811-0012 ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0101-0105 ● ● ● ● ●
219 02.559 NUT
M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0101-0105 ● ● ● ● ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0101-0105 ● ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0106- ● ● ● ● ● ● ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9811-0012 ● ● ● ● ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9811-0012 ● ● ● ● ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0101-0105 ● ● ● ● ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0101-0105 ● ● ● ● ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0101-0105 ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0101-0105 ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0106- ● ● ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0106- ● ● ●
219 02.559 NUT
4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0106- ●
219 02.559 NUT
4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0106- ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0106- ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0106- ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 07.829 (B) M6 FLANGE 		5-09440-004-0 01 1 9811-0105 ● ● ● ● ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 07.829 (B) M6 FLANGE 		5-09440-004-0 01 1 0106- ● ● ● ●
219 02.559 NUT
M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 9811-0012 ● ● ● ● ●
219 02.559 NUT
M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 0101-0105 ● ● ● ● ●
219 02.559 NUT
04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 0101-0105 ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ● ●
219 02.559 NUT
04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 0106- ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> 09.744 (D) M5 FLANGE 		5-09440-003-0 01 1 9811- ● ● ●
239 02.559 BOLT; GRAND
02.343 M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9811- ● ● ● ● ● ● ●
294 02.559 NUT
4HE1 ENG(RLY) M/T MZZ6U(RSF) 07.633 (C) M8 FLANGE 		0-91150-108-0 02 1 0208- ● ● ● ● ●
294 02.559 NUT
M/T MZZ6U(RSF) 07.633 (C) M8 FLANGE 		0-91150-108-0 02 1 0208- ●
294 02.559 NUT
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9811- ● ● ● ● ● ● ●
294 02.559 NUT
4HE1 ENG(RLY) M/T MBP6P(RNC) 04.785 (B) M10 FLANGE 		0-91150-110-0 01 1 9811-0105 ● ● ●
294 02.559 NUT
04.785 (B) M10 FLANGE 		0-91150-110-0 01 1 9811-0105 ●
294 02.559 NUT
4HE1 ENG(RLY) M/T MBP6P(RNC) 04.785 (B) M10 FLANGE 		0-91150-110-0 01 1 0106-0207 ● ● ● ● ●
294 02.559 NUT
04.785 (B) M10 FLANGE 		0-91150-110-0 01 1 0106-0207 ●
294 02.559 NUT
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MZZ6U(RSF) 04.785 (B) M10 FLANGE 		0-91150-110-0 01 1 0208- ● ● ● ● ●
294 02.559 NUT
M/T MBP6P(RNC),M/T MZZ6U(RSF) 04.785 (B) M10 FLANGE 		0-91150-110-0 01 1 0208- ●
358 02.480 BOLT; EARTH
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0005-0105 ● ● ● ● ●
358 02.480 BOLT; EARTH
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0106- ● ● ●
377 02.559 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9811- ● ● ● ● ● ● ●
386 02.559 BOLT; GRAND HARNESS
02.343 M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9811- ● ● ● ● ● ● ●
469 02.559 NUT; PROTECTOR
4HF1 ENG(RLS),4HE1 ENG(RLY) M/T MXA5R(RMT) 04.785 M10 FLANGE 		0-91150-110-0 01 1 9811-9903 ●
469 02.559 NUT; PROTECTOR
M/T MXA5R(RMT) 04.785 M10 FLANGE 		0-91150-110-0 01 1 9811-9903 ● ● ●
469 02.559 NUT; PROTECTOR
M/T MXA5R(RMT),M/T MXA5S(RNA) 04.785 M10 FLANGE 		0-91150-110-0 01 1 9811-9903 ●
469 02.559 NUT; PROTECTOR
4HF1 ENG(RLS),4HE1 ENG(RLY) 04.785 M10 FLANGE 		0-91150-110-0 01 1 9904-0105 ● ● ● ● ●
469 02.559 NUT; PROTECTOR
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9904-0105 ● ● ● ● ●
469 02.559 NUT; PROTECTOR
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9904-0105 ● ● ● ● ●
469 02.559 NUT; PROTECTOR
04.785 M10 FLANGE 		0-91150-110-0 01 1 9904-0105 ●
469 02.559 NUT; PROTECTOR
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ● ●
469 02.559 NUT; PROTECTOR
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ● ●
469 02.559 NUT; PROTECTOR
4HF1 ENG(RLS),4HE1 ENG(RLY) 04.785 M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ● ●
469 02.559 NUT; PROTECTOR
04.785 M10 FLANGE 		0-91150-110-0 01 1 0106- ● ●
515 02.559 NUT; BRKT
4HE1 ENG(RLY) M/T MZZ6U(RSF) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0208- ● ● ● ● ●
515 02.559 NUT; BRKT
M/T MZZ6U(RSF) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0208- ●
515 02.559 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 9811-0012 ● ● ● ● ●
515 02.559 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 0101-0105 ● ● ● ● ●
515 02.559 NUT; BRKT
04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 0101-0105 ●
515 02.559 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 0106- ● ● ● ●
515 02.559 NUT; BRKT
04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 0106- ●
515 02.559 NUT; BRKT
A/T 4 SPEED-JATCO(RMK) 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 9811-9903 ●
519 02.559 NUT; EARTH CABLE
04.785 M10 FLANGE 		0-91150-110-0 01 1 9811- ● ● ● ● ● ● ●
525 02.559 NUT; CLIP
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9811- ● ● ● ● ● ●
çizim 48886
16 16 48 462 464 48 464 16 142 183 16 16 16 397 16 264
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
16 02.559 CLIP; HARNESS
(A) ID=15-32 		8-97174-404-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=100 		8-94442-388-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=10 & 16 		8-94413-325-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (G) ID=22 & 22 		8-94464-837-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(I) L=155 		8-97173-307-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.930 (J) ID=10 & 16.5 		8-94360-745-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.342 (L) ID=14-12 		8-94379-592-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (M) L=140 		5-09707-031-1 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=175 		8-97110-167-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=135 		1-09987-143-1 AR 1 9904- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) ID=15-40 		8-97223-033-0 AR 1 9904- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) L=250 		5-09707-030-1 AR 1 0106- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.197 (H) ID=32 L=75 		1-09700-702-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=31 L=30 		1-09700-969-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(P) ID=10 & 10 		1-09709-221-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) L=170.3 		1-09987-182-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=20 		5-09700-321-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.446 (L) ID=12 B=14 ID=8.5 		5-09700-350-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) L=250 		5-09707-030-1 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (K) L=140 		5-09707-031-1 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (R) T=4.5 & 9 		5-09709-023-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) L=110 		8-94149-419-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) ID=24 		8-94149-610-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=20 		8-94169-650-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.115 (Q) T=9 & 10.5 		8-97041-091-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) ID=9 		8-97063-874-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (E) ID=11 L=28 		9-09525-055-0 AR 1 9811- ● ● ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
FLOOR REMOTE SHIFT<M11> 03.162 (A) L=140 		5-09707-031-1 01 1 9811-0012 ● ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
FLOOR REMOTE SHIFT<M11> 03.162 (A) L=140 		5-09707-031-1 01 1 0101-0207 ● ● ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
M/T MXA5R(RMT),M/T MBP6P(RNC) 03.162 (A) L=140 		5-09707-031-1 01 1 0208- ● ● ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.483 (B) 		8-97101-436-0 01 1 9811- ● ● ● ● ● ●
183 02.559 CLIP; CONNECTOR
L=15 		8-94315-436-1 02 1 9811- ●
264 02.559 CLIP; HARNESS,HEADLAMP
02.343 ID=10 & 16 		8-94413-325-0 03 1 9811- ● ● ● ● ● ● ●
397 02.559 CLIP; RR DOOR HARNESS
AUTO DOOR LOCK<AU4> 10.154 ID=7 		8-97014-713-0 02 1 9811- ●
462 02.559 CLIP; HARNESS,HTR
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> ID=9 		8-97063-874-0 01 1 9811- ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 9811-0012 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0101-0105 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0101-0105 ●
464 02.525 CLIP; SEDIMENTER HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0106- ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0106- ●
464 02.525 CLIP; SEDIMENTER HARNESS
EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9811-9907 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9811-9907 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
FUEL FILTER DUAL<S6B> EXC. HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9811-9907 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
02.559 (B) ID=6.5 		8-94257-639-0 01 1 9811-9907 ●
464 02.525 CLIP; SEDIMENTER HARNESS
EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9908-0012 ● ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9908-0012 ● ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9908-0012 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0101- ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0101- ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0101- ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
02.559 (B) ID=6.5 		8-94257-639-0 01 1 0101- ●
464 02.525 CLIP; SEDIMENTER HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 02.587 (A) L=112 		8-94232-618-0 01 1 9811-0105 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 02.587 (A) L=112 		8-94232-618-0 01 1 0106- ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
HYDRO MASTER<7LT> 02.559 (D) ID=9 		8-97063-874-0 01 1 9811- ● ● ●

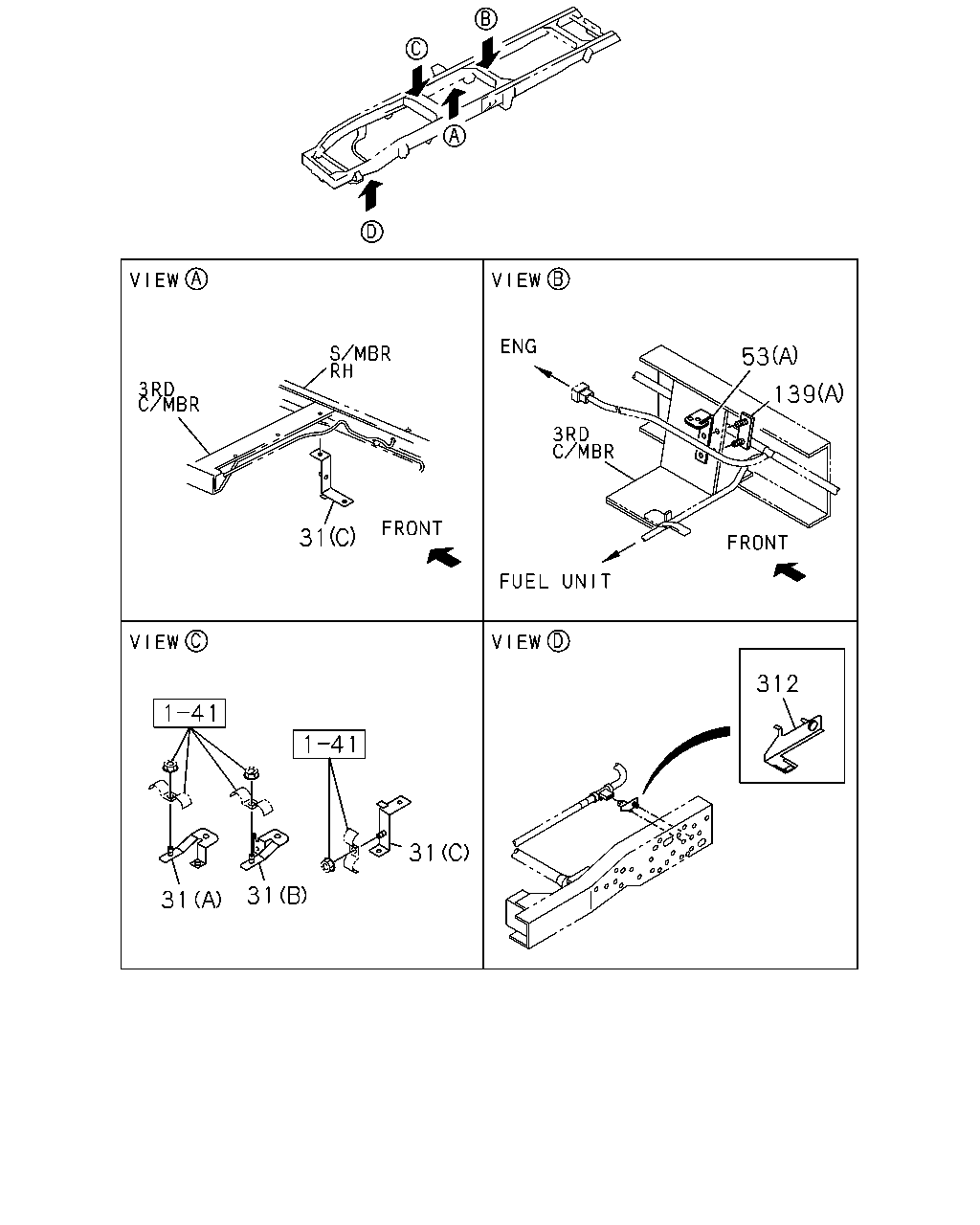

çizim 48896
53 139 31 312 31 31 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
31 02.559 BRACKET; HARNESS CLIP,PIPE
(B) L=47 		8-97042-635-0 01 1 9811- ● ● ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
FRAME STRAIGHT TYPE<7KJ> (B) L=73 		8-97077-845-0 02 1 9811-0105 ● ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
FRAME STRAIGHT TYPE<7KJ> (B) L=73 		8-97077-845-0 02 1 0106- ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
(B) L=73 		8-97077-845-0 02 1 0106- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97017-071-2 01 1 9811-0012 ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97017-071-2 01 1 0101-0105 ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
(C) 		8-97017-071-2 01 1 0101-0105 ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97017-071-2 01 1 0106- ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
(C) 		8-97017-071-2 01 1 0106- ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=20 		8-94165-263-1 01 1 9811-0012 ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=20 		8-94165-263-1 01 1 0101-0105 ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
(A) L=20 		8-94165-263-1 01 1 0101-0105 ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=20 		8-94165-263-1 01 1 0106- ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
(A) L=20 		8-94165-263-1 01 1 0106- ●
53 02.483 BRACKET; HARNESS
4HE1 ENG(RLY) M/T MZZ6U(RSF) (D) 		8-97352-527-0 01 1 0208- ● ● ● ● ●
53 02.483 BRACKET; HARNESS
M/T MZZ6U(RSF) (D) 		8-97352-527-0 01 1 0208- ●
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97062-178-3 01 1 9811-0012 ● ● ● ● ●
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97062-178-3 01 1 0101-0105 ● ● ● ● ●
53 02.483 BRACKET; HARNESS
(A) 		8-97062-178-3 01 1 0101-0105 ●
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97062-178-3 01 1 0106- ● ● ● ●
53 02.483 BRACKET; HARNESS
(A) 		8-97062-178-3 01 1 0106- ●
53 02.483 BRACKET; HARNESS
A/T 4 SPEED-JATCO(RMK) (B) 		8-97094-990-1 01 1 9811-9903 ●
53 02.483 BRACKET; HARNESS
THAILAND EQUIPMENT(PM9) (C) 		8-97065-158-2 01 1 9811-9903 ● ● ●
53 02.483 BRACKET; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97065-158-2 01 1 9904-0012 ● ● ● ● ●
53 02.483 BRACKET; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97065-158-2 01 1 0101-0105 ● ● ● ● ●
53 02.483 BRACKET; HARNESS
(C) 		8-97065-158-2 01 1 0101-0105 ●
53 02.483 BRACKET; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97065-158-2 01 1 0106- ● ● ● ●
53 02.483 BRACKET; HARNESS
(C) 		8-97065-158-2 01 1 0106- ●
139 02.559 BOLT; BRKT
01.062 (B) M8X16 FLANGE 		0-28080-816-0 03 1 9811- ● ● ● ● ● ● ●
139 02.559 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97028-451-3 01 1 9811-0012 ● ● ● ● ●
139 02.559 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97028-451-3 01 1 0101-0105 ● ● ● ● ●
139 02.559 BOLT; BRKT
(A) 		8-97028-451-3 01 1 0101-0105 ●
139 02.559 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97028-451-3 01 1 0106- ● ● ● ●
139 02.559 BOLT; BRKT
(A) 		8-97028-451-3 01 1 0106- ●
139 02.559 BOLT; BRKT
A/T 4 SPEED-JATCO(RMK) 03.417 (C) M10X25 FLANGE 		0-28081-025-0 02 1 9811-9903 ●
312 02.559 BRACKET; CLIP HARNESS 8-97017-072-2 01 1 9811- ● ● ● ● ● ● ●
çizim 48925
48 48 48 48 53 53 53 317 53 412 504 514
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
48 02.559 CLIP; FRAME HARNESS
04.197 (H) ID=32 L=75 		1-09700-702-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=31 L=30 		1-09700-969-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(P) ID=10 & 10 		1-09709-221-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) L=170.3 		1-09987-182-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=20 		5-09700-321-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.446 (L) ID=12 B=14 ID=8.5 		5-09700-350-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) L=250 		5-09707-030-1 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (K) L=140 		5-09707-031-1 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (R) T=4.5 & 9 		5-09709-023-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) L=110 		8-94149-419-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) ID=24 		8-94149-610-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=20 		8-94169-650-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.115 (Q) T=9 & 10.5 		8-97041-091-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) ID=9 		8-97063-874-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (E) ID=11 L=28 		9-09525-055-0 AR 1 9811- ● ● ● ● ● ● ●
53 02.483 BRACKET; HARNESS
4HE1 ENG(RLY) M/T MZZ6U(RSF) (D) 		8-97352-527-0 01 1 0208- ● ● ● ● ●
53 02.483 BRACKET; HARNESS
M/T MZZ6U(RSF) (D) 		8-97352-527-0 01 1 0208- ●
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97062-178-3 01 1 9811-0012 ● ● ● ● ●
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97062-178-3 01 1 0101-0105 ● ● ● ● ●
53 02.483 BRACKET; HARNESS
(A) 		8-97062-178-3 01 1 0101-0105 ●
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97062-178-3 01 1 0106- ● ● ● ●
53 02.483 BRACKET; HARNESS
(A) 		8-97062-178-3 01 1 0106- ●
53 02.483 BRACKET; HARNESS
A/T 4 SPEED-JATCO(RMK) (B) 		8-97094-990-1 01 1 9811-9903 ●
53 02.483 BRACKET; HARNESS
THAILAND EQUIPMENT(PM9) (C) 		8-97065-158-2 01 1 9811-9903 ● ● ●
53 02.483 BRACKET; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97065-158-2 01 1 9904-0012 ● ● ● ● ●
53 02.483 BRACKET; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97065-158-2 01 1 0101-0105 ● ● ● ● ●
53 02.483 BRACKET; HARNESS
(C) 		8-97065-158-2 01 1 0101-0105 ●
53 02.483 BRACKET; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97065-158-2 01 1 0106- ● ● ● ●
53 02.483 BRACKET; HARNESS
(C) 		8-97065-158-2 01 1 0106- ●
317 02.559 CLAMP; CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (C) 		8-94466-377-0 01 1 9811-0105 ● ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> (C) 		8-94466-377-0 01 1 9811-0105 ● ● ● ●
317 02.559 CLAMP; CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (C) 		8-94466-377-0 01 1 0106- ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> (C) 		8-94466-377-0 01 1 0106- ● ● ●
317 02.559 CLAMP; CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> (B) 		8-94366-903-0 01 1 9811-0105 ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> (B) 		8-94366-903-0 01 1 0106- ● ● ● ●
317 02.559 CLAMP; CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> (A) 		8-94441-365-0 01 1 9811- ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
4HE1 ENG(RLY) M/T MZZ6U(RSF) 		8-97324-451-1 01 1 0208- ● ● ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
M/T MZZ6U(RSF) 		8-97324-451-1 01 1 0208- ●
504 02.559 PROTECTOR; HARNESS
FRAME STRAIGHT TYPE<7KJ> 16.225 L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9811-9908 ● ● ● ● ●
504 02.559 PROTECTOR; HARNESS
16.225 L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9811-9908 ●
504 02.559 PROTECTOR; HARNESS
FRAME STRAIGHT TYPE<7KJ> 16.225 L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9909-0105 ● ● ● ● ● ●
504 02.559 PROTECTOR; HARNESS
FRAME STRAIGHT TYPE<7KJ> 04.785 L=200 		8-97096-423-0 01 1 0106- ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 L=120 SERVICED BY L=2040 		1-71997-513-1 03 1 9811- ● ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 9811- ● ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 16.550 L=250 SERVICED BY L=2040 		1-71997-513-1 01 1 9811-0003 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) 16.550 L=250 SERVICED BY L=2040 		1-71997-513-1 01 1 9811-0003 ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0004-0012 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0004-0012 ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0101-0105 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0101-0105 ● ● ● ● ●
514 02.559 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0101-0105 ●
514 02.559 FINISHER; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0106- ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0106- ● ● ● ● ●
514 02.559 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0106- ● ●
çizim 48933
464 488 16 48 142 220 484 483 593 16 48 50 488 48 14 16 16 16 16 205
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
14 02.559 CLIP; BAND,HARNESS
03.430 L=200 		8-94464-835-0 01 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) ID=15-32 		8-97174-404-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=100 		8-94442-388-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=10 & 16 		8-94413-325-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (G) ID=22 & 22 		8-94464-837-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(I) L=155 		8-97173-307-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.930 (J) ID=10 & 16.5 		8-94360-745-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.342 (L) ID=14-12 		8-94379-592-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (M) L=140 		5-09707-031-1 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=175 		8-97110-167-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=135 		1-09987-143-1 AR 1 9904- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) ID=15-40 		8-97223-033-0 AR 1 9904- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) L=250 		5-09707-030-1 AR 1 0106- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.197 (H) ID=32 L=75 		1-09700-702-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=31 L=30 		1-09700-969-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(P) ID=10 & 10 		1-09709-221-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) L=170.3 		1-09987-182-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=20 		5-09700-321-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.446 (L) ID=12 B=14 ID=8.5 		5-09700-350-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) L=250 		5-09707-030-1 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (K) L=140 		5-09707-031-1 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (R) T=4.5 & 9 		5-09709-023-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) L=110 		8-94149-419-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) ID=24 		8-94149-610-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=20 		8-94169-650-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.115 (Q) T=9 & 10.5 		8-97041-091-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) ID=9 		8-97063-874-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (E) ID=11 L=28 		9-09525-055-0 AR 1 9811- ● ● ● ● ● ● ●
50 02.483 CLIP; PURSE LOCK,HARNESS
A/T 4 SPEED-JATCO(RMK) EXC. CHARGE AIR COOLER<6PL> 02.559 L=250 		5-09707-030-1 01 1 9811- ●
142 02.559 CLIP; HARNESS,ENG
FLOOR REMOTE SHIFT<M11> 03.162 (A) L=140 		5-09707-031-1 01 1 9811-0012 ● ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
FLOOR REMOTE SHIFT<M11> 03.162 (A) L=140 		5-09707-031-1 01 1 0101-0207 ● ● ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
M/T MXA5R(RMT),M/T MBP6P(RNC) 03.162 (A) L=140 		5-09707-031-1 01 1 0208- ● ● ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.483 (B) 		8-97101-436-0 01 1 9811- ● ● ● ● ● ●
205 02.559 CLIP; BACK LAMP HARNESS
4HE1 ENG(RLY) M/T MZZ6U(RSF) L=135 		1-09987-143-1 01 1 0208- ● ● ● ● ●
205 02.559 CLIP; BACK LAMP HARNESS
M/T MZZ6U(RSF) L=135 		1-09987-143-1 01 1 0208- ●
220 02.559 CLIP; HARNESS TO CABLE
FRAME STRAIGHT TYPE<7KJ> 03.680 (A) ID=25.5 & 8.0 		8-94363-538-0 01 1 9811-9811 ● ● ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140 		5-09707-031-0 01 1 9812-9812 ● ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
03.162 (B) L=140 		5-09707-031-0 01 1 9812-9812 ●
220 02.559 CLIP; HARNESS TO CABLE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140 		5-09707-031-1 01 1 9901-9908 ● ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
CHARGE AIR COOLER<6PL> 03.162 (B) L=140 		5-09707-031-1 01 1 9901-9908 ●
220 02.559 CLIP; HARNESS TO CABLE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140 		5-09707-031-1 01 1 9909-0112 ● ● ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 03.162 (B) L=140 		5-09707-031-1 01 1 0201-0207 ● ● ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 03.162 (B) L=140 		5-09707-031-1 01 1 0208- ● ● ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=25.5 & 8.0 		8-94363-538-0 01 1 9901-9908 ● ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=25.5 & 8.0 		8-94363-538-0 01 1 9901-9908 ●
220 02.559 CLIP; HARNESS TO CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=25.5 & 8.0 		8-94363-538-0 01 1 9909-0105 ● ● ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=25.5 & 8.0 		8-94363-538-0 01 1 0106- ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 9811-0012 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0101-0105 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0101-0105 ●
464 02.525 CLIP; SEDIMENTER HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0106- ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0106- ●
464 02.525 CLIP; SEDIMENTER HARNESS
EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9811-9907 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9811-9907 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
FUEL FILTER DUAL<S6B> EXC. HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9811-9907 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
02.559 (B) ID=6.5 		8-94257-639-0 01 1 9811-9907 ●
464 02.525 CLIP; SEDIMENTER HARNESS
EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9908-0012 ● ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9908-0012 ● ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9908-0012 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0101- ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0101- ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0101- ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
02.559 (B) ID=6.5 		8-94257-639-0 01 1 0101- ●
464 02.525 CLIP; SEDIMENTER HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 02.587 (A) L=112 		8-94232-618-0 01 1 9811-0105 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 02.587 (A) L=112 		8-94232-618-0 01 1 0106- ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
HYDRO MASTER<7LT> 02.559 (D) ID=9 		8-97063-874-0 01 1 9811- ● ● ●
483 02.559 CLIP; ENG HARNESS
EXC. CHARGE AIR COOLER<6PL> 03.162 L=140 		5-09707-031-1 02 1 9811-9908 ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HG1 ENG(RJH),4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.162 L=140 		5-09707-031-1 02 1 9909-0004 ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 L=140 		5-09707-031-1 02 1 0005-0105 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1 ENG(RLS) FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2), SINGAPORE EQUIPMENT(S9Y) 03.162 L=140 		5-09707-031-1 02 1 0106-0207 ● ● ●
483 02.559 CLIP; ENG HARNESS
03.162 L=140 		5-09707-031-1 02 1 0106-0207 ●
483 02.559 CLIP; ENG HARNESS
4HE1 ENG(RLY) M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL> 03.162 L=140 		5-09707-031-1 01 1 0208- ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 03.162 L=140 		5-09707-031-1 01 1 0208- ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6P(RNC) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 03.162 L=140 		5-09707-031-1 01 1 0208- ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) HIGH ALTITUDE COMPENSATOR(EE2) 03.162 L=140 		5-09707-031-1 01 1 0208- ● ● ●
483 02.559 CLIP; ENG HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 L=140 		5-09707-031-1 01 1 9811-0003 ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 L=140 		5-09707-031-1 01 1 0004-0004 ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 03.162 L=140 		5-09707-031-1 01 1 0004-0004 ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> 03.162 L=140 		5-09707-031-1 01 1 0005-0012 ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HG1 ENG(RJH),4HE1 ENG(RLY) 03.162 L=140 		5-09707-031-1 01 1 0005-0012 ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 03.162 L=140 		5-09707-031-1 01 1 0005-0012 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1 ENG(RLS) HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) 03.162 L=140 		5-09707-031-1 01 1 0005-0012 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> 03.162 L=140 		5-09707-031-1 01 1 0101-0105 ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HG1 ENG(RJH),4HE1 ENG(RLY) 03.162 L=140 		5-09707-031-1 01 1 0101-0105 ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 03.162 L=140 		5-09707-031-1 01 1 0101-0105 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1 ENG(RLS) HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) 03.162 L=140 		5-09707-031-1 01 1 0101-0105 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
03.162 L=140 		5-09707-031-1 01 1 0101-0105 ●
483 02.559 CLIP; ENG HARNESS
03.162 L=140 		5-09707-031-1 01 1 0106-0207 ● ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1 ENG(RLS),4HE1 ENG(RLY) 03.162 L=140 		5-09707-031-1 02 1 0208- ● ● ● ● ●
484 02.559 CLIP; ECGI HARNESS TO C/MBR
4HG1 ENG(RJH),4HF1 ENG(RLS) 03.162 L=140 		5-09707-031-1 01 1 9909-0004 ● ● ● ● ●
488 02.559 CLIP; CABLE,TRAILER
EXC. DUMP CHASSIS(V4D) (A) L=250 		5-09707-030-1 01 1 9811-9908 ●
488 02.559 CLIP; CABLE,TRAILER
EXC. RR BODY FLAT BED<RS6> (A) L=250 		5-09707-030-1 01 1 9811-9908 ● ●
488 02.559 CLIP; CABLE,TRAILER
(A) L=250 		5-09707-030-1 01 1 9811-9908 ● ● ●
488 02.559 CLIP; CABLE,TRAILER
EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) (A) L=250 		5-09707-030-1 01 1 9909-0012 ● ● ●
488 02.559 CLIP; CABLE,TRAILER
(A) L=250 		5-09707-030-1 01 1 9909-0012 ● ● ●
488 02.559 CLIP; CABLE,TRAILER
EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) (A) L=250 		5-09707-030-1 01 1 0101- ● ● ●
488 02.559 CLIP; CABLE,TRAILER
(A) L=250 		5-09707-030-1 01 1 0101- ● ● ● ●
488 02.559 CLIP; CABLE,TRAILER
RR BODY FLAT BED<RS6> 02.587 (B) L=112 		8-94232-618-0 05 1 9811- ● ●
593 02.559 CLIP
4HE1 ENG(RLY) M/T MZZ6U(RSF) 03.162 L=140 		5-09707-031-1 01 1 0208- ● ● ● ● ●
593 02.559 CLIP
M/T MZZ6U(RSF) 03.162 L=140 		5-09707-031-1 01 1 0208- ●
çizim 48934
16 48 16 48 464 48 48 48 48 48 48 48 16 220 48 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
16 02.559 CLIP; HARNESS
(A) ID=15-32 		8-97174-404-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=100 		8-94442-388-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=10 & 16 		8-94413-325-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (G) ID=22 & 22 		8-94464-837-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(I) L=155 		8-97173-307-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.930 (J) ID=10 & 16.5 		8-94360-745-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.342 (L) ID=14-12 		8-94379-592-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (M) L=140 		5-09707-031-1 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=175 		8-97110-167-0 AR 1 9811- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=135 		1-09987-143-1 AR 1 9904- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) ID=15-40 		8-97223-033-0 AR 1 9904- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) L=250 		5-09707-030-1 AR 1 0106- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.197 (H) ID=32 L=75 		1-09700-702-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=31 L=30 		1-09700-969-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(P) ID=10 & 10 		1-09709-221-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) L=170.3 		1-09987-182-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=20 		5-09700-321-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.446 (L) ID=12 B=14 ID=8.5 		5-09700-350-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) L=250 		5-09707-030-1 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (K) L=140 		5-09707-031-1 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (R) T=4.5 & 9 		5-09709-023-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) L=110 		8-94149-419-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) ID=24 		8-94149-610-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=20 		8-94169-650-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.115 (Q) T=9 & 10.5 		8-97041-091-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(I) ID=9 		8-97063-874-0 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 AR 1 9811- ● ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (E) ID=11 L=28 		9-09525-055-0 AR 1 9811- ● ● ● ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
FRAME STRAIGHT TYPE<7KJ> 03.680 (A) ID=25.5 & 8.0 		8-94363-538-0 01 1 9811-9811 ● ● ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140 		5-09707-031-0 01 1 9812-9812 ● ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
03.162 (B) L=140 		5-09707-031-0 01 1 9812-9812 ●
220 02.559 CLIP; HARNESS TO CABLE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140 		5-09707-031-1 01 1 9901-9908 ● ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
CHARGE AIR COOLER<6PL> 03.162 (B) L=140 		5-09707-031-1 01 1 9901-9908 ●
220 02.559 CLIP; HARNESS TO CABLE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140 		5-09707-031-1 01 1 9909-0112 ● ● ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 03.162 (B) L=140 		5-09707-031-1 01 1 0201-0207 ● ● ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 03.162 (B) L=140 		5-09707-031-1 01 1 0208- ● ● ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=25.5 & 8.0 		8-94363-538-0 01 1 9901-9908 ● ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=25.5 & 8.0 		8-94363-538-0 01 1 9901-9908 ●
220 02.559 CLIP; HARNESS TO CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=25.5 & 8.0 		8-94363-538-0 01 1 9909-0105 ● ● ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=25.5 & 8.0 		8-94363-538-0 01 1 0106- ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 9811-0012 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0101-0105 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0101-0105 ●
464 02.525 CLIP; SEDIMENTER HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0106- ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0106- ●
464 02.525 CLIP; SEDIMENTER HARNESS
EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9811-9907 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9811-9907 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
FUEL FILTER DUAL<S6B> EXC. HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9811-9907 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
02.559 (B) ID=6.5 		8-94257-639-0 01 1 9811-9907 ●
464 02.525 CLIP; SEDIMENTER HARNESS
EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9908-0012 ● ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9908-0012 ● ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9908-0012 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0101- ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0101- ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0101- ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
02.559 (B) ID=6.5 		8-94257-639-0 01 1 0101- ●
464 02.525 CLIP; SEDIMENTER HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 02.587 (A) L=112 		8-94232-618-0 01 1 9811-0105 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 02.587 (A) L=112 		8-94232-618-0 01 1 0106- ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
HYDRO MASTER<7LT> 02.559 (D) ID=9 		8-97063-874-0 01 1 9811- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
