◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#18805) — 1172 parça

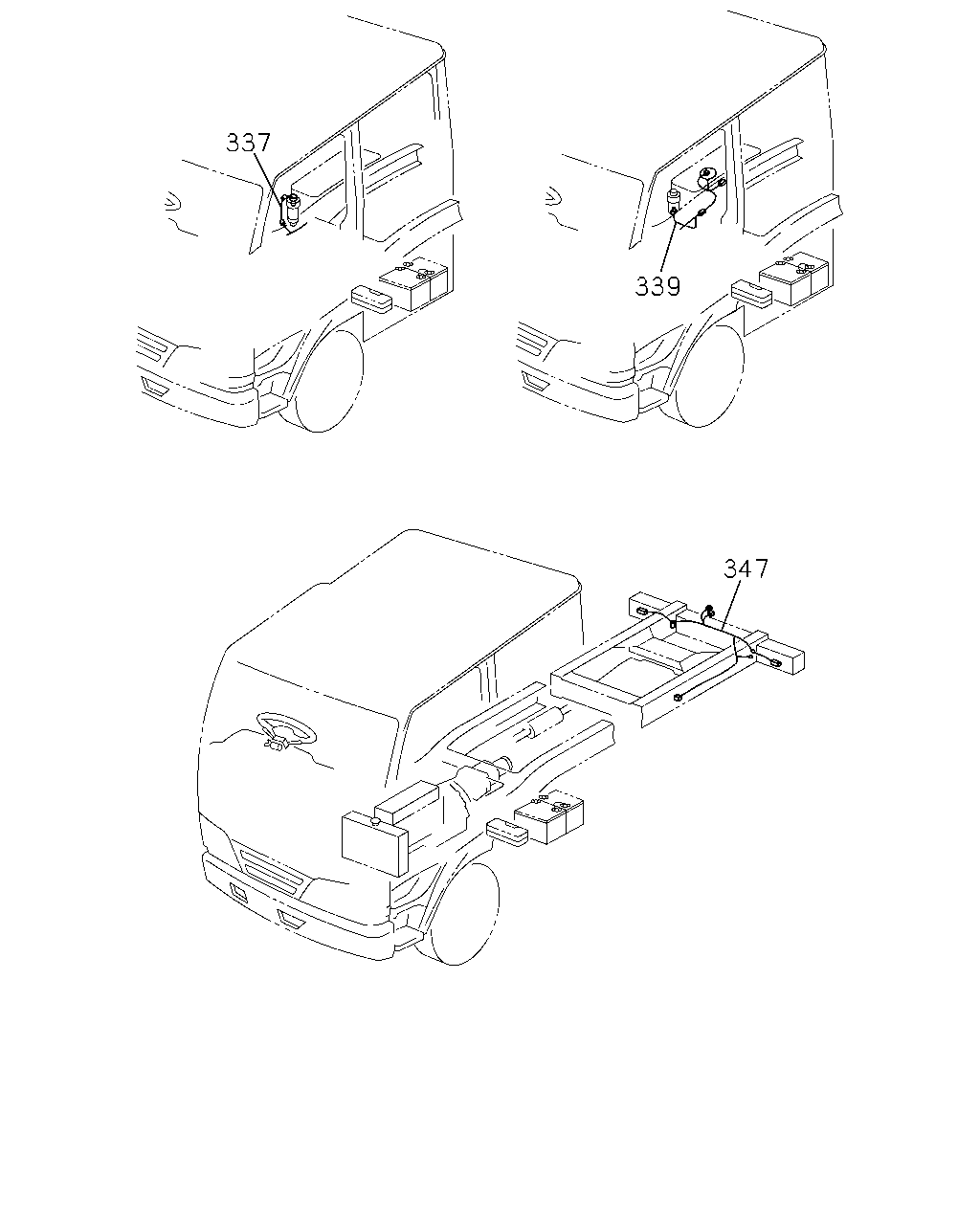

çizim 7877
337 339 347
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94470-821-0 01 1 9811-0105 ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. HYDRO MASTER<7LT> 		8-94470-821-0 01 1 9811-0105 ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97261-149-0 01 1 0106- ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. HYDRO MASTER<7LT> 		8-97261-149-0 01 1 0106- ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> 		8-94310-644-0 01 1 9811-0105 ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> 		8-97261-148-0 01 1 0106- ● ● ●
339 02.530 HARNESS; EXT,FUEL
02.480 		8-94318-759-0 01 1 9811-0105 ●
339 02.530 HARNESS; EXT,FUEL
4HG1 ENG(RJH),4HE1 ENG(RLY) 02.480 		8-94318-759-0 01 1 0106- ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 		8-97213-568-0 01 1 9811- ● ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97213-568-0 01 1 9811- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> 		8-97213-566-0 01 1 9811- ● ●

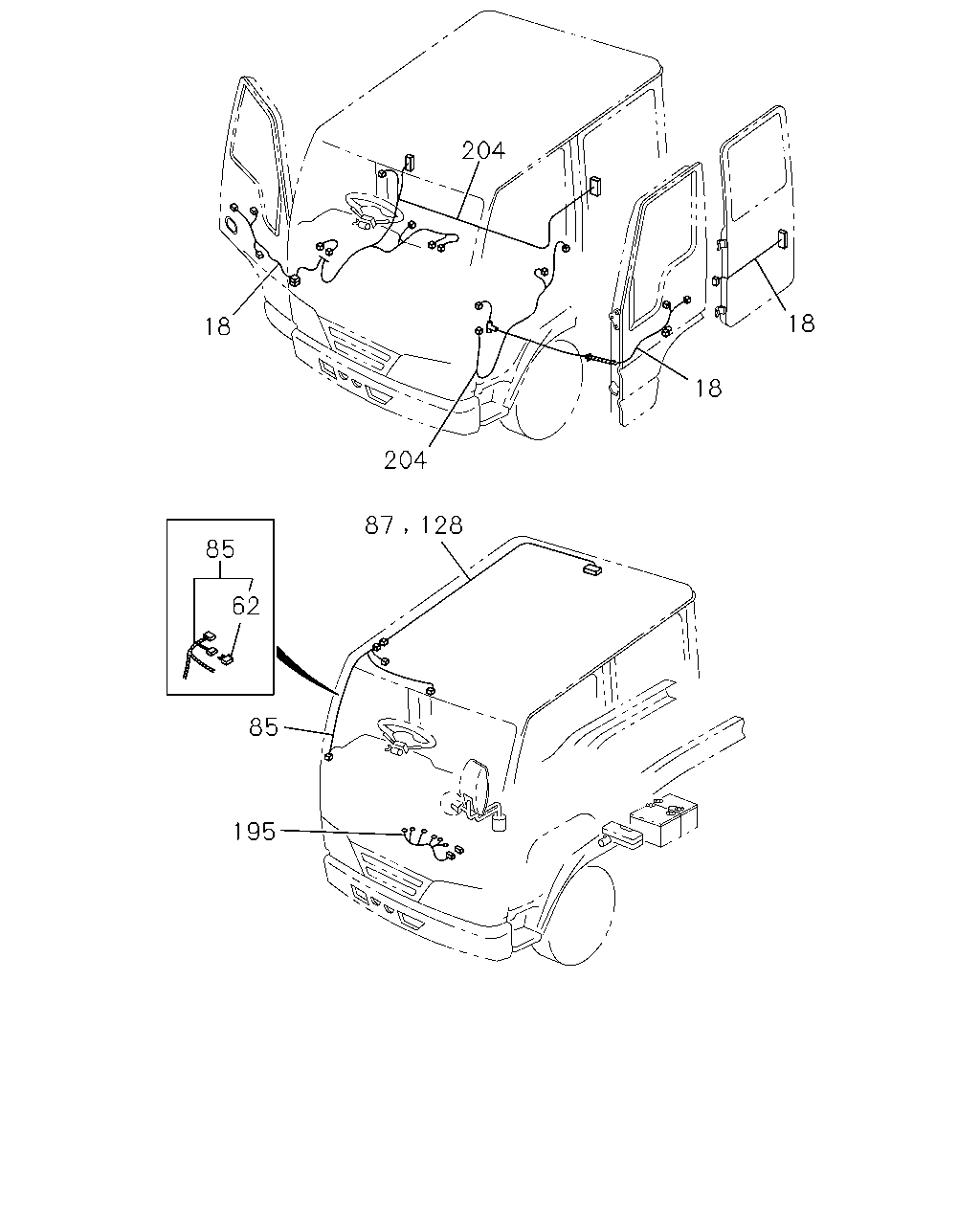

çizim 47693
204 18 18 18 204 87 128 85 62 85 195
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> FRONT DOOR 		8-97230-276-0 01 1 9906-0105 ● ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> FRONT DOOR 		8-97312-148-0 01 1 0106-0111 ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97312-148-0 01 1 0112- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-671-0 01 1 9905-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 9905-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-671-0 01 1 9905-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-671-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-671-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETT E 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9811-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 9811-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9811-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETT E 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97217-196-0 01 1 9811-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97217-194-0 01 1 9811-9905 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW FRT DOOR<A32>, CUSTOM PACKAGE<YM8> FRONT DOOR 		8-97217-194-0 01 1 9906-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97217-197-0 01 1 9811-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97217-195-0 01 1 9811-9905 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) EXC. CUSTOM PACKAGE<YM8> FRONT DOOR 		8-97217-195-0 01 1 9906-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-144-1 01 1 9811-9904 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-144-1 01 1 9811-9904 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-669-0 01 1 9905-9908 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 9905-9908 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-669-0 01 1 9909-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-669-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-0 01 1 9811-9908 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-0 01 1 9811-9908 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-0 01 1 9909-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0106-0111 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-1 01 1 0106-0111 ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) EXC. CUSTOM PACKAGE<YM8> FRONT DOOR 		8-97185-142-1 01 1 0106-0111 ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-1 01 1 0112- ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) EXC. REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97185-142-1 01 1 0112- ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0112- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 9811- ●
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 01 1 9811- ●
85 06.495 HARNESS; ROOM LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-97307-518-0 01 1 0106- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-611-1 01 1 9811-0105 ● ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97164-611-2 01 1 0106- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-611-2 01 1 0106- ● ●
85 06.495 HARNESS; ROOM LAMP 8-97162-627-2 01 1 9811-0105 ●
85 06.495 HARNESS; ROOM LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97162-627-3 01 1 0106- ●
85 06.495 HARNESS; ROOM LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-97312-297-0 01 1 0106- ●
87 02.480 HARNESS; EXT,ROOM LAMP 8-97075-747-0 01 1 9811-0105 ●
87 02.480 HARNESS; EXT,ROOM LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97075-747-0 01 1 0106-0109 ●
87 02.480 HARNESS; EXT,ROOM LAMP
EXC. LAMP-ROOM,W/ALL DOORS SW<SDF> 		8-97075-747-0 01 1 0110- ●
128 02.480 HARNESS; BODY,RR
AUSTRALIA EQUIPMENT(RR3) 		8-97300-349-0 01 1 0106-0109 ●
128 02.480 HARNESS; BODY,RR
LAMP-ROOM,W/ALL DOORS SW<SDF> 		8-97300-349-0 01 1 0110- ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97171-205-3 01 1 9811-0104 ● ● ● ● ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97306-681-0 01 1 0105-0105 ● ● ● ● ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97306-681-0 01 1 0106- ● ● ● ● ●
195 01.150 HARNESS; EXT 8-97306-681-0 01 1 0106- ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97172-039-3 01 1 9811-9903 ● ● ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97172-039-3 01 1 9904- ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
AUSTRALIA EQUIPMENT(RR3) 		8-97162-631-2 01 1 0106-0109 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
LAMP-ROOM,W/ALL DOORS SW<SDF> 		8-97162-631-2 01 1 0110- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97162-630-1 01 1 9811-9812 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-629-1 01 1 9811-0012 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-1 01 1 9811-0012 ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-629-1 01 1 0101-0105 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-1 01 1 0101-0105 ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-629-2 01 1 0106- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 0106- ● ●
204 02.559 HARNESS; CABLE,FLOOR
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97162-625-1 01 1 9811-9812 ●
204 02.559 HARNESS; CABLE,FLOOR
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97162-625-3 01 1 9901- ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97162-625-3 01 1 9901- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-2 01 1 9811- ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-626-4 01 1 9811- ●

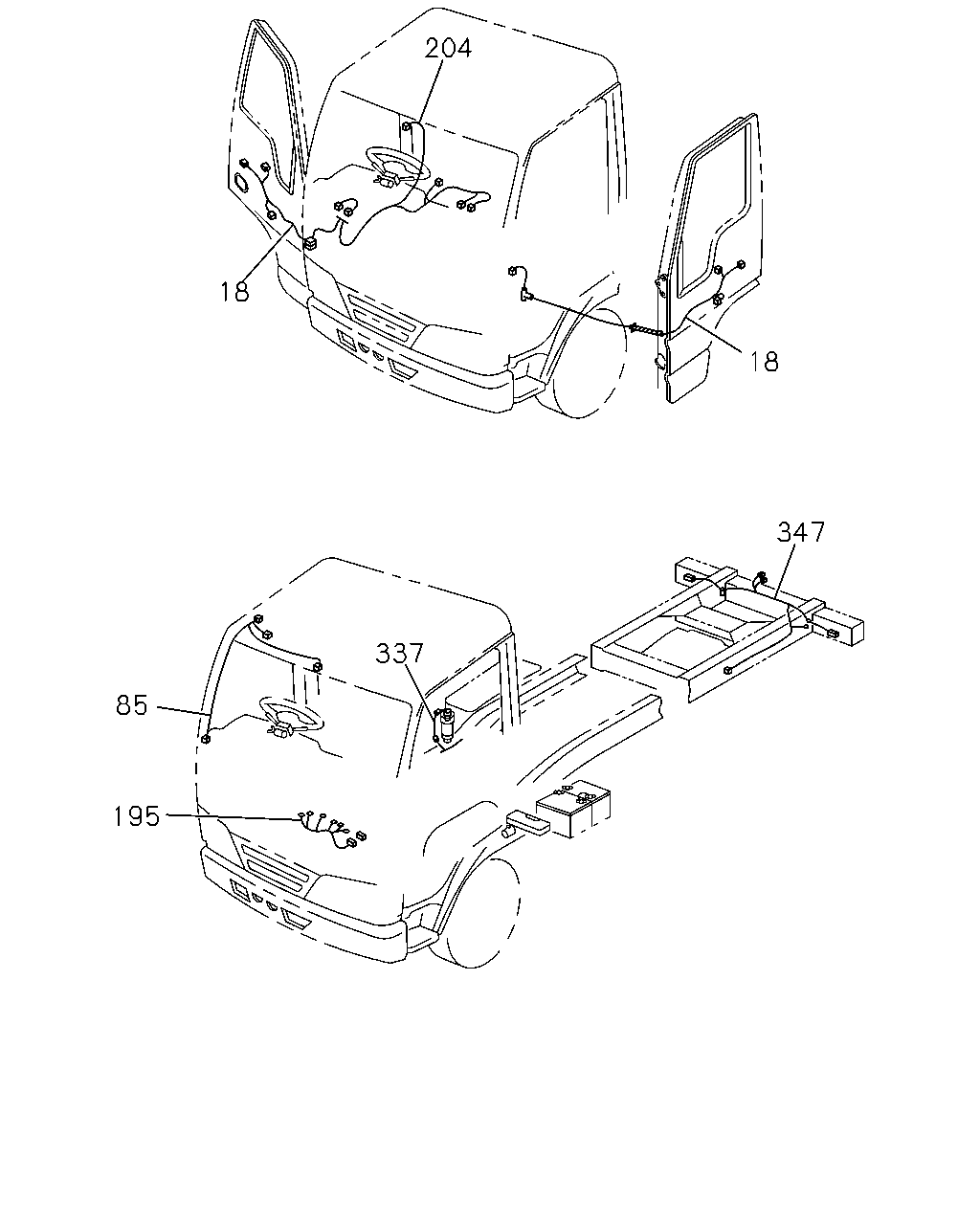

çizim 47733
204 18 8 347 337 85 195
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D) 		8-97217-605-2 01 1 9811-9903 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D) 		8-97217-605-2 01 1 9904-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),HYDRO MASTER<7LT> 		8-97260-976-1 01 1 0106- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VEHICLE CATEGORY NQR<7NQ> 		8-97217-588-0 01 1 9811-9812 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VEHICLE CATEGORY NQR<7NQ> 		8-97217-590-0 01 1 9901-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97217-590-0 01 1 9811-9812 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97217-588-0 01 1 9901-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) SINGAPORE EQUIPMENT(S9Y) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97260-995-1 01 1 0106- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97217-601-0 01 1 9811-9812 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97217-603-0 01 1 9811-9812 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> 		8-97217-603-2 01 1 9901-0105 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97227-733-0 01 1 9904-0012 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97227-733-0 01 1 0101-0105 ● ● ●
8 02.480 HARNESS; FRAME,FRT 8-97227-733-0 01 1 0101-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D) EXC. TURBOCHARGER(K51) 		8-97260-971-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97217-600-1 01 1 9811-9903 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51) 		8-97217-600-1 01 1 9904-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. TURBOCHARGER(K51) 		8-97260-978-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) 		8-97227-751-1 01 1 9904-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97260-970-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97217-611-0 01 1 9811-9812 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97217-611-0 01 1 9811-9812 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97217-612-0 01 1 9811-9812 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 		8-97217-612-1 01 1 9901-9903 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97217-612-1 01 1 9901-9903 ●

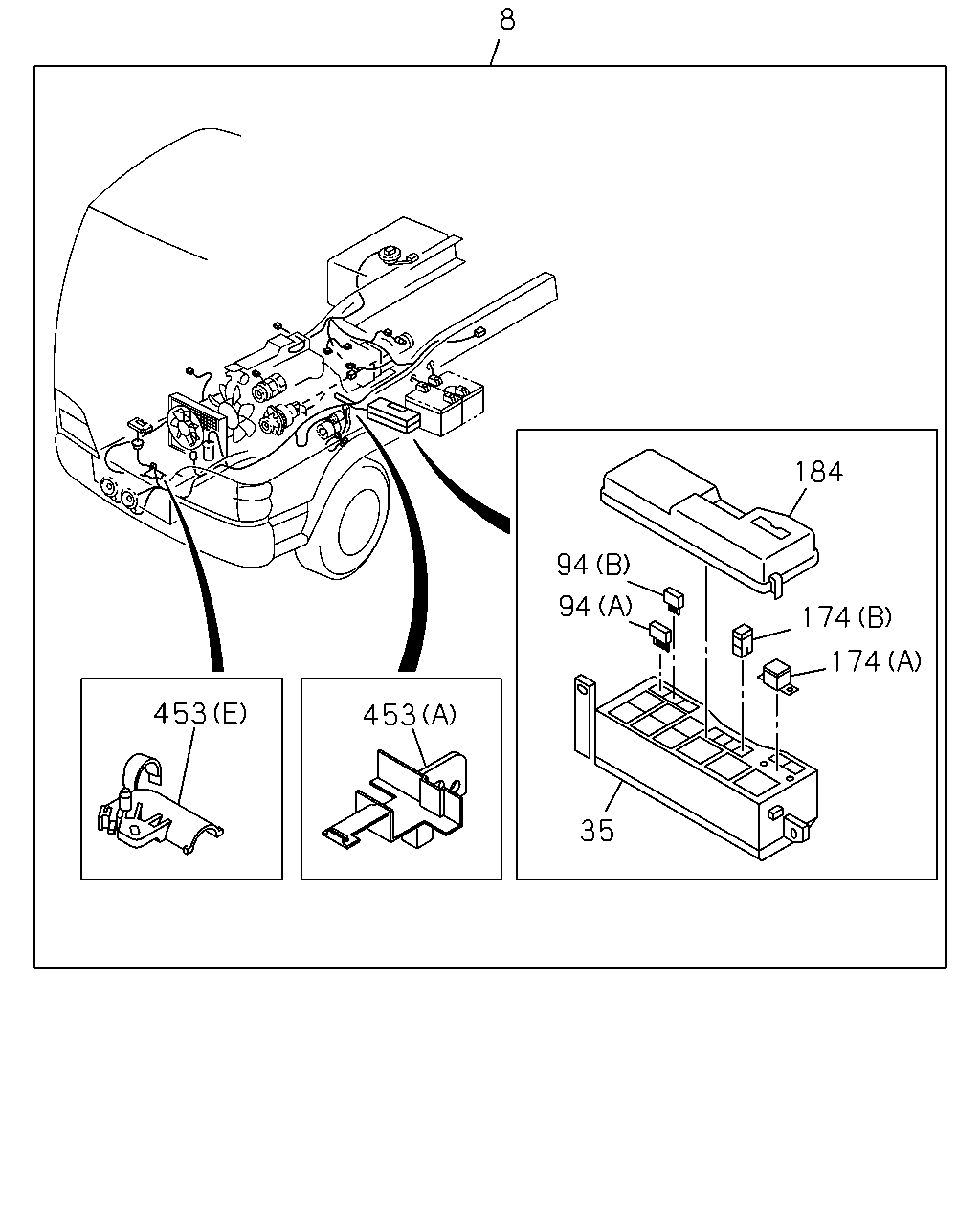

8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 		8-97217-612-1 01 1 9904-0105 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> 		8-97260-972-1 01 1 0106- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 		8-97217-614-1 01 1 9811-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97260-966-1 01 1 0106- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97212-139-0 01 1 9811-9903 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 		8-97212-139-0 01 1 9904-0105 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97260-964-1 01 1 0106- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT 8-97260-964-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VEHICLE CATEGORY NQR<7NQ> 		8-97217-589-0 01 1 9811-9812 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VEHICLE CATEGORY NQR<7NQ> 		8-97217-591-0 01 1 9901-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> 		8-97261-008-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97217-591-0 01 1 9811-9812 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97217-589-0 01 1 9901-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97261-002-1 01 1 0106-0112 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-582-1 01 1 0004-0105 ●
8 02.480 HARNESS; FRAME,FRT 8-97311-333-1 01 1 0106-0207 ●
8 02.480 HARNESS; FRAME,FRT
M/T MBP6P(RNC) 		8-97311-333-1 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97217-602-0 01 1 9811-9812 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97212-140-0 01 1 9811-9903 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 		8-97212-140-0 01 1 9904-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97217-599-0 01 1 9811-9903 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97227-732-0 01 1 9904-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> EXC. TURBOCHARGER(K51) 		8-97260-980-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97217-604-0 01 1 9811-9812 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> 		8-97217-604-2 01 1 9901-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),HYDRO MASTER<7LT> 		8-97260-979-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97217-597-1 01 1 9811-9903 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97217-597-1 01 1 9904-0105 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97254-012-0 01 1 0004-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97217-613-0 01 1 9811-9812 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97217-613-1 01 1 9901-0011 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 		8-97217-613-1 01 1 0012-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-581-1 01 1 9811-9903 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 		8-97217-581-1 01 1 9904-0003 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-581-1 01 1 0004-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-581-1 01 1 0004-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97260-994-2 01 1 0106- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL> 		8-97352-528-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6U(RSF) 		8-97352-465-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6P(RNC) EXC. CHARGE AIR COOLER<6PL> 		8-97261-002-1 01 1 0203- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97316-730-1 01 1 0108- ● ●

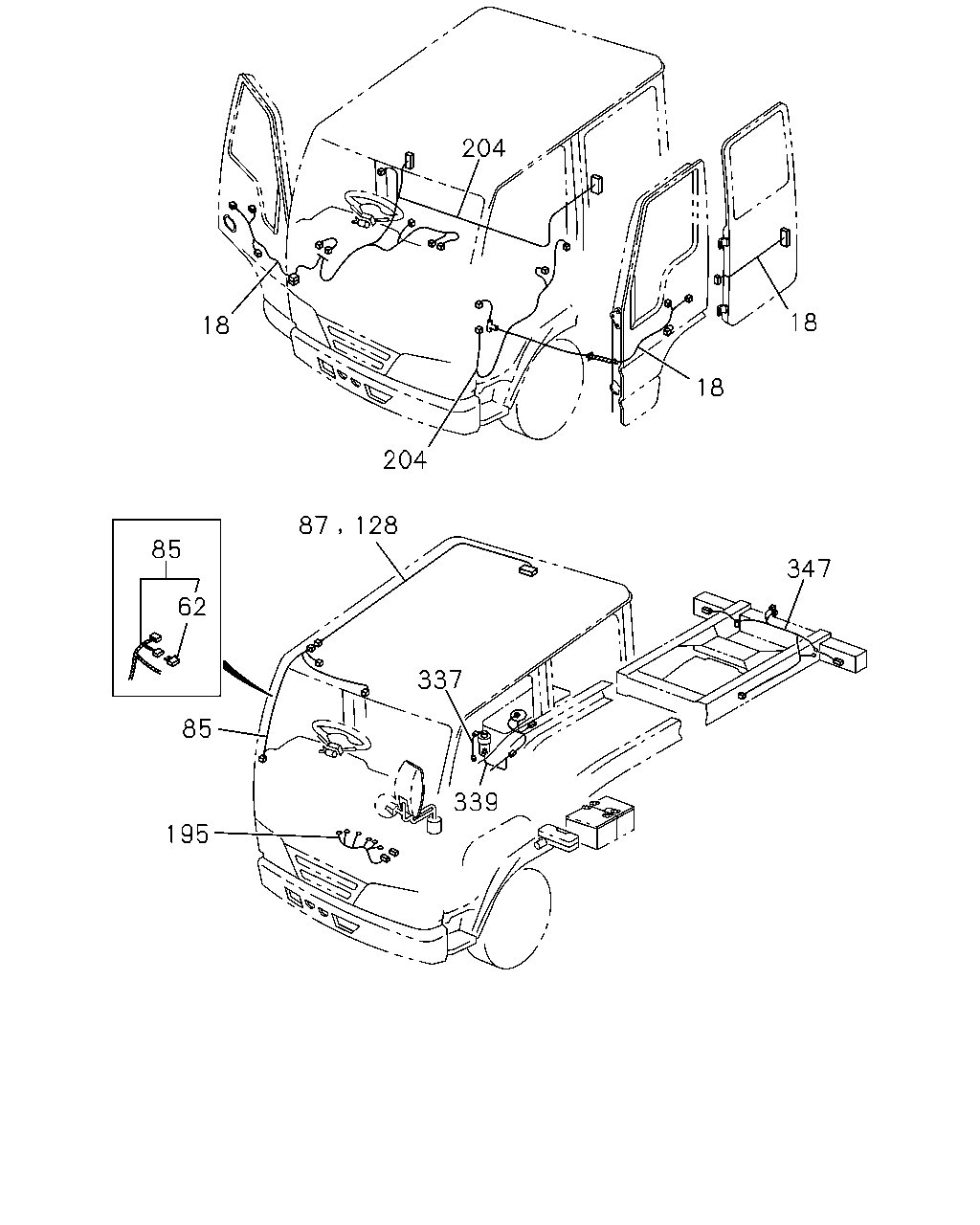

18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> FRONT DOOR 		8-97230-276-0 01 1 9906-0105 ● ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> FRONT DOOR 		8-97312-148-0 01 1 0106-0111 ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97312-148-0 01 1 0112- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-671-0 01 1 9905-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 9905-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-671-0 01 1 9905-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-671-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-671-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETT E 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9811-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 9811-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9811-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETT E 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97217-196-0 01 1 9811-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97217-194-0 01 1 9811-9905 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW FRT DOOR<A32>, CUSTOM PACKAGE<YM8> FRONT DOOR 		8-97217-194-0 01 1 9906-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97217-197-0 01 1 9811-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97217-195-0 01 1 9811-9905 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) EXC. CUSTOM PACKAGE<YM8> FRONT DOOR 		8-97217-195-0 01 1 9906-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-144-1 01 1 9811-9904 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-144-1 01 1 9811-9904 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-669-0 01 1 9905-9908 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 9905-9908 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-669-0 01 1 9909-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-669-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-0 01 1 9811-9908 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-0 01 1 9811-9908 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-0 01 1 9909-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0106-0111 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-1 01 1 0106-0111 ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) EXC. CUSTOM PACKAGE<YM8> FRONT DOOR 		8-97185-142-1 01 1 0106-0111 ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-1 01 1 0112- ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) EXC. REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97185-142-1 01 1 0112- ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0112- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 9811- ●
85 06.495 HARNESS; ROOM LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-97307-518-0 01 1 0106- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-611-1 01 1 9811-0105 ● ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97164-611-2 01 1 0106- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-611-2 01 1 0106- ● ●
85 06.495 HARNESS; ROOM LAMP 8-97162-627-2 01 1 9811-0105 ●
85 06.495 HARNESS; ROOM LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97162-627-3 01 1 0106- ●
85 06.495 HARNESS; ROOM LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-97312-297-0 01 1 0106- ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97171-205-3 01 1 9811-0104 ● ● ● ● ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97306-681-0 01 1 0105-0105 ● ● ● ● ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97306-681-0 01 1 0106- ● ● ● ● ●
195 01.150 HARNESS; EXT 8-97306-681-0 01 1 0106- ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97172-039-3 01 1 9811-9903 ● ● ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97172-039-3 01 1 9904- ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
AUSTRALIA EQUIPMENT(RR3) 		8-97162-631-2 01 1 0106-0109 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
LAMP-ROOM,W/ALL DOORS SW<SDF> 		8-97162-631-2 01 1 0110- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97162-630-1 01 1 9811-9812 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-629-1 01 1 9811-0012 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-1 01 1 9811-0012 ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-629-1 01 1 0101-0105 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-1 01 1 0101-0105 ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-629-2 01 1 0106- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 0106- ● ●
204 02.559 HARNESS; CABLE,FLOOR
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97162-625-1 01 1 9811-9812 ●
204 02.559 HARNESS; CABLE,FLOOR
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97162-625-3 01 1 9901- ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97162-625-3 01 1 9901- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-2 01 1 9811- ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-626-4 01 1 9811- ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94470-821-0 01 1 9811-0105 ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. HYDRO MASTER<7LT> 		8-94470-821-0 01 1 9811-0105 ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97261-149-0 01 1 0106- ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. HYDRO MASTER<7LT> 		8-97261-149-0 01 1 0106- ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> 		8-94310-644-0 01 1 9811-0105 ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> 		8-97261-148-0 01 1 0106- ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 		8-97213-568-0 01 1 9811- ● ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97213-568-0 01 1 9811- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> 		8-97213-566-0 01 1 9811- ● ●
çizim 47808
204 18 18 18 204 87 128 85 347 62 337 85 339 195
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> FRONT DOOR 		8-97230-276-0 01 1 9906-0105 ● ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> FRONT DOOR 		8-97312-148-0 01 1 0106-0111 ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97312-148-0 01 1 0112- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-671-0 01 1 9905-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 9905-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-671-0 01 1 9905-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-671-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-671-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETT E 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9811-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 9811-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9811-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETT E 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97217-196-0 01 1 9811-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97217-194-0 01 1 9811-9905 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW FRT DOOR<A32>, CUSTOM PACKAGE<YM8> FRONT DOOR 		8-97217-194-0 01 1 9906-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97217-197-0 01 1 9811-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97217-195-0 01 1 9811-9905 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) EXC. CUSTOM PACKAGE<YM8> FRONT DOOR 		8-97217-195-0 01 1 9906-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-144-1 01 1 9811-9904 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-144-1 01 1 9811-9904 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-669-0 01 1 9905-9908 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 9905-9908 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-669-0 01 1 9909-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-669-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0106- ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-0 01 1 9811-9908 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-0 01 1 9811-9908 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-0 01 1 9909-0012 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-0 01 1 0101-0105 ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0106-0111 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-1 01 1 0106-0111 ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) EXC. CUSTOM PACKAGE<YM8> FRONT DOOR 		8-97185-142-1 01 1 0106-0111 ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-1 01 1 0112- ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) EXC. REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97185-142-1 01 1 0112- ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0112- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 9811- ●
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 01 1 9811- ●
85 06.495 HARNESS; ROOM LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-97307-518-0 01 1 0106- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-611-1 01 1 9811-0105 ● ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97164-611-2 01 1 0106- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-611-2 01 1 0106- ● ●
85 06.495 HARNESS; ROOM LAMP 8-97162-627-2 01 1 9811-0105 ●
85 06.495 HARNESS; ROOM LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97162-627-3 01 1 0106- ●
85 06.495 HARNESS; ROOM LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-97312-297-0 01 1 0106- ●
87 02.480 HARNESS; EXT,ROOM LAMP 8-97075-747-0 01 1 9811-0105 ●
87 02.480 HARNESS; EXT,ROOM LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97075-747-0 01 1 0106-0109 ●
87 02.480 HARNESS; EXT,ROOM LAMP
EXC. LAMP-ROOM,W/ALL DOORS SW<SDF> 		8-97075-747-0 01 1 0110- ●
128 02.480 HARNESS; BODY,RR
AUSTRALIA EQUIPMENT(RR3) 		8-97300-349-0 01 1 0106-0109 ●
128 02.480 HARNESS; BODY,RR
LAMP-ROOM,W/ALL DOORS SW<SDF> 		8-97300-349-0 01 1 0110- ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97171-205-3 01 1 9811-0104 ● ● ● ● ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97306-681-0 01 1 0105-0105 ● ● ● ● ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97306-681-0 01 1 0106- ● ● ● ● ●
195 01.150 HARNESS; EXT 8-97306-681-0 01 1 0106- ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97172-039-3 01 1 9811-9903 ● ● ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97172-039-3 01 1 9904- ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
AUSTRALIA EQUIPMENT(RR3) 		8-97162-631-2 01 1 0106-0109 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
LAMP-ROOM,W/ALL DOORS SW<SDF> 		8-97162-631-2 01 1 0110- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97162-630-1 01 1 9811-9812 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-629-1 01 1 9811-0012 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-1 01 1 9811-0012 ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-629-1 01 1 0101-0105 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-1 01 1 0101-0105 ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-629-2 01 1 0106- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 0106- ● ●
204 02.559 HARNESS; CABLE,FLOOR
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97162-625-1 01 1 9811-9812 ●
204 02.559 HARNESS; CABLE,FLOOR
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97162-625-3 01 1 9901- ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97162-625-3 01 1 9901- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-2 01 1 9811- ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-626-4 01 1 9811- ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94470-821-0 01 1 9811-0105 ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. HYDRO MASTER<7LT> 		8-94470-821-0 01 1 9811-0105 ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97261-149-0 01 1 0106- ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. HYDRO MASTER<7LT> 		8-97261-149-0 01 1 0106- ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> 		8-94310-644-0 01 1 9811-0105 ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> 		8-97261-148-0 01 1 0106- ● ● ●
339 02.530 HARNESS; EXT,FUEL
02.480 		8-94318-759-0 01 1 9811-0105 ●
339 02.530 HARNESS; EXT,FUEL
4HG1 ENG(RJH),4HE1 ENG(RLY) 02.480 		8-94318-759-0 01 1 0106- ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 		8-97213-568-0 01 1 9811- ● ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97213-568-0 01 1 9811- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> 		8-97213-566-0 01 1 9811- ● ●

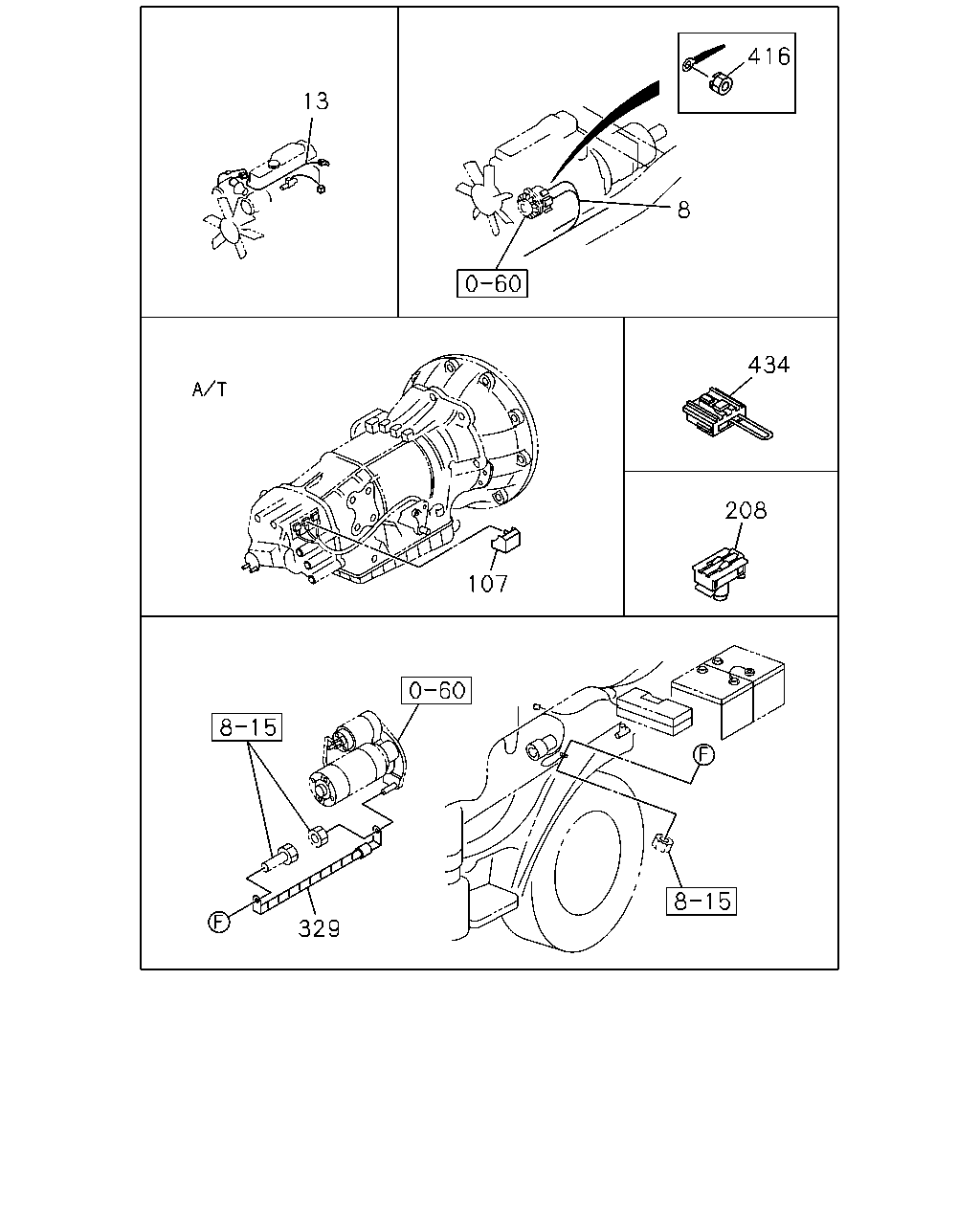

çizim 48284
416 13 8 434 208 107 329
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D) 		8-97217-605-2 01 1 9811-9903 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D) 		8-97217-605-2 01 1 9904-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),HYDRO MASTER<7LT> 		8-97260-976-1 01 1 0106- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VEHICLE CATEGORY NQR<7NQ> 		8-97217-588-0 01 1 9811-9812 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VEHICLE CATEGORY NQR<7NQ> 		8-97217-590-0 01 1 9901-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97217-590-0 01 1 9811-9812 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97217-588-0 01 1 9901-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) SINGAPORE EQUIPMENT(S9Y) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97260-995-1 01 1 0106- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97217-601-0 01 1 9811-9812 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97217-603-0 01 1 9811-9812 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> 		8-97217-603-2 01 1 9901-0105 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97227-733-0 01 1 9904-0012 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97227-733-0 01 1 0101-0105 ● ● ●
8 02.480 HARNESS; FRAME,FRT 8-97227-733-0 01 1 0101-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D) EXC. TURBOCHARGER(K51) 		8-97260-971-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97217-600-1 01 1 9811-9903 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51) 		8-97217-600-1 01 1 9904-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. TURBOCHARGER(K51) 		8-97260-978-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) 		8-97227-751-1 01 1 9904-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97260-970-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97217-611-0 01 1 9811-9812 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97217-611-0 01 1 9811-9812 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97217-612-0 01 1 9811-9812 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 		8-97217-612-1 01 1 9901-9903 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97217-612-1 01 1 9901-9903 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 		8-97217-612-1 01 1 9904-0105 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> 		8-97260-972-1 01 1 0106- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 		8-97217-614-1 01 1 9811-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97260-966-1 01 1 0106- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97212-139-0 01 1 9811-9903 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 		8-97212-139-0 01 1 9904-0105 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97260-964-1 01 1 0106- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT 8-97260-964-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VEHICLE CATEGORY NQR<7NQ> 		8-97217-589-0 01 1 9811-9812 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VEHICLE CATEGORY NQR<7NQ> 		8-97217-591-0 01 1 9901-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> 		8-97261-008-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97217-591-0 01 1 9811-9812 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97217-589-0 01 1 9901-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97261-002-1 01 1 0106-0112 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-582-1 01 1 0004-0105 ●
8 02.480 HARNESS; FRAME,FRT 8-97311-333-1 01 1 0106-0207 ●
8 02.480 HARNESS; FRAME,FRT
M/T MBP6P(RNC) 		8-97311-333-1 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97217-602-0 01 1 9811-9812 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97212-140-0 01 1 9811-9903 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 		8-97212-140-0 01 1 9904-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97217-599-0 01 1 9811-9903 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97227-732-0 01 1 9904-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> EXC. TURBOCHARGER(K51) 		8-97260-980-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97217-604-0 01 1 9811-9812 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> 		8-97217-604-2 01 1 9901-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),HYDRO MASTER<7LT> 		8-97260-979-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97217-597-1 01 1 9811-9903 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97217-597-1 01 1 9904-0105 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97254-012-0 01 1 0004-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97217-613-0 01 1 9811-9812 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97217-613-1 01 1 9901-0011 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 		8-97217-613-1 01 1 0012-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-581-1 01 1 9811-9903 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 		8-97217-581-1 01 1 9904-0003 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-581-1 01 1 0004-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-581-1 01 1 0004-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97260-994-2 01 1 0106- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL> 		8-97352-528-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6U(RSF) 		8-97352-465-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6P(RNC) EXC. CHARGE AIR COOLER<6PL> 		8-97261-002-1 01 1 0203- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97316-730-1 01 1 0108- ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) M/T MZZ6U(RSF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> FAST GLOW SYSTEM<KM6> TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> POWER STEERING<N40> VOLTAGE 24V<7AE> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 		8-97328-755-0 01 1 0208-0208 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) M/T MZZ6U(RSF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> FAST GLOW SYSTEM<KM6> TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> POWER STEERING<N40> VOLTAGE 24V<7AE> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 		8-97356-988-0 01 1 0209- ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) M/T MZZ6U(RSF) HEATER & DEFROSTER(C41) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97328-756-0 01 1 0208-0208 ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) M/T MZZ6U(RSF) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> HYDRO BRAKE BOOSTER<7QQ> EXC. HEATER & DEFROSTER(C41),ENGINE POWER N-SPEC(7QV) 		8-97328-756-0 01 1 0208-0208 ● ● ●
13 02.525 HARNESS; ENG
M/T MZZ6U(RSF) HEATER & DEFROSTER(C41) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97328-756-0 01 1 0208-0208 ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) M/T MZZ6U(RSF) HEATER & DEFROSTER(C41) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97356-989-0 01 1 0209- ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) M/T MZZ6U(RSF) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> HYDRO BRAKE BOOSTER<7QQ> EXC. HEATER & DEFROSTER(C41),ENGINE POWER N-SPEC(7QV) 		8-97356-989-0 01 1 0209- ● ● ●
13 02.525 HARNESS; ENG
M/T MZZ6U(RSF) HEATER & DEFROSTER(C41) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97356-989-0 01 1 0209- ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> A/T 4 SPEED-AISIN(RNJ) EXC. ENGINE POWER N-SPEC(7QV) 		8-97166-705-1 01 1 9811- ● ● ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FAST GLOW SYSTEM<KM6>, TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-97170-517-1 01 1 9811-0011 ● ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> FLOOR REMOTE SHIFT<M11> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTIT UDE COMPENSATOR(EE2),FAST GLOW SYSTEM<KM6>,POWER STEERING<N40>,ENGINE PO WER N-SPEC(7QV) 		8-97170-517-1 01 1 0012-0105 ● ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTIT UDE COMPENSATOR(EE2),FAST GLOW SYSTEM<KM6>,SINGAPORE EQUIPMENT(S9Y),ENGI NE POWER N-SPEC(7QV) 		8-97170-517-1 01 1 0106- ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTIT UDE COMPENSATOR(EE2),FAST GLOW SYSTEM<KM6>,POWER STEERING<N40>,SINGAPORE EQUIPMENT(S9Y),ENGINE POWER N-SPEC(7QV) 		8-97170-517-1 01 1 0106- ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTIT UDE COMPENSATOR(EE2),FAST GLOW SYSTEM<KM6> 		8-97170-517-1 01 1 0106- ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97166-704-2 01 1 9811-9903 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97166-704-2 01 1 9904-0105 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) HEATER & DEFROSTER(C41) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97166-704-2 01 1 0106-0112 ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6P(RNC) HEATER & DEFROSTER(C41) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97166-704-2 01 1 0201- ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6P(RNC) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),HYDRO BRAKE BOOSTER<7QQ> 		8-97166-704-2 01 1 0201- ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-971-2 01 1 9811-0105 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) HEATER & DEFROSTER(C41) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-971-2 01 1 0106-0112 ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6P(RNC) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> HYDRO BRAKE BOOSTER<7QQ> EXC. HEATER & DEFROSTER(C41),ENGINE POWER N-SPEC(7QV) 		8-97172-971-2 01 1 0201-0207 ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6P(RNC) HEATER & DEFROSTER(C41) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-971-2 01 1 0201-0207 ● ● ●
13 02.525 HARNESS; ENG
HEATER & DEFROSTER(C41) 		8-97172-971-2 01 1 0201-0207 ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6P(RNC) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> HYDRO BRAKE BOOSTER<7QQ> EXC. HEATER & DEFROSTER(C41),ENGINE POWER N-SPEC(7QV) 		8-97172-971-2 01 1 0208- ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6P(RNC) HEATER & DEFROSTER(C41) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-971-2 01 1 0208- ● ● ●
13 02.525 HARNESS; ENG
HEATER & DEFROSTER(C41) M/T MBP6P(RNC) 		8-97172-971-2 01 1 0208- ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97170-519-1 01 1 9811-9903 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97170-519-1 01 1 9904-0011 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) HEATER & DEFROSTER(C41) FAST GLOW SYSTEM<KM6> TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL> 		8-97170-519-1 01 1 0012-0105 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) HEATER & DEFROSTER(C41) FAST GLOW SYSTEM<KM6> TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> 		8-97170-519-1 01 1 0106- ● ● ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97214-266-0 01 1 9811-0105 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97214-266-0 01 1 0106- ● ● ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FAST GLOW SYSTEM<KM6> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-97170-515-1 01 1 9811- ● ● ● ● ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> FAST GLOW SYSTEM<KM6> TURBOCHARGER(K51) POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), VEHICLE CATEGORY NQR<7NQ> 		8-97227-752-0 01 1 9904-0105 ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C41) FAST GLOW SYSTEM<KM6> TURBOCHARGER(K51) POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), VEHICLE CATEGORY NQR<7NQ> 		8-97227-752-0 01 1 0106- ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51) 		8-97170-518-1 01 1 9811-0105 ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C41) FAST GLOW SYSTEM<KM6> POWER STEERING<N40> EXC. HIGH ALTITUDE COMPENSATOR(EE2), TURBOCHARGER(K51),VEHICLE CATEGORY NQR<7NQ> 		8-97170-518-1 01 1 0106- ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97204-078-1 01 1 9811-9903 ● ● ● ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97204-078-1 01 1 9904-0012 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97204-078-1 01 1 0101- ● ● ● ● ●
13 02.525 HARNESS; ENG 8-97204-078-1 01 1 0101- ●
107 02.559 COVER; CONNECTOR
A/T 4 SPEED-JATCO(RMK) 		8-97061-284-0 01 1 9811- ●
208 02.483 HOLDER; CONNECTOR
4HE1 ENG(RLY) 		8-94459-973-1 01 1 9811- ● ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97065-249-1 01 1 9811-9903 ●
329 02.480 CABLE; ENG TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97065-249-1 01 1 9811-9903 ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97065-249-1 01 1 9904-0012 ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97065-249-1 01 1 0101-0105 ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME 8-97065-249-1 01 1 0101-0105 ●
329 02.480 CABLE; ENG TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97065-249-1 01 1 0106- ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97065-249-1 01 1 0106- ●
329 02.480 CABLE; ENG TO FRAME 8-97065-249-1 01 1 0106- ●
329 02.480 CABLE; ENG TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97113-787-0 01 1 9811-0105 ● ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97113-787-0 01 1 0106- ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97182-112-0 01 1 9811-0105 ● ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97182-112-0 01 1 0106- ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME 8-97182-112-0 01 1 0106- ●
416 02.559 NUT; TERMINAL
4HG1 ENG(RJH),4HF1 ENG(RLS) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9811- ● ● ● ● ●
416 02.559 NUT; TERMINAL
02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9811- ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97140-182-0 01 1 9811-0105 ● ● ● ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97140-182-0 01 1 0106- ● ● ● ●

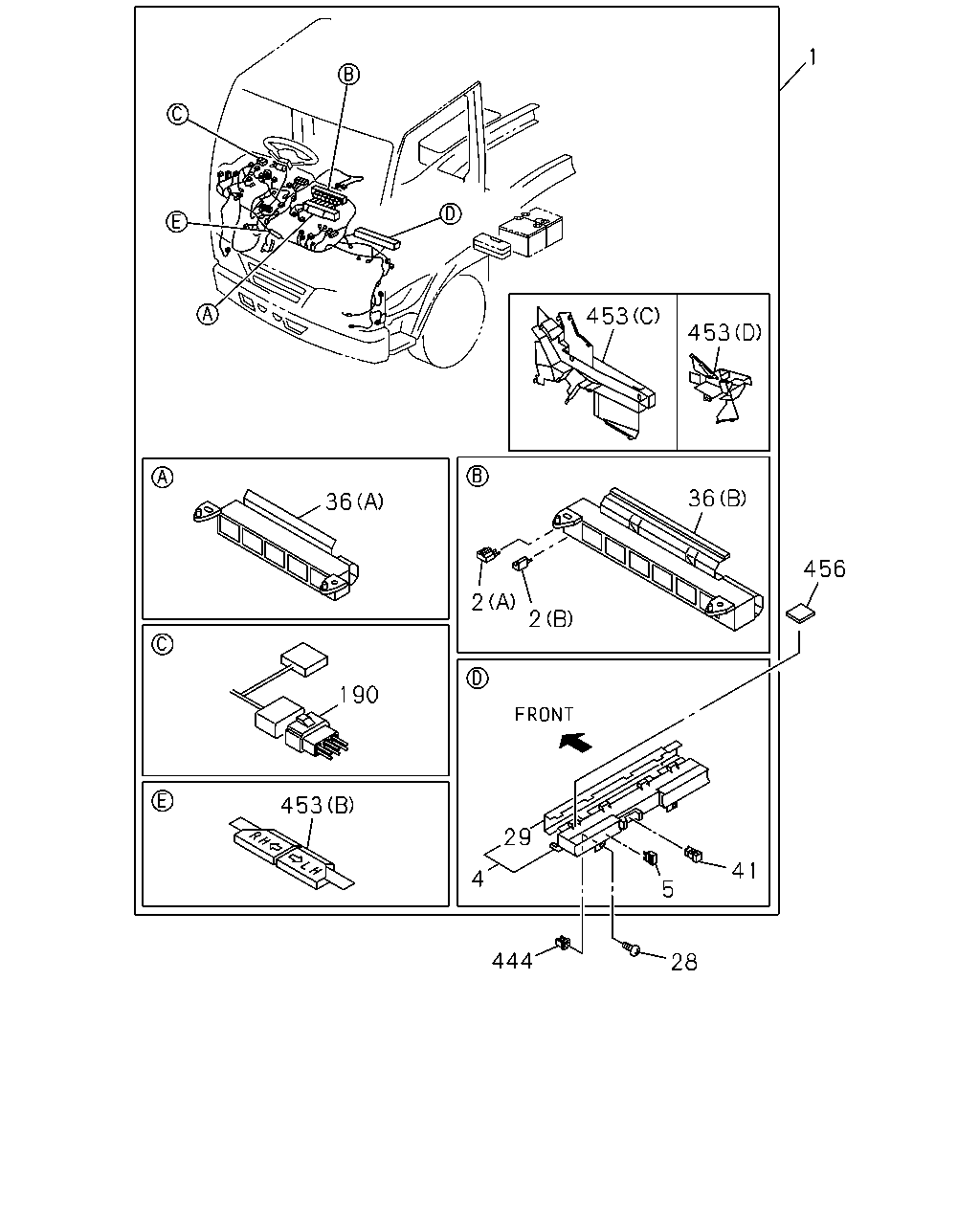

çizim 49733
1 453 453 36 36 456 2 2 190 453 29 41 4 5 444 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> 		8-97326-599-0 01 1 0112- ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> 		8-97326-599-0 01 1 0112- ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> EXC. TURBOCHARGER(K51) 		8-97326-598-0 01 1 0112- ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> EXC. TURBOCHARGER(K51) 		8-97326-598-0 01 1 0112- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> CHARGE AIR COOLER<6PL> 		8-97326-601-0 01 1 0112- ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97326-601-0 01 1 0112- ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) REMOTE CONT DOOR LOCK<6NF> 		8-97326-600-0 01 1 0112- ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) 		8-97260-556-1 01 1 0108-0111 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-97260-556-1 01 1 0112- ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-97260-556-1 01 1 0112- ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) EXC. TURBOCHARGER(K51) 		8-97260-554-1 01 1 0108-0111 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) EXC. TURBOCHARGER(K51),REMOTE CONT DOOR LOCK<6NF> 		8-97260-554-1 01 1 0112- ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) EXC. TURBOCHARGER(K51),REMOTE CONT DOOR LOCK<6NF> 		8-97260-554-1 01 1 0112- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 		8-97217-178-1 01 1 9811-0105 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97217-177-1 01 1 9811-0105 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97230-275-1 01 1 9906-0105 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97309-112-1 01 1 0106- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. CUSTOM PACKAGE<YM8> 		8-97254-014-1 01 1 0004-0105 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. CUSTOM PACKAGE<YM8> 		8-97309-120-1 01 1 0106-0111 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. CUSTOM PACKAGE<YM8>,REMOTE CONTDOOR LOCK<6NF> 		8-97309-120-1 01 1 0112- ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97254-019-1 01 1 0004-0105 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97309-121-1 01 1 0106-0111 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97309-121-1 01 1 0112- ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) EXC. CHARGE AIR COOLER<6PL> 		8-97217-183-0 01 1 9811-9903 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97217-183-0 01 1 9904-9905 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) HYDRO BRAKE BOOSTER<7QQ> EXC. CUSTOM PACKAGE<YM8>,CHARGE AIR COOLER<6PL> 		8-97217-183-1 01 1 9906-0105 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97300-469-1 01 1 0106- ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ> 		8-97227-755-1 01 1 9904-0105 ● ● ● ● ●
1 02.480 HARNESS; CAB 8-97310-072-1 01 1 0106- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97254-013-1 01 1 0004-0105 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97309-118-1 01 1 0106-0111 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-97309-118-1 01 1 0112- ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> EXC. REMOTE CONT DOOR LOCK<6NF>, HYDRO BRAKE BOOSTER<7QQ> 		8-97309-118-1 01 1 0112- ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), CHARGEAIR COOLER<6PL> 		8-97185-303-1 01 1 9811-0012 ● ● ● ● ●
1 02.480 HARNESS; CAB
EXC. CHARGE AIR COOLER<6PL> 		8-97185-303-1 01 1 9811-0012 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), CHARGEAIR COOLER<6PL> 		8-97185-303-1 01 1 0101-0105 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97217-188-1 01 1 9811-0105 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97309-088-1 01 1 0106- ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) 		8-97217-184-0 01 1 9811-9905 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) EXC. TURBOCHARGER(K51) 		8-97217-184-1 01 1 9906-0105 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) 		8-97185-310-1 01 1 9811-0105 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) 		8-97309-114-1 01 1 0106- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) 		8-97227-753-1 01 1 9904-0105 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) 		8-97217-192-0 01 1 9811-9907 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. TURBOCHARGER(K51) 		8-97217-192-1 01 1 9908-0105 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97310-069-1 01 1 0106- ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) 		8-97217-186-0 01 1 9811-9812 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) 		8-97217-185-0 01 1 9901-9905 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) EXC. TURBOCHARGER(K51) 		8-97217-185-1 01 1 9906-0105 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) 		8-97227-754-2 01 1 9904-0105 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) 		8-97309-117-1 01 1 0106-0111 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-97309-117-1 01 1 0112- ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97217-182-0 01 1 9811-9903 ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. HONG KONG EQUIPMENT(PQ1) 		8-97217-182-0 01 1 9811-9903 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. HONG KONG EQUIPMENT(PQ1) 		8-97217-182-0 01 1 9904-9905 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPME NT(S9Y) 		8-97217-182-1 01 1 9906-0105 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3), SINGAPORE EQUIPMENT(S9Y) 		8-97309-116-1 01 1 0106- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1) ENGINE POWER N-SPEC(7QV) 		8-97217-172-0 01 1 9811-9903 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) 		8-97217-172-1 01 1 9904-0105 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) HONG KONG EQUIPMENT(PQ1) 		8-97212-137-0 01 1 9811-9903 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 		8-97212-137-1 01 1 9904-0012 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 		8-97212-137-1 01 1 0101-0105 ● ● ● ●
1 02.480 HARNESS; CAB 8-97212-137-1 01 1 0101-0105 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) SINGAPORE EQUIPMENT(S9Y) 		8-97309-115-1 01 1 0106- ● ● ● ●
1 02.480 HARNESS; CAB 8-97309-115-1 01 1 0106- ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9811- ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9811- ● ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), CHARGEAIR COOLER<6PL> 		8-97077-664-0 01 1 9811-0105 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) 		8-97077-664-0 01 1 9811-0105 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 9811-9903 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) EXC. CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 9811-9903 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97214-415-0 01 1 9811-9903 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) 		8-97214-415-0 01 1 9811-9903 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97214-415-0 01 1 9811-9903 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) 		8-97214-415-0 01 1 9811-9903 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) 		8-97214-415-0 01 1 9811-9903 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) 		8-97214-415-0 01 1 9811-9903 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 9811-9903 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 9904-9905 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) 		8-97214-415-0 01 1 9904-9905 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) EXC. CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 9904-9905 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97214-415-0 01 1 9904-9905 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) 		8-97214-415-0 01 1 9904-9905 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) SINGAPORE EQUIPMENT(S9Y) 		8-97214-415-0 01 1 9904-9905 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 9904-9905 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97214-415-0 01 1 9904-9905 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) 		8-97214-415-0 01 1 9904-9905 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) 		8-97214-415-0 01 1 9904-9905 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. HONG KONG EQUIPMENT(PQ1) 		8-97214-415-0 01 1 9904-9905 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 		8-97214-415-0 01 1 9904-9905 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 9904-9905 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 9906-9907 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97214-415-0 01 1 9906-9907 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) EXC. CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 9906-9907 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) 		8-97214-415-0 01 1 9906-9907 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 9906-9907 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97214-415-0 01 1 9906-9907 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) EXC. TURBOCHARGER(K51) 		8-97214-415-0 01 1 9906-9907 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) 		8-97214-415-0 01 1 9906-9907 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 9906-9907 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 9908-0001 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97214-415-0 01 1 9908-0001 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) 		8-97214-415-0 01 1 9908-0001 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) EXC. CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 9908-0001 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. TURBOCHARGER(K51) 		8-97214-415-0 01 1 9908-0001 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 9908-0001 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97214-415-0 01 1 9908-0001 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) EXC. TURBOCHARGER(K51) 		8-97214-415-0 01 1 9908-0001 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 9908-0001 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 0002-0003 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) 		8-97214-415-0 01 1 0002-0003 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) EXC. CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 0002-0003 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. TURBOCHARGER(K51) 		8-97214-415-0 01 1 0002-0003 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 0002-0003 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97214-415-0 01 1 0002-0003 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) 		8-97214-415-0 01 1 0002-0003 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) EXC. TURBOCHARGER(K51) 		8-97214-415-0 01 1 0002-0003 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 0004-0012 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97214-415-0 01 1 0004-0012 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. TURBOCHARGER(K51) 		8-97214-415-0 01 1 0004-0012 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 0004-0012 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97214-415-0 01 1 0004-0012 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) 		8-97214-415-0 01 1 0004-0012 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) EXC. TURBOCHARGER(K51) 		8-97214-415-0 01 1 0004-0012 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 0101-0105 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97214-415-0 01 1 0101-0105 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) 		8-97214-415-0 01 1 0101-0105 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. TURBOCHARGER(K51) 		8-97214-415-0 01 1 0101-0105 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97214-415-0 01 1 0101-0105 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) 		8-97214-415-0 01 1 0101-0105 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) EXC. TURBOCHARGER(K51) 		8-97214-415-0 01 1 0101-0105 ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0101-0105 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 0106-0111 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 0106-0111 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97214-415-0 01 1 0106-0111 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 0106-0111 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97214-415-0 01 1 0106-0111 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 0106-0111 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97214-415-0 01 1 0106-0111 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) 		8-97214-415-0 01 1 0106-0111 ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0106-0111 ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 0112- ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 0112- ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) 		8-97214-415-0 01 1 0112- ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> EXC. REMOTE CONT DOOR LOCK<6NF>, HYDRO BRAKE BOOSTER<7QQ> 		8-97214-415-0 01 1 0112- ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. CUSTOM PACKAGE<YM8>,REMOTE CONTDOOR LOCK<6NF> 		8-97214-415-0 01 1 0112- ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 0112- ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97214-415-0 01 1 0112- ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) 		8-97214-415-0 01 1 0112- ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 0112- ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) 		8-97214-415-0 01 1 0112- ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPME NT(S9Y) 		8-97214-415-0 01 1 0112- ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1) VEHICLE CATEGORY NQR<7NQ> 		8-97214-415-0 01 1 0112- ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 9811- ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 9811- ● ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9811- ● ● ● ● ● ● ●
29 02.483 COVER; FUSE BOX
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), CHARGEAIR COOLER<6PL> 		8-97074-955-0 01 1 0008-0009 ● ● ● ● ● ●
29 02.483 COVER; FUSE BOX
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), CHARGEAIR COOLER<6PL> 		8-97074-955-0 01 1 0010-0105 ● ● ● ● ● ●
29 02.483 COVER; FUSE BOX
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) 		8-97074-955-0 01 1 0010-0105 ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (A) 		8-97184-367-0 01 1 9811-9903 ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1) ENGINE POWER N-SPEC(7QV) (A) 		8-97184-367-0 01 1 9811-9903 ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97184-367-0 01 1 9904-9905 ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) (A) 		8-97184-367-0 01 1 9904-9905 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (A) 		8-97184-367-0 01 1 9904-9905 ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) (A) 		8-97184-367-0 01 1 9906-0003 ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97184-367-0 01 1 9906-0003 ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97184-367-0 01 1 9906-0003 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (A) 		8-97184-367-0 01 1 9906-0003 ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97184-367-0 01 1 0004-0007 ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. CUSTOM PACKAGE<YM8> (A) 		8-97184-367-0 01 1 0004-0007 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97184-367-0 01 1 0004-0007 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (A) 		8-97184-367-0 01 1 0004-0007 ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) (A) 		8-97184-367-0 01 1 0004-0007 ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), CHARGEAIR COOLER<6PL> (A) 		8-97184-367-0 01 1 0008-0105 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97184-367-0 01 1 0008-0105 ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) (A) 		8-97184-367-0 01 1 0008-0105 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (A) 		8-97184-367-0 01 1 0008-0105 ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> (A) 		8-97184-367-0 01 1 0106-0107 ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97184-367-0 01 1 0106-0107 ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97184-367-0 01 1 0108-0108 ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97087-639-1 01 1 9811-9903 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (B) 		8-97087-639-1 01 1 9811-9903 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) (B) 		8-97087-639-1 01 1 9811-9903 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (B) 		8-97087-639-1 01 1 9811-9903 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 		8-97087-639-1 01 1 9811-9903 ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) (B) 		8-97087-639-1 01 1 9811-9903 ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) (B) 		8-97087-639-1 01 1 9811-9903 ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1) ENGINE POWER N-SPEC(7QV) (B) 		8-97087-639-1 01 1 9811-9903 ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97087-639-1 01 1 9904-9905 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (B) 		8-97087-639-1 01 1 9904-9905 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (B) 		8-97087-639-1 01 1 9904-9905 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. HONG KONG EQUIPMENT(PQ1) (B) 		8-97087-639-1 01 1 9904-9905 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (B) 		8-97087-639-1 01 1 9904-9905 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) (B) 		8-97087-639-1 01 1 9904-9905 ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) (B) 		8-97087-639-1 01 1 9904-9905 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 		8-97087-639-1 01 1 9904-9905 ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97087-639-1 01 1 9904-9905 ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (B) 		8-97087-639-1 01 1 9904-9905 ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97087-639-1 01 1 9906-9907 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97087-639-1 01 1 9906-9907 ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) (B) 		8-97087-639-1 01 1 9906-9907 ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 		8-97087-639-1 01 1 9906-9907 ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97087-639-1 01 1 9908-0001 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (B) 		8-97087-639-1 01 1 9908-0001 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		8-97087-639-1 01 1 9908-0001 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (B) 		8-97087-639-1 01 1 9908-0001 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (B) 		8-97087-639-1 01 1 9908-0001 ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. TURBOCHARGER(K51) (B) 		8-97087-639-1 01 1 9908-0001 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) (B) 		8-97087-639-1 01 1 9908-0001 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 		8-97087-639-1 01 1 9908-0001 ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) (B) 		8-97087-639-1 01 1 9908-0001 ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97087-639-1 01 1 0002-0003 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (B) 		8-97087-639-1 01 1 0002-0003 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (B) 		8-97087-639-1 01 1 0002-0003 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (B) 		8-97087-639-1 01 1 0002-0003 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. TURBOCHARGER(K51) (B) 		8-97087-639-1 01 1 0002-0003 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) (B) 		8-97087-639-1 01 1 0002-0003 ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 		8-97087-639-1 01 1 0002-0003 ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (B) 		8-97087-639-1 01 1 0002-0003 ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) EXC. TURBOCHARGER(K51) (B) 		8-97087-639-1 01 1 0002-0003 ●
36 02.530 BOX; RELAY
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (B) 		8-97087-639-1 01 1 0002-0003 ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), CHARGEAIR COOLER<6PL> (B) 		8-97087-639-1 01 1 0004-0012 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		8-97087-639-1 01 1 0004-0012 ● ● ● ● ●
36 02.530 BOX; RELAY
FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (B) 		8-97087-639-1 01 1 0004-0012 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (B) 		8-97087-639-1 01 1 0004-0012 ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. TURBOCHARGER(K51) (B) 		8-97087-639-1 01 1 0004-0012 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) (B) 		8-97087-639-1 01 1 0004-0012 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 		8-97087-639-1 01 1 0004-0012 ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (B) 		8-97087-639-1 01 1 0004-0012 ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) EXC. TURBOCHARGER(K51) (B) 		8-97087-639-1 01 1 0004-0012 ●
36 02.530 BOX; RELAY
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97087-639-1 01 1 0004-0012 ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), CHARGEAIR COOLER<6PL> (B) 		8-97087-639-1 01 1 0101-0105 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		8-97087-639-1 01 1 0101-0105 ● ● ● ● ●
36 02.530 BOX; RELAY
FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (B) 		8-97087-639-1 01 1 0101-0105 ● ● ● ● ●
36 02.530 BOX; RELAY
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (B) 		8-97087-639-1 01 1 0101-0105 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (B) 		8-97087-639-1 01 1 0101-0105 ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. TURBOCHARGER(K51) (B) 		8-97087-639-1 01 1 0101-0105 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) (B) 		8-97087-639-1 01 1 0101-0105 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 		8-97087-639-1 01 1 0101-0105 ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (B) 		8-97087-639-1 01 1 0101-0105 ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) EXC. TURBOCHARGER(K51) (B) 		8-97087-639-1 01 1 0101-0105 ●
36 02.530 BOX; RELAY
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97087-639-1 01 1 0101-0105 ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 0101-0105 ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> (B) 		8-97087-639-1 01 1 0106-0111 ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97087-639-1 01 1 0106-0111 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		8-97087-639-1 01 1 0106-0111 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (B) 		8-97087-639-1 01 1 0106-0111 ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> (B) 		8-97087-639-1 01 1 0106-0111 ● ● ● ●
36 02.530 BOX; RELAY
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (B) 		8-97087-639-1 01 1 0106-0111 ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> (B) 		8-97087-639-1 01 1 0106-0111 ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (B) 		8-97087-639-1 01 1 0106-0111 ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 0106-0111 ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97087-639-1 01 1 0112- ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (B) 		8-97087-639-1 01 1 0112- ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (B) 		8-97087-639-1 01 1 0112- ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> EXC. REMOTE CONT DOOR LOCK<6NF>, HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97087-639-1 01 1 0112- ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. CUSTOM PACKAGE<YM8>,REMOTE CONTDOOR LOCK<6NF> (B) 		8-97087-639-1 01 1 0112- ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> CHARGE AIR COOLER<6PL> (B) 		8-97087-639-1 01 1 0112- ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> (B) 		8-97087-639-1 01 1 0112- ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) (B) 		8-97087-639-1 01 1 0112- ● ● ● ● ●
36 02.530 BOX; RELAY
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (B) 		8-97087-639-1 01 1 0112- ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (B) 		8-97087-639-1 01 1 0112- ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPME NT(S9Y) (B) 		8-97087-639-1 01 1 0112- ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1) VEHICLE CATEGORY NQR<7NQ> (B) 		8-97087-639-1 01 1 0112- ●
36 02.530 BOX; RELAY
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) 		8-97087-638-1 01 1 9811-9903 ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97087-638-1 01 1 9811-9903 ● ● ● ● ●
36 02.530 BOX; RELAY
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (A) 		8-97087-638-1 01 1 9811-9903 ●
36 02.530 BOX; RELAY
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) (A) 		8-97087-638-1 01 1 9811-9903 ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) (A) 		8-97087-638-1 01 1 9811-9903 ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (A) 		8-97087-638-1 01 1 9811-9903 ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) (A) 		8-97087-638-1 01 1 9811-9903 ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97087-638-1 01 1 9811-9903 ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) (A) 		8-97087-638-1 01 1 9811-9903 ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97087-638-1 01 1 9811-9903 ●
36 02.530 BOX; RELAY
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97087-638-1 01 1 9811-9903 ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), CHARGEAIR COOLER<6PL> (A) 		8-97087-638-1 01 1 9904-9907 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97087-638-1 01 1 9904-9907 ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97087-638-1 01 1 9904-9907 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), CHARGEAIR COOLER<6PL> (A) 		8-97087-638-1 01 1 9908-0007 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97087-638-1 01 1 9908-0007 ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) HYDRO BRAKE BOOSTER<7QQ> EXC. CUSTOM PACKAGE<YM8>,CHARGE AIR COOLER<6PL> (A) 		8-97087-638-1 01 1 9908-0007 ● ● ● ●
36 02.530 BOX; RELAY
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) 		8-97087-638-1 01 1 0008-0012 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97087-638-1 01 1 0008-0012 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97087-638-1 01 1 0008-0012 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (A) 		8-97087-638-1 01 1 0008-0012 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. TURBOCHARGER(K51) (A) 		8-97087-638-1 01 1 0008-0012 ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (A) 		8-97087-638-1 01 1 0008-0012 ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) EXC. TURBOCHARGER(K51) (A) 		8-97087-638-1 01 1 0008-0012 ●
36 02.530 BOX; RELAY
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) 		8-97087-638-1 01 1 0101-0105 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97087-638-1 01 1 0101-0105 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97087-638-1 01 1 0101-0105 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (A) 		8-97087-638-1 01 1 0101-0105 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. TURBOCHARGER(K51) (A) 		8-97087-638-1 01 1 0101-0105 ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (A) 		8-97087-638-1 01 1 0101-0105 ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) EXC. TURBOCHARGER(K51) (A) 		8-97087-638-1 01 1 0101-0105 ●
36 02.530 BOX; RELAY
(A) 		8-97087-638-1 01 1 0101-0105 ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97087-638-1 01 1 0106-0107 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (A) 		8-97087-638-1 01 1 0106-0107 ● ● ● ● ●
36 02.530 BOX; RELAY
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) 		8-97087-638-1 01 1 0106-0107 ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (A) 		8-97087-638-1 01 1 0106-0107 ●
36 02.530 BOX; RELAY
(A) 		8-97087-638-1 01 1 0106-0107 ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97087-638-1 01 1 0108-0108 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (A) 		8-97087-638-1 01 1 0108-0108 ● ● ●
36 02.530 BOX; RELAY
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) 		8-97087-638-1 01 1 0108-0108 ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3) (A) 		8-97087-638-1 01 1 0108-0108 ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (A) 		8-97087-638-1 01 1 0108-0108 ●
36 02.530 BOX; RELAY
(A) 		8-97087-638-1 01 1 0108-0108 ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> (A) 		8-97087-640-1 01 1 0106-0107 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> (A) 		8-97087-640-1 01 1 0106-0107 ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-1 01 1 0106-0107 ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> (A) 		8-97087-640-1 01 1 0108-0108 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97087-640-1 01 1 0108-0108 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) (A) 		8-97087-640-1 01 1 0108-0108 ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) SINGAPORE EQUIPMENT(S9Y) (A) 		8-97087-640-1 01 1 0108-0108 ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> (A) 		8-97087-640-1 01 1 0108-0108 ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> (A) 		8-97087-640-1 01 1 0108-0108 ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (A) 		8-97087-640-1 01 1 0108-0108 ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-1 01 1 0108-0108 ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97087-640-1 01 1 0108-0108 ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> (A) 		8-97087-640-1 01 1 0109-0111 ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97087-640-1 01 1 0109-0111 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97087-640-1 01 1 0109-0111 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (A) 		8-97087-640-1 01 1 0109-0111 ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> (A) 		8-97087-640-1 01 1 0109-0111 ● ● ● ●
36 02.530 BOX; RELAY
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) 		8-97087-640-1 01 1 0109-0111 ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> (A) 		8-97087-640-1 01 1 0109-0111 ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (A) 		8-97087-640-1 01 1 0109-0111 ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-1 01 1 0109-0111 ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97087-640-1 01 1 0112- ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (A) 		8-97087-640-1 01 1 0112- ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97087-640-1 01 1 0112- ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> EXC. REMOTE CONT DOOR LOCK<6NF>, HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97087-640-1 01 1 0112- ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. CUSTOM PACKAGE<YM8>,REMOTE CONTDOOR LOCK<6NF> (A) 		8-97087-640-1 01 1 0112- ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> CHARGE AIR COOLER<6PL> (A) 		8-97087-640-1 01 1 0112- ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> (A) 		8-97087-640-1 01 1 0112- ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) (A) 		8-97087-640-1 01 1 0112- ● ● ● ● ●
36 02.530 BOX; RELAY
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) 		8-97087-640-1 01 1 0112- ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (A) 		8-97087-640-1 01 1 0112- ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPME NT(S9Y) (A) 		8-97087-640-1 01 1 0112- ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1) VEHICLE CATEGORY NQR<7NQ> (A) 		8-97087-640-1 01 1 0112- ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9811- ● ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		5-82690-411-0 01 1 9811-9903 ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		5-82690-411-0 01 1 9811-9903 ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) 		5-82690-411-0 01 1 9811-9903 ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) 		5-82690-411-0 01 1 9811-9903 ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		5-82690-411-0 01 1 9811-9903 ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-82690-411-0 01 1 9811-9903 ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) 		5-82690-411-0 01 1 9811-9903 ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1) ENGINE POWER N-SPEC(7QV) 		5-82690-411-0 01 1 9811-9903 ●
190 02.559 CONNECTOR; SHORT CIRCUIT 5-82690-411-0 01 1 9904-9905 ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), CHARGEAIR COOLER<6PL> 		5-82690-411-0 01 1 9906-9906 ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HG1 ENG(RJH),4HF1 ENG(RLS) 		5-82690-411-0 01 1 9906-9906 ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) 		5-82690-411-0 01 1 9906-9906 ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		5-82690-411-0 01 1 9906-9906 ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		5-82690-411-0 01 1 9906-9906 ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), CHARGEAIR COOLER<6PL> 		5-82690-411-0 01 1 9906-9907 ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HG1 ENG(RJH),4HF1 ENG(RLS) 		5-82690-411-0 01 1 9906-9907 ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) 		5-82690-411-0 01 1 9906-9907 ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) HYDRO BRAKE BOOSTER<7QQ> EXC. CUSTOM PACKAGE<YM8>,CHARGE AIR COOLER<6PL> 		5-82690-411-0 01 1 9906-9907 ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		5-82690-411-0 01 1 9906-9907 ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) 		5-82690-411-0 01 1 9908-0007 ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), CHARGEAIR COOLER<6PL> 		5-82690-411-0 01 1 9908-0007 ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) 		5-82690-411-0 01 1 9908-0007 ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		5-82690-411-0 01 1 9908-0007 ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-82690-411-0 01 1 9908-0007 ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) HYDRO BRAKE BOOSTER<7QQ> EXC. CUSTOM PACKAGE<YM8>,CHARGE AIR COOLER<6PL> 		5-82690-411-0 01 1 9908-0007 ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		5-82690-411-0 01 1 9908-0007 ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) 		5-82690-411-0 01 1 0008-0009 ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1) ENGINE POWER N-SPEC(7QV) 		8-94363-367-0 01 1 9811-9903 ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) 		8-94363-367-0 01 1 9904-0007 ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9811- ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97093-668-1 01 1 0106-0107 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (E) 		8-97093-668-1 01 1 0106-0107 ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D) EXC. TURBOCHARGER(K51) (E) 		8-97093-668-1 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> (E) 		8-97093-668-1 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> (E) 		8-97093-668-1 01 1 0106-0107 ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> (E) 		8-97093-668-1 01 1 0106-0107 ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> (E) 		8-97093-668-1 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97093-668-1 01 1 0106-0107 ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97093-668-1 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97093-668-1 01 1 0108-0207 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (E) 		8-97093-668-1 01 1 0108-0207 ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D) EXC. TURBOCHARGER(K51) (E) 		8-97093-668-1 01 1 0108-0207 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> (E) 		8-97093-668-1 01 1 0108-0207 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> (E) 		8-97093-668-1 01 1 0108-0207 ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> (E) 		8-97093-668-1 01 1 0108-0207 ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> (E) 		8-97093-668-1 01 1 0108-0207 ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> (E) 		8-97093-668-1 01 1 0108-0207 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97093-668-1 01 1 0108-0207 ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97093-668-1 01 1 0108-0207 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97093-668-1 01 1 0208- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1), VEHICLE CATEGORY NQR<7NQ> (E) 		8-97093-668-1 01 1 0208- ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> (E) 		8-97093-668-1 01 1 0208- ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D) EXC. TURBOCHARGER(K51) (E) 		8-97093-668-1 01 1 0208- ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> (E) 		8-97093-668-1 01 1 0208- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MZZ6U(RSF) HONG KONG EQUIPMENT(PQ1) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> (E) 		8-97093-668-1 01 1 0208- ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MZZ6U(RSF) VEHICLE CATEGORY NQR<7NQ> EXC. CHARGE AIR COOLER<6PL> (E) 		8-97093-668-1 01 1 0208- ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-591-1 01 1 9811- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97074-957-0 01 1 9811-9903 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 9811-9903 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) (B) 		8-97074-957-0 01 1 9811-9903 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 9811-9903 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 		8-97074-957-0 01 1 9811-9903 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) (B) 		8-97074-957-0 01 1 9811-9903 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 9811-9903 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1) ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 9811-9903 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97074-957-0 01 1 9904-9905 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 9904-9905 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (B) 		8-97074-957-0 01 1 9904-9905 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. HONG KONG EQUIPMENT(PQ1) (B) 		8-97074-957-0 01 1 9904-9905 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 9904-9905 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) (B) 		8-97074-957-0 01 1 9904-9905 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 9904-9905 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 		8-97074-957-0 01 1 9904-9905 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97074-957-0 01 1 9904-9905 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (B) 		8-97074-957-0 01 1 9904-9905 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97074-957-0 01 1 9906-9907 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97074-957-0 01 1 9906-9907 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 9906-9907 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 		8-97074-957-0 01 1 9906-9907 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97074-957-0 01 1 9908-0001 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 9908-0001 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		8-97074-957-0 01 1 9908-0001 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (B) 		8-97074-957-0 01 1 9908-0001 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 9908-0001 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. TURBOCHARGER(K51) (B) 		8-97074-957-0 01 1 9908-0001 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 9908-0001 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 		8-97074-957-0 01 1 9908-0001 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 9908-0001 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97074-957-0 01 1 0002-0003 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 0002-0003 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (B) 		8-97074-957-0 01 1 0002-0003 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 0002-0003 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. TURBOCHARGER(K51) (B) 		8-97074-957-0 01 1 0002-0003 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 0002-0003 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 		8-97074-957-0 01 1 0002-0003 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (B) 		8-97074-957-0 01 1 0002-0003 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) EXC. TURBOCHARGER(K51) (B) 		8-97074-957-0 01 1 0002-0003 ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 0002-0003 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), CHARGEAIR COOLER<6PL> (B) 		8-97074-957-0 01 1 0004-0012 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		8-97074-957-0 01 1 0004-0012 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (B) 		8-97074-957-0 01 1 0004-0012 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 0004-0012 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. TURBOCHARGER(K51) (B) 		8-97074-957-0 01 1 0004-0012 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 0004-0012 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 		8-97074-957-0 01 1 0004-0012 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (B) 		8-97074-957-0 01 1 0004-0012 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) EXC. TURBOCHARGER(K51) (B) 		8-97074-957-0 01 1 0004-0012 ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97074-957-0 01 1 0004-0012 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), CHARGEAIR COOLER<6PL> (B) 		8-97074-957-0 01 1 0101-0105 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		8-97074-957-0 01 1 0101-0105 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (B) 		8-97074-957-0 01 1 0101-0105 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 0101-0105 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 0101-0105 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. TURBOCHARGER(K51) (B) 		8-97074-957-0 01 1 0101-0105 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 0101-0105 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 		8-97074-957-0 01 1 0101-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (B) 		8-97074-957-0 01 1 0101-0105 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) EXC. TURBOCHARGER(K51) (B) 		8-97074-957-0 01 1 0101-0105 ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97074-957-0 01 1 0101-0105 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 0101-0105 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> (C) 		8-97259-730-2 01 1 0106-0111 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (C) 		8-97259-730-2 01 1 0106-0111 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) (C) 		8-97259-730-2 01 1 0106-0111 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (C) 		8-97259-730-2 01 1 0106-0111 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> (C) 		8-97259-730-2 01 1 0106-0111 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (C) 		8-97259-730-2 01 1 0106-0111 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> (C) 		8-97259-730-2 01 1 0106-0111 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (C) 		8-97259-730-2 01 1 0106-0111 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97259-730-2 01 1 0106-0111 ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (C) 		8-97259-730-2 01 1 0112- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (C) 		8-97259-730-2 01 1 0112- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (C) 		8-97259-730-2 01 1 0112- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> EXC. REMOTE CONT DOOR LOCK<6NF>, HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97259-730-2 01 1 0112- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. CUSTOM PACKAGE<YM8>,REMOTE CONTDOOR LOCK<6NF> (C) 		8-97259-730-2 01 1 0112- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> CHARGE AIR COOLER<6PL> (C) 		8-97259-730-2 01 1 0112- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> (C) 		8-97259-730-2 01 1 0112- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) (C) 		8-97259-730-2 01 1 0112- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (C) 		8-97259-730-2 01 1 0112- ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (C) 		8-97259-730-2 01 1 0112- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPME NT(S9Y) (C) 		8-97259-730-2 01 1 0112- ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1) VEHICLE CATEGORY NQR<7NQ> (C) 		8-97259-730-2 01 1 0112- ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> (D) 		8-97261-653-2 01 1 0106-0111 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (D) 		8-97261-653-2 01 1 0106-0111 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) (D) 		8-97261-653-2 01 1 0106-0111 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (D) 		8-97261-653-2 01 1 0106-0111 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> (D) 		8-97261-653-2 01 1 0106-0111 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (D) 		8-97261-653-2 01 1 0106-0111 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> (D) 		8-97261-653-2 01 1 0106-0111 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (D) 		8-97261-653-2 01 1 0106-0111 ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97261-653-2 01 1 0106-0111 ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (D) 		8-97261-653-2 01 1 0112- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (D) 		8-97261-653-2 01 1 0112- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (D) 		8-97261-653-2 01 1 0112- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> EXC. REMOTE CONT DOOR LOCK<6NF>, HYDRO BRAKE BOOSTER<7QQ> (D) 		8-97261-653-2 01 1 0112- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. CUSTOM PACKAGE<YM8>,REMOTE CONTDOOR LOCK<6NF> (D) 		8-97261-653-2 01 1 0112- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> CHARGE AIR COOLER<6PL> (D) 		8-97261-653-2 01 1 0112- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> (D) 		8-97261-653-2 01 1 0112- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) (D) 		8-97261-653-2 01 1 0112- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (D) 		8-97261-653-2 01 1 0112- ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (D) 		8-97261-653-2 01 1 0112- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPME NT(S9Y) (D) 		8-97261-653-2 01 1 0112- ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1) VEHICLE CATEGORY NQR<7NQ> (D) 		8-97261-653-2 01 1 0112- ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 9811- ● ● ● ● ● ● ●
çizim 51448
8 184 94 94 174 174 453 453 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D) 		8-97217-605-2 01 1 9811-9903 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D) 		8-97217-605-2 01 1 9904-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),HYDRO MASTER<7LT> 		8-97260-976-1 01 1 0106- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VEHICLE CATEGORY NQR<7NQ> 		8-97217-588-0 01 1 9811-9812 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VEHICLE CATEGORY NQR<7NQ> 		8-97217-590-0 01 1 9901-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97217-590-0 01 1 9811-9812 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97217-588-0 01 1 9901-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) SINGAPORE EQUIPMENT(S9Y) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97260-995-1 01 1 0106- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97217-601-0 01 1 9811-9812 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97217-603-0 01 1 9811-9812 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> 		8-97217-603-2 01 1 9901-0105 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97227-733-0 01 1 9904-0012 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97227-733-0 01 1 0101-0105 ● ● ●
8 02.480 HARNESS; FRAME,FRT 8-97227-733-0 01 1 0101-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D) EXC. TURBOCHARGER(K51) 		8-97260-971-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97217-600-1 01 1 9811-9903 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51) 		8-97217-600-1 01 1 9904-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. TURBOCHARGER(K51) 		8-97260-978-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) 		8-97227-751-1 01 1 9904-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97260-970-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97217-611-0 01 1 9811-9812 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97217-611-0 01 1 9811-9812 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97217-612-0 01 1 9811-9812 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 		8-97217-612-1 01 1 9901-9903 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97217-612-1 01 1 9901-9903 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 		8-97217-612-1 01 1 9904-0105 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> 		8-97260-972-1 01 1 0106- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 		8-97217-614-1 01 1 9811-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97260-966-1 01 1 0106- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97212-139-0 01 1 9811-9903 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 		8-97212-139-0 01 1 9904-0105 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97260-964-1 01 1 0106- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT 8-97260-964-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VEHICLE CATEGORY NQR<7NQ> 		8-97217-589-0 01 1 9811-9812 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VEHICLE CATEGORY NQR<7NQ> 		8-97217-591-0 01 1 9901-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> 		8-97261-008-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97217-591-0 01 1 9811-9812 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97217-589-0 01 1 9901-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97261-002-1 01 1 0106-0112 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-582-1 01 1 0004-0105 ●
8 02.480 HARNESS; FRAME,FRT 8-97311-333-1 01 1 0106-0207 ●
8 02.480 HARNESS; FRAME,FRT
M/T MBP6P(RNC) 		8-97311-333-1 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97217-602-0 01 1 9811-9812 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97212-140-0 01 1 9811-9903 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 		8-97212-140-0 01 1 9904-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97217-599-0 01 1 9811-9903 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97227-732-0 01 1 9904-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> EXC. TURBOCHARGER(K51) 		8-97260-980-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97217-604-0 01 1 9811-9812 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> 		8-97217-604-2 01 1 9901-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),HYDRO MASTER<7LT> 		8-97260-979-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97217-597-1 01 1 9811-9903 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97217-597-1 01 1 9904-0105 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97254-012-0 01 1 0004-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97217-613-0 01 1 9811-9812 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97217-613-1 01 1 9901-0011 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 		8-97217-613-1 01 1 0012-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-581-1 01 1 9811-9903 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 		8-97217-581-1 01 1 9904-0003 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-581-1 01 1 0004-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-581-1 01 1 0004-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97260-994-2 01 1 0106- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL> 		8-97352-528-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
M/T MZZ6U(RSF) 		8-97352-465-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6P(RNC) EXC. CHARGE AIR COOLER<6PL> 		8-97261-002-1 01 1 0203- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97316-730-1 01 1 0108- ● ●
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 9811-0003 ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 0004- ● ● ● ● ● ● ●
94 02.483 DIODE; FRAME HARNESS
(A) BLACK 4P-1.5A 		8-94381-730-0 AR 1 9811- ● ● ● ● ● ● ●
94 02.483 DIODE; FRAME HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9811- ● ● ● ● ● ● ●
94 02.483 DIODE; FRAME HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9811- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 60A YELLOW 		8-94388-303-0 AR 1 9811- ● ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 60A YELLOW 		8-94468-664-0 AR 1 9811- ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 9811-0003 ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 0004- ● ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97093-668-1 01 1 0106-0107 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (E) 		8-97093-668-1 01 1 0106-0107 ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D) EXC. TURBOCHARGER(K51) (E) 		8-97093-668-1 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> (E) 		8-97093-668-1 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> (E) 		8-97093-668-1 01 1 0106-0107 ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> (E) 		8-97093-668-1 01 1 0106-0107 ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> (E) 		8-97093-668-1 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97093-668-1 01 1 0106-0107 ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97093-668-1 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97093-668-1 01 1 0108-0207 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (E) 		8-97093-668-1 01 1 0108-0207 ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D) EXC. TURBOCHARGER(K51) (E) 		8-97093-668-1 01 1 0108-0207 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> (E) 		8-97093-668-1 01 1 0108-0207 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> (E) 		8-97093-668-1 01 1 0108-0207 ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> (E) 		8-97093-668-1 01 1 0108-0207 ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> (E) 		8-97093-668-1 01 1 0108-0207 ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> (E) 		8-97093-668-1 01 1 0108-0207 ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97093-668-1 01 1 0108-0207 ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97093-668-1 01 1 0108-0207 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97093-668-1 01 1 0208- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1), VEHICLE CATEGORY NQR<7NQ> (E) 		8-97093-668-1 01 1 0208- ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> (E) 		8-97093-668-1 01 1 0208- ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D) EXC. TURBOCHARGER(K51) (E) 		8-97093-668-1 01 1 0208- ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> (E) 		8-97093-668-1 01 1 0208- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MZZ6U(RSF) HONG KONG EQUIPMENT(PQ1) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> (E) 		8-97093-668-1 01 1 0208- ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MZZ6U(RSF) VEHICLE CATEGORY NQR<7NQ> EXC. CHARGE AIR COOLER<6PL> (E) 		8-97093-668-1 01 1 0208- ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-591-1 01 1 9811- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97074-957-0 01 1 9811-9903 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 9811-9903 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) (B) 		8-97074-957-0 01 1 9811-9903 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 9811-9903 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 		8-97074-957-0 01 1 9811-9903 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) (B) 		8-97074-957-0 01 1 9811-9903 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 9811-9903 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1) ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 9811-9903 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97074-957-0 01 1 9904-9905 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 9904-9905 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (B) 		8-97074-957-0 01 1 9904-9905 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. HONG KONG EQUIPMENT(PQ1) (B) 		8-97074-957-0 01 1 9904-9905 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 9904-9905 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) (B) 		8-97074-957-0 01 1 9904-9905 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 9904-9905 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 		8-97074-957-0 01 1 9904-9905 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97074-957-0 01 1 9904-9905 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (B) 		8-97074-957-0 01 1 9904-9905 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97074-957-0 01 1 9906-9907 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97074-957-0 01 1 9906-9907 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 9906-9907 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 		8-97074-957-0 01 1 9906-9907 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97074-957-0 01 1 9908-0001 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 9908-0001 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		8-97074-957-0 01 1 9908-0001 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (B) 		8-97074-957-0 01 1 9908-0001 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 9908-0001 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. TURBOCHARGER(K51) (B) 		8-97074-957-0 01 1 9908-0001 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 9908-0001 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 		8-97074-957-0 01 1 9908-0001 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 9908-0001 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97074-957-0 01 1 0002-0003 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 0002-0003 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (B) 		8-97074-957-0 01 1 0002-0003 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 0002-0003 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. TURBOCHARGER(K51) (B) 		8-97074-957-0 01 1 0002-0003 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 0002-0003 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 		8-97074-957-0 01 1 0002-0003 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (B) 		8-97074-957-0 01 1 0002-0003 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) EXC. TURBOCHARGER(K51) (B) 		8-97074-957-0 01 1 0002-0003 ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 0002-0003 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), CHARGEAIR COOLER<6PL> (B) 		8-97074-957-0 01 1 0004-0012 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		8-97074-957-0 01 1 0004-0012 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (B) 		8-97074-957-0 01 1 0004-0012 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 0004-0012 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. TURBOCHARGER(K51) (B) 		8-97074-957-0 01 1 0004-0012 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 0004-0012 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 		8-97074-957-0 01 1 0004-0012 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (B) 		8-97074-957-0 01 1 0004-0012 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) EXC. TURBOCHARGER(K51) (B) 		8-97074-957-0 01 1 0004-0012 ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97074-957-0 01 1 0004-0012 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), CHARGEAIR COOLER<6PL> (B) 		8-97074-957-0 01 1 0101-0105 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		8-97074-957-0 01 1 0101-0105 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (B) 		8-97074-957-0 01 1 0101-0105 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 0101-0105 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 0101-0105 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. TURBOCHARGER(K51) (B) 		8-97074-957-0 01 1 0101-0105 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ENGINE POWER N-SPEC(7QV) (B) 		8-97074-957-0 01 1 0101-0105 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 		8-97074-957-0 01 1 0101-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (B) 		8-97074-957-0 01 1 0101-0105 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AUSTRALIA EQUIPMENT(RR3) EXC. TURBOCHARGER(K51) (B) 		8-97074-957-0 01 1 0101-0105 ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97074-957-0 01 1 0101-0105 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 0101-0105 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> (C) 		8-97259-730-2 01 1 0106-0111 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (C) 		8-97259-730-2 01 1 0106-0111 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) (C) 		8-97259-730-2 01 1 0106-0111 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (C) 		8-97259-730-2 01 1 0106-0111 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> (C) 		8-97259-730-2 01 1 0106-0111 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (C) 		8-97259-730-2 01 1 0106-0111 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> (C) 		8-97259-730-2 01 1 0106-0111 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (C) 		8-97259-730-2 01 1 0106-0111 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97259-730-2 01 1 0106-0111 ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (C) 		8-97259-730-2 01 1 0112- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (C) 		8-97259-730-2 01 1 0112- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (C) 		8-97259-730-2 01 1 0112- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> EXC. REMOTE CONT DOOR LOCK<6NF>, HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97259-730-2 01 1 0112- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. CUSTOM PACKAGE<YM8>,REMOTE CONTDOOR LOCK<6NF> (C) 		8-97259-730-2 01 1 0112- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> CHARGE AIR COOLER<6PL> (C) 		8-97259-730-2 01 1 0112- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> (C) 		8-97259-730-2 01 1 0112- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) (C) 		8-97259-730-2 01 1 0112- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (C) 		8-97259-730-2 01 1 0112- ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (C) 		8-97259-730-2 01 1 0112- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPME NT(S9Y) (C) 		8-97259-730-2 01 1 0112- ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1) VEHICLE CATEGORY NQR<7NQ> (C) 		8-97259-730-2 01 1 0112- ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> (D) 		8-97261-653-2 01 1 0106-0111 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (D) 		8-97261-653-2 01 1 0106-0111 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) (D) 		8-97261-653-2 01 1 0106-0111 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (D) 		8-97261-653-2 01 1 0106-0111 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> (D) 		8-97261-653-2 01 1 0106-0111 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (D) 		8-97261-653-2 01 1 0106-0111 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> (D) 		8-97261-653-2 01 1 0106-0111 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (D) 		8-97261-653-2 01 1 0106-0111 ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97261-653-2 01 1 0106-0111 ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (D) 		8-97261-653-2 01 1 0112- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ,ENGINE POWER N-SPEC(7QV) (D) 		8-97261-653-2 01 1 0112- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) (D) 		8-97261-653-2 01 1 0112- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> EXC. REMOTE CONT DOOR LOCK<6NF>, HYDRO BRAKE BOOSTER<7QQ> (D) 		8-97261-653-2 01 1 0112- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. CUSTOM PACKAGE<YM8>,REMOTE CONTDOOR LOCK<6NF> (D) 		8-97261-653-2 01 1 0112- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> CHARGE AIR COOLER<6PL> (D) 		8-97261-653-2 01 1 0112- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> (D) 		8-97261-653-2 01 1 0112- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) (D) 		8-97261-653-2 01 1 0112- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (D) 		8-97261-653-2 01 1 0112- ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (D) 		8-97261-653-2 01 1 0112- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPME NT(S9Y) (D) 		8-97261-653-2 01 1 0112- ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HONG KONG EQUIPMENT(PQ1) VEHICLE CATEGORY NQR<7NQ> (D) 		8-97261-653-2 01 1 0112- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
