8-01 — LAMP; FRONT AND FRONT SIDE (#18802) — 324 parça

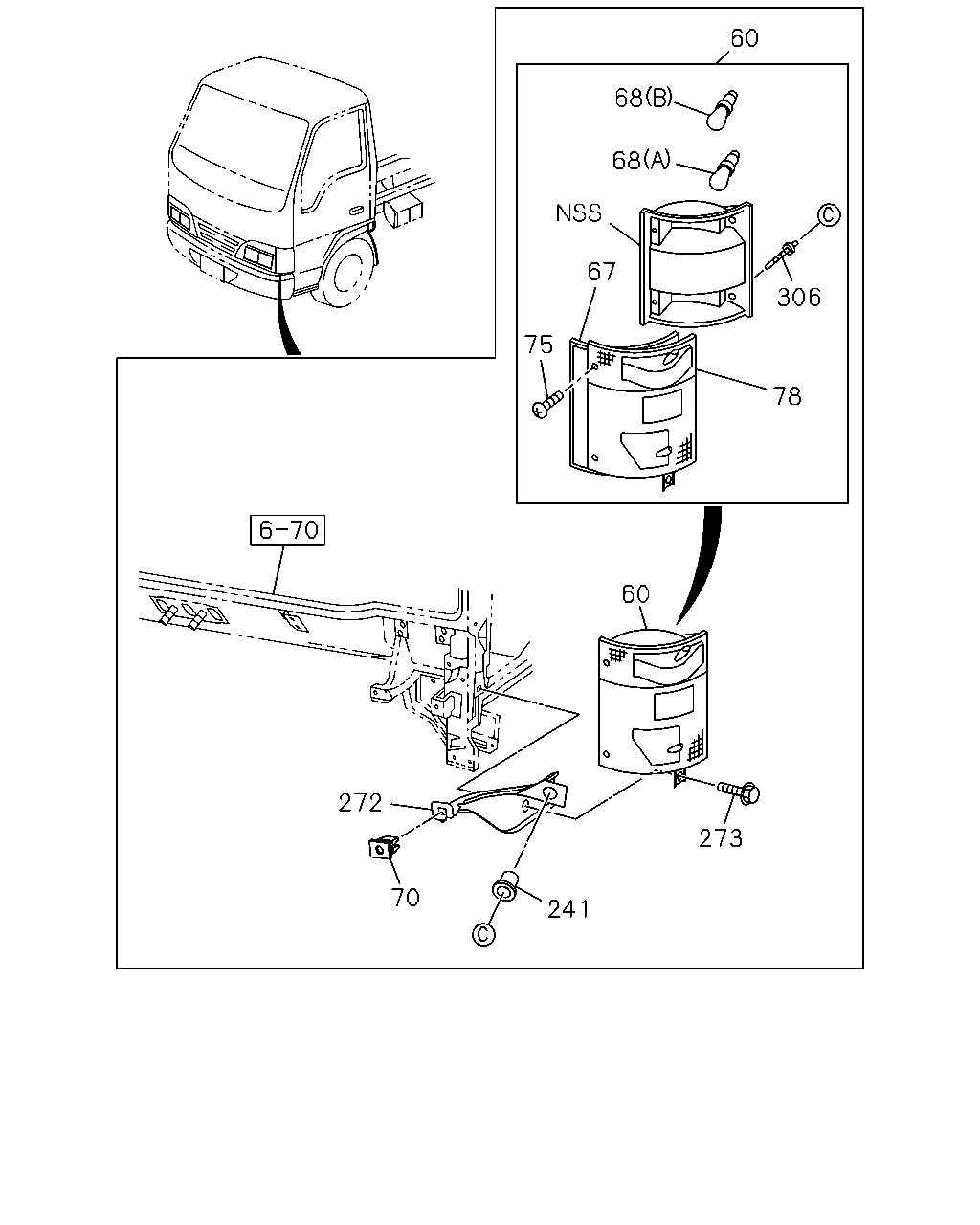

çizim 10222
60 68 68 67 306 75 78 60 272 273 70 241
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
60 02.585 LAMP ASM; FRT COMB
AUSTRALIA EQUIPMENT(RR3) 		8-97855-113-2 01 1 9811- ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
AUSTRALIA EQUIPMENT(RR3) 		8-97855-112-2 01 1 9811- ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97855-008-2 01 1 9811- ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-008-2 01 1 9811- ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97855-007-2 01 1 9811- ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-007-2 01 1 9811- ● ●
67 02.590 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 9811- ● ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
AUSTRALIA EQUIPMENT(RR3) (B) 24V 21W 		8-94125-956-0 02 1 9811- ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
AUSTRALIA EQUIPMENT(RR3) (A) 24V 10W 		8-97094-888-0 02 1 9811- ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 24V 30/10W 		1-82194-065-0 02 1 9811- ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(A) 24V 30/10W 		1-82194-065-0 02 1 9811- ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 24V 25W 		9-82691-347-0 02 1 9811- ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(B) 24V 25W 		9-82691-347-0 02 1 9811- ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 9811-0012 ● ● ● ● ● ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 0101-0105 ● ● ● ● ● ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 0106- ● ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 9811- ● ● ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB
AUSTRALIA EQUIPMENT(RR3) 		8-97855-133-0 01 1 9811- ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB
AUSTRALIA EQUIPMENT(RR3) 		8-97855-130-0 01 1 9811- ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97855-131-0 01 1 9811- ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB 8-97855-131-0 01 1 9811- ● ●
78 02.589 LENS ASM; FRT COMB
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97855-128-0 01 1 9811- ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB 8-97855-128-0 01 1 9811- ● ●
241 02.726 GROMMET; FRT LAMP 8-94452-095-0 04 1 9811- ● ● ● ● ● ● ●
272 02.726 BRACKET; FRT COMB LAMP 8-97853-237-2 01 1 9811- ● ● ● ● ● ● ●
272 02.726 BRACKET; FRT COMB LAMP 8-97853-236-2 01 1 9811- ● ● ● ● ● ● ●
273 02.726 BOLT; BRKT
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9811- ● ● ● ● ● ● ●
306 02.587 PIVOT; FRT COMB LAMP 8-97219-053-0 04 1 9811- ● ● ● ● ● ● ●

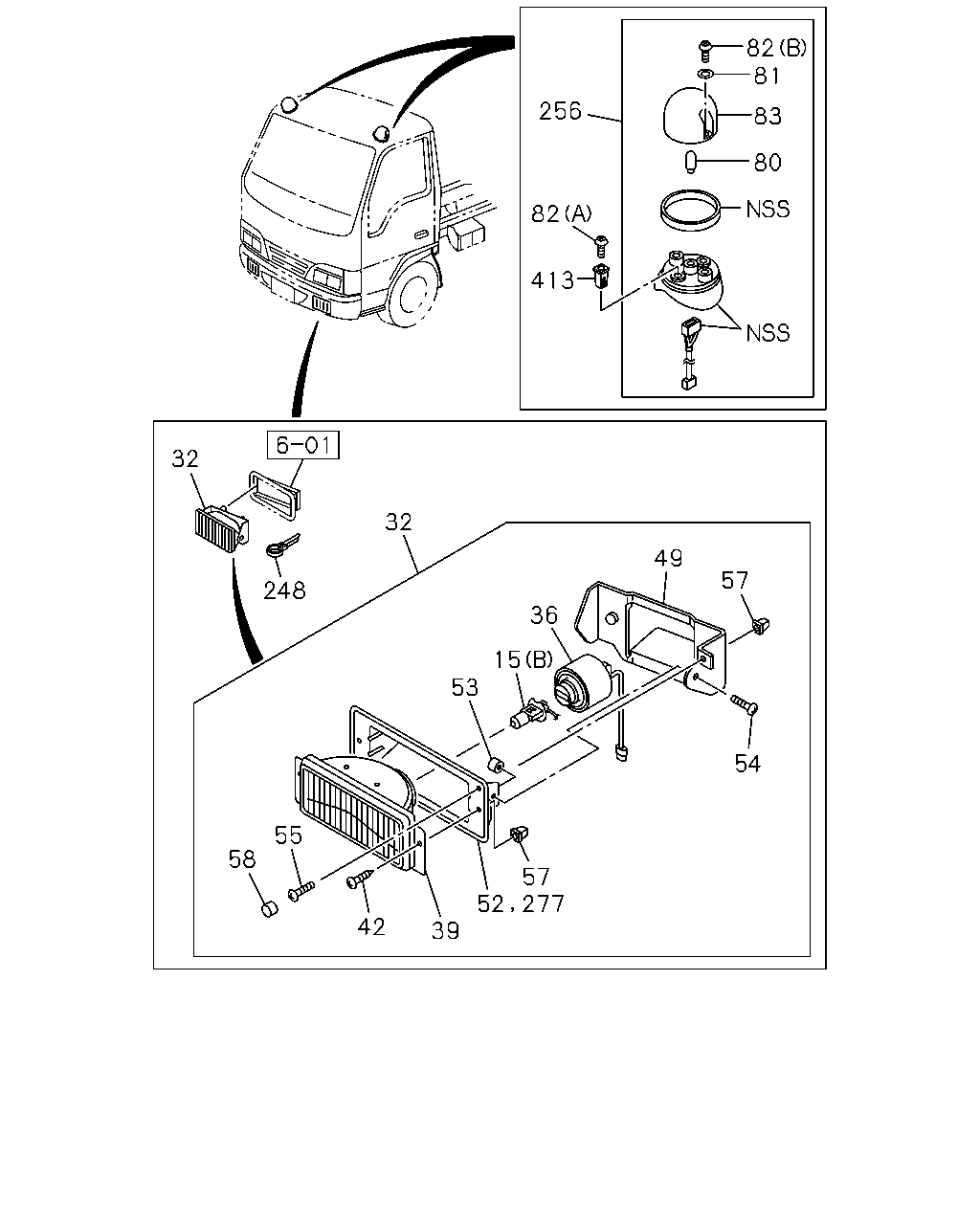

çizim 47454
82 81 256 83 80 82 413 32 32 49 57 248 36 15 53 54 55 58 57 42 39 52 277
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> (B) 24V 55W 		8-97093-860-0 02 1 9811-0006 ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> (B) 24V 55W 		1-82194-095-0 02 1 0007-0105 ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) (B) 24V 55W 		1-82194-095-0 02 1 0106- ● ● ● ● ●
15 08.991 BULB; FOG LAMP
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> (B) 24V 70W 		8-97203-926-0 02 1 0106-0204 ● ● ● ● ●
15 08.991 BULB; FOG LAMP
BODY COLOR FT ORANGE(609),BODY COLORARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> (B) 24V 70W 		8-97203-926-0 02 1 0205-0206 ● ● ● ● ●
15 08.991 BULB; FOG LAMP
BODY COLOR FT ORANGE(609),BODY COLORARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) FOG LAMP<T96> (B) 24V 70W 		8-97203-926-0 02 1 0207- ● ● ● ● ●
15 08.991 BULB; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 24V 25W 		8-97218-934-0 02 1 9811-0105 ● ● ● ● ●
15 08.991 BULB; FOG LAMP
(A) 24V 25W 		8-97218-934-0 02 1 9811-0105 ● ●
15 08.991 BULB; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 24V 25W 		8-97218-934-0 02 1 0106- ● ● ● ● ●
15 08.991 BULB; FOG LAMP
(A) 24V 25W 		8-97218-934-0 02 1 0106- ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97080-781-1 01 1 9811-0003 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97248-546-0 01 1 0004-0105 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97248-546-0 01 1 0106- ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97080-780-1 01 1 9811-0003 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97248-545-0 01 1 0004-0105 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97248-545-0 01 1 0106- ● ● ● ● ●
32 02.725 LAMP ASM; FOG
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> 		8-97181-942-0 01 1 0106-0204 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
BODY COLOR FT ORANGE(609),BODY COLORARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> 		8-97181-942-0 01 1 0205-0206 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
BODY COLOR FT ORANGE(609),BODY COLORARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) FOG LAMP<T96> 		8-97181-942-0 01 1 0207- ● ● ● ● ●
32 02.725 LAMP ASM; FOG
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> 		8-97181-940-0 01 1 0106-0204 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
BODY COLOR FT ORANGE(609),BODY COLORARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> 		8-97181-940-0 01 1 0205-0206 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
BODY COLOR FT ORANGE(609),BODY COLORARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) FOG LAMP<T96> 		8-97181-940-0 01 1 0207- ● ● ● ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96> 		8-97095-518-0 02 1 9811-0105 ● ● ● ● ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97095-518-0 02 1 0106- ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> 		8-97357-929-0 02 1 0106-0204 ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
BODY COLOR FT ORANGE(609),BODY COLORARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> 		8-97357-929-0 02 1 0205-0206 ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
BODY COLOR FT ORANGE(609),BODY COLORARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) FOG LAMP<T96> 		8-97357-929-0 02 1 0207- ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97119-301-0 01 1 9811-0105 ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97119-301-0 01 1 0106- ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97104-061-0 01 1 9811-0105 ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97104-061-0 01 1 0106- ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> 		8-97357-931-0 04 1 0106-0204 ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
BODY COLOR FT ORANGE(609),BODY COLORARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> 		8-97357-931-0 04 1 0205-0206 ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
BODY COLOR FT ORANGE(609),BODY COLORARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) FOG LAMP<T96> 		8-97357-931-0 04 1 0207- ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		8-97104-089-0 04 1 9811-0105 ● ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97104-089-0 04 1 0106- ● ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-97104-095-0 01 1 9811-0105 ● ● ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97104-095-0 01 1 0106- ● ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-97104-094-0 01 1 9811-0105 ● ● ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97104-094-0 01 1 0106- ● ● ● ● ●
52 02.726 RING; MTG,FOG LAMP
FOG LAMP<T96> 		8-97104-062-0 02 1 9811-0105 ● ● ● ● ● ●
52 02.726 RING; MTG,FOG LAMP
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97104-062-0 02 1 0106- ● ● ● ● ●
53 02.726 NUT; MTG RING,FOG LAMP
FOG LAMP<T96> 		8-94379-802-0 04 1 9811-0105 ● ● ● ● ● ●
53 02.726 NUT; MTG RING,FOG LAMP
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94379-802-0 04 1 0106- ● ● ● ● ●
54 02.726 BOLT; MTG RING,FOG LAMP
FOG LAMP<T96> M5X12 		8-94379-803-0 04 1 9811-0105 ● ● ● ● ● ●
54 02.726 BOLT; MTG RING,FOG LAMP
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) M5X12 		8-94379-803-0 04 1 0106- ● ● ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-97104-087-0 02 1 9811-0105 ● ● ● ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97104-087-0 02 1 0106- ● ● ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-94379-806-0 06 1 9811-0105 ● ● ● ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94379-806-0 06 1 0106- ● ● ● ● ●
58 02.726 HOLDER; FOG LAMP
FOG LAMP<T96> 		8-97104-088-0 02 1 9811-0105 ● ● ● ● ● ●
58 02.726 HOLDER; FOG LAMP
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97104-088-0 02 1 0106- ● ● ● ● ●
80 08.991 BULB; MARKER LAMP
AUSTRALIA EQUIPMENT(RR3) 24V 5W 		8-94135-397-0 02 1 0106- ● ● ● ● ●
81 02.587 SEAT; SCREW
AUSTRALIA EQUIPMENT(RR3) 		1-82219-012-0 04 1 0106- ● ● ● ● ●
82 02.587 SCREW; MARKER LAMP
AUSTRALIA EQUIPMENT(RR3) (B) 		1-82219-011-0 04 1 0106- ● ● ● ● ●
82 02.587 SCREW; MARKER LAMP
AUSTRALIA EQUIPMENT(RR3) 16.716 (A) M6X25 TAPPING 		9-07067-625-0 04 1 0106- ● ● ● ● ●
83 02.589 LENS; MARKER LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-97318-299-0 02 1 0106- ● ● ● ● ●
248 02.727 CLIP; HARNESS
FOG LAMP<T96> 02.559 ID=20 		5-09700-321-0 02 1 9811-0105 ● ● ● ● ● ●
248 02.727 CLIP; HARNESS
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) 02.559 ID=20 		5-09700-321-0 02 1 0106-0206 ● ● ● ● ●
248 02.727 CLIP; HARNESS
AUSTRALIA EQUIPMENT(RR3) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> 02.559 ID=20 		5-09700-321-0 02 1 0106-0206 ● ● ● ● ●
248 02.727 CLIP; HARNESS
FOG LAMP<T96> 02.559 ID=20 		5-09700-321-0 02 1 0207- ● ● ● ●
256 02.589 LAMP; MARKER
AUSTRALIA EQUIPMENT(RR3) 		8-97307-626-0 01 1 0106- ● ● ● ● ●
256 02.589 LAMP; MARKER
AUSTRALIA EQUIPMENT(RR3) 		8-97307-625-0 01 1 0106- ● ● ● ● ●
277 02.575 CLIP; LENS,FOG LAMP
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> 		8-97357-930-0 02 1 0106-0204 ● ● ● ● ●
277 02.575 CLIP; LENS,FOG LAMP
BODY COLOR FT ORANGE(609),BODY COLORARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> 		8-97357-930-0 02 1 0205-0206 ● ● ● ● ●
277 02.575 CLIP; LENS,FOG LAMP
BODY COLOR FT ORANGE(609),BODY COLORARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) FOG LAMP<T96> 		8-97357-930-0 02 1 0207- ● ● ● ● ●
413 02.575 GROMMET; SCREW,MARKER LAMP FIX
AUSTRALIA EQUIPMENT(RR3) 		8-97289-492-0 04 1 0106- ● ● ● ● ●

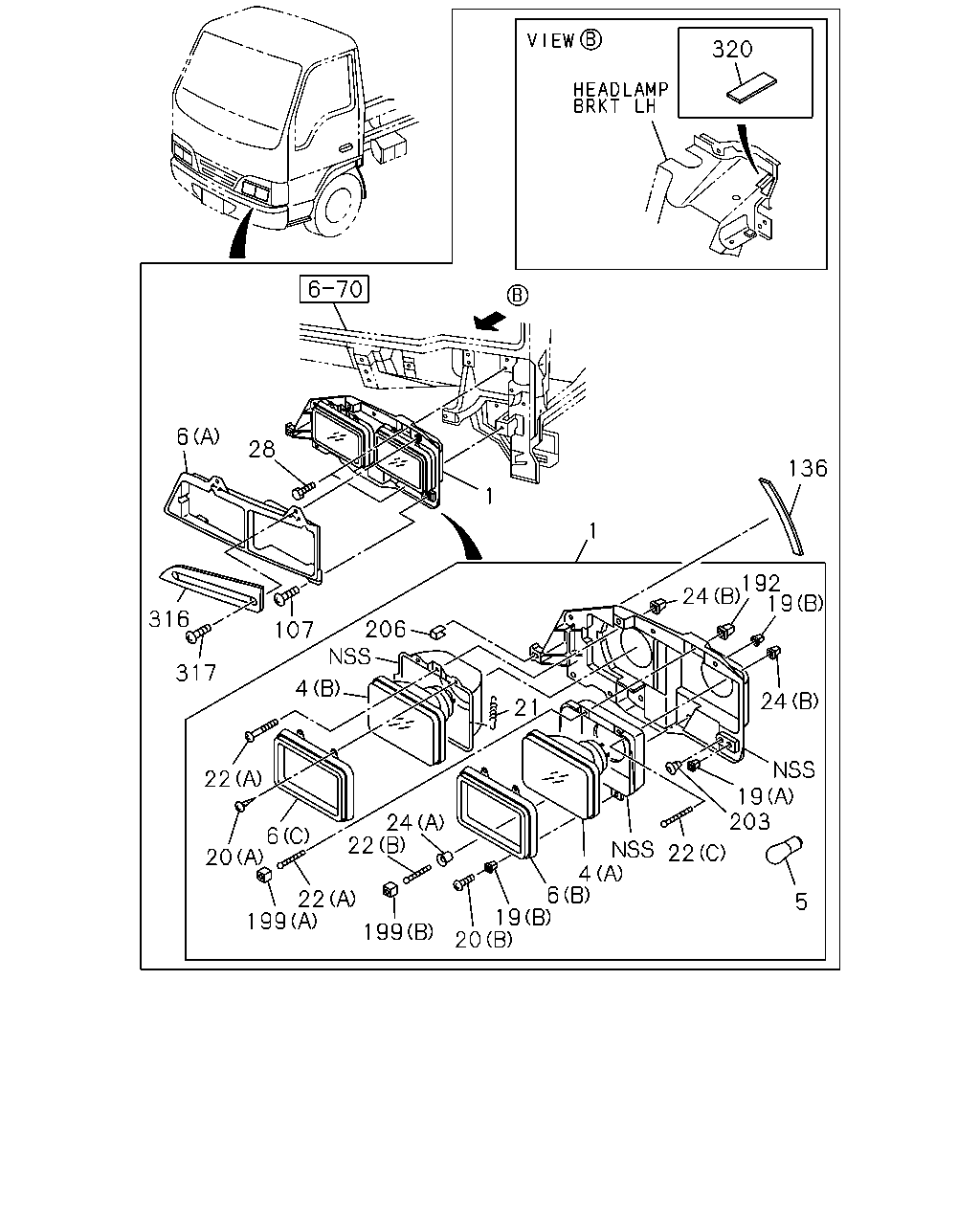

çizim 48334
320 6 28 136 1 1 192 24 19 316 206 107 317 4 24 21 19 203 22 24 22 6 4 6 19 20 22 20 22 199 5 199
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.725 LAMP ASM; HEAD
AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W 		8-97207-124-1 01 1 0106-0110 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W 		8-97316-095-0 01 1 0111- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W 		8-97207-123-1 01 1 0106-0110 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W 		8-97316-094-0 01 1 0111- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W 		8-97207-128-1 01 1 9811-0105 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
24V 75/70W 		8-97207-128-1 01 1 9811-0105 ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3) 24V 75/70W 		8-97207-128-1 01 1 0106- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
24V 75/70W 		8-97207-128-1 01 1 0106- ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W 		8-97207-127-1 01 1 9811-0105 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
24V 75/70W 		8-97207-127-1 01 1 9811-0105 ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3) 24V 75/70W 		8-97207-127-1 01 1 0106- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
24V 75/70W 		8-97207-127-1 01 1 0106- ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W 		8-97855-052-4 01 1 9811-0105 ● ● ● ●
1 02.725 LAMP ASM; HEAD
24V 55/50W 		8-97855-052-4 01 1 9811-0105 ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W 		8-97855-052-4 01 1 0106- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W 		8-97855-051-4 01 1 9811-0105 ● ● ● ●
1 02.725 LAMP ASM; HEAD
24V 55/50W 		8-97855-051-4 01 1 9811-0105 ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W 		8-97855-051-4 01 1 0106- ● ● ● ● ●
4 02.727 HEADLAMP UNIT
AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97221-935-0 01 1 0106-0110 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97324-949-0 01 1 0111- ● ● ● ● ●
4 02.727 HEADLAMP UNIT
AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97221-934-0 01 1 0106-0110 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97324-948-0 01 1 0111- ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97182-398-0 01 1 9811-0105 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
(C) 		8-97182-398-0 01 1 9811-0105 ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3) (C) 		8-97182-398-0 01 1 0106- ● ● ● ● ●
4 02.727 HEADLAMP UNIT
(C) 		8-97182-398-0 01 1 0106- ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97182-397-0 01 1 9811-0105 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
(C) 		8-97182-397-0 01 1 9811-0105 ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3) (C) 		8-97182-397-0 01 1 0106- ● ● ● ● ●
4 02.727 HEADLAMP UNIT
(C) 		8-97182-397-0 01 1 0106- ● ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 24V 55/50W 		8-94101-732-0 02 1 9811-0105 ● ● ● ●
4 02.727 HEADLAMP UNIT
(A) 24V 55/50W 		8-94101-732-0 02 1 9811-0105 ● ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 24V 55/50W 		8-94101-732-0 02 1 0106- ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 24V 55W 		8-94101-740-0 02 1 9811-0105 ● ● ● ●
4 02.727 HEADLAMP UNIT
(B) 24V 55W 		8-94101-740-0 02 1 9811-0105 ● ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 24V 55W 		8-94101-740-0 02 1 0106- ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W 		1-82194-063-0 02 1 9811- ● ● ● ● ●
5 02.727 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 9811- ● ●
5 02.727 BULB; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W CLEAR 		5-82193-003-0 04 1 9811-0105 ● ● ● ●
5 02.727 BULB; HEADLAMP
24V 55/50W CLEAR 		5-82193-003-0 04 1 9811-0105 ● ●
5 02.727 BULB; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W CLEAR 		5-82193-003-0 04 1 0106- ● ● ● ● ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		1-82114-016-0 02 1 9811-0105 ● ● ● ●
6 02.728 RIM; HEADLAMP
(C) 		1-82114-016-0 02 1 9811-0105 ● ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		1-82114-016-0 02 1 0106- ● ● ● ● ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97855-211-0 02 1 9811-0105 ● ● ● ●
6 02.728 RIM; HEADLAMP
(B) 		8-97855-211-0 02 1 9811-0105 ● ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97855-211-0 02 1 0106- ● ● ● ● ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97890-801-0 01 1 9811-0105 ● ● ● ●
6 02.728 RIM; HEADLAMP
(A) 		8-97890-801-0 01 1 9811-0105 ● ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97890-801-0 01 1 0106-0211 ● ● ● ● ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97581-089-0 01 1 0212- ● ● ● ● ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97890-800-0 01 1 9811-0105 ● ● ● ●
6 02.728 RIM; HEADLAMP
(A) 		8-97890-800-0 01 1 9811-0105 ● ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97890-800-0 01 1 0106-0211 ● ● ● ● ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97581-088-0 01 1 0212- ● ● ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97044-618-0 04 1 9811- ● ● ● ● ●
19 02.726 NUT; HEADLAMP
(A) 		8-97044-618-0 04 1 9811- ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97044-618-0 08 1 9811-0105 ● ● ● ●
19 02.726 NUT; HEADLAMP
(A) 		8-97044-618-0 08 1 9811-0105 ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97044-618-0 08 1 0106- ● ● ● ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97044-623-0 08 1 9811-0105 ● ● ● ●
19 02.726 NUT; HEADLAMP
(B) 		8-97044-623-0 08 1 9811-0105 ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97044-623-0 08 1 0106- ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) M4X8 		8-94165-886-0 08 1 9811-0105 ● ● ● ●
20 02.736 SCREW; HEADLAMP
(A) M4X8 		8-94165-886-0 08 1 9811-0105 ● ●
20 02.736 SCREW; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) M4X8 		8-94165-886-0 08 1 0106- ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97228-675-0 08 1 9811-0105 ● ● ● ●
20 02.736 SCREW; HEADLAMP
(B) 		8-97228-675-0 08 1 9811-0105 ● ●
20 02.736 SCREW; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97228-675-0 08 1 0106- ● ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		1-82119-021-0 02 1 9811-0105 ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP 1-82119-021-0 02 1 9811-0105 ● ●
21 02.737 SPRING; ADJ HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		1-82119-021-0 02 1 0106- ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97855-205-0 04 1 9811-0105 ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
(A) 		8-97855-205-0 04 1 9811-0105 ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97855-205-0 04 1 0106- ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97855-206-0 02 1 9811-0105 ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
(B) 		8-97855-206-0 02 1 9811-0105 ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97855-206-0 02 1 0106- ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97855-207-0 02 1 9811-0105 ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
(C) 		8-97855-207-0 02 1 9811-0105 ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97855-207-0 02 1 0106- ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-94387-097-0 06 1 9811-0105 ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
(B) 		8-94387-097-0 06 1 9811-0105 ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-94387-097-0 06 1 0106- ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97855-208-0 02 1 9811-0105 ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
(A) 		8-97855-208-0 02 1 9811-0105 ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97855-208-0 02 1 0106- ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 9811- ● ● ● ● ● ● ●
107 02.729 SCREW; RIM,HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> M4X20 TAPPING 		8-94279-391-0 04 1 9811-0105 ● ● ● ●
107 02.729 SCREW; RIM,HEADLAMP
M4X20 TAPPING 		8-94279-391-0 04 1 9811-0105 ● ●
107 02.729 SCREW; RIM,HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> M4X20 TAPPING 		8-94279-391-0 04 1 0106-0202 ● ● ● ● ●
107 02.729 SCREW; RIM,HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> M4X20 TAPPING 		8-97326-998-0 04 1 0203- ● ● ● ● ●
136 02.726 SEAL; HEADLAMP
AIR INTAKE SYSTEM FRONT<6PC> 170X15 		8-97853-541-0 01 1 9811-0011 ● ● ●
136 02.726 SEAL; HEADLAMP
AIR INTAKE SYSTEM FRONT<6PC> 170X15 		8-97853-541-0 01 1 0012-0105 ● ● ● ●
136 02.726 SEAL; HEADLAMP
AIR INTAKE SYSTEM FRONT<6PC> 170X15 		8-97853-541-0 01 1 0106- ●
192 02.765 PIVOT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.737 		8-94381-595-0 02 1 9811-0105 ● ● ● ●
192 02.765 PIVOT; HEADLAMP
02.737 		8-94381-595-0 02 1 9811-0105 ● ●
192 02.765 PIVOT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.737 		8-94381-595-0 02 1 0106- ● ● ● ● ●
199 02.737 BUSHING
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-94381-605-0 04 1 9811-0105 ● ● ● ●
199 02.737 BUSHING
(A) 		8-94381-605-0 04 1 9811-0105 ● ●
199 02.737 BUSHING
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-94381-605-0 04 1 0106- ● ● ● ● ●
199 02.737 BUSHING
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97855-212-0 02 1 9811-0105 ● ● ● ●
199 02.737 BUSHING
(B) 		8-97855-212-0 02 1 9811-0105 ● ●
199 02.737 BUSHING
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97855-212-0 02 1 0106- ● ● ● ● ●
203 02.726 FASTENER; HEADLAMP 8-94382-231-0 04 1 9811- ● ● ● ● ● ● ●
206 02.727 HOLDER; HEADLAMP 8-97868-156-0 02 1 9811- ● ● ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97863-622-0 01 1 9811- ● ● ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97859-500-0 01 1 9811-0011 ● ● ●
316 02.726 ORNAMENT; HEAD LAMP
AIR INTAKE REAR VERTICAL<KJ3> 		8-97859-500-0 01 1 9811-0011 ● ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97859-500-0 01 1 0012-0012 ● ●
316 02.726 ORNAMENT; HEAD LAMP
AIR INTAKE REAR VERTICAL<KJ3> 		8-97859-500-0 01 1 0012-0012 ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97859-500-0 01 1 0101-0105 ● ● ●
316 02.726 ORNAMENT; HEAD LAMP
AIR INTAKE REAR VERTICAL<KJ3> 		8-97859-500-0 01 1 0101-0105 ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97859-500-0 01 1 0106- ● ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP
AIR INTAKE REAR VERTICAL<KJ3> 		8-97859-500-0 01 1 0106- ●
316 02.726 ORNAMENT; HEAD LAMP
AIR INTAKE SYSTEM FRONT<6PC> 		8-97855-010-5 01 1 9811-0105 ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP
AIR INTAKE SYSTEM FRONT<6PC> 		8-97855-010-5 01 1 0106- ●
317 02.726 SCREW; ORNAMENT
02.729 M4X20 TAPPING 		8-94279-391-0 04 1 9811-0202 ● ● ● ● ● ● ●
317 02.726 SCREW; ORNAMENT
02.729 M4X20 TAPPING 		8-97326-998-0 04 1 0203- ● ● ● ● ● ● ●
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 9811- ● ● ● ● ● ● ●

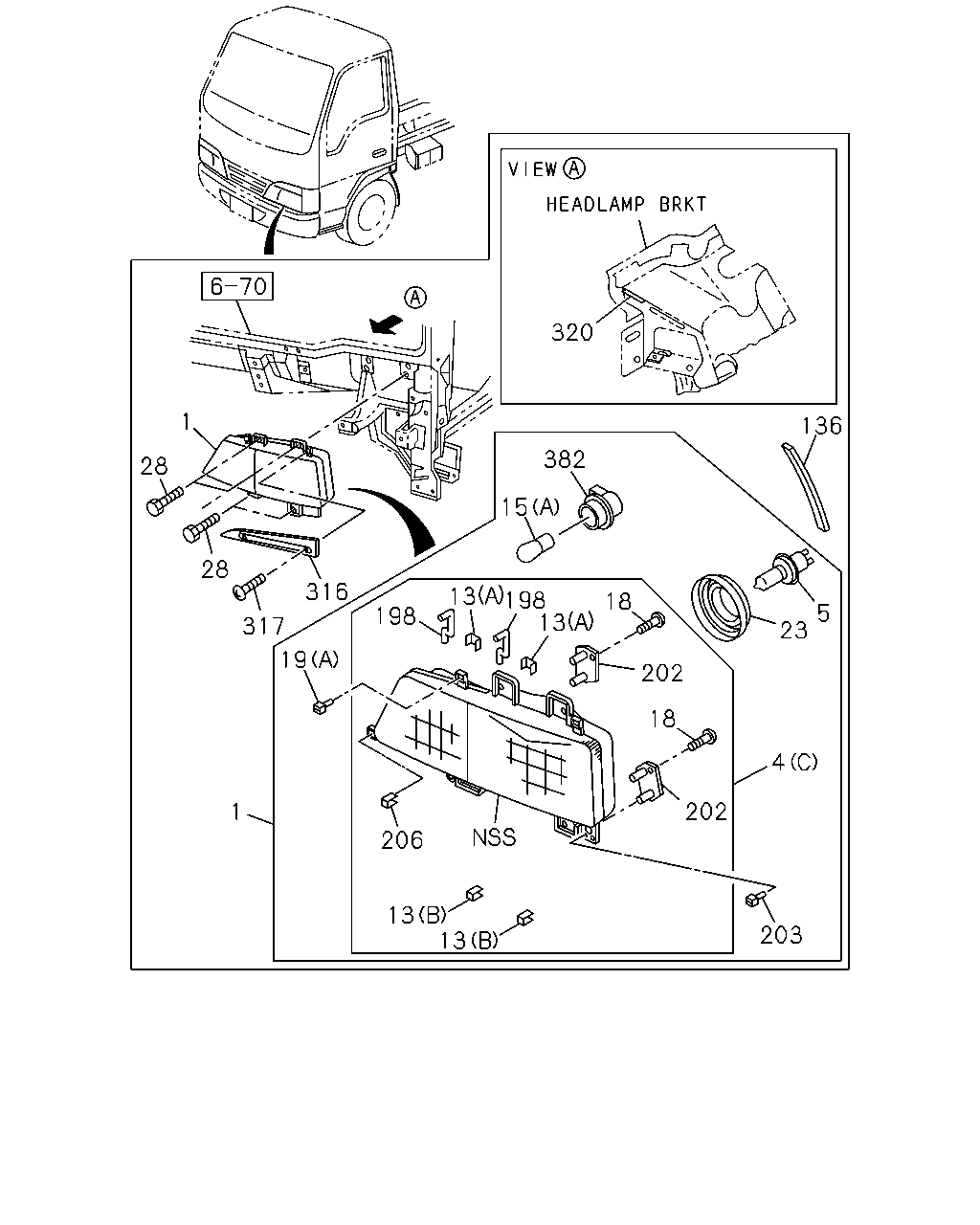

çizim 49340
320 1 136 382 28 15 28 316 13 198 13 18 5 23 198 317 19 202 18 4 202 1 206 13 13 203
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.725 LAMP ASM; HEAD
AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W 		8-97207-124-1 01 1 0106-0110 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W 		8-97316-095-0 01 1 0111- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W 		8-97207-123-1 01 1 0106-0110 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W 		8-97316-094-0 01 1 0111- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W 		8-97207-128-1 01 1 9811-0105 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
24V 75/70W 		8-97207-128-1 01 1 9811-0105 ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3) 24V 75/70W 		8-97207-128-1 01 1 0106- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
24V 75/70W 		8-97207-128-1 01 1 0106- ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W 		8-97207-127-1 01 1 9811-0105 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
24V 75/70W 		8-97207-127-1 01 1 9811-0105 ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3) 24V 75/70W 		8-97207-127-1 01 1 0106- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
24V 75/70W 		8-97207-127-1 01 1 0106- ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W 		8-97855-052-4 01 1 9811-0105 ● ● ● ●
1 02.725 LAMP ASM; HEAD
24V 55/50W 		8-97855-052-4 01 1 9811-0105 ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W 		8-97855-052-4 01 1 0106- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W 		8-97855-051-4 01 1 9811-0105 ● ● ● ●
1 02.725 LAMP ASM; HEAD
24V 55/50W 		8-97855-051-4 01 1 9811-0105 ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W 		8-97855-051-4 01 1 0106- ● ● ● ● ●
4 02.727 HEADLAMP UNIT
AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97221-935-0 01 1 0106-0110 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97324-949-0 01 1 0111- ● ● ● ● ●
4 02.727 HEADLAMP UNIT
AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97221-934-0 01 1 0106-0110 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97324-948-0 01 1 0111- ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97182-398-0 01 1 9811-0105 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
(C) 		8-97182-398-0 01 1 9811-0105 ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3) (C) 		8-97182-398-0 01 1 0106- ● ● ● ● ●
4 02.727 HEADLAMP UNIT
(C) 		8-97182-398-0 01 1 0106- ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97182-397-0 01 1 9811-0105 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
(C) 		8-97182-397-0 01 1 9811-0105 ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3) (C) 		8-97182-397-0 01 1 0106- ● ● ● ● ●
4 02.727 HEADLAMP UNIT
(C) 		8-97182-397-0 01 1 0106- ● ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 24V 55/50W 		8-94101-732-0 02 1 9811-0105 ● ● ● ●
4 02.727 HEADLAMP UNIT
(A) 24V 55/50W 		8-94101-732-0 02 1 9811-0105 ● ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 24V 55/50W 		8-94101-732-0 02 1 0106- ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 24V 55W 		8-94101-740-0 02 1 9811-0105 ● ● ● ●
4 02.727 HEADLAMP UNIT
(B) 24V 55W 		8-94101-740-0 02 1 9811-0105 ● ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 24V 55W 		8-94101-740-0 02 1 0106- ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W 		1-82194-063-0 02 1 9811- ● ● ● ● ●
5 02.727 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 9811- ● ●
5 02.727 BULB; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W CLEAR 		5-82193-003-0 04 1 9811-0105 ● ● ● ●
5 02.727 BULB; HEADLAMP
24V 55/50W CLEAR 		5-82193-003-0 04 1 9811-0105 ● ●
5 02.727 BULB; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W CLEAR 		5-82193-003-0 04 1 0106- ● ● ● ● ●
13 02.736 CLIP; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3) 02.729 (A) 		1-82119-084-0 04 1 0106- ● ● ● ● ●
13 02.736 CLIP; HEADLAMP
02.729 (A) 		1-82119-084-0 04 1 0106- ● ●
13 02.736 CLIP; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.729 (A) 		1-82119-084-0 04 1 9811-0105 ● ● ● ● ●
13 02.736 CLIP; HEADLAMP
02.729 (A) 		1-82119-084-0 04 1 9811-0105 ● ●
13 02.736 CLIP; HEADLAMP
AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.729 (A) 		1-82119-084-0 02 1 0106- ● ● ● ● ●
13 02.736 CLIP; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.729 (B) 		8-94381-588-0 12 1 9811- ● ● ● ● ●
13 02.736 CLIP; HEADLAMP
02.729 (B) 		8-94381-588-0 12 1 9811- ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> (B) 24V 55W 		8-97093-860-0 02 1 9811-0006 ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> (B) 24V 55W 		1-82194-095-0 02 1 0007-0105 ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) (B) 24V 55W 		1-82194-095-0 02 1 0106- ● ● ● ● ●
15 08.991 BULB; FOG LAMP
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> (B) 24V 70W 		8-97203-926-0 02 1 0106-0204 ● ● ● ● ●
15 08.991 BULB; FOG LAMP
BODY COLOR FT ORANGE(609),BODY COLORARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> (B) 24V 70W 		8-97203-926-0 02 1 0205-0206 ● ● ● ● ●
15 08.991 BULB; FOG LAMP
BODY COLOR FT ORANGE(609),BODY COLORARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) FOG LAMP<T96> (B) 24V 70W 		8-97203-926-0 02 1 0207- ● ● ● ● ●
15 08.991 BULB; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 24V 25W 		8-97218-934-0 02 1 9811-0105 ● ● ● ● ●
15 08.991 BULB; FOG LAMP
(A) 24V 25W 		8-97218-934-0 02 1 9811-0105 ● ●
15 08.991 BULB; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 24V 25W 		8-97218-934-0 02 1 0106- ● ● ● ● ●
15 08.991 BULB; FOG LAMP
(A) 24V 25W 		8-97218-934-0 02 1 0106- ● ●
18 02.726 SCREW; GEAR CASE
HALOGEN HEAD LAMP RECTANGULAR<TR4> M4X16 TAPPING 		1-82119-067-0 16 1 9811-9912 ● ● ● ● ●
18 02.726 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 16 1 9811-9912 ● ●
18 02.726 SCREW; GEAR CASE
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		1-82119-086-0 16 1 0001-0012 ● ● ● ●
18 02.726 SCREW; GEAR CASE
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		1-82119-086-0 16 1 0101- ● ● ● ● ●
18 02.726 SCREW; GEAR CASE 1-82119-086-0 16 1 0101- ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97044-618-0 04 1 9811- ● ● ● ● ●
19 02.726 NUT; HEADLAMP
(A) 		8-97044-618-0 04 1 9811- ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97044-618-0 08 1 9811-0105 ● ● ● ●
19 02.726 NUT; HEADLAMP
(A) 		8-97044-618-0 08 1 9811-0105 ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97044-618-0 08 1 0106- ● ● ● ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97044-623-0 08 1 9811-0105 ● ● ● ●
19 02.726 NUT; HEADLAMP
(B) 		8-97044-623-0 08 1 9811-0105 ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97044-623-0 08 1 0106- ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97855-080-0 02 1 9811- ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97855-080-0 02 1 9811- ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 9811- ● ● ● ● ● ● ●
136 02.726 SEAL; HEADLAMP
AIR INTAKE SYSTEM FRONT<6PC> 170X15 		8-97853-541-0 01 1 9811-0011 ● ● ●
136 02.726 SEAL; HEADLAMP
AIR INTAKE SYSTEM FRONT<6PC> 170X15 		8-97853-541-0 01 1 0012-0105 ● ● ● ●
136 02.726 SEAL; HEADLAMP
AIR INTAKE SYSTEM FRONT<6PC> 170X15 		8-97853-541-0 01 1 0106- ●
198 02.722 TUBE; COVER,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97855-079-0 01 1 9811-9912 ● ● ● ● ●
198 02.722 TUBE; COVER,HEADLAMP 8-97855-079-0 01 1 9811-9912 ● ●
198 02.722 TUBE; COVER,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97253-897-0 01 1 0001-0012 ● ● ● ●
198 02.722 TUBE; COVER,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97253-897-0 01 1 0101- ● ● ● ● ●
198 02.722 TUBE; COVER,HEADLAMP 8-97253-897-0 01 1 0101- ● ●
198 02.722 TUBE; COVER,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97855-078-0 01 1 9811-9912 ● ● ● ● ●
198 02.722 TUBE; COVER,HEADLAMP 8-97855-078-0 01 1 9811-9912 ● ●
198 02.722 TUBE; COVER,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97253-896-0 01 1 0001-0012 ● ● ● ●
198 02.722 TUBE; COVER,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97253-896-0 01 1 0101- ● ● ● ● ●
198 02.722 TUBE; COVER,HEADLAMP 8-97253-896-0 01 1 0101- ● ●
202 02.726 GEAR UNIT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94345-040-0 04 1 9811- ● ● ● ● ●
202 02.726 GEAR UNIT; HEADLAMP 8-94345-040-0 04 1 9811- ● ●
203 02.726 FASTENER; HEADLAMP 8-94382-231-0 04 1 9811- ● ● ● ● ● ● ●
206 02.727 HOLDER; HEADLAMP 8-97868-156-0 02 1 9811- ● ● ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97863-622-0 01 1 9811- ● ● ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97859-500-0 01 1 9811-0011 ● ● ●
316 02.726 ORNAMENT; HEAD LAMP
AIR INTAKE REAR VERTICAL<KJ3> 		8-97859-500-0 01 1 9811-0011 ● ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97859-500-0 01 1 0012-0012 ● ●
316 02.726 ORNAMENT; HEAD LAMP
AIR INTAKE REAR VERTICAL<KJ3> 		8-97859-500-0 01 1 0012-0012 ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97859-500-0 01 1 0101-0105 ● ● ●
316 02.726 ORNAMENT; HEAD LAMP
AIR INTAKE REAR VERTICAL<KJ3> 		8-97859-500-0 01 1 0101-0105 ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97859-500-0 01 1 0106- ● ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP
AIR INTAKE REAR VERTICAL<KJ3> 		8-97859-500-0 01 1 0106- ●
316 02.726 ORNAMENT; HEAD LAMP
AIR INTAKE SYSTEM FRONT<6PC> 		8-97855-010-5 01 1 9811-0105 ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP
AIR INTAKE SYSTEM FRONT<6PC> 		8-97855-010-5 01 1 0106- ●
317 02.726 SCREW; ORNAMENT
02.729 M4X20 TAPPING 		8-94279-391-0 04 1 9811-0202 ● ● ● ● ● ● ●
317 02.726 SCREW; ORNAMENT
02.729 M4X20 TAPPING 		8-97326-998-0 04 1 0203- ● ● ● ● ● ● ●
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 9811- ● ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97172-959-0 02 1 9811-0105 ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP 8-97172-959-0 02 1 9811-0105 ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97172-959-0 02 1 0106- ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP 8-97172-959-0 02 1 0106- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
