1-40 — FUEL TANK (#1880) — 46 parça

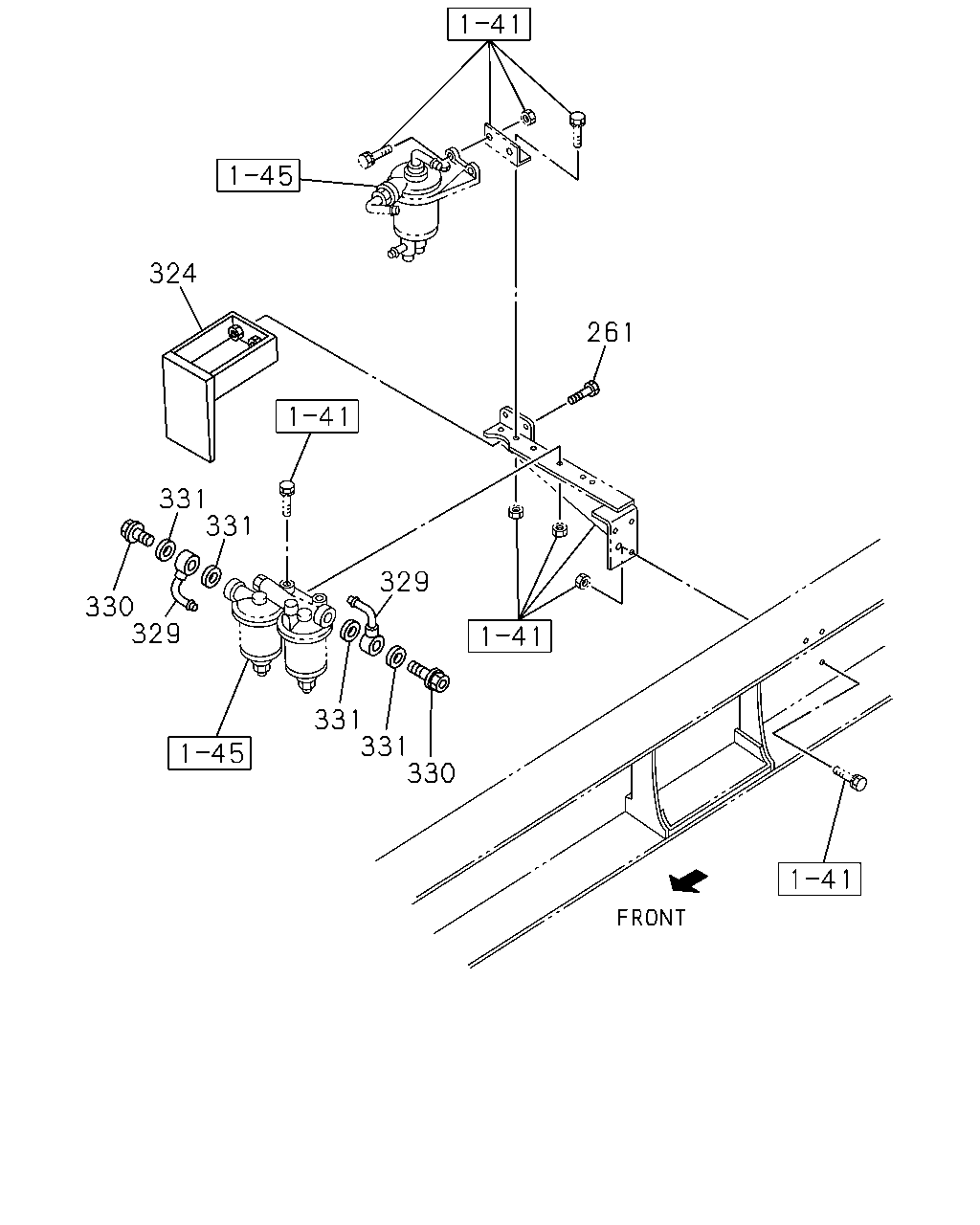

çizim 27647
324 261 331 331 329 330 329 331 331 330
BalonParca AdiParca NoAdetTipApplied Date
261 BOLT; PROTECTOR
M8X20 FLANGE 		0-28080-820-0 02 1 9207-
324 PROTECTOR; FUEL SEDIMENTER
FSS MIDDLE CHASSIS(FSS6MF) FTS ALL(FTS***) 		1-19751-090-1 01 1 9207-
329 JOINT ASM; EYE,FUEL PIPE
PRE FUEL FILTER<W21> 		5-15411-472-0 02 1 9207-
330 BOLT; EYE,JOINT
PRE FUEL FILTER<W21> M14X27 FLANGE 		1-09675-086-0 02 1 9207-
331 GASKET; EYE JOINT
PRE FUEL FILTER<W21> ID=14.2 OD=19.2 		1-09630-085-0 04 1 9207-

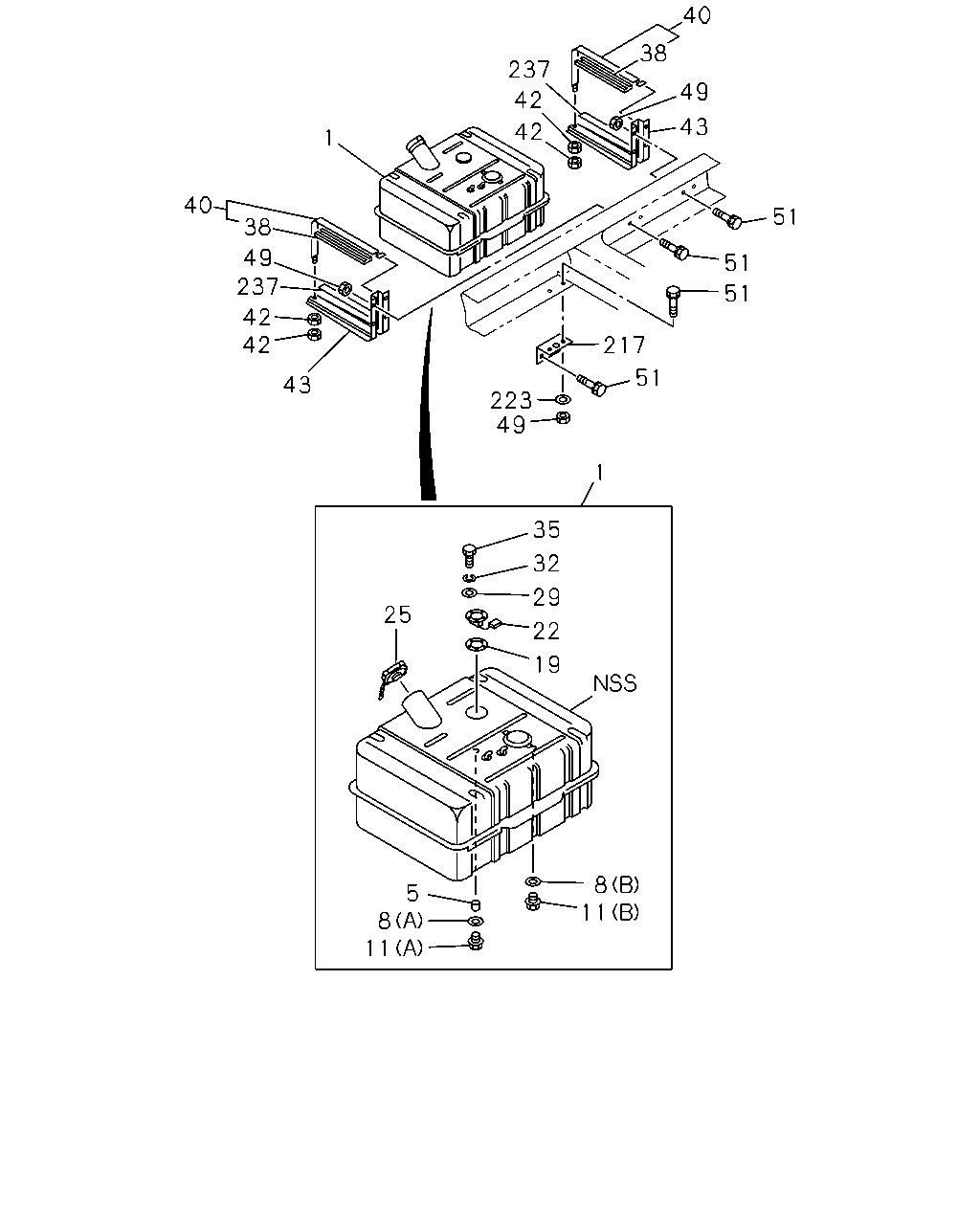

çizim 27650
40 38 237 49 42 43 42 1 40 51 38 49 237 51 51 42 42 217 51 43 223 49 1 35 32 29 25 22 19 8 11 5 8 11
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; FUEL
FUEL TANK 200L FRAME SIDE<N20> 720X610X496 200L 		1-22400-571-4 01 1 9207-
1 TANK; FUEL
EXC. FUEL TANK 200L FRAME SIDE<N20> 720X610X353 140L 		1-22400-490-4 01 1 9207-
5 STRAINER; FUEL TANK 1-22460-001-1 01 1 9207-9402
8 GASKET; DRAIN PLUG,FUEL TANK
(B) T=2.0 		9-09923-030-0 01 1 9207-
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> (A) 		1-22416-001-0 01 1 9207-
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> (A) M18X12 		1-09604-081-0 01 1 9207-
11 PLUG; DRAIN,FUEL TANK
(B) 		1-09604-052-0 01 1 9207-
19 GASKET; FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE<N20> 		9-83135-003-0 01 1 9207-
19 GASKET; FUEL TANK UNIT
EXC. FUEL TANK 200L FRAME SIDE<N20> 		9-83135-011-0 01 1 9207-
22 UNIT; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> 		1-83141-056-0 01 1 9207-
22 UNIT; FUEL TANK
EXC. FUEL TANK 200L FRAME SIDE<N20> 		1-83141-059-0 01 1 9207-
25 CAP; FILLER,FUEL TANK 1-22440-033-2 01 1 9207-
29 WASHER; PL,FUEL TANK UNIT
ID=5.3 		9-09160-505-0 01 1 9207-
32 WASHER; LK,FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE<N20> ID=5.1 		9-09150-505-0 05 1 9207-
35 SCREW; FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE<N20> M5X10 		9-93497-510-0 05 1 9207-
35 SCREW; FUEL TANK UNIT
EXC. FUEL TANK 200L FRAME SIDE<N20> M5X10 W/LK WASHER 		9-03910-510-0 05 1 9207-
38 INSULATION; SUPPORT BELT
L=650 		1-22553-022-1 02 1 9207-
40 BELT; SUPPORT,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> L=1030 		1-22550-204-2 02 1 9207-
40 BELT; SUPPORT,FUEL TANK
EXC. FUEL TANK 200L FRAME SIDE<N20> L=905 		1-22550-183-2 02 1 9207-
42 NUT; SUPPORT BELT
M10 		9-09110-510-0 04 1 9207-
43 BRACKET; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> 		1-53461-279-4 02 1 9207-
43 BRACKET; FUEL TANK
EXC. FUEL TANK 200L FRAME SIDE<N20> 		1-53461-156-5 02 1 9207-9212
43 BRACKET; FUEL TANK
EXC. FUEL TANK 200L FRAME SIDE<N20> 		1-53461-401-1 02 1 9301-
49 NUT; BRKT
FUEL TANK 200L FRAME SIDE<N20> M12 		9-99110-512-0 16 1 9207-
49 NUT; BRKT
EXC. FUEL TANK 200L FRAME SIDE<N20> M12 		9-99110-512-0 08 1 9207-
51 BOLT; BRKT TO FRAME
FUEL TANK 200L FRAME SIDE<N20> M12X35 W/LK WASHER 		0-50041-235-0 16 1 9207-9307
51 BOLT; BRKT TO FRAME
FUEL TANK 200L FRAME SIDE<N20> M12X35 FLANGE 		0-28081-235-0 16 1 9308-
51 BOLT; BRKT TO FRAME
EXC. FUEL TANK 200L FRAME SIDE<N20> M12X32 W/LK WASHER 		0-50041-232-0 08 1 9207-9307
51 BOLT; BRKT TO FRAME
EXC. FUEL TANK 200L FRAME SIDE<N20> M12X35 FLANGE 		0-28081-235-0 08 1 9308-
217 BRACKET; FUEL TANK,LOW
FUEL TANK 200L FRAME SIDE<N20> 		1-53461-322-1 02 1 9207-
223 WASHER; PL,LWR BRKT FIX
FUEL TANK 200L FRAME SIDE<N20> ID=12.5 OD=26 		9-09160-612-0 04 1 9207-
237 GASKET; BRKT TO FUEL TANK
L=580 		1-22553-003-0 02 1 9207-
çizim 96377
285 281 286 55 72 287 282 283 275
BalonParca AdiParca NoAdetTipApplied Date
55 CLIP; FUEL PIPE
FIRE TRUCK(RA9) 		9-09917-347-0 01 1 9207-
72 NUT; BRKT
FIRE TRUCK(RA9) M8 		9-09110-508-0 02 1 9207-
275 HOSE; FLEX,FUEL TANK
FIRE TRUCK(RA9) L=400 		1-09364-252-0 02 1 9207-
281 BRACKET; FLEX HOSE
FIRE TRUCK(RA9) 		1-47476-021-0 01 1 9207-
282 NUT; FLEX HOSE,FUEL TANK
FIRE TRUCK(RA9) M16 		9-99111-416-0 02 1 9207-
283 WASHER; LK,FLEX HOSE,FUEL TANK
FIRE TRUCK(RA9) ID=16.2 		9-09150-516-0 02 1 9207-9312
285 BOLT; BRKT
FIRE TRUCK(RA9) M8X25 FLANGE 		0-28080-825-0 02 1 9207-
286 BOLT; CLIP
FIRE TRUCK(RA9) M10X25 W/LK WASHER 		0-50041-025-0 01 1 9207-
287 NUT; CLIP
FIRE TRUCK(RA9) M10 		9-09110-510-0 01 1 9207-
